Beyond Lighting BY-P18 User manual

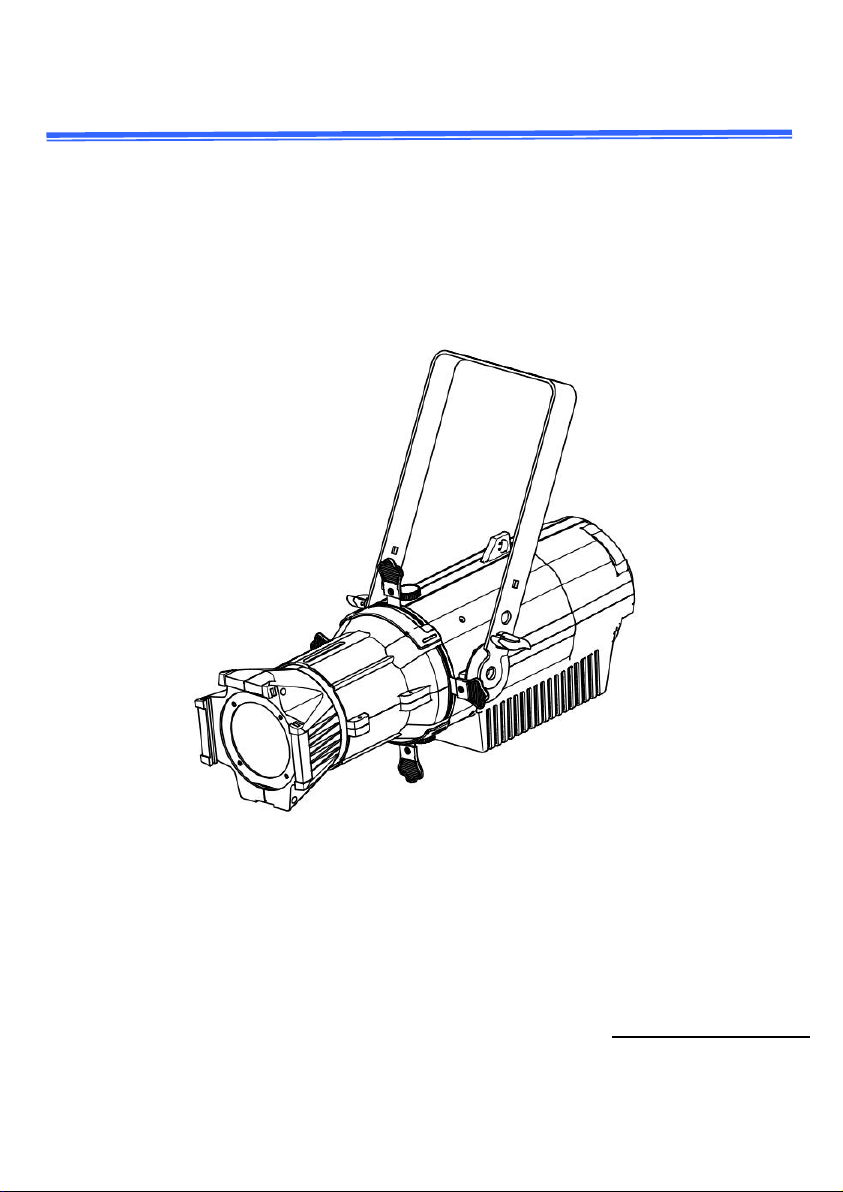

BY-P18 LED Profile Spot Light
300W RGBAL Die-casting Aluminum LED
Profile Spot Light (Fix Lens 19/26/36/50)
User manual
P le ase rea d t he ins t r u ction s ca refu ll y before use

2
TABLE OF CONTENTS
1. Technical Specifications ...................................................................3-4
2. Description ..........................................................................................4
3. Unpacking .........................................................................................5-6
4. Main Menu .............................................................................................7
5. Vice Menu ..........................................................................................8-9
6. DMX Channels ...............................................................................10-11
7. Size................. ....................................................................................12
8. Fixture Cleaning ..................................................................................13
9. Warning ...............................................................................................13
Statement
Led Profile can give you a perfect lighting effect that can be used
anywhere. With Philips Led 90pcs * 3W Lamp (R(20), G(14), B(14), A(18),
L(24)).
Led Profile Light can give you a perfect lighting effect that can be used
anywhere. Including warm white 3200K, cool white 5600K, and also optional
the full color temperature from 2700K to 12,000K, which can similar like the
sunrise to sunset.

3
1. Technical Specifications
Light Source:
LED POWER: 300W
LED Color: RGBAL 300W R(20), G(14), B(14), A(18), L(24)
300W RGBAL LED: Philips from Netherlands (90pcs *3w led)
Fully Tuneable from 2,700 to 12,000K
Power supply:
Voltage: AC100-240V
Max.power: 300W
Optics:
Fixed Lens: 19°/26°/36°/50°(optional)
LED Life Time: over 50,000 hours
Iris: optional
Color Frame: optional
Features:
Dimming Curve: 4 kinds dimming curve
PWM: 500HZ - 25000HZ optional
Strobe :1-25times/sec
Light body feature:
Focus: Can be adjusted by hand
Technology: High-quality optical system , glass reflector
Light body: Die casting Aluminum
Touch screen: LCD with touch screen
Feature of housing: High quality fireproof ,corrosion-resistance, Oxidation
resistance

4
Control:
Control Protocol: RDM / DMX
Control System: DMX, Auto run and Master/Slave
DMX Channels: 5/10CH
Working Environment :
Working Temperature: -30~40℃
Cooling system: No noise fan (copper tube)
IP Grade: IP20
Package :
Dimensions: 611(D)*173(W)*480(H)mm
Net Weight : 10.5kgs
Gross Weight: 12.5 kgs
Packing Size: 72*33*31.5 cm (1pc/carton)
2. Descriptions
·Full color RGBAL LED Ellipsoidal fixture
·Ultra smooth 16-bit dimming of master dimmer and individual colors
·Flat, even field of light with superior color mixing
·Virtual Color wheel with color matched to popular gel colors
·Color Temperature Presets from 2700 K to 12000 K with high CRI &CQS
·RDM (Remote Device Management) for added flexibility
·Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
·Selectable dimming curve: Standard mode, Incandescent mode, quick mode
and linear mode
·LCD touch screen
·Virtually silent operation for use in studio and theatre applications

5
3. Unpacking
Thank you for choosing our P18. For your own safety, please read this manual before
installing the device. This manual covers the important information on installation
and applications. Please install and operate the fixture with following instructions.
Meanwhile, please keep this manual well for future needs.
The P18 is made of a new type of high temperature strength of die cast aluminum
casing with nice outlook. The fixture is designed and manufactured strictly following
CE&RoHS standards, complying with international standard DMX512 protocol. It's
available independently controlled and linkable with each other for operation. And it
is applicable for large-scale live performances, theater, studio, nightclubs and discos.
The P18 adopts Philips Led 90pcs * 3W Lamp (R(20), G(14), B(14), A(18), L(24)),

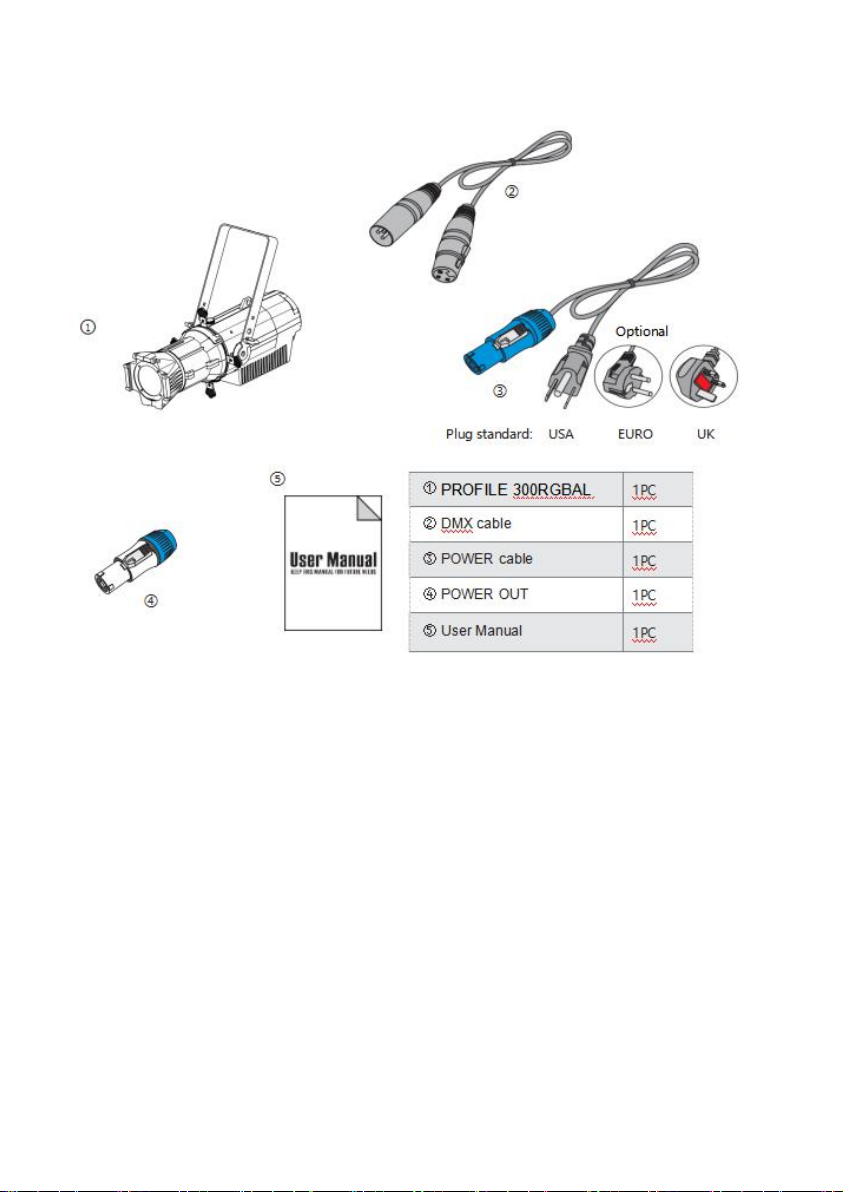

which features high brightness and stability. Please carefully unpack it when you
receive the fixture and check whether it is damaged during the transportation. And
please check whether the following items are included inside the box:

6

7
4. Main Menu
Operation Status
Mode
Display
Description
DMX Mode
Master-slave
Axxx
“A”stand for standard channel mode, “xxx”stand for ID
address, Auto identify controller signals or host signals
Dxxx
“D”stand for basic channel mode, “xxx”stand for ID address,
Auto identify controller signals or master signals
Manual
M-MC
“M”stand for Master mode，“MC”stand for “Mixed Colort”
Auto run
M-Ax
“M”stand for Master mode ，“A”stand for “Auto”, “x” is Auto
program number(1~8)
Sound
activated
M-Sx
“M”stand for Master mode，“S”stand for “Sound”, “x” is Sound
activated (1 or 2)
Color
Temperature
M-WP
“M”stand for Master mode，“WP”stand for“White Point”
Select Color
M-QC
“M”stand for Master mode，“QC”stand for“Quick Color”

8
3. Vice Menu
DMX Settings
Menu
Operation
Optio
n
Description
DMX Start
Address
Press key of “OK” enter to edit
mode, press “UP” and ”down” to
edit the DMX address
1~512
DMX Profile
Press key of “OK” change the
DMX channel mode
10CH
Standard Channel Mode
5CH
Basic Channel Mode
Master Mode Choice
Menu
Operation
Vice Menu description
Mixed Color
Press Key of “OK” to choose
mode
Choose the color and strobe setting
Auto Mode
Same as above
Choose the Auto and Speed setting
Sound Mode
Same as above
Choose the Sound and Mode setting
White Point
Same as above
Choose the color temperature
Quick Color
Same as above
Choose the built-in color
Status
Menu
Description
Software
Name of software
Version
Version
Temperatur
e
Show the temperature of lighting fixture
DMX Status
With“OK”（Slave mode，with signal），“NONE”（Slave mode，no signal）、
“Master”（Master）
Settings
Menu
Operation
Option
Description

9
Touch Screen
Calibration
Touch screen
adjust
Dimmer Frequency
Change the
dimmer frequency
500Hz
......
25000Hz
Dimmer Curve
Change dimmer
curve
Standard
Incandescent
Linear
Quick
Over Temperature
Temperature
setting
80~100
Each 5 for increase
or decrease
Backlight
Adjust the display
brightness
10%~100%
Each 5% for
increase or
decrease
Backlight Timeout
Screen protect
setting
No screen protect
or black screen
from 0~ 60
second
Each 5 for increase
or decrease
Load Factory Settings
Reset

10
6.DMX Channels
Standard channel mode(10CH)
Channel
Data
Function
Remark
1
0~255
Dimmer
2
0~255
Color 1
3
0~255
Color 2
4
0~255
Color 3
5
0~255
Color 4
6
0~255
Color 5
7
0~10
No function
10~20
Color Temperature 2700K
20~30
Color Temperature 3000K
30~40
Color Temperature 3200K
40~50
Color Temperature 3600K
50~60
Color Temperature 4000K
60~70
Color Temperature 4200K
70~80
Color Temperature 4500K
80~90
Color Temperature 5600K
90~100
Color Temperature 6000K
100~110
Color Temperature 6500K
110~120
Color Temperature 7200K
120~130
Color Temperature 8000K
130~140
Color Temperature 9000K
140~150
Color Temperature 10000K
150~160
Color Temperature 12000K
160~170
Custom color temperature one
170~180
Custom color temperature two

11
180~255
Custom color temperature three
8
0~9
Null
10~19
built-in color 1
……
built-in color n
Each 10 data for each built-in
color
9
0~10
No function
11~255
Strobe speed（255 is the fastest）
10
0~9
Null
10~19
Auto 1
......
Auto 2~7
Each 10 data for one auto
80~89
Auto 8
90~199
Null
200~219
Sound 1
220~255
Sound 2
Basic channel mode(5CH)
Channel
Data
Function
1
0~255
Color 1
2
0~255
Color 2
3
0~255
Color 3
4
0~255
Color 4
5
0~255
Color 5

12
7.Size
Size of the fixture: 612*300*480MM

13
4. Fixture Cleaning
Before disconnecting the lighter or starting maintenance work, ensure that
the power supply of the light is turned off to maintain the maximum brightness
output of the light, and it can also prolong its service life. It is recommended to
use high-quality professional glass cleaner and to clean it with cloth. Alcohol or
chemical solvents are not allowed under any circumstances. The interior of the
lamp is vacuum-cleaned at least once a year.
10. Warning
Do not disassemble or modify light fixtures
Do not expose the fixture to water or any other kind of liquids and metals
Do not install the lamp in a hot environment
Do not shoot the light beam on flammable materials. The distance between
the light fixture and flammable material should be at least 2 meters.
The distance between the lamp and the surface of the adjacent object should
be at least 0.5 meters.
Do not look directly at the beam of the follower lamp, as it may cause eye
damage
Before opening the chasing light product or want to repair work, please make
sure that the power is off
