Beyond Lighting BY-P27 User manual

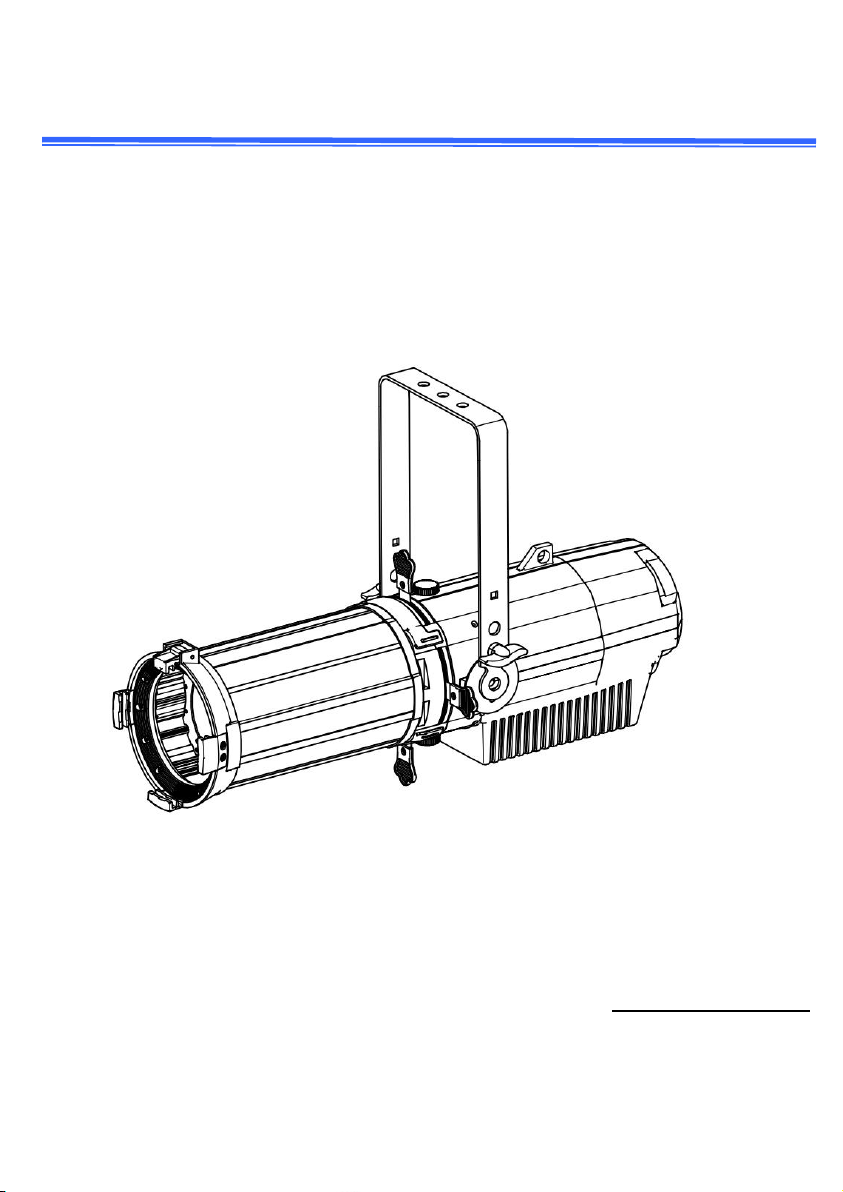

BY-P27 LED Profile Spot Light
200W Or 300W & WW Or CW
Die-casting Aluminum LED Profile Spot Light
(Manual zoom 12°to 30°/ 25°to 50°)
User manual
P le ase rea d t he ins t r u ction s ca refu ll y before use

2
TABLE OF CONTENTS
1. Technical Specifications ...................................................................3-4
2. Description ..........................................................................................4
3. Unpacking .........................................................................................5-6
4. Main Menu .............................................................................................7
5. Vice Menu ..........................................................................................8-9
6. DMX Channels ......................................................................................9
7. Size................. ....................................................................................10
8. Fixture Cleaning ..................................................................................11
9. Warning ...............................................................................................11
Statement
LED Profile is the ERS-style fixture with manual zoom range of 12°to 30°
or 25°to 50°. It is constructed using high-precision HD optics encased in
rugged housings designed to survive the rigors of touring, broadcast and
theatrical production.Extremely smooth dimming down to the very bottom of
the curve as well as a flat and even field of light for superior gobo projection.
Control options like selectable PWM, RDM, and selectable dimming curves
round out this virtually silent ellipsoidal.

3
1. Technical Specifications
Light Source:
LED POWER: 200W or 300W
LED Color: CW or WW (200W or 300W) COB LED
Color Rendering Index(CRI): Ra≥90
Power supply:
Voltage: AC100-240V
Max.power: 200W or 300W
Optics:
Beam Angle: 12°to 30° or 25°to 50°
LED Life Time: over 50,000 hours
Iris: optional
Color Frame: optional
Features:
Dimming Curve: 4 kinds dimming curve
PWM: 500HZ - 25000HZ optional
Strobe :1-25times/sec
Light body feature:
Focus: Can be adjusted by hand
Technology: High-quality optical system , glass reflector
Light body: Die casting Aluminum
Touch screen: LCD with touch screen
Feature of housing: High quality fireproof ,corrosion-resistance, Oxidation
resistance

4
Control:
Control Protocol: RDM / DMX
Control System: DMX, Auto run and Master/Slave
DMX Channels: 1/2CH
Working Environment :
Working Temperature: -30~40℃
Cooling system: No noise fan (copper tube)
IP Grade: IP20
Package :
Dimensions: 738(D)*187(W)*436(H)mm
Net Weight : 10.5kgs
Gross Weight: 12.5 kgs
Packing Size: 72*33*31.5 cm (1pc/carton)
2. Descriptions
·Warm or cool white ERS style fixture with output exceeding a tungsten 750 W
source
·Manual zoom range 12°to 30° or 25°to 50°
·Ultra smooth 16-bit dimming of master dimmer and individual colors
·Flat, even field of light with superior color mixing
·RDM (Remote Device Management) for added flexibility
·Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
·Selectable dimming curve: Standard mode, Incandescent mode, quick mode
and linear mode
·LCD touch screen
·Virtually silent operation for use in studio and theatre applications

5
3. Unpacking
Thank you for choosing our P27. For your own safety, please read this manual before
installing the device. This manual covers the important information on installation
and applications. Please install and operate the fixture with following instructions.
Meanwhile, please keep this manual well for future needs.
The P27 is made of a new type of high temperature strength of die cast aluminum
casing with nice outlook. The fixture is designed and manufactured strictly following
CE&RoHS standards, complying with international standard DMX512 protocol. It's
available independently controlled and linkable with each other for operation. And it
is applicable for large-scale live performances, theater, studio, nightclubs and discos.
The P27 adopts 1PCS 200W or 300W COB LED (available for WW) which features

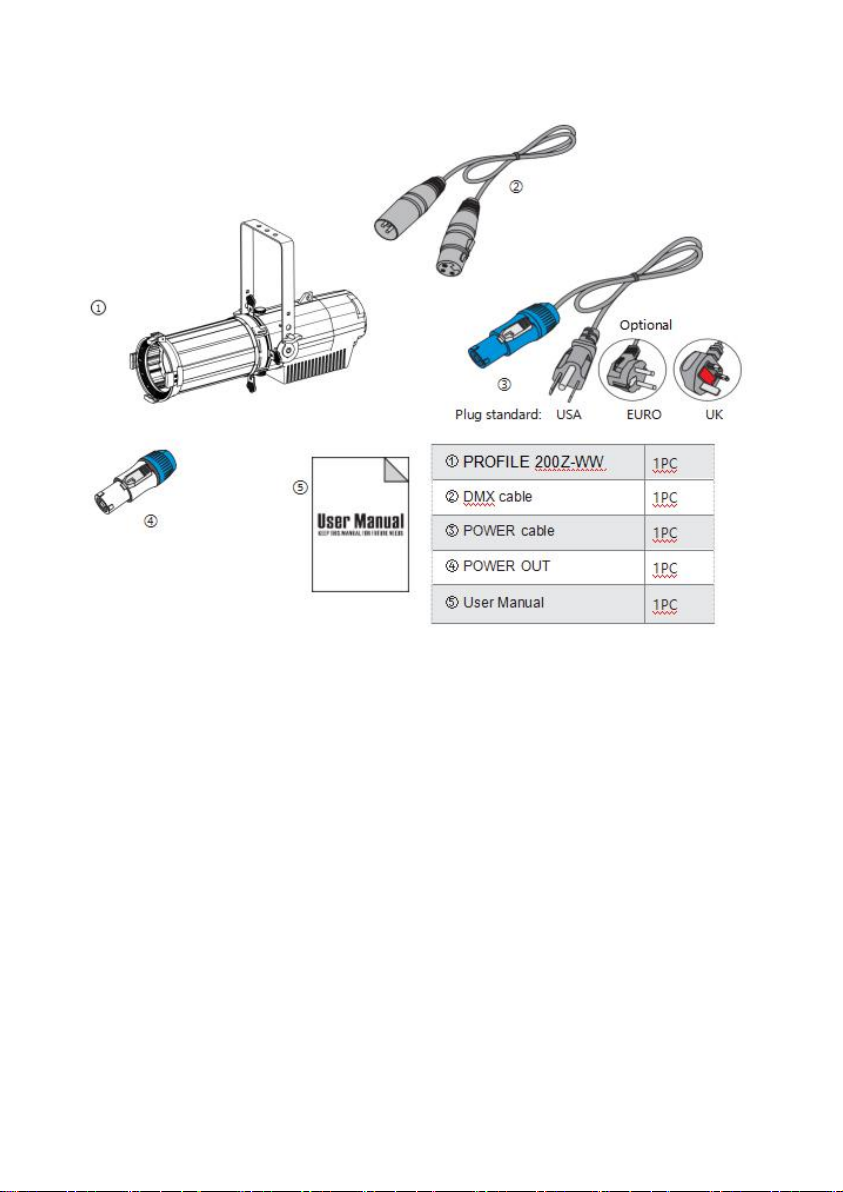

high brightness and stability. Please carefully unpack it when you receive the fixture
and check whether it is damaged during the transportation. And please check whether
the following items are included

6

7
4. Main Menu
Operation Status
Mode
Display
Description
DMX Mode
Axxx
“A”stand for standard channel mode,，“xxx”stand for
ID address
Dxxx
“D”stand for basic channel mode，“xxx”stand for ID
address
Manual
Mode
S-MC
“S”stand for stand alone mode ，“MC”stand
for“Mixed Color”

8
5.Vice Menu
DMX Settings
Menu
Operation
Optio
n
Description
DMX Start
Address
Press key of “OK” enter to edit
mode, press “UP” and ”down” to
edit the DMX address
1~51
2
DMX Profile
Press key of “OK” change the
DMX channel mode
2CH
Standard Channel Mode
1CH
Basic Channel Mode
Single Mode Choice
Menu
Operation
Vice Menu description
White Point
Press Key of “OK” to choose mode
Choose color temperature
Quick Color
Same as before
Choose inner setting color
Mixed Color
Same as before
Choose the color and strobe setting
Status
Menu
Description
Software
Name of software
Version
Version
Temperature
Show the temperature of lighting fixture
DMX Status
With“OK”（Slave mode，with signal），“NONE”（Slave mode，no signal）、
“Alone”（alone）
Settings
Menu
Operation
Option
Description
Touch Screen
Calibration
Touch
screen
adjust
Dimmer Frequency
Change the
500HZ

9
dimmer
frequency
……
Each 100HZ for
increase or decrease
25000HZ
Dimmer Curve
Change
dimmer
curve
Standard
Incandescent
Linear
Quick
Over Temperature
Temperature
setting
45~95
Each 5 for increase or
decrease
Backlight
Adjust the
display
brightness
10%~100%
Each 5% for increase
or decrease
Backlight Timeout
Screen
protect
setting
No screen protect or
black screen from 0~
60 second
Each 5 for increase or
decrease
Load Factory Settings
Reset
6.DMX Channels
Standard channel mode(2CH)
Channel
Data
Function
Remark
1
0~255
Dimmer
2
0~10
No function
11~255
Strobe speed （255 is
the fastest）
Basic channel mode(1CH)
Channel
Data
Function
1
0~255
Color 1

10

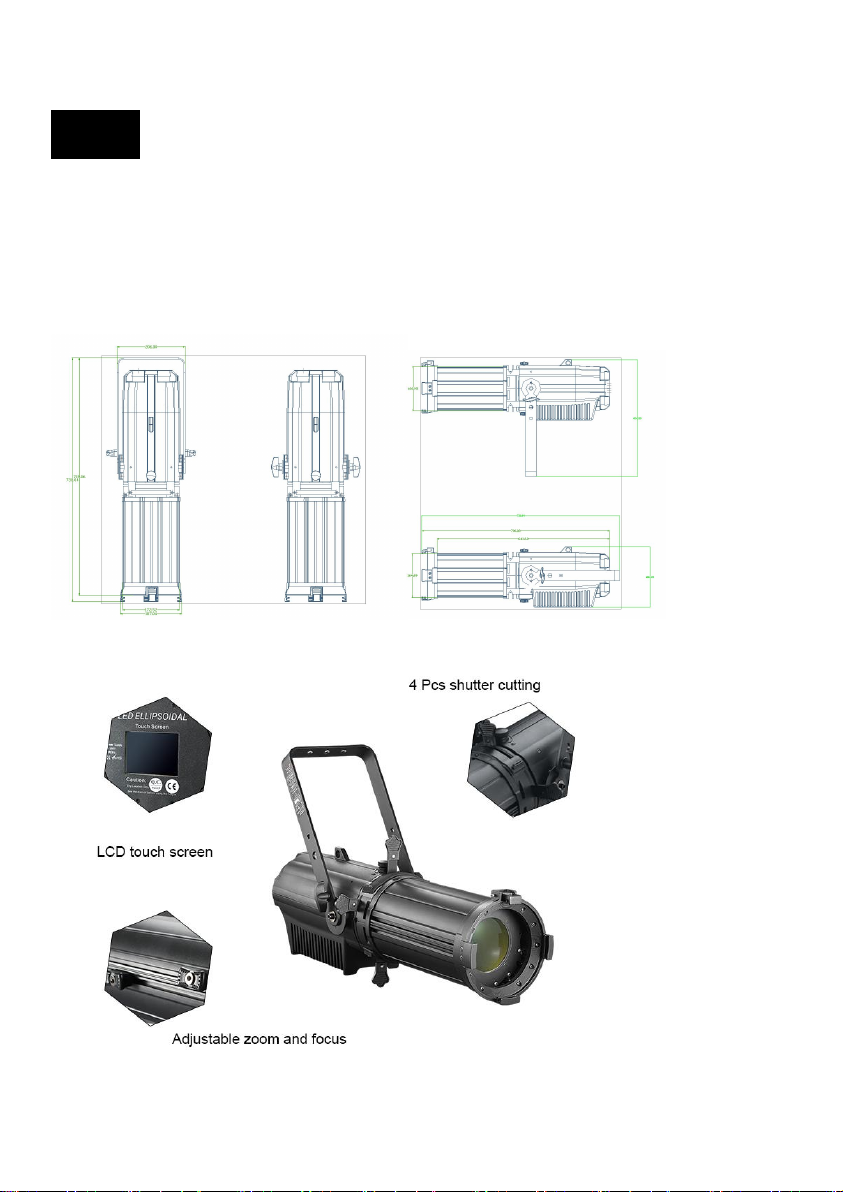

7.Size
Size of the fixture:
12-30°：860(L)MM*180(W)MM*440(H)MM
25-50°：740(L)MM*180(W)MM*440(H)MM

11
8. Fixture Cleaning
Before disconnecting the lighter or starting maintenance work, ensure that
the power supply of the light is turned off to maintain the maximum brightness
output of the light, and it can also prolong its service life. It is recommended to
use high-quality professional glass cleaner and to clean it with cloth. Alcohol or
chemical solvents are not allowed under any circumstances. The interior of the
lamp is vacuum-cleaned at least once a year.
9.Warning
Do not disassemble or modify light fixtures
Do not expose the fixture to water or any other kind of liquids and metals
Do not install the lamp in a hot environment
Do not shoot the light beam on flammable materials. The distance between
the light fixture and flammable material should be at least 2 meters.
The distance between the lamp and the surface of the adjacent object should
be at least 0.5 meters.
Do not look directly at the beam of the follower lamp, as it may cause eye
damage
Before opening the chasing light product or want to repair work, please make
sure that the power is off
