Thank you for your purchase and for choosing BEYOND®. BEYOND®International Inc.,
global leaders in aesthetic dental products, is proud to provide you the award winning
BEYOND®Polus®Advanced Ultra Whitening Accelerator, which will allow you to deliver the
Ultimate Whitening Experience.
Purpose
The BEYOND®Polus®Advanced Ultra Whitening Accelerator is an enhanced version of the
award winning BEYOND®Polus®Whitening System, designed for professional whitening in
a dental facility to whiten stained teeth. With the Polus®Advanced Ultra, a combination of
a powerful Halogen, LED light, and Ultrasonic whitening technologies are used to deliver a
tailored light between 400 – 650 nanometers in wavelength needed to activate BEYOND®
whitening gels and provide up to 6-8 shades improvements.
Notice
The BEYOND®Polus®Advanced Ultra must only be used by trained whitening
professionals in a professional environment. Do not use without a thorough understanding
of this manual.
BEYOND®brand dental products are manufactured to international quality standards and
are thoroughly inspected upon completion. Once received, inspect both the shipping
packaging and the whitening system for any damage and report it (if any) to BEYOND®.
Please save all packaging materials.
1

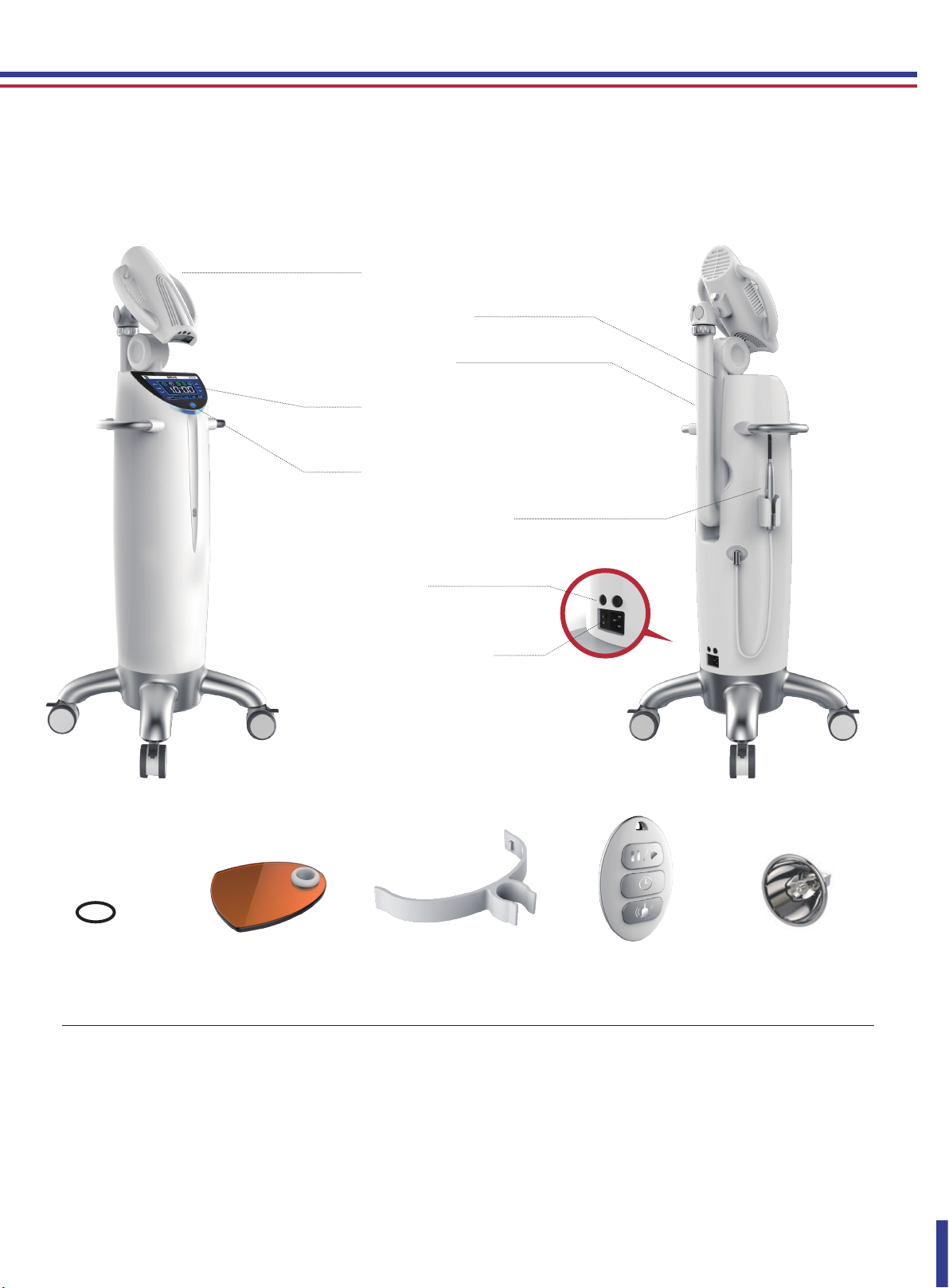

BEYOND®Polus®Advanced Ultra Whitening Accelerator
System Instruction Manual
x 4
Rubber o-rings
Additional Accessories:
Lamp Head
Vertical Post
Lamp Arm
Touch User Interface (TUI)
Control Panel
Power On/O󰀨 Button
LED Curing Light/
Spot Whitening Device
Fuses
System
On/O󰀨 Switch
Technical Parameters
Model: PLS-868UL
Input Voltage: 100~240VAC
Frequency: 50Hz/60Hz
Output Voltage: 12V
Input power: 150VA
Power fuse size: T2.5AL250V x 2
Working system: Continuous
Gross Weight: 30KG
Package Dimension: 47 x 47 x 109.5cm
Electrical Safety Requirements
1. Class I device
2. No applied part
3. Do not use the device near ammable anesthetic
gas when mixed with air or nitrogen oxide.
4. Do not use the device near strong magnetic eld.
Normal Working Condition
Environmental temperature range: 5~40°C
Relative humidity range: ≤80%
Atmospheric pressure range: 86~106kpa
Transport and Storage Conditions
Environmental temperature range: -20-+55°C
Relative humidity range: ≤93%
Atmospheric pressure range: 50 kPa-106kPa
BEYOND®Polus®Advanced Ultra Whitening
Accelerator and accessories are recyclable
electronic products.Please send the
decommisioned whitening accelerator and
accessories to recycle station.
Anti-Glare Shield Lamp head holder for
Spot Whitening Device
Spare Halogen Light
Bulb
Remote Control
2

Attach the threaded joint at the base of the lamp head to the end of
the lamp arm and screw the large metal nut onto the lamp head’s
threaded joint until secure.
Attach the male 7-pin circular connector plug located on the cable
at the end of the lamp arm to the female 7-pin circular connector
socket at the back of the lamp head. Screw the threaded joint into
place until the cable is secured.
Note: Head should be positioned below the lamp arm (as pictured)
for easier handling during the whitening procedure.
In some cases, after installing the Polus Advanced Ultra lamp
headthe light will switch on and stay on. In this eventuality,
please press the highlighted button that can be seen below on the
accelerator base to deactivate this function. The Polus Advanced
Ultra Accelerator will then reset and function normally.
Attach the male 3-pin circular connector plug to the female 3-pin
circular connector socket on the back of the machine. Screw the
threaded joint into place until cable is secured.
Always store the LED Curing Light/Spot Whitening Device in the
special holder on the back of the machine. Avoid dropping or
hitting the fiber light-transmission tube at the top of the device.
Accidental impact may cause the part to break.
Attaching the Lamp Head
Attaching the LED Curing Light/
Spot Whitening Device
3
Press this button
to reset light.

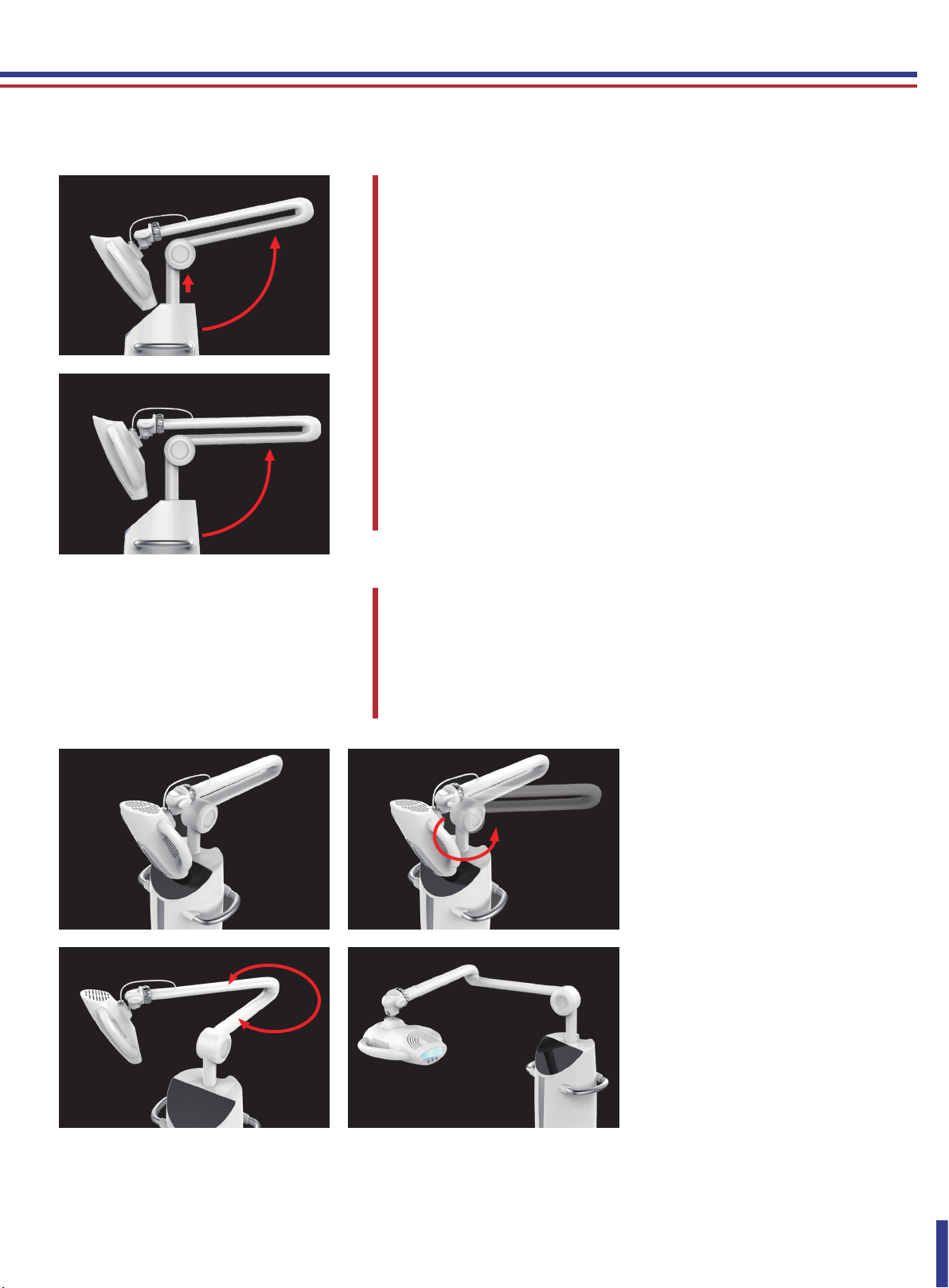

To extend the lamp arm from the resting position, pull the lamp arm
up a few degrees from the back of the machine by grasping rmly
at the end of the joint and pulling upwards.
As you do this, a sensor at the top of the vertical post will raise the
post automatically to avoid hitting the lamp head on the TUI panel.
Wait until the vertical post has stopped rising before proceeding to
the next step.
Grasping the base of the lamp arm at the back of the machine,
extend the lamp arm to a 90º angle, locking the arm in place by
gently overextending the arm to about a 103º angle and then
lowering back down to 90 and locking into place (see images on
left).
Raising & Adjusting the Lamp Arm
Once the lamp arm is locked in place, you can rotate the arm 340º
into your desired position, separating the upper and lower halves of
the lamp arm to extend the reach and mobility of the arm.
A hinge joint is located on the upper half of the lamp arm and can
be bent downwards up to 90º to assist in positioning the lamp head.
103º
90º
4
340º
±180º

The upper and lower halves of the lamp arm can be aligned and
secured using the position guide. Before lowering the radial arm
back into the storage position, ensure that the two halves are
aligned by clicking the male and female plugs on the position guide
into place.
Before lowering the lamp arm, ensure that the upper and lower
halves are locked into place using the position guides. To lower the
lamp arm, gently overextend the lamp arm to a 103º angle (push it
up as far as it will go) to release the locking feature and then lower
back down into the original storage position. If the lamp arm is
aligned correctly in the slot on the back of the machine, the vertical
post will automatically lower to the recommended resting height
when the machine is turned o󰀨.
Note: Make sure that the accelerator head is placed to its original
position (above lamp arm), for proper storage.
5

Head should be positioned below the lamp arm for easier handling
during the whitening procedure.
The BEYOND®Polus®Advanced Ultra system provides two
methods for adjusting the height of the lamp head. On the TUI
control panel, pressing the up and down HEIGHT arrows will raise
and lower the vertical post. The up and down arrows next to the
handles on the lamp head will also raise and lower the vertical
post.
When storing the BEYOND®Polus®Advanced Ultra system, it
is recommended that the vertical post be lowered completely. If
the lamp arm is aligned correctly for storage, the vertical post will
automatically lower to the recommended resting height when the
machine is turned o󰀨.
Adjusting the Lamp Head Height
6
CAUTION
When lowering the vertical post, DO NOT place hands or any items by the vertical post.
Positioning the Lamp Head
The lamp head is attached to the lamp arm by a ball joint for
optimal rotation and positioning. Convenient handles are located
on either side of the lamp head to assist with positioning.

7

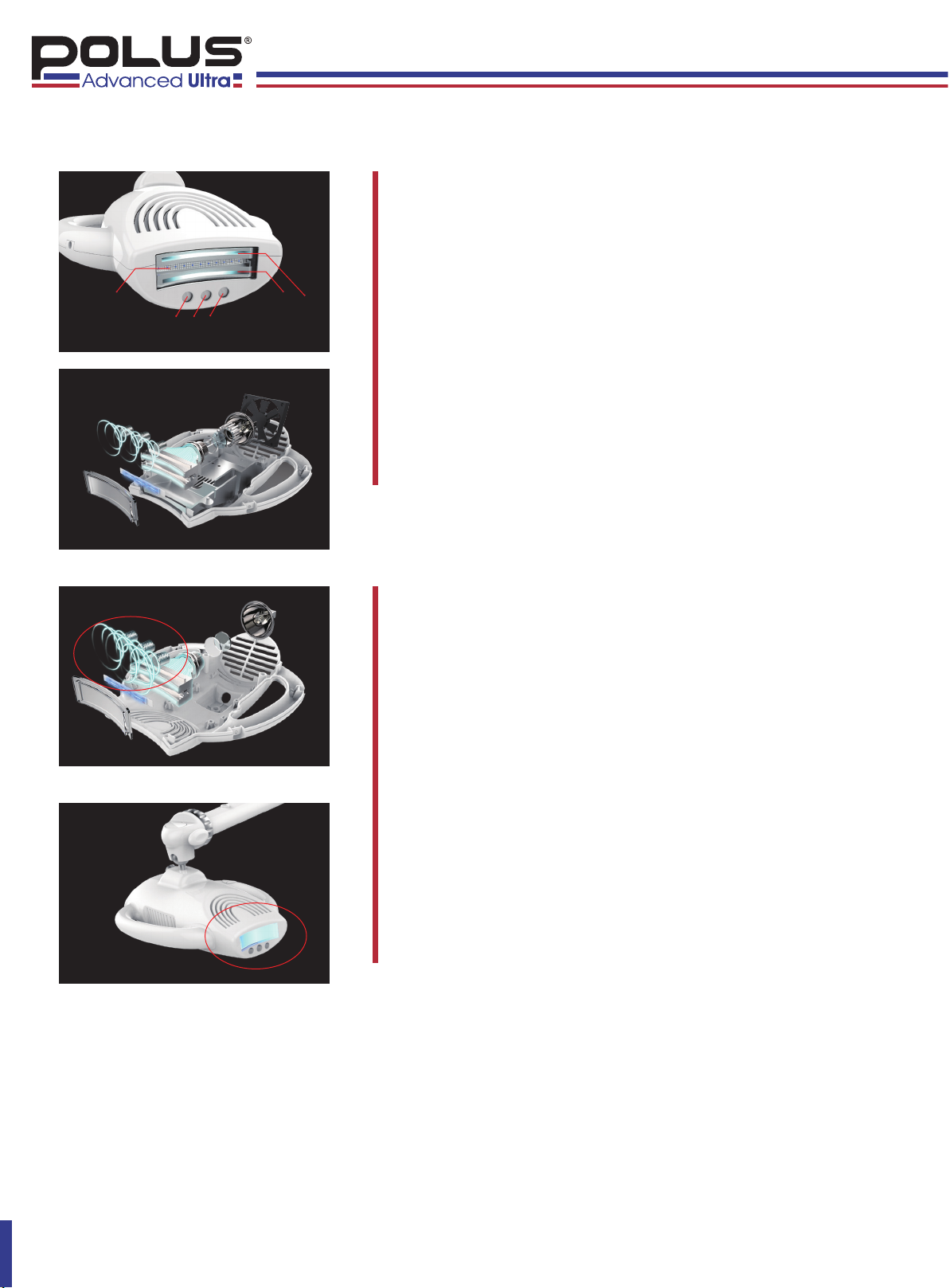

Ultrasonic Technology
In the BEYOND®Polus®Advanced Ultra, a cavitation process
created through ultrasonic waves within the accelerator head is
used to yet more e󰀨ectively deliver the oxidation process needed
for a whitening procedure. An ultrasonic cavitation phenomena
is produced by the ultrasound component, where in cavitation,
microbubbles are formed, then grow, and get to a limit where they
rupture. This rupture/collapse of microbubbles, releases energy,
creates shockwaves, high pressure, which in effect accelerates
physical and chemical reactions in the whitening gel, creating a
more e󰀩cient whitening process.
The ULTRASOUND function may be temporarily turned off by
pressing the SETTINGS button on the display screen and then
pressing OFF by the ULTRASOUND section on the SETTINGS
screen.
LightBridge™ Technology
The BEYOND®Polus®Advanced Ultra Whitening Accelerator
combines halogen light, LED light, and ultrasonic technologies to
provide users with a premium whitening experience. An advanced
light filtration system containing 200,000 optical fibers serves as
a bridge between the two light sources, removing all harmful heat
and ultraviolet (UV) light from the powerful halogen light source
and ultrasonic waves, before merging the light with emissions
from the twelve blue LED lights at the front of the lamp head. The
end results is a combination of two powerful light sources and
ultrasonic technology with wavelengths that span the entire blue
light whitening spectrum, providing patients with an effective and
precise whitening treatment.
halogen
light
ultrasonic
generator
LED light

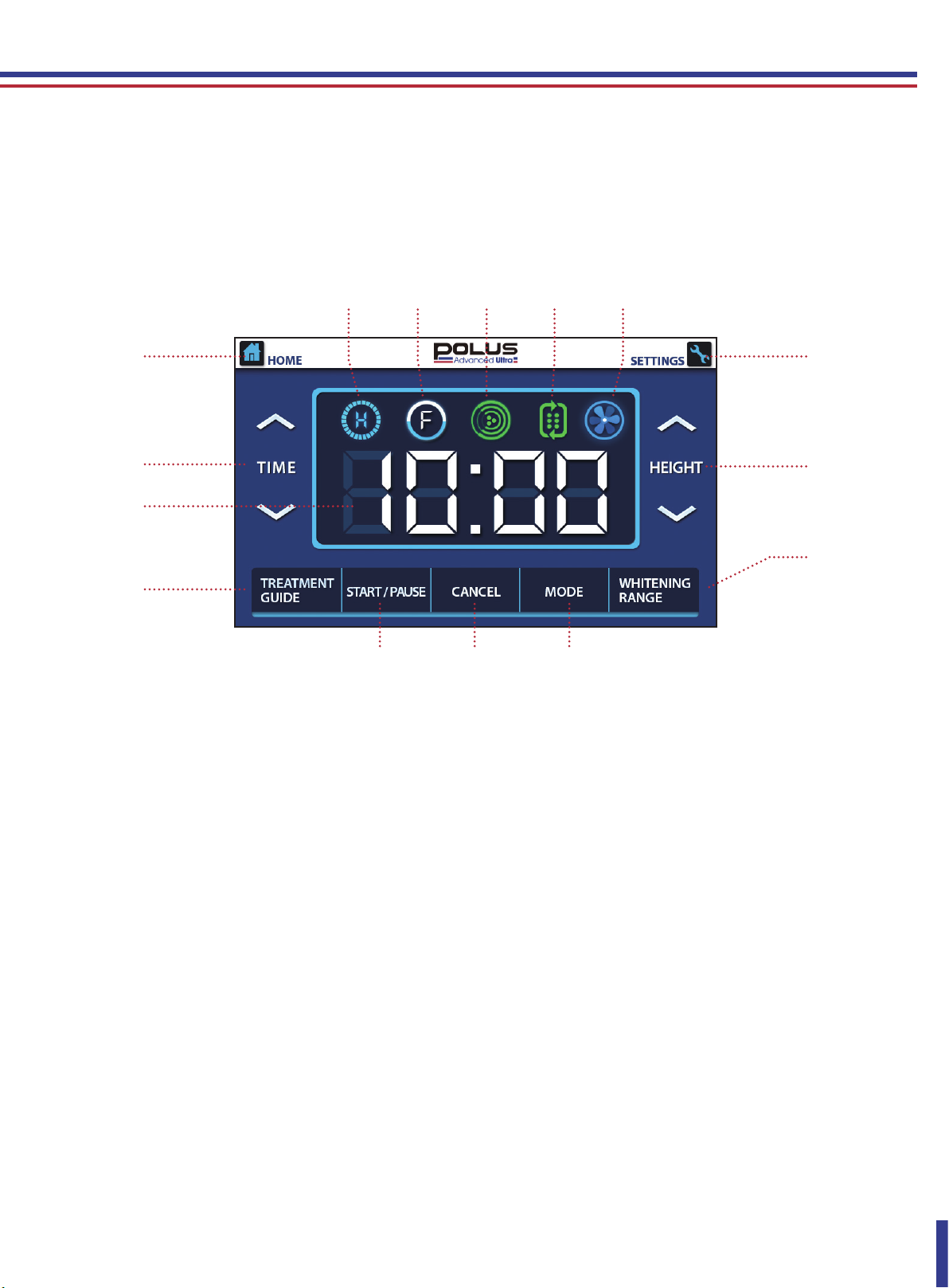

[A] HOME: Press to go to Main Page.
[B] TIME: Press to adjust the treatment cycle time. Factory default is set at 10 minutes. When restarted, the
system will default to the last time selected. To restore factory settings, simply adjust the time back to 10 minutes
and press START. The next treatment cycle will default to 10 minutes.
[C] Treatment cycle timer: Shows the minutes remaining in a treatment cycle. Factory default is 10 minutes and
can be reset using the SET TIME <> function.
[D] TREATMENT GUIDE: Press to choose from the following TREATMENT GUIDE
Options:
a. Teeth Whitening Treatment Plans: Press to obtain Two di󰀨erent treatment plans (A, B) depending on the
whitening case.
i. Treatment A: Press to obtain instructions to complete a whitening procedure for Regular Treatment Period
for Normal Teeth Stain.
ii. Treatment B: Press to obtain instructions to complete a whitening procedure for Cases of Teeth with
Abnormal Growth.
b. How to Control Teeth Sensitivity: Press to obtain instructions to complete a whitening procedure for cases
more susceptible to Sensitivity.
c. How to Avoid Color Rebound: Press to obtain instructions on how to Avoid Color Rebound.
d. Home Whitening Maintenance: Press to see options for Home Whitening Maintenance.
[E] START/PAUSE: Press to begin and pause treatment cycle. If paused, PAUSE will appear and ash below the
time remaining until the treatment is resumed. Press START/PAUSE to resume the treatment.
Touch User Interface (TUI) Control Panel
[J]
[I]
[H]
[A]
[B]
[C]
[D]
System Operational Interface
[O] [N] [M] [L] [K]
[E] [F] [G]
8

[F] CANCEL: Press to stop the current treatment cycle and reset the timer to the default treatment cycle.
[G] MODE: Select light intensity (Low for Gentle, Medium for Normal, or High for Intense) by scrolling through
these options using the MODE button.
[H] WHITENING RANGE: Press to select either Full or Single Whitening Options. Full Whitening provides dual
arch whitening and the Single Whitening mode is for single tooth whitening.
[ I ] HEIGHT: Motorized lamp head height adjustment.
[J] SETTINGS: Press to choose from the following options:
a. VOICE INSTRUCTIONS: Press ON/OFF to activate or deactivate this function.
ON: Voice Instructions can now be accessed by using either the Control Panel or the Remote Control.
1. Allows to PLAY/STOP the “Patient Welcome” recording.
2. Allows to PLAY/STOP the “Introduction to Teeth Whitening” recording.
3. Allows to PLAY/STOP the 'Post-Treatment Instructions” recording.
Please check Page 10 on 'Voice Instructions are now operable by using the Remote Control'.
b. ULTRASOUND: Allows to turn OFF/ON Ultrasound whitening option.
c. PURIFICATION: Allows to turn OFF/ON air purier/ionizer.
d. TREATMENT TIME: Displays Total Usage Time of Accelerator. Allows for Total Usage Time to be reset.
e. HELP: Press to display BEYOND®contact information in case of need of assistance.
[K] Temperature/Cooling Fan Indicator:
Normal temperature – The fan icon will appear if the cooling fan is working properly.
[L] Air Ionizer Purier Indicator
[M] Ultrasonic Cavitation Phenomena Indicator
[N] Dual-arch / Spot Whitening Indicator
[O] Light Mode Indicator
Demo Mode: Press and hold Polus icon/logo for three seconds to enter the Demo Mode screen.
The accelerator light will activate and the vertical arm will raise and lower throughout the demonstration. The
accelerator light may be deactivated by pressing the OFF button on any of the Demo Mode screens. Press the
HOME button to exit the Demo Mode and deactive all the demonstration.
Demo Mode may be used by a dentist, to showcase the main features of the Polus®Advanced Ultra to their
clientele, while it may also be used by resellers to demonstrate future owners of the Polus®Advanced Ultra, about
its features.
Note: The Touch Interface (TUI) Control Panel relies on the conductive properties of the human body, therefore the
use of gloves is not recommended unless touchscreen-compatible gloves are being used.
If the system overheats (>90ºC), the fan icon will ash at a lower speed and will emit a warning beep
indicating that the system should be turned o󰀨 until it has su󰀩ciently cooled to less than 70ºC. Press
the POWER ON/OFF button to turn off the system. Do not unplug the machine. Do not turn the
system back on until the fan turns o󰀨.
9

If you leave the treatment room during the procedure, give the
system remote control to the patient while you are out of the room.
PAUSE/RESUME: Instruct the patient to press PAUSE/RESUME
if he or she needs to pause the treatment cycle at any time.
The patient may press the PAUSE/RESUME button to start the
treatment cycle again. The treatment cycle timer will resume from
the paused time.
TIME: Instruct the patient to press the TIME button if he or she
would like to know the time remaining on the treatment cycle.
CALL: Instruct the patient to press the CALL button if he or she
needs to summon you at any time during the treatment. A loud
beeping noise will emit from the accelerator when this button is
pressed. Press the CALL button again to turn o󰀨 the beeping.
Voice Instructions are now operable by using the Remote Control
i. Press and hold PAUSE/RESUME button to activate Voice
Welcome for patient.
ii. Press and hold TIME button to activate Voice Introduction of the
whitening procedure for the patient.
iii. Press and hold CALL button to activate Voice Post-Treatment
instructions for the patient.
Remote Control
REPLACING THE REMOTE CONTROL BATTERY
Push the back cover open, taking care not to lose the loose remote control buttons. The battery is located at the
back of the green circuit board. Gently pull the green circuit board away from the back cover and use a blunt-
pointed object to push the battery out of place. The battery is a standard CR2032 coin battery. Push the new battery
back into place with the [+] symbol facing outwards, away from the circuit board. Replace the green circuit board
and remote control buttons and screw the two covers back together before resuming use.
Extra CR2032 coin batteries can be ordered directly from BEYOND®if needed, but should be readily available from
any standard electronic appliance store in your area.
10

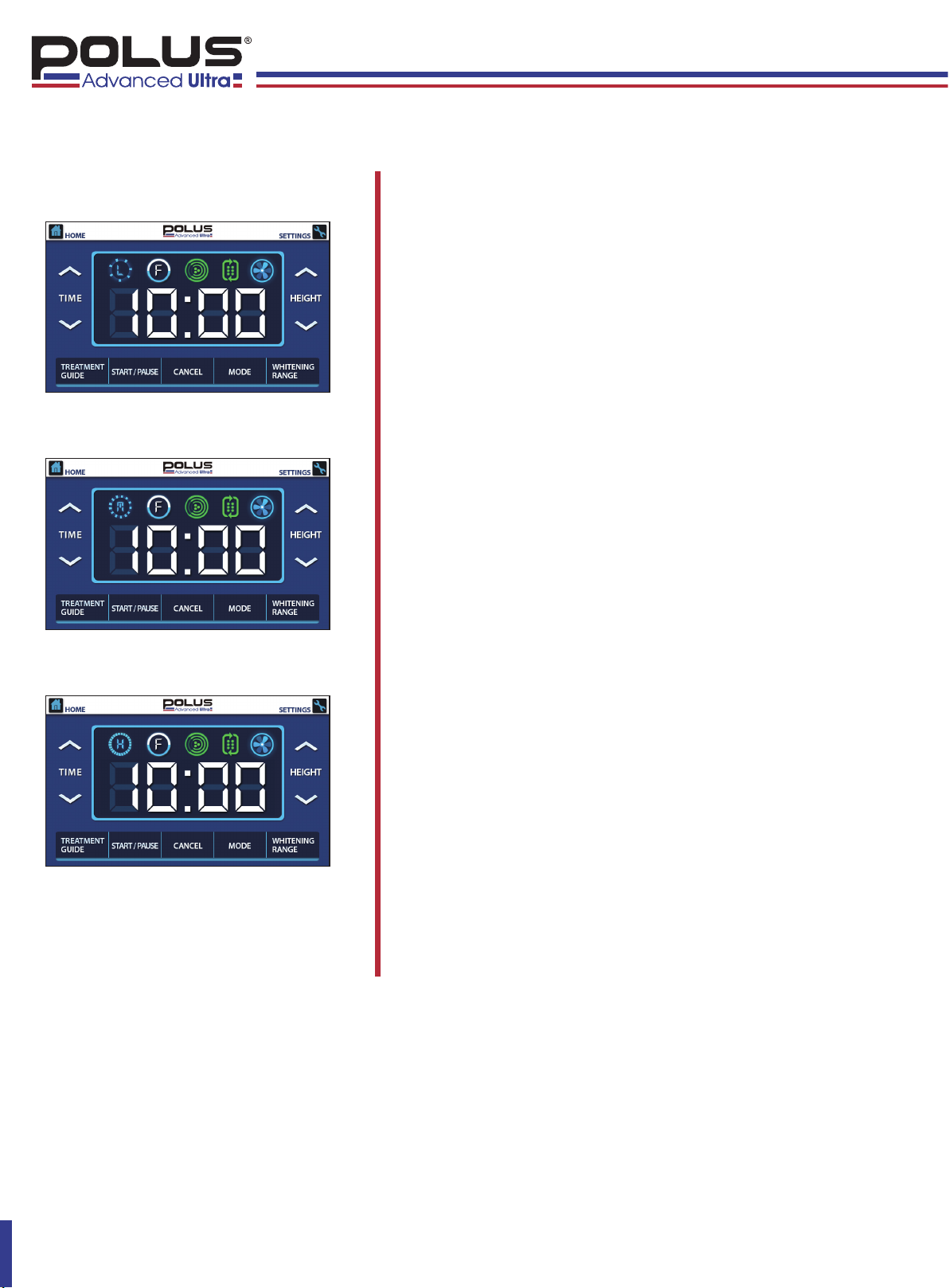

LOW / GENTLE
The light output for this setting is 210000LX and is recommended
for patients with sensitive teeth, severe fluorosis, enamel
hypoplasia, or visibly compromised enamel (small cracks or chips).
When using this setting, treatment times may need to be extended
to account for weaker light output levels.
MEDIUM / NORMAL
The light output for this setting is 250000LX and is recommended
for patients with healthy enamel, yellow stains caused by
consumption of staining food and drinks, and tobacco use.
Patients with mild uorosis can be treated using this light level, as
well as mild tetracycline cases.
HIGH / INTENSE
The light output for this setting is 300000LX and is recommended
for patients with severe tetracycline stains and gray, age-related
discolorations.
Note: A high percentage of patients with severe tetracycline
stains may experience sensitivity. Please see TREATMENT
GUIDE option on the Polus Advanced Display Menu or visit www.
beyonddent.com/treatments for more information on how to
e󰀨ectively whiten tetracycline stains while minimizing sensitivity.
Patients with healthy, thick enamel and extrinsic, yellow
discolorations can also use this setting if dramatic whitening results
are desired.
Note: Patients with thin or visibly compromised enamel (chips,
cracks, or untreated caries) should not use this light setting.
Light Output Settings
11

Whitening Treatment
The treatment procedure outlined in this manual is the standard BEYOND®Whitening Treatment as
recommended for patients with common extrinsic stains caused by staining foods, drinks, and tobacco products.
Recommendations on treating severe extrinsic and intrinsic stains (including tetracycline and uoride stains) can be
found on the TREATMENT GUIDE option on the Polus®Advanced Ultra Display Menu or at www.beyonddent.com/
treatments or in individual manuals packaged with BEYOND®whitening kits.
PRE-TREATMENT
Perform a pre-treatment oral exam and consult with the patient on his or her desired whitening results to determine
the best treatment plan for his or her individual situation. Ask the patient to sign the consent form and keep a
copy for your records. Determine the pre-treatment color of the patient’s teeth. (We recommend using the VITA
Bleachedguide 3D-MASTER®shade guide.) Take a photo to document the shade before starting treatment
(optional).
Turn on the BEYOND®Polus®Advanced Ultra system and program the desired treatment time as discussed with
the patient.
DUAL-ARCH (POWER) WHITENING TREATMENT
1. Ask the patient to take a seat in the treatment chair and recline the seat back to a 40° angle.
2. Place the protective eye goggles on the patient.
3. Apply lip protection cream and insert the BEYOND®FlexiBlue®Cheek Retractor with the tongue guard pointing
down. (Fig. 1)
4. Stretch the face protection cloth around the outer rims of the cheek retractor and fold the top down under the
arms of the cheek retractor.
5. Insert cotton rolls on either side of the frenum of the upper and lower lips. (Fig. 2)
6. Use compressed air to dry the surface of the teeth and gingiva. Holding the syringe at a 45° angle to the tooth
surface along the gingival margin, apply a 2-3 mm layer of BEYOND®BlueSeal®Gingival Protection along the
gingival margin. (Fig. 3)
7. Apply extra lip protection along the inside of the upper and lower lips.
8. Remove the LED Curing Light from the back of the machine and hold the LED Curing Light 0.5-1 cm away from
the gingival. Press the button on the LED Curing Light to begin curing. Move the device in a circular motion
over the gingival area and light cure the gingival protection for 20-30 seconds (about 2-3 seconds per tooth). Use a
dental probe tool to check that the gingival protection is fully cured. DO NOT over-cure the gingival protection. (Fig. 4)
See pg.14-15 for more information on how to use the LED Curing Light.
9. Remove the whitening gel syringe and tip from the vacuum-sealed foil wrapper. Attach the mixing tip to the dual-
barrel syringe of whitening gel.
NOTE: GELS MUST REMAIN REFRIGERATED NEAR 5°C/40°F UPON RECIEPT. DO NOT USE PRODUCT,
IF MIXTURE IS NOT THICK, APPEARS RUNNY, OR IS LIQUID. IF SO, CONTACT YOUR SUPPLIER FOR
REPLACEMENT PRODUCT.
1. 4. 5. 6.2. 3.
12

10. Apply a 2-3 mm layer of BEYOND®Advanced Formula Whitening Gel to the dry surface of the teeth. (Fig. 5)
11. Raise the lamp arm and position the lamp head as close as possible to the surface of the teeth, with the lamp
head at a 90° angle to the teeth. (Fig. 6)
12. Once the lamp head is positioned, press the START button to begin the rst 10-12minute cycle.
13. Remind the patient that it is safe to swallow his or her saliva during the treatment.
14. Give the patient the remote control. Instruct the patient that the remote control has a PAUSE/RESUME button
to control the light if he or she needs to stop the treatment at any time. A CALL button is also included in case the
dentist needs to leave the room during the treatment.
15. Provide the patient with music or entertainment during the treatment.
16. At the end of the rst cycle, the light will turn o󰀨 automatically. Use suction to remove the whitening gel. DO
NOT rinse with water. Repeat the gel and light application steps two more times for a total of three treatment cycles.
17. After the nal cycle, suction o󰀨 the whitening gel, remove the gingival protection, cotton rolls, face protection
cloth, cheek retractor, and protective eye goggles and ask the patient to rinse his or her mouth with water.
SINGLE-TOOTH (SPOT) WHITENING TREATMENT
1. Follow Steps #1-9 of the Dual-Arch (Power) Whitening Treatment to prepare the patient for the treatment.
Note: Gingival protection only needs to be applied to the gingival margin along the tooth to be whitened and the
teeth immediately adjacent. We also recommend that you apply damp gauze to the surrounding teeth that are not
being whitened in order to keep the tooth enamel hydrated during the treatment.
2. Press WHITENING RANGE on the Polus Advanced display screen and choose Single Whitening option on the
TUI panel.
3. Adjust the treatment time to the desired number of minutes. The recommended treatment time for most cases is
10-12 minutes.
4. Attach the lamp head holder for the Spot Whitening Device to the bottom of the lamp head and secure the
device. Position the lamp head so that the Spot Whitening Device is at a 90° angle to the tooth and as close as
possible to the tooth without touching the surface.
5. The Spot Whitening Device can also be held in place by the dentist for the duration of the treatment.
6. Once the Single/Spot Whitening Device is positioned, press the START/PAUSE button on the TUI panel or press
and hold the “ ” button for 3 seconds on the device to begin the rst cycle.
7. Follow Steps #13-17 of the Dual-Arch (Power) Whitening Treatment to complete the Single-Tooth (Spot)
Whitening Treatment.
13

POST-TREATMENT
Show the patient his or her new teeth color and give him or her a Post-Whitening Care Instruction Card. Remind the
patient that for the next 24 hours, he or she should avoid colored food and drinks. Use of tobacco products should
also be limited. Inform the patient that, depending on his or her diet, oral hygiene, and use of tobacco products,
periodic touch-up treatments may be necessary to maintain his or her whitening results.
IMPORTANT POINTS TO NOTE
• The BEYOND®Polus®Advanced Ultra whitening treatment is contraindicated for patients with known allergies or
chemical sensitivities to peroxides, resins, or glycols, pregnant or lactating women, and children under the age of
16.
• Terminate the whitening procedure if any patient reports severe tooth sensitivity and remove all whitening gel
before treating with uoride.
WHITENING GEL STORAGE & MAINTENANCE
•BEYOND®Advanced Formula Whitening Gel syringes must be stored at temperatures near 5°C. These syringes
are packed outside of the whitening kit for easy storage in the refrigerator.
•Do not use the gel if the following conditions are present: Foil package around whitening gel syringes is no longer
vacuum-sealed, there is gel leakage evident, the gel is no longer viscous and is in a liquid state, or the syringe
plunger is being pushed out of the syringe body. If your whitening gel has started to break down, please contact
your local dealer or BEYOND®directly for replacements.
The BEYOND®Polus®Advanced Ultra whitening treatment is a straightforward and simple procedure. If you have
additional questions regarding the treatment after reading this manual, please do not hesitate email BEYOND®at
[email protected]. We also o󰀨er a complimentary online training session. This is a valuable training resource
for any dental professional who is interested in learning more about the BEYOND®treatment and the science
behind teeth whitening.
14

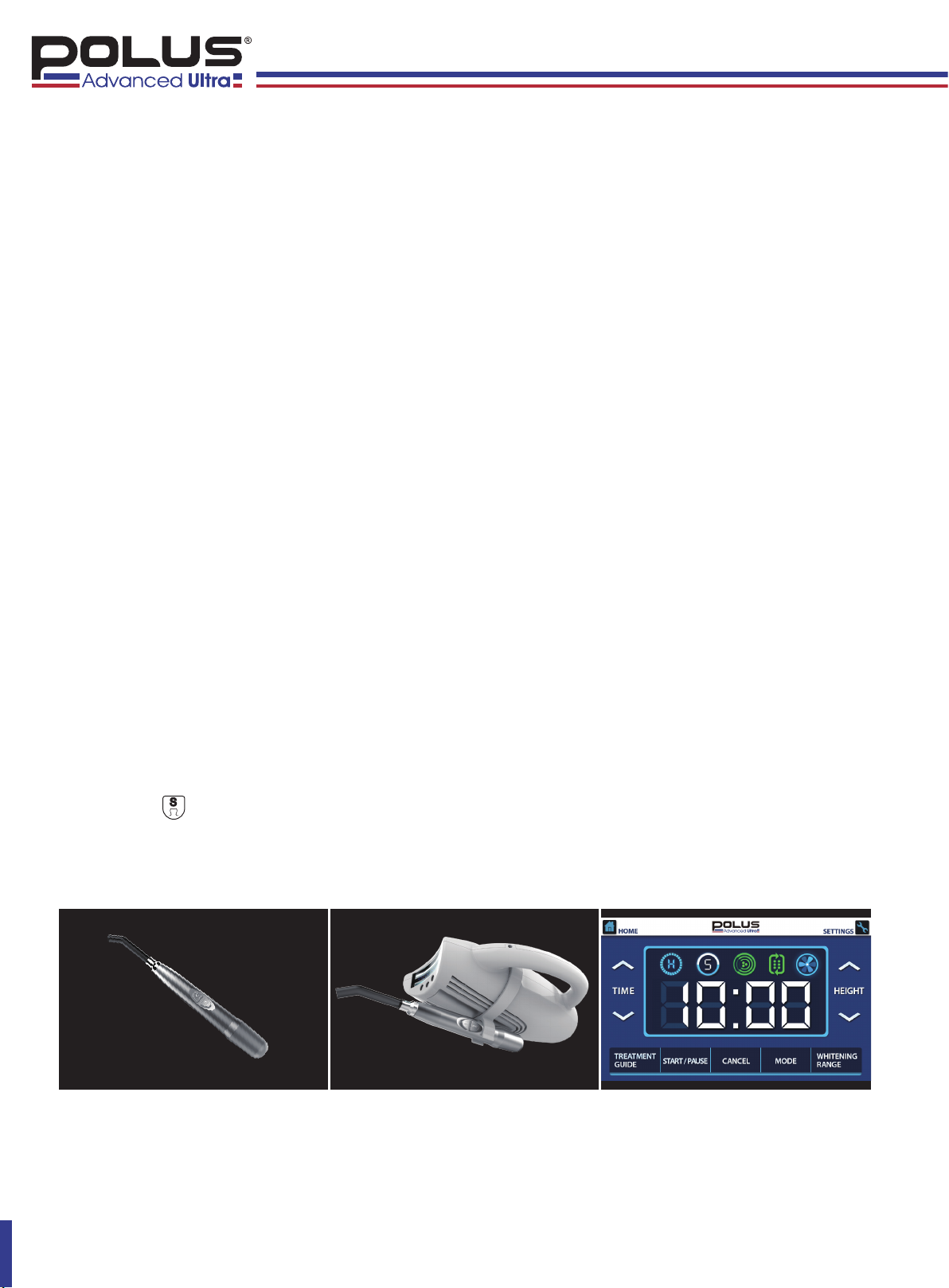

Using the LED Curing Light/
Spot Whitening Device
Before using the Spot Whitening or LED Curing Light functions
for the rst time, ensure that the device is connected to the main
machine body.
Note: The BEYOND®Polus®Advanced Ultra system must be
turned on to utilize the Spot Whitening and LED Curing Light
functions.

SPOT WHITENING
Press WHITENING RANGE on the Polus®Advanced Ultra display
screen and choose Single Whitening option on the TUI panel.
Note: The Spot Whitening Device can be hand-held during the
treatment, or secured to the lamp head using the lamp head holder
for the Spot Whitening Device.
The Spot Whitening Device’s treatment time will default to the last
time setting on the control panel. The recommended treatment
cycle is 12 minutes. See pg. 13 for more detailed instructions on
how to adjust treatment times using the TUI control panel. Once
the Spot Whitening Device is positioned, press the START/PAUSE
button on the TUI panel or press and hold the “ ” button for 3
seconds on the device to begin the rst cycle.
The Spot Whitening device will automatically turn o󰀨 at the end of
the whitening cycle. However, the treatment can also be paused
by pressing the “ ” button again or by pressing START/PAUSE
on the TUI panel or on the wireless remote control. Note: You
must pause the treatment before adjusting the treatment time.
15
LED CURING LIGHT
•The button operates the standard curing light function.
•Click the button once to produce 15 seconds of intense light output.
•Click the button twice in quick succession to produce 25 seconds of ramped up light output (5 seconds ramping-
up and 20 seconds intense).
• The LED Curing Light will automatically turn o󰀨 at the end of the timer cycle. Pressing the button again while
the LED Curing Light is illuminated will abort the curing cycle.
CLEANING & MAINTENANCE OF THE LED CURING LIGHT/SPOT WHITENING DEVICE
Cleaning the Device
•Disposable sleeves for curing light tips should be used to protect the LED Curing Light/Spot Whitening Device
ber light-transmission tube during use. Follow instructions of the sleeve manufacturer for infection control. The
ber light-transmission tube will t standard 7-8 mm curing light sleeves. Replace after each use to prevent cross
contamination and composite from bonding to the end of the tube.
•Device cannot be sterilized. Use of a disposable tip sleeve is required. Do not submerge. Not autoclavable.
Maintenance
• Take care when handling the ber light-transmission tube to avoid dropping or hitting the tip against hard surfaces.
• If the rubber o-ring between the ber light-transmission tube and the LED Curing Light/Spot Whitening Device
body becomes loose, replace the rubber o-ring connecting the two parts with one of the spare o-rings included with
the whitening system.

To order extra light shields or replacement parts, please contact your local BEYOND®products agent or contact
BEYOND®at [email protected].
LED CURING LIGHT/SPOT WHITENING DEVICE TECHNICAL DATA
Power consumption: ≤ 9 W
LED Curing Light light intensity: 800 mW/cm2
Spot Whitening Device light intensity: 750 mW/cm2
Device operating voltage: DC10 – 20V
Device light wavelength: 400 – 650nm
Timing: : Must be manually set using the TUI control panel. Recommended 10-12 minutes.
: 15s intense light [one click]
5s ramp-up, 20s intense light [two clicks]
Device timing Error: ± 2s
LED Curing Light solidication depth: The depth is no less than 3mm for 10 second light cures of resin.
Device working conditions
Working temperature: +5°C ~ +40°C
Working humidity: ≤ 80% RH
Device storage conditions
Storage temperature: -20°C ~ +50°C
Storage humidity: ≤ 95% RH
Size:
∮21mm x 196mm (Includes device body and ber light-transmission tube)
16
Air Ionizer Purier
The BEYOND®Polus®Advanced Ultra comes equipped with an
air ionizer that silently cleans and sanitizes air in areas larger than
6,000/cm3. The ionizer is designed to remove airborne pollutants,
allergens, pollen, mold, smoke, unpleasant odors, dust and other
airborne pollutants.
The ionizer function automatically turns on once the BEYOND®
Polus®Advanced Ultra is on. This function may be temporarily be
turned o󰀨 by pressing the SETTINGS button on the display screen
and then pressing OFF by the PURIFICATION section on the
SETTINGS screen.

Troubleshooting
If the following troubleshooting suggestions do not resolve your problem, please contact your local BEYOND®
products dealer or BEYOND®International Inc., at [email protected], or call [phone].
BEYOND®Polus Advanced Ultra system does not turn on
1. Check that the power cord is rmly inserted into the power outlet and the machine base.
2. Check that the System On/O󰀨 switch at the base of the machine is turned on.
3. After performing steps #1 and #2, press and hold the Power On/O󰀨 button below the TUI control panel for 3
seconds.
4. If the machine does not turn on after attempting all of the above steps, replace the two fuses at the base of the
machine near the System On/O󰀨 switch with the two spare fuses included with your system.
Remote control does not work
1. Check that machine is turned on.
2. Replace the battery in the remote control.
Machine emits beeping alarm noise upon turning on the power
1. Ensure that the machine is not overheating: Look at the fan indicator on the TUI panel. If the fan indicator is
ashing or the thermometer icon appears, the machine is overheating. See pg. 9 for instructions on what to do if
the machine is overheating.
2. Check the 7-pin circular connector plug and socket are correctly connected at the back of the machine head.
Someone inadvertently drummed his ngers on the TUI (touch user interface) and the screen turned blue.
In extreme cases of information overload (touching the screen multiple times within a one-second time span, for
instance), the Polus screen will require resetting. In such a situation the user will see the following message:
1. Due to information overload, this unit needs to be reset. Please touch the “+” at the left-top of this screen.
2. Please touch the “+” at the right-top of this screen.
3. Please touch the “+” at the right-bottom of this screen.
Following these directions will successfully reset the unit for immediate use. Please follow directions EXACTLY, or
subsequent touches of the touch user interface (TUI) will malfunction.

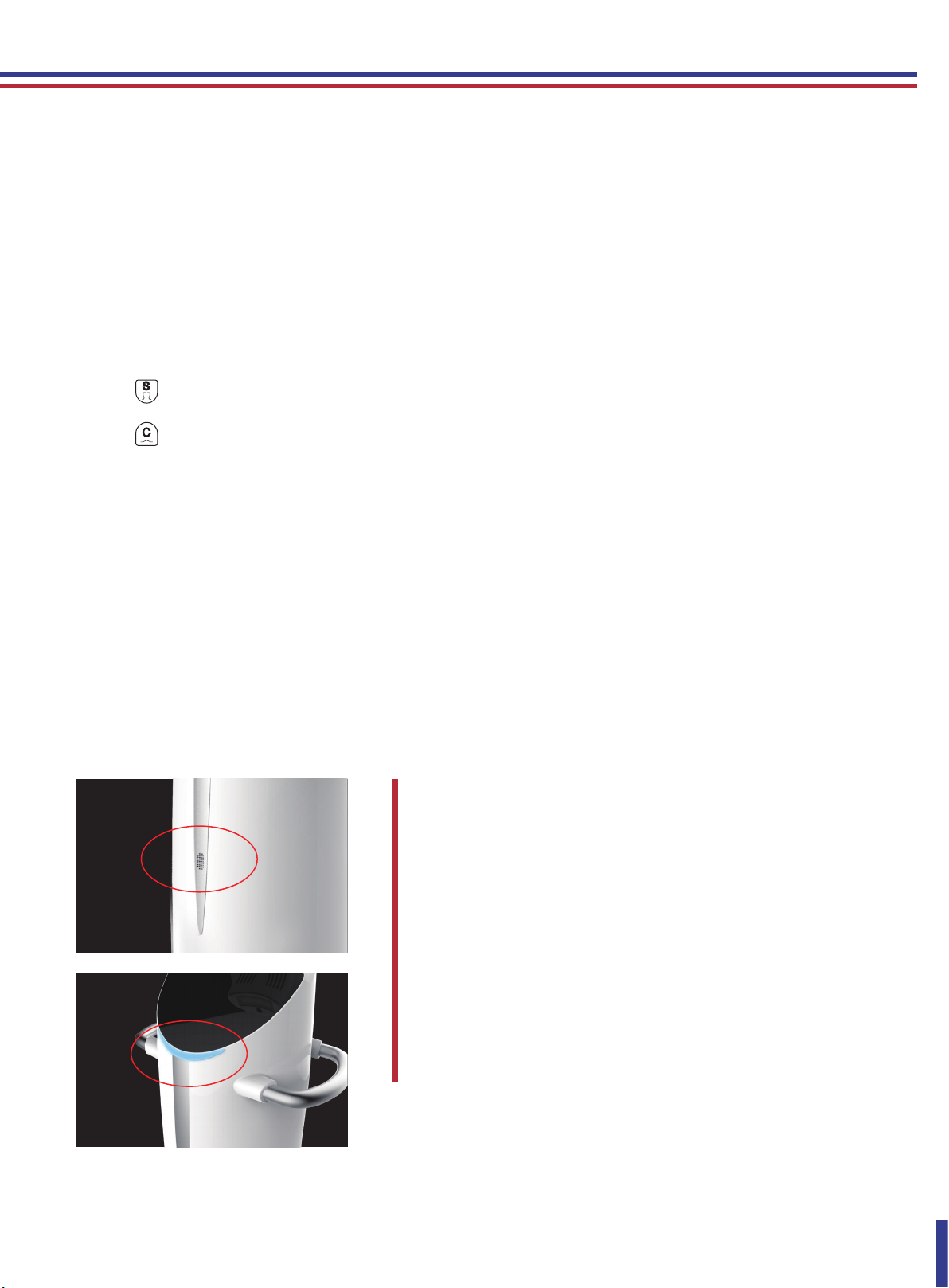

Machine turns o during a whitening procedure
1. Check that the power cord is rmly inserted into the power outlet
and the machine base.
2. In case of electrical outage: at the base of the machine you may
press the red button Awhich will bypass all other functions and
will allow only the machine light to turn on, in order to allow the
completion of the procedure.
3. The red button Bmay be pressed to mechanically bypass the
accelerator head and TUI panel controls for lowering the arm to its
default position.
A B
17

Cleaning & Maintenance

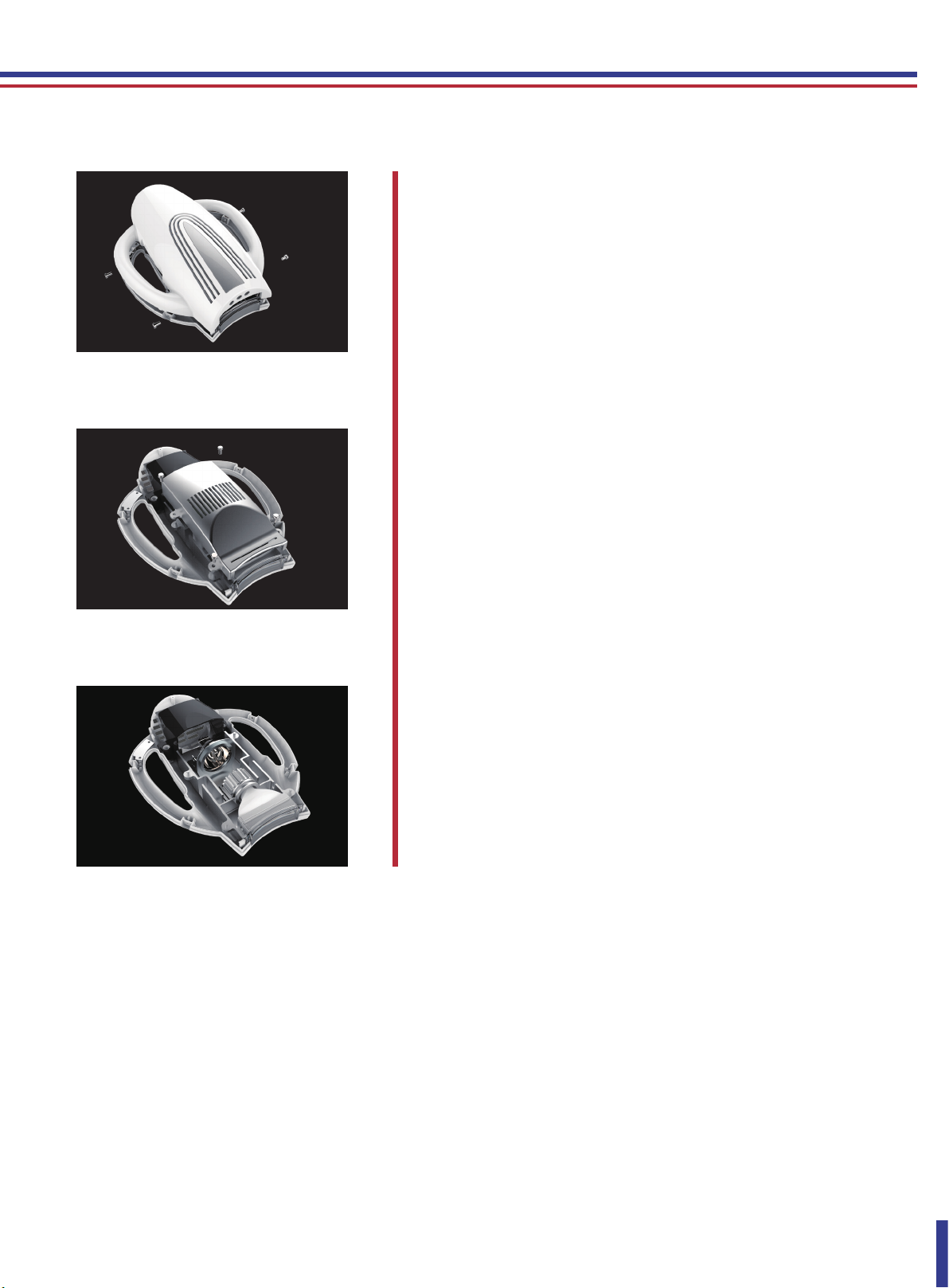

REPLACING THE HALOGEN BULB
Your accelerator comes with a spare halogen bulb. To replace the
bulb, follow the instructions listed below:
1. Turn off the accelerator and remove the eight screws on the
bottom of the lamp head.
2. Remove the four screws holding the top of the gray ltration unit
cover.
3. Unhinge the wire cage holding the bulb in place and pull gently
the bulb loose. Remove and replace with the spare halogen bulb.
4. Secure the bulb within the wire cage, replace the ltration unit
cover, and screw the outside of the lamp head back into place.
5. We recommend replacing halogen bulb after 500 hours of use.
CLEANING THE DEVICE
After each treatment, clean the lamp head and the concave light
output window with a disinfectant spray and wipe dry with a clean
cloth.
Note: Following use, do not unplug the accelerator until the cooling
fan turns o󰀨.
TECHNICAL DATA
100~240VAC, 150VA, 50/60Hz, Class I, type B Applied Part.
TRANSPORTATION & STORAGE DATA
Temperature: -20°C — +55°C
Relative Humidity: ≤ 93%
Atmospheric Pressure: 50 kPa — 106 kPa
18
