3G CARDIO

80i Fold Flat Treadmill

Owner’s Manual

3G Cardio LLC

Phone: 1-888-888-7985

Online: www.3GCardio.com

Table of Contents

Safety Instructions

Getting Started

Features

Exercise Guidelines

Warm Up & Cool Down

Assembly Parts List

Assembly Steps

Folding & Moving Instructions

Maintenance

Console Operation

Troubleshooting

Exploded Drawing / Circuit Diagram

Parts List

Warranty

1Questions? Call 888-888-7985

IMPORTANT SAFETY INSTRUCTIONS

Thank you for purchasing the 3G Cardio

80i Fold Flat Treadmill. Even though we do all

we can to ensure the quality of each product,

occasional errors and/or omissions do occur.

In the event you should ﬁnd this product to be

defective or missing a part, please contact the

store you purchased it from or call 3G Cardio

direct at 1-888-888-7985. When using an

electrical appliance, basic precautions should

always be followed. Please read and save the

following safety instructions before using:

DANGER – To reduce the risk of electric shock always unplug this treadmill after using and

before cleaning.

WARNING – To reduce the risk of burns, ﬁre, electric shock, or injury, please read and

follow the safety instructions below:

1. Never leave treadmill unattended when plugged in. Unplug from outlet when not in use and before

adding or removing parts.

2. Close supervision is necessary when this machine is used by or near children, pets, or people with

disabilities and/or inexperience.

3. Use this machine only for its intended purpose or as described in this manual. Never use after-market or

unauthorized parts.

4. Never operate this machine if it has a damaged cord or plug, if it is not working properly, or if it has been

dropped or damaged. Return the machine to a service center for examination and repair.

5. Always protect the power cord and secure it safely when attempting to move, roll, transport, or carry this

treadmill.

6. Keep the cord away from heated surfaces. Do not loop power cord around handles or upright frame as this

may result in injury or death to children.

7. Never operate the machine with the motor air vent openings blocked. Keep the air openings free of lint,

hair, and the like.

8. Never drop or insert any objects into any opening. Keep small toys and misc. objects away from treadmill

as they may cause damage.

9. Do not use outdoors.

10. Do not operate where aerosol (spray) products are being used or where oxygen is being administered.

11. Disconnect when not in use. Turn all controls to the off position, then remove plug from outlet.

12. Connect this treadmill to a properly grounded outlet only. See Grounding Instructions.

13. Remove the safety key when not in use, and store out of reach of children.

LOCK DIAL must

be removed prior

to using treadmill.

Failure to remove

LOCK DIAL will result

in damage to treadmill

and incline motor!

WARNING

MUST REMOVE LOCK DIAL BEFORE USE!!

3G CARDIO

www.3GCardio.com

14. To avoid injury, use extreme caution when stepping onto or off of a moving belt.

15. Before beginning any new exercise program, always consult your physician for exercise guidance and

approval.

16. Pregnant women, individuals over the age of 35, or persons with pre-existing health problems should

consult with their physician before beginning any exercise program.

17. Keep children and pets away from this equipment at all times. This is not a toy.

18. Only one person at a time should use this equipment.

19. The treadmill should not be used by persons weighing more than 350 lbs.

20. Inspect your machine prior to exercise to ensure that all nuts, bolts, and the treadmill belt are fully

tightened.

21. Keep hands and feet away from all moving parts.

22. Always assemble and operate this treadmill on a clean, solid, and level surface. Do not use it outdoors or

near water.

23. Before starting a workout routine, always do stretching exercises and properly warm up.

24. Always wear proper clothing and walking or jogging shoes when exercising. Do not wear loose ﬁtting

clothing that may snag.

25. Drink hydrating ﬂuids (water) before, during, and after any exercise.

26. Please make sure that there is a safety area of at least 5 feet behind and 1 foot in front and to the sides of

the treadmill while exercising.

27. Lubricate every 60 hours of usage or once per 3-6 months to prolong the lifetime of this machine.

28. Regularly check your treadmill for damage and abrasions. Please pay special attention to the rear roller

cover, anti-skid pad, handlebars, side rail and running belt.

29. Damaged parts need to be replaced immediately. Resume use only after the treadmill has been properly

repaired.

30. Please make sure that levers or other adjusting mechanisms do not interfere with the moving area during

exercise.

31. Incorrect and excessive exercise can harm your health.

32. This treadmill is intended for a maximum of 4 hours of use per day. Over-use can cause excessive heating

which may result in ﬁre, electric shock, or injury.

33. If dizziness, nausea, chest pains, or any other abnormal symptoms are experienced while using this

treadmill, stop the workout at once and consult a physician immediately.

34. Please read all instructions carefully.

Attention: The treadmill should only be assembled by the manufacturer, its service agent, or

similarly qualiﬁed persons.

This treadmill is not intended for use by persons (including children) with reduced physical,

sensory, or mental capabilities, or lack of experience and knowledge. If the supply cord is damaged,

it must be replaced by the manufacturer, its service agent or similarly qualiﬁed persons in order to

avoid a hazard.

3Questions? Call 888-888-7985

Getting Started

Before beginning:

1. Remove treadmill from box and place on a clean, level

surface. It is recommended that you place a protective

mat under the treadmill.

2. Place in an area that will meet these minimum

clearance requirements: Front & side: 1ft clearance.

Back: 5 ft clearance.

3. Whenever moving or setting up the treadmill, the deck

must be in the upright position with the deck safety

lock securely engaged.

4. To place the treadmill in operating position, release

the deck safety lock. Then lower the deck with the end

caps until it rests completely on the ﬂoor.

5. Make sure safety cord is plugged into the treadmill.

6. Plug unit into outlet following the Grounding

Guidelines below.

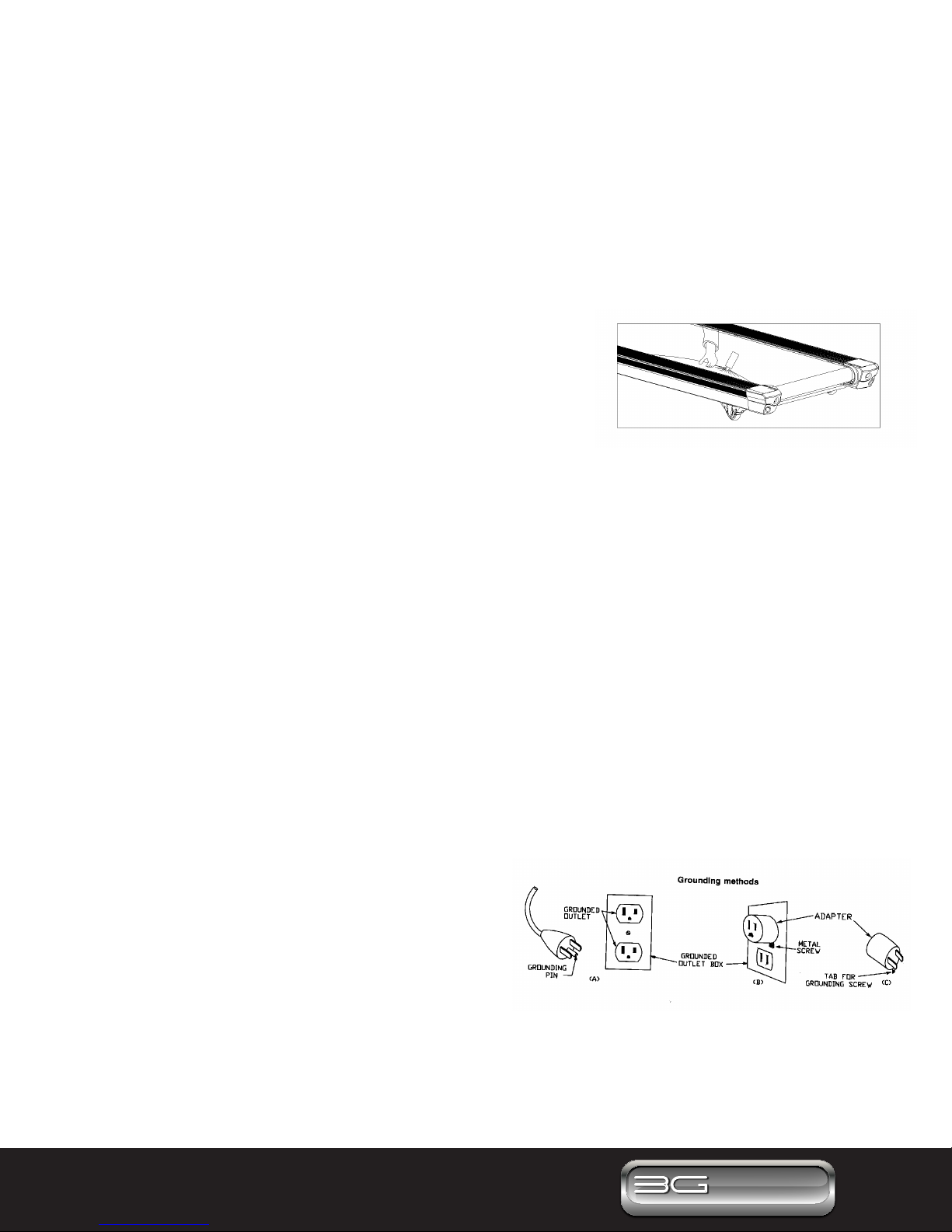

GROUNDING:

This unit must be properly grounded to ensure safe operation. Should this equipment fail to perform

properly, grounding reduces the chance of electrical shock. Grounding occurs when the provided 3

prong plug is inserted into a standard 3 prong 110v outlet of at least 15 amps, preferably a dedicated

20 amp circuit.

IMPORTANT TREADMILL WARNINGS AND CAUTIONS

WARNING: To reduce the risk of excessive heating which may result in burns, ﬁre, electric shock, or

injury, an appliance should NEVER be left unattended when plugged in. Unplug from outlet when

not in use, before cleaning, and before adding or removing parts.

CAUTION:

Before operating the treadmill, connect the end of the safety key (Slip Safe Key) to the belt line of

your workout pants or shorts. Should you lose your balance, the line will become taut and the safety

key will pull out of the console, stopping the treadmill at any point in your workout. In case of

emergency, seize the handlebar and lift your body, then stand on the ﬂoor.

Helpful Instructions

1. Straddle the tread belt and allow it to start moving at a slow, safe speed before stepping onto it.

2. Hold the handlebar while adjusting the controls.

3. Focus your eyes straight ahead to help maintain your balance.

4. Wear comfortable, good-quality walking or running shoes.

5. Warm up and cool down before and after your workout period.

3G CARDIO

www.3GCardio.com

Features

Audio Console

Quick Dial

Handlebar

Right Column

Frame Lock Dial

(not visible in diagram)

Left Column

Column Lock Knob Motor Cover

Anti-Slip Surface

Rear Roller Cover

Foot Lock

LOCK DIAL must

be removed prior

to using treadmill.

Failure to remove

LOCK DIAL will result

in damage to treadmill

and incline motor!

WARNING

MUST REMOVE LOCK DIAL BEFORE USE!!

LOCK DIAL must

be removed prior

to using treadmill.

Failure to remove

LOCK DIAL will result

in damage to treadmill

and incline motor!

WARNING

MUST REMOVE LOCK DIAL BEFORE USE!!

5Questions? Call 888-888-7985

Exercise Guidelines

Check with your physician before beginning any type of exercise program.

People who have diabetes or high blood pressure, a family history of heart disease,

high cholesterol, any other special medical condition, are over age 35, or have led a

sedentary lifestyle should get a medical check-up and a stress test before initiating an

exercise program or routine. Medical research has shown that the optimal amount

of exercise to condition the cardio respiratory system and the muscles of the body is

between 60% and 85% of your maximum heart rate, as measured during a training

session.

If at any time during exercise you experience dizziness or chest pain, stop

immediately and seek medical advice.

Target Heart Rate Zone Formula:

220 minus your age multiplied by your desired Heart Rate Zone Goal (suggested by

your doctor) = your target heart rate BPM.

Do not workout at your maximum heart rate. The recommended heart rate zone is

between 60% and 85% of your maximum heart rate.

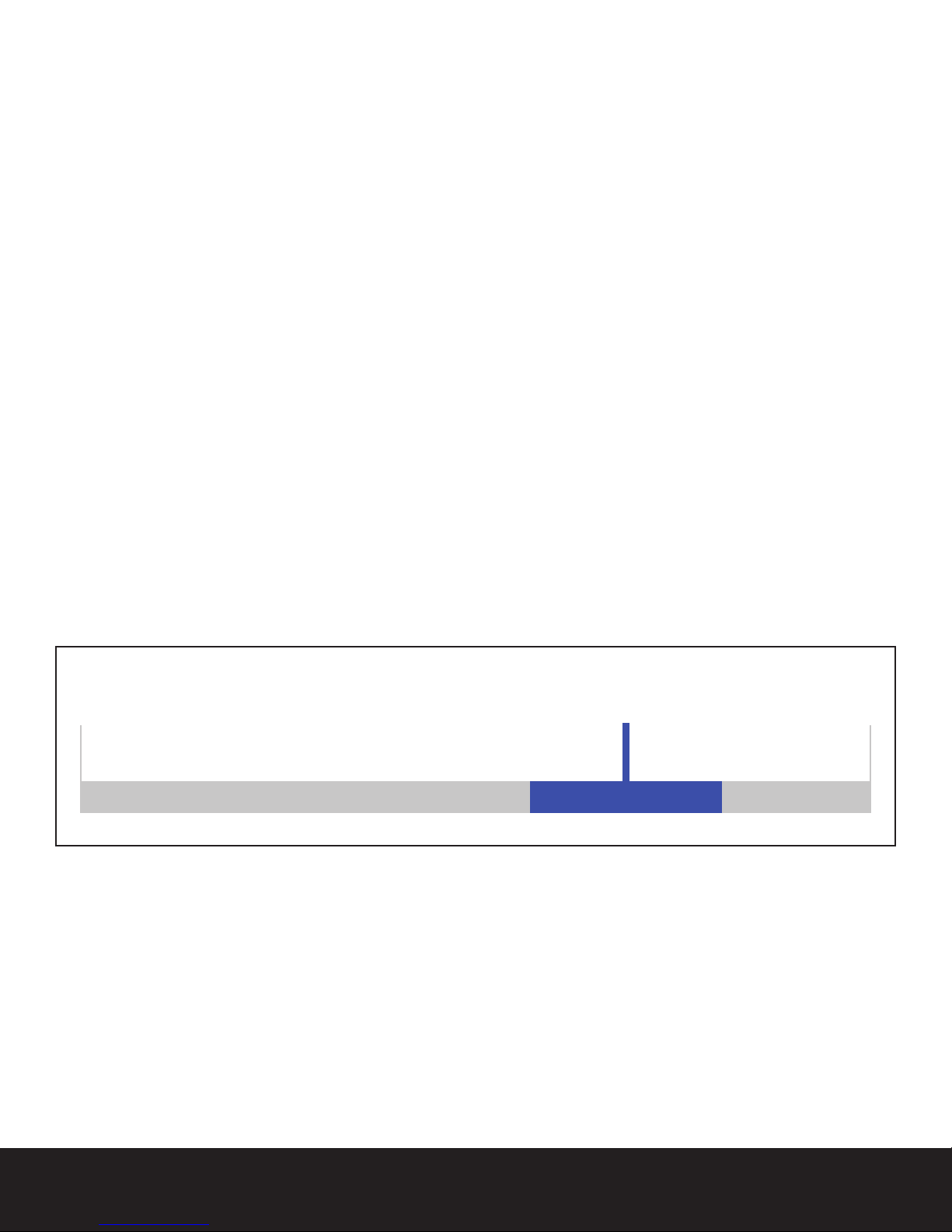

0% of maximum

heart rate

100% of maximum

heart rate

60% 85%

Recommended Heart

Rate Zone

3G CARDIO

www.3GCardio.com

Exercise in your target heart rate zone

Beginner Treadmill Program

Exertion Level Duration Exertion Level Duration

Week 1 Easy 6 - 12 minutes Week 5 Moderate 22 - 28 minutes

Week 2 Easy 10 - 16 minutes Week 6 Slightly Higher 30 minutes

Week 3 Moderate 14 - 20 minutes

Week 7 Add Interval

Training

3 minutes at

moderate exertion

with 3 minutes at

higher exertion for

24 minutes

Week 4 Moderate 18 - 24 minutes

7Questions? Call 888-888-7985

A successful exercise program consists of a warm-up, aerobic exercise, and a cool-down.

Warming up is an important part of your workout and should begin every session. It prepares your

body for more strenuous exercise by heating up and stretching out your muscles. At the end of

your workout, repeat these exercises to reduce sore muscles. We suggest the following warm-up and

cool-down exercises:

HEAD ROLLS

Rotate your head to the right for ten seconds, feeling the stretch up

the left side of your neck. Next, rotate your head to the left for ten seconds.

Finally, drop your head to your chest for ten seconds.

SHOULDER LIFTS

Lift your left shoulder up toward your ear for ten seconds. Then lift

your right shoulder up for ten seconds as you lower your right shoulder.

SIDE STRETCHES

Open your arms to the side and continue lifting them until they are

over your head. Reach your right arm toward the ceiling as far

as you can for ten seconds. Feel the stretch up your right side.

Repeat this action with your left arm.

Warm Up and Cool Down

3G CARDIO

www.3GCardio.com

QUADRICEPS STRETCH

With one hand against a wall for balance, reach behind you and pull your

right foot up. Bring your heel as close to your buttocks as possible. Hold

for ten seconds and repeat with left foot up.

INNER THIGH STRETCH

Sit with the soles of your feel together with your knees pointing

outward. Pull your feet as close to your groin as possible. Gently

push your knees toward the ﬂoor. Hold for 10 seconds.

HAMSTRING STRETCH

Sit with one leg extended. Bring the sole of the opposite foot toward

you and rest it against the inner thigh of your extended leg. Reach

toward your toes as far as possible. Hold for ten seconds, then relax.

Repeat 3 times for each leg. Stretches: hamstrings, lower back, and groin.

CALF STRETCHES

Lean against a wall with your right leg in front of the left and your arms

forward. Keep your left leg straight and the right foot on the ﬂoor; then

bend the left leg and lean forward by moving your hips toward the wall.

Hold, and then repeat on the other side for 15 seconds.

9Questions? Call 888-888-7985

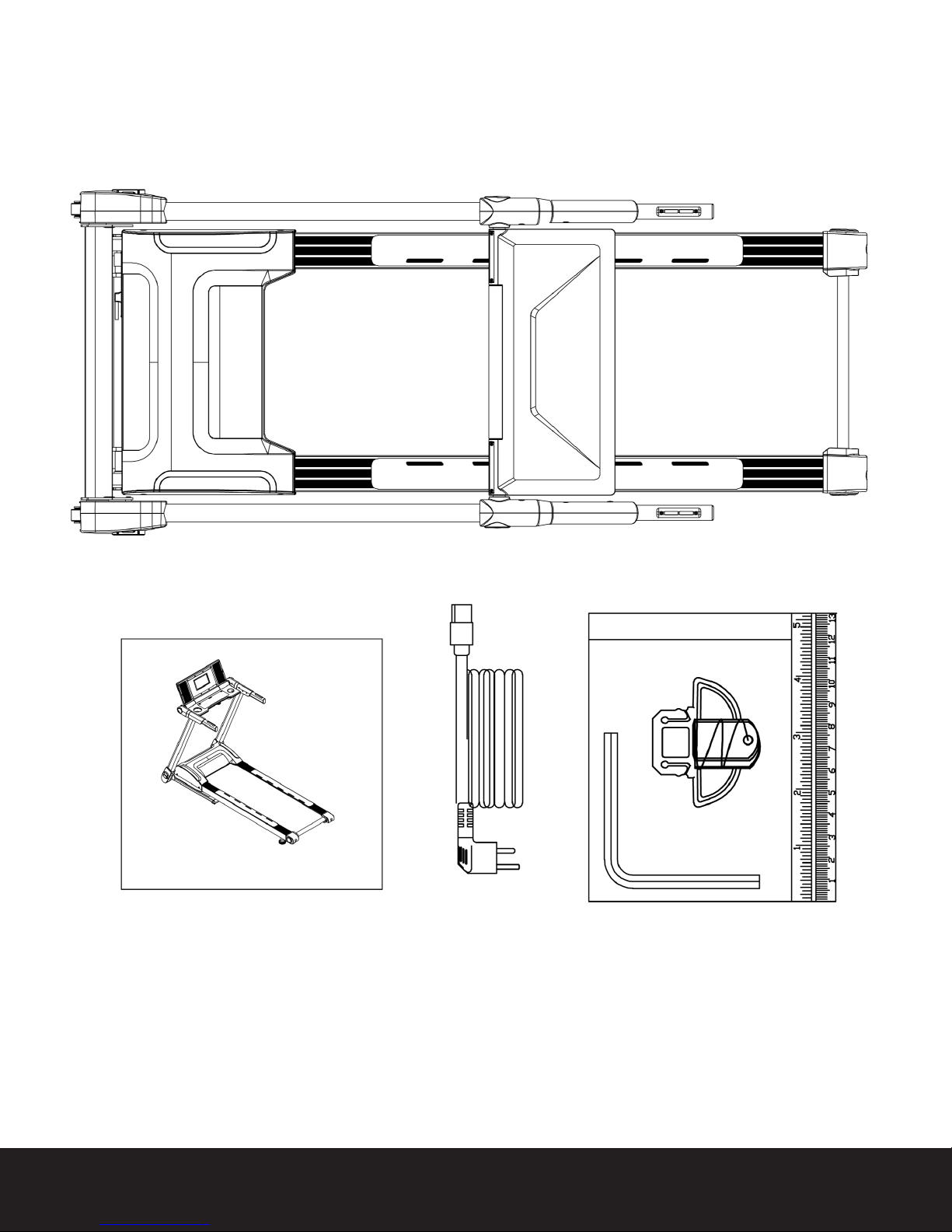

Assembly Parts List

Note: Speciﬁcations are subject to change without notice.

Safety Key

#6 Hexagonal Spanner

Hardware PackPower CordOwner’s Manual

3G CARDIO

www.3GCardio.com

Assembly Steps

STEP 1:

Remove the treadmill from the box and place on a level ground.

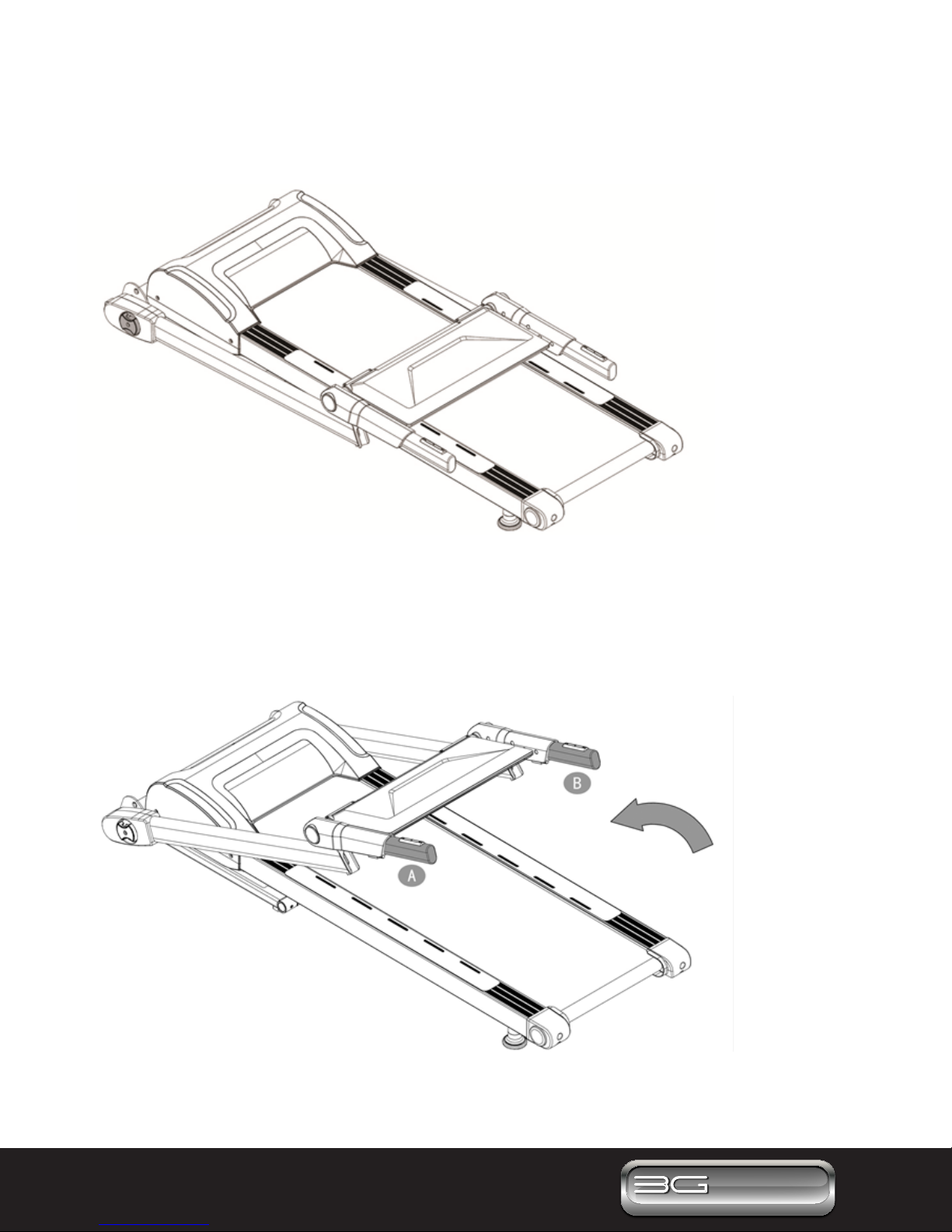

STEP 2:

With both hands, take hold of the A/B handlebar and then lift at the

same time until unit opens completely. Important: You will hear a

“click” sound when it has been opened completely.

11 Questions? Call 888-888-7985

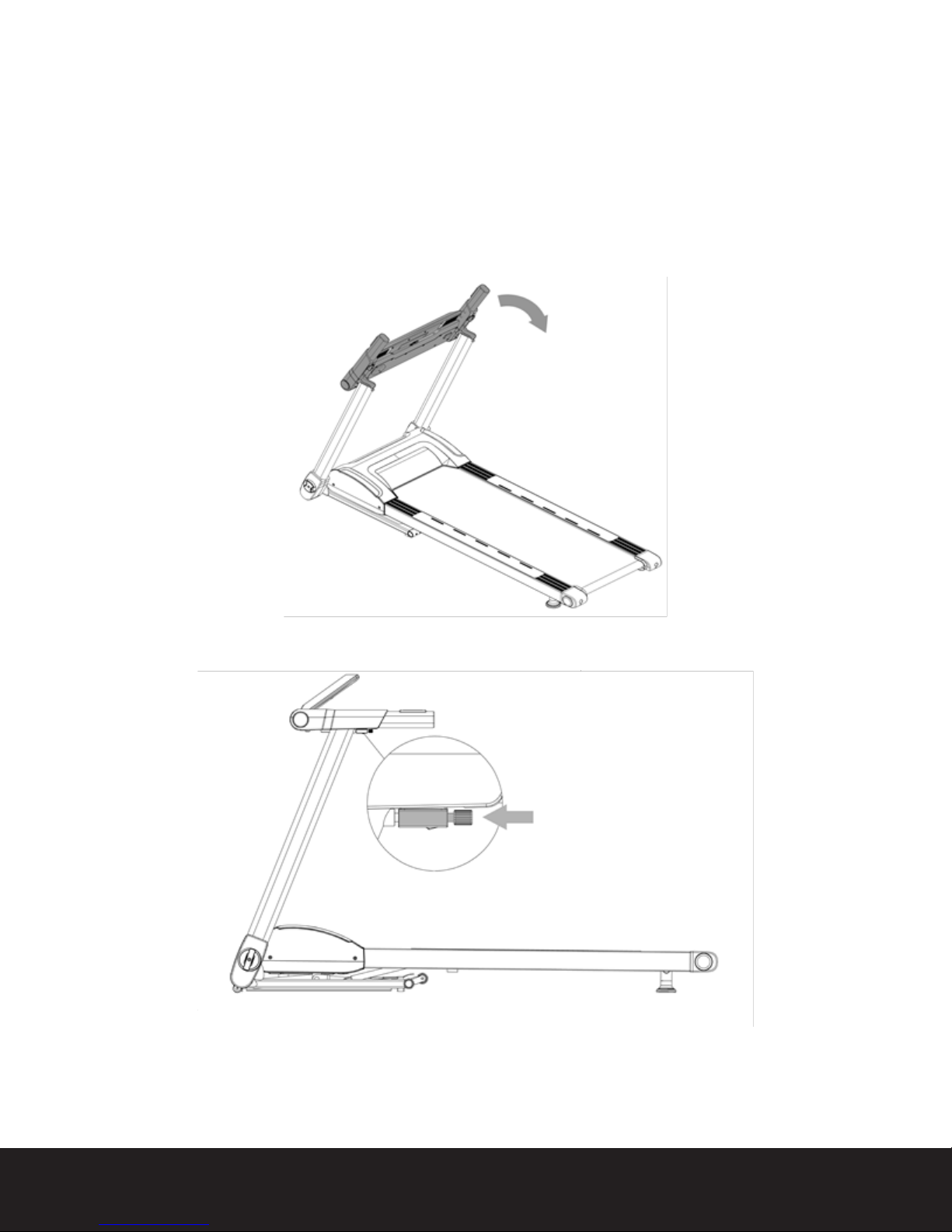

Assembly Steps — Continued

STEP 3:

Rotate the upper console according to direction of arrow below.

After folding down the upper console move to Step 4 and securely

lock both left and right side locking pins into place.

3G CARDIO

www.3GCardio.com

Moving and Folding Instructions

A: Moving the 3G Cardio 80i Fold Flat Treadmill and/or storing in an upright position:

Fold the running deck up by lifting the end of the running deck. Make sure the pedal is locked as

shown in the picture. Once in a locked upright position, you may roll or push the treadmill. Note:

the weight of the treadmill may cause damage to softer wood ﬂoors unless you lay down protective

mats. IMPORTANT: Frame Lock Dial must be released to fold treadmill vertically.

1. Unlock the locking pins under the right and left arms.

2. Tighten the Frame Lock Dial.

3. Unlock the column lock device.

4. Lower the upright column in the direction of arrow.

5. The 80i Fold Flat Treadmill is now folded ﬂat.

6. Frame Lock Dial must be tightened to roll the treadmill in

the fold ﬂat position.

B: To fold the treadmill down for storage:

Frame Lock Dial

LOCK DIAL must

be removed prior

to using treadmill.

Failure to remove

LOCK DIAL will result

in damage to treadmill

and incline motor!

WARNING

MUST REMOVE LOCK DIAL BEFORE USE!!

13 Questions? Call 888-888-7985

Use of a PVC Treadmill Mat is highly recommended. Please make sure that your walking or running shoes are clean from

outside dirt and debris.

• Warning: To prevent electrical shock, be certain the treadmill is turned off and unplugged for cleaning or routine

maintenance.

• Important: Never use abrasives or solvents to clean the treadmill. To prevent damage to the computer, keep liquids away

and keep it out of direct sunlight and excessive heat.

• After each workout: Wipe off the console and other treadmill surfaces with a damp cloth.

• Weekly: Vacuum underneath and around the treadmill once per week.

MAINTENANCE OF RUNNING DECK AND RUNNING BELT

If you should have any questions, please do not hesitate to call 3G Cardio direct at 888-888-7985. It is very important

that proper procedures are followed speciﬁcally as written in this manual. Failure to do so may result in damage to the

treadmill and possible injury to users. Read and understand this owner’s manual before proceeding.

BELT ADJUSTMENT

All running belts are properly set at the factory but it is possible that during the “break in” period, belts may stretch or

be off-center after the initial use. Stretching is also normal during the break-in period. If you notice any belt rubbing or

burning smells, stop use immediately and call for maintenance.

Important: To tighten or align the belt, you should have the treadmill running at around 3.0 mph. If you need to adjust

the tension of the belt, be very careful to not over tighten it. You should only adjust the belt in 1/4 turn increments.

Aligning the Belt: Alignment is done with the left side bolt only. If you need to move the belt to the right, “tighten” the

(left side) bolt (turn to the right in 1/4 turns only). This will move the belt slightly to the right. If you need to align the

belt to the left, “loosen” the left side bolt (turn the bolt to the left in 1/4 turns only). This will move the belt to the left.

It can take up to 30 seconds to alter the position of the belt, so be patient.

Tightening the Belt: If your belt feels like it is slipping and needs to be tightened, adjust BOTH left and right side bolts

EVENLY in no more than 1/4 turn increments. Make a 1/4 turn adjustment on both sides and then wait 30 seconds

before reevaluating tension. If the belt is still not tight enough, repeat same step again. If you belt is not centered, please

follow the above steps ﬁrst. Remember: do not over tighten your belt!

ADJUST THE MOTOR DRIVE BELT TENSION

The 3G Cardio 80i Fold Flat Treadmill is equipped with an auto tensioner for the motor drive belt.

TREADMILL LUBRICATION:

Lubricating under the tread belt will ensure superior performance and extend its life expectancy. Lubrication is available

from your local dealer or online. Any type of liquid high grade pure silicone is acceptable. Wipe the entire deck surface

with a clean, lint-free cloth to remove all dust and dirt.

Treadmill Maintenance

3G CARDIO

www.3GCardio.com

HOW TO CHECK RUNNING BELT FOR PROPER LUBRICATION

Lift one side of the tread belt and feel the top surface of the treadmill deck. If the surface is slick to the touch, then no

further lubrication is required. If the surface is dry to the touch, apply one packet of lubricant or 30 - 40 ml of pure liquid

silicone lubricant underneath the belt, directly onto the deck.

NOTE: DO NOT over lubricate tread deck. Any excess lubricant that comes out should be wiped off. Lubricant is

available from your place of purchase. IMPORTANT: USE ONLY 30 - 40 ml OF LUBRICANT PER APPLICATION

LUBRICATION SCHEDULE

1. After the ﬁrst 25 hours of use (1-2 months) apply 30 - 40 ml of lubricant

2. Every 60 hours of use (3-6 months) apply 30 - 40 ml of lubricant

HOW TO CHECK RUNNING BELT FOR PROPER LUBRICATION

Lift one side of the tread belt and feel the top surface of the running board. If the surface is slick/smooth to the touch,

then no further lubrication is required. If the surface is dry to the touch, apply one packet of lubricant or 30 -40ml of

lubricant.

GROUNDING INSTRUCTION

This product must be grounded. Should this treadmill malfunction or break down, grounding provides a path of least

resistance for electric current to reduce the risk of electric shock. The cord on this product is equipped with an equipment-

grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed

and grounded in accordance with all local codes and ordinances.

DANGER – An improperly grounded outlet can result in a risk of electric shock.

Check with a qualiﬁed electrician or serviceman if you are in doubt as to whether the outlet you plan to use is properly

grounded. Do not modify the plug provided with the product – if it will not ﬁt the outlet; have a proper outlet installed by

a qualiﬁed electrician.

This product is for use on a nominal 15 amp 110-volt circuit and has a grounding plug that looks like the plug illustrated

in sketch A in following ﬁgure. Make sure that the product is connected to an outlet having the same conﬁguration as the

plug. No adapter should be used with this product nor should a means for grounding be added to the product.

Grounding method

Servicing a double-insulated product requires extreme care and

knowledge of the system, and should be done only by qualiﬁed

service personnel. Replacement parts for a double-insulated

product must be identical to the parts they replace.

15 Questions? Call 888-888-7985

GENERAL OPERATION

Display type: LCD Display Feedback as follows:

[TIME]：Displays exercise time or target time, display range：0

：00—99：59：

[SPEED]：Displays exercise speed, display range：1—11.0 mph：

[INCLINE]：Displays exercise incline, display range：0%—15%：

[DISTANCE]：Displays exercised distance or target distance,

display range：0.0—99.9 miles：

[CALORIES]：Displays consumed calories or target consumed

calories, display range：0—999 calories：

[PULSE]：Displays the heart rate or target heart rate, display

range：40—199BPM：

[PROG]：Displays 8 pre-programmed workouts: ：Warm-Up,

Fat Burn, Heart Exercise, Summit Climb, Long Distance Run,

Rolling Hills,：Speed Interval, Speed Burst, and 2 user programs

FUNCTION：

SAFETY KEY: When you pull out the safety key, the treadmill

will stop immediately. To restart, reinsert the safety key.

[START]：Press this button to start operation.

[STOP]：Press this button to stop treadmill belt/motor.

[PAUSE]：Press this button to make motor pause in the current

program.

[PROG]：This button has 8 pre-programmed workouts that will

display when the belt is in a stopped position.

QUICK DIAL：Turn Quick Dial clockwise to increase speed

up to 11 mph.：Turn Quick Dial counter-clockwise to decrease

speed as low as 1 mph.

SPEED SHORTCUT [2, 4, 6, 8, 9, 10]: These buttons will

take you to the labeled speed with one push of the button.

INCLINE SHORTCUT [0/3/6/9/12/15]: These buttons will

take you to the labeled incline with one push of the button.

SPEED SHORTCUT TOGGLE SWITCH: Quick adjust speed

buttons on side of handle bars: (0.1mph per press).

INCLINE SHORTCUT TOGGLE SWITCH: Quick adjust

incline buttons on side of handle bars: (1% per press )

Console Operation and Programming 80i FFT

80 i FOLD FL AT

Please read and understand owner’s manual before using treadmill. Please consult a physician before starting any exercise program.

www.3GCardio.com

AUDIO INPUT QUICK

DIAL

! !

Music in

Warm Up

Fat Burn

Heart Rate

Summit Climb

Long Distance Run

Rolling Hills

Speed Interval

Speed Burst

Warm Up

Fat Burn

Heart Rate

Summit Climb

Long Distance RunP5

Rolling HillsP6

Speed Interval

Speed Burst

8 9 10

4 60

912 15

3 6

Main Console

3G CARDIO

www.3GCardio.com

Console Operation and Programming 80i FFT

MP3 AUDIO FEATURES

To play music through the speakers, plug the MP3 connecting cord into the console.

GENERAL START

Turn on the power switch and insert the safety key into the safety key slot. The LCD will display for 2 seconds, then a

beep will sound and the console will enter into manual normal mode. Press “START”, motor will start immediately and

treadmill will begin to run.

MANUAL MODE

Insert the safety key to the safety key slot on the console, press “MODE” to enter into a manual mode. There are three

kinds of function on the manual mode: time mode, distance mode, and calories mode (see as follows)

TIME MODE：

Press “MODE” to enter into time countdown mode. The LCD window will ﬂash the TIME; the start time is 30

minutes. Turn the Quick Dial to change the time setting. Setting range is 10:00-99:59. Turn Quick Dial clock-wise to

increase time by 1 minute intervals up to 99:59 minutes. Turn the Quick Dial counter- clock-wise and the time will

decrease by 1 minute intervals until it reaches 10 minutes.

DISTANCE MODE：

Press the “MODE” button twice (one time after the time setting) and it will enter into DISTANCE countdown mode.

The LCD window will ﬂash DISTANCE. The start distance is 1.0 mile. Turn the Quick Dial to change the distance

setting. Setting range is 1.0-99.9 miles. Turn the Quick Dial clock-wise and the distance will increase by 0.1 mile

intervals. Turn the Quick Dial continuously and the distance will increase rapidly up to 99.9 miles.

CALORIES MODE：

Press the “MODE” button three times at the start to enter into CALORIES countdown mode. The LCD window will

display the CALORIE zone with the starting calories at 50cal. Turn the Quick Dial to change the calories setting. The

setting range is 50-999cal. Turn the Quick Dial clock-wise and the calories will increase by 1 calorie. Turn the Quick

Dial continuously and the calories will increase rapidly up to 999 calories. Turn the Quick Dial counter clock-wise and

the calories will count down by 1 calorie.

Continued

80 i FOLD FL AT

Please read and understand owner’s manual before using treadmill. Please consult a physician before starting any exercise program.

www.3GCardio.com

AUDIO INPUT QUICK

DIAL

! !

Music in

Warm Up

Fat Burn

Heart Rate

Summit Climb

Long Distance Run

Rolling Hills

Speed Interval

Speed Burst

Warm Up

Fat Burn

Heart Rate

Summit Climb

Long Distance RunP5

Rolling HillsP6

Speed Interval

Speed Burst

8 9 10

4 60

912 15

3 6

Lower Console

17 Questions? Call 888-888-7985

Console Operation and Programming 80i FFT

PROGRAM MODE

Press the “PROGRAM” button or program shortcut to select between 8 programs, P1- P8. Each program is set at

30 minutes as a default time. To change turn the Quick Dial to increase or decrease the time. Press [START] to start

treadmill, program will start automatically; the time will start to countdown. The Quick Dial can change the speed

during your workout.

Program 1 Warm Up
