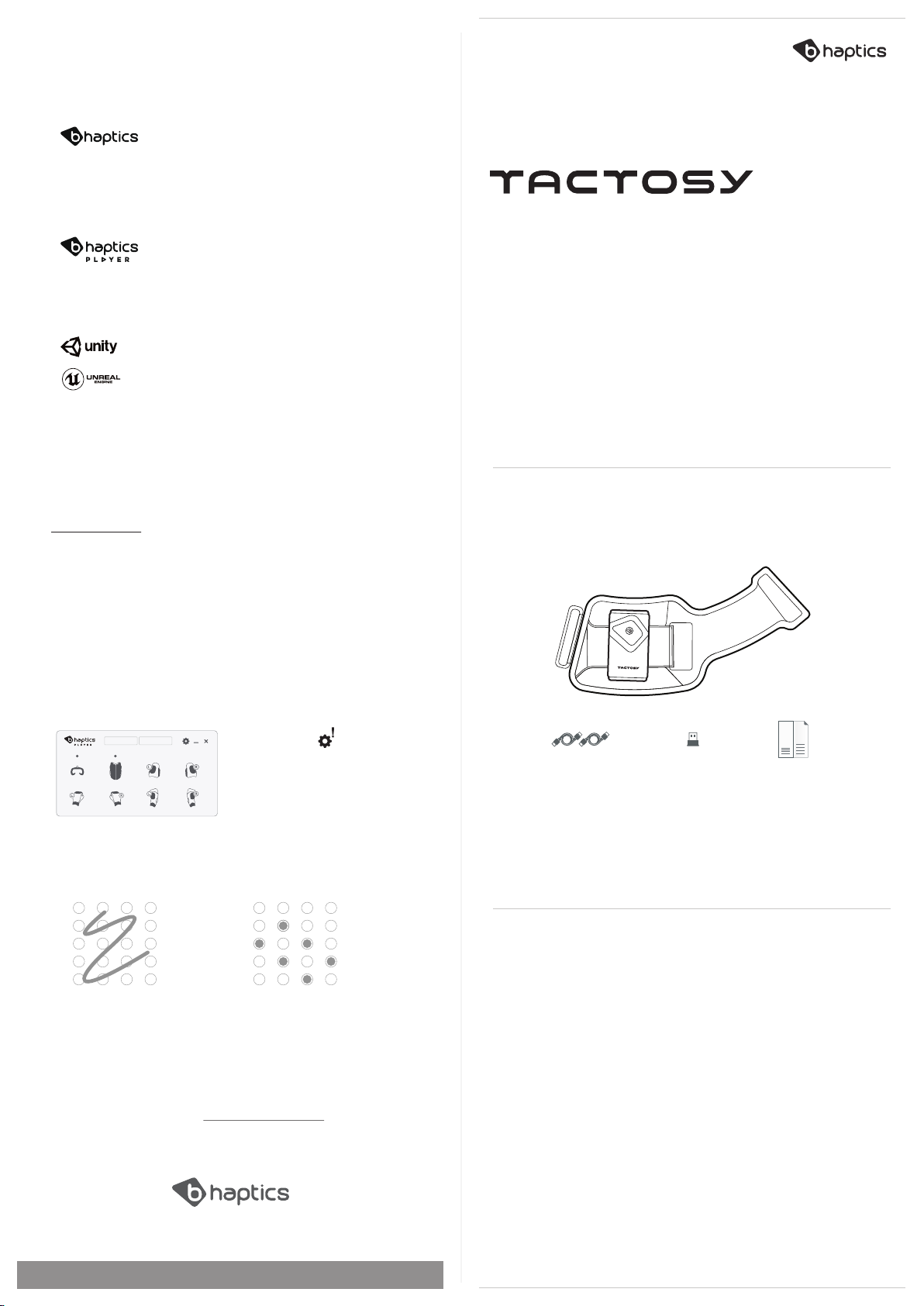

Bhaptics Tactosy User manual

Tactosy is a wearable sleeve that provides haptic feedback on your arm
surface. Using a total of 20 discrete vibro-tactile motors, it creates a
continuous form of tactile sensation. It aims to enhance users’ experience in
an audio-visually immersive environment.
UNBOXING
PRECAUTIONS
Before using the Tactosy, please read this manual carefully.
Wearable haptic sleeve
Model
Size
Weight
Connection
Battery
Charging
Tactosy (BHTTS0100)
5.5 - 14 inch (arm circumference)
250g
Bluetooth Low Energy technology
3.8V, 2900mAh, 11.02Wh
5V, 2A max
* * The number of Bluetooth dongle and USB cables is subject to change once purchased.
Safety and Warnings
* Avoid contact with bare skin.
* Keep this product out of reach of small children.
* Do not fasten the body straps excessively.
* Never disassemble or modify the product.
* Do not apply excessive force to the button.
* Do not expose the device to extreme weather conditions.
* Put the device only on the arms and legs.
Care and Handling
* Do not throw, drop, or expose the device to physical impact.
* Keep Tactosy away from liquids, it is not water-resistant.
* Do not store Tactosy in extreme cold or hot areas.
* Do not use chemicals or cleaning solvents on the device.
* Do not leave the device on charge when not in use, as overcharging
may shorten the battery life.
Tactosy(Main Controller+Strap)
x 1
USB C-type Cable
x 1
Manual
x 1
Bluetooth Dongle
x 1
01
02
03
04
Downloading software
Downloads for the bHaptics Player software are available on our website,
Pairing
With the device and PC bluetooth turned on, and with the BLE dongle
plugged into the PC, if needed, find the Tactot icon on the Player interface.
Hover over the icon and click on the ‘pair’ button to find and pair the device.
*Unpairing
If a device has been paired before, it will connect automatically when turned on. To
unpair, hover over the paired device’s icon and find the ‘unpair’ button.
Testing haptic feedback
The draw function can be found in the settings tab.
Enjoy and feel the next-generation haptic suit.
CONNECTING THE DEVICE
BHAPTICS PLAYER
bHaptics Plugin l We support plugins for
Unity3D and Unreal Engine, which can be
found in the Asset Store and Marketplace.
Please refer to the plugin manuals for how to
use them. For any other SDKs, please contact
us directly.
bHaptics Player l Desktop software, used for
the optimization and control of your experience
with TactSuit. Acting as a link between the
device, application, and the bHaptics Designer,
it controls the bluetooth connections, device
settings, and more.
bHaptics Designer l Web-based haptic
feedback editing tool. Utilizing this tool, you
can easily create a haptic feedback pattern
without using a single line of code. Just like
adding a subtitle to a video, you can add a
haptic pattern to a video, a game, etc.
© 2018 bhaptics.Inc All rights reserved
DESIGNER
Path Mode
Draw lines within the dotted
section to create continuous
haptic feedback.
Dot Mode
Select specific
vibro-tactile motors to
activate.
Contact our email for customer support.
[email protected] / www.bhaptics.com
www.bhaptics.com.
*Firmware update
When an update is available, a notification
will pop up on the settings button.
The update can be found in the settings tab.
Keep the firmware updated to its latest
version. For more information visit our site.
*To use the Designer, enter the URL(https://designer.bhaptics.com) on your PC and Log-In.
(Sign-up is required)
Unpair AllPing All

Vibro-tactile Motors
FACE
Strap
TACTOSY SLEEVE
OUTER FACE
CONNECT
2
STEP
1
STEP
Strap
Strap Connection Loop Main Controller
Battery
Connection port
Main Controller
Strap Holder
On/Off Switch
(LED Status Indicator)
LED Color Indication
“RED” On
BLE status
Sleep O
X
O
X
O
Advertising
Advertising
Connected
Connected
Charging
“GREEN” blinking
“RED/YELLOW” blinking
“GREEN/BLUE/CYAN” On
“YELLOW/MAGENTA/WHITE” On
Connecting device
Turning Tactosy on.
Press the On/Off button on the device to turn it on.
The device will blink to indicate it is ready for bluetooth connection.
Putting on the Tactosy
Put the Tactosy on your forearm and tighten the strap accordingly.
For optimum experience, minimize the loose space between your
arm and the strap.
Hold the strap
and pull tight.
Attach the velcro to the
inside of your forearm
with the strap pulled tight.
* Size Control
To account for more variation of
sizes, unfold or fold the end of the
strap before securing the velcro.
*Tips for use
- Using the bHaptics Player, users may test various vibration levels of vibro-tactile
motors to optimize the Tactosy experience.
- Keep track of the remaining battery through the bHaptics Player to prevent sudden
shutdown of the Tactosy.
* If Tactosy band does not fit comfortably,
adjust the top strap to fiind a better fit.
2
2
1

WARNING & PRECAUTION
This user manual is the basic manual for installation and operation and made for correct
application of BHTTS0100 wireless product with CDMA technology. All users who
install and use this 2.4/5G Dual-band RF Transceiver Module products must read and understand
the contents of this manual. In addition, user must observe all safety warnings and precautions in
order to prevent from any problem or malfunction and to avoid from physical danger or damage
to property of the customer.
Be sure to keep it after installation.
•This User manual describes only for our 2.4/5G Dual-band RF Transceiver Module products and
can not be used without permission at any time.
•Please note that manufacturer is not responsible for any loss or damage caused by using this
product for any purpose other than its intended use.
•Do not disassemble the equipment at any time to change the function or repair BHAPTICS INC.
You must contact the place of purchase and seek professional help.
•Note: All BHTTS0100 wireless products comply with the regulations for wireless digital devices
in the KC, CE, and FCC regulations.
•BHAPTICS INC wireless CDMA products may generate, use and radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause interference with
certain other wireless communications.
•BHTTS0100 wireless products may cause interference in all wireless installation
environments. If interference from radio (TV, radio) reception occurs due to the use of wireless
CDMA products, the following problems may be solved.
1) Change the direction or position of the transmit / receive antenna.
2) Separate the distance between the wireless device and the receiver (at least 15 meters away).
3) Connect the device to an outlet on a different line than the one to which the receiver is connected.
4) Contact your dealer or a wireless device / CCTV technician for assistance.
5) Wireless connection may be disconnected by various external wireless circumstances at each places.
Precautions before Installation (Warnings and Cautions for Safety)
Be sure to read and understand the contents of this manual before using BHTTS0100
Wireless products in order to eliminate safety and product problems and malfunctions.
Please read this manual carefully to ensure that the product is used correctly to protect the
user's physical safety and property damage.
WARNING: Caution is required and incorrect installation may cause problems.
WARNING: This is expected to result in death or serious injury.
CAUTION: This is a potential for injury or material damage to persons.

Federal Communications Commission (FCC) Statement
15.21 You are cautioned that changes or modifications not expressly approved
by the party responsible for compliance could void the user’s authority to
operate the equipment.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may
cause undesired operation of the device.
15.105(b) This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.

The input voltage of wireless BHTTS0100 products
should be connected 3.3V DC and the input current should be
supplied more than 800mA. The power outlet must be grounded and
never used with a heating device, air conditioner, magnetic field
and radio wave generator Never use it with an electric motor, a
generator, an antenna using another frequency, or a radio wave
generator.
To prevent damage caused by lightning accident or external
electric shock, be sure to use protective equipment or protection
device together.
It may cause fire, electric shock and personal injury.
Never disassemble or disassemble the wireless BHTTS0100
product, and do not repair or modify it by yourself
for any reason.
*It may cause fire and electric shock.
Be sure to turn off the power of the wireless BHTTS0100
device before connecting the camera or antenna, and never connect
additional equipment while the product is running. Connect all
equipment and devices, then power on.
*It may cause fire, electric shock and personal injury.
The input voltage of wireless BHTTS0100 products
should be connected 3.3V DC and the input current should be
supplied more than 800mA. The power outlet must be grounded and
never used with a heating device, air conditioner, magnetic field
and radio wave generator Never use it with an electric motor, a
generator, an antenna using another frequency, or a radio wave
generator.
Wireless BHTTS0100 products should never be
installed in places with high humidity, dust, heat, etc. Be sure to
check environment of installation site beforehand to prepare
measures for protection against moisture, water and heat.
* It may cause fire, electric shock, lightning accident, personal
injury.
In any of the following cases, immediately turn off the power to the unit, and then contact the
place of purchase for repair.
1) If the power supply, connector, or outer shape is damaged.
2) When rain or water enters the equipment
3) If liquid has been spilled on the device or an abnormal substance
4) If the unit does not operate as described in this manual (operation may be damaged if
operated in a manner other than those specified in the Manual).
5) If the unit is dropped or thrown, the product is damaged.
6) If there is a sharp change in performance
7) Damage caused by natural disasters such as lightning, user mistakes, errors or carelessness
will be repaired by the user at their own expense even during the warranty period.
