BHG Harbor City Fire Dining Table... User manual

WARNING
FOR YOUR SAFETY:
For Outdoor Use Only (outside, non-enclosed
area). Do Not Use For Cooking.
Installation and service must be performed by
a qualified installer, service agency, or the gas
supplier.
WARNING
FOR YOUR SAFETY:
If the information in this manual is not
followed exactly, a fire or explosion may
result causing property damage, personal
injury or loss of life.
WHAT TO DO IF YOU SMELL GAS:
• Do NOT try lighting any appliance.
•Do NOT touch any electrical switch; do
NOT use any phone in your building.
•Immediately call your gas supplier from a
neighbor’s phone.
• Follow the gas supplier’s instructions.
•If you cannot reach your gas supplier, call
the fire department.
Installation and service must be performed
by a qualified installer, service agency or
gas supplier.
INSTALLER: Leave this manual with the
appliance. CONSUMER: Retain this manual
for future reference.
If you are assembling this unit for someone
else, give this manual to him or her to read
and save for future reference.
WARNING
FOR YOUR SAFETY:
Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage.
Read the installation, operation and
maintenance instructions thoroughly before
installing or servicing this equipment.
DANGER
If you smell gas:
1. Shut off gas to appliance.
2. Extinguish any open flame.
3. If odor continues, leave the area
immediately.
WARNING
FOR YOUR SAFETY:
1. Do NOT store or use gasoline or other
flammable vapors or liquids in the vicinity of
this or any other appliance.
2. An LP-cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
DANGER
Do NOT leave this appliance unattended while
it is in operation.
CARBON MONOXIDE HAZARD
•This appliance can produce carbon monoxide which has
no odor.
•Using it in an enclosed space can kill you.
•Never use this appliance in an enclosed space such as a
camper, tent, car or home.
DANGER
Table of Contents
Important Safety Information.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
Propane (LP) Dangers and Warnings ................................................... 3

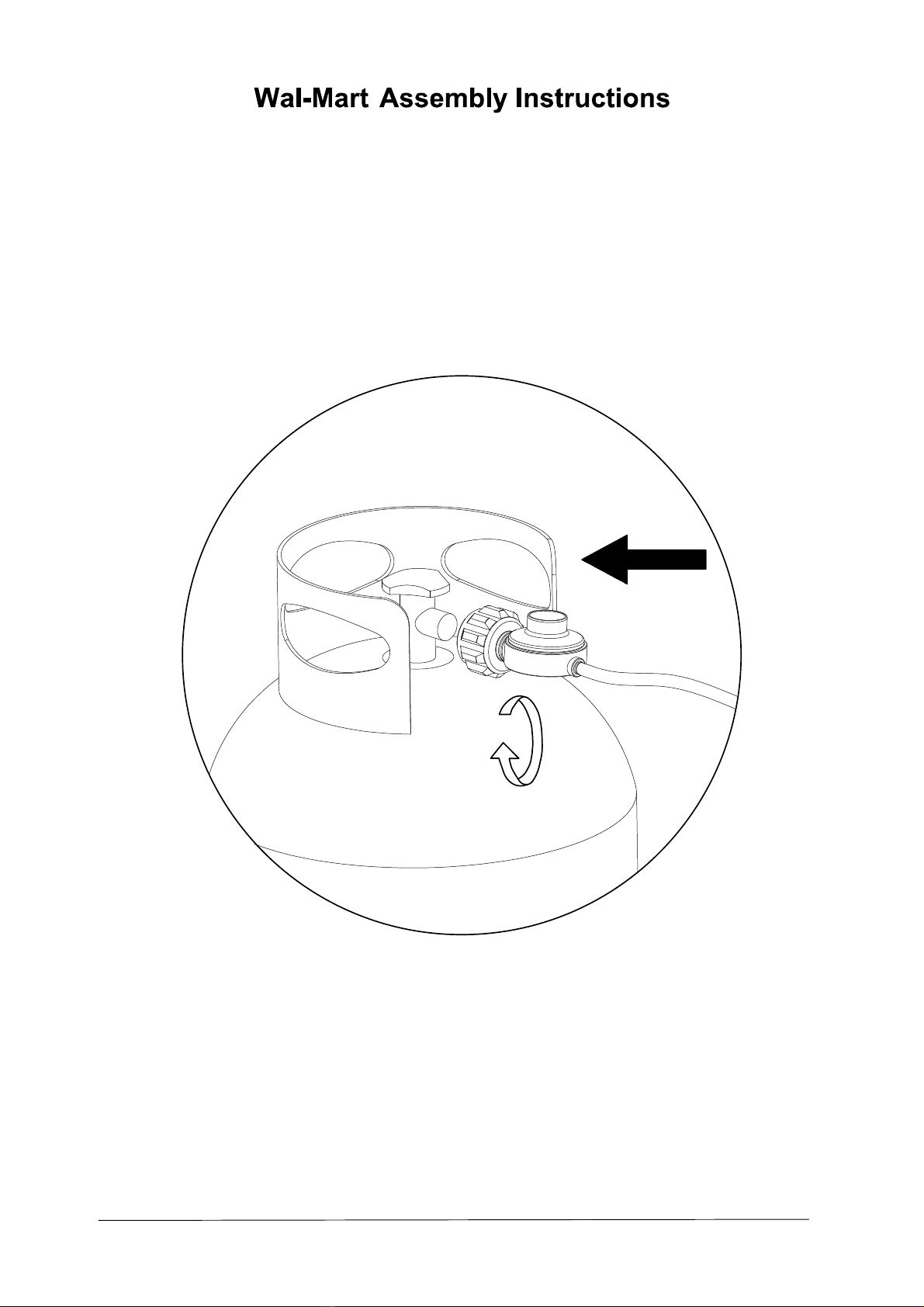

Hose & Regulator Assembly and Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
PartsList.............................................................................
6
Assembly Instructions. .................................................................. 8
Fire Pit Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Cleaning and Care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29
California Proposition 65:
California Proposition 65:
This appliance complies with “ANSI Z21.97-2017/CSA 2.41-2017, Outdoor Decorative Gas Appliances.”
4. After leaving the area, call your gas
supplier or fire department.
Failure to follow these instructions could result
in fire or explosion, which could cause property
damage, personal injury, or death. This product can expose you to carbon monoxide, which is a combustion
Handling the brass material on this product can expose you to Lead, which
by product known to the State of California to cause cancer birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov.
is known to the State of California to cause cancer and birth defects or other reproductive harm.
Wash hands after handling. For more information go to www.P65Warnings.ca.gov.
Walmart
BHG Harbor City Fire Dining Table
Important Safety Information
1
Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at [phone], 8:30 a.m. – 5:00 p.m. PST /11:30 a.m.- 8:00 p.m., EST, Monday- Friday.
Stock# BH19-092-097-26 / FHWS80029

IMPORTANT SAFETY INFORMATION
WARNING FIRE TABLE IS FOR OUTDOOR USE ONLY
WARNING Failure to follow the dangers, warning and cautions in this manual may result in serious bodily injury or death,
or in a fire or an explosion causing damage to property.
IMPORTANT NOTICE Read and understand all warnings and precautions prior to assembly and use of your gas fire table.
Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage.
Note The use and installation of this product must conform to local codes. In the absence of local codes, use the Nationalo
Fuel Gas Code, ANSI Z223.1/NFPA54. Reference to Natural Gas and Propane Installation code CSA B149.1 or Propane
Storage and Handling code B149.2.
Minimum Clearance from Unit to Combustible Materials
IF YOU SMELL GAS
·Shut off gas supply to the fire table.
Extinguish any open flame.
Do not try lighting any appliance.
Do not touch any electrical switch; do not use any phone in your building.
Immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions.
If you cannot reach your gas supplier, call the fire department.
·
·
·
·
·
·
Installation and repair should be done by a qualified service person. The appliance should be inspected
before use and at least annually by a qualified service person. More frequent cleaning may be required
as necessary. It is imperative that the control compartment, burners and circulating air passageways of
the appliance are kept clean.
Children and adults should be alerted to the hazards of high surface temperatures and be kept at a
safe distance while fire table is in use. This outdoor fire table is not to be operated by children.
Young children should be closely supervised when in the vicinity of this outdoor fire table.
Do not hang or place clothing or other flammable materials on or near the gas fire table.
Any guard or protective device removed for servicing the appliance shall be replaced prior to
operating the appliance.
2
Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at [phone], 8:30 a.m. – 5:00 p.m. PST /11:30 a.m.- 8:00 p.m., EST, Monday- Friday.
• Keep these instructions for future reference. If you are assembling this unit for someone else, give this manual to him or her
to read and keep for future reference.
• This gas fire table must be used ONLY outdoors in a well-ventilated space and shall NOT be used inside a building, garage,
or any other enclosed area.
• DO NOT use this outdoor gas fire table for indoor heating. TOXIC carbon monoxide fumes can accumulate and cause
asphyxiation.
• NEVER LEAVE this gas fire table unattended when in use.
• This unit is to be used with propane gas & natural gas only! (sold separately).
• Do not use a flame to check for gas leaks.
• Do not store or use gasoline or other flammable vapors an d liquids within 25 feet (7.62m) of this or any other appliance.
• Do not store any combustible materials in the base enclosure.
• The use of alcohol, prescription or non-prescription drugs may impair an individual’s ability to properly assemble or safely
operate this outdoor fire table.
• DO NOT use in an explosive atmosphere. Keep gas fire tab le area a clear and free from combustible materials, gasoline and
other flammable vapors and liquids.
• This outdoor fire table is not to be installed or used in or on recreational vehicles and/or boats.
• Always use in accordance with all applicable local, state and national codes. Contact your local fire department for details on
outdoor burning.
61’’ (155.1cm) from the top: 48’’ (121.9cm) from all sides and back. Do not locate this fire table under any overhead enclosure.

Prior to each fire table operation, check the hose for evidence of excessive abrasion or wear by looking through the visual
replaced before using the gas fire table. The hose assembly
assembly specified by the manufacturer. Please call customer service department
IMPORTANT SAFETY INFORMATION (continued)
check hole. If the hose is damaged, cracked or cut, it must be
can only be replaced with a hose
• Before each use, remove the glass media. Examine the burner and its components. If dirty, clean with a soft brush and soapy
or foreign material, such as spider webs or nests in this
that the burner is damaged, the fire table must not be used. The burner assembly
replaced. Please contact customer service department at: [phone] for technical support.
• Place the hose out of the pathways where people may trip over it (if using external tank). Do not place the hose in
areas where it may be subjected
water solution. Also examine the area around the burner. Any dirt
area should be removed. If it is evident
can not be
to accidental damage.
PROPANE (LP) DANGERS AND WARNINGS
LP GAS
LP gas is flammable and hazardous if handled improperly. Become aware of the characteristics before using any LP gas product.
Propane Characteristics:
• Flammable, explosive under pressure, heavier than air and settles in pools in low areas.
•
ATTENTION: : Any alteration of the outdoor fire table that is not specifically directed in the operations manual will void
manufacturer.
at: [phone].
3
Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at [phone], 8:30 a.m. – 5:00 p.m. PST /11:30 a.m.- 8:00 p.m., EST, Monday- Friday.
• Use the same precautions you would with any open fire when using this outdoor fire table.
• DO NOT burn solid fuels such as: wood, charcoal briquettes, lump charcoal, manufactured logs, driftwood, trash, leaves, paper,
cardboard, plywood, painted or stained or pressure treated wood in this outdoor fire table.
• DO NOT paint or color any part of this heating unit.
• DO NOT use this outdoor fire table until it is COMPLETELY assembled and all parts are securely fastened and tightened.
• DO NOT store another LP gas tank within 10 feet (3.05 m) of this outdoor fire table while it is in operation.
• DO NOT use this outdoor fire table near automobiles, trucks, vans or recreational vehicles.
• DO NOT use this outdoor fire table under any overhead structure or near any unprotected combustible constructions. Avoid
using near or under overhanging trees and shrubs.
• Always use this outdoor fire table on a hard, level non-combustible surface such as concrete, rock or stone. An asphalt or
blacktop surface may not be acceptable for this purpose.
• DO NOT use this outdoor fire table if any part has been under water. Immediately call a qualified service technician to
inspect the fire table and to replace any part or control system and any gas control which has been under w ater. Always
remove protective cover before operating (if applicable).
• DO NOT set the protective cover over the unit until it is turned off and completely cooled down.
• DO NOT use in windy conditions.
• Keep all electrical cords away from a hot outdoor fire table.
• Certain areas of this outdoor fire table when in use will become too hot to touch. Do not touch hot surfaces until the unit has
cooled unless you are wearing protective gear such as insulated pot holders or heat resistant gloves or mittens to avoid burns.
• DO NOT attempt to move or store this outdoor fire table until all parts are cool. DO NOT lean over this outdoor fire table
when lighting or when in use.
• Use only the regulator and hose assembly provided. The replacement regulator and hose assembly shall be that specified
by the manufacturer.

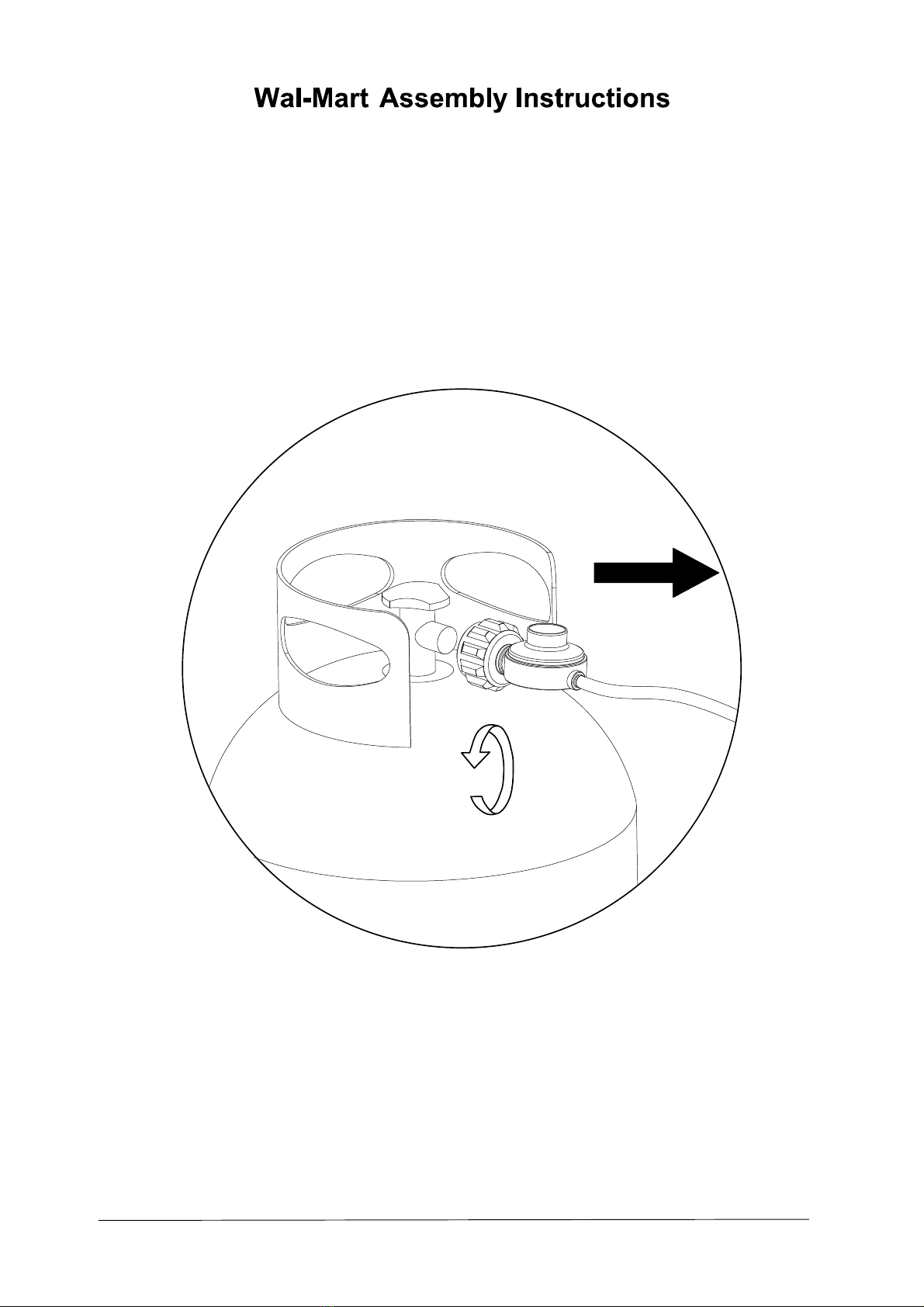

• DO NOT attempt to disconnect the gas regulator from the tank or any gas fitting while the outdoor fire table is in use.
• Always shut off the supply at the tank valve and disconnect regulator from the tank when the fire table is not in use.
• DO NOT sit on the fire table when the unit is in operation.
• DO NOT throw anything onto the fire when the unit is in operation.
• Glass beads are very hot; please keep children or pets at a safe distance.
• It is essential to keep the outdoor fire table valve compartment, burners, and circulating air passages clean. Inspect outdoor
fire table before each use.
• Check for leaks after not using the unit for long periods of time.

PROPANE (LP) DANGERS AND WARNINGS
• The LP gas supply tank must be constructed and marked in accordance with the Specifications for LP gas tanks of the U.S.
n (DOT) or the National standard of Canada, CAN/CSA-B339, LP gas tanks, Spheres and
es for the Transportation of Dangerous Goods.
• LP gas tank must be arranged for vapor withdrawal.
• The LP gas tank must have a listed overfilling prevention device (OPD) and a QCCI or Type I (CGA810) LP gas tank connection.
Department of Transportatio
Tub
• The LP gas tank must have a tank collar to protect the tank valve.
• Never use an LP gas tank with a damaged body, valve, collar, or footing. Dented or rusted LP gas tanks may be hazardous
supplier prior to use.
• The LP gas tank should not be dropped or handled roughly.
• Tanks must be stored outdoors out of the reach of children. Do NOT store in a building, garage, or any other enclosed area.
• Never store your LP gas tank where temperatures can reach ove r 125°F.
• Do not store the LP gas cylinder in direct sunlight or near a source of heat or combustion.
• Never keep a filled LP gas tank in a hot car or car trunk. Heat will cause the gas pressure to increase, which may open the
pe.
• Place dust cap on valve outlet whenever the LP gas tank is not in use. Only install the type of dust cap on the LP gas tank
the LP gas tank valve. Other types of caps or plugs may result in leakage of propane.
a. Do not store a spare LP gas cylinder under or near this appliance.
b. Never fill the LP gas cylinder beyond 80% full.
c. If the information in (a) and (b) is not followed exactly, a fire causing death or serious injury may occur.
• LP gas cylinders should be filled only by a certified LP gas dealer.
• The pressure regulator is set for 11 inches of water column ( pressure).
• Never attempt to attach this appliance to the self-contained LP gas system of a camper trailer, motor home or house.
• Always use the pressure regulator and hose assembly provided with the appliance to connect to a LP gas cylinder. Never
. For technical support contact customer service at [phone].
• Hand turn the manual gas control valve. Never use tools. If the valve will not turn by hand, do not try to repair it. Call a
f force or any self attempted repair may result in a fire or explosion.
Connecting your gas cylinder:
Before connection, be sure that there is no debris caught in the head of the gas cylinder, head of the regulator valve or in the
ports. Connect regulator valve and hand-tighten firmly. Disconnect the propane cylinder from
the regulator valve when the fire table is not in use. DO NOT obstruct the flow of combustion air and ventilation air to the
burner.
LP gas cylinder must contain a shut-off valve as specified in the standard for compressed gas cylinder valve outlet and inlet
and inlet connection, ANSI/CGA-V-1-1977, CSA B96.
•
and should be checked by your LP gas
relief valve and allow gas to esca
valve outlet that is provided with
connect to an unregulated LP gas supply.
Certified Gas Technician. The use o
head of the burner and burner
LP GAS WARNINGS:
• Cylinders must be stored outdoors in a well-ventilated area out of reach of children.
• Disconnected cylinders must have threaded valve plugs tightly installed and must not be stored in a building, garage or any
• Never use a propane cylinder with a damaged body, valve, collar or footing.
• Dented or rusted propane cylinders may be hazardous and should be checked by your propane gas supplier.
• Be sure to use only one 20 lb (9.1 kg) LP gas cylinder with a Type 1 valve with this appliance as required by the American
Steering Committee.
• Only tanks marked “propane” may be used.
other enclosed area.
National Standards Institute (ANSI) and the Canadian Standards
• In its natural state, propane has no odor. For your safety, an odorant has been added.
• Contact with propane could burn your skin.
• Propane is extremely flammable and hazardous if handled improperly.
Propane Characteristics
• The maximum inlet propane gas pressure for this outdoor fire table is 250 psi.
• The minimum inlet propane gas pressure for this outdoor fire table is 25 psi.
4
Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at [phone], 8:30 a.m. – 5:00 p.m. PST /11:30 a.m.- 8:00 p.m., EST, Monday- Friday.

HOSE & REGULATOR ASSEMBLY AND REPLACEMENT
1. AGCarofnoitcennocedisecnailppaehtgnidulcnirotalugerdnaesohsagPLdradnatsahtiwdeppiuqesemocelbaterfisihT
regulator supplied with this fire table must be used. Only a hose
manufacturer can be used for replacement.
detcetedsikaelafisagfowoflehttimilotstcatahtecivedgnitimilwoflcitengamasetaroprocninoitcennoc197oNAGCehT.a
b. If the burner valve is open prior to the LP gas cylinder ser wofleerfsihtterpretnilliwnoitcennoceht,denepogniebevlaveciv
c. The connection safety feature will reduce gas flow from the regulator to the
appliance to a minimal level.
d. Be sure that the burner control valve is closed prior to opening the LP gas cylinder service valve to ensure that the
connection flow limiting device is not triggered mistakenly.
e. If the connection flow limiting device is triggered mistakenly, close the LP gas cylinder service valve and the burner valve,
reset, open the cylinder service valve, then open the burner valve and light the
fireplace as per lighting instructions.
2. Be sure to protect the hose from any hot surfaces. Serious dan .ecafrustohynastcatnocesoheht
fitluseryamreg
3. Regular maintenance of the hose and regulator:
b. Inspect the seal inside the CGA No 791 service valve on the LP gas cylinder when replacing the cylinder or at least once
damage, have the seal replaced by a certified gas dealer before operating the
appliance.
4. Do not use tools to tighten the CGA No 791 connection nu .ylnonethgitdnaH.evlavecivresrednilycsagPLehtotnot
5. Be careful to not cross the threads on the connection when tightening the CGA No 791 connection on to the LP gas
6. “Leak Test” should always be performed after attaching the connection to the LP gas cylinder service valve. (See “Checking
for Leaks” section of this manual on page 20).
7. For the connection of the hose and regulator to the LP tank, refer to the “Connection” section of the LP gas cylinder section
above.
No 791 Cylinder Connection Device. The LP gas hose and
and regulator specified by
between the regulator and the burner valve.
of gas to be a leak.
wait 10 seconds to allow the device to
a. Inspect the hose before each use of the fire table. If the hose shows signs of cracks, abrasions, cuts or damage
of any kind, do not operate the appliance. Fix or replace the hose as required before using the appliance. For
assistance with repairor replacement of the hose, call customer service at [phone]. Use only replacement
parts from the manufacturer.
per year. If there is any indication of
cylinder service valve.
3. Pour the glass media evenly in to the burner area (with the exception of the screen-if applicable). The glass should be
1/2-1”above the burner.
5.Keep away from the unit for the first 20 minutes after igniting your unit for the first time,as lava rocks/pumice stones
could pop out and cause injury. Should any rocks pop out,discard them.
6.Always ensure that lava rocks/pumice stones/glass shards/glass beads are completely dry before use.
cause them to crack or pop.
4. IMPORTANT: Do not exceed a height of 1" above the burner when placing glass media. Ensure no media covers
the igniter screen. Store any excess media in a safe location.
/glass shards/glass beads
Failure to do so will
5
Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at [phone], 8:30 a.m. – 5:00 p.m. PST /11:30 a.m.- 8:00 p.m., EST, Monday- Friday.
DO NOT PLACE ANY
MEDIA ON SCREEN
Glass Media Warning:
1.Media may have sharp edges. Wear safety glasses and gloves when handling.
2. Do not change or substitute the media material provided with this fire pit. If replacing, use only replacement glass
media available from your local authorized dealer/distributor.

C
D
E
F
G
H
I
A
B
L
M
N
O
P
K
6
Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at [phone], 8:30 a.m. – 5:00 p.m. PST /11:30 a.m.- 8:00 p.m., EST, Monday- Friday.
Parts List
Vendor stock No. BH19-092-097-26

A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
1
1
1
1
1
1
1
1
1 Bag
1
1
1
1
1
1
1
Lid
Table Top
Left Panel
Right Panel
Rear Panel
Door
Connector bar
Base
Glass Media
Battery
Burner Bowl
Burner
Pilot Housing
Switch Knob
Flame Ignitor
Regulator/Hose
AA
BB
CC
DD
EE
10+1
4+1
6+1
1+1
2+1
FF 1
M6x15 Bolt & Washer
M6x45 Bolt & Washer
M6x55 Bolt & Washer
Bolt
Plastic Washer
Allen Wrench
7
Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at [phone], 8:30 a.m. – 5:00 p.m. PST /11:30 a.m.- 8:00 p.m., EST, Monday- Friday.
Package Contents Hardware Contents
Vendor stock No. BH19-092-097-26

STEP 1
Place the table top (B) on a flat soft surface.
Line up the corresponding bolt holes on the table top (B) and the left panel (C). Attach with M6x15 bolt and washer (AA).
Tighten bolts (AA) with Allen wrench (FF).
B
C
AA AA
Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at [phone], 8:30 a.m. – 5:00 p.m. PST /11:30 a.m.- 8:00 p.m., EST, Monday- Friday.
8
Fire Pit Assembly
Vendor stock No. BH19-092-097-26

STEP 2
Line up the corresponding bolt holes on the table top (B) and the right panel (D).
Attach with M6x15 bolt and washer (AA).
Tighten bolts (AA) with Allen wrench (FF).
B
D
AA AA
9
Fire Pit Assembly
Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at [phone], 8:30 a.m. – 5:00 p.m. PST /11:30 a.m.- 8:00 p.m., EST, Monday- Friday.
Vendor stock No. BH19-092-097-26

STEP 3
Attach the rear panel (E) to the panels (C & D) with M6x45 bolt and washers (BB).
Tighten bolts (BB) with Allen wrench (FF).
BB
E
D
C
10
Fire Pit Assembly
Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at [phone], 8:30 a.m. – 5:00 p.m. PST /11:30 a.m.- 8:00 p.m., EST, Monday- Friday.
Vendor stock No. BH19-092-097-26

STEP 4
Insert the connector bar (G) between the panels (C & D).
Attach with M6x15 bolt and washer (AA).
Tighten bolts (AA) with Allen wrench (FF).
AA
D
C
G
11
Fire Pit Assembly
Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at [phone], 8:30 a.m. – 5:00 p.m. PST /11:30 a.m.- 8:00 p.m., EST, Monday- Friday.
Vendor stock No. BH19-092-097-26

STEP 5
Attach the base (H) to the panels (C & D) with M6x55 bolt and washer (CC).
Tighten bolts (CC) with the Allen wrench (FF).
CC
H
12
Fire Pit Assembly
Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at [phone], 8:30 a.m. – 5:00 p.m. PST /11:30 a.m.- 8:00 p.m., EST, Monday- Friday.
Vendor stock No. BH19-092-097-26

STEP 6
Ensure all bolts (AA, BB & CC) are securely tighten with the Allen wrench(FF).
Turn the fire table the correct way up.
Place the plastic washer (EE) over the hole as shown in the picture.
Insert the door (F) into the hole and secure with bolt (DD).
EE
EE
DD
F
13
Fire Pit Assembly
Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at [phone], 8:30 a.m. – 5:00 p.m. PST /11:30 a.m.- 8:00 p.m., EST, Monday- Friday.
Vendor stock No. BH19-092-097-26

STEP 7
Place the glass media (I) into the burner bowl (K).
Caution: To ensure proper function, the screen on the burner should be free of glass media.
14
Fire Pit Assembly
Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at [phone], 8:30 a.m. – 5:00 p.m. PST /11:30 a.m.- 8:00 p.m., EST, Monday- Friday.
Igniter Box
Burner
Tube
Do not block
opening
CORRECT IN CORRECT
Vendor stock No. BH19-092-097-26
I

STEP 8
Place the lid (A) over the burner bowl (K).
15
Fire Pit Assembly
Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at [phone], 8:30 a.m. – 5:00 p.m. PST /11:30 a.m.- 8:00 p.m., EST, Monday- Friday.
Vendor stock No. BH19-092-097-26
A

STEP 9
Your fire pit is ready to use.
16
Fire Pit Assembly
Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at [phone], 8:30 a.m. – 5:00 p.m. PST /11:30 a.m.- 8:00 p.m., EST, Monday- Friday.
Vendor stock No. BH19-092-097-26

Fire Pit Installation
17
Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at [phone], 8:30 a.m. – 5:00 p.m. PST /11:30 a.m.- 8:00 p.m., EST, Monday- Friday.
STEP 1
INSERTING LP GAS TANK
Warning: Make sure LP gas tank valve is closed.
1. Loosen LP gas tank retainer bolt by turning counter-clockwise.
2. Place precision-filled LP gas tank upright into hole in outdoor fireplace base so the tank valve is facing the gas line connection.
3. Secure tank by turning the LP gas tank retainer bolt closckwise until tight.
Installing LP Gas Tank
To operate, you will need one precision-filled standard grill LP gas tank with external valve threads.
CAUTION: LP gas tank must be properly disconnected and removed prior to moving this
prior to moving this outdoor fireplace.
20 lb
9 Kg
17.9 in. / 45.5 cm
12.2 in. / 31 cm
Vendor stock No. BH19-092-097-26

STEP 2
CONNECTING LP GAS TANK
1. Before connecting be sure there is no debris caught in the head of the LP gas tank, head of the regulator valve or in the
head of the burner or burner parts.
2. Connect the regulator/hose (P) to the gas tank by turning the knob clockwise until it stops.
18
Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at [phone], 8:30 a.m. – 5:00 p.m. PST /11:30 a.m.- 8:00 p.m., EST, Monday- Friday.
Fire Pit Installation
Vendor stock No. BH19-092-097-26

STEP 3
DISCONNECTING LP GAS TANK
1. Before disconnecting make sure the LP gas tank valve is “CLOSED”.
2. Disconnect regulator/hose assembly from LP gas tank turning the knob counter-clockwise until it is loose.
3. Place the protective cap cover on the LP tank and store the tank outdoors in a well-ventilated area out of direct sunlight.
19
Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at [phone], 8:30 a.m. – 5:00 p.m. PST /11:30 a.m.- 8:00 p.m., EST, Monday- Friday.
Caution: LP gas tank must be properly disconnected and removed prior to moving this fire table.
Fire Pit Installation
Vendor stock No. BH19-092-097-26

CHECKING FOR LEAKS
Warning: Before using this outdoor fireplace, make sure you have read, understand and are following all information
provided in the “Important Safeguards” sections. Failure to follow those instructions can cause death, serious bodily
injury or damage to property.
20
Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at [phone], 8:30 a.m. – 5:00 p.m. PST /11:30 a.m.- 8:00 p.m., EST, Monday- Friday.
Fire Pit Installation
Vendor stock No. BH19-092-097-26
Operating Instructions
Figure 1 Figure 2 Figure 3
BURNER CONNECTIONS
Warning: Failure to inspect this connection or follow these instructions could cause a fire or an explosion which can
cause death, serious bodily injury or damage to property.
1. Make sure the regulator hose and valve connections are securely fastened to the burner and the tank.
2. Visually check the connection between the burner/venturi tube and orifice.
3. Make sure the burner/venturi tube fits over the orifice.
4. Please refer to diagram for proper installation (figure 1 and 2).
5. If the burner/venturi tube does not rest flush to the orifice as shown (figure 1 and 2), please contact 1-866-905-4107 for assistance.
TANK/GAS LINE CONNECTION OR LEAK TEST
1. Make 2-3 oz of leak detection solution by mixing one part liquid dishwashing soap with three parts water.
2. Make sure control knobs are in the “OFF” posittion (Figure 3).
3. Connect LP gas tank per “Installing LP Gas Tank” section.
4. Turn LP gas tank valve to “OPEN ”.
5. Spoon several drops of solution, or use a squirt bottle, at all “X” locations (Figure 1 and 2).
a. If any bubbles appear, turn LP gas tank valve to “CLOSED”, reconnect and re-test.
b. If you continue to see bubbles after several attempts, turn LP gas tank valve to “CLOSED” and disconnect LP gas
tank, per “Disconnecting LP Gas Tank”. Contact 1-866-905-4107 for assistance.
c. If no bubbles appear after one minute, turn LP gas tank valve to “CLOSED”, wipe away solution and proceed.
