Biamp AUTOONE User manual

The autoONE Automatic Mixer is affordable, extremely versatile, and easy to use. Features include
NOM attenuation, adaptive threshold sensing, speech-frequency filtering, manual priority override,
selectable channel-off attenuation, and selectable last mic hold. The autoONE is compatible with all
other BIAMP products, providing the ultimate expandable system. The autoONE is covered by BIAMP's
five-year warranty.
ARCHITECTS & ENGINEERS SPECIFICATION
The automatic mixer shall provide eight balanced mic/line input channels. Each input channel shall include trim, pad, & level
controls, as well as a combined active/peak indicator and a TRS ¼" phone patch jack. DIP switches on each channel shall allow
selection of gating, 24V phantom power, & patch jack pre/post gate. Channels 1~7 shall be individually assignable to trigger signal
present ducking of channel 8 by 12dB. Channel 8 assignment to an auxiliary output shall be defeatable, to provide a mix-minus
capability. Each input channel shall provide a discrete transistor, differentially balanced mic/line preamp for low-noise & low
distortion, with connections via plug-in barrier strip.
Balanced main & aux outputs, as well as a balanced stacking input, shall be provided on plug-in barrier strips. The main output
shall include a selectable high-pass filter. The aux output shall be assignable to receive pre/post gate signal from the channels.
The stacking input, along with a master/slave switch & an expansion jack, shall allow linking of multiple units to increase the
number of mixer inputs. The expansion jack shall include a priority terminal for muting of all inputs, except channel 1, via an
external contact-closure.
The main output shall provide NOM attenuation, with automixing functions to include Adaptive Threshold Sensing, Speech-
Frequency Filtering, & 6dB of hysteresis, for increased stability of gating operations. Other automixing functions shall include
selectable last mic hold & -12dB/-40dB channel-off attenuation. Eight logic outputs shall be provided on a 9-pin Sub-D connector,
for control of external circuits based upon active status of the channels.
Frequency response shall be +0/-0.5dB (20Hz~20kHz @ +4dBu) THD+N shall be less than 0.05% (20Hz~20kHz @ +4dBu)
Output Noise shall be less than -75dBu (20Hz~20kHz, main & channel @ nominal) Power consumption shall be less than 15 Watts.
Dimensions shall be 1.75 inches (1 rack space) high, 19 inches wide, and 11 inches deep. Weight shall be 10 lbs. Warranty
coverage shall be 5 years. The unit shall be CE marked, include a UL / C-UL listed power source, and incorporate AES
recommended grounding practices.
The automatic mixer shall be a BIAMP autoONE.

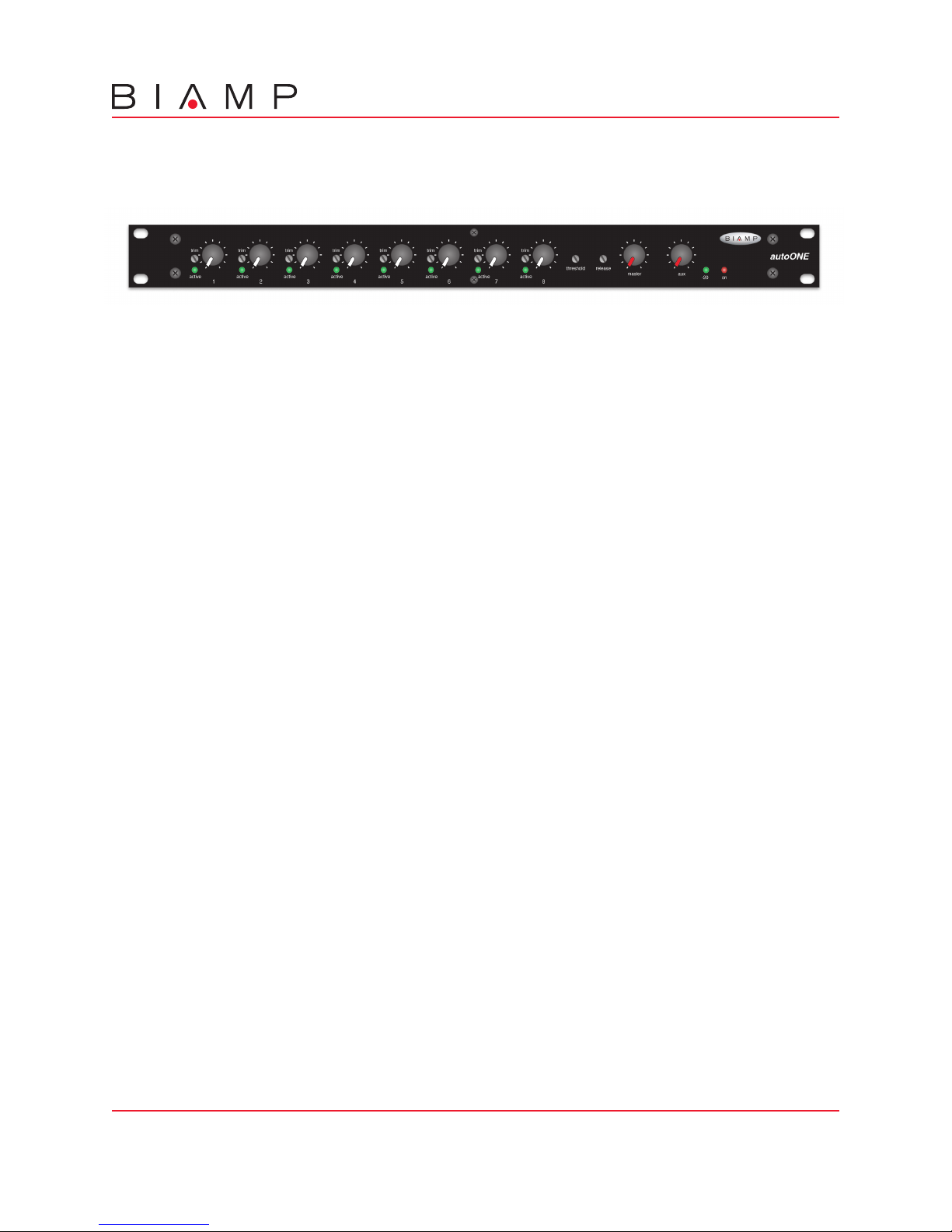

autoONE
Automatic Mixer
FEATURES
Á eight balanced mic/line inputs on plug-in barrier connectors
Á trim, pad, level, & active/peak indicator per channel
Á channel 1 manual 'override' via external contact-closure
Á channel 8 'mix-minus' assign & 'ducking' via channels 1~7
Á balanced main & aux outputs on plug-in barrier connectors
Á selectable last mic on, hpf, automix, & 24V phantom power
Á selectable automix channel-off attenuation (-12dB or -40dB)
Á pre/post automix assignment to main, aux, & patch outputs
Á external switches select options (no internal jumpers)
Á logic outputs from channels for switching of external circuits
Á Adaptive Threshold Sensing minimizes false gate triggering
Á Speech-Frequency Filter minimizes false gating due to noise
Á 6dB of hysteresis reduces gate 'flutter' when near threshold
Á 'stacking' of multiple units to expand system input capability
Á incorporates AES recommended grounding practices
ÁCE marked and UL / C-UL listed power source
Á covered by Biamp Systems' five-year warranty
Biamp Systems, 10074 S.W. Arctic Drive, Beaverton, Oregon 97005 U.S.A. [phone] www.biamp.com
an affiliate of Rauland-Borg Corp.
®

Frequency Response (20Hz~20kHz @ +4dBu):
THD+N (20Hz~20kHz @ +4dBu):
Output Noise (20Hz~20kHz, main & 1 channel @ nominal):
Maximum Gain:
 mic/line inputs to main & aux outputs
 channel patch to main & aux outputs
 main patch to main output
 main stack to main output
Crosstalk (channel-to-channel @ 1kHz):
Output Impedance:
 main & aux outputs (balanced)
 channel & main patch (unbalanced)
Input Impedance:
 mic/line inputs (balanced)
 channel patch (unbalanced)
 main patch (unbalanced)
 main stack (balanced)
Maximum Output:
 main & aux outputs
 channel & main patch
Maximum Input:
 mic/line input, channel & main patch
 main stack
High-Pass Filter:
Automixing:
 gate attack time
 release time (adjustable)
 threshold (adjustable)
 channel-off attenuation (selectable)
 NOM attenuation (doubling of active inputs)
 Feedback/Noise Improvement (8 channels)
Power Consumption (115/230VAC 50/60Hz):
Dimensions (HxWxD):
Weight:
+0/-0.5dB
< 0.03%
< -75dBu
86dB
26dB
16dB
10dB
< -65dB
200 ohms
100 ohms
4.7k ohms
5.3k ohms
6.7k ohms
28k ohms
+24dBu
+18dBu
+18dBu
+24dBu
6dB/octave @ 170Hz
4mSec
150mSec to 4Sec
-32dBu to -8dBu
-12dB or -40dB
-3dB
9dB
< 15 watts
1.75"x19"x11" (44x483x279mm)
< 10 lbs. (4.55kg)
autoONE SPECIFICATIONS
outputs
expansion
logic
outputs
ONONONONONONONON
ON
pad
ungated
phantom
aux off
patch pre
slave
-12db
hp filter
last mic
aux post
pad
ungated
phantom
duck ch8
patch pre
pad
ungated
phantom
duck ch8
patch pre
pad
ungated
phantom
duck ch8
patch pre
pad
ungated
phantom
duck ch8
patch pre
pad
ungated
phantom
duck ch8
patch pre
pad
ungated
phantom
duck ch8
patch pre
pad
ungated
phantom
duck ch8
patch pre
BIAMP SYSTEMS
Portland, Oregon
an affiliate of
Rauland-Borg Corp.
15 watts
class 2 wiring
50/60 Hz
~
27V main aux stack in
main patch patch
8
input
patch
7
input
patch
6
input
patch
5
input
patch
4
input
patch
3
input
patch
2
input
patch
1
input
autoONE REAR PANEL DIAGRAM
Master Section
aux pre
bus
aux
pre/post
Expansion Adaptive
Threshold
Sensing
aux
level
priority
bus threshold release
time
ATS priority
release
threshold
count
bus
VCA control output
channel gate logic
gate control
logic
count
bus
logic output
(gate open)
threshold
release
priority
slave bus
(Ch.1 only)
last mic hold
priority
bus
-12dB
bus
gate
open
attenuator
(gate)
master
level
autoONE Block Diagram
Input Channels
phantom
power
18dB
pad
discrete
transistor
preamp
trim peak
detect
+10dB
+24V channel
patch
mix
bus
mute
bus
level
channels 1-7
only
signal
detect
mute
logic
channel 8
only
12dB
mute
2
1
3
main
stack
mix
bus
2
1
3
main
output
aux
output
main
patch
ΣVCA
HP
filter
peak
-20
2
1
3
2
1
3
input
slave
aux post
bus
aux pre
bus
attenuator
(gate)
patch
pre-gate
-12/-40dB
ungated
aux post
bus
aux disable
(Ch.8 only)
open collector
output driver
ATS
NOM
logic
last mic
hold
external control voltage
autoONE BLOCK DIAGRAM
