BIG MIKE Leapfrog Dry User manual

Version 2.0
SAVE THESE INSTRUCTIONS
English
Operating Instructions
BIG MIKE Leapfrog Dry
FOR DRY USE ONLY
For Commercial Use Only
Machine Serial No:

2
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE BIG MIKE
VACUUM CLEANER.
When using an electrical appliance, basic precautions should always be followed, including the follow-
ing:
WARNING – To reduce the risk fire, electric shock, or injury please follow the points
below:
1. Do not leave the appliance running unattended. Un plug from the electrical outlet when
not in use and before servicing.
2. Do not use out of doors or on wet surfaces.
3. Do not allow to be used as a toy. Close attention is necessary when used near children.
4. Use only as described in this manual. Use only recommended manufacturer’s
recommended attachments.
5. Do not use with a damage cord or plug. If the appliance is not working as it should, has
been dropped, damaged, left out of doors or dropped in water, then return it to a service centre.
6. Do not pull or carry by cord or use the cord as a handle, close a door on the cord or pull
the cord around sharp edges of corners. Do not run the appliance over the cord and keep the
cord away from heated surfaces.
7. Do not unplug by pulling on the cord. To unplug grasp the plug not the cord.
8. Do not handle plug or appliance with wet hands.
9. Do not block up air exhaust openings by inserting objects into the openings. Do not use
with any opening blocked. Keep openings free of dust, lint, hair or anything else that may
reduce airflow.
10. Do not use without dust bag and/or filters in place.
11. Turn off all controls before unplugging.
12. Use extra care when cleaning stairs.
13. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas
where they may be present.
14. Only connect to a properly grounded outlet. (See Grounding instructions.)
15. Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot
ashes.

3
1.0 Grounding Instructions
This machine should be grounded. If the machine should suffer an electrical malfunction or
breakdown, grounding will provide a path of least resistance for the electrical current so reducing the
risk of electric shock. This equipment is equipped with a cord having an equipment grounding
conductor and grounding plug. The plug must be inserted an appropriate electrical outlet that has been
properly installed and grounded in accordance with all local codes and ordinances.
Warning
Improper connection of the equipment-grounding conductor can result in
electric shock. Check with a qualied electrician or service person if you
are in doubt as to whether the outlet is properly grounded. Do not modify
the plug provided with the appliance – if it will not t the outlet have a
proper outlet installed by a qualied electrician.
1.1 Power Consumption of the Equipment
The BIG MIKE Industrial Vacuum Cleaner needs a power supply as detailed below. Please note that
current consumption can vary depending on the load being placed on the motors which can constantly
change during use.

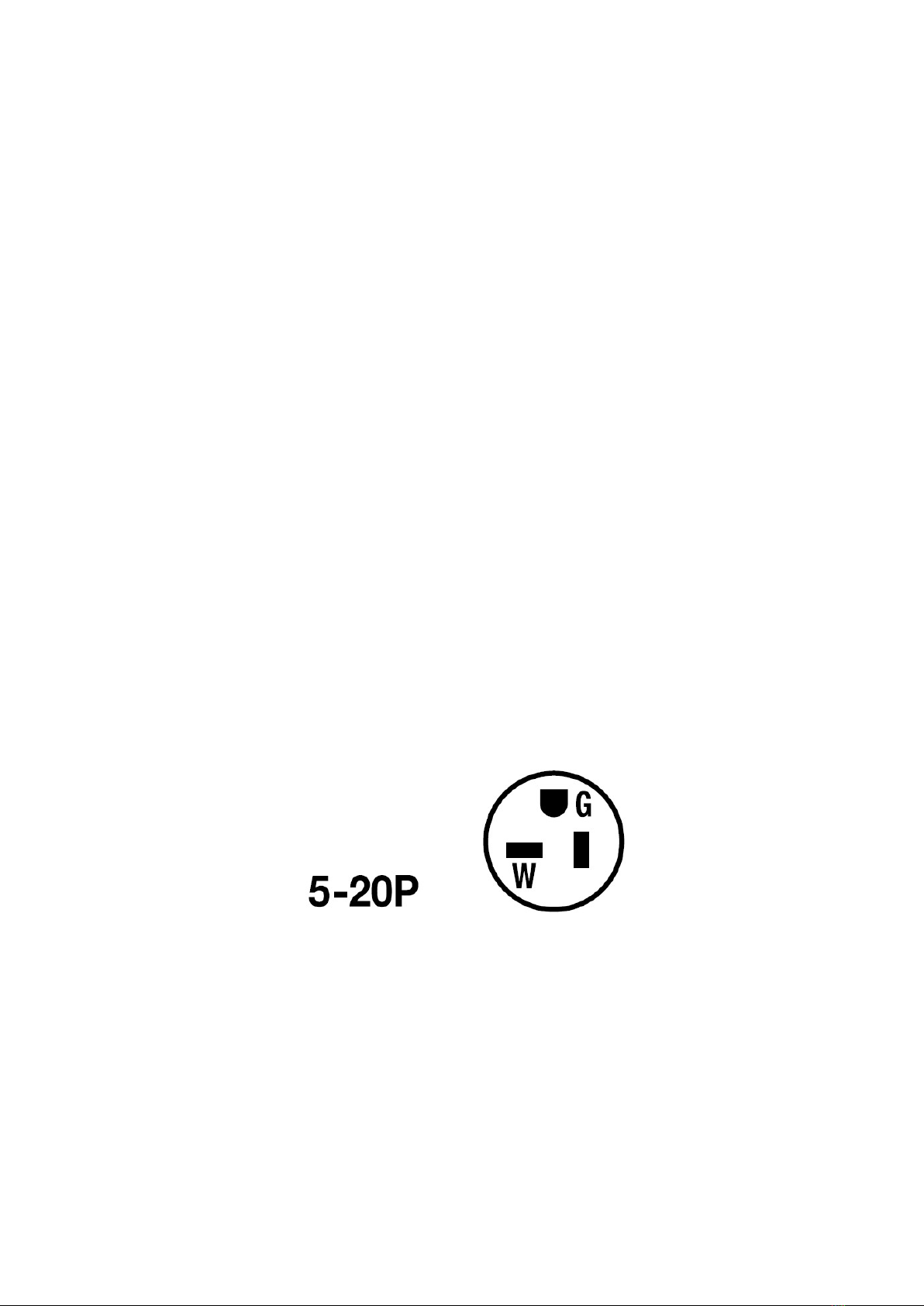

1.1.1 Model 120V
Voltage: 120V Frequency: 60Hz Current: 18A
This appliance is rated at more than 15 amps and is for use on a circuit having a nominal rating of
120V and is factory equipped with a specific electric cord and NEMA 5-20P plug to permit connection
to a proper electric circuit.
Make sure that the appliance is connected to an outlet having the same configuration as the plug. No
adaptor should be used with this appliance. If the appliance must be re connected for use on a
different type of electric circuit, the reconnection should be made by qualified service personnel.
Please note that current consumption can vary depending on the load being placed on the motors
which can constantly change during use.

4
1.1.2 Model 240V
Voltage: 240V Frequency: 60Hz. Current: 11A
This appliance is rated at 11 amps and is for use on a circuit having a nominal rating of 240V and is
factory equipped with a specific electric cord and NEMA 6-15P plug to permit connection to a proper
electric circuit.
Make sure that the appliance is connected to an outlet having the same configuration as the plug. No
adaptor should be used with this appliance. If the appliance must be re connected for use on a
different type of electric circuit, the reconnection should be made by qualified service personnel.
Please note that current consumption can vary depending on the load being placed on the motors
which can constantly change during use.

5
2.0 Manufacturer and Distributor
2.1 Manufactured in the UK by:
Michael Williams Engineering Ltd
Queen’s Business Park
Wilbraham Road
Fulbourn
Cambridge
CB21 5ET
UK
Tel: [phone]
E-Mail: [email protected]
Web: www.bigbrute.co.uk
2.2 Distributed in Canada by:
Transnorth Ltd
72 Copernicus Blvd, Unit 3
Brantford, ON N3P 1K5
Canada
Tel: [phone]
E-Mail: [email protected]
Web: www.transnorth.ca

6
3.0 What’s in the Box?
Your BIG MIKE Leapfrog Dry Industrial Vacuum Cleaner consists of:
1. BIG MIKE Power Unit with Secondary Filter
2. BIG MIKE Leapfrog Body
3. Suction Hose
4. V39 Primary Filter
5. Scraper Tool

7
4.0 Introduction to the BIG MIKE Leapfrog Dry
The purpose of this manual is instruction on the proper use of the BIG MIKE Leapfrog Dry Industrial
Vacuum Cleaner.
Warning
This manual must be read and thoroughly understood before using the
BIG MIKE Leapfrog Dry Industrial Vacuum Cleaner. Failure to do so could
result in personal injury and/or damage to the product.
4.1 Standard Dimensions and Weight
4.2 Foreseen Use of the Machine
The BIG MIKE Leapfrog Dry Industrial Vacuum Cleaner is for dry use only.
Danger
DO NOT use to recover volatile, ammable or explosive liquids. DO NOT
use in a zoned area or use for the recovery of explosive vapours.
4.3 Ways in which the BIG MIKE Leapfrog Must Not Be Used
The BIG MIKE Leapfrog Dry Vacuum Cleaner must not be used in the following ways. Failure to
adhere to these precautions could result in personal injury and/or damage to the machine.
• Do not use the machine in Zoned Areas
• Do not use the machine to suck up volatile, flammable or explosive liquids
• Do not overload the drum
• Do not place any part of your body over the end of the suction hose.
• Do not operate continuously for extended periods of time.
Length 700 mm (28 in.)
Width 700 mm (28 in.)
Height (excluding drum) 1000 mm (30 in.)
Weight (excluding drum) 33 kg (73 pounds)

8
5.0 Setting up the BIG MIKE for use
Caution
Never place your hands or any other part of your body over the end of the
suction hose or inlet spigot while the BIG MIKE is in operation.
Always use the BIG MIKE with the Primary Filter ini place. Using the BIG
MIKE without the Primary Filter in place can cause damage to the motors.
See the section “Filters” for more information.
The BIG MIKE Leapfrog Dry consists of:
1. Leapfrog Body
2. Primary Filter
3. Power Unit
4. Suction Hose with Tool
5.1 The Collection Drum
The BIG MIKE Leapfrog Dry fills your own drums and vessels.
Before using the BIG MIKE Leapfrog Dry, ensure that the top rim of your collection drum is in good
order and free from dents or damage.

9

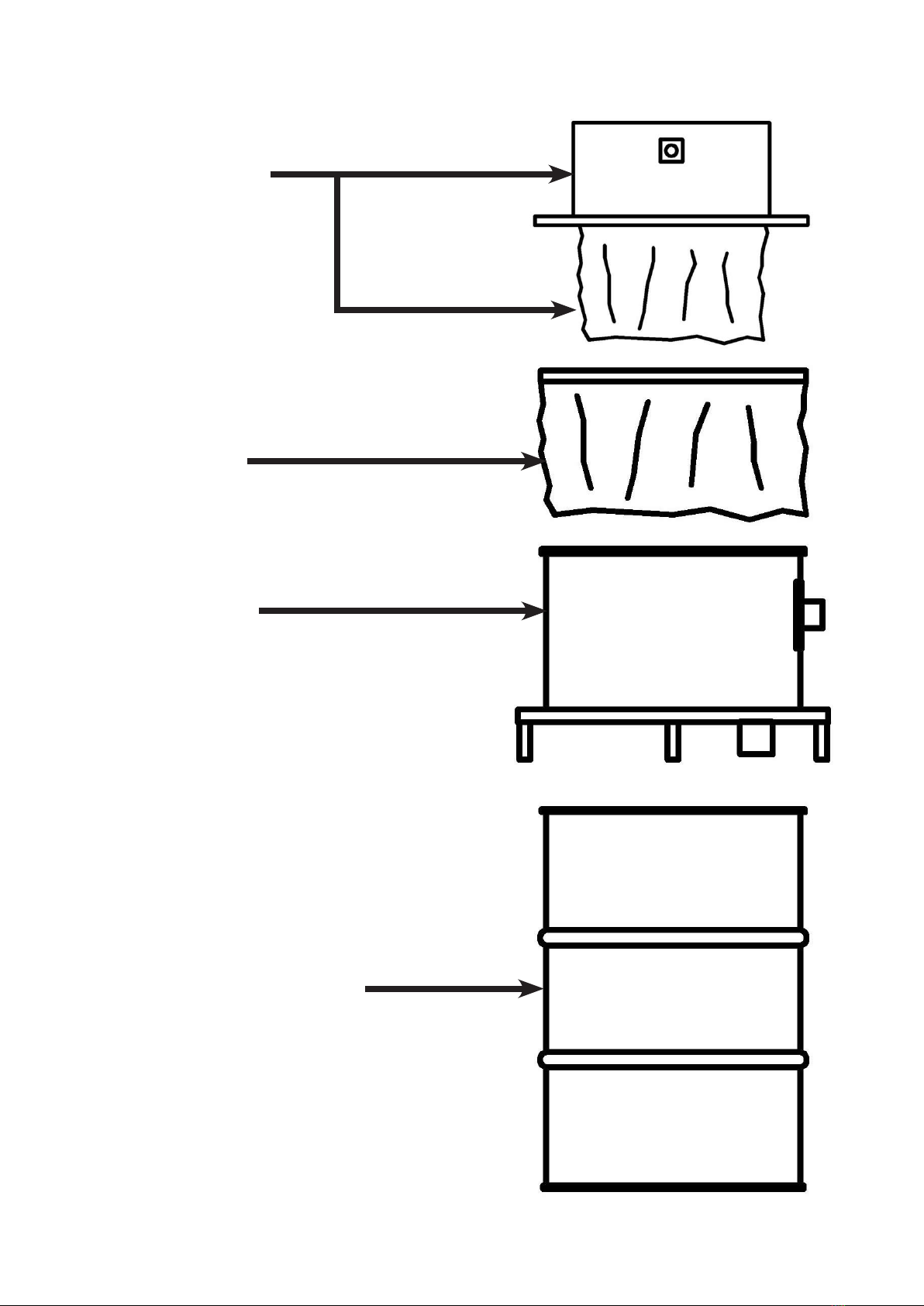

5.2 Setting up the BIG MIKE Leapfrog Dry
Power Unit with
Secondary Filter
Primary Filter
Your own collection drum
(not supplied)
Leapfrog Body

10
Place the Leapfrog Body squarely onto your collection drum.
Ensure that the rubber seal on the base of the Leapfrog Body makes good contact with the rim of the
collection drum all the way round.
Fit the Primary Filter inside the top of the Leapfrog Body. Fold the top of the Primary Filter over the top
of the Leapfrog Body lip (see the “Filters” section for more information on fitting the Primary Filters).
Caution
Ensure that the lter is tted with the shaking-handle (sewn onto the
lter) and the writing uppermost. Failure to do so will result in poor
ltration and motor damage.
Always operate the BIG MIKE Leapfrog with the Primary Filter in place.
Place the Power Unit onto the Leapfrog Body.
Attach the suction pipe to the spigot on the front of the Leapfrog Body. The BIG MIKE Leapfrog Dry is
now ready for use.
Place the Body on top of the drum Place the Primary Filter inside the Body

11
6.0 Filters
The BIG MIKE Industrial Vacuum Cleaner has two filters: the Primary Filter and the Secondary Filter.
Caution
Never operate the BIG MIKE with damaged lters. If in doubt, replace the
lter.
6.1 The Primary Filter
Your Primary Filter is vitally important!
The Primary Filter does most of the work of keeping dirt and dust out of the power unit and its motors.
Operating the BIG MIKE without the Primary Filter in place will cause damage to the motors and will
void your warranty.
Waste material sucked up while cleaning is deposited inside the drum. The air then passes through
the Primary Filter, which filters out most of the fine dust. The filtered air then passes through the
Secondary Filter where any remaining fine dust is filtered out. The air then passes through the turbines
and then through the motors to cool them.
Caution
Ensure that the Primary Filter is tted with the fabric shaking-handle
(sewn inside the lter) and the writing uppermost. Failure to do so will
result in poor ltration.
Never wash the Primary Filter as this will destroy it.
6.1.1 Fitting the Primary Filter
Caution
Never operate the BIG MIKE without a Primary Filter in place.
The Primary Filter fits inside the top of BIG MIKE Leapfrog Body. Make sure the Primary Filter isn’t
inside out - it’s designed to work only one way. Fit the Primary Filter so that the writing and the
shaking-handle (sewn onto the filter) are uppermost.
V39 Standard Primary Filter
Approx.
13"
330mm
V39 Standard Primary Filter
Filter Shaker Handle

12
Fold the elasticated edge of the filter over the rim of the drum. Ensure that the filter covers the rim of
the drum all the way round. Ensure that the filter extends 2” (50mm) down the outside of the drum so
that it partially covers the warning notice around the rim of the drum. If you can see this warning notice
in operation, the Primary Filter hasn’t been fitted. Switch the BIG MIKE off immediately and refer to the
section “If the BIG MIKE has been used without the Primary Filter in place”.
6.1.2 Cleaning the Primary Filter
Clean the primary filter regularly and each time the drum is emptied. The Primary Filter can be cleaned
by shaking it. Remove the power unit from the top of the drum but leave the suction hose in place to
prevent dust escaping from the drum when you shake the filter clean.
Clean the Primary Filter by grasping the shaking-handle sewn onto the filter and shaking it up and
down to dislodge any dust and dirt on the underside.
To clean the Primary Filter more thoroughly, shake it clean as above and carefully remove it. We
recommend vacuuming the filter clean (a separate Primary Filter can be purchased for this purpose) or
by beating it clean in a suitable area out of doors.
6.1.3 Checking the Primary Filter for Damage
Always inspect the Primary Filter for damage each time you clean it. Ensure it is free of holes and
shows no signs of damage or wear.
If you’ve any doubt about the state of your Primary Filter, please replace it.
6.1.4 If the Primary Filter Gets Wet
The BIG MIKE is intended for dry waste only and the filters should not get wet. If the Primary Filter
does get wet, clean it by shaking it as described above. Carefully remove it and allow it to naturally air
dry. Vacuum or beat the filter clean and refit it before using the BIG MIKE again.
Warning
Always ensure the Primary Filters are dry and tted correctly before
using in the BIG MIKE.

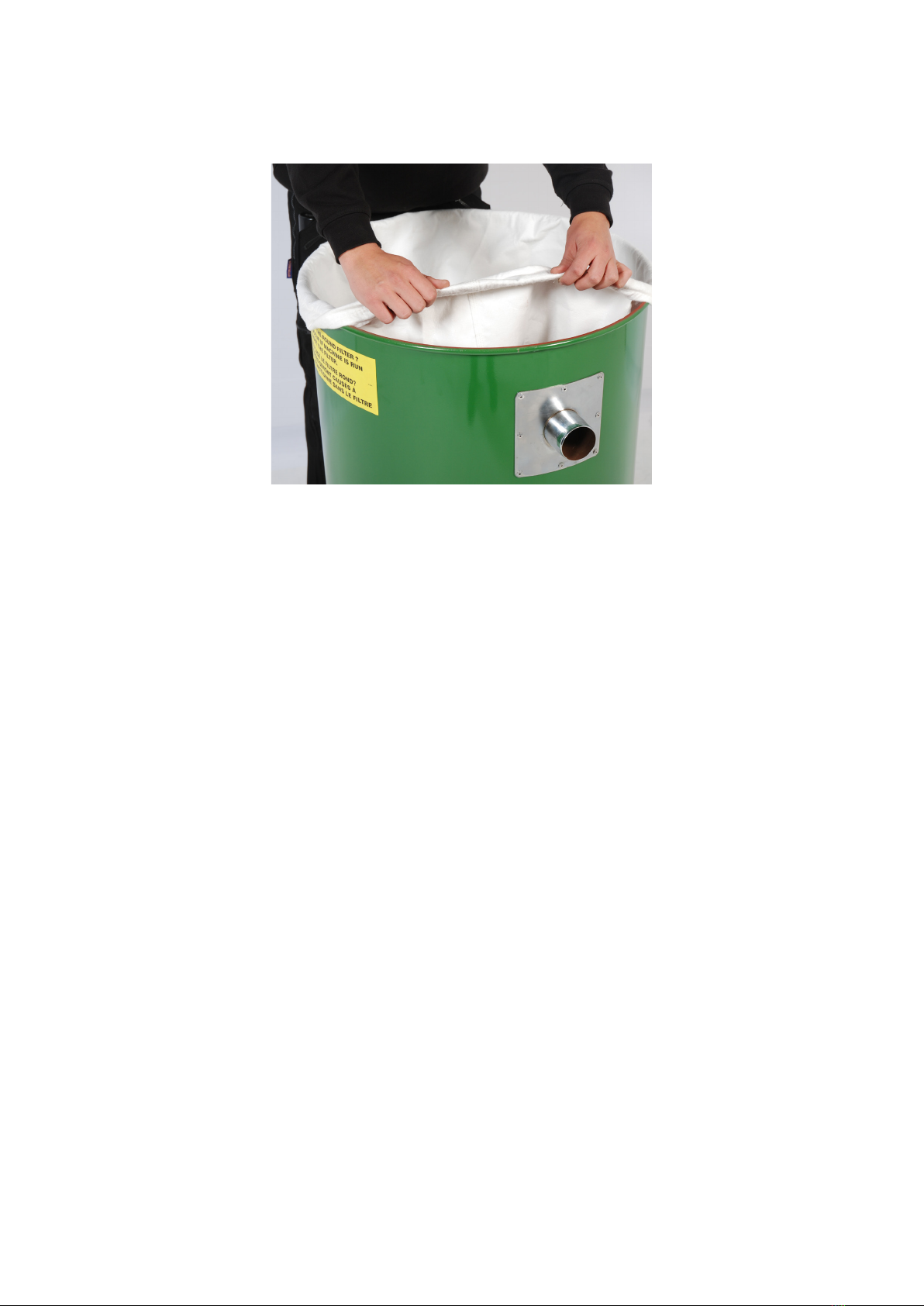

Fit the Primary Filter inside the
top of the Leapfrog Body.

13
6.2 The Secondary Filter
Your Secondary Filter is vitally important!
The square Secondary Filter is permanently attached to the underside of the BIG MIKE Power Unit.
This filter is a safety backup filter. Its aim is to protect your motors from dust and dirt in the event of
the BIG MIKE being used:
1. without the Primary Filter in place or
2. with a damaged or worn Primary Filter.
Caution
Never operate the BIG MIKE with just the Secondary Filter in place - this
will damage the motors and void your warranty.
The Secondary Filter has a zip in the base covered with a protective flap. The zip allows access to the
motors for maintenance purposes only. Ensure the zip is done up and is undamaged at all times. If you
discover waste material inside this flap, this confirms that the BIG MIKE has been used without the
Primary Filter in place and any motor damage will not be covered under warranty. Always have the
Primary Filter in place before using the BIG MIKE.
Secondary Filter attached to the base of the power
unit

14
6.3 If the BIG MIKE has been used without the Primary Filter in place
If the BIG MIKE has been used without the Primary Filter in place, switch off the BIG MIKE immediately.
Examine the Secondary Filter on the underside of the Power Unit. Remove all traces of dirt and debris,
paying particular attention to the inside of the ap that covers the zip.
The Secondary Filter can be cleaned of dust either by vacuuming with an alternative suitable vacuum
cleaner (NOT your BIG MIKE) or by blowing it clean with an airline.
Warning
Using an airline to clean the Secondary Filter will create airborne dust.
Always place the Power Unit in a suitable air extraction booth and
wear appropriate personal protective clothing and equipment before
attempting to clean the Secondary Filter this way.
Examine the Primary Filter to ensure it is clean and in good order. Refit the Primary Filter before using
your BIG MIKE again.

15
7.0 Power Unit and Motors
Danger
Never place your hands or any other part of your body over the end of
the suction hose or inlet spigot while the BIG MIKE is in operation. The
powerful suction could cause injury.
7.1 Power Unit
7.2 The motors are housed inside the metal box on top of the lid. In order to safely maintain the power
unit and its motors see the Safety Instructions and Grounding Notes.
The power unit contains 3 motors that can be switched on or off one at a time.
7.3 Switching On The Motors
The BIG MIKE has a 4-position switch which switches each motor on and off individually. Position 0 is
off. Position 1 switches the first motor on; Position 2 switches the second motor on; Position 3
switches the third motor on. This is known as a “soft start” and prevents surges on your power supply.
Caution
Always switch all three motors on before using the BIG MIKE to clean up.
Never operate the BIG MIKE with just 1 or 2 motors running.
7.4 Thermal Cut-Outs
The motors are fitted with overheat protection thermal cut out units. If the motors cannot cool
themselves adequately, the thermal cut-outs will automatically shut the motors down to protect them.
This can occur if the flow of air up the suction pipe is very hot, or the flow is obstructed in the pipe or
the drum is full.
If the thermal cut-outs shut the motors down, turn the power switch to Position 0 and unplug the
appliance from the power supply. The thermal cut-outs will automatically allow the motors to restart
once they have cooled sufficiently.
Warning
NEVER leave an overheated appliance connected to the electrical supply
with the power switch at Position 1, 2 or 3. Always switch the power
switch to Position 0 and unplug the appliance from the power supply.
This will prevent the appliance restarting itself in your absence once the
motors have cooled sufciently.
4-position switch for turning on the motors

16
8.0 General Points
8.1 During Use
When using the BIG MIKE, ensure that the power cable is not in any danger of being cut, sliced or
trampled with any heavy machinery or persons.
8.2 Storage
When not in use, store the BIG MIKE as follows:
• Coil the power cord around the top cover to prevent it getting damaged or dragging on
the floor.
• Store the BIG MIKE in a dry place away from any vermin or pests.

17
9.0 Help & Support
For help and support with using your BIG MIKE Industrial Vacuum Cleaner, please contact:
Transnorth Ltd
72 Copernicus Blvd, Unit 3
Brantford, ON N3P 1K5
Canada
E-Mail: [email protected]
Web: www.transnorth.ca
Tel: [phone]

Version 2.0
CONSERVER CES INSTRUCTIONS
Français
Mode d’emploi
BIG MIKE Leapfrog Sec
SEULEMENT À SEC
Pour Usage Commercial
Machine Serial No:

19
IMPORTANTES MESURES DE SÉCURITÉ
LIRE TOUTES LES INSTRUCTIONS AVANT DE FAIRE
FONCTIONNER L’ASPIRATEUR BIG MIKE.
L’utilisation d’un appareil électrique demande certaines précautions:
AVERTISSEMENT – Pour réduire les risques d’incendie, de choc électrique ou de
blessure:
1. Ne laissez pas l’appareil lorsqu’il est branché. Débranchez l’appareil lorsqu’il n’ est pas
utilisé et avant l’entretien.
2. Ne pas utiliser à l’extérieur ou sur des surfaces humides
3. Ne pas laisser ou être utilisé comme un jouet. Une attention particulière est nécessaire
lorsqu’il est utilisé par ou à proximité d’enfants
4. Utiliser l’appareil en respectant les consignes de ce manuel d’emploi et n’utiliser que les
accessoires recommandés par le fabricant.
5. Ne pas utiliser le cordon ou la fiche s’ils sont endommagé. Si l’appareil ne fonctionne pas
comme il le devrait, a été échappé, endommagé, laissé dehors ou tombé dans l’eau, le
retourner à un centre de service.
6. Ne pas tirer ou transporter par le cordon, utiliser le cordon comme une poignée, fermer
une porte sur le cordon ou tirer le cordon autour de coins carrés. Ne pas rouler l’appareil sur le
cordon. Éloignez le cordon des surfaces chauffées.
7. Ne pas débrancher en tirant sur le cordon. Pour débrancher, saisir la fiche et non le
cordon.
8. Ne manipulez pas la fiche ou l ‘appareil avec les mains mouillées.
9. Ne pas mettre n’importe quel objet dans les ouvertures. Ne pas utiliser avec une
ouverture bloquée, gardez libre de poussière, les peluches, les cheveux et n’importe quel autre
objets qui peuvent réduire le débit d’air.
10. Ne pas utiliser sans sac et / ou des filtres de poussière en place.
11. Éteindre toutes les commandes avant de débrancher
12. Redoubler de prudence lors du nettoyage des escaliers
13. Ne pas utiliser pour ramasser des liquides inflammables ou combustibles, comme
l’essence, ni dans des endroits où ils peuvent être présents.
14. Connectez-vous à une prise correctement mise à la terre. Voir “Instructions de mise à la
terre”.
15. Ne pas ramasser tout ce qui brûle ou fume, comme les cigarettes, allumettes ou des
cendres chaudes.

20
10.0 Instructions de mise à la terre
Cet appareil doit être mis à la terre. En cas de dysfonctionnement ou de panne, la terre fournit un
chemin de moindre résistance au courant électrique afin de réduire le risque de choc électrique. Cet
appareil est équipé d’un cordon muni d’un conducteur de terre et de la terre prise. La fiche doit être
insérée dans une prise appropriée correctement installée et mise à la terre conformément à tous les
codes et règlements locaux.
AVERTISSEMENT
Un mauvais raccordement du conducteur de terre peut entraîner un
risque de choc électrique. Vériez avec une personne électricien ou
technicien qualié si vous avez des doutes quant à savoir si la prise
est correctement mise à la terre. Ne pas modier la che fournie avec
l’appareil - si elle ne rentre pas dans la prise, faites installer une prise
adéquate par un électricien qualié.
10.1 Consommation d’énergie
Le BIG MIKE aspirateur industriel a besoin d’une alimentation électrique tel que détaillé ci-dessous.
S’il vous plaît noter que la consommation de courant peut varier en fonction de la charge étant placée
sur les moteurs qui peuvent changer en permanence pendant l’utilisation.
10.1.1 Model 120V
Tension: 120V Fréquence: 60Hz Courant: 18A
Cet appareil est évalué à plus de 15 ampères et est destiné à être utilisé sur un circuit ayant une
puissance nominale de 120V et est équipé en usine avec un cordon électrique spécifique et NEMA
5-20P prise pour permettre la connexion à un circuit électrique approprié.
Assurez-vous que l’appareil est branché à une prise ayant la même configuration que la fiche. Aucun
adaptateur ne doit être utilisé avec cet appareil. Si l’appareil doit être reconnecté pour une utilisation
sur un type de circuit électrique différente, la reconnexion doit être effectué par du personnel qualifié.
S’il vous plaît noter que la consommation de courant peut varier en fonction de la charge étant placée
sur les moteurs qui peuvent changer en permanence pendant l’utilisation.
