Welcome
Thank you for purchasing our TECBOT S1 Series, a robot vacuum cleaner.
TECBOT S1 Series has a gyroscope navigation system for accurate
mapping, routing, and cleaning coverage. In addition, the upward-oriented
vacuum exhaust avoids blowing pet hair around, making them ideal for
homes with pets.
We are Tecbot, “Expert Manufactures of Cleaning Robots.” We make
cleaning easier to create more free time for you.

Package list 3
TECBOT S1 Series anatomy 4
Precautions 8
Installation 9
Pairing 10
Charging 14
Cleaning modes and mopping function 15
Regular maintenance 18
Troubleshooting and FAQs 22
Warnings and Restrictions 24
Hazardous materials 26
2
Table of content

3

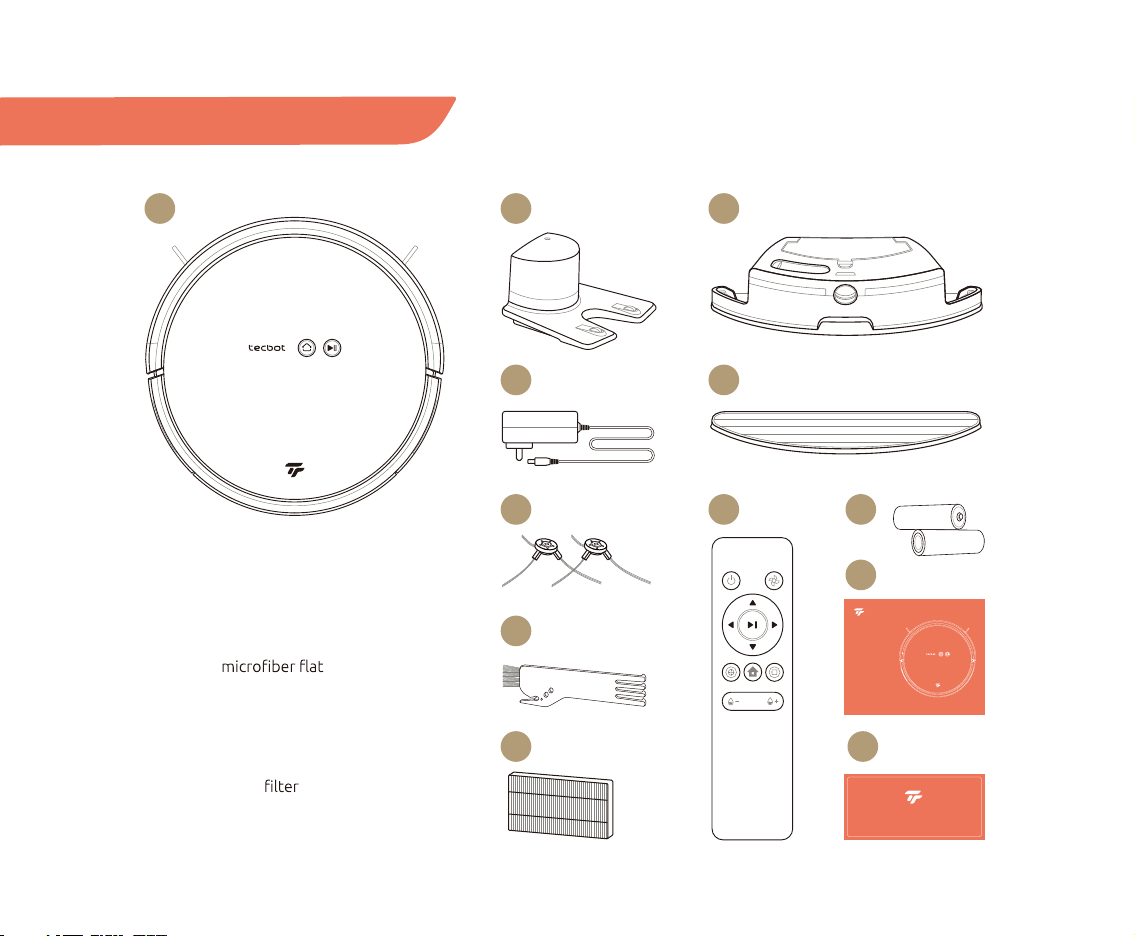

Package list
01 TECBOT S1 Series (Dust box included)
02 Charging dock
03 Power cord
04 Water tank (optional)
05 1 extra mop (optional)
06 2 extra edge-cleaning brushes
07 Remote control
08 2 AAA remote control batteries
09 Brush and hook knife cleaning tool
10 1 extra HEPA
11 User Manual
12 Warranty Card
01
03
06
09
10 12
02 04
05
07 08
11
User Manual
TECBOT S1 Series
WarrantyCard

4
TECBOT S1 Series anatomy
01 Collision bumper
02 Charging button
03 Start/Pause button
04 ON/OFF switch
05 ToF wall sensor
06 Vacuum exhaust
01 02
05
04
03
06

5
07 Contact point for charging dock
08 ToF sensor
09 Driving wheel
10 Edge-cleaning brush
11 Battery cover
12 Wheel
13 ToF optical sensor
14 V-shaped brush main cover
15 V-shaped brush
16 Dust box or water tank
10
15
10
11
08
12
14
12
13
08
08
16
07 0709

6
Dust box
17 Cover
18 HEPA
19 Sponge
20 Release clip
Water tank
21 Inlet
22 mop
23 Release clip
Charging dock
24 Charging indicator light
25 Signal emitter
26 Charging contact points
27 Power adapter
17
21 262524
27
18
19
20
2322
Dust box
Water tank Charging dock

7

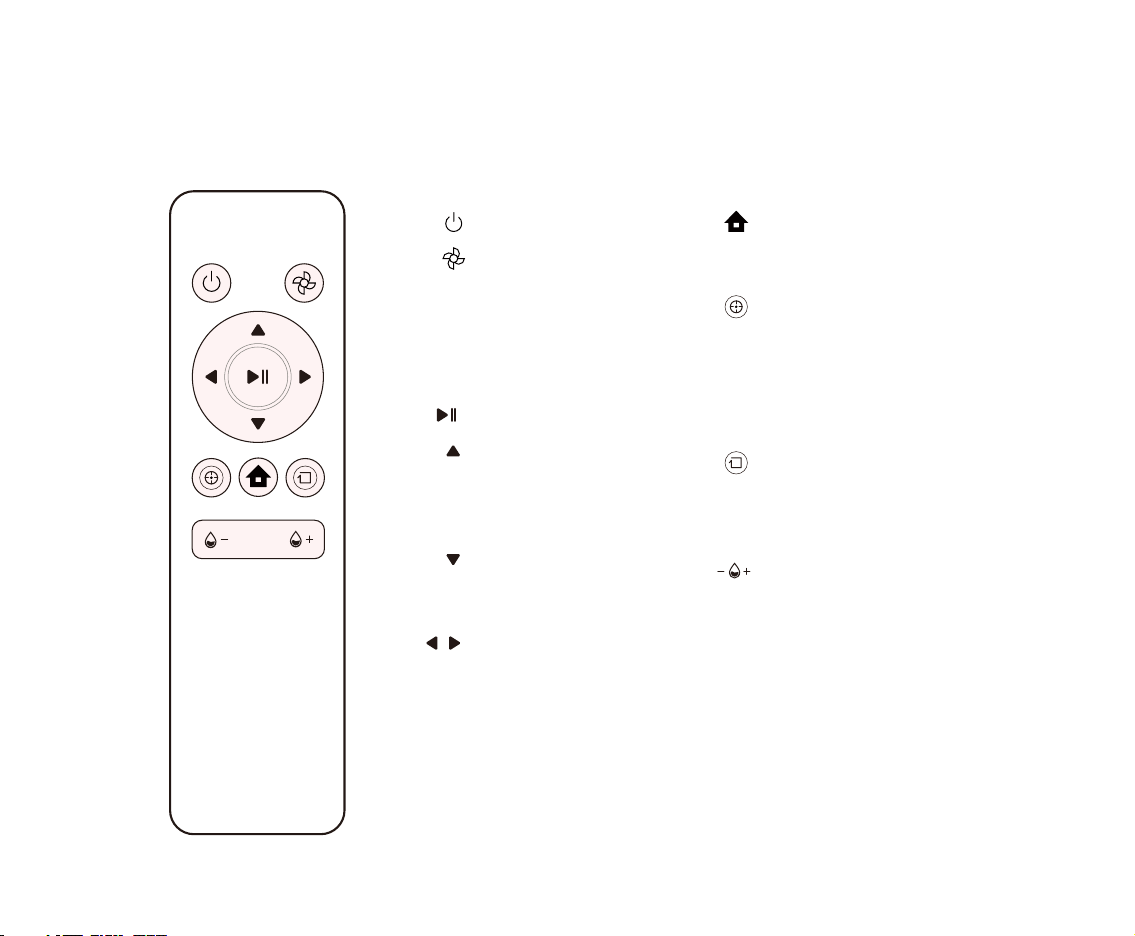

ON/OFF
Vacuum suction power
Adjust vacuum suction power.
Increase fora more
heavy-duty vacuum cleaning
or decrease for a longer and
quieter cleaning run.
Start/Pause
Forward
Press andhold to move forward.
YourTECBOT S1 Series will stop
when encountering an obstacle.
Backward
Press andhold to move
backward. Release to stop.
Left and Right
Press and hold to turn.
Release to stop.
Charging
Press to return yourTECBOT S1
Series tothe charging dock.
Spotcleaning mode
Press to intensely clean an area.
YourTECBOT S1 Series will spiral
outward about 3 feet/1 meter
in diameter and then inwardto
where it started.
Edge cleaning mode
Press to clean along the room’s
edges, including around chair
legs andother furniture.
Mopping water levels
Press to adjust the mopping
water levels to avoid water
stains damage and increase the
running time.
Remote control

8

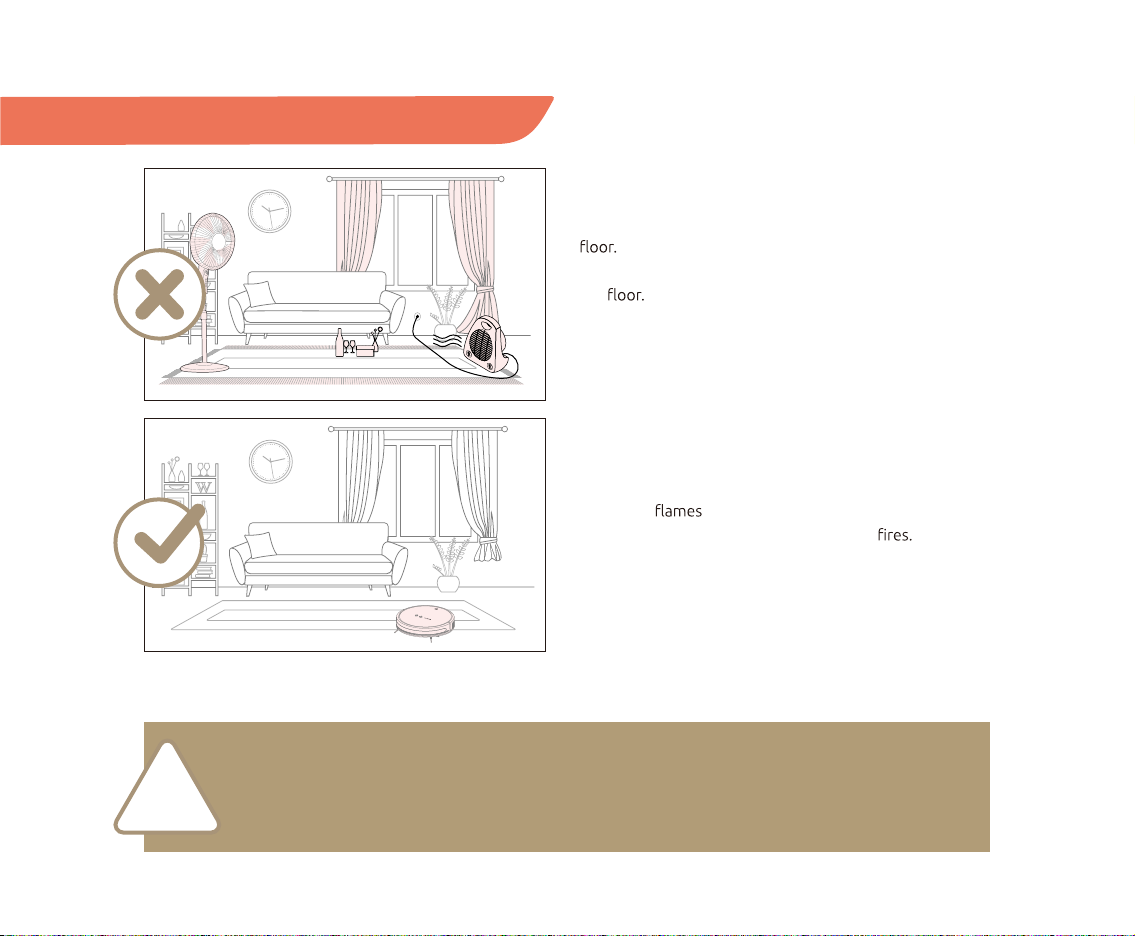

Before operating your TECBOT S1 Series, please remove
any tripping hazard, litter, quickly falling objects and
valuables, and potentially dangerous items from the
In addition, fold any fringe tassels edge under the
carpet and lift the ends of curtains and tablecloths from
the
Please prevent your TECBOT S1 Series from getting
stuck, entangled, dragging, or knocking down objects to
avoid personal or property damage. Avoid blocking the
movement of your TECBOT S1 Series by standing in its
way. Place fences or set restricted area at the entrance of
duplex staircases, open terraces, or any open area.
Prevent your TECBOT S1 Series from getting too close
with open or high-temperature equipment during
operation to extend its lifetime and avoid
Precautions
Do not pick up yourTECBOT S1 Serieswith one hand to avoid accidentally releasing the dust box or
water tank.
Retrieve the dust box or water tank when turning over yourTECBOT S1 Series for maintenance.
!

ON/OFF switch protective foams
Dust box
V-shaped
main brush
Edge-cleaning
brushes
1.5 ft / 0.5 m
1.5 ft / 0.5 m
3 ft / 1 m
9
NOTE:
The ON/OFF switch is on the right side of your TECBOT S1Series.(“I”position for ON and “O” for OFF,
see page 4.) Your TECBOT S1 Series will self-check for about 10 seconds before turning on.
Installation
01 After taking your TECBOT S1 Series out of the box,
remove the protective foam on both sides.
02 Check whether all components are in place: dust box,
V-shaped main brush, and edge-cleaning brushes.
03 Place the charging dock against a wall on a
and connect it to the power source. Please make sure
there are more than 1.5 feet / 0.5 meter of free space
at the front and 3 feet / 1 meter to the sides of the
charging dock.
04 Turn on your TECBOT S1 Series.

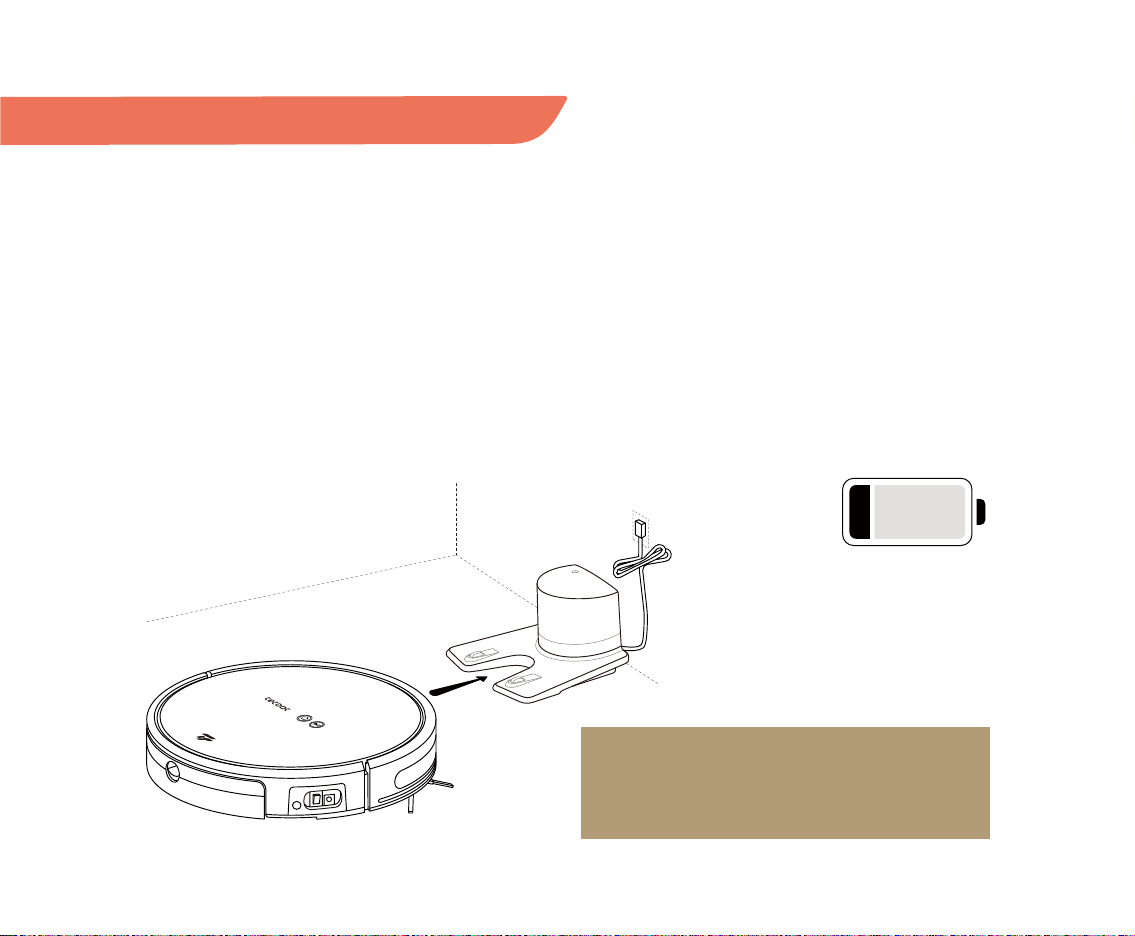

05 Place your TECBOT S1 Series at the charging dock.
Ensure the contact points on the TECBOT S1 Series
and the charging dock are in complete contact.
Your TECBOT S1 Series will make a “beep” to start
charging. The charging time is about 4 hours.
06 Your TECBOT S1 Series is ready for Wi-Fi pairing.
NOTE:
Only use clean wateror foamless floorcleaner in
the water tank. Foam orbubbles will decrease the
performance of the mopping function.

10
Pairing
Download Tecbot Home App
Download our Tecbot Home App by scanning the
QR code or searching on the App Store or Google Play
to enjoy all the functions of your TECBOT S1 Series
wherever you are.
Automatic pairing via Bluetooth
Your Tecbot S1 Series will automatically try to pair with
your mobile device via Bluetooth. Please ensure your
Bluetooth connection is turned ON on your mobile
device. In addition, please
• Your Wi-Fi router supports a 2.4 GHz frequency band.
• Your mobile device or tablet is connected to the Wi-Fi
network of 2.4 GHz frequency band.
• Your mobile device or tablet operating system is up
to date.
Automatic pairing (Bluetooth)

11
01 Sign up to register an account and log in.
02 Ensure your Tecbot S1 Series is turned ON
(The ON/OFF switch is located at the side
of your TECBOT S1 Series) and tap “Add
Device.”
03 Wait for the splash screens on your mobile
device. Tap “Go to add.”
04 Enter your Wi-Fi password.
05 Keep your device as close as possible to
your TECBOT S1 Series. Your TECBOT S1
Series Start/Pause button light will stop
blinking to pairing. Tap “Next.”
06 Success! Your TECBOT S1 Series is ready.
Automatic pairing (Bluetooth)
01 02 03
05 0604

12
Manual pairing (Wi-Fi)
Manual pairing via Wi-Fi
If your Tecbot S1 Series is not pairing automatically, you
can try to add it manually via Wi-Fi.
Using the manual mode, your TECBOT S1 Series will use
your home Wi-Fi connection to pair with your device.
• Your Wi-Fi router supports a 2.4 GHz frequency band.
• Your mobile device or tablet is connected to the Wi-Fi
network of 2.4 GHz frequency band.
• Your mobile device or tablet operating system is up
to date.

13
01 02 03
0604 05
01 Tap “ TECBOT S1” and enter your Wi-Fi
password.
02 Restart your TECBOT S1 Series by switching
it OFF and ON. The switch is located at the
side of your TECBOT S1 Series.
03 Press and hold the Start/Pause button for 3
seconds until it beeps once to establish the
Wi-Fi connection.
04 the Start/Pause button light
is blinking and after you hear the voice
prompt. Tap “Next.”
05 Keep your device as close as possible to
your TECBOT S1 Series. Your TECBOT S1
Series Start/Pause button light will stop
blinking to pairing.
06 Success! Your TECBOT S1 Series is ready.
Manual pairing (Wi-Fi)

14
Your TECBOT S1 Series will
automatically return to
the charging dock when its
battery is lower than 20%.
<20%
NOTE:
Turn offyourTECBOT S1 Series if you do not intend
to use it in the following 24 hours.
Charging
Your TECBOT S1 Series will automatically return to the
charging dock when its battery is lower than 20%. Press
the charging button on your TECBOT S1 Series, remote
control, or the Tecbot Home App to start the recharge
function.
Your TECBOT S1 Series will not turn on when its battery
is low. Please, manually place your TECBOT S1 Series on
the charging dock. The indicator light on the charging
dock will blink to indicate that charging has started.
Your TECBOT S1 Series takes about 6 hours to charge its
battery fully.
Battery
Your TECBOT S1 Series uses a high-performance
lithium-ion rechargeable battery pack. Please charge
your TECBOT S1 Series after daily use to maintain the
battery performance.

15
Cleaning modes and mopping function
NOTES:
If your TECBOT S1 Series gets stuck, encounters
obstacles, or needs to suspend the cleaning run for
any reason, please pause your TECBOT S1 Series
before moving it and putting it back within a radius of
3 feet / 1 meter from the "suspended position" to ensure
the continuation and completion of the cleaning task.
When you only needto clean a single room,
just close the door of this room. Ifthere is no
charging stand in this room, your TECBOT S1 Series
will return to the point oforigin after completing
the task.
Cleaning modes
Automatic cleaning mode
Your TECBOT S1 Series will clean all the accessible areas
of your house. TECBOT S1 Series will start to move
straight along the wall/obstacles, and move in anti-clock-
wise direction for edge cleaning. Once the edge-cleaning
is completed, it will automatically plan a zigzag path to
clean the remaining space and avoid obstacles on its way.

16
Cleaning modes
Edge cleaning mode
The edge cleaning mode will clean the corners of the
room. Your TECBOT S1 Series will clean along object
edges (such as a wall) and returns to the charging base.
Spot cleaning mode
The spot cleaning mode is suitable for cleaning an area
where the debris or dust is concentrated. Your TECBOT
S1 Series will clean in a zigzag path and returns to the
starting position.
