BIG MIKE Leapfrog Wet & Dry User manual

Version 2.0
SAVE THESE INSTRUCTIONS
English
Operating Instructions
BIG MIKE Leapfrog Wet & Dry
FOR WET AND DRY USE
For Commercial Use Only
Machine Serial No:

2
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE BIG MIKE
VACUUM CLEANER.
When using an electrical appliance, basic precautions should always be followed, including the follow-
ing:
WARNING – To reduce the risk fire, electric shock, or injury please follow the points
below:
1. Do not leave the appliance running unattended. Un plug from the electrical outlet when
not in use and before servicing.
2. Do not use out of doors.
3. Do not allow to be used as a toy. Close attention is necessary when used near children.
4. Use only as described in this manual. Use only recommended manufacturer’s
recommended attachments.
5. Do not use with a damage cord or plug. If the appliance is not working as it should, has
been dropped, damaged, left out of doors or dropped in water, then return it to a service centre.
6. Do not pull or carry by cord or use the cord as a handle, close a door on the cord or pull
the cord around sharp edges of corners. Do not run the appliance over the cord and keep the
cord away from heated surfaces.
7. Do not unplug by pulling on the cord. To unplug grasp the plug not the cord.
8. Do not handle plug or appliance with wet hands.
9. Do not block up air exhaust openings by inserting objects into the openings. Do not use
with any opening blocked. Keep openings free of dust, lint, hair or anything else that may
reduce airflow.
10. Do not use without dust bag and/or filters in place.
11. Turn off all controls before unplugging.
12. Use extra care when cleaning stairs.
13. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas
where they may be present.
14. Only connect to a properly grounded outlet. (See Grounding instructions.)
15. Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot
ashes.

3
1.0 Grounding Instructions
This machine should be grounded. If the machine should suffer an electrical malfunction or
breakdown, grounding will provide a path of least resistance for the electrical current so reducing the
risk of electric shock. This equipment is equipped with a cord having an equipment grounding
conductor and grounding plug. The plug must be inserted an appropriate electrical outlet that has been
properly installed and grounded in accordance with all local codes and ordinances.
Warning
Improper connection of the equipment-grounding conductor can result in
electric shock. Check with a qualied electrician or service person if you
are in doubt as to whether the outlet is properly grounded. Do not modify
the plug provided with the appliance – if it will not t the outlet have a
proper outlet installed by a qualied electrician.
1.1 Power Consumption of the Equipment
The BIG MIKE Industrial Vacuum Cleaner needs a power supply as detailed below. Please note that
current consumption can vary depending on the load being placed on the motors which can constantly
change during use.

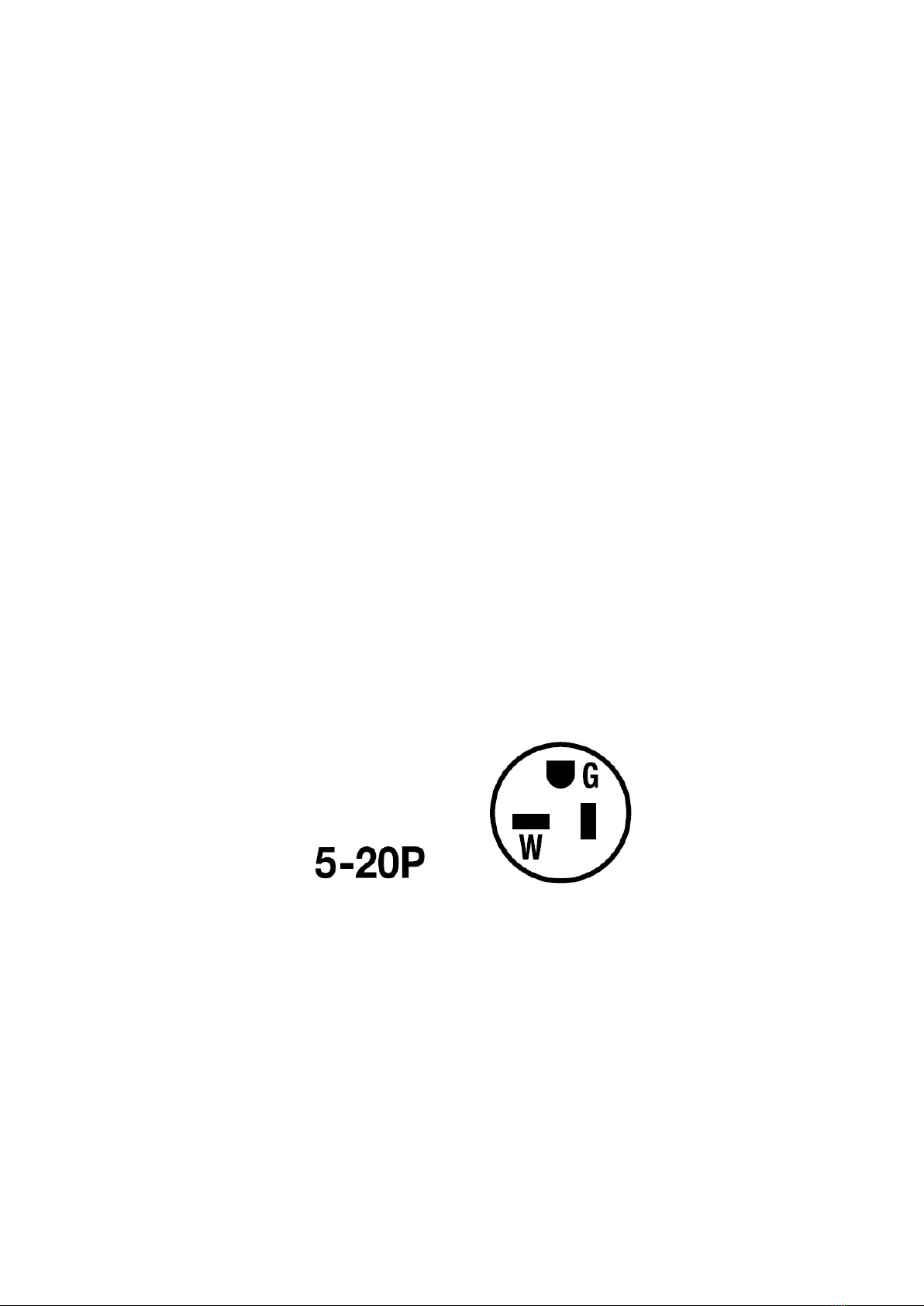

1.1.1 Model 120V
Voltage: 120V Frequency: 60Hz Current: 19A
This appliance is rated at more than 15 amps and is for use on a circuit having a nominal rating of
120V and is factory equipped with a specific electric cord and NEMA 5-20P plug to permit connection
to a proper electric circuit.
Make sure that the appliance is connected to an outlet having the same configuration as the plug. No
adaptor should be used with this appliance. If the appliance must be re connected for use on a
different type of electric circuit, the reconnection should be made by qualified service personnel.
Please note that current consumption can vary depending on the load being placed on the motors
which can constantly change during use.

4
1.1.2 Model 240V
Voltage: 240V Frequency: 60Hz. Current: 12A
This appliance is rated at 12 amps and is for use on a circuit having a nominal rating of 240V and is
factory equipped with a specific electric cord and NEMA 6-15P plug to permit connection to a proper
electric circuit.
Make sure that the appliance is connected to an outlet having the same configuration as the plug. No
adaptor should be used with this appliance. If the appliance must be re connected for use on a
different type of electric circuit, the reconnection should be made by qualified service personnel.
Please note that current consumption can vary depending on the load being placed on the motors
which can constantly change during use.

5
2.0 Manufacturer and Distributor
2.1 Manufactured in the UK by:
Michael Williams Engineering Ltd
Queen’s Business Park
Wilbraham Road
Fulbourn
Cambridge
CB21 5ET
UK
Tel: [phone]
E-Mail: [email protected]
Web: www.bigbrute.co.uk
2.2 Distributed in Canada by:
Transnorth Ltd
72 Copernicus Blvd, Unit 3
Brantford, ON N3P 1K5
Canada
Tel: [phone]
E-Mail: [email protected]
Web: www.transnorth.ca

6
3.0 What’s in the Box?
Your BIG MIKE Leapfrog Wet & Dry Industrial Vacuum Cleaner consists of:
1. BIG MIKE Wet & Dry Power Unit
2. BIG MIKE Leapfrog Wet & Dry Lid
3. BIG MIKE Leapfrog Wet & Dry Body
4. Suction Hose
5. V39 Primary Filter x2 (one inside the other)
6. Overfill Protection Float
7. Scraper Tool

7
4.0 Introduction to the BIG MIKE Leapfrog Wet & Dry
The purpose of this manual is instruction on the proper use of the BIG MIKE Leapfrog Wet & Dry
Industrial Vacuum Cleaner.
Warning
This manual must be read and thoroughly understood before using the
BIG MIKE Leapfrog Wet & Dry Industrial Vacuum Cleaner. Failure to do so
could result in personal injury and/or damage to the product.
4.1 Standard Dimensions and Weight
4.2 Foreseen Use of the Machine
The BIG MIKE Leapfrog Wet & Dry Industrial Vacuum Cleaner is for wet and dry use.
Danger
DO NOT use to recover volatile, ammable or explosive liquids. DO NOT
use in a zoned area or use for the recovery of explosive vapours.
4.3 Ways in which the BIG MIKE Leapfrog Wet & Dry Must Not Be Used
The BIG MIKE Leapfrog Wet & Dry Vacuum Cleaner must not be used in the following ways. Failure to
adhere to these precautions could result in personal injury and/or damage to the machine.
• Do not use the machine in Zoned Areas
• Do not use the machine to suck up volatile, flammable or explosive liquids
• Do not overload the drum
• Do not place any part of your body over the end of the suction hose.
Length 700 mm (28 in.)
Width 700 mm (28 in.)
Height (excluding drum) 850 mm (33 in.)
Weight (excluding drum) 52 kg (115 pounds)

8
5.0 Setting up the BIG MIKE for use
Caution
Never place your hands or any other part of your body over the end of the
suction hose or inlet spigot while the BIG MIKE is in operation.
Always use the BIG MIKE with the Primary Filters or Overll Protection
Filter in place. Using the BIG MIKE without the Primary Filters or Overll
Protection Filter in place can cause damage to the motors. See the
section “Filters” for more information.
The BIG MIKE Leapfrog Wet & Dry consists of:
1. Leapfrog Body
2. 2 x Primary Filters (for dry use only)
3. Overfill Protection Filter (for wet use only)
4. Lid
5. Wet & Dry Power Unit
6. Suction Hose with Tool
5.1 The Collection Drum
The BIG MIKE Leapfrog Wet & Dry lls your own drums and vessels.
Before using the BIG MIKE Leapfrog Wet & Dry, ensure that the top rim of your collection drum is in
good order and free from dents or damage.

9
5.2 Setting up the BIG MIKE Leapfrog Wet & Dry for Dry use

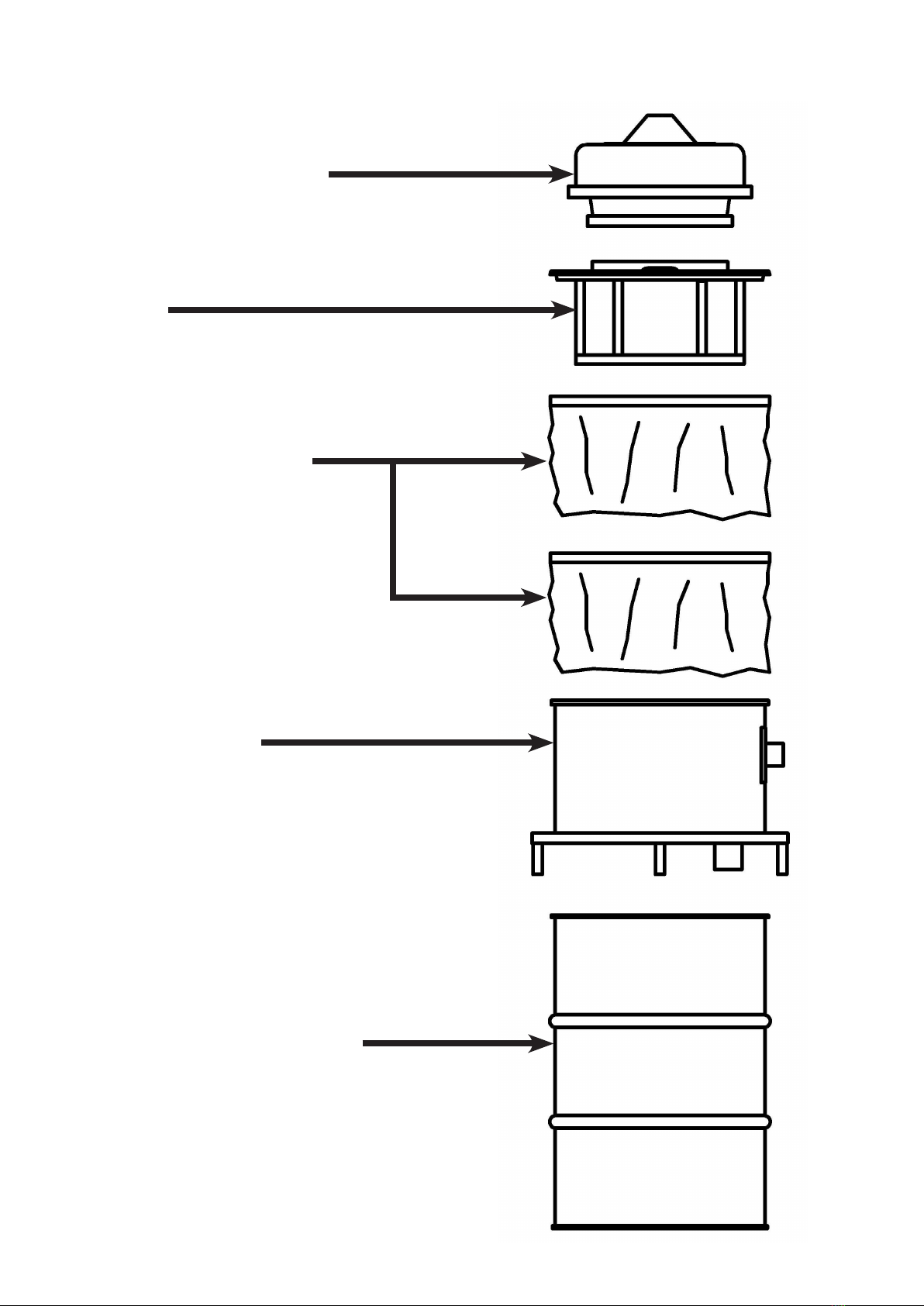

Wet & Dry Power Unit
Primary Filters -
one inside the other
Lid
Your own collection drum
(not supplied)
Leapfrog Body

10
Place the Leapfrog Body squarely onto your collection drum.
Ensure that the rubber seal on the base of the Leapfrog Body makes good contact with the rim of the
collection drum all the way round.
Fit one Primary Filter inside the top of the Leapfrog Body. Fold the top of the Primary Filter over the
top of the Leapfrog Body lip.
Fit the second Primary Filter inside the first. Fold the top of the second Primary Filter over the top of
the Leapfrog Body lip (see the “Filters” section for more information on fitting the Primary Filters).
Caution
Ensure that the lter is tted with the shaking-handle (sewn onto the
lter) and the writing uppermost. Failure to do so will result in poor
ltration and motor damage.
Always operate the BIG MIKE Leapfrog Wet & Dry in dry mode with both
Primary Filters in place.
Fit the Lid inside the Primary Filters. Position the Lid so that the flat bar on its inner frame is next to
the drum entry spigot at the front of the drum. Make sure it doesn’t foul the inlet entry spigot behind
the Primary Filters.
Place the Leapfrog Body onto your collection drum

11
Place the Power Unit onto the Lid.
Attach the suction pipe to the spigot on the front of the Leapfrog Body. The BIG MIKE Leapfrog Wet &
Dry is now ready for use in dry mode.

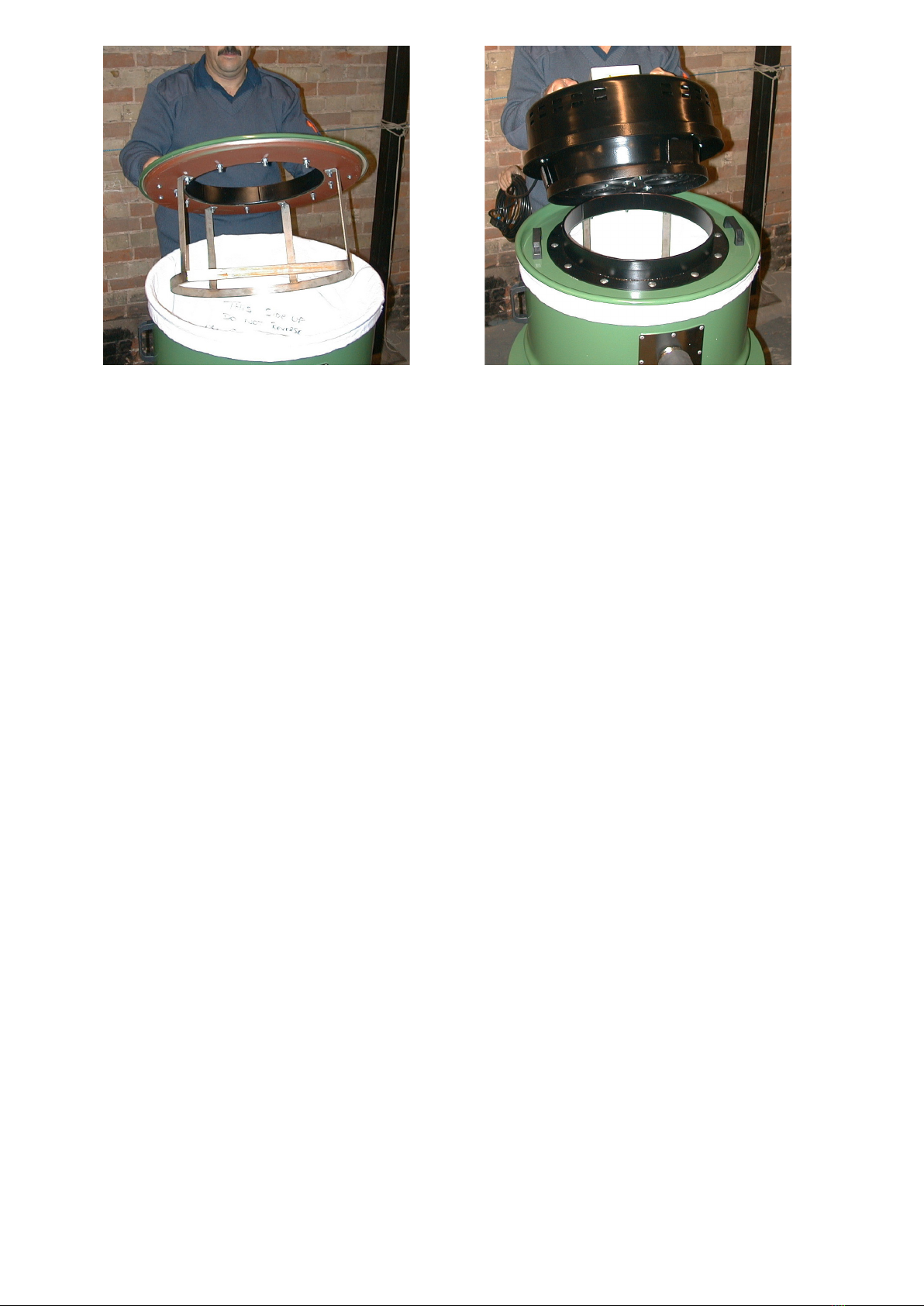

Place the Power Unit on top of the LidPlace the Lid inside the Primary Filters

12
5.3 Setting up the BIG MIKE Leapfrog Wet & Dry for Wet use
Warning
A drum full of liquid will be extremely heavy. Always use appropriate
manual handling techniques when moving or operating a BIG MIKE
Leapfrog Wet & Dry in wet mode.
Do not use the Primary Filters when operating the BIG MIKE Leapfrog Wet
& Dry in wet mode.

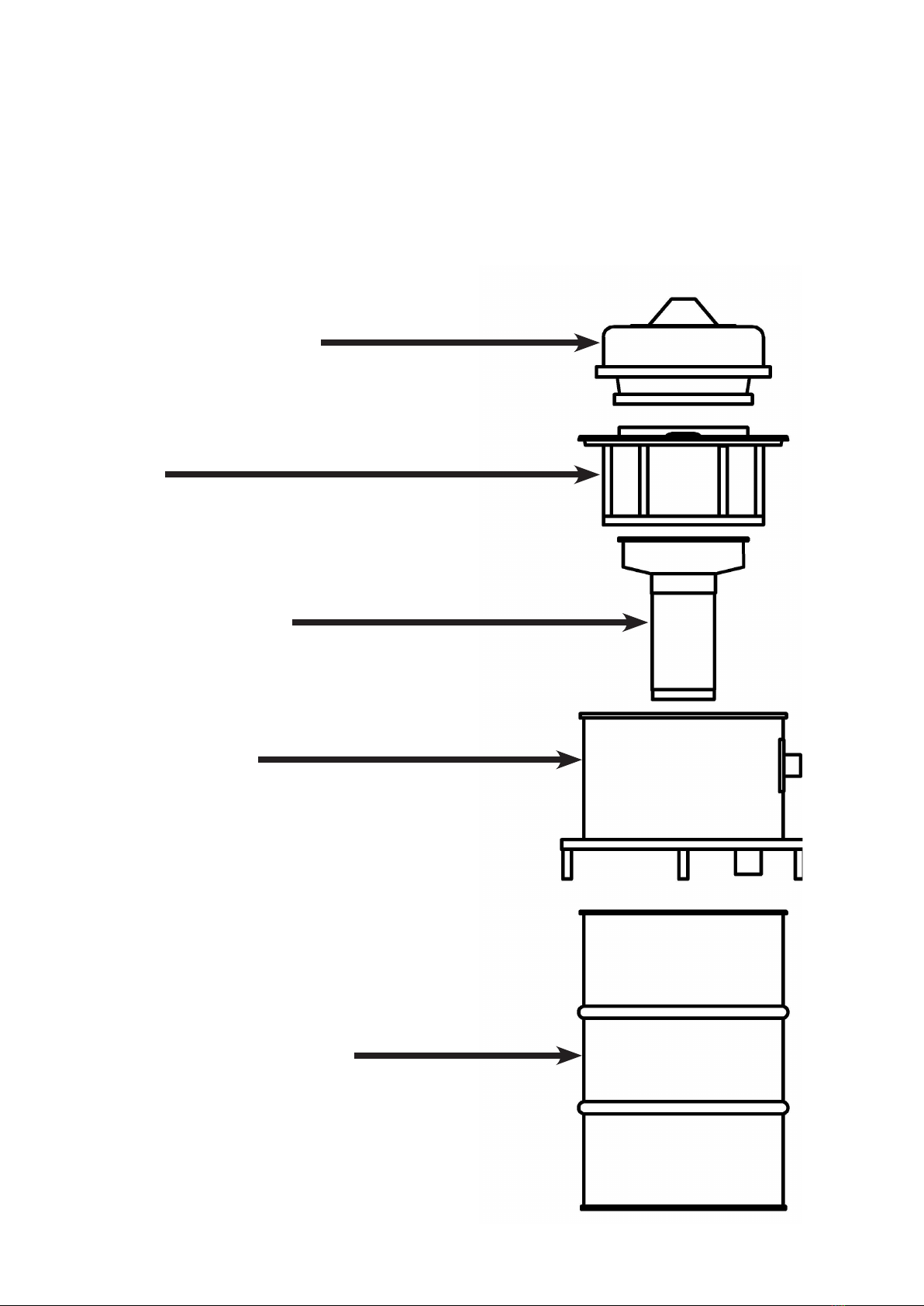

Wet & Dry Power Unit
Overfill Protection
Filter
Lid
Your own collection drum
(not supplied)
Leapfrog Body

13
Place the Leapfrog Body squarely onto your collection drum.
Look inside the Leapfrog Body. Ensure that the lift-and-turn catches are turned away from the hole
inside the Body to allow the Overfill Protection Filter to be inserted freely.
Insert the Overfill Protection Filter into the centre of the Body. Secure the Overfill Protection Filter in
place by turning the three catches.
Place the Lid inside the Body. Place the Power Unit on top of the Lid.
Attach the suction pipe to the spigot on the front of the Leapfrog Body. The BIG MIKE Leapfrog Wet &
Dry is now ready for use in wet mode.
Place the Leapfrog Body onto your collection drum
Place the Lid inside the Body Place the Power Unit on the Lid

14
6.0 Filters
6.1 Filters for Dry Use
The BIG MIKE Leapfrog Wet & Dry is supplied with two V39 Primary Filters for dry use. Always use
both Primary Filters together, one fitted inside the other.
Caution
Never operate the BIG MIKE with damaged lters. If in doubt, replace the
lter.
6.1.1 The Primary Filters
The Primary Filters keep dirt and dust out of the power unit and its motors. Waste material sucked up
is deposited inside the drum. The air and fine dust it contains then passes through the two Primary
Filters, which filter out the remaining fine dust. The filtered air then passes through the turbines and
then through the motors to cool them.
Caution
Ensure that both Primary Filters are tted with the fabric shaking-handle
(sewn inside the lter) and the writing uppermost. Failure to do so will
result in poor ltration.
6.1.2 Fitting the Primary Filters
Caution
Never operate the BIG MIKE Leapfrog Wet & Dry without both Primary
Filters in place.
The Primary Filters fit inside the top of Leapfrog Drum. Make sure the Primary Filters aren’t inside out
- they’re designed to work only one way. Fit the Primary Filters so that the writing and the shaking-
handle (sewn onto the filter) are uppermost.

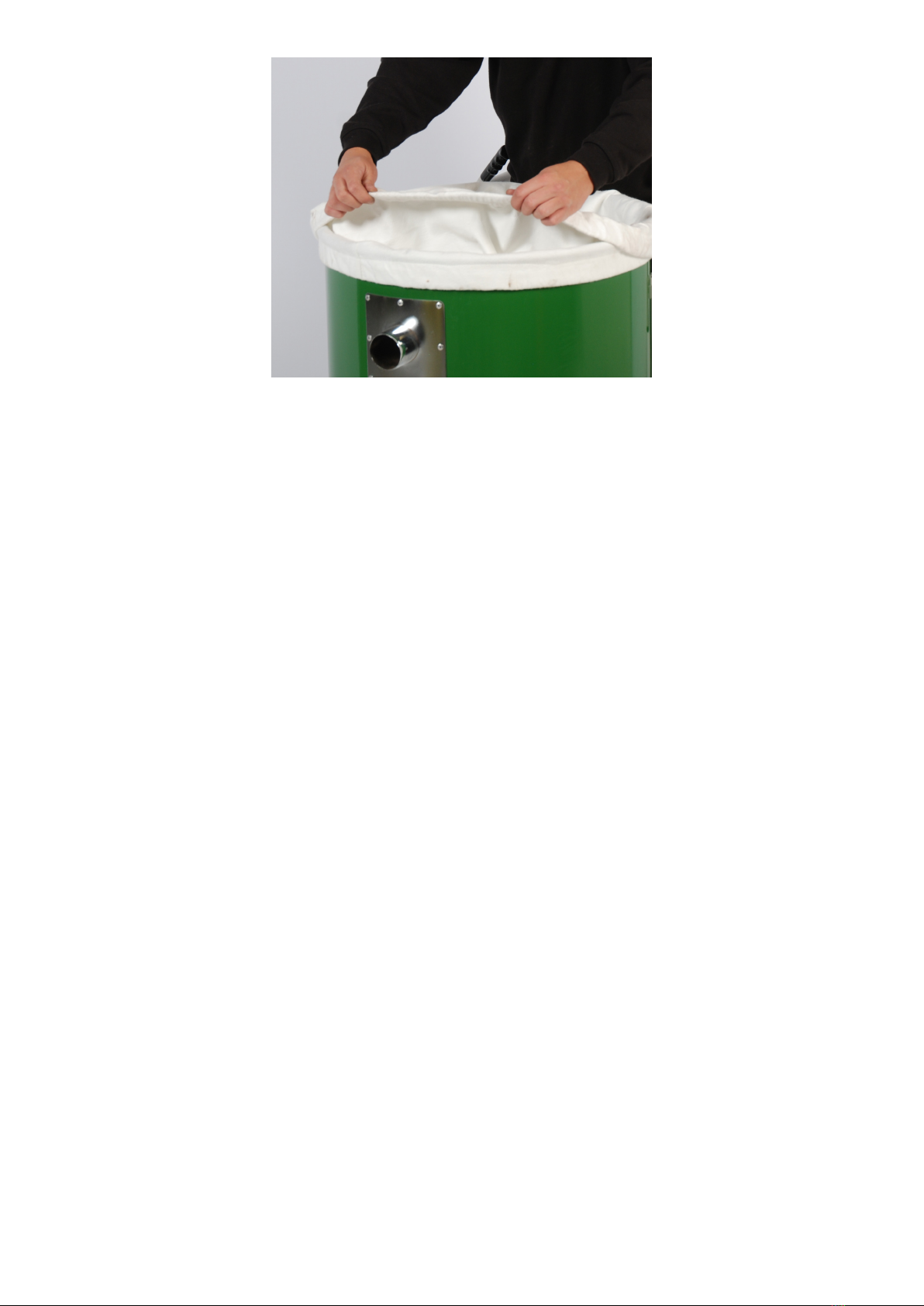

Fold the elasticated edge of the filter over the rim of the drum. Ensure that the filter covers the rim of
the drum all the way round. Ensure that the filter extends 2” (50mm) down the outside of the drum.
Fit the second Primary Filter inside the first and fold over the top of the drum as above.
If, whilst using the BIG MIKE in Dry Mode, you notice the Primary Filters aren’t in place, switch the
BIG MIKE off immediately. Refer to the section “If the BIG MIKE has been used without the Primary
Filters in place”.
V39 Standard Primary Filter
Approx.
13"
330mm
V39 Standard Primary Filter
Filter Shaker Handle

15
6.1.3 Cleaning the Primary Filters
Clean the Primary Filters regularly and each time the drum is emptied. The Primary Filters can be
cleaned by shaking them. Remove the power unit from the top of the Leapfrog Drum but leave the
suction hose in place to prevent dust escaping from the drum.
Clean the Primary Filters by grasping the shaking-handle sewn onto the filter and shaking it up and
down to dislodge any dust and dirt on the underside. Remove the uppermost Primary Filter and repeat
for the lower Primary Filter.
To clean the Primary Filters more thoroughly, shake them clean as above and carefully remove them.
We recommend vacuuming the filters clean (additional Primary Filters can be purchased for this
purpose) or by beating them clean in a suitable area out of doors.
Caution
Never wash the Primary Filters as this will destroy them.
6.1.4 Checking the Primary Filters for Damage
Always inspect the Primary Filters for damage each time you clean them. Ensure they are free of holes
and show no signs of damage or wear.
If you’ve any doubt about the state of your Primary Filters, please replace them.
6.1.5 If the Primary Filters Get Wet
The Primary Filters are intended only for use in dry mode. Never use the Primary Filters in wet mode.
If the Primary Filters do get wet, clean them by shaking as described above. Carefully remove the
filters and allow them to naturally air dry. Vacuum or beat the filters clean and refit them before using
the BIG MIKE in dry mode again.
Warning
Always ensure the Primary Filters are dry before using in the BIG MIKE.
Fit the Primary Filters inside the
top of the Leapfrog Drum.

16
6.1.6 If the BIG MIKE has been used without the Primary Filters in place
If the BIG MIKE has been used in Dry Mode without the Primary Filters in place, switch off the BIG
MIKE immediately.
Examine the Primary Filters thoroughly to ensure they are clean and in good order.
Refit both Primary Filters before using your BIG MIKE again.
Be aware that the motors may have been damaged. If you suspect any motor damage has occured
(e.g. adverse noises or smells from the motors or any reduction in performance) switch off the BIG
MIKE immediately and do not use. Contact your distributor for further advice.
6.2 Filters for Wet Use
Caution
Never use the V39 Primary Filters when operating in Wet Mode.
The Overfill Protection Float must be fitted before using the BIG MIKE Leapfrog Wet & Dry in wet
mode.
Before fitting the Overfill Protection Float, check that:
• the perforations in the Overfill Protection Float are clean, undamaged and aren’t blocked
• the rubber gasket is fitted to the rim of the Overfill Protection Float and that it is in good
condition.
• the ball float inside the Overfill Protection Float is free to move up and down.
Do not use if the Overfill Protection Float shows any signs of damage.
6.2.1 Indication that your Collection Drum is full
As the level of the liquid inside your collection drum rises, the ball oat inside the Overll Protection
Float rises. When the liquid inside your collection drum reaches its maximum value, the Overll Protec-
tion Float will automatically cut off the airow from the power unit.
You will know when this happens as the suction of liquid will suddenly stop and the motor noise will
Overll Protection Float for use in wet mode

17
increase signicantly.
Caution
Never continue to use a the BIG MIKE Leapfrog with a full drum as this
will cause damage to the motors.
When your collection drum is full, immediately turn off the power to the Power Unit and disconnect it
from the power supply. Remove all the components of the BIG MIKE Leapfrog from the collecting drum.
The BIG MIKE Leapfrog can either be tted on a new, empty drum or replaced back on the existing
drum after it’s been emptied.

18
7.0 Power Unit and Motors
Danger
Never place your hands or any other part of your body over the end of
the suction hose or inlet spigot while the BIG MIKE is in operation. The
powerful suction could cause injury.
7.1 Power Unit
7.2 The motors are housed inside the metal box on top of the lid. In order to safely maintain the power
unit and its motors see the Safety Instructions and Grounding Notes.
The power unit contains 3 motors that can be switched on or off one at a time.
7.3 Switching On The Motors
The BIG MIKE has a 4-position switch which switches each motor on and off individually. Position 0 is
off. Position 1 switches the first motor on; Position 2 switches the second motor on; Position 3
switches the third motor on. This is known as a “soft start” and prevents surges on your power supply.
Caution
Always switch all three motors on before using the BIG MIKE to clean up.
Never operate the BIG MIKE with just 1 or 2 motors running.
7.4 Thermal Cut-Outs
The motors are fitted with overheat protection thermal cut out units. If the motors cannot cool
themselves adequately, the thermal cut-outs will automatically shut the motors down to protect them.
This can occur if the flow of air up the suction pipe is very hot, or the flow is obstructed in the pipe or
the drum is full.
If the thermal cut-outs shut the motors down, turn the power switch to Position 0 and unplug the
appliance from the power supply. The thermal cut-outs will automatically allow the motors to restart
once they have cooled sufficiently.
Warning
NEVER leave an overheated appliance connected to the electrical supply
with the power switch at Position 1, 2 or 3. Always switch the power
switch to Position 0 and unplug the appliance from the power supply.
This will prevent the appliance restarting itself in your absence once the
motors have cooled sufciently.
4-position switch for turning on the motors

19
8.0 General Points
8.1 During Use
When using the BIG MIKE, ensure that the power cable is not in any danger of being cut, sliced or
trampled with any heavy machinery or persons.
8.2 Storage
When not in use, store the BIG MIKE as follows:
• Coil the power cord around the top cover to prevent it getting damaged or dragging on
the floor.
• Store the BIG MIKE in a dry place away from any vermin or pests.

20
9.0 Help & Support
For help and support with using your BIG MIKE Industrial Vacuum Cleaner, please contact:
Transnorth Ltd
72 Copernicus Blvd, Unit 3
Brantford, ON N3P 1K5
Canada
E-Mail: [email protected]
Web: www.transnorth.ca
Tel: [phone]
