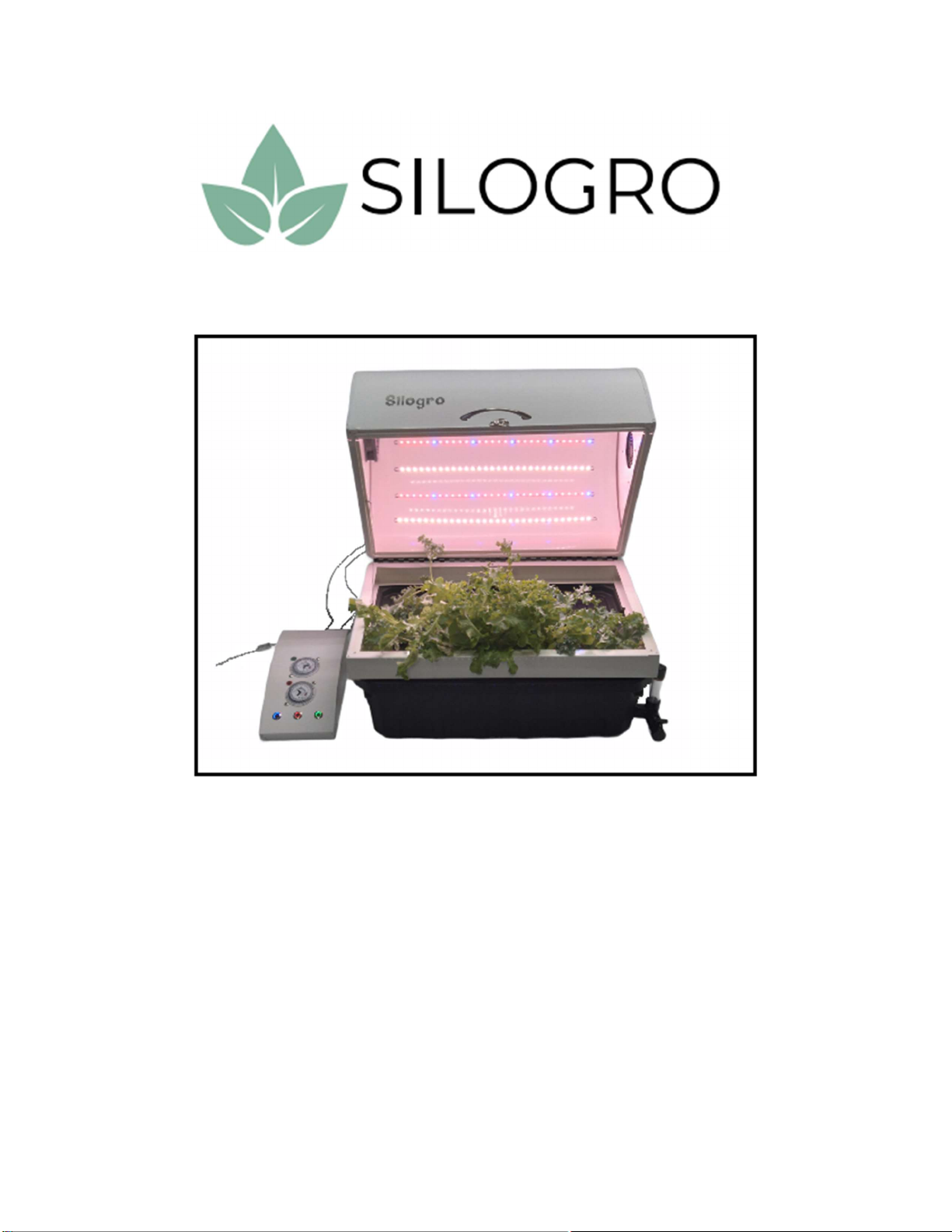

Big Moon Products SiloGro XL User manual

REV 6-2021
TM
Grow what you Love!
Love What you Grow!
Model # SiloGro XL
Manufactured by:
Big Moon Products Inc.
2621 NE 9th Ave.
Unit 12
Cape Coral, Florida 33909
Contact
www.SiloGro.com
Phone [phone]
SiloGro TM and Patent Pending
OWNERS MANUAL

REV 6-2021
SAVE THESE INSTRUCTIONS
IMPORTANT SAFTEY INSTRUCTIONS!
1. READ and Follow ALL INSTRUCTIONS
2. WARNING! INDOOR USE ONLY! Not for outdoor use!
RISK of Electrical Shock or Fire! Installing this product outdoors is
prohibited. Doing so will void all warranties.
3. Danger Risk of Injury!
a. Replace any worn cords immediately.
b. Do not use extension cords.
c. Always operate product with sufficient water level.
ADDITIONAL WARNINGS
1. Never use an extension cord to connect the power pack to a power
source. This could cause a voltage drop which, may cause damage to
the control, pump and create a fire hazard.
2. Always operate product on dry, level surface with sufficient water
level.
3. Maintain proper water chemistry. Ideal PH is between 5.6 and 6.2.
4. Install SiloGro only indoors, on floors or areas that can withstand
water exposure. Equipment failure, as well as filling and draining may
spill water.
5. Do not open power pack, doing so will void warranty.
6. When storing your SiloGro, always drain all water from tub and
plumbing. Especially in freezing temperatures as freeze damage is not
covered by warranty.
*** Please note this guide is not meant to be an all-exclusive tutorial. Your SiloGro may also
be used to grow lettuce, leafy greens, and fragrant herbs, other than cannabis. Possession,
growing and consuming cannabis may be illegal or restricted in your locality or state. The use
of this product or purchasing seed should be done so in line with your local and State
laws.***

REV 6-2021

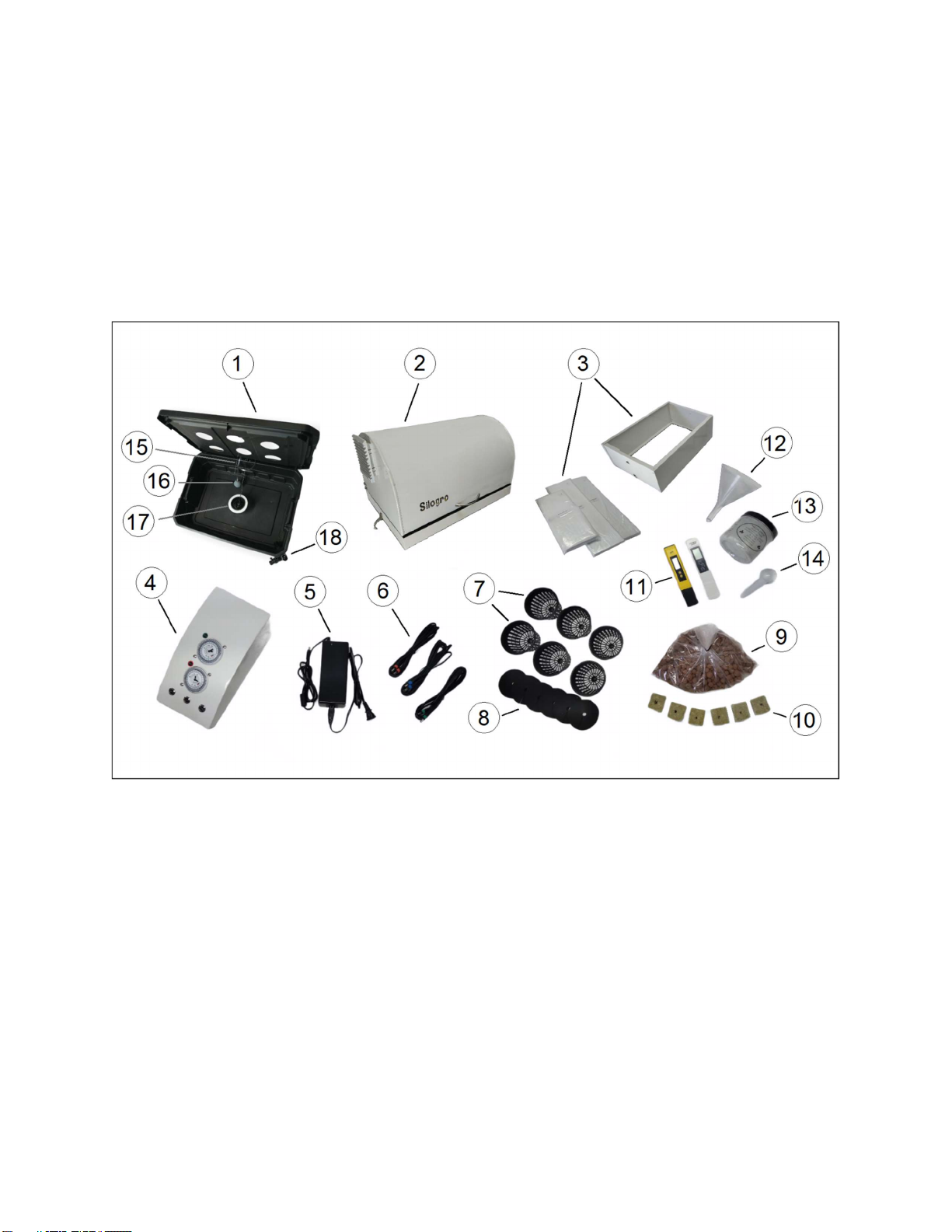

PACKAGE CONTENTS
Refer to the following picture and checklist to identify and verify that all parts for
your SiloGro have been received and are undamaged.
*Report missing or damaged parts immediately to [email protected]
*** Please note some items are packaged inside of the tub.
1.Tub, Lid, Atomizer, Air stone 10. Rock wool cubes (6pc)
2. Grow dome assembly 11. Digital PH and PPM meters
3. Risers (2 sets) 12. Fill funnel
4. Power pack controller 13. Plant Nutrient
5. Power adapter (1pc) 14. Nutrient scoop
6. Connection Cables (3pc) 15. Stabilizer Pin
7. 3” Net pots (6pc) 16. Air Stone
8. Net Pot lids (6pc) 17. Nano Mister with Float
9. Clay pebbles 18. Drain Fill Valve

REV 6-2021
SiloGro Assembly
*Please note. Before you start you will need about 5 gallons of
purified or distilled water.
To adjust the PH level we recommend;
lemon or lime juice to lower the PH level, and
baking soda to raise the PH level. *See Growing Guide
1. Location: Choose an indoor location only! We suggest a countertop, table, or
rolling cart. An area about 36 inches wide by 30 inches deep will be sufficient.
Please note your SiloGro XL can expand to a height of 40 inches!
2. Remove all parts from the carton Compare with package contents page.

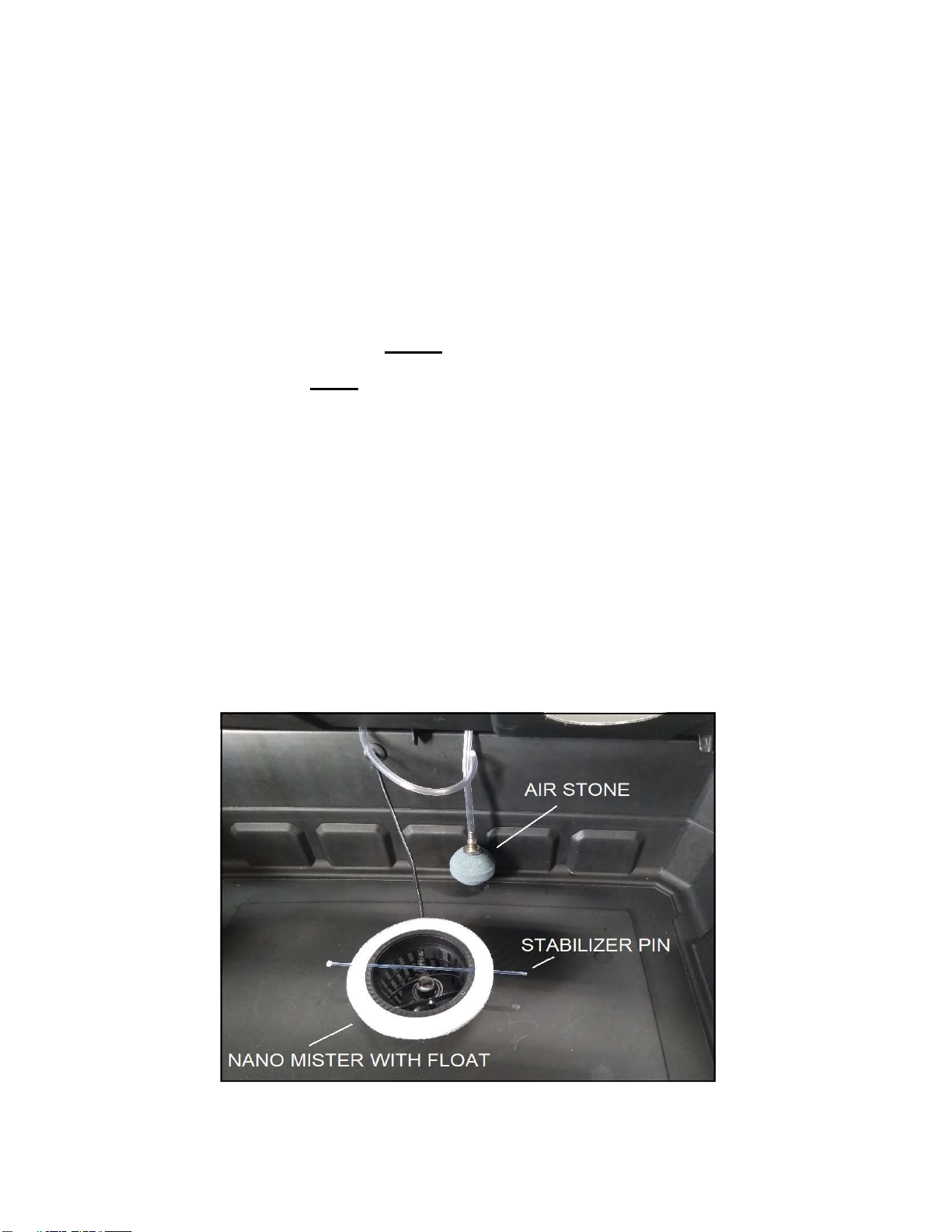

A. Remove Dome Lid and Riser Panels (3). Locate Tub (1). Inside you will
see the Components Box (not shown), Air stone, Ultrasonic nano mister
and nano mister stabilizer pin (taped to Lid bottom). See Fig. #1
Fig. 1
Air Stone Ultrasonic nano mister w/float Nano mister stabilizer pin

REV 6-2021

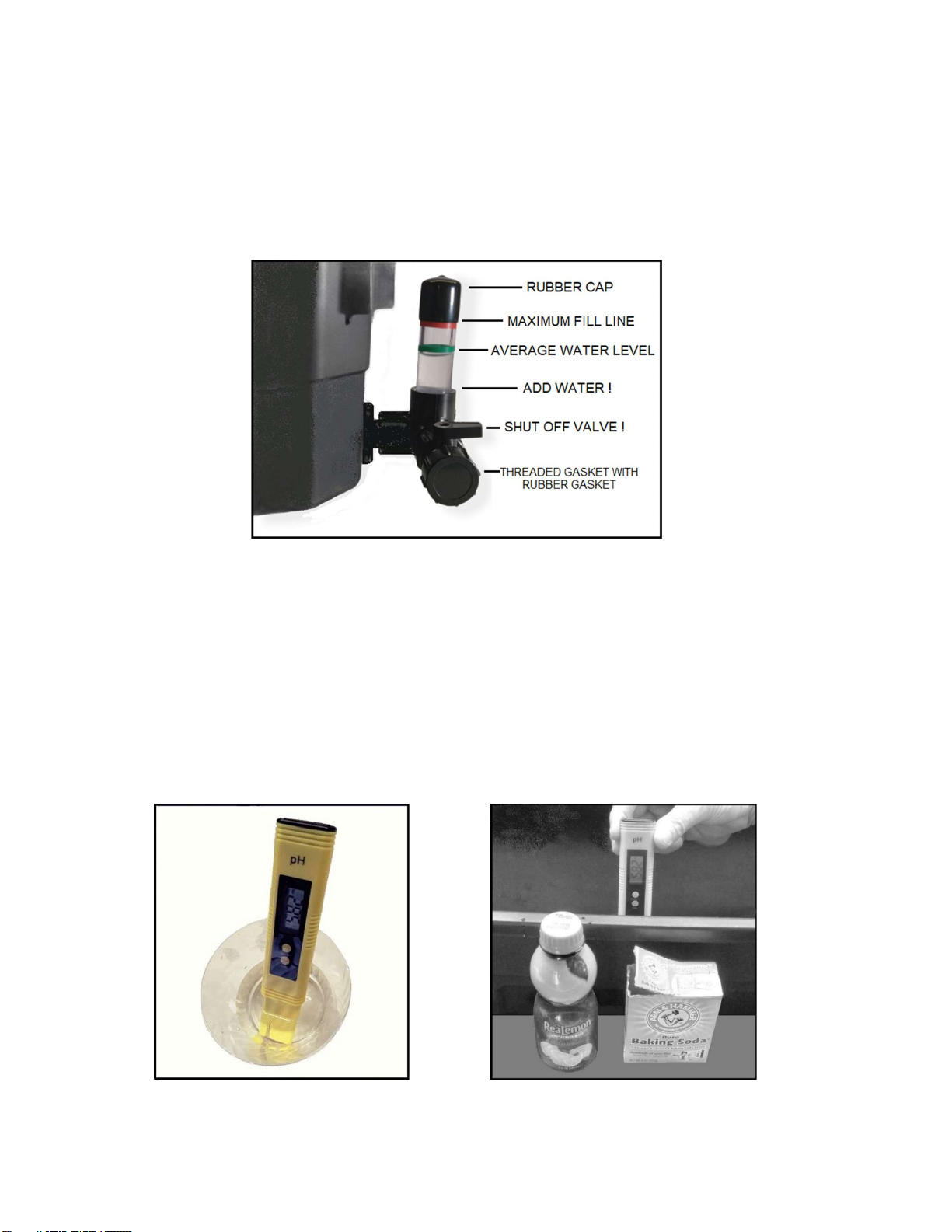

3. Please check fill valve is in closed and capped position. Fig.2
Add approximately 5 gallons of water to tub to average fill on clear tube
by fill and drain assembly. Do not attach Dome Assembly to Empty Tub!
Fig. 2
4. Adjust PH of water in the tub using the PH meter included with the kit.
The ideal PH of the water should be between 5.8 and 6.8. Use PH meter to
determine water’s PH using the meter’s directions.
If reading is high Use lemon or lime juice at 2 tablespoons to lower PH by 1
point (per 5 gal. water). when added to the tub water.
If PH is reading too low add ¼ teaspoon baking soda to raise PH to
approximately 6.8 level. See Fig.3
Please note: No nutrients are needed at this time, See *Grow Start-Up Guide.
Fig. 3
PH meter tester reading Lower PH/Elevate PH

REV 6-2021
4. Attach stabilizer pin for the Ultrasonic nano mister as shown in Fig. 4. This
will keep the mister centered in tub while floating and feeding your plants.
Place lid with the six holes on tub.
Fig. 4
Locate and put pin through top of lid Place pin through floating basket Attach lid
5. Locate Dome assembly and attach to tub as shown in Figure 5a.
 Make sure dome assembly is centered. Secure clips under the tub
handles to prevent tipping or sliding. Figure 5b.
Fig. 5a Fig. 5b
Dome assembly Attach Dome assembly securely under tub handles

REV 6-2021

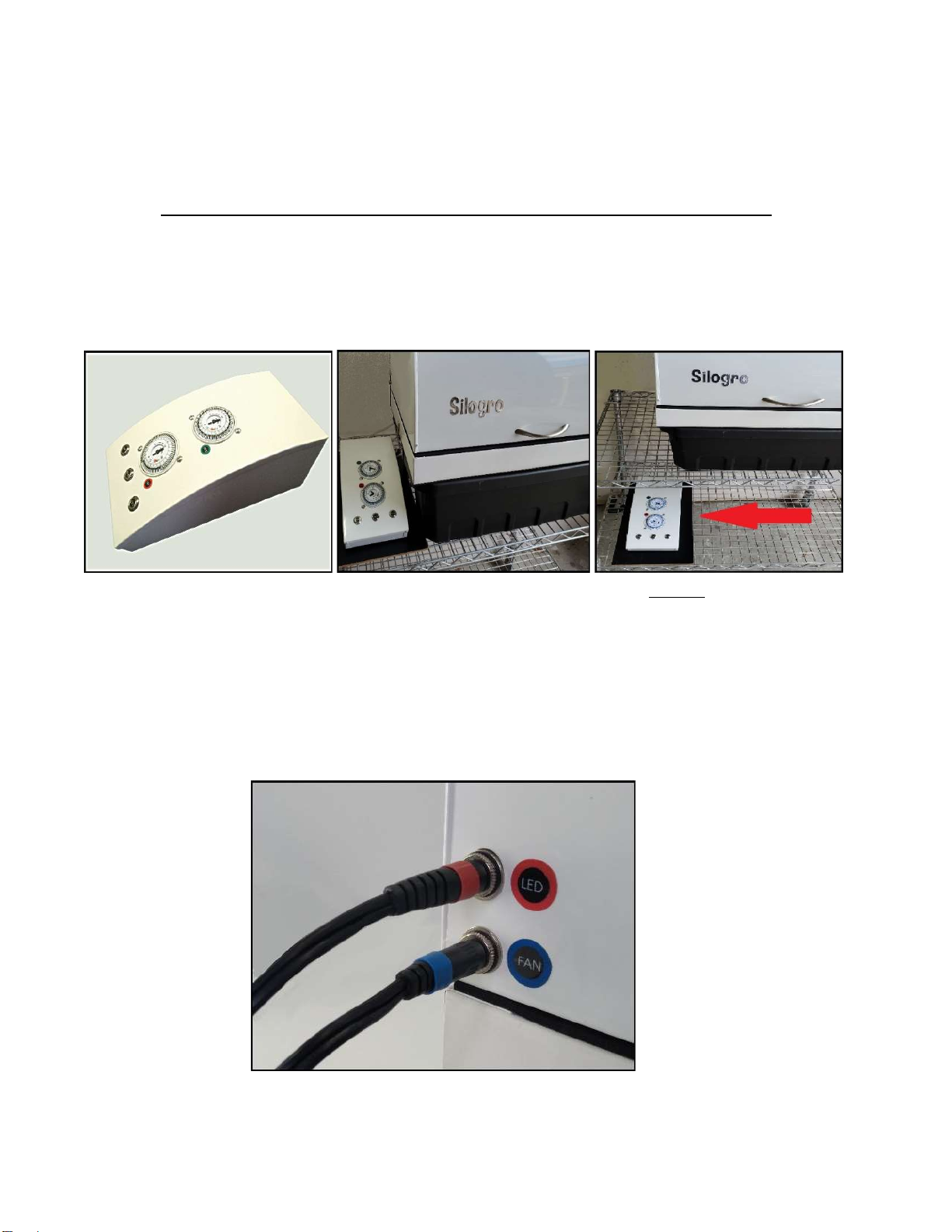

6. Locate power Pack controller Figure 7. Place next to or above the
SiloGro.
! Warning !
DO NOT PLACE POWER PACK BELOW THE LEVEL OF THE SiloGro Unit!
Damage from possible water backflow from airline tube could cause damage
to controller if you place controller below the grow chamber.
Fig. 7
Power Pack OK next to or above NOT OK below!
7. Locate Red (led) and Blue (fan) colored coded cables.
Plug into corresponding color-coded socket receptacles on dome assembly
as shown in Figure 6.
Fig. 6
Cable connection to dome assembly

REV 6-2021
8. Connect clear Air Line tubing to Air Line tube connector at rear of power
pack as shown in figure 8.
Connect Green color coded (fog) cable coming from tub to same colored cable
to corresponding socket on rear of power pack Figure 8b.
Connect Blue and Red cables from dome to corresponding sockets on rear of
power pack. See Figure 8b.
Fig. 8a Fig, 8b
Air Line connection Led (RED), Fog Nano Mister (GREEN), Fan (BLUE)
9. Locate power adapter and connect to rear corresponding socket of rear of
power pack shown in Figure 9.
Fig. 9
Dome to power pack colored cable connections
Power adapter to power pack connection

REV 6-2021

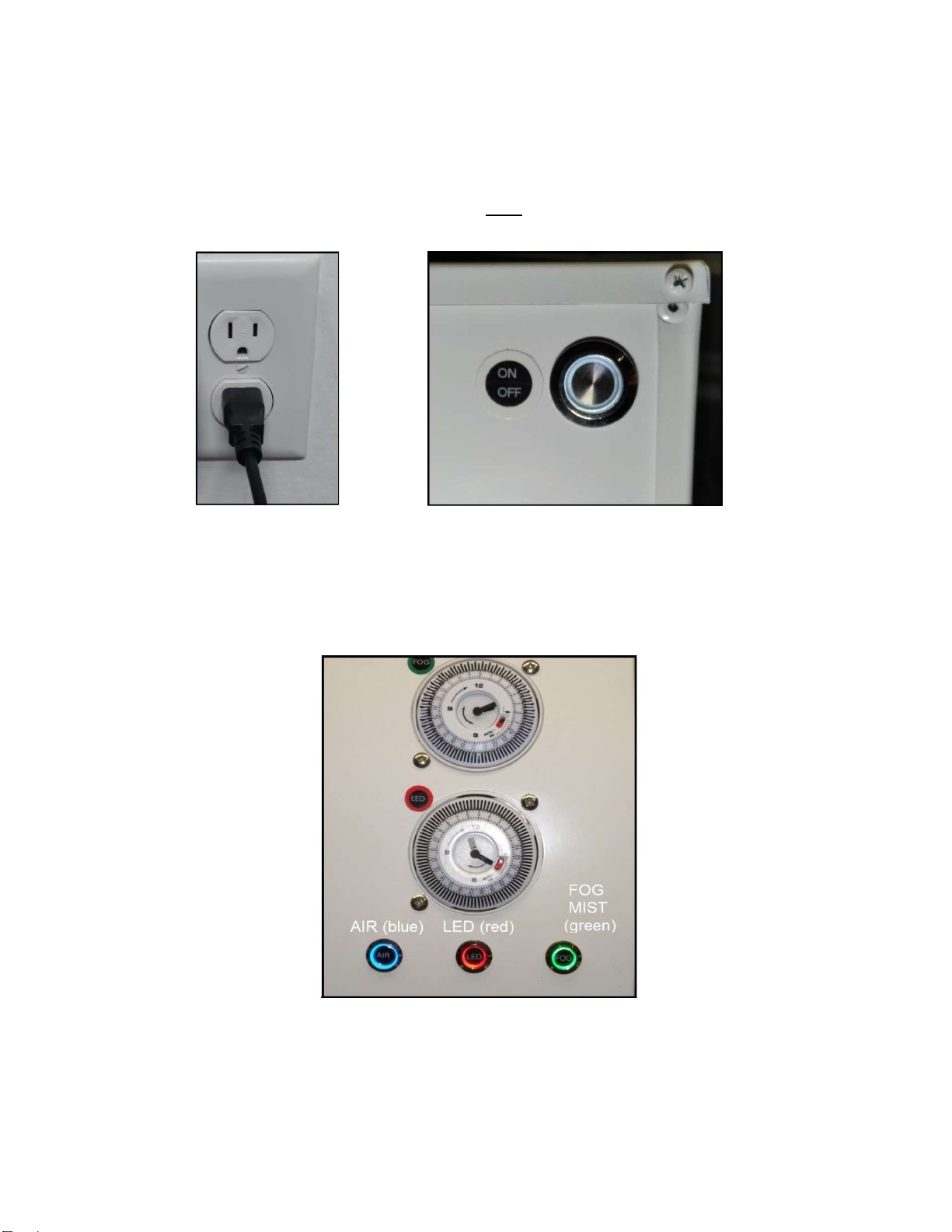

10. Test Operation and Functions.
A. Plug Power Adapter into properly wired 110 volt household receptacle.
No extension cords should be used. See Figure 10.
B. Press main power button on the rear of power pack. See Figure 10a.
Fig 10. Fig 10a.
C. On the front of the Power Pack, press each button on individually.
Buttons should light up when pressed.
Each button color corresponds to the component. See Figure 11.
Fig 11.
Front of Power Pack Buttons
CONTINUED ON NEXT PAGE….

REV 6-2021
AIR button glows BLUE. This button turns on BOTH the Circulation Fan
and the Aerator for the Air Stone.
This button should ALWAYS REMAIN ON!
LED button glows RED. This button turns on the Lights that are set by the
LED timer.
NOTE: LED button will still glow RED when the timer is in the “OFF” time
set period !
In order to turn the Lights on manually during the “OFF”
time set period, move the red button on the timer UP.
FOG (Nano Mister) button glows GREEN. This button turns on the Nano
Mister Fog that is set by the FOG Timer.
NOTE: FOG button will still glow GREEN when the timer is in the “OFF”
time set period !
D. Set Timers as to directions in Figure 12.
TIMERS FUNCTIONS ARE PRESET !
NOTE: You must set current time of day. See A. on next page.
LED Timer is preset for 18hrs ON and 6hrs OFF.
FOG Timer is preset for 15 minutes ON, 15 minutes Off continuous.

REV 6-2021
Fig 12.
LED TIMER / Ultrasonic Fog Mister TIMER
A. To Set Your Current Time
The current time is located by the Arrow on the right-hand side of the Timer, and
the Clock Face.
Timer Rotates Clockwise in 24-hour
cycles.
For example: 6 am = # 6, 6 pm = # 18.
There are 4 set Tines per Hour each tine = 15 min ea.

REV 6-2021
Tines pushed towards the outer rim of the timer represents switch activated to
"ON".
Tines pushed towards the inner rim of the timer represents switch activated to
"OFF".
RED button switch should be in Lower position for Automatic Timer Operation.
RED button switch moved up will manually turn power constantly "ON".
LED Timer is preset for 18hrs ON/6hrs OFF.
ON - at 6:00 am - OFF - at 12:00 midnight.

REV 6-2021
RISER ASSEMBLY
As your plants grow taller you can attach the 8” Riser Assembly’s to
keep them from growing up into the lights.
Contained in the packaging are two sets of Risers. Please pay attention
to each assembly’s corresponding part numbers! See Fig 13.
Unpack the two long sides and the one package with the two short
sides. (This package contains 8 screws).
Attach corresponding Letters and Numbers located on the top inner
corners. It is easier to assemble the Risers Topside down. See Fig 14.
Place short side corners with holes over the rivets, slightly bend the
corners back to place over the rivet. See Fig 15.
Weather stripping should go over the top and meet up with each other
to create a complete seal.
Line up pre drilled holes and screw together with Phillips screwdriver.
See Fig 16.
Fig 17. Riser Assembly clips on to the Tub the same as the Dome
Assembly. (Refer to “Attaching Dome assembly” in Fig 5b.)

REV 6-2021
Fig 13.
Riser Assembly Packages
Fig 14.
Attach corresponding Letters and Numbers

REV 6-2021

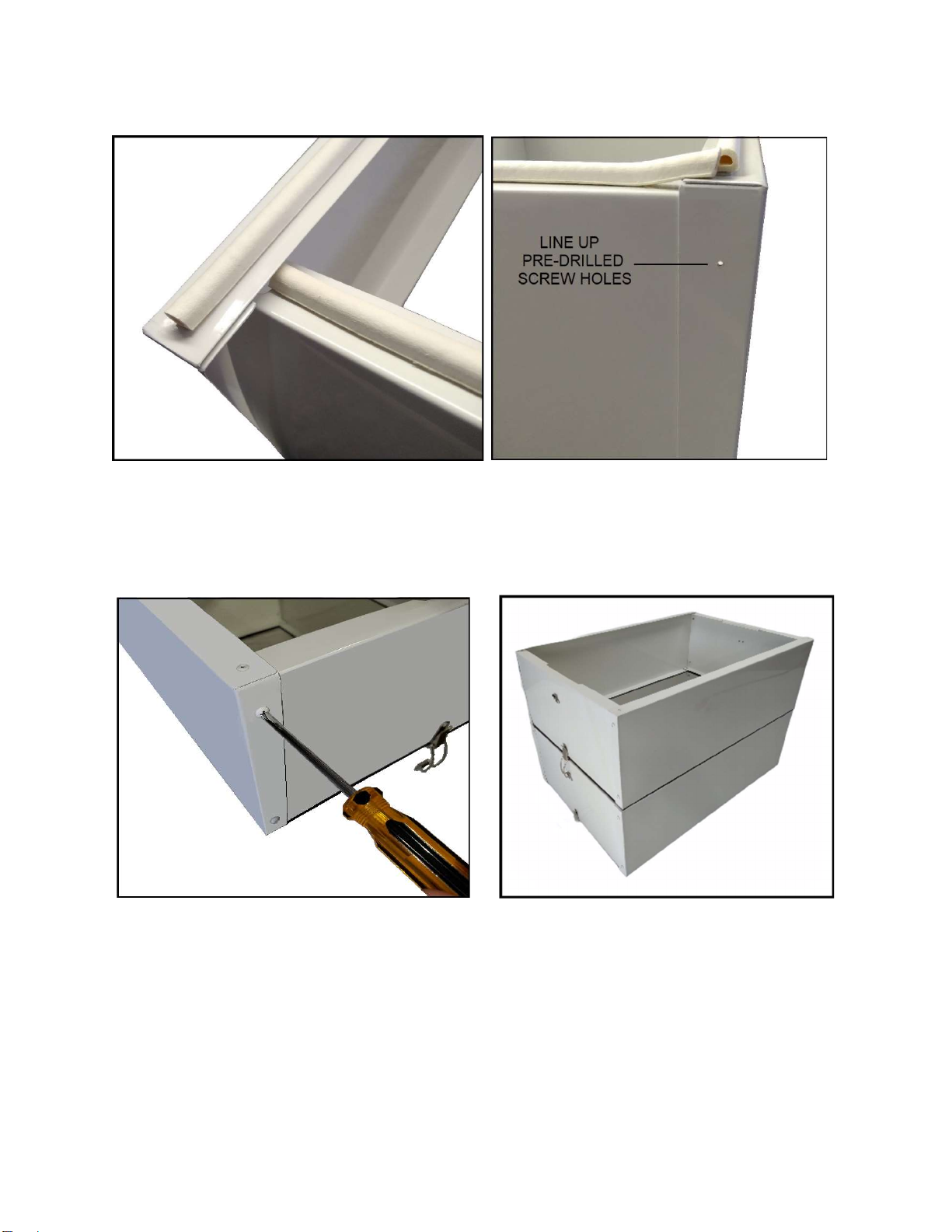

Fig 15. Fig 16
bend corners back to place over the rivet Line up pre drilled holes
Fig 17.
screw together with Phillips screwdriver Attach with clips

REV 6-2021
SILOGRO Specifications
Model: SILOGROXL
UPC# 86000658262
Max Water Capacity: 5 Gallons
Installed Outside dimensions with Power Pack by side: 29 in long x 23 in high x 18 in wide
Expanded Height with risers: 39 inches total height
Packaged/shipping weight: 30 LBS
Package Size: 28-inch x 20-inch x 22.5-inch
Power Pack: Powered by: 110/240 V 50/60HZ to 24V power adapter.
Total operating watts: 60 Watts @ 24 V DC
Total operating Amps: 2.5 @ 24V DC
LED full spectrum lighting: 24V DC 60 Watts Lumens 10 Strips
Air pump: 24V DC 16 KPA with air stone
2 pc-24 Hour Timers: 24V DC for LED and Ultrasonic Nano atomizer system
Included accessories:
6 pc 3-inch net pots, 6pc rock wool grow cubes, clay hydro pebbles, plant nutrient, 1 digital PH
water meter, 1 digital EC/PPM (batteries included), 1 fill and drain water level sight assembly,
color coded connection cables, air stone, ultrasonic nano atomizer system, owner’s manual.
Designed & Built in USA

REV 6-2021
SILOGRO XL
Warranty Coverage
Big Moon Products Inc. obligation for the above listed
products is limited to the term set below. This warranty
extends to the original purchaser only. The warranty
period commences on the original purchase date
through 12 months. This warranty is not transferable to
subsequent purchasers. This warranty is subject to the
obligations, limitations, and exclusions listed below:
Big Moon Products Inc. [BMP] warrants the above
listed products against defects in materials and
workmanship for a period of one (1) year from the date
of original purchase. (Warranty Period).
If a defect arises and a valid claim is received by BMP
within the warranty period, at its option BMP will:
1. Repair the product using new or
refurbished replacement parts,
2. Exchange the product with a product or
component that is new or which has been
manufactured from new or serviceable
used parts and is at least functionally
equivalent to the original product
If a defect arises and a valid claim is received by BMP
after the first thirty (30) days of the Warranty Period, a
round trip shipping and handling charge will
apply to any repair or exchange of the product
provided by BMP or its authorized service
centers.
BMP warrants replacement products or parts provided
under this warranty against defects in materials and
workmanship from the date of the replacement or
repair for ninety (90) days or for the remaining portion
of the original products warranty, whichever provides
longer coverage for you. When a product or part is
exchanged, any replacement item becomes your
property and the replaced item becomes BMP’s
property.
Obligations of Purchaser
The purchaser must establish, by dated sales slip,
invoice, or installation receipt, the date of original
purchase. In order to supply the customer with the
most up to date service we respectfully request the
purchaser to register their purchase by completing the
attached Warranty Registration Card and mail it to
BMP within 15 days of date receiving the purchase, or
submit via email to SILOGRO.com
*Items not covered: Chemicals; nutrients,
grow media, meters other accessories.
Limitations and Exclusions
The warranty is limited warranty. It covers the
performance system itself for the period stated. This
warranty negates or limits all other warranties implied
or expressed, except for those, which cannot be
negated or limited by law of the state in which the
product is used. BMP does not authorize or permit
any party, including its agents, distributors or dealers
to assume for it any other obligations or liability. In
no event will BMP be liable for any claim for any
damages arising from the use or loss of use,
installation, or repair of the SILOGRO including, but
not limited to freight damage, punctures, cuts, water
and/or sewage costs, freeze damage, or water
damage to surrounding areas, rooms, or furnishings.
Product specifications are subject to change without
notice.
* Neither fading, nor bleaching of the product due
to misuse of chemicals or UV rays is considered a
defect.
* Commercial use of the product will void the warranty.
* Demonstration or refurbished models will carry only a
90-day warranty.
Acts Invalidating Warranty
OUTDOOR USE- INDOORS USE ONLY!
This warranty is void if the SILOGRO has been
altered, misused, abused or has been repaired by an
unauthorized person, or is not installed according to
the factory instructions.
Other acts that will void the warranty are operating the
SiloGro without water or improper water level, use of
an extension cord, improper chemical maintenance,
damage from ice or freezing, low voltage or excess
voltage, if applicable prolonged exposure to direct
sunshine or UV damage, defacing or removal of serial
numbers.
This warranty gives you specific legal rights that vary
from state to state. Specifications subject to change
without notice.
Obtaining Warranty Service
Please review the purchase and online self help
resources offered at www.SILOGRO.com before
seeking warranty, customers can find answers to many
of our most frequent questions. If the product is still not
functioning properly after making use of the above
resources, please contact our customer service center:
EMAIL:
[e-mail]
Call 1-888-832-3003
Manufactured by: Big Moon Products Inc.
2621 NE 9
th
Ave. #12
Cape Coral, Florida 33909
Updated 6-1-2021

REV 6-2021
