BIG TREE TECH SKR Mini E3 V2.0 User manual

Shenzhen BIGTREE technology co., LTD.
BIG TREE TECH
BIGTREETECH
SKR MINI E3 V2.0
Operation Manual of the Motherboard

Shenzhen BIGTREE technology co., LTD.
BIG TREE TECH
Ⅰ.Introduction

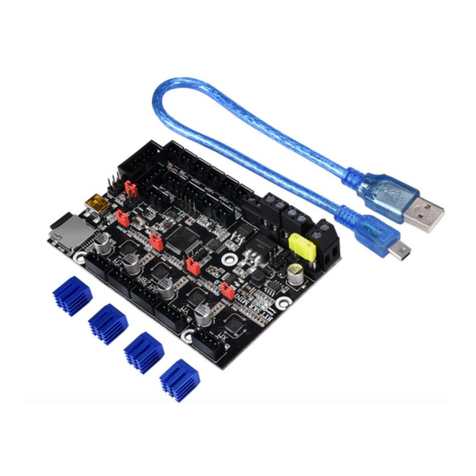

BTT SKR MINI E3 V2.0 is a customized motherboard for Ender3
printer launched by the 3D printing team of Shenzhen BIGTREE
technology co., LTD., which can perfectly replace the motherboard of
the original Ender3 printer.
1. Motherboard features: (mainly introduces upgrades based on
V1.2)
1) Use MP1584EN power chip, support 12-24V power input, the
maximum output current can reach 2.5A;
2) The hot bed MOS tube uses WSK220N04, low on-resistance, larger
heat dissipation area, and reduce heat generation;
3) Onboard Sensorless homing function, which can be used by plugging
in the jump cap;
4) Optimize the PCB board and frame to avoid the phenomenon of screw
hole gap and screws hitting components;
5) Support BLtouch, filament detection, BTT UPS 24V V1.0, BTT Relay
V1.2, etc .;
6) Onboard EEPROM: AT24C32;
7) Add parallel double Z-axis interface;
8) Increase the board layer: 4 layer board;
9) Increase the heat dissipation area of the back driver and strengthen the
heat dissipation capacity;

Shenzhen BIGTREE technology co., LTD.
BIG TREE TECH
10) Two CNC fan interfaces;
11) Increase the distance between the driving chip and the components to
avoid the trouble caused by the heat sink;
12) Add protection device to the thermistor interface;
13) 5V power supply with BLtouch, TFT and RGB interfaces is optional;
14) The driver shares a physical UART port, which saves IO and
enhances stability.
2. Motherboard parameters:
Appearance size: 100.75 * 70.25mm
Installation size: check BTT SKR MINI E3 V2.0-SIZE.pdf for details
Layer: 4 layers
MCU: ARM Cortex-M3 STM32F103RCT6
Power input: DC 12 / 24V
Logic voltage: 3.3V
Motor driver: UART mode of onboard TMC2209;
Motor drive interface: XM, YM, ZAM, ZBM, EM
Temperature sensor interface: TH0, THB, 2 channels 100K NTC (thermal
resistance)
Display: 2.4 inch TFT, 3.5 inch TFT, Ender3 original LCD12864 screen,
etc.
PC communication interface: mini-USB-B type, easy to plug and unplug,

Shenzhen BIGTREE technology co., LTD.
BIG TREE TECH
communication baud rate 115200
Support file format: G-code
Recommended software: Cura, Simplify3D, pronterface, Repetier-host,
Makerware
Ⅱ.Description of motherboard indicators
After power on the main board:
3.3v red light is power indicator: the red light is on, indicating normal
power supply;
Status red light is the Status indicator: when updating the firmware, it
will flicker.
D8 green light is the HB status indicator for the hot bed: it is always on
when heated, and it goes out when not heated.
D6 green light is the indicator light of E0 status of the heating tube: it is
always on when heating, and it will go out when not heating.
D10 green light for CNC fan FAN0 status indicator: it lights up when
turned on, and goes out when turned off.
D7 green light for CNC fan FAN1 status indicator: it lights up when
turned on, and goes out when turned off.

Shenzhen BIGTREE technology co., LTD.
BIG TREE TECH
Ⅲ.Communication between motherboard
and PC
The motherboard communicates with the PC (Windows system) through
the [USB] interface. Before communication, the driver needs to be
installed to be used normally. Driver acquisition method:
Website: https://github.com/bigtreetech Download the file named:
mapleDrv to install it.
IV. Interface Instruction
1. Motherboard Size Diagram

Shenzhen BIGTREE technology co., LTD.
BIG TREE TECH
2. Motherboard Wiring Diagram
3.Sensorless Homing Function Selection：
As shown in the figure, the Sensorless homing function can be used to connect
the corresponding axis with the jumper cap.
Note: if you select this feature, you cannot use external ENDSTOP!!
4. 5V power selection for BLtouch, TFT and RGB interfaces:
1) onboard +5V power supply:

Shenzhen BIGTREE technology co., LTD.
BIG TREE TECH
2)Use BIGTREETECH DCDC5V V1.0 module+5V power supply：
5.Connection with BIGTREETECH Relay V1.2：

Shenzhen BIGTREE technology co., LTD.
BIG TREE TECH
6.Connection with BTT UPS 24V V1.0：
7.Connection with Neopixel lights：

Shenzhen BIGTREE technology co., LTD.
BIG TREE TECH
8.Connection with BLtouch：
V.The firmware description of motherboard
The factory motherboard is installed equipped with firmware for testing
(model Ender3), which can be used directly or changed according to your
own needs.
1. The Firmware Acquisition Method of Motherboard:
Obtain by Ask customer service or technical personnel;
Download at our Company Open source website: https://github.com/bigtreetech
2. Motherboard Firmware update method
Choose the file suitable for your model in the downloaded firmware package
to copy to SD Card Root directory.
Note: File name cannot be changed, firmware.bin must be lowercase!
Insert SD card into the main board SD card slot, re-energize or press

Shenzhen BIGTREE technology co., LTD.
BIG TREE TECH
the reset key, wait for about 10S. After that, the update can be completed.
3.For DIY motherboard firmware, please refer to BTT SKR MINI E3
V2.0-PIN.pdf data.
VI.Notes
1.Firmware file names in SD Card cannot be changed.
(including both upper and lower case letters).
2.The wiring process and the plug-in drive process must be
carried out under the premise of power off. The power on can
be started after checking the correct connection of the line
and the correct insertion of the drive, so as to prevent the
wrong connection of the mainboard and drive from being burnt
down and causing unnecessary losses.
3.The E3 motherboard can support the LCD12864 screen with
the interface CR10_STOCKDISPLAY.
If you encounter other problems, please contact us. We will
definitely answer your questions patiently. If you have any good
suggestions on our products, please give us feedback. We will
consider them seriously. Thank you for choosing BIGTREETECH
products!
