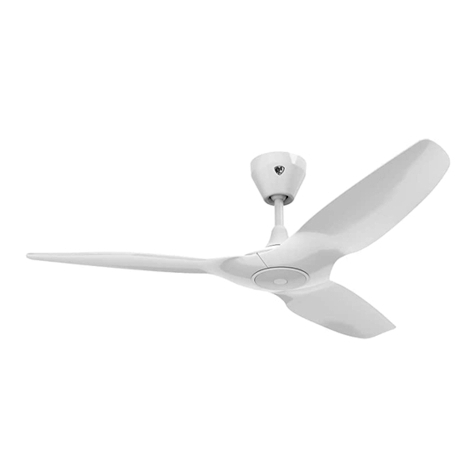

Bigassfans HAIKU MK-HK4-042406 User manual

Installation Guide
Guide d’installation
Guía de instalación
bigassfans.com
HAIKU®

Rev. D
05/08/2023
CONTENTS
Specifications.................................................................................................. 1
Before You Start............................................................................................ 2
Universal Mount Installation ...................................................................... 6
Low Profile Mount Installation.................................................................24
Troubleshooting..........................................................................................35
Maintenance ................................................................................................37
Contact Us....................................................................................................38
READ AND SAVE THESE INSTRUCTIONS

1
SPECIFICATIONS
Universal Mount
Models
MK-HK4-042406, MK-HK4-041806, MK-HK4-042506,
MK-HK4-052406, MK-HK4-051806, MK-HK4-052506,
MK-HK4-071806, MK-HK4-071906, MK-HK4-04240601,
MK-HK4-04180601, MK-HK4-05240601, MK-HK4-05180601,
MK-HK4-07180601
Mounting Sloped or flat ceilings from 9 to ≥14 ft (2.7 to ≥4.3 m)
Input Voltage 100–240 VAC, 1 Φ, 50–60 Hz
Maximum Weight 26 lb (11.8 kg)
Low Profile Mount
Models MK-HK4-042400, MK-HK4-042500, MK-HK4-052400,
MK-HK4-052500, MK-HK4-04240001, MK-HK4-05240001
Mounting Flat ceilings from 8 to 10 ft (2.4 to 3 m)
Input Voltage 100–240 VAC, 1 Φ, 50–60 Hz
Maximum Weight 18.5 lb (8.4 kg)

2
BEFORE YOU START
Turn O Power at Breaker
Contact an electrician if you are uncomfortable
performing electrical work. A licensed electrician
must install the fan if required by local code.
Prepare Fan Site and Gather Hardware
CAUTION
Do not use the fan with a dimmer switch.
Outlet Box*: Make sure your outlet box is suitable for fan support. If there is not an
outlet box at the fan location, install one on a ceiling joist or beam. You will need
to supply two 10-32 screws for attaching the fan mounting bracket or plate to the
outlet box.
Concrete Ceiling: Depending on your mount type, you will need to supply three or
four anchor bolts** for attaching the fan mounting bracket or plate to the ceiling. If
required by your local building and safety codes, you will also need to supply an
anchor hook** for the safety cable. See pages 4–5 for hardware specifications and
installation details.
Wood Ceiling Joist*: You will need to supply two corrosion-resistant 12-11 x 45mm
hex head timber screws with seal for attaching the fan mounting bracket or plate
directly to the joist. If required by local code, mount or embed an outlet box into
the joist. The outlet box must be suitable for fan support.
Covered Outdoor Locations***: Damp-rated fans installed in covered outdoor
locations must have fixed/permanent full overhead coverage extending at least
2ft (0.6 m) out from the airfoil tips on all sides.
*Mounting to an outlet box or a wood ceiling joist is not applicable in Singapore.
**If anchor bolts and anchor hook are included with your fan, use them for concrete mounting.
***When installing the fan in a covered outdoor location, use only light kits marked “Suitable for Use in Damp Locations.”
Gather Tools

3
BEFORE YOU START
Check Ceiling Slope (Universal Mount)
Consult the table below to make sure you have the appropriate downrod length
for your ceiling slope. Universal Mount fans can be installed on flat or sloped
ceilings with an angle no greater than 33° (approximately 8:12 roof pitch). For
minimum clearance guidelines, consult the Important Safety Instructions booklet
included with this installation guide.
Ceiling
Height
Fan
Diameter
Downrod
Length*
Maximum Ceiling
Slope (Indoor Only)**
9–10 ft
(2.7–3 m)
52 in. (1.3 m) 7 in. (178 mm) Flat
12 in. (305 mm) 12°
60 in. (1.5 m) 7 in. (178 mm) Flat
12 in. (305 mm) 10°
84 in. (2.1 m) 12 in. (305 mm) Flat
10–11 ft
(3–3.4 m)
52 in. (1.3 m)
20 in. (508 mm)
26°
60 in. (1.5 m) 22°
84 in. (2.1 m) 16°
11–13 ft
(3.4–4 m)
52 in. (1.3 m)
32 in. (813 mm)
33°
60 in. (1.5 m) 33°
84 in. (2.1 m) 29°
13–14 ft
(4–4.3 m)
52 in. (1.3 m)
48 in. (1219 mm) 33°60 in. (1.5 m)
84 in. (2.1 m)
>14 ft
(>4.3 m)
52 in. (1.3 m)
60 in. (1524 mm) 33°60 in. (1.5 m)
84 in. (2.1 m)
*7-in. (178-mm) downrod not available for 84-in. (2.1-m) fans.
**Damp-rated fans installed in covered outdoor locations can be mounted to flat ceilings only.
**Mounting to a sloped ceiling is not applicable in Singapore.

4
BEFORE YOU START
Prepare Concrete Ceiling (if applicable)
Universal Mount
Drill three Ø 8 mm holes in the pattern shown (Fig. 1). The hole depth should not
exceed 46 mm (Fig. 2).
Remove dust from holes. Insert anchor bolts* into holes. Strike the heads of the
anchor bolts with a hammer, ensuring bolt sleeves are flush with ceiling surface.
Position mounting bracket on anchor bolts. Ensure all anchor bolts are fully
tightened to expand and lock the anchors.
If required by local building and safety codes, install an anchor hook* for the
safety cable. Drill an Ø 8 mm hole for the anchor hook. The hole depth should not
exceed 46 mm (Fig. 2). Remove dust from hole, and then insert the anchor hook
and fully tighten.
Ø 8 mm
112 mm
45 mm
46 mm max
46 mm max
43 mm
Fig. 1
Fig. 2
*Applicable for Singapore: Anchor bolts and anchor hook are included with your fan. Use them for concrete
mounting.

5
40 mm
Ø 8 mm
(anchor bolt)
Ø 8 mm
(anchor hook)
80 mm
100 mm
BEFORE YOU START
Low Profile Mount
Drill four Ø 8 mm holes in the pattern shown (Fig. 1). The hole depth should not
exceed 46 mm (Fig. 2).
Remove dust from holes. Insert anchor bolts* into holes. Strike the heads of the
anchor bolts with a hammer, ensuring bolt sleeves are flush with ceiling surface.
Position mounting plate on anchor bolts. Ensure all anchor bolts are fully tightened
to expand and lock the anchors.
If required by local building and safety codes, install an anchor hook* for the
safety cable. Drill an Ø 8 mm hole for the anchor hook. The hole depth should not
exceed 46 mm (Fig. 2). Remove dust from hole, and then insert the anchor hook
and fully tighten.
46 mm max
46 mm max
Fig. 2
Fig. 1
*Applicable for Singapore: Anchor bolts and anchor hook are included with your fan. Use them for concrete
mounting.

6
UNIVERSAL MOUNT INSTALLATION
For Low Profile Mount installation, see page 24.
Install fan stabilizer in covered outdoor locations on flat ceilings only.
An EMI filter (not shown) is included for certain regions and fan
diameters. If the EMI filter is included, install it with your fan.
The lower cover is shipped attached to the motor unit to protect the
fan’s internal electronics during installation.
Mounting Bracket
Fan Stabilizer,
M6 x 70 mm Bolt,
M6 Nut
(Included only with
damp-rated fans.)
4 mm Screw, Wedge,
Mounting Ball
Canopy
(4) M4 x 6 mm Screws
6 mm Steel Pin
Downrod
Wiring Cover
M6 x 32 mm Bolt M6 Nut
(3) Airfoils
Uplight*
(Optional, indoor fans only)
Downlight
(Optional)
Motor Unit
(6) Grommets
Lower Cover
(6) M5 Screws
OR
Wire Connectors
Wiring and Safety Cable
*Not applicable for Singapore.

M4 x 10 mm Screw
7
UNIVERSAL MOUNT INSTALLATION
Hardware included
Airfoil Hardware–Step 1
Lower Mounting Hardware–Step 2
Lower Mounting Hardware–Step 3
Upper Mounting Hardware–Step 8
Upper Mounting Hardware–Step 14
Fan Stabilizer Hardware*–Step 12
x1 M6 x 32 mm Bolt x1 M6 Nut
x2 x2 M4 Lock Washer
x1 6 mm Steel Pin x1
4 mm Screw
x1
Wedge
x1 M6 x 70 mm Bolt x1
M6 Nut
x4 M4 x 6 mm Screw
Safety Cable Shackle–Step 13
x1
M5 Screw
x6 x6 Grommet
Shackle
*Included only with damp-rated fans.

8
UNIVERSAL MOUNT INSTALLATION
1. Install airfoils
Make sure the sticker color on each airfoil matches the corresponding
sticker color on the motor unit.
Moving clockwise, slide each airfoil edge under the lower cover, align the mounting
holes with the holes on the motor unit, and secure with the airfoil hardware. Make sure
the grommets are positioned correctly in the holes (Fig. 1).
Airfoil
Grommet
M5 Screw
Fig. 1

9
UNIVERSAL MOUNT INSTALLATION
2. Install downrod
No Uplight
If not installing an uplight, align holes on downrod with holes on motor bracket. Position
downrod wiring harness so that it is on the same side of the motor shaft as the motor
unit wiring harness. Position ground wire and safety cable so that they are on the
opposite side of the motor shaft as the motor unit wiring harness. Secure downrod with
the lower mounting hardware (Fig. 2a).
Uplight
Align holes on downrod with holes on motor bracket. Position downrod wiring harness,
ground wire, and safety cable so that they are on the opposite side of the motor shaft
as the motor unit wiring harness. Secure downrod with the lower mounting hardware
(Fig.2b).
M6 x 32 mm Bolt
M6 Nut
Motor Unit Wiring
Harness
Downrod Wiring
Harness
M6 x 32 mm Bolt
M6 Nut
Motor Unit Wiring
Harness
Downrod Wiring
Harness
Fig. 2a
Fig. 2b
Ground Wire and
Safety Cable
Ground Wire and
Safety Cable

Ground Wire
(Green/Yellow)
Safety Cable
M4 x 10 mm
Screw
M4 Lock
Washer
10
UNIVERSAL MOUNT INSTALLATION
3. Install lower safety cable and ground wire
Install safety cable and ground wire lugs with unpainted screws and lock washers (Fig. 3).
4. Install uplight (optional)
Skip this step if you are not installing an uplight.
Make sure wiring harnesses are as close to downrod as possible so that they do not
interfere with uplight installation (Fig 4.1).
Fig. 3
Fig. 4.1

11
UNIVERSAL MOUNT INSTALLATION
Skip this step if you are not installing an uplight.
If you purchased the UV-C option, install the UV-C LED boards on the
uplight before installing the uplight on the fan. Refer to the instructions
packaged with the UV-C LED boards.
Align rectangular cutouts in center of uplight with bolts on downrod. Make sure uplight
wiring harness and motor unit wiring harness are on opposite sides of downrod. Slide
uplight down the downrod until it stops (Fig 4.2). There will be some space between
the uplight and the top of the motor unit.
Uplight not compatible with damp-rated fans. Light kit weight: 1.5 lb (680 g).
Fig. 4.2

12
UNIVERSAL MOUNT INSTALLATION
5. Connect wiring harnesses
No Uplight
If not installing an uplight, connect downrod wiring harness to motor unit wiring harness
(Fig. 5a).
Uplight
Tighten the two set screws at top of uplight. Connect uplight wiring harness to motor
unit wiring harness. Connect downrod wiring harness to receptacle on uplight (Fig. 5b).
Motor Unit Wiring Harness
Downrod Wiring Harness
Uplight Wiring
Harness to Motor
Unit Wiring Harness
Downrod Wiring
Harness to Uplight
Receptacle
Fig. 5a
Fig. 5b

13
UNIVERSAL MOUNT INSTALLATION
6. Reduce slack
Make sure all hardware is secure, and then gently tug cables at top of downrod to
reduce slack (Fig. 6). Make sure rubber plug at top of downrod stays in place.
7. Position wiring cover and canopy
Slide wiring cover down the downrod, resting it on the motor unit or uplight. Make sure
no wires are visible. Slide canopy down the downrod, resting it on the wiring cover
(Fig.7).
Wiring Cover
Canopy
Fig. 6
Fig. 7

14
UNIVERSAL MOUNT INSTALLATION
8. Install mounting ball
Do not over-tighten the mounting ball screw.
Slide mounting ball over downrod (Fig. 8.1).
Insert 6 mm steel pin into hole at top of downrod, and then slide the mounting ball
upward, seating the steel pin in the inner slots (Fig. 8.2).
Insert wedge into mounting ball and secure with screw (Fig. 8.3). Tighten screw enough
to prevent movement between the mounting ball and downrod, but do not over-
tighten. Make sure rubber plug at top of downrod is still in place.
Fig. 8.1 Fig. 8.2
Mounting
Ball
Downrod
6 mm Steel Pin
4 mm Screw
Wedge
Fig. 8.3
Fig. 8.1 Fig. 8.2
Fig. 8.1 Fig. 8.2
Fig. 8.1 Fig. 8.2
Fig. 8.1 Fig. 8.2
Fig. 8.1 Fig. 8.2
Fig. 8.1 Fig. 8.2
Fig. 8.1 Fig. 8.2
Fig. 8.1 Fig. 8.2
Fig. 8.1 Fig. 8.2
Fig. 8.1 Fig. 8.2

15
UNIVERSAL MOUNT INSTALLATION
9. Install mounting bracket
WARNING
Disconnect power to fan location before installing mounting bracket.
Mount only to an outlet box marked acceptable for fan support.
Secure mounting bracket to mounting structure with suitable hardware (not supplied)
(Fig. 9). Outlet box shown. Your mounting structure may di er. Mounting bracket power
supply omitted from illustration for visual clarity.
Suitable Mounting Hardware
(not supplied)
Mounting Bracket
10. Hang fan
Raise fan to mounting bracket. Align
rib in mounting bracket with slot in
mounting ball, position mounting ball,
and let fan hang freely (Fig. 10).
Gently twist downrod to ensure it is
properly seated and will not move
during fan operation.
Fig. 10
Mounting Bracket
Mounting Ball
Fig. 9

16
UNIVERSAL MOUNT INSTALLATION
11. Wire fan
WARNING
Disconnect power to fan location before wiring fan.
Do not connect fan to a damaged power source. Do not attempt to resolve
electrical failures on your own. Consult a qualifi ed electrician if uncertain of the
electrical installation of this fan.
Wire fan as shown on the following pages using the wire connectors. If your fan
packaging did not include an EMI fi lter*, refer to Fig. 11a. If your fan packaging included
an EMI fi lter, refer to Fig. 11b. The EMI fi lter is included only for certain regions and fan
diameters.
Attach green and yellow ground wire to mounting bracket with the unpainted screw.
Connect wiring harness from power supply to wiring harness from downrod, making
sure that the wiring and safety cable are routed in the same direction.
Carefully tuck wiring into outlet box or building structure. Ensure wire connectors are
turned upward and that wires are spread apart with grounded conductors on one side
of the outlet box/mounting structure and ungrounded conductors on the other side.
Supply Power Wire Colors
North America
100–120 V Australia All other regions
AC Hot/L1
Brown Black Brown or Red Brown
AC Neutral/L2
Blue White Black or Light Blue Blue
PE/Earth Ground
Green with Yellow
Green or Bare
Copper Green with Yellow Green with Yellow
Wire Connector Operation
1 2
*EMI fi lter is supplied in MK-HK4-071806, MK-HK4-071906, and MK-HK4-07180601.

17
UNIVERSAL MOUNT INSTALLATION
Fig. 11a: Wiring Diagram (No EMI Filter)
AC HOT/L1
RED
AC NEUTRAL/
L2 PE/EARTH
GROUND
BROWN
BLUE
GREEN &
YELLOW
Mounting
Bracket
Safety
Cable
Wiring Harnesses
Power Supply

18
UNIVERSAL MOUNT INSTALLATION
Fig. 11b: Wiring Diagram (With EMI Filter)
The EMI fi lter is included only for certain regions and fan diameters.
AC HOT/L1
BROWN
AC NEUTRAL/
L2
PE/EARTH
GROUND
BLUE
GREEN &
YELLOW
EMI Filter
Power Supply
Wiring Harnesses
Mounting
Bracket
Safety
Cable
RED
