Bio-Logic ReeCharge User manual

Owner’s Manual
Biologic™
ReeCharge Power Pack

2
CAUTION
Carrying the ReeCharge
The ReeCharge contains delicate components.
Do not bend, drop, or crush the ReeCharge
Power Pack.
Using connector ports
Never force a connector into a port. Make sure
that the connector matches the port and that
you have positioned the connector correctly in
relation to the port.
Keep the ReeCharge within acceptable
temperatures
Battery life might be affected by extreme
temperature conditions. Always keep the
ReeCharge between -20°C and 45°C. Avoid re
and high heat conditions.
Charging the ReeCharge
Connect the ReeCharge to the bicycle dynamo
hub using only a compatible cable with a power
regulator. Do not connect the ReeCharge
with a regular wire to the dynamo hub.
Standard 6V/ 2.4W or 6V/ 3.0W dynamo hubs
can be connected via a power regulator cable
to the ReeCharge.
Biologic™ReeCharge Power Pack

3
The ReeCharge can be charged using a USB
port.
When charging the ReeCharge with alternative
power sources, use only 5V DC output
charging devices rated at less than 1A. The
ReeCharge and its adaptor may become warm
during normal use. Always allow adequate
ventilation around the ReeCharge.
Please read the safety instructions for all
products and accessories before using them
with the ReeCharge. MINIWIZ and BioLogic are
not responsible for the operation of third party
accessories or their compliance with safety and
regulatory standards.
Avoid submerging in water
Do not submerge the ReeCharge in water.
The ReeCharge is weatherproof, but not water
resistant. Do not attempt to dry the ReeCharge
device with an external heat source such as a
hair dryer, radiator, or oven.
Charge safely while cycling
Do not attempt to operate the buttons or
connectors of the ReeCharge while cycling.
When using the light and charging the
ReeCharge simultaneously, the power from the
dynamo hub is split between the two devices,
which lowers the brightness of the light, which
can compromise safety at night.

4
Choking hazard
The ReeCharge contains small parts, which
may present a choking hazard to small children.
Keep the ReeCharge and its accessories away
from small children.
Do not throw in trash
The built-in lithium-ion battery can be recycled.
Please dispose of the battery at the nearest
recycling location in your area.
Notice
BioLogic and MINIWIZ are not responsible for
any failures the ReeCharge might cause to
devices charged with the unit.
LIMITED PRODUCT WARRANTY
INFORMATION:
This Product comes with a ONE (1) YEAR
Limited Warranty from the date of the retail
purchase by the original end-user. If a material
or workmanship defect arises and a valid claim
is received within the Warranty Period, the
case will be replaced. BioLogic cannot be held
liable for damages to personal property due
to misuse or improper care and maintenance.
This Product’s warranty does not, under any
circumstance, cover the replacement or cost of
any electronic or personal property used with or
connected to the Product.

5
FEATURES
1. The ReeCharge Power Pack enables the
charging of a mobile device from a bicycle
dynamo hub.
3. The ReeCharge can be securely fastened
onto a bicycle handlepost, stem or handlebar,
so that it can be charged while cycling.
4. Electronic devices can be charged through
the ReeCharge while cycling or they can
be charged from the charged battery of the
ReeCharge when not cycling.
5. The ReeCharge has a USB Socket, which
allow charging of a large selection of different
handheld devices, but may require additional
hardware to work with Apple products.
6. The ReeCharge can be used as an extra
power source for a wide variety of electronic
devices. Its built-in 1600 mAh lithium ion
polymer rechargeable battery gives you extra
battery capacity when you need it.
7. No additional software is required.

6
1. Charge In Button
• Push this button to start or stop charging the
ReeCharge.
• The ReeCharge is being charged when the
green light on the side of the device is lit.
2. Battery Status Button
• Push this button to turn the Battery Status/
Safety Light on or off.
1. Charge In Button
2. Battery Status Button
3. Charge Out Button
4. Charging Indicator Lights
5. Charging Socket
6. Charge Out USB Socket
7. Battery Status/ Safety Light
8. Self Opening Sealing Flaps
9. Micro-USB charging cable
10. USB-3.5 mm charging cable
1 2 3
5
4
6
7
8
9
10
ReeCharge Power Pack Overview

7
3. Charge Out Button
• Push this button to start or stop charging
external devices through the ReeCharge.
• The ReeCharge is charging any attached
device when the red light on the side of the
ReeCharge is lit.
4. Charging Indicator Lights
• Green light On indicates that ReeCharge is
charging. Notice the light is on only when the
ReeCharge is receiving enough electricity to
charge its internal battery.
• Red light On indicates that ReeCharge is
ready to charge external devices.
NOTE: When the red light is on the ReeCharge
is releasing its charge no matter if a device is
connected or not, so turn off the ReeCharge to
maintain battery charge.
5. Charging Socket
• The cable for charging the ReeCharge is
inserted here.
6. Charge Out USB Socket
• USB cables for charging other devices from
the ReeCharge are connected here.

8
7. Battery Status/ Safety Light
• Shows the ReeCharger’s battery status
- 3 lights lit: Fully charged (over 80%)
- 2 lights lit: Half full
- 1 light lit: Almost empty
- No lights lit: Empty
• The lights also serve as a safety light at night.
8. Self Opening Sealing Flaps
• The ReeCharge has water sealing aps in
front of the cable connecting ports. These
aps open inwards when pushing the cable
into the socket.
• Just push the plugs into the ports and the
aps will open.
9. Micro-USB charging cable
• This cable connects other devices to
ReeCharge.
NOTE: The USB plug has to be upside down
when inserting into the ReeCharge.

9
Charging the ReeCharge Power
Pack
The ReeCharge can be charged in three
different ways:
A. From a bicycle dynamo hub
B. From a PC / laptop USB 2.0 port
C. From a conventional 100~240V AC wall
adaptor (Not included)

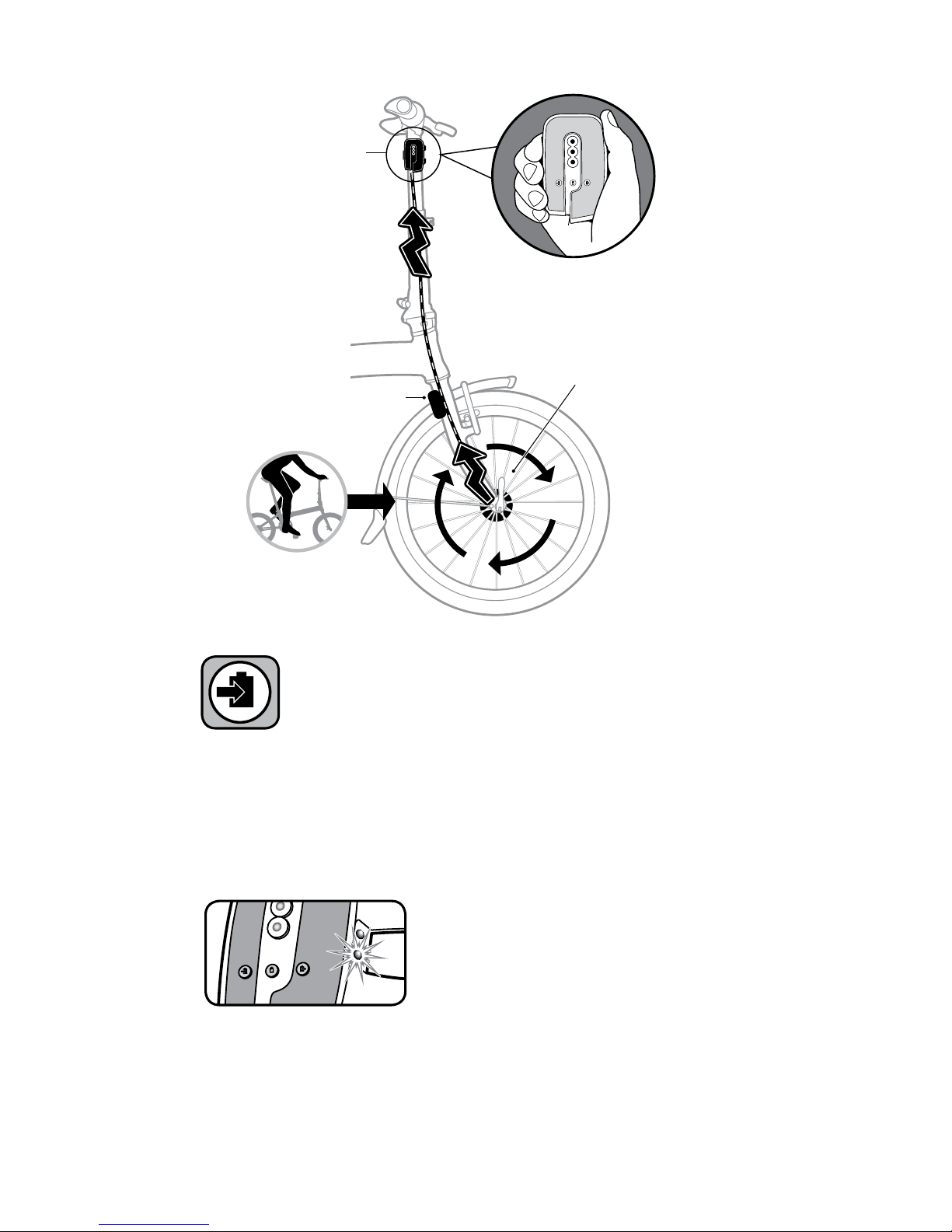

A. Charging from a bicycle dynamo hub
1. Fasten the ReeCharge to the bike (see
Mounting the ReeCharge).
2. Connect the ReeCharge to the dynamo
hub with the power regulator cable (see
Connecting the ReeCharge to the Dynamo
Hub).
3. Press the Charge In Button to enable
charging.
4. The ReeCharge is charging when the green
light on the side of the ReeCharge is lit.
• NOTE: The green light is only on when the
wheel rotates fast enough to provide the
ReeCharge with a current for charging.
• NOTE: To cycle without the slight added
rolling resistance coming from the dynamo
hub charging the ReeCharge, turn off the
charging function by pressing the Charge In
Button. Charging is disabled when the green
light on the side of the ReeCharge does not
light up when the bike is in motion.

10

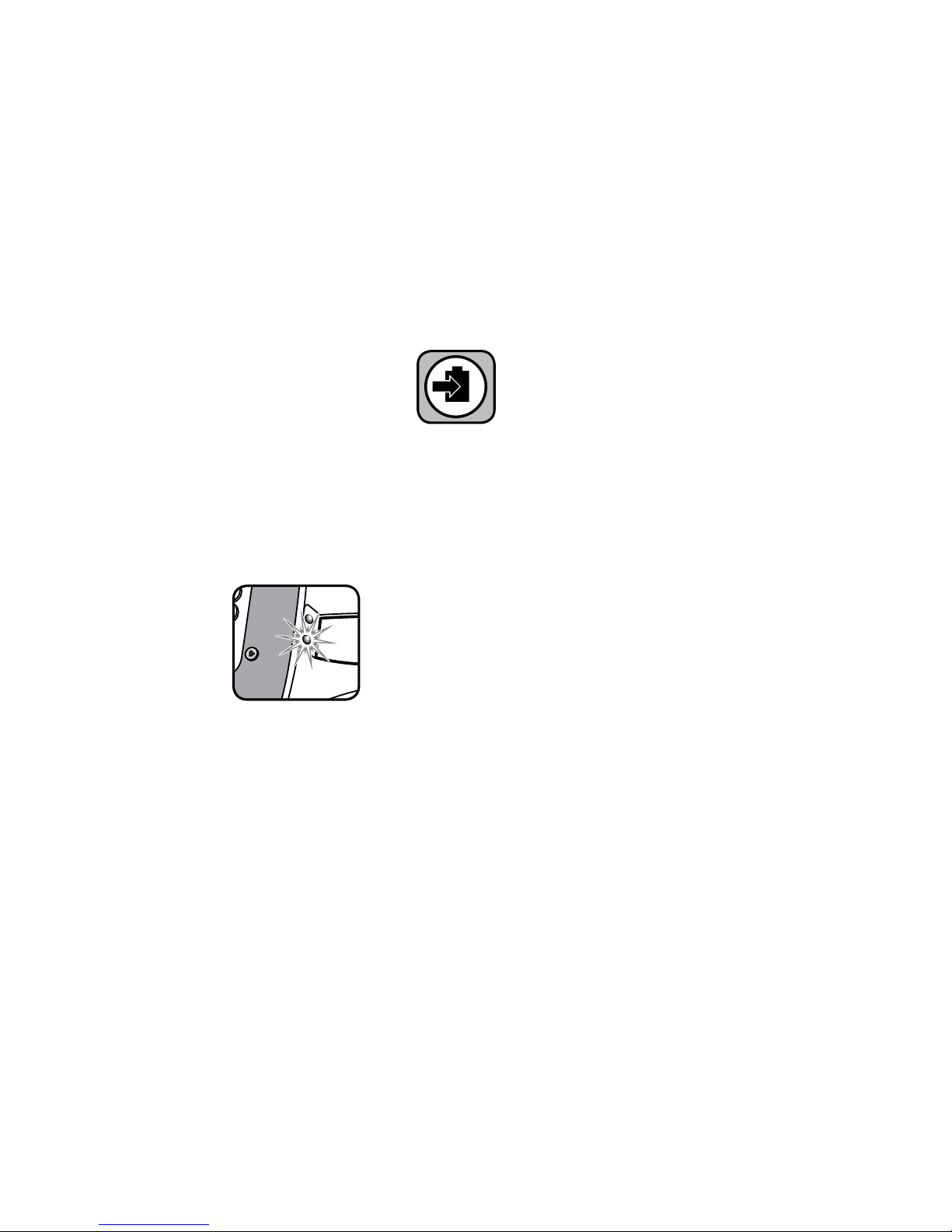

To starting charging the ReeCharge,
press the Charge In Button. This
enables the device to be charged.
NOTE: If charging is not enabled with the
Charge In Button the ReeCharge will not
charge, even when the bike is in motion.
The ReeCharge itself is
charging when the green
light on the side of the
device is lit.
NOTE: The green light is only lit when the
wheel rotates fast enough to charge the
ReeCharge.
ReeCharge
Power Regulator
& Cable
Dynamo Hub
(not included)

11
1. Fasten the micro-USB charging cable to the
PC´s USB port.
2. Connect the 3.5 mm Plug to the Charging
Socket of the ReeCharge.
3. Press the Charge In Button to enable
charging.
4. The ReeCharge is charging when the green
light on the side of the ReeCharge is lit.
NOTE: If the green light on the
side is not lit the ReeCharge is
not charging even if the cable is
connected to the PC´s USB port.
B. Charging from a PC / laptop USB 2.0 port
ReeCharge
Micro-USB
Charging Cable

12
C. Charging from a conventional 100~240V
AC power converter (not included)
1. Obtain a wall socket to USB socket adaptor.
2. Connect the 3.5 mm charging cable between
the USB socket adaptor and the Charging
Socket of the ReeCharge.
3. Press the Charge In Button to enable
charging.
4. The ReeCharge is charging when the green
light on the side of the ReeCharge is lit.
NOTE: If the green light on the
side is not lit the ReeCharge is
not charging even if the cable is
connected to the electic outlet.
Charging external devices with the
ReeCharge Power Pack
The ReeCharge’s internal battery needs to
have some charge before it can charge other
devices. Other devices can be charged at the
same time when the ReeCharge is charging
or they can be charged after the battery of the
ReeCharge is rst charged.

13

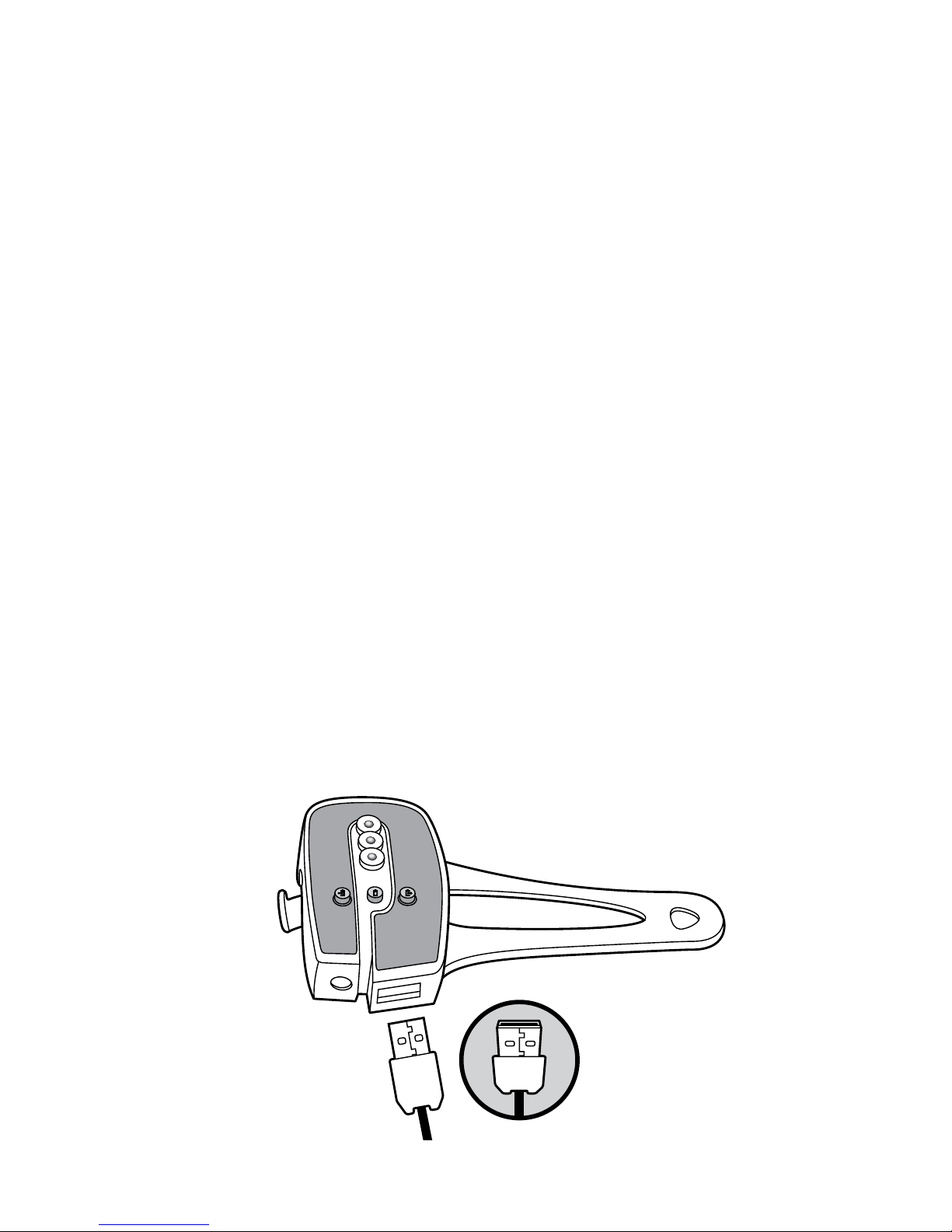

1. Connect the USB end of the Micro-USB
charging cable to the Charge Out USB
socket of the ReeCharge.
2. Connect the Micro-USB of the Micro-USB
charging cable to the electronic device
3. Press the Charge Out Button on the
ReeCharge to begin charging the device.
The red light on the side of the ReeCharge
will light up.
4. The external device is now being charged.
NOTE: When the red light on the side of the
ReeCharge is lit, the ReeCharge is discharging
even if a device is not connected to it. To save
the energy stored in the ReeCharge, press the
Charge Out Button to turn off the charging of
external devices.
Charging external devices with the
ReeCharge

14
Mounting the ReeCharge Power Pack
If the ReeCharge came with your bike, it is
already completely mounted and installed on
your bike.
Please refer to the following instructions if you
bought the ReeCharge separately or if for some
reason the ReeCharge was removed from your
bike and you want to remount it.
WARNING: If you are in any way unsure of
how to perform this assembly, take your bike to
a qualied bicycle technician for professional
assembly.
Attach the ReeCharge to the Handlepost

15
Connecting the ReeCharge Power Pack to
the dynamo hub together with a front light
The ReeCharge can be connected to a dynamo
hub that already has a light unit connected to
it. The ReeCharge can also be connected to
dynamo hub without the light cable.
NOTE: When using the light and charging the
ReeCharge simultaneously, the power from the
dynamo hub is split between the two devices,
which might lower the brightness of the light,
which can compromise safety in darkness.
Using the light simultaneously while charging
the ReeCharge also makes the charging of the
ReeCharge slower.

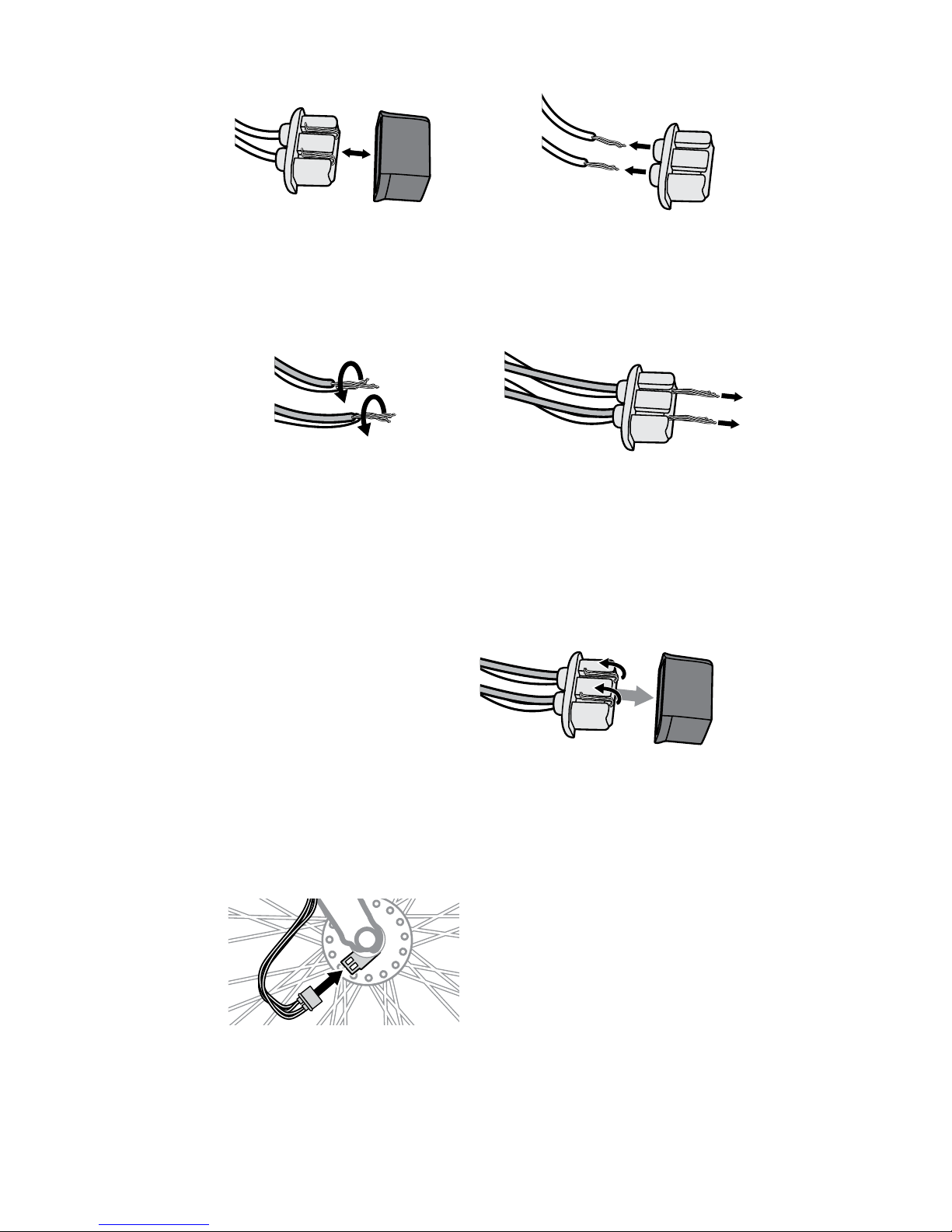

The light cable connector is connected to the
dynamo hub.
1. Unplug the light cable connector.

16
8. Attach the cable
connector to the
dynamo hub.
2. Remove the
cover of the
cable connector.
4. Twist the ends of
the ReeCharge
cable with that of
the light cable.
3. Pull out the wires
from the grey wire
holder.
5. Put the connected
light and ReeCharge
wires back into the
grey wire holder.
WARNING: Please
make sure the two
groups of wires are not
in contact with each
other. This will short-
circuit the electronics
and might cause
damage to the light
and the ReeCharge.
7. Put the black cover
back onto the grey
wire holder.
6. Fix the wires into
the grey wire holder
by bending them
around the holder.

17
9. Fasten the power regulator with zipties to the
front fork. Connect the cable to the fork so
that it does not go between the spokes when
cycling.
10. Connect the free end of the ReeCharge
cable to the Charge In Socket of the
ReeCharge.
Power
Regulator
Cable

18
Fastening external devices to the bicycle
handlebar
A wide selection of different devices can be
mounted on the bike handlebar with a silicon
fastening strap (Not included with the bicycle.
Only available in aftermarket packaging).
NOTE: Cycling can cause strong shaking of
the handlebar, which might make any attached
device fall out of the elastic fastening strap
causing serious damaged to the device.
BioLogic and MINIWIZ are not liable for any
damages caused by the failure of this fastening
strap.
1
3
2
4

19
Technical Specications
Size:
• Height: 85 mm/ 3.3 inches
• Width: 60 mm/ 2.4 inches
• Depth: 30 mm/ 1.2 inches
• Weight: 3 ounces (~90 g)
Battery: Built-in 1600mAh lithium-ion polymer
rechargeable battery
Input current: less than 1A or 1000mA and 5V
max
Minimum operating speed: 15 km/h (based on
a 20” wheel with 6V/ 2.4W dynamo hub)
Type of power inputs:
• Bicycle dynamo hub (input voltage and
current varies with different cycling speed and
battery loading conditions)
• PC/ laptop USB 2.0 outlet
• Conventional 100~240V AC adaptor
• NOTE: Due to safety concerns for the lithium-
ion battery, charge-in voltage and current are
limited.
Universal power output:
• USB 2.0 output at 5V adaptive 200mA ~
850mA depending on devices
• Common 5V digital devices include mobile
phone, MP3 players, iPhones/ iPods3, PDAs
• (Mobile device recharge time via USB is
about 1-2 hours depending on device)

20
* MINIWIZ and BioLogic accept no
responsibility for damages of other devices
charged by the BioLogic™ ReeCharge.
Mobility Holdings, Ltd.
9F-2, #6, Lane 609, Chung Hsin RD., Sec 5
San Chung, Taipei Hsien ROC 241, Taiwan
[phone]
* Specication is subject to change.
BioLogic (word), BioLogic (Logotype), BioLogic
Man (device), ReeCharge, BikeBrain (word)
BikeBrain (logotype) and BikeBrain (device) are
registered trademarks or tradenames of Mobility
Holdings, Ltd.
All trademarks used througout are property of
their respective owners.
© 2009,2012 Mobility Holdings, Ltd.
http://www.thinkbiologic.com/reecharge
