APT 600C-BLE User manual

User Manual
APT Model:
600C-BLE
Supplier：
APT(Tianjin) Development Co., Ltd.
1001, Building 5 HuaDing, No.1 HuaKe 3
Road, Binhai hi-tech Industrial
Development Zone, Tianjin, China
TEL: [phone]
FAX: [phone]
Email
[email protected]

APT (Tianjin) Development Co., Ltd.
1 / 20
Content
1 Product model ....................................................................................................................................... 2
2 Suppliers ................................................................................................................................................ 2
3 Specifications ......................................................................................................................................... 2
4 Dimensions and Material ..................................................................................................................... 2
5 Features ................................................................................................................................................. 3
6 Main page ............................................................................................................................................ 3
7 Functional Description .......................................................................................................................... 5
7.1 Power On/Off ............................................................................................................................ 5
7.2 Assist levels .............................................................................................................................. 5
7.3 Screen Switching ..................................................................................................................... 6
7.4 Headlight / Display Mode ........................................................................................................ 6
7.5 Walking mode (6km) ................................................................................................................ 6
7.6 Bluetooth ................................................................................................................................... 7
7.7 Data cleanup ............................................................................................................................. 9
8 Menu Page ............................................................................................................................................. 9
8.1 Display settings ...................................................................................................................... 10
8.1.1 Language ...................................................................................................................... 10
8.1.2 System .......................................................................................................................... 10
8.1.3 Brightness .................................................................................................................... 10
8.1.4 Auto off .......................................................................................................................... 11
8.1.5 Scenes .......................................................................................................................... 11
8.1.6 Clock ............................................................................................................................. 12
8.1.7 Focus ............................................................................................................................ 12
8.2 E-bike Settings ....................................................................................................................... 13
8.2.1 Start password ............................................................................................................. 13
8.2.2 Assist levels ................................................................................................................. 14
8.2.3 Wheelsize ..................................................................................................................... 14
8.2.4 Battery voltage ............................................................................................................. 14
8.2.5 Battery Indexes ............................................................................................................ 15
8.2.6 Pow Indexes ................................................................................................................. 15
8.2.7 Pow range .................................................................................................................... 16
8.3 Advanced setting .................................................................................................................... 16
8.4 Factory Setting ....................................................................................................................... 17
8.5 Information .............................................................................................................................. 17
8.5.1 Product Infor ................................................................................................................. 17
8.5.2 Battery Infor .................................................................................................................. 18
9 Errors code .......................................................................................................................................... 18
10 Assembly instructions ......................................................................................................................... 19
11 Install and use precautions ................................................................................................................ 19
12 Copyright Notice .................................................................................................................................. 20

APT (Tianjin) Development Co., Ltd.
2 / 20
1 Product model
Model: 600C-BLE
2 Suppliers
APT (Tianjin) Development Co., Ltd.
3 Specifications
Ø 2.4inch TFT screen(IPS 240*320 pixel)
Ø Battery supply:24V/36V/48V/52V
Ø Multi-language support(6 languages)
Ø Maximum output current to controller: 200mA, off-leakage current <1μA
Ø Operating temperature: -20～70℃, Storage temperature -30～80℃
Ø IP65
Ø EN 15194:2017
Ø RoHS

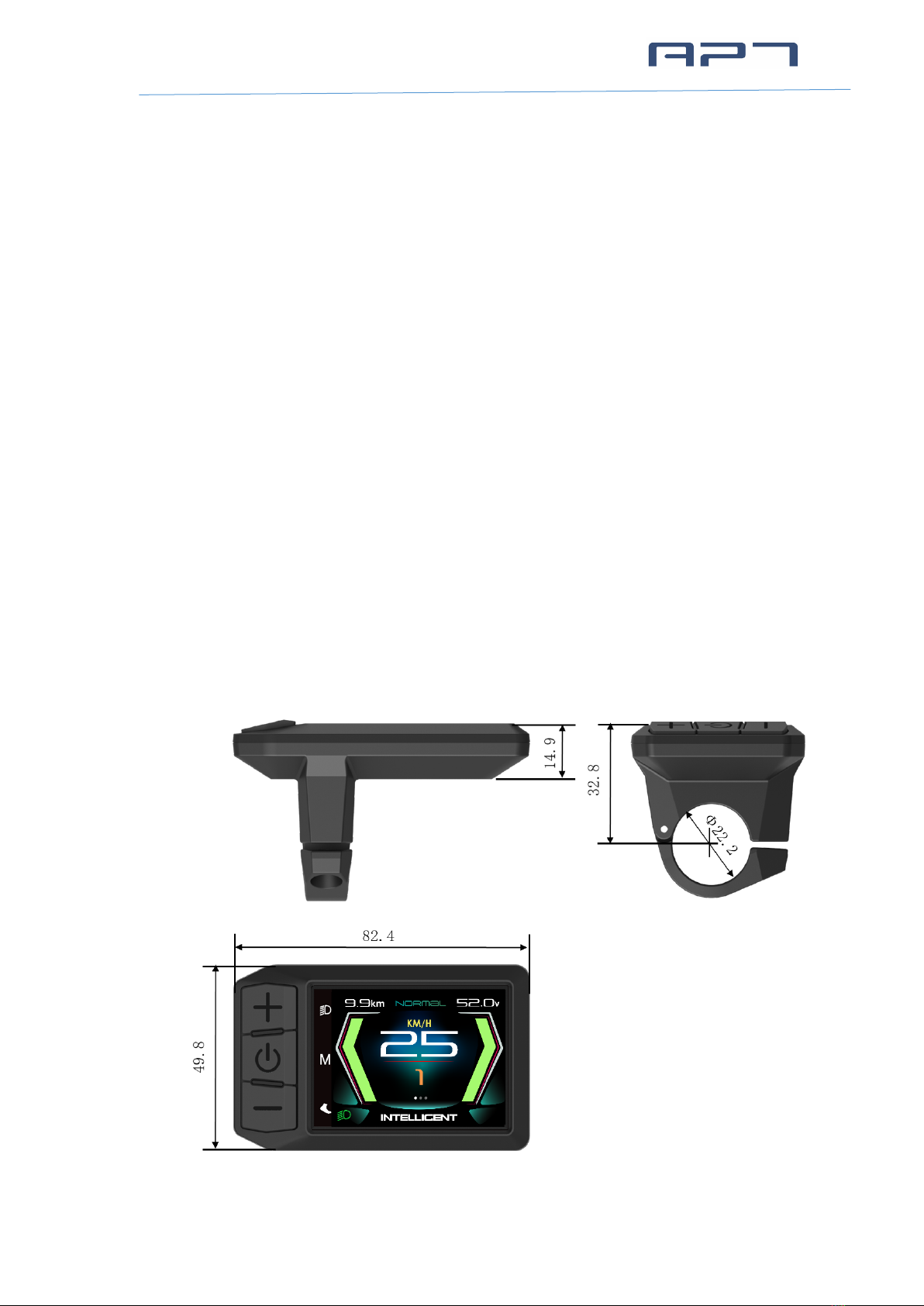

4 Dimensions and Material
Shell and bracket is made with ABS+PC, panel is high hardness acrylic.

APT (Tianjin) Development Co., Ltd.
3 / 20
5 Features
Ø 2.4inch TFT screen.
Ø Ergonomic external button design, easy to operate, vibration function is
provided during button operation.
Ø 6 languages:
Czech, German, French, English, Italian, Spanish are supported.
Ø Speed indicator: Speed (Real-time), AVG Speed, MAX Speed.
Ø Metric / Imperial.
Ø Smart battery indicator: Capacity (percentage) or Voltage.
Ø Mileage / Riding time indicator: TRIPA&TIMEA (Data reset after shutdown),
TRIPB&TIMEB(Data is saved after shutdown), Odometer, Range.
Ø Clock indicator: Built in battery, clock keeps running when power off.
Ø Brightness setting: Day and Night Brightness can be set independent.
Ø Assist level: 4 modes optional (3/5/9/U).
Ø Errors Code tips.
Ø 6km walking.
Ø Firmware upgrade: Upgrade the Logo individually.
6 Main page

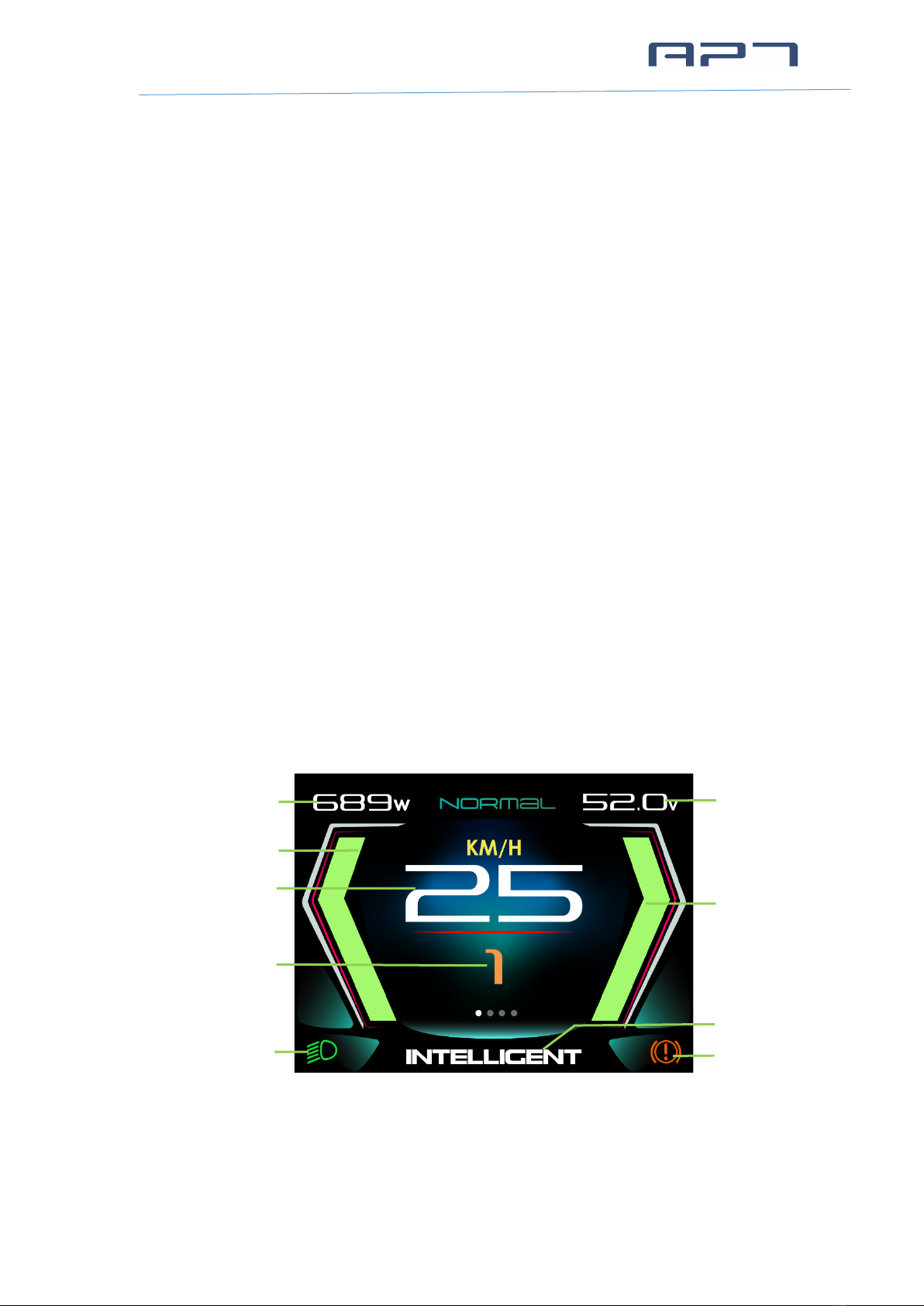

Modern mode
Headlight
Power/Trip A/
Clock/Current
Speed value
Battery voltage
Assist level
LOGO/Error
Speed indication
Battery indication
Brake

APT (Tianjin) Development Co., Ltd.
4 / 20
Classics mode
Bluetooth page
Ø Clock: Displayed in digital mode, 12h or 24h.
Ø Bluetooth: Show the Bluetooth connection status.
Ø Head Light: Head Light on/ off.
Ø Mileage mode/Riding time:
Modern page: TRIPA (Data reset after shutdown)
Classics page: TRIPA (Data reset after shutdown), TRIPB (Data is saved after
shutdown), Odometer, Range, TIMEA (Data reset after shutdown), TIMEB
(Data is saved after shutdown).
Ø Speed Value: Real-time Speed, KM/H or MPH.
Ø Speed indication: When the speed limit is less than 40km/h, the maximum
Head light
Power
Power indication
Battery voltage
Brake
Speed value
ODO/Trip/Time
Clock
Speed indication
Battery indication
Assist level
LOGO/Error
Battery
Assist level
Bluetooth
Head light
Riding mileage
Speed value
Warning of low
battery power
Remaining time of
riding
Navigation indication
Bluetooth pairing
key
Distance to next junction
Call
Brake

APT (Tianjin) Development Co., Ltd.
5 / 20
indicator is 45; when the speed limit is more than 40km/h, the maximum
indicator is 90; if the real-time speed exceeds the maximum indicated, its
display is not affected.
Ø Smart battery Power indicator: Provide a reliable battery Power indicator.
Ø Assist level: Displays the current assist level.
Ø Brake: Show when checking error.
Ø Error Code: Show when checking error.
Ø LOGO.
7 Functional Description
7.1 Power On/Off
Press POWER button for 2 seconds, you can turn on/off the display. The Display
can automatically turn off when there is no operating and riding for 5 minutes. (The
time can be set，refer to 8.1.4 ‘Auto off’)
*Input pattern in first if pattern unlock was activated.
*Display will be locked for 30 seconds after 3 times failed attempt.

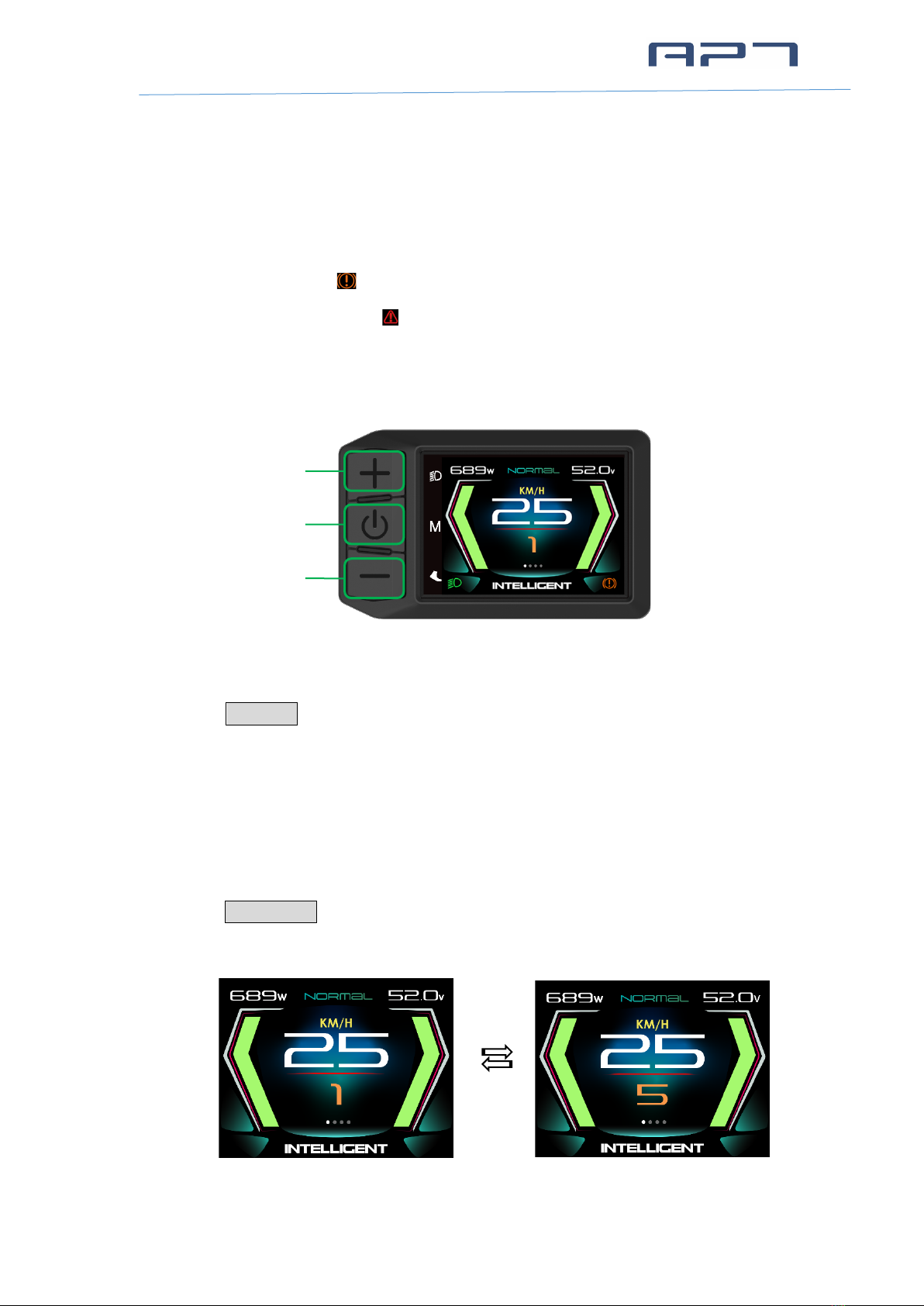

7.2 Assist levels
Press UP/DOWN button to change assist level. If the default setting is 5-gear: Top
assist level is 5, 0 for neutral. Level quantities can be adjusted according to the
customer requirements.
UP
POWER
DOWN

APT (Tianjin) Development Co., Ltd.
6 / 20
7.3 Screen Switching
Press POWER button to switch the screen, including Main Page, Bluetooth Page,
Basic information Page and Information Page(The Main Page can be set，refer to
8.1.5 ‘Scenes’).
Main Page –Modern/ Classics mode Bluetooth Page
Basic information Page Information-1 Information-2
7.4 Headlight / Display Mode
Press and hold UP button for 2 seconds can turn on/off headlight, display will switch
to the corresponding mode (Day or Night).
Day Night
* The brightness of the Display can be set according to the user's needs，Refer 8.1.3 Brightness.
* The motor does not work when the battery voltage is low, Display still can keep the headlight
on for a while when E-bike is in riding.
7.5 Walking mode (6km)
Press and hold DOWN button for 2 seconds can get into walking mode, show ‘P’
and real-time speed on the screen, out of walking mode when releasing the button.

APT (Tianjin) Development Co., Ltd.
7 / 20
Walking Mode

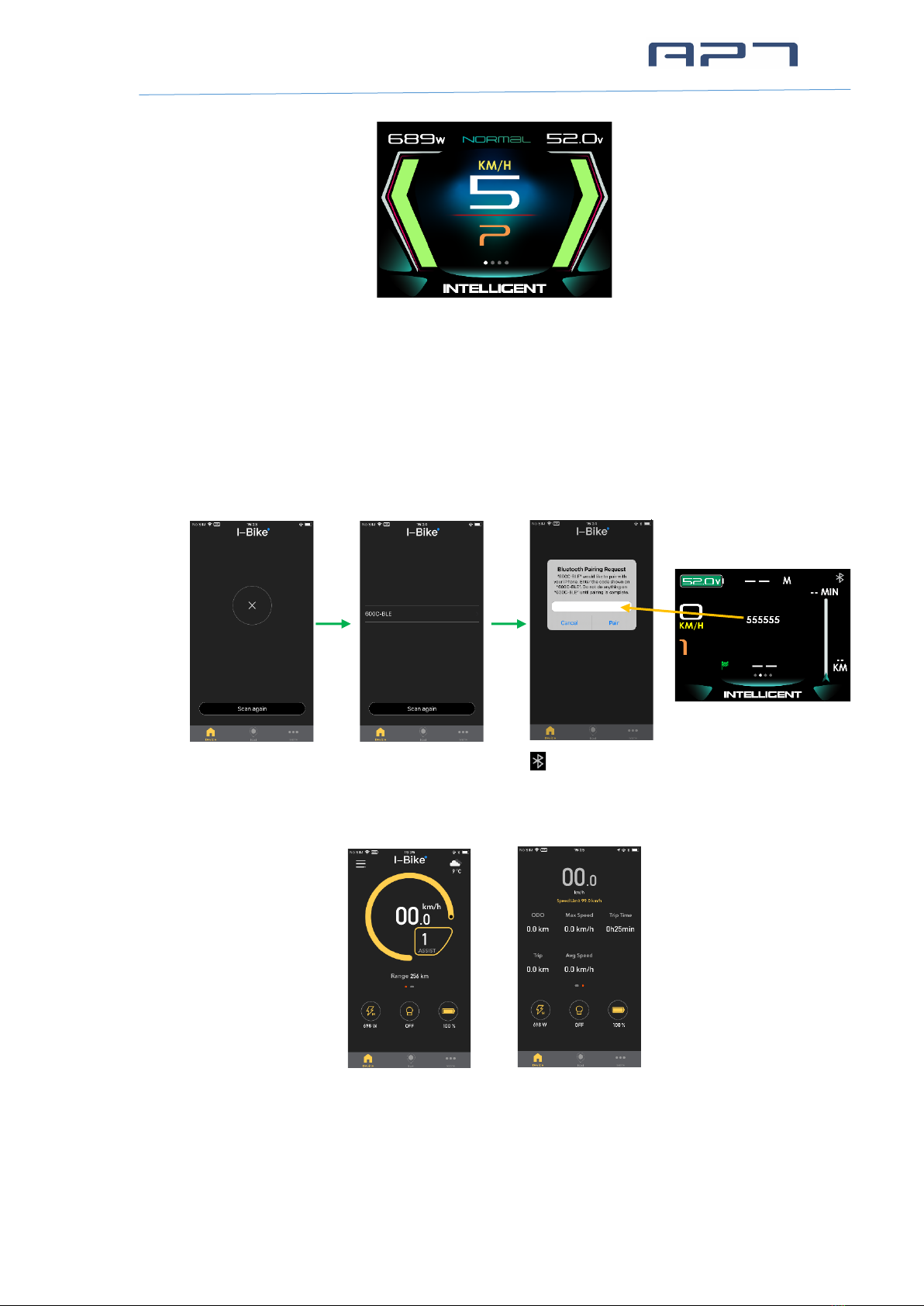

7.6 Bluetooth
Installing the “I-Bike” mobile app, turn on the Bluetooth of the mobile phone.
Open “I-Bike” app, click “Scan for device”, find “600C-BLE” and connect, input the
6-digit pairing key and click "pair".
After the Bluetooth pairing is successful, is displayed in blue, and the I-Bike
APP will enter the main interface. When the mobile phone calls, receives
messages, etc., the Display can show the reminder icon.
Main Interface

APT (Tianjin) Development Co., Ltd.
8 / 20

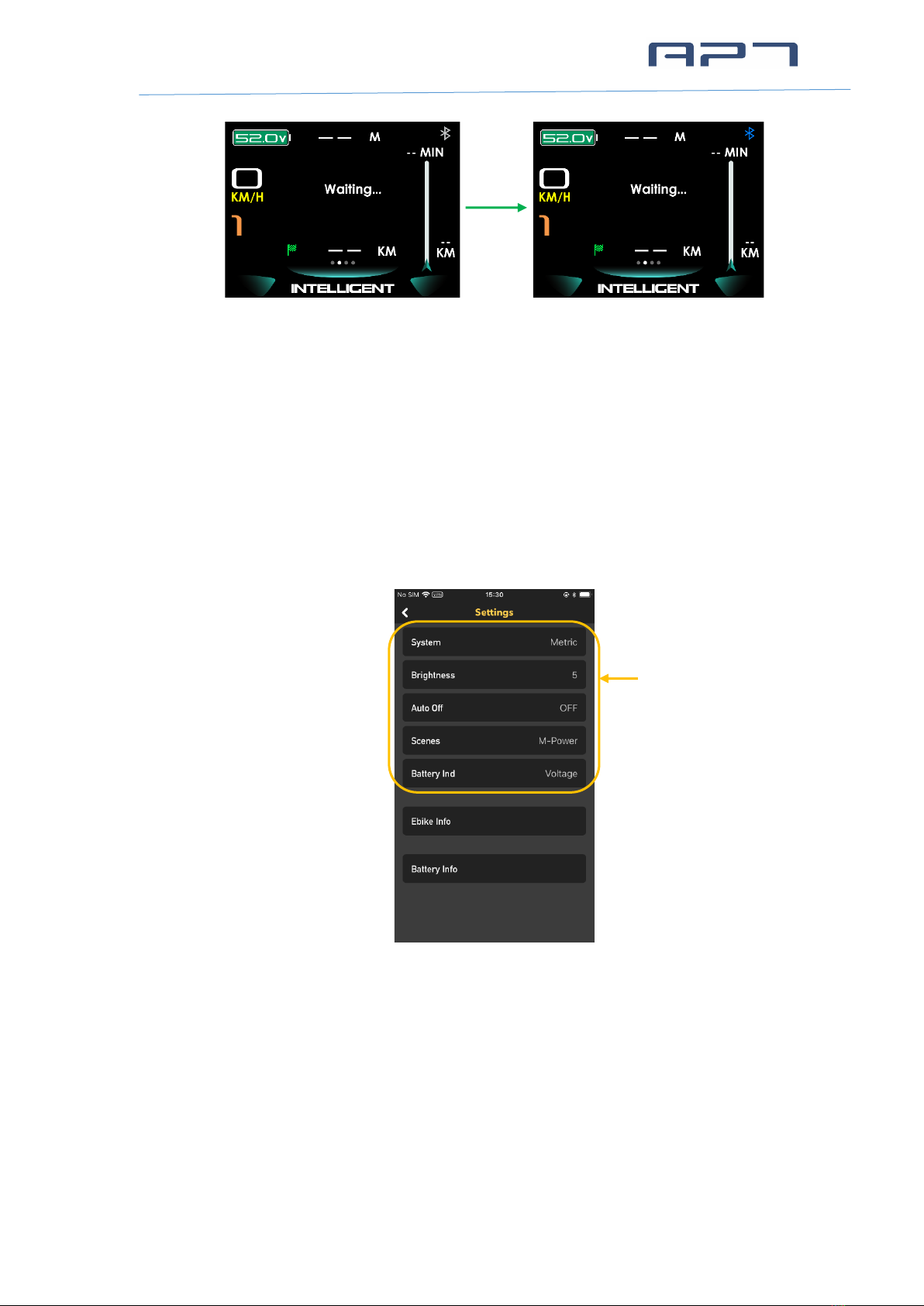

Interface before Bluetooth pairing Interface after Bluetooth pairing
*Phone that has successfully connected to the Display's Bluetooth does not need to be paired
again.
*Please note:
For some Android™ driven smartphones, there might occur eventual Bluetooth™ connection
problems with the APT display due to software mismatches.
Ø Settings
Click the upper left corner of the "I-Bike" app to enter the Settings menu, including
Display Settings, E-Bike Info and Battery Info.
Settings page
Ø Navigation
Click "Navi" to enter the navigation interface of the "I-Bike" APP; After the navigation
starts, the Display navigation interface can show the remaining mileage, the riding
mileage, the remaining time of riding, navigation instruction and the warning of low
battery power at end of endurance
Display's parameters
can be set

APT (Tianjin) Development Co., Ltd.
9 / 20
Main interface Phone's navigation interface
Display's navigation interface
* The version information of the “I-Bike” APP is displayed in “More” on the main interface of the
APP.
7.7 Data cleanup
Press and hold UP & DOWN button together for 1 second can clean temporary data
(TRIPB, TIME B, AVG SPD, MAX SPD data).
* Te m p or a r y da t a is automatically saved when power off. Abnormal power outage will cause
data lost.
* Restore Factory Mode (advanced settings in Menu Page) can clear temporary data (TRIPA
TRIPB, TIMEA, TIMEB, AVG SPD, MAX SPD, MENU settings) except ODO.
* ODO will reset to zero over 99999km. TRIPB will reset to zero over 9999.9km.
8 Menu Page
Double press MENU button (press interval less than 0.3 second) can get into
setting menus, press UP/DOWN button to change the parameter setting, press
MENU button can get into or save the settings. Select EXIT or press MENU button
twice to exit from menu.
* Display will automatically quit menu if there is no operation for 30 seconds.
* For safety reason, display will be locked on Main Page when riding (speed≥2.0km/h), function
of MENU will be deactivated.
* Display didn’t save setting until click MENU to confirm.

APT (Tianjin) Development Co., Ltd.
10 / 20
* Display doesn’t quit parameter adjustment interface through pressing MENU button.
8.1 Display settings
Display settings include several items：Language, System, Brightness, Auto off,
Scenes, Clock, Focus.
8.1.1 Language
6 languages are supported: Czech, German, French, English, Italian, Spanish . Default
is English. Select language then click “Back” to confirm.
8.1.2 System
Select Metric or Imperial.

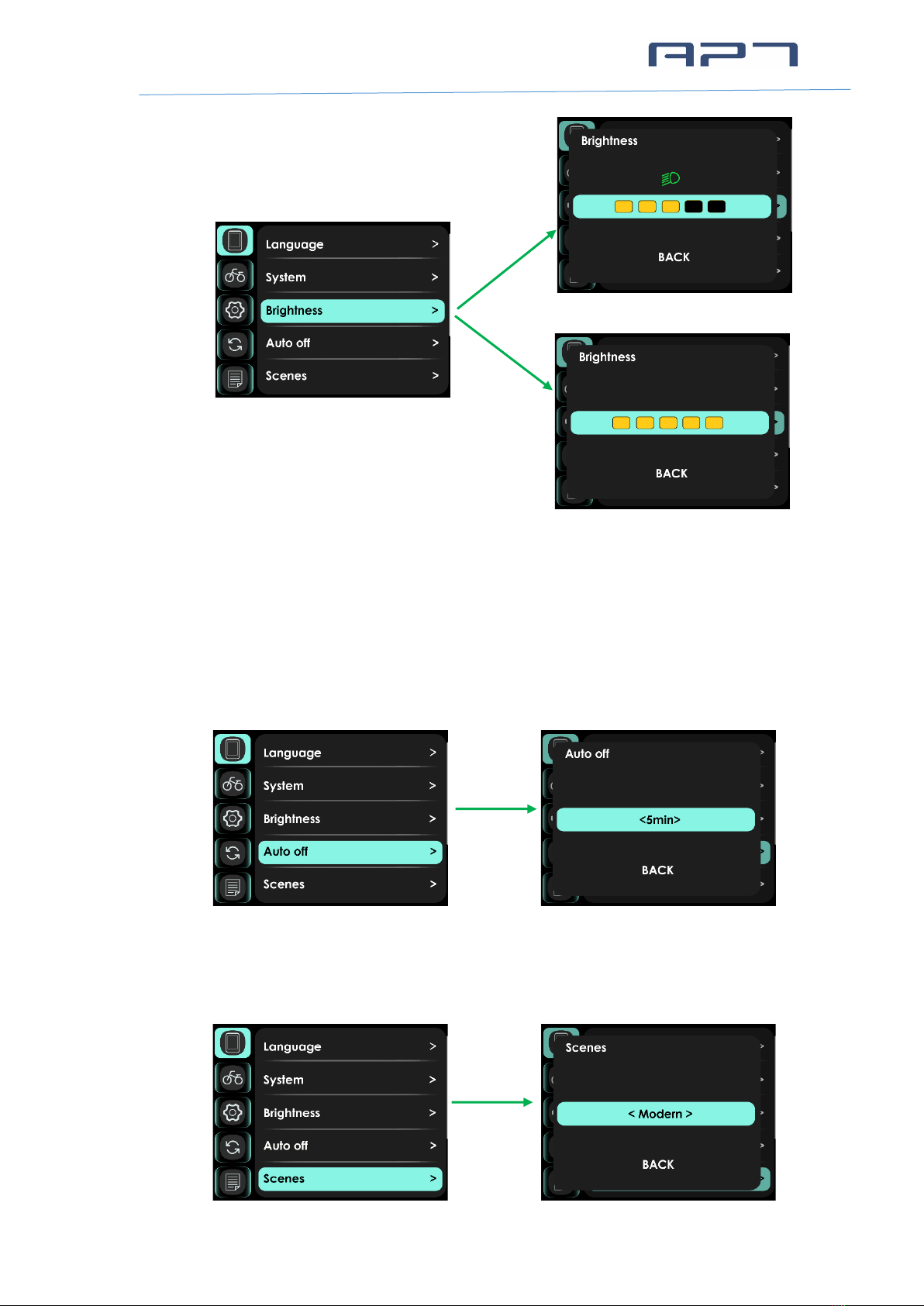

8.1.3 Brightness
You can set the backlight brightness in the light on and off state, press UP/DOWN
button to change brightness of backlight, 1 is darkness, 5 is brightness.

APT (Tianjin) Development Co., Ltd.
11 / 20
8.1.4 Auto off
This item enables to set the automatic shutdown time of the display, from 1 to 10min.
Default value is 5 minutes, represents display shut down when there was no
operation and riding for 5 minutes. OFF indicates that the display disables
automatic shutdown.
8.1.5 Scenes
Select Modern or Classics.
Display setting
The light is turned on
The light is turned off

APT (Tianjin) Development Co., Ltd.
12 / 20
8.1.6 Clock
This item can set date and time. You can choose Show-12 hour, Show-24 hour on
Main Page.
Show-12 hour Show-24 hour
* Note: When display was powered off, internal Button Battery can keep clock running. When
display is power on, Button Battery will be charged by external battery. If the display is not
turned on for a long time, the Button Battery will drain (in winter or during long-distance
transportation), Clock may slow or stop, please charge the battery as follows:
Set “Automatic shutdown” to “OFF” (Disable power off automatically), keep the display power
on for 72 hours. Full charged Button Battery can keep clock running at least 3 months without
charged.
8.1.7 Focus
6 Settings are supported: ODO, Trip A, Time A, Trip B, Time B and Range. The
Settings are displayed on the Basic information screen and the Main screen.

APT (Tianjin) Development Co., Ltd.
13 / 20

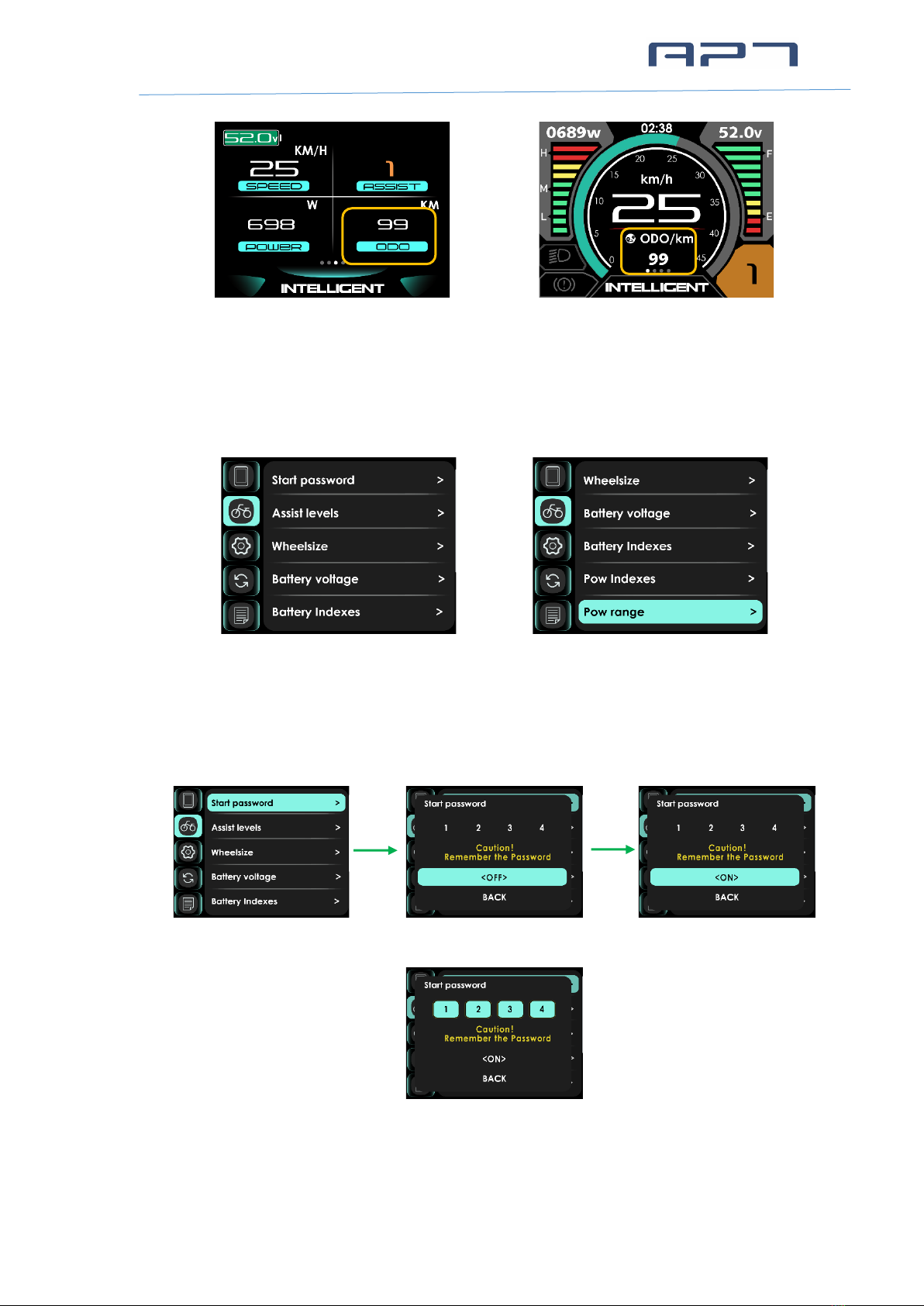

8.2 E-bike Settings
E-bike settings include several items：Start password, Assist levels, Wheelsize,
Battery voltage, Battery Indexes, Pow Indexes, Pow range.
8.2.1 Start password
The start password includes two parameter settings, Start password, OFF/ON.
If you had set start password ON, you must input right password before power on.
Turn on the start password function
Start password setting page
You need to input the right password before start with 30 seconds.

APT (Tianjin) Development Co., Ltd.
14 / 20
The boot page after setting the start password
* Display will automatically shut down if the correct password is not entered within 30S. Press
and hold the POWER button to shut down while entering the password.
* Display will automatically shut down if the password was entered incorrectly 3 times.
8.2.2 Assist levels
This item can select assist levels, options are 3/4/5.
8.2.3 Wheelsize
This item can select wheel diameter, including
12/14/16/18/20/22/24/26/27/27.5/28~31 inch, 51cm~250cm. Incorrect wheel
diameter selection can lead to abnormal speeds.
8.2.4 Battery voltage
The following voltage settings are supported: 24V/36V/48V/52V.

APT (Tianjin) Development Co., Ltd.
15 / 20
8.2.5 Battery Indexes
This item can select battery Indexes setting, including OFF, Percent, Voltage.
Voltage Percent OFF
Note: The voltage is the remaining voltage or percentage of the battery.
8.2.6 Pow Indexes
Main Page can be set to display Power(W) , Current(A), Trip A, Range, Clock.

APT (Tianjin) Development Co., Ltd.
16 / 20

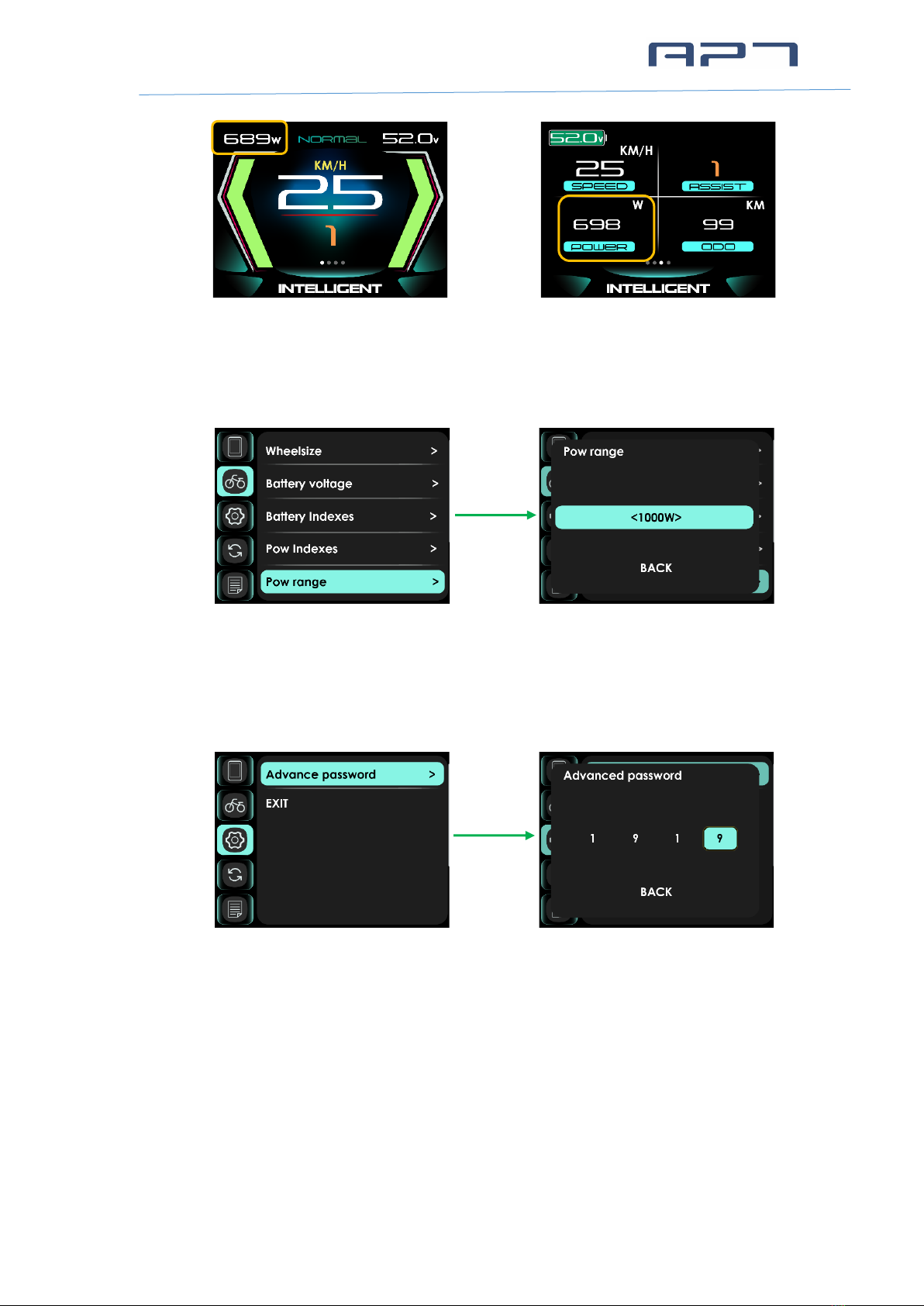

8.2.7 Pow range
Support Output power range Settings:
250W/500W/750W/1000W/1250W/1500W/1750W/2000W.
8.3 Advanced setting
Advanced settings have password to prevent illegal modification, default password
is ‘1919’, password may be different according to request.
Input correctly password to enter advanced setting page, where you can adjust the
speed limit, range 10km/h~60km/h, 99 km/h(6.2Mile/h~37.2Mile/h, 61.4 Mile/h),
and where you can see the error code messages of the last 10 times.

APT (Tianjin) Development Co., Ltd.
17 / 20
Note：The maximum speed is limited by the motor and controller, and it is not necessarily
possible to reach the speed limit setting value.
8.4 Factory Setting
Select ‘YES’ will restore all setting to factory defaults.
Note：ODO and CLOCK data are not cleared.
8.5 Information
The information display interface includes: Speed and Mileage Information,
Product Information, Battery Information.

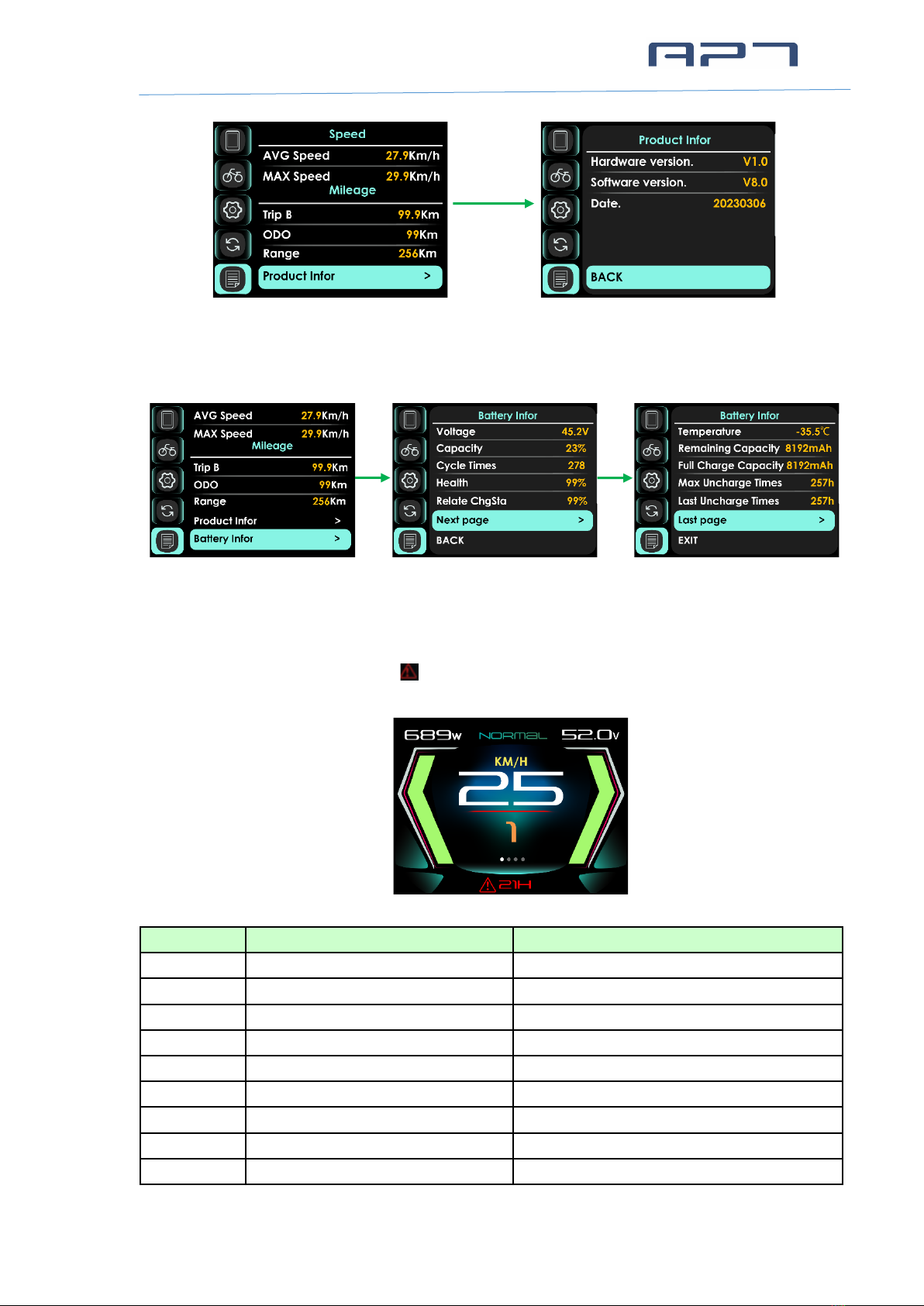

8.5.1 Product Infor
Product Information show Hardware Version, Software Version, Date…

APT (Tianjin) Development Co., Ltd.
18 / 20
8.5.2 Battery Infor
Battery Voltage Information can be showed.
*The battery information is displayed when the E-bike is equipped with a battery with
communication function.
9 Errors code
Display shows error code and at the bottom of the screen when system checked
abnormal.
Error code prompt page
Error Code
Error description
Handle
04
Throttle error
Check throttle and connection
05
Throttle turn back fault
Check throttle and connection
07
Overvoltage protection
08
Hall error
Check the hall connection
09
three-phase power error
Check three-phase power line connection
10
The controller is overheated
Stop using 10 minutes to restart
11
Motor overheating
Stop using 10 minutes to restart
12
Current sensor error
Check the sensor connection
13
battery temperature abnormality
Stop using 10 minutes to restart

APT (Tianjin) Development Co., Ltd.
19 / 20
14
Motor temperature sensor is
abnormal
Check the sensor
15
Controller temperature sensor
failure
Check the sensor
21
Speed sensor fault
Check the sensor
22
BMS Communication Error
Check the cable connection
23
Headlight error
Check the cable connection
24
Headlight sensor error
Check the cable connection
25
Torque sensor signal error
Contact the supplier
26
Torque sensor speed error
Contact the supplier
30
Communication Error
Check the cable connection
10 Assembly instructions
Please pay attention to the torque value, exceeding the maximum torque can damage
the part.
Electrical or pneumatic tools is not recommended.
11 Install and use precautions
Do not adjust viewing angle before loose the screws.
M4*10
STD=0.50 N.M
MAX=0.70 N.M
