BioLite baselantern User manual

Press
1X
1X
White Lantern
Press & Hold
To Dim White Lantern
Press & Hold
To Dim White Lantern
2X
Single Panel
3X
Red Night Mode
Press & Hold
To activate full Color
Spectrum control
RGB
1. Power Button
2. Lantern Light
4. Folding Legs
3.
Components & Controls
5. Micro USB Cord
6. Micro USB Charge In Port
7. USB Charge Out Ports x2
8. SiteLight Control Button
9. SiteLight Ports x2
7800 / 12000 (XL) mAh
Rechargeable Battery
Activate Charging
Press 3 Seconds
SETUP
1. Prior to first use, charge up your BaseLantern via Micro
USB. The LED battery life indicator will blink left-to-right
to show BaseLantern is charging and the 4 LEDs will
turn solid when the battery is full (approx. 5 hours / 8
hours XL).
2. BaseLantern features stainless steel folding legs that
raise your lantern and create a wider perimeter of light
(1.1) . You can also utilize the legs for angled task-lighting
(1.2) or hanging the lantern like a lightbulb (1.3) .
1
BaseLantern has 3 lighting modes that are accessible
through manual operation. To engage additional lighting
functionality, please download the BioLite BaseLantern
Mobile App
(See Section 5) and follow setup instructions.
To change lighting modes, press power button in quick
succession (1 second) until you have reached desired setting.
LIGHTING
BaseLantern Manual Settings
2
USAGE TIPS:
1. When turning on, BaseLantern’s memory returns to
its last used lighting function. Simply press power
button in quick succession to reach desired setting.
2. LOCK MODE: To avoid accidental activation of
BaseLantern in transit, hold the power button for 3
seconds while it is OFF. Lantern will flash, indicating it
is in lock mode. When you want to unlock it, hold
again for 3 seconds. It will flash once to indicate it is
out of Lock Mode.
IMPORTANT: Read all instructions
and warnings before use.
Prior to First Use: DISABLE
DEMO MODE.
WARNING: BaseLantern contains
batteries. Keep away from heat. Store
in cool dry area when not in use.
Care & Maintenance: If BaseLantern
gets dirty, wipe down with damp
towel. The BaseLantern is weather
resistant, but not waterproof: do not
leave out in rain for prolonged period
of time and do not submerge in water.
Product Specifications:
Water Resistant: IPX4
Dimensions: 5.1 x 5.0 x 1.7 in (12.95 x 12.7 x
4.32 cm)
Weight: 1.30 lbs (590g) / 1.41 lbs (639g) XL
Inputs: Micro USB charge in
Outputs: USB charge out x2, SiteLight port x2
Burn Time: 54 LO, 5 HI / 78 LO, 7.5 HI XL
Lumens: 500 Lm
Battery: 7800 / 12000 XL mAh lithium-ion
In The Box: BaseLantern /
BaseLantern XL, Micro USB cord,
Quick Start Guide.
BaseLantern BaseLantern XL
9
7
8
6
5
4
2
3
1
1.1 1.2 1.3
To disable Demo Mode, hold the power
button for 10 seconds until the lantern
blinks twice. Alternatively, you may also
disable Demo Mode by plugging the
BaseLantern into any USB power source.
10 sec.

100%
Charge Out
Charge In
BaseLantern’s internal li-ion battery may be used for both lighting
and external charging to other devices via USB.
There are 4 LED lights on the side of your BaseLantern to
represent the power reserves of the internal battery. When your
battery is below 10% the first LED on the left will begin flashing;
your BaseLantern will enter Low Power Mode and will stop
offering charge-out to external devices.

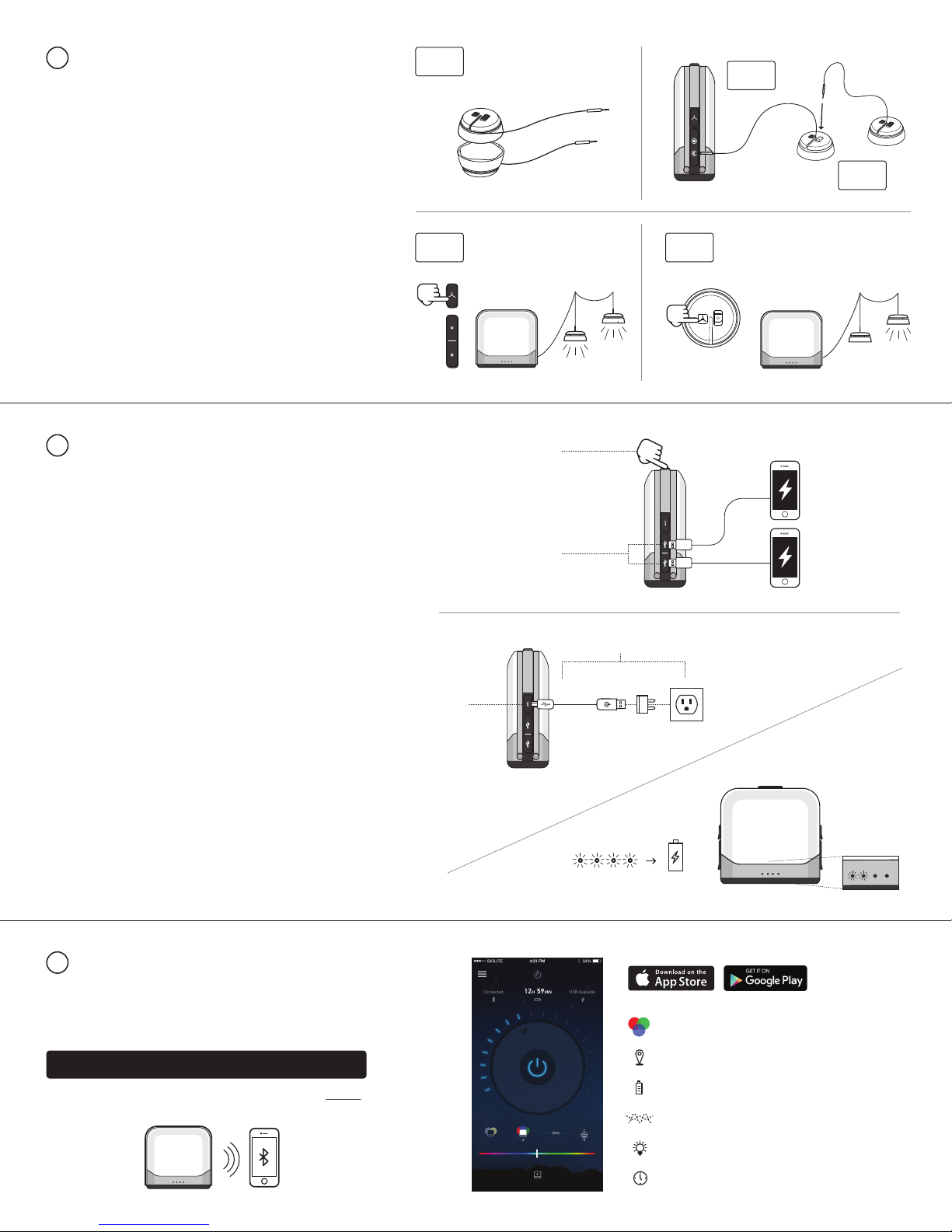

1. Uncouple SiteLights and extend SiteLight cord to desired
length. (3.1)
Note: BioLite SiteLights are sold separately from BaseLantern
To expand your outdoor lighting system with overhead lights,
connect BioLite daisy-chainable SiteLights to your
BaseLantern which features 2 SiteLite ports, allowing you set
up string lighting in two directions at once:
2. Plug SiteLight into BaseLantern SiteLight Port. (3.2)
3. Daisy-chain desired network of SiteLights together by
plugging subsequent SiteLight jacks into preceding
SiteLight port. (3.3)
4. To turn on and dim SiteLights manually, press SiteLight
button located next to SiteLight Ports on BaseLantern.
(3.4) You may control each SiteLight individually via their
manual buttons located on top of each light. (3.5)
5. To turn on and dim SiteLights remotely, please refer to
the BaseLantern mobile app.
BASELANTERN + SITELIGHTS
3
3.4 3.5
3.2
3.3
1. To charge devices, plug charging cord into USB charge-out
port located on side of BaseLantern. (4.1)
2. If BaseLantern is in OFF setting, press power button once to
activate charging. (4.2) You may then turn light panels off to
conserve battery while keeping devices charging.
3. BaseLantern features [2] USB charge-out ports allowing you to
charge two devices at once. Note: When charging two devices,
one port will charge at 2.1A while the second will charge at 1A.
1. Plug the included micro-USB cord into BaseLantern input
port. (4.3)
2. Connect to USB power source such as wall or car charger. (4.4)
4. When battery is fully charged, all 4 LEDs will be lit.
3. LED battery indicator lights will flash sequentially from left to
right to indicate battery is charging. (4.5)
CHARGING
4
The BaseLantern features a free mobile app for iOS and Android.
This app enables you to activate sleep timers, proximity activation,
color settings, battery life feedback, remote dimming and several
other functions all from your smartphone.
Or visit the Apple or GooglePlay app store and search “BioLite”.
BIOLITE BASELANTERN MOBILE APP
5
4.1
4.2
4.3
4.4
4.5
3.1
BioliteEnergy.com/baselantern-app
Download at:
Full Color & Warmth Control
Automatic On/Off When In Range
Real Time Power Usage Stats
Lantern Effects
Turn On, Off & Dim
Alarm & Timers

This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
EU Compliance Statement - BioLite Inc. hereby declares that this device is in compliance with
the essential requirements and other relevent provisions of the R&TTE Directive. A copy of the
EU Declaration of Conformity is available online at bioliteenergy.com/euro-compliance.
BioLite’s EU representative is DSV Solutions Nederland BV, Tradeboulevard 4, Haven 528, 4761
RL Moerdijk, P.O. Box 6086, 4780 LX Moerdijk, The Netherlands.
CALIFORNIA PROPOSITION 65 WARNING: This product contains a chemical known to the State
of California to cause cancer and birth defects or other reproductive harm.
FCC ID: X8WBT600E
IC ID: 4100A-BT600E UN38.3
Problem Solution
BaseLantern cycles through lighting modes then shuts off. BaseLantern is in DEMO MODE. To deactivate, hold power button down on
BaseLantern for 10 seconds until BaseLantern blinks twice.
BaseLantern blinks twice but will not turn on. BaseLantern is in LOCK MODE. This is designed to prevent your light from
accidentally turning on while in transit. To unlock, hold power button down for 5
seconds until BaseLantern blinks twice.
BaseLantern color mode not on the color I want and I want to control it manually. Press and hold to cycle through colors and reach desired color.
BaseLantern not responding to Mobile App commands. Check to ensure bluetooth settings are on and that BaseLantern has been
paired with your phone. Check top left corner of mobile app to verify that
system is connected.
SiteLights are not working. Ensure that all SiteLights are firmly plugged into ports (often requires an extra
push) and individual SiteLites are all in manual ON position in order to be
controlled from mobile App.
TROUBLESHOOTING
WARRANTY
BioLite has a 1 year limited warranty. Should this product not function properly under
normal use within 1 year of purchase, contact BioLite or your local distributor for return
process information. BioLite alone will determine if the problem is due to a manufacturing
flaw. If so, BioLite will repair or replace the unit at its discretion and send it to you, free of
charge. This warranty does not cover any damage or malfunction arising from misuse,
improper maintenance, negligence, normal wear and tear, or accident. Never alter the
BaseLantern in any way or use with any part or accessory not expressly approved by
BioLite. This warranty applies only to the original purchaser and proof of purchase is
required. All implied warranties required under law are limited to one year. BioLite shall
not be liable for any consequential or incidental damages whatsoever. BioLite shall not be
held liable if the product or defect herein causes damage or failure of other equipment.
This warranty gives you specific legal rights. You may also have other rights that vary from
state to state. Some states do not allow the exclusion or limitation of incidental or
consequential damages, or limitation or exclusion of implied warranties, so the above
exclusions or limitations may not apply to you.
For videos, FAQs, and more please visit BioLiteEnergy.com/Instructions

IMPORTANT: Read all instructions and
warnings before use.
WARNING: The SolarPanel 5+
contains a battery. Do not submerge
in water.
Care & Maintenance: If the SolarPanel 5+ gets
dirty, simply wipe away the dirt with a damp
cloth. The SolarPanel 5+ is weather resistant. Do
not leave out in rain for prolonged period of time
and do not submerge in water. Store in a cool
dry area when not in use.
Product Specifications: Dimensions: 10.12 x
8.19 x 0.94 in; 257 x 208 x 24 mm Weight: 13.76
oz/390g Inputs: Micro USB charge in Outputs:
USB charge out Power Output: 5 watts at peak
sun Cell Type: Monocrystalline Battery: 2200
mAh lithium-ion, 8 Wh storage
In the Box: SolarPanel 5+, USB Cable, Quick
Start Guide
Prior to First Use: The SolarPanel 5+
comes with an integrated battery,
allowing you to store power on the go.
For a head start on the trail, you can
pre-charge your SolarPanel 5+ before
heading out by plugging it in via
micro-USB to any power source such as
a wall outlet or computer USB port.
1. Battery & Charge Strength Indicator
2. Battery Status Button
3. High Efficiency Monocrystalline Panel
7. Micro USB Charge In
8. USB Cable
9. Corner Latches
Components & Controls
SETUP
1. To maximize power generation, place your SolarPanel 5+ in
direct sunlight: align the panel’s sundial so that the black dot’s
shadow is in the center of the axis. (1.1)
2. Stabilize the position of your panel with the integrated 360
degree kickstand: rotate in any direction for hanging, standing,
or stabilizing on uneven terrain. (1.2)
1. The SolarPanel 5+ provides 5 watts of usable electricity and
can safely charge devices via USB such as phones, headlamps,
lanterns, and the BioLite CookStove.
2. The Battery & Charge Strength indicator (2.1) is represented
by 4 LED lights. When all 4 LED lights are flashing you are
generating maximum power from the sun.
3. The SolarPanel 5+ features an on-board 2200 mAh battery,
enabling you to charge your devices either in real time or
store your power for when you need it. Press the battery
status (2.2) button and the LED lights will temporarily turn
solid to display the fullness of the battery: if all 4 LEDs are
solidly lit, your battery is fully charged.
4. To charge a device using the SolarPanel 5+, plug the device into
the USB charge out port located in the orange bar on the
backside of your panel (2.3) and press the power button once.
BioLite has a 1-year limited warranty. Should this product not function properly under normal use within 1 year of purchase, contact BioLite or your local distributor for return process information. BioLite alone will determine if the problem is
due to a manufacturing flaw. If so, BioLite will repair or replace the unit at its discretion and send it to you, free of charge. This warranty does not cover any damage or malfunction arising from misuse, improper maintenance, negligence,
normal wear and tear, or accident. Never alter the SolarPanel 5+ in any way or use with any part or accessory not expressly approved by BioLite. This warranty applies only to the original purchaser and proof of purchase is required. All implied
warranties required under law are limited to one year. BioLite shall not be liable for any consequential or incidental damages whatsoever. BioLite shall not be held liable if the product or defect herein causes damage or failure of other
equipment. This warranty gives you specific legal rights. You may also have other rights that vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitation or exclusion of
implied warranties, so the above exclusions or limitations may not apply to you.
4. Sundial
5. Kickstand
6. USB Charge Out
WARRANTY
1
CHARGING
2
Reference tip: 2 hours in direct peak sun will fully charge
most smartphones. We recommend closing apps and wi-fi to
conserve your power.
Reference tip:
Approximately 2 hours in direct peak sun will
fully charge the integrated battery
Note: The SolarPanel 5+ will not charge devices via the
micro-USB panel (2.4) - this input is for charging the internal
battery only.
To stop charging your device, unplug from the SolarPanel 5+.
5.
To supplement or top off your SolarPanel 5+’s internal battery,
use the included micro USB cord to connect to a wall outlet,
computer, or other USB power source. (2.4)
6.
9
1.1 1.2
2.1
2.2
2.3
2.4
