Bionix Aquabot OtoClear 7270 User manual

INNOVATIVE SOLUTIONS FOR EVERYDAY PROBLEMS
PRODUCT OFFERING
#7270 - OtoClear/Aquabot, 20 tips, 1 Ear Basin
#7275 - OtoClear/Aquabot, 5 tips, 1 Ear Basin
OtoClear®Powered by Aquabot®
Ear Irrigation Kit
INSTRUCTIONS FOR USE

3
Thank you for purchasing OtoClear®,
powered by Aquabot®
OtoClear®, powered by Aquabot®provides a simple, yet effective, solution to pa-
tient safety, patient discomfort, and compacted cerumen removal. The key to this
system is the OtoClear ear irrigation tips that are attached to the end of the wand.
OtoClear ear irrigation tips direct water to the ear canal wall at 30 degree angles
avoiding directly impacting the tympanic membrane.
This manual is designed to explain the proper assembly instructions for the
entirety of the kit, including bottle assembly, cleaning, and tip placement.
Note: Any other use for the product outside of the intended use stated herein,
Bionix shall not be held liable.
Getting Started:
Unpacking and Verifying Contents:
Before continuing, inspect the package for any damage during shipping.
If you find any damage notify your local distributor.
Next, check to ensure that your OtoClear®, powered by Aquabot®is complete.
Contents include:
• Aquabot®Bottle
• Adapter wand
• Either 20 OtoClear Tips or 5 OtoClear Tips
• Ear basin
If any item is missing please contact your distributor.
Intended Use
OtoClear®, powered by Aquabot®is intended to be used for Ear Irrigation by a
medical professional.
Before you begin:
Exam the ear canal and tympanic membrane with an otoscope noting the type
and location of any cerumen. Hard or impacted wax may require a cerumenolytic
agent.
WARNING: DO NOT perform irrigation if the tympanic
membrane is perforated or if tympanostomy tubes are pres-
ent. Discontinue irrigation immediately if bleeding, irritation,
or other trauma to the ear canal or tympanic membrane.
Getting Started ......................... 3
Aquabot Parts ID ...................... 4
Aquabot Warnings/Modes ...... 5
OtoClear®, powered by
Aquabot®Use Instructions ..... 6
Aquabot Maintenance .............. 8
High Level Disinfection ............ 9
Aquabot Troubleshooting.........10
CONTENTS

54
1
7
13
2
8
15
3
9
16
4
10
17
19
5
11
18
6
12
14

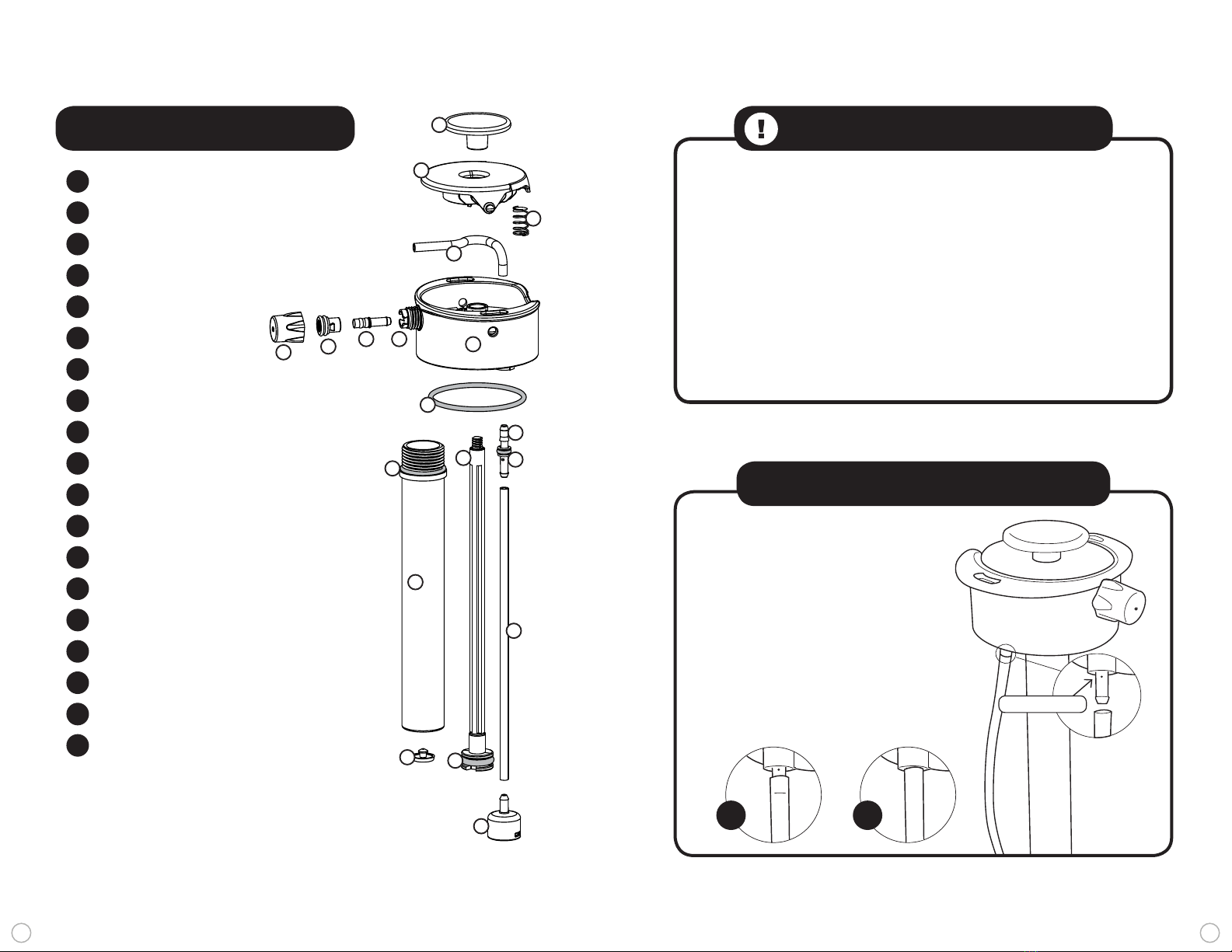

Pump Handle
Trigger
Spring
Pinch Tube
Lid
Lid Nozzle
Nozzle Adapter
Soft Nozzle
Nozzle Cap
Lid O-ring
Draw Tube Adapter
Draw Tube O-ring
Piston Rod
Pump Barrel O-ring
Pump Barrel
Draw Tube
Umbrella Valve
Piston O-ring
Weighted Screen
1
7
13
2
8
15
3
9
16
4
10
17
19
5
11
18
6
12
14
Aquabot®PARTS ID
• Do not over-pressurize the unit.
• Do not use liquids with temperatures above
120oF / 49oC.
• CHOKING HAZARD Unit contains small parts.
Not suitable for children under 3 years.
• Only use lid with Aquabot bases.
• Do not use lid on any metal or glass bases.
FAILURE TO READ AND FOLLOW THE ABOVE
WARNINGS AND OPERATING INSTRUCTIONS
COULD LEAD TO SERIOUS BODILY INJURY.
Aquabot®WARNINGS
Aquabot has two operating
modes called Stealth and Pulse.
Stealth is ideal for drinking, misting
and conserving pressure. Pulse is
ideal for cleaning and conserving
water.
a. Expose adapter hole to use
in Pulse mode.
b. Cover adapter hole to use
in Stealth mode.
b
adapter hole
Aquabot®SPRAY MODES
a

76

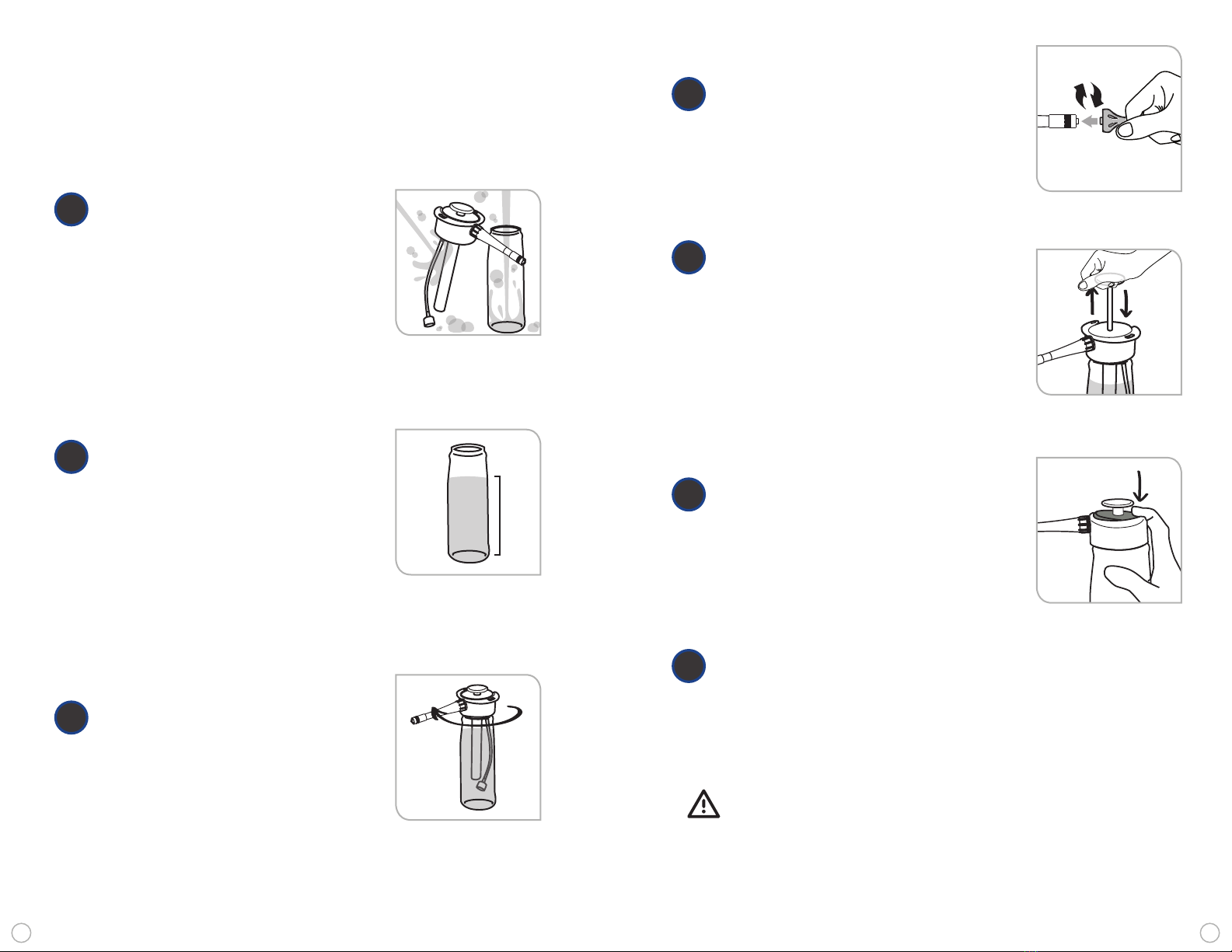

OtoClear®, powered by Aquabot®
USE INSTRUCTIONS:
3Attach Aquabot to top of
bottle and close firmly by
rotating clockwise.
1
1Clean by filling base half full
with soapy water, twist on the
lid, shake to clean and then
spray soapy water through
the unit. Repeat with fresh
water.
2Fill base to 32 oz. mark on
1000mL bottle and 19 oz.
on 650mL bottle.
5Pump no more than 6 times.
This will pressurize the unit to
approximately 35 psi. Take note
of the force required on the last
pump and use this as a guide
for when to stop pumping on
future charges so that you do
not over-pressurize the unit.
6To release water, firmly press
the colored circle on the back
of the trigger.
4Grasp the OtoClear Tip and
twist onto the luer lock fitting
of the adapter until it stops.
7The safest method to depressurize the unit is to
hold it upside down, while keeping the weighted
screen above the water line. Then press the
trigger to spray out compressed air.
WARNING: Failure to remove the OtoClear Tip
runs the risk of cross contamination between patients.
The tip is designed to be a single-use product.

98
• Clean with soap and water as needed.
The base is dishwasher safe for top rack only.
The lid is NOT dishwasher safe.
• Do not put the unit in the freezer.
• Store out of direct sunlight.
• Do not store pressurized for more than 36 hours.
• Spray air through the unit to dry out the silicone
tube before storing for long periods.
• It’s a good idea to lock the trigger in the ON
position when storing for long periods to keep
the Pinch Tube from kinking.
• Spare parts are available on lunatecgear.com.
• Instructional videos are available on product
pages at lunatecgear.com.
• For help, contact us at [e-mail]
Aquabot®MAINTENANCE High Level Disinfection of OtoClear®,
powered by Aquabot®:
It is recommended to high level disinfect OtoClear®, powered by Aquabot®
after any use where there was contact with blood, infectious material, or
non-intact skin.
01. Use one of the following high level disinfecting (HLD) solutions that are
compatible with OtoClear®, powered by Aquabot®:
• Ortho-Phthalaldehyde Solution (0.55% maximum)
• Accelerated Hydrogen Peroxide Solution (2% maximum)
• Glutaraldehyde Solution (3.0% maximum)
02. Prepare the HLD solution per the manufacturer’s instructions.
03. Remove the spray head from the bottle.
04. Ensure all water has been drained from the bottle and the spray head.
05. Fill OtoClear®, powered by Aquabot®with the HLD solution and reattach the
spray head.
06. Pump OtoClear®, powered by Aquabot®until HLD solution discharges.
07. Remove the spray head and completely fill the bottle with HLD solution.
08. Reattach the spray head.
09. Allow the HLD solution to soak in OtoClear®, powered by Aquabot®per the
HLD manufacturer’s instructions for use.
10. After the manufacturer’s recommended soak, remove the spray head from the
bottle and empty the HLD solution from the bottle.
11. Thoroughly rinse the outer surfaces of the bottle and spray head with water.
12. Fill the bottle with clean rinse water and reattach the spray head.
13. Pump until half of the bottle is discharged.
14. Repeat steps 11 – 13 until the bottle has been rinsed three times.
15. Remove the spray head from the bottle.
16. Drain all water from the bottle.
17. Pump the spray head until all water is discharged.
18. Dry the outer surfaces of the bottle and spray head and leave them separated
to allow complete drying.
19. To high level disinfect the ear basin, repeat steps 1 & 2 and follow the
manufacturer’s instructions.

10
PROBLEM REASON SOLUTION
Unit does not build
or hold pressure
Lid O-ring is missing Replacement parts available
at lunatecgear.com
Pump Barrel is too loose Tighten Pump Barrel
Something else
Email
[e-mail]
or call 858.653.0401
Builds pressure but
does not spray
Pinch Tube is kinked Remove trigger and unkink
Pinch Tube
Something else
Email
[e-mail]
or call 858.653.0401
Water is getting inside of
pump barrel
Umbrella Valve is not
sealing
Replacement parts available
at lunatecgear.com
Pump Barrel is too loose Tighten Pump Barrel
Water is leaking from
under trigger
Pinch Tube is damaged Replacement parts available
at lunatecgear.com
Something else
Email
[e-mail]
or call 858.653.0401
Water is leaking from
under trigger
Soft Nozzle is missing Replacement parts available
at lunatecgear.com
Wear and tear on
Soft Nozzle
Replacement parts available
at lunatecgear.com
Something else
Email
[e-mail]
or call 858.653.0401
Mist is not fine
Wear and tear
Try sanding 0.5mm off the
open side of the Nozzle Cap.
If that doesn’t work,
order a new Nozzle Cap.
Operating mode is in Pulse Switch to Stealth mode
Something else
Email
[e-mail]
or call 858.653.0401
Spray is too noisy Operating mode is in Pulse Switch to Stealth mode
Aquabot®TROUBLESHOOTING CHART

©2019 Bionix Development Corp.
5154 Enterprise Blvd., Toledo, Ohio 43612
Phone: [phone] | Fax: [phone]
Email: [email protected] | bionix.com
*OtoClear® Tips - U.S. Patent #6,706,023
Aquabot® is registered under Lunatech®,
used under permission of Lunatech®, Inc.
All rights reserved.
RM95-7275 • Rev. B
Obelis s.a • Boulevard Général Wahis 53 • 1030 Brussels, BELGIUM
Tel: +(32) 2.732.59.54 • Fax: +(32) 2.732.60.03 • E-Mail: [email protected]
Bionix Development Corp. • 5154 Enterprise Blvd. Toledo, OH, 43612, U.S.A.
Phone: [phone] • Fax: [phone] • www.Bionix.com
INNOVATIVE SOLUTIONS FOR EVERYDAY PROBLEMS
OTOCLEAR TIPS ARE
SINGLE USE ONLY
OTOCLEAR TIPS ARE
MADE IN THE U.S.A.
