Bionova Round Burber L Operating instructions

Line Burner L
INSTALLATION AND OPERATION GUIDE
Before operating Bionova burner please read and follow instructions

Compliance Statement and Testing
ENGLISH
Line Burner L –Installation and Operation Guide
1
The BIO NOVA Round Burner L - bioethanol fireplace is
designed and produced accorded to new DIN 4734-1 standard, in compliance
with on our EECT technology and our experience and solutions from TUV
certified BoxBurner L.
Dangerous goods
Bioethanol fuel is classified as a flammable liquid Class 3, PG II and is regulated
by various standards. Please follow regulations in order to legally and safely
store, handle and use that sort of fuel. Please inform yourself about regulations
in your country.

ENGLISH
Contents
2
Line Burner L –Installation and Operation Guide
Conditions of use
……………………………………………………
3
Warnings
……………………………………………………
4
Standard equipment received
……………………………………………………
6
Installation
……………………………………………………
7
Ventilation & efficiency
……………………………………………………
10
Volume, burning time
……………………………………………………
11
How to operate BIONOVA burner
……………………………………………………
12
Maintenance
……………………………………………………
16
Warranty
……………………………………………………
17
Data
……………………………………………………
18
Technology
……………………………………………………
19

Conditions of Use
ENGLISH
Line Burner L –Installation and Operation Guide
3
NOVA VIZANTIJA is safety conscious company. We have taken a great care in
designing, manufacturing and assembling your Round Burner L Porto to be
sure that it operates safely, efficiently and visually effectively.
To ensure that you can enjoy our product for a long time, in comfort, please
operate the product with care and follow these instructions:
1. Before using Round Burner L Porto please read manual carefully. This
is the way to use the product safely and efficiently.
Not following instructions could result in property damage, injury or
even death.
2. Keep children away from operating burner or handling it.
3. Please use only specified fuel –bioethanol. Do not attempt to use any
other flammable fluids (as gasoline for example). Round Burner L Porto
is specifically designed for use with bioethanol and use of any other
fuel would be extremely dangerous.
4. Approval from building authorities may be required. Please contact
appropriate authorities before installing BIONOVA burner.
5. Possession of fire extinguisher - AMMONIUM PHOSPHATE AB:E type,
or appropriate for extinguishing burning ethanol vapors is required.
6. It is a great security asset and it could be tied with insurance issues to
install smoke alarm.
7. Pebbles or other decorative items should not be placed on the burner
top in a way that they detaining normal operation and handling.
If using decorative items, please be sure that they do not:
-Interfere with open and closing mechanism
-Emit carbon monoxide
-Fall into opening of the burner in any time

ENGLISH
Warnings
4
Line Burner L –Installation and Operation Guide
Please honor following warnings:
1. Risk of explosion:
a) NEVER use any other fuel then specified for use with
bioethanol fireplaces;
b) NEVER fill the fuel when burner operating or still hot;
c) NEVER fill the fuel in burner reservoir in areas where
flammable vapors or gas may be present;
d) NEVER store or transport the fuel in other than metal or plastic
container which is:
-Acceptable for use with specific fuel
-Fuel is in the original container
2. Never store fuel in the living space where the fire is situated;
3. Keep children, pets, clothing, and furniture away. Temperature of
the burner surface can be very high –may cause serious burns;
4. Never put flammable objects on the burner. Burner surface
becomes intensively hot during burning and stays hot after
burning for a long time.
5. Indoor pollution –BIONOVA burner have to be used in well
ventilated areas –product of bioethanol vapor burning is carbon
dioxide (can be dangerous in high saturations). Persons with
breathing problems should consult physician before installing
BIONOVA burner.
6. Do not use Round Burner L Porto as a cooking appliance or throw
any sort of waste materials or paper in burner opening.
7. It is recommended that BIONOVA burner should be fixed into a
position to avoid displacement;
8. Do not try to disassemble BIONOVA burner;
9. Do not try to attach any other fuel tank to BIONOVA burner;
10. BIONOVA burner should be used only with authorized accessories
and equipment;
11. Do not, in any case, obstruct mechanism for closing/opening;
12. Do not try to start BIONOVA burner if you suspect fault or any
damage to the housing or mechanism of the burner.

Warnings
ENGLISH
Line Burner L –Installation and Operation Guide
5
13. The NOVA VIZANTIJA Company does not accept any responsibility
for any damage or injury which accrues if the BIONOVA burner is
used for purposes other than intended; is used incorrectly or
repaired by unqualified persons or has been changed or altered in
any way.
14. BIONOVA burner is not intended to be a sole continues heating
source and to be used longer than 8 hours per session. To avoid
heat expansion and potential spilling please ensure that the burner
is allowed to cool down completely on a regular basis.
15. Using more than one Burner in the same space or a room or with
other appliances that are burning bioethanol please consult with
the manufacturer of the appliances.
16. Minimum safe distance to combustible materials should be 2m.
Please store these warnings in a safe place for future reference

ENGLISH
Standard Equipment Received
6
Line Burner L –Installation and Operation Guide
The BIONOVA burner is supplied with following standard equipment:
1. BIONOVA LineBurner L –1pc
2. Installation and operation guide –1pc
3. Manipulation rod (handle) - 1pc.
4. Ignition lighter –1 pc

Installation
ENGLISH
Line Burner L –Installation and Operation Guide
7
Please find following installation instructions:
BIONOVA burner is primarily intended for outdoor use. For indoor use please
contact manufacturer or sales personal for specific terms of services.
There are many different variations available for installing BIONOVA burner but
in every case BIONOVA burner must:
-Be installed in non-combustible material only (stainless steel,
concrete, brick, stone);
-Ensure that burner is positioned in leveled position.
-Avoid positioning a burner in the area of the room (space) with
cross ventilation or a strong air flow –this could result in
irregular burning and fire hazard.
-Plate on which burner is positioned must be rigid enough to
withstand load of at least 20 Kg.
-Do not install burner near any gas connections or pipe lines. If
do, please make it safe by a professional prior to burner
installation;
-Be installed in fixed, leveled and secure position before filling,
lighting and operating;
-Be installed in leveled platform;
-Do not install directly beside wallpaper or laminate or any other
non-fire proof surface or material;

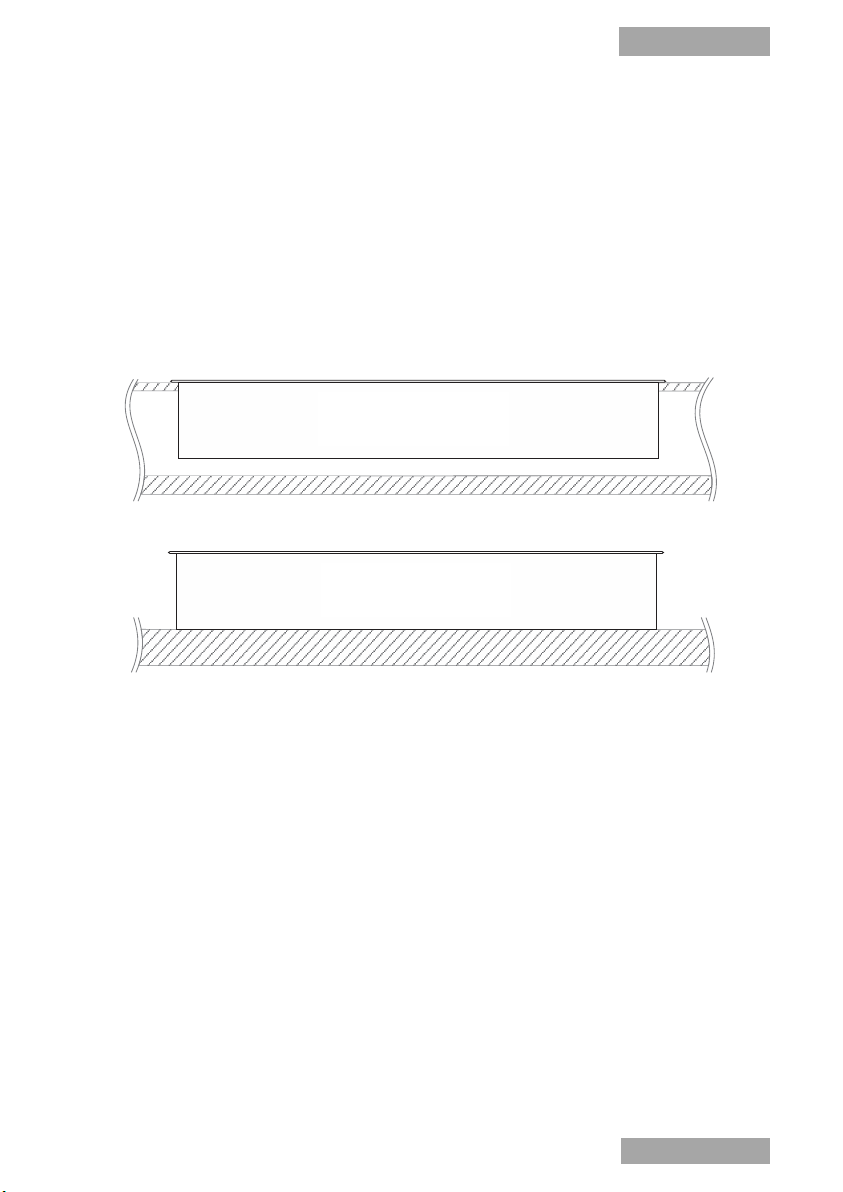

CORRECT
INCORRECT

ENGLISH
Installation
8
Line Burner L –Installation and Operation Guide
As a general guide we recommending:
-Any furniture, items or fittings placed directly above or beside
BIONOVA burner/fireplace should be suitable for heat tolerance
-Heat reflective panels (ideally stainless steel) should be installed
as surrounding and top to assist heat distribution;
-Glass or mirrored surfaces near BIONOVA burner must be
toughened.
-Closed volumes in the proximity of the burner must be kept
ventilated.
-Avoid any other materials or liquids, beside fuel, to enter in the
burning pit area –if that happens do not attempt to ignite it
before addressing the problem.

Installation
ENGLISH
Line Burner L –Installation and Operation Guide
9

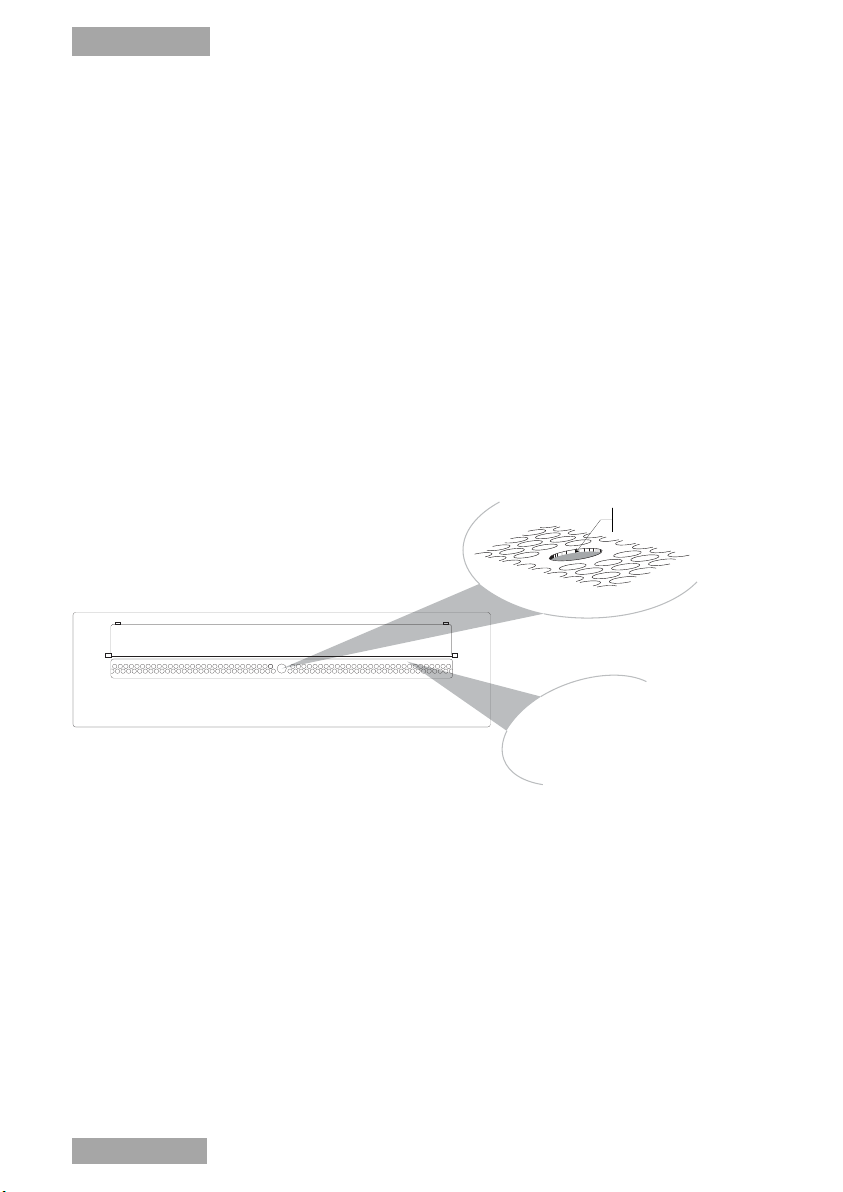

Please find required installation dimensions:
705
710
185
190
maximum 20
ventilacioni
otvor

ENGLISH
Ventilation and Efficiency
10
Line Burner L –Installation and Operation Guide
Ventilation:
When proper fuel is used BIONOVA burner do not need any permanent fixture
or fitting, chimney, gas line, or any utility or supply.
Products of burning bioethanol vapors are CO2, water steam and heat.
Optimum room volume per a burner is 70m3. If used in smaller spaces, please
leave the door of the adjacent rooms or corridor open, or a window slightly
open.
Minimum room volume
Air exchange (1/h)
Explanation
350m3
0.2
Air exchange due to
leakage in the building
140m3
0.5
Normal air exchange
rate in the leak proof
buildings
70m3
1
Complete air exchange
in installation room
during one hour
Air exchange *(n/h)
Comments
0 –0.5
Windows/doors closed
0.3-0.5
Window slightly open-no shutters
0.5-1
Window open
* n/h refers to ratio of air circulation in the room –example 0.5/h means that half of the air in
the room is replaced every hour
Efficiency:
BIONOVA burner is efficient since all the heat stays in the room rather than be
wasted to residual emissions.
You may turn burner on and off at any time.

Volume, burning time
ENGLISH
Line Burner L –Installation and Operation Guide
11
Volume –burning time:
One full tank will burn up to 6-8 hours *. You may turn burner on and off at
any time.
* The efficiency data has approximate value depending on the model purchased, weather conditions,
installation point and bioethanol used

ENGLISH
How to operate BIONOVA burner
12
Line Burner L –Installation and Operation Guide
Maximum fuel level
It is important to follow the procedure described to ensure that you are operating
and using BIONOVA burner safely: Only fuel to be used in BIONOVA burner is
bioethanol fuel –no other fuel is allowed. Recommended fuel: NOVAFUEL. All
actions with managing bioethanol should be performed in well-ventilated area
and to be sure that all spillage is easily contained and away from any ignition
source.
Volume:
In the center of the burner when you see fuel at the perforated area - the tank
is full –2.95 liters of fuel.
Avoid spilling or purring fuel
between upper plate and down
plate

How to operate BIONOVA burner
ENGLISH
Line Burner L –Installation and Operation Guide
13
Filling the burner:
Before filling the burner with bioethanol fuel please insure following:
1. That the burner is standing in leveled position fixed from moving and
properly installed;
2. That the burner is not hot from previous use;
3. That the burner and the opening/closing mechanism are free from
obstacles of any kind;
4. Keep your hands and face away from the burner at all times during
filling or igniting.
5. At all times pure the fuel on the perforated area of the burner moving
from one side of the opening to another –avoid spilling or purring
fuel because small misfire is possible.
6. If spilling occurs please wipe it dry before any attempt to ignite a
burner.
7. You may use appropriate funnel to avoid spilling.
BIONOVA burner is filled through perforated area inside the burner opening.
Open lid –this will show the perforated area. Fill the burner with bioethanol
fuel, slowly, not causing spillage, moving from side to side of the burner
opening.
You can fill the tank with any desired amount of fuel (not recommended less
than 0.75litre) but be careful for the level in perforated area –you will see fuel
on top of it when tank is full.
Do not, in any case, put more fuel then maximum level, when fuel is at the top
of perforated area in the center of the burner.
Igniting BIONOVA burner:
Keep your hands and face away from BIONOVA burner at all-time especially
when igniting.
Before igniting, make sure that the burner is clear and ready for use.

ENGLISH
How to operate BIONOVA burner
14
Line Burner L –Installation and Operation Guide
1. Open lid to have enough ventilation for ignition;
2. From safe distance, (with stretched arm) put the lighter (provided in
package) near the opening of the burner and ignite;
Turing BIONOVA burner off and restarting:
1. With handle (provided in the package) close the burner completely;
2. If fuel in the burner tank is not entirely used up it can be used again. In
order to supply more fuel, please wait until burner cools down to room
temperature and then, only then, it is safe to fill burner tank;
3. When all fuel is used up, there is no need to clean anything, just wait
for the burner to cool down, then refill and restart.
Note: When you see that the flame is small and reduced –in the perforated area
you can see the small flame that means that fuel level is at absolute minimum.
Reigniting BIONOVA burner:
1. Check if the burner is on room temperature. It takes from 15-30 min.
to cool down depending on how long it has been used before;
2. Open in open position;
3. Allow for any residual fumes to evaporate. It takes few moments;
4. Reignite using lighter provided in the package.

How to operate BIONOVA burner
ENGLISH
Line Burner L –Installation and Operation Guide
15
DO NOT REFILL:
When burner is operating or hot from previous use;

ENGLISH
Maintenance
16
Line Burner L –Installation and Operation Guide
Maintenance:
Should be performed when BIONOVA burner is off, completely empty of fuel,
dry and at a room temperature.
The surface of the burner will change color on hot spots over time. This is
normal “hot steel” ageing process.
1. Use a vacuum cleaner after approximately 50 liters of burned fuel to
clean inside of the burner opening;
2. Use a damp cloth or mild detergent (without abrasives) to clean burner
surface.
3. Do not let the detergent or polishing aperient to get into a burner
opening especially perforated part since it can cause even more
staining and smell during next use.
4. After cleaning, all surfaces should be without any residue and
completely dry.

Warranty
ENGLISH
Line Burner L –Installation and Operation Guide
17
Warranty terms:
1. Your BIONOVA burner is covered by 2 years warranty from moment of
first purchase.
2. Please note - in order to warranty be applied, instructions for installing,
use and maintenance must be followed.
3. Do not try to fix burner by yourself or by unprofessional service and
persons –we do not except responsibility for operating the burner in
these cases.
This warranty certificate along with the invoice or receipt must be presented
when making any claim.
MODEL No.
SERIAL No.
PURCHASER
DISTRIBUTOR
Distributor stamp here
DATE OF PURCHASE
By signing I, upper mentioned purchaser, declare that:
•I understand and will follow the terms of use presented in
INSTALATION AND OPERETAIN GUIDE and taking the full
responsibility for using the product within it.
•Understand the terms of warranty.
Purchaser signature: ……………………………………................................................................

ENGLISH
Dimensions and Data
18
Line Burner L –Installation and Operation Guide
95
90
Main
material:
Steel
Evaporator:
Ceramic
fibers
Tank Size:
2,95 l
Weight
with full
tank :
Up to 13 kg
Thermal
output :
Do 3 Kw
Req. room
volume:
70m3
Burning
Time:
Continuously
Up to 5 h *
* The efficiency data has approximate
value depending on the model
purchased, weather conditions,
installation point and bioethanol
used

Technology
ENGLISH
Line Burner L –Installation and Operation Guide
19
EECT –Evaporated Ethanol Combustion Technology
BIONOVA fireplace burners bringing to you unique technology of ethanol
combustion - EECT.
Our burner’s combusting only ethanol vapors distributed from ceramic
evaporator (no loose fuel) trough burning pit calibrated grill providing precise
and odorless process of burning.
