H61MGC/H61MLC UEFI BIOS Manual
1
UEFI BIOS Setup
Introduction
The purpose of this manual is to describe the settings in the AMI UEFI BIOS Setup
program on this motherboard. The Setup program allows users to modify the basic
system configuration and save these settings to NVRAM.
UEFI BIOS determines what a computer can do without accessing programs from a
disk. This system controls most of the input and output devices such as keyboard,
mouse, serial ports and disk drives. BIOS activates at the firs t stage of the booting
process, load ing and executing the operating s ystem. Some additional features, s uch
as virus and password protectio n or chips et fine-tuning optio ns are also inc luded in
UEFI BIOS.
The rest of this manual will to guide you through the options and settings in UEFI
BIOS Setup.
Plug and Play Support
This AMI UEF I BIOS suppo rts the P lug and Play Vers ion 1.0A specification.
EPA Green PC Support
This AMI UEFI BIOS s upports Vers ion 1. 03 of the EPA Green PC spec ification.
ACPI Support
AMI ACPI UEFI BIOS support Versio n 1.0/2.0 of Advanced Configuration and
Power interface specification (ACPI). It provides ASL code for power
management and device configuration capabilities as defined in the ACPI
specification, developed by Microsoft, Intel and Toshiba.
PCI Bus Support
This AMI UEFI BIOS also suppo rts Version 2.3 of the Intel PCI (Peripheral
Component Interconnect) local bus specification.
DRAM Support
DDR3 SDRAM (Double Data Rate III Synchronous DRAM) is supported.

H61MGC/H61MLC UEFI BIOS Manual
2
Supported CPUs
This AMI UEF I BIOS s uppo rts the Intel CPU.
Using Setup
When starting up the co mputer, press
<Del> during the Power-On Self-Test
(POST) to enter the UEFI BIOS setup
utility.
In the UEFI BIOS setup utility, you will
see General Help description at the top
right corner, and this is providing a brief
description of the selec ted item.
Navigation Keys for that particular menu
are at the bottom right corner, and you can
use thes e keys to select item and change
the settings.
Notice
zThe default UEFI BIOS settings apply for most conditions to ensure optimum
performance of the motherboard. If the system becomes unstable after changing
any settings, please load the default settings to ensure system’s compatibility and
stability. Use Load Setup Default under the Exit Menu.
zFor better system performance, the UEFI BIOS firmware is being continuously
updated. The UEFI BIOS informatio n described in this manual is for yo ur reference
only. The actual UEFI BIOS information and settings on board may be slightly
different from this manual.
zThe content of this manual is subject to be changed without notice. We will not be
responsible fo r any mistakes fo und in this user’s manual and any system damage that
may b e caused by wrong-settings.

H61MGC/H61MLC UEFI BIOS Manual
3

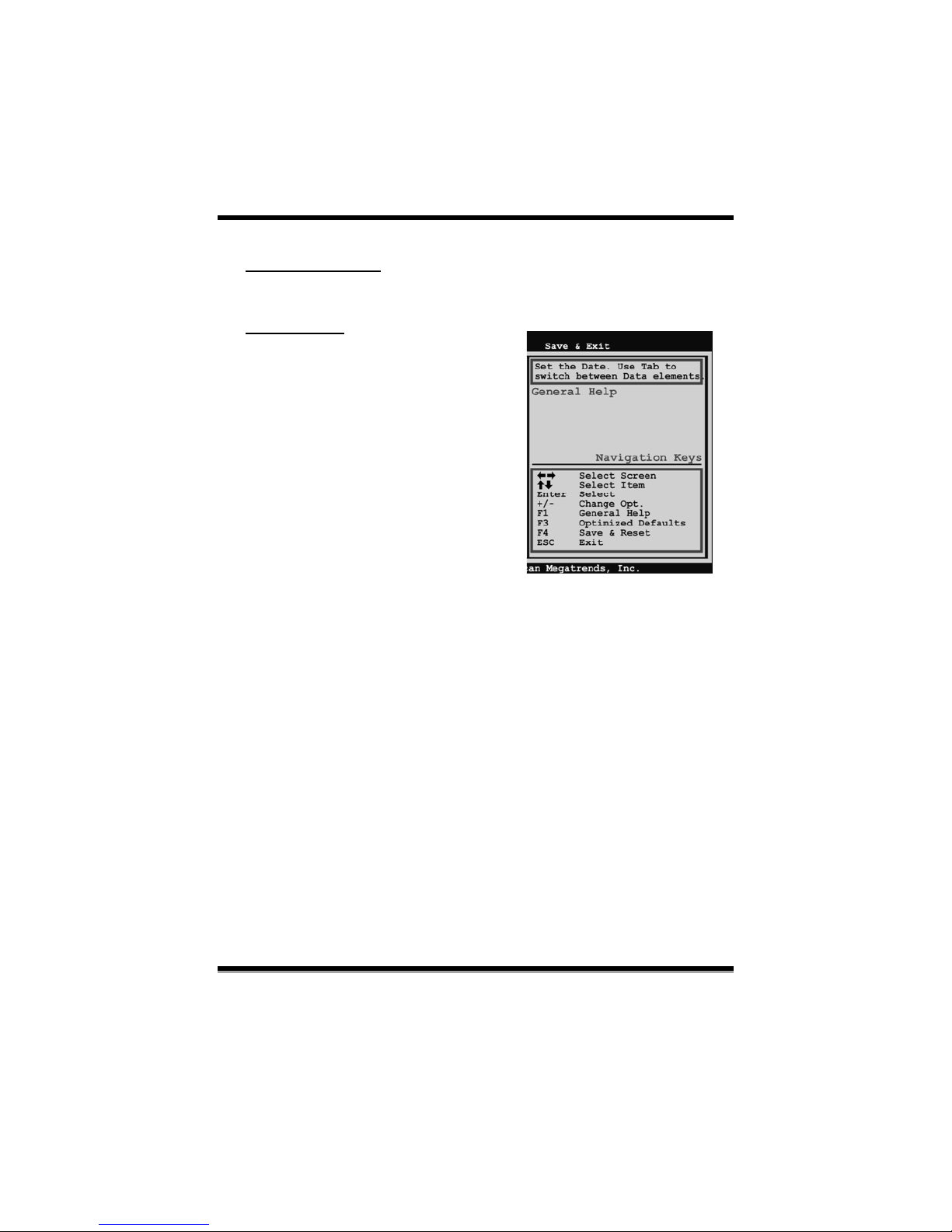

1 Main Menu
Once you enter AMI UEFI BIOS Setup Utility, the Main Menu will appear on the
screen providing an overview of the basic system information.
BIOS SETUP UTILIT
Y
Main Advanced Chipset Boot Security Performance
Version x.xx.xxxx. Copyright© 201x, American Megatrends, Inc.
Select Screen
Select Item
Select
Change Opt.
General Help
Optimized Defaults
Save & Reset
Exit
Enter
+/-
F1
F3
F4
ESC
Set the Date. Use Tab to
switch between Data elements.
BIOS Information
Compliency
Project Code
Model Name
Build Date
Total Memory
System
Time [00:00:00]
System Date [Sat 01/01/2011]
Access Level Administrator
Save & Exit
System Language [English]
BIOS Version
BIOS Information
Shows system information including UEFI BIOS version, model name, marketing
name, built date, etc.
Total Memor y
Shows system memory size, VGA shard memory will be excluded.
System Date
Set the system date. Note that the ‘Day’ automatically changes when you set the
date.
System Time
Set the system internal c loc k.
Access Level
Shows the access level of current user.

H61MGC/H61MLC UEFI BIOS Manual
4
2 Advanced Menu
The Advanced Menu allows you to configure the settings of CPU, Super I/O, Power
Management, and other system devices.
Notice
zBeware of that setting inappropriate values in items of this menu may cause
system to malfunction.
BIOS SETUP UTILIT
Y
> ACPI Settings/WakeUp Event control
> CPU Configuration
> SATA Configuration
> USB Configuration
> SMART FAN Control
> Super IO Configuration
> H/W Monitor
> PCI Subsystem Settings
Version x.xx.xxxx. Copyright© 201x, American Megatrends, Inc.
PCI, PCI-X and PCI Express
Settings.
Main Advanced Chipset Boot Security Performance Save & Exit
Select Screen
Select Item
Select
Change Opt.
General Help
Optimized Defaults
Save & Reset
Exit
Enter
+/-
F1
F3
F4
ESC
PCI Su bs ystem Settings
BIOS SETUP UTILIT
Y
PCI Bus Driver Version V x.xx.xx
PCI Common Settings
PCI Express Device S ettings
PCI Express Link Settings
WARNING: Enabling ASPM may cause some
PCI-E devices to fail
PCI ROM Priority [Legacy ROM]
PCI Latency Timer [32 PCI Bus Clocks]
VGA Palette Snoop [Disabled]
No Snoop [Enabled]
Maximum Payload [Auto]
Maximum Read Request [Auto]
ASPM Support [Disabled]
Version x.xx.xxxx. Copyright© 201x, American Megatrends, Inc.
In case of multiple Opiton
ROMs (Legacy and EFI
Compatible), specifies what
PCI Option ROM to launch.
Advanced
Select Screen
Select Item
Select
Change Opt.
General Help
Optimized Defaults
Save & Reset
Exit
Enter
+/-
F1
F3
F4
ESC

H61MGC/H61MLC UEFI BIOS Manual
5
PCI ROM Priority
In case of multiple option ROMs (Legacy and EFI Compatible), this item specifies
what PCI Optio n ROM to launch
Options: Legacy ROM (Default) / EFI Compatible ROM
PCI Latency Timer
This item sets the value to be programmed into PCI Latency Timer Register.
Optio ns: 32 PCI Bus Clocks (Default) / 64 PCI Bus Clocks / 96 PCI Bus Cloc ks /
128 PCI Bus Clocks / 160 PCI Bus Clocks / 192 PCI Bus Clocks / 224
PCI Bus Clocks / 248 PCI Bus Clocks
VGA Palette Snoop
This item enables or disables VGA Palette Registers Snooping.
Options: Dis abled (Default) / Enabled
No Snoop
This item enables or disables PCI Express Device No Snoop option.
Options: Enabled (Default) / Disabled
Maximum Payload
This item sets Maximum Payload of PCI Express Device or allows System BIOS to
select the value.
Options: Auto (Default) / 128 Bytes / 256 Bytes / 512 Bytes / 1024 Bytes / 2048
Bytes / 4096 Bytes
Maximum Read Request
This item sets Maximum Read Request Size of PCI Express Device or allows
System BIOS to s elect the value.
Options: Auto (Default) / 128 Bytes / 256 Bytes / 512 Bytes / 1024 Bytes / 2048
Bytes / 4096 Bytes
ASPM Support
This item sets the ASPM Level: Force LO – Force all links to LO State; Auto –
BIOS auto co nfigures; Disabled – Dis ables ASPM.
Options: Disabled (Default) / Auto / Force LO

H61MGC/H61MLC UEFI BIOS Manual
6
ACPI Settings/WakeUp Event control
BIOS SETUP UTILIT
Y
EuP Control [Disabled]
ACPI Sleep State [S1 (CPU Stop Clock)]
Lock Legacy Resources [Disabled]
PME Wake up from S5 [Disabled]
Wake system with Fixed Time [Disabled]
PS2 Keyboard PowerOn [Disabled]
PS2 Mouse PowerOn [Disabled]
USB Device Wakeup from S3/S4 [Disabled]
Wake up date [EveryDay]
Wake up hour 0
Wake up minute 0
Wake up second 0
Stroke key [Wake Key]
Specific key
Version x.xx.xxxx. Copyright© 201x, American Megatrends, Inc.
Advanced
When EuP Enabled,System meets
EuP requirement.
Select Screen
Select Item
Select
Change Opt.
General Help
Optimized Defaults
Save & Reset
Exit
Enter
+/-
F1
F3
F4
ESC
EuP Control
When EuP is enabled, the system will meet EuP requirement.
Options: Disabled (Default) / Enabled
ACPI Sleep State
This item selects the highest ACPI s leep state the system will enter when the
SUSPEND button is pressed.
Options: S1 (CPU Stop Clock) (Default) / Suspend Disabled / S3 (Suspend to
RAM)
Lock Legacy Resources
The item enables or disables Lock of Legacy Resources.
Options: Disabled (Default) / Enabled
PME Wake up from S5
The item enables the s ystem to wake fro m S5 using PME event.
Options: Disabled (Default) / Enabled

H61MGC/H61MLC UEFI BIOS Manual
7
Wake system with Fixed Time
This item enables or disables the system to wake on by alarm event. W hen this item
is enabled, the system will wake on the hr::min::sec specified.
Options: Disabled (Default) / Enabled
Wake up date
You can choose which date the system will boot up.
Wake up hour / Wake up minute / Wake up second
You can choos e the system boot up time, input ho ur, minute and second to specify.
PS2 Keyboard PowerOn
This item allows you to control the keyboard power on function.
Options: Disabled (Default) / Any Key / Stroke Key / Specific Key
Stroke Keys Selected
This item will show only when Keyboard PowerOn is set “Stroke Key.”
Optio ns: Wake Key (Default) / Power Key / Ctrl+F1 / Ctrl+F2 / Ctrl+F 3 /
Ctrl +F4 / Ctrl+F5 / Ctrl+F6
Specific Key Enter
This item will s how only when Keyboard PowerOn is set “Specific Key.” Press
Enter to set Specific key.
PS2 Mouse PowerOn
This item allows you to control the mouse power on function.
Options: Disabled (Default) / Enabled
USB Device Wakeup from S3/S4
This item allows you to enable or d isabled the USB res ume from S3/S4 function.
Options: Disabled (Default) / Enabled

H61MGC/H61MLC UEFI BIOS Manual
8
CPU Configuration
BIOS SETUP UTILIT
Y
CPU Configuration
Processor Stepping
Microcode Revision
Max Processor Speed
Min Processor Speed
Processor Speed
Processor Cores
Intel HT Technology
EMT64
Hyper-threading [Enabled]
Active Processor Cores [All]
Limit CPUID Maximum [Disabled]
Hardware Prefetcher [Enabled]
Adjacent Cache Line Prefetch [Enabled]
Execute-Disable Bit [E nabled]
Intel Virtualization Technology[Disabled]
Power Technology [Energy Efficient]
Version x.xx.xxxx. Copyright© 201x, American Megatrends, Inc.
Advanced
Select Screen
Select Item
Select
Change Opt.
General Help
Optimized Defaults
Save & Reset
Exit
Enter
+/-
F1
F3
F4
ESC
Enabled for Windows XP and
Linux(OS optimized for
Hyper-Threading Technology)
and Disabled for other OS(OS
not optimized for
Hyper-Threading Technology).
When Disabled only one thread
per enabled core is enabled.
Hyper-threading
Hyper Threading Technology can improve performance b y splitting instructions into
multiple streams. This item is enabled for Windows XP and Linux (OS optimized for
Hyper-Threading Technology) and disabled for other OS (OS not optimized for
Threading Techno logy). When this item is dis abled, only one thread per enabled core
is enabled.
Options: Enabled (Default) / Disabled
Active Processor Cores
This item sets number of cores to enable in each processor package.
Options: All (Default) / 1 / 2 / 3
Limit CPUID Maximum
When the computer is booted up, the operating system executes the CPUID
instruction to identify the processor and its capabilities. Before it can do so, it must
first query the processor to find out the highest input value CPUID recognizes. This
determines the kind of basic information CPUID can provide the operating system.
Options: Disabled (Default) / Enabled

H61MGC/H61MLC UEFI BIOS Manual
9
Execute-Disable Bit
XD can prevent certain classes of malicious buffer overflow attacks when combined
with a supporting OS (Windows Server 2003 SP1, Windows XP SP2, SuSE Linux
9.2, RedHat Enterprise 3 Update 3.).
Options: Enabled (Default) / Disabled
Hardware Prefetcher
The processor has a hardware prefetcher that automatically analyzes its requirements
and prefetches data and instructions from the memory into the Level 2 c ache that are
likely to be required in the near future. This reduces the latency associated with
memory reads.
Options: Enabled (Default) / Disabled
Adjacent Cache Line Prefetch
The processor has a hard ware ad jac ent c ache line p refetch mechanis m that
automatically fetches an extra 64-byte cache line whenever the processor requests for
a 64-byte cache line. This reduces cac he latenc y b y making the next cache line
immediately available if the processor requires it as well.
Options: Enabled (Default) / Disabled
Intel Virtualization Tech
Virtualization Techno lo gy can virtually separate your system reso urc e into several
parts, thus enhance the performance when running virtual machines or multi
interface systems.
Options: Disabled (Default) / Enabled
Power Technology
This item enables the power management features.
Options: Energy Efficient (Default) / Disabled / Custom
CPU C3 Report
This item enables /disables CPU C3 (ACPI C2) report to OS.
Options: Disabled (Default) / ACPI C-2 / ACPI C-3

H61MGC/H61MLC UEFI BIOS Manual
10
CPU C6 Report
This item enables /disables CPU C6 (ACPI C3) report to OS.
Options: Enabled (Default) / Disabled
Package C State Limit
This item sets P ackage C State Limit.
Options: No Limit (Default) / C0 / C1 / C6 / C7
Local x2APIC
This item enables Local x2APIC. Some OSes do not support this feature.
Options: Disabled (Default) / Enabled
SATA Configuration
BIOS SETUP UTILIT
Y
SATA Configuration
SATA Port1:
SATA Port2:
SATA Port3:
SATA Port4:
S.M.A.R.T. [Enabled]
Serial-ATA Controller 0 [Compatible]
Serial-ATA Controller 1 [Enhanced]
SATA Mode [IDE Mode]
Version x.xx.xxxx. Copyright© 201x, American Megatrends, Inc.
Advanced
(1) IDE Mode. (2) AHCI Mode.
Select Screen
Select Item
Select
Change Opt.
General Help
Optimized Defaults
Save & Reset
Exit
Enter
+/-
F1
F3
F4
ESC
SATA Mode
This item sets SATA Mode.
Options: IDE Mode (Default) / AHCI Mode / Disabled
S.M.A.R.T.
Set the Self-Monitoring, Analysis, and Reporting Technology.
Options: Auto (Default) / Disabled / Enabled

H61MGC/H61MLC UEFI BIOS Manual
11
Serial-ATA Controller 0
This item enables /d isables Serial ATA Controller 0.
Options: Compatible (Default) / Disabled / Enhanced
Serial-ATA Controller 1
This item enables /d isables Serial ATA Controller 1.
Options: Enhanced (Default) / Disabled
Aggressive Link Power Management
Aggressive Link Power Management Support.
Options: Enabled (Default) / Disabled
USB Configuration
BIOS SETUP UTILIT
Y
USB Configuration
USB Devices:
EHCI Hand-off [Disabled]
Port 60/64 Emulation [Enabled]
Legacy USB Support [Enabled]
Version x.xx.xxxx. Copyright© 201x, American Megatrends, Inc.
Advanced
Enables Legacy USB support.
AUTO opiton disables legacy
support if no USB devices are
connected. DISABLE option
will keep USB devices
available only for EFI
applications.
Select Screen
Select Item
Select
Change Opt.
General Help
Optimized Defaults
Save & Reset
Exit
Enter
+/-
F1
F3
F4
ESC
Legacy USB Support
This item determines if the BIOS should provide legacy support for USB devices
like the keyboard, mouse, and USB drive. This is a useful feature when using such
USB devices with operating systems that do not natively support USB (e.g.
Microsoft DOS or Windows NT).
Options: Enabled (Default) / Disabled / Auto

H61MGC/H61MLC UEFI BIOS Manual
12
EHCI Hand-Off
This is a workaround for OSes without EHCI hand-off support. The EHCI ownership
change should be claimed by EHCI driver.
Options: Disabled (Default) / Enabled
Port 60/6 4 Emulation
This items enables I/O port 60h/64h emulation support. This should be enabled for
the co mplete USB keyboard legacy suppo rt fo r no n-USB aware OSes.
Options: Enabled (Default) / Disabled
SMART FAN Control
BIOS SETUP UTILIT
Y
SMART FAN Control
> CPU FAN Calibrate
CPU Smart FAN [Disabled]
Control Mode [Manual]
FAN Ctrl OFF( C)
FAN Ctrl ON( C)
FAN Ctrl Start value
FAN Ctrl Sensitive
o
o
Version x.xx.xxxx. Copyright© 201x, American Megatrends, Inc.
Advanced
CPU FAN Smart control
function. [Disabled]: Full ON
[Auto]:By parameters below.
Select Screen
Select Item
Select
Change Opt.
General Help
Optimized Defaults
Save & Reset
Exit
Enter
+/-
F1
F3
F4
ESC
CPU Smart FAN
This item allows you to control the CPU Smart Fan function.
Options: Disabled (Default) / Auto
CPU FAN Calibrate
Press [ENTER] to calibrate CPU FAN.
Control Mode
This item provides several operation modes of the fan.
Options: Quiet / Aggressive / Manual

H61MGC/H61MLC UEFI BIOS Manual
13
Fan Ctrl OFF(℃)
When CPU temperature is lower than this value, the CPU fan will keep lo west RPM.
Optio ns: 10 (℃) (default)
Fan Ctrl On(℃)
When CPU temperature is higher than this value, the CPU fan controller will turn on.
Optio ns: 20 (℃) (Default)
Fan Ctrl Start Value
This item sets CPU FAN Start Speed Value.
Options: 50 (Default)
Fan Ctrl Sensitive
The bigger the numeral is, the higher the FAN speed is.
Options: 30 (Default)
Super IO Configuration
BIOS SETUP UTILIT
Y
Super IO Configuration
> Serial Port 1 Configuration
> Parallel Port Configuration
Super IO Chip
Restore AC Power Loss [Power Off]
Version x.xx.xxxx. Copyright© 201x, American Megatrends, Inc.
Advanced
Specify what state to go to
when power is re-applied
after a power failure.
Select Screen
Select Item
Select
Change Opt.
General Help
Optimized Defaults
Save & Reset
Exit
Enter
+/-
F1
F3
F4
ESC

H61MGC/H61MLC UEFI BIOS Manual
14
Restore AC Power Loss
This setting specifies how your system should behave after a power fail or interrupts
occurs. Power Off: Leaving the system in power-off status after power recovers.
Power O N: Po wering o n the s ys tem immed iat ely wh en po we r returns. Last S tat e: 1.
Leaving the system in power-off if the system shuts down at DC off status; 2.
Powering on the system immediately if the system shuts down at DC on status.
Options: Power Off (Default) / Power On / Last State
Serial Port 1 Configuration
BIOS SETUP UTILIT
Y
Serial Port 1 Configuration
Change Settings [Auto]
Serial Port [Enabled]
Device Settings
Version x.xx.xxxx. Copyright© 201x, American Megatrends, Inc.
Advanced
Enable or Disable Serial Port
(COM)
Select Screen
Select Item
Select
Change Opt.
General Help
Optimized Defaults
Save & Reset
Exit
Enter
+/-
F1
F3
F4
ESC
Serial Port
This item enables or d is ables S erial Port (COM).
Options: Enabled (Default) / Disabled
Change Settings
This item allows you to select an optimal setting for Super IO device.
Optio ns: Auto (Default) / IO=3F8h; IRQ=4 / IO=3F 8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11,
12 / IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12 / IO=3E8h; IRQ=3, 4, 5, 6,
7, 9, 10, 11, 12 / IO=2E8h; IRQ= 3, 4, 5, 6, 7, 9, 10, 11, 12

H61MGC/H61MLC UEFI BIOS Manual
15
Parallel Por t Configuration
BIOS SETUP UTILIT
Y
Parallel Port Configuration
Change Settings [Auto]
Device Mode [Standard Parall...]
Parallel Port [Enabled]
Device Settings
Version x.xx.xxxx. Copyright© 201x, American Megatrends, Inc.
Advanced
Enable or Disable Parallel
Port (LPT/LPTE)
Select Screen
Select Item
Select
Change Opt.
General Help
Optimized Defaults
Save & Reset
Exit
Enter
+/-
F1
F3
F4
ESC
Parallel Port
This item enables or dis ables Parallel Port (LPT/LPTE).
Options: Enabled (Default) / Disabled
Change Settings
This item allows you to select an optimal setting for Super IO device.
Optio ns: Auto (Default) / IO=378h; IRQ=5 / IO=378h; IRQ=5, 6, 7, 9, 10, 11, 12 /
IO=278h; IRQ=5, 6, 7, 9, 10, 11, 12 / IO=3BCh; IRQ=5, 6, 7, 9, 10, 11,
12
Device Mode
This item allows you to determine how the parallel port should function.
Options: Standard Parallel Port Mode (Default) (Using Parallel port as Standard
Printer Port) /
EPP Mode (Using Parallel Port as Enhanced Parallel Port) /
ECP Mode (Using Parallel port as Extended Capabilities Port) /
ECP Mode & EPP Mode (Using Parallel port as ECP & EPP mode)

H61MGC/H61MLC UEFI BIOS Manual
16
H/W Monitor
BIOS SETUP UTILIT
Y
PC Health Status
ShutDown Temperature [Disabled]
CPU temperature :
System temperature :
CPU Fan Speed :
System Fan1 Speed :
CPU Vcore :
DRAM Voltage :
Vcc SA :
IGD Voltage :
Vcc IO :
+12V :
+ 5V :
Version x.xx.xxxx. Copyright© 201x, American Megatrends, Inc.
Advanced
ShutDown Temperature
Select Screen
Select Item
Select
Change Opt.
General Help
Optimized Defaults
Save & Reset
Exit
Enter
+/-
F1
F3
F4
ESC
Shutdown Temperature
This item allows you to set up the CPU shutdown Temperature.
Options: Disabled (Default) / 70 /158 / 75 /167 / 80 /176 / 85 /185℃℉℃℉℃℉℃℉
/ 90 /194℃℉

H61MGC/H61MLC UEFI BIOS Manual
17
3 Chipset Menu
This section describes configuring the PCI bus system. PCI, or Personal Computer
Interconnect, is a system whic h allows I/O devices to operate at speeds nearing the
speed of the CPU itself uses when communicating with its own special components.
Notice
zBeware of that setting inappropriate values in items of this menu may cause
system to malfunction.
BIOS SETUP UTILIT
Y
> Onboard PCI-E Devices
> South Bridge
> North Bridge
Version x.xx.xxxx. Copyright© 201x, American Megatrends, Inc.
North Bridge Parameters
Main Advanced Chipset Boot Security Performance Save & Exit
Select Screen
Select Item
Select
Change Opt.
General Help
Optimized Defaults
Save & Reset
Exit
Enter
+/-
F1
F3
F4
ESC
North Bridge
BIOS SETUP UTILIT
Y
VT-d [Disabled]
Initate Graphic Adapter [PEG/IGD]
IGD Memory [64M]
Render Standby [Enabled]
IGD Multi-Monitor [Disabled]
DVMT Mode Select [DVMT Mode]
DVMT/FIXED Memory [256MB]
PCI Express Port [Auto]
PEG Force Gen1 [Disabled]
Detect Non-Compliance Device [Enabled]
Memory Information
Total Memory
DDR3_A1
DDR3_B1
Low MMIO Align [1024M]
Version x.xx.xxxx. Copyright© 201x, American Megatrends, Inc.
Low MMIO resources align at
64MB/1024MB
Chipset
Select Screen
Select Item
Select
Change Opt.
General Help
Optimized Defaults
Save & Reset
Exit
Enter
+/-
F1
F3
F4
ESC

H61MGC/H61MLC UEFI BIOS Manual
18
Low MMIO Align
Low MMIO resources align at 64MB/1024MB.
Options: 1024M (Default) / 64M
VT-d
This item enables/disables VT-d function.
Options: Disabled (Default) / Enabled
Initiate Graphic Adapter
This item allows you to select which graphics controller to use as the primary boot
device.
Options: PEG/PCI (Default) / IGD / PCI/IGD / PCI/PEG / PEG/IGD
IGD Memory
This item sets IGD Share Memory Size.
Options: 64M (Default) / Disabled / 32M / 128M / 160M / 192M / 224M / 256M /
288M / 320M / 352M / 384M / 416M / 448M / 480M / 512M
Render Standby
This item enables/disables Render Standby by Internal Graphics Device.
Options: Enabled (Default) / Disabled
IGD Multi-Monitor
This item enables/disables IGD Multi-Monitor by Internal Graphics Device.
Options: Disabled (Default) / Enabled
DVMT Mode Select
This item selects DVMT Mode used by Internal Graphics Device.
Options: DVMT Mode (Default) / Fixed Mode

H61MGC/H61MLC UEFI BIOS Manual
19
DVMT/FIXED Memory Size
DVMT stands for “Dynamic Video Memory Technology”. This is an enhancement
of the unified memory architecture (UMA) concept. DVMT will set the optimum
amount of memory to be allocated for a balance between graphics and system
performance. DVMT dynamically respond to system requirements and applications
demands, by allocating the proper amount of display, texturing and buffer memory
after the operating system has booted.
Options: 256MB (Default) / 128MB / Maximum
PCI Express Port
This item allows user to control PCI Express x16 Port.
Options: Auto (Default) / Disabled / Enabled
PEG Force GEN1
Some non-graphics PCI-E devices may not follow PCI-E Specification and may
incorrectly report their Gen capability or link width.
Options: Disabled (Default) / Enabled
Detect Non-Compliance Device
Detect Non-Compliance PCI Express Device in PEG.
Options: Enabled (Default) / Disabled
South Bridge Configuration
BIOS SETUP UTILIT
Y
Azalia internal HDMI codec [Enabled]
High Precision Timer [Enabled]
All USB 1.0/2.0 Devices [Enabled]
EHCI Controller 1 [Enabled]
EHCI Controller 2 [Enabled]
ME Version
Audio Configuration
High Precision Event Timer Configuration
USB Configuration
Azalia HD Audio [Enabled]
Version x.xx.xxxx. Copyright© 201x, American Megatrends, Inc.
Enabled/Disabled SMBus
Controller.
Chipset
Select Screen
Select Item
Select
Change Opt.
General Help
Optimized Defaults
Save & Reset
Exit
Enter
+/-
F1
F3
F4
ESC
