I945G-M7
1
CHAPTER 1: INTRODUCTION
1.1 MOTHERBOARD FEATURES
A. Hardware
CPU
Supports LGA 775.
Supports Intel Pentium 4 processor up to 3.8GHz.
Supports Intel Pentium D processor.
Front Side Bus at the following frequency ranges:
 533MT/s (133MHz Core Clock)
 800MT/s (200MHz Core Clock)
 1066MT/s (266MHz Core Clock)
Supports Hyper-Threading Technology. (HT)
Supports Execute Disable Bit Technology (XD).
Supports Enhanced Intel SpeedStep® Technology (EIST).
Supports Intel Extended Memory 64 Technology (Intel EM64T).
Chipset
North Bridge: Intel 945G.
South Bridge: Intel ICH7.
Dimensions
Micro ATX Form Factor: 24.45cm (W) x 24.4cm (L)
Operating System Supporting
Supports Windows 2000, and Windows XP.
Super I/O
Chip: ITE IT8712F.
Low Pin Count Interface.
Provides the most commonly used legacy Super I/O
functionality.
Environment Control initiatives,
 H/W Monitor
 Fan Speed Controller
 ITE's "Smart Guardian" function

I945G-M7
2
System Memory
Supports dual channel DDR2 up to 8 banks.
Supports DDR2 533 (266MHz) / 667 (333MHz) for a theoretical
maximum bandwidth of 10.7 GB/s.
Supports 256-Mb, 512-Mb, or 1G-Mb technologies for x8
and x16 devices.
Supports non-ECC DIMMs.
Maximum DRAM space is up to 4GB.
DIMM Socket
Location DDR Module Total Memory Size
DDR2_A1 128MB/256MB/512MB/1GB *1
DDR2_A2 128MB/256MB/512MB/1GB *1
DDR2_B1 128MB/256MB/512MB/1GB *1
DDR2_B2 128MB/256MB/512MB/1GB *1
Max is 4GB.
On Board IDE
One on-board connector supports 2 devices.
Supports PIO Mode 0~4
Supports Ultra DMA 33/66/100 Bus Master Mode.
On Board AC’97 Sound Codec
Chip: REALTEK ALC655.
Support 6 channels.
Supports S/PDIF-Out and S/PDIF-In (optional) functions.
Compliant withAC’97 Version 2.3 specification.
Expansion Slots
Two 32bit PCI bus master slots.
One PCI-Express x16 slot.
One PCI-Express x1 slot.
10/100 LAN
PHY: RTL8100C.
Supports 10 Mb/s and 100 Mb/s auto-negotiation.
Half/Full duplex capability.
SupportsACPI power management.

I945G-M7
3
Gigabit LAN (optional)
Chip: RTL8110S.
Half/Full duplex capability.
Supports 10 Mb/s, 100 Mb/s and 1Gb/s auto-negotiation.
SupportsACPI power management.
Serial ATA
Controller integrated in ICH7.
Supports 4 Serial ATA (SATA) devices.
-Compliant with SerialATA 2.0 specification.
-Data transfer rate up to 3GB/s.
Internal On-board I/O Connectors and Headers
1 IDE connector supports 2 hard disk devices.
1 front panel header supports front panel facilities.
1 CD-in connector supports 1 CD-ROM audio-in device.
1 front audio header supports front panel audio-out function.
1 S/PDIF-out connector supports digital audio-out function.
1 S/PDIF-in connector supports digital audio-in function.
(optional)
1 chassis open header supports PC case-opened warning
function.
1 Floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M
and 2.88Mbytes.
2 USB headers support 4 USB 2.0 ports.
4 Serial ATA connectors support 4 SATA devices.

I945G-M7
4
Back Panel I/O Connectors
1 Serial port.
1 Parallel port.
1 RJ-45 LAN jack.
1 PS/2 Mouse port.
1 PS/2 Keyboard port.
4 USB 2.0 ports.
1 vertical audio port including 1 line-in connector, 1 line-out
connector, and 1 MIC-in connector.
COM1
COM1
VGA1
Parallel
USB x2
LAN
USB x2
Line In/
Surround
Line Out
Mic In 1/
Base/Center
PS/2
Keyboard
PS/2
Mouse
B. BIOS & Software
BIOS
Award legal BIOS.
Supports APM1.2.
Supports ACPI
Supports USB Function.
Software
Supports Warpspeeder™, 9th Touch™, WINFLASHER™ and
FLASHER™.
1.2 PACKAGE CHECKLIST
FDD Cable X 1
HDD Cable X 1
User’s Manual X 1
SerialATA Cable X 1
Fully Setup Driver CD X 1
Rear I/O Panel for ATX Case X 1
USB 2.0 Cable X1 (optional)
S/PDIF Cable X 1 (optional)
SerialATA Power Switch Cable X 1 (optional)

I945G-M7
5

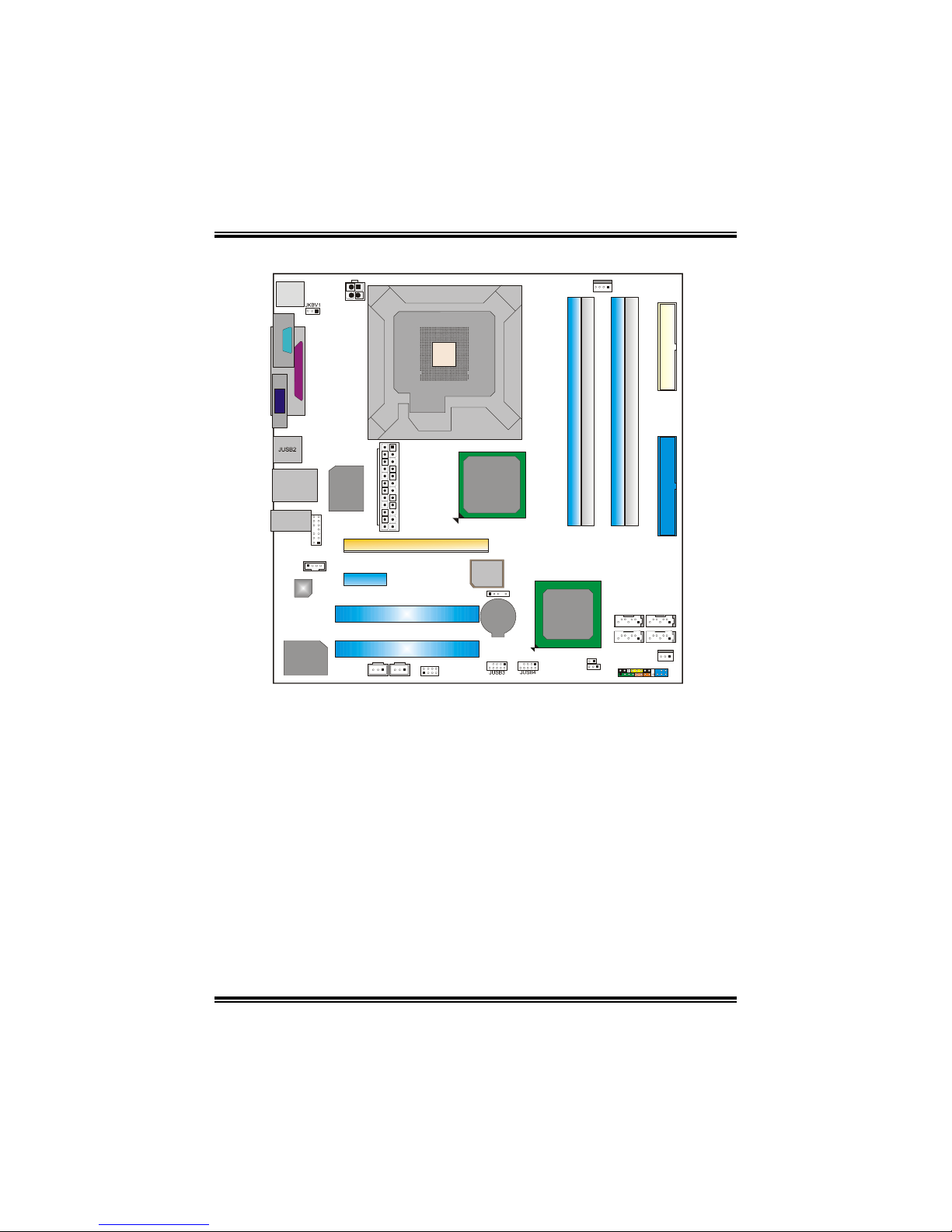

1.3 LAYOUT AND COMPONENTS
DDR2_A1
DDR2_A2
DDR2_B1
DDR2_B2
FDD1
PCI-EX1_1
PCI-EX16
PCI1
PCI2
JPANEL1
JATXPWR1
JCFAN1
JATXPWR2
JCI1
JCMOS1
SATA1
SATA3
SATA2
SATA4
Codec
JCDIN1
JSFAN1
LAN
BAT1
BIOS
Intel
ICH7
LGA775
CPU1
Intel
945G
JAUDIO2
Super
I/O
JKBMS1
JRJ45USB1
COM1
JCOM1
JVGA1
JAUDIO1
JPRNT1
JSPDIF_OUT1 JSPDIF_IN1
(optional)
IDE1
JDJ1
(optional)
J_CIR1
(optional)
Note: ■represents the 1st pin.

I945G-M7
6
Pin Cap
CHAPTER 2: HARDWARE INSTALLATION
2.1 INSTALLING CENTRAL PROCESSING UNIT (CPU)
CPU1
COM1

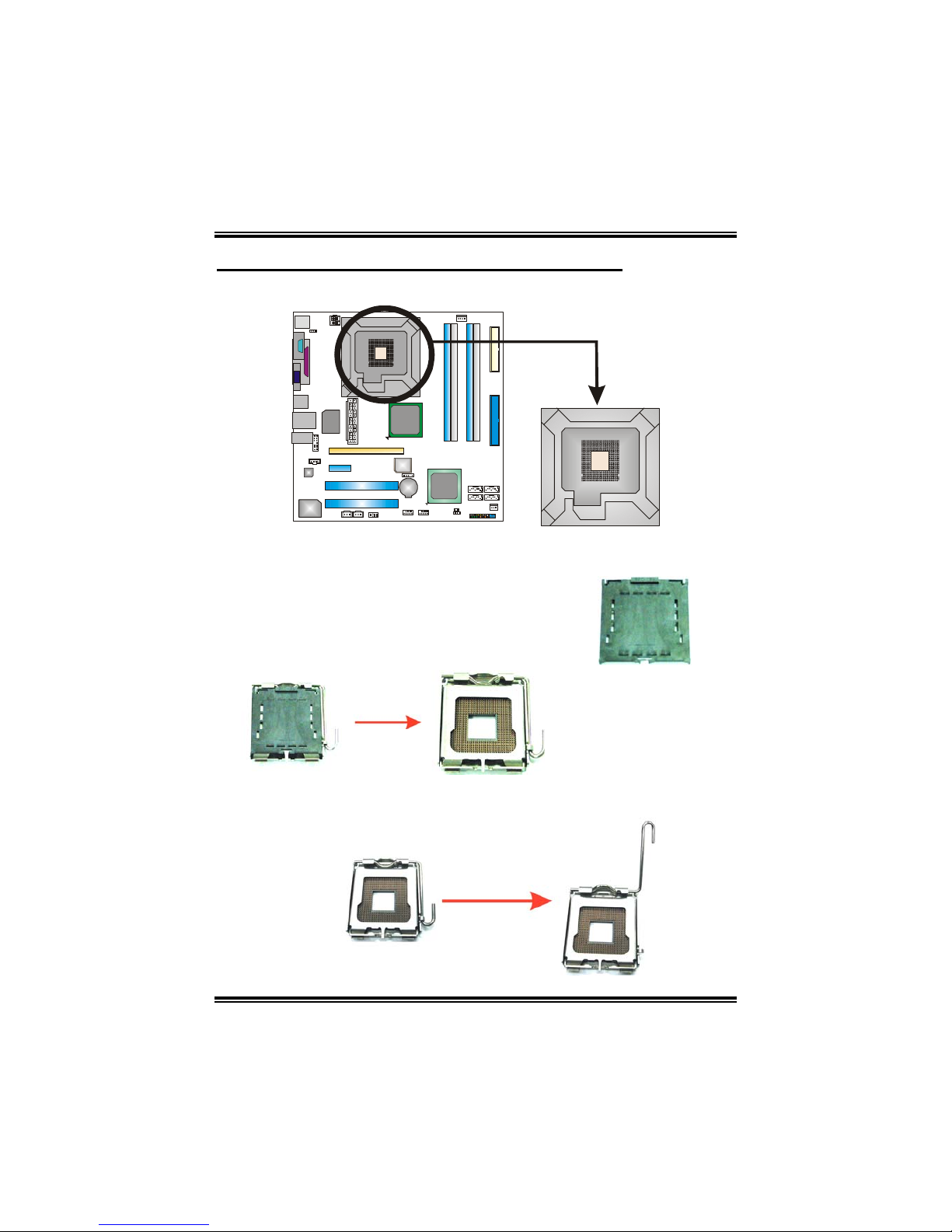

Step 1: Pull the lever sideways away from the socket and then raise the
lever up to a 90-degree angle.
Special Notice:
Remove Pin Cap before installation, and make
good preservation for future use. When the CPU
is removed, cover the Pin Cap on the empty
socket to ensure
p
in le
g
s won’t be dama
g
ed.

I945G-M7
7

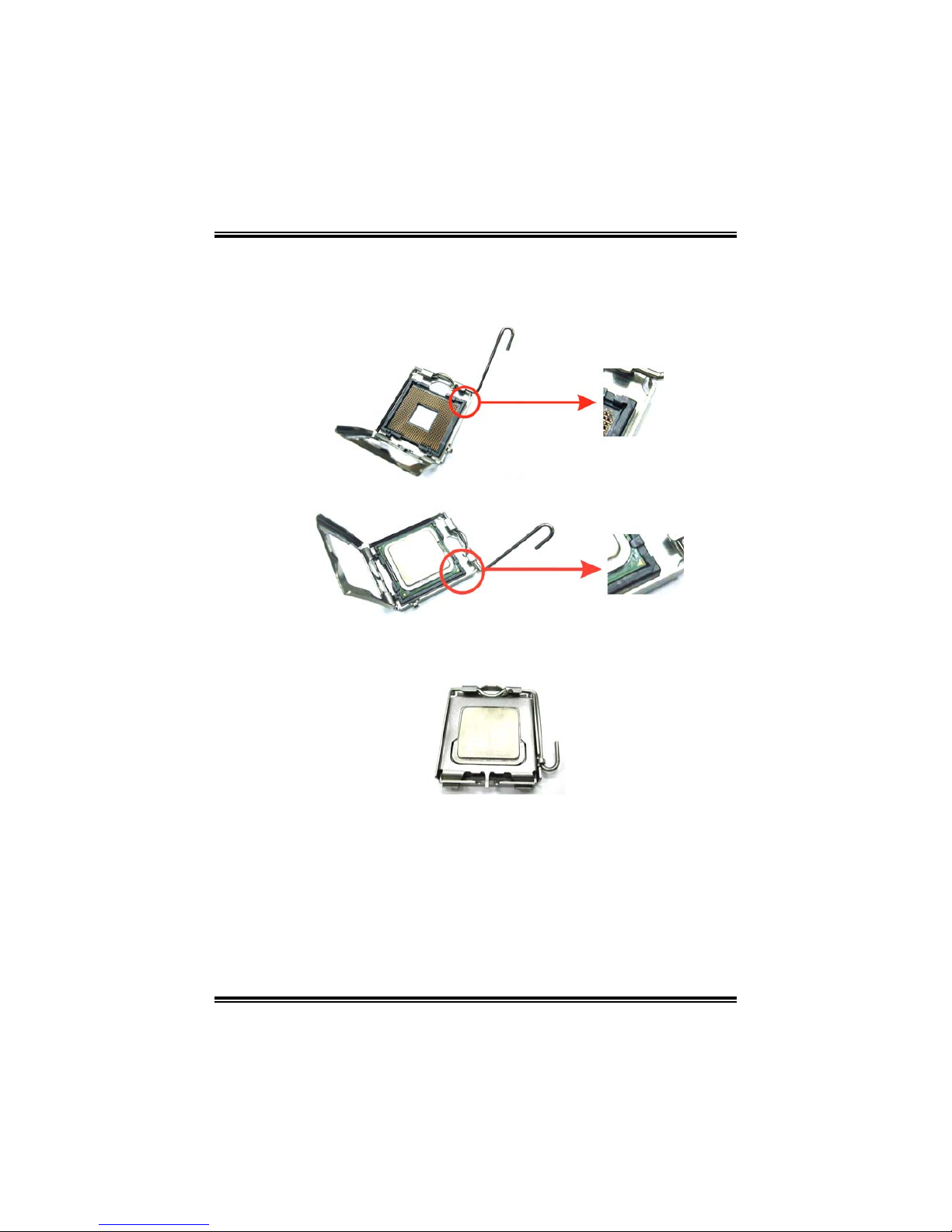

Step 2: Look for the black cut edge on socket, and the white dot on CPU
should point forwards this black cut edge. The CPU will fit only in
the correct orientation.
Step 2-1:
Step 2-2:
Step 3: Hold the CPU down firmly, and then close the lever to complete
the installation.
Step 4: Put the CPU Fan on the CPU and buckle it. Connect the CPU
FAN power cable to the JCFAN1. This completes the installation.

I945G-M7
8
2.2 FAN HEADERS

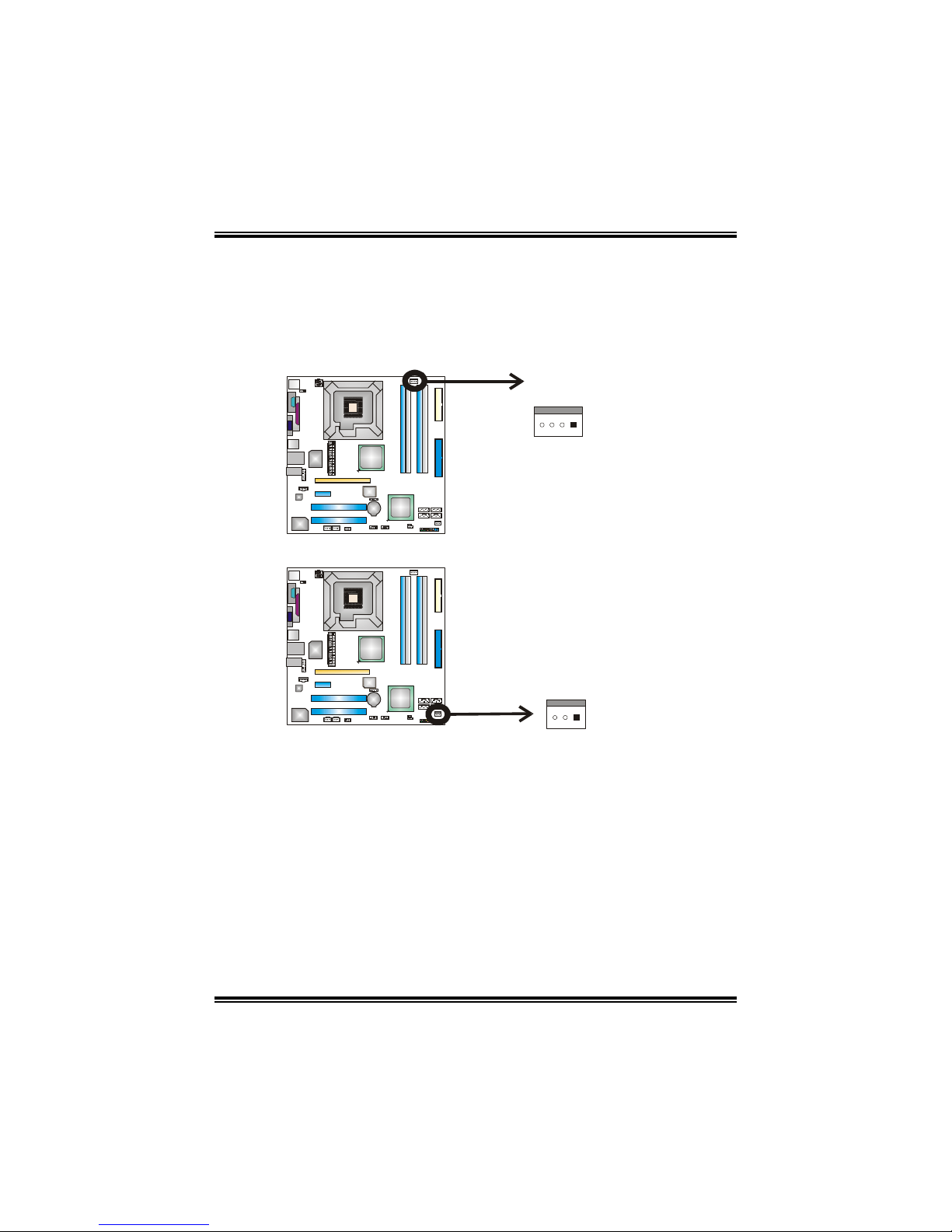

These fan headers support cooling-fans built in the computer. The fan
cable and connector may be different according to the fan manufacturer.
Connect the fan cable to the connector while matching the black wire to
pin#1.

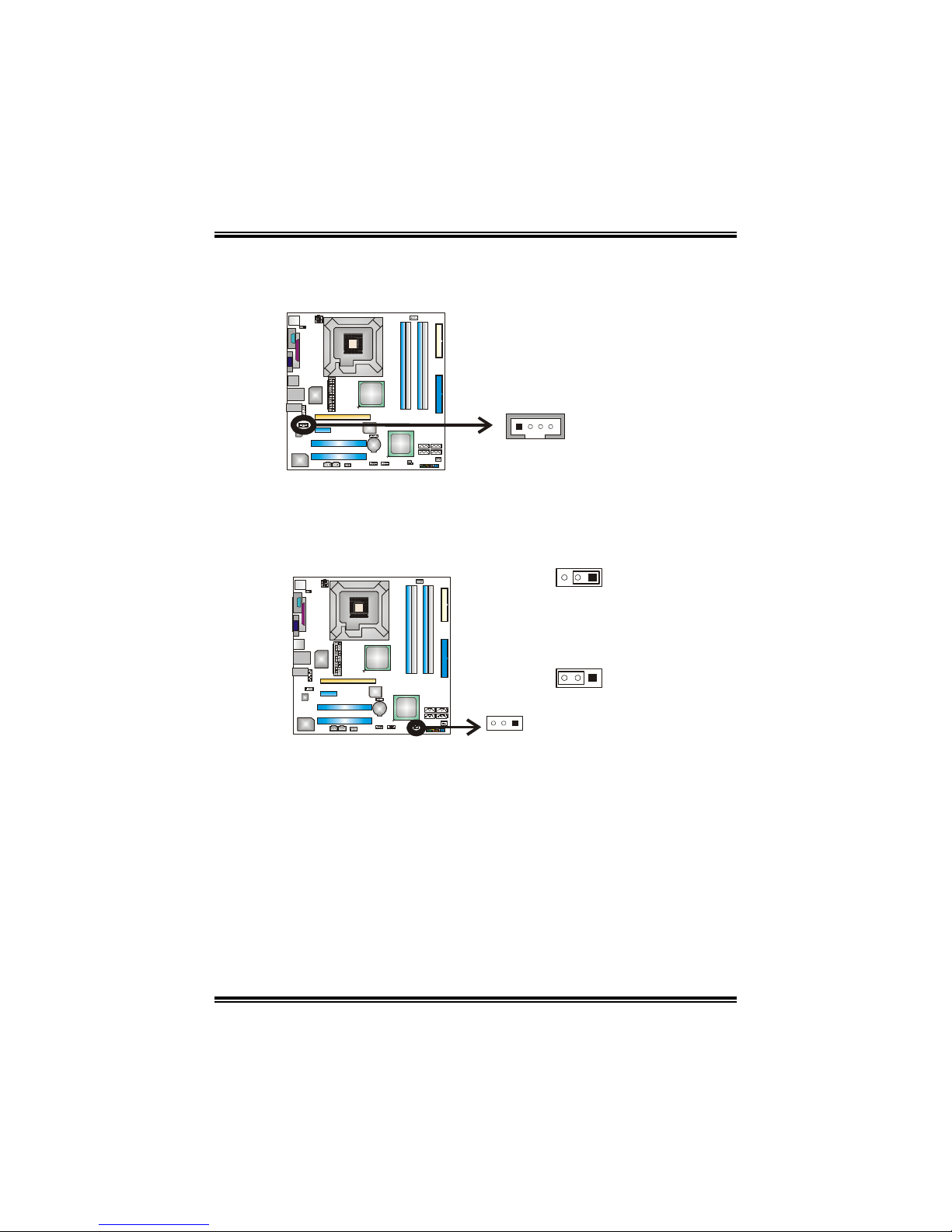

JCFAN1: CPU Fan Header
Pin Assignment
1 Ground
2 Power
3 FAN RPM rate
sense
41
JCFAN1
COM1
4 Smart Fan
Control
JSFAN1: System Fan Header
Pin Assignment
1 Ground
2 +12V
JSFAN1
31
COM1
3 FAN RPM rate
sense
Note:
The JCFAN1 and JSFAN1 support system cooling fan with Smart Fan Control utility. It
supports 4-pin and 3-pin head connector. When connecting with wires onto connectors,
please note that the red wire is the positive and should be connected to pin#2, and the
black wire is Ground and should be connected to GND.

I945G-M7
9
2.3 INSTALLING SYSTEM MEMORY
DDR2_A1
DDR2_A2
DDR2_B1
DDR2_B2
COM1
1. Unlock a DIMM slot by pressing the retaining clips outward.Align a
DIMM on the slot such that the notch on the DIMM matches the break
on the Slot.
2. Insert the DIMM vertically and firmly into the slot until the retaining
chip snap back in place and the DIMM is properly seated.

I945G-M7
10
2.4 CONNECTORS AND SLOTS

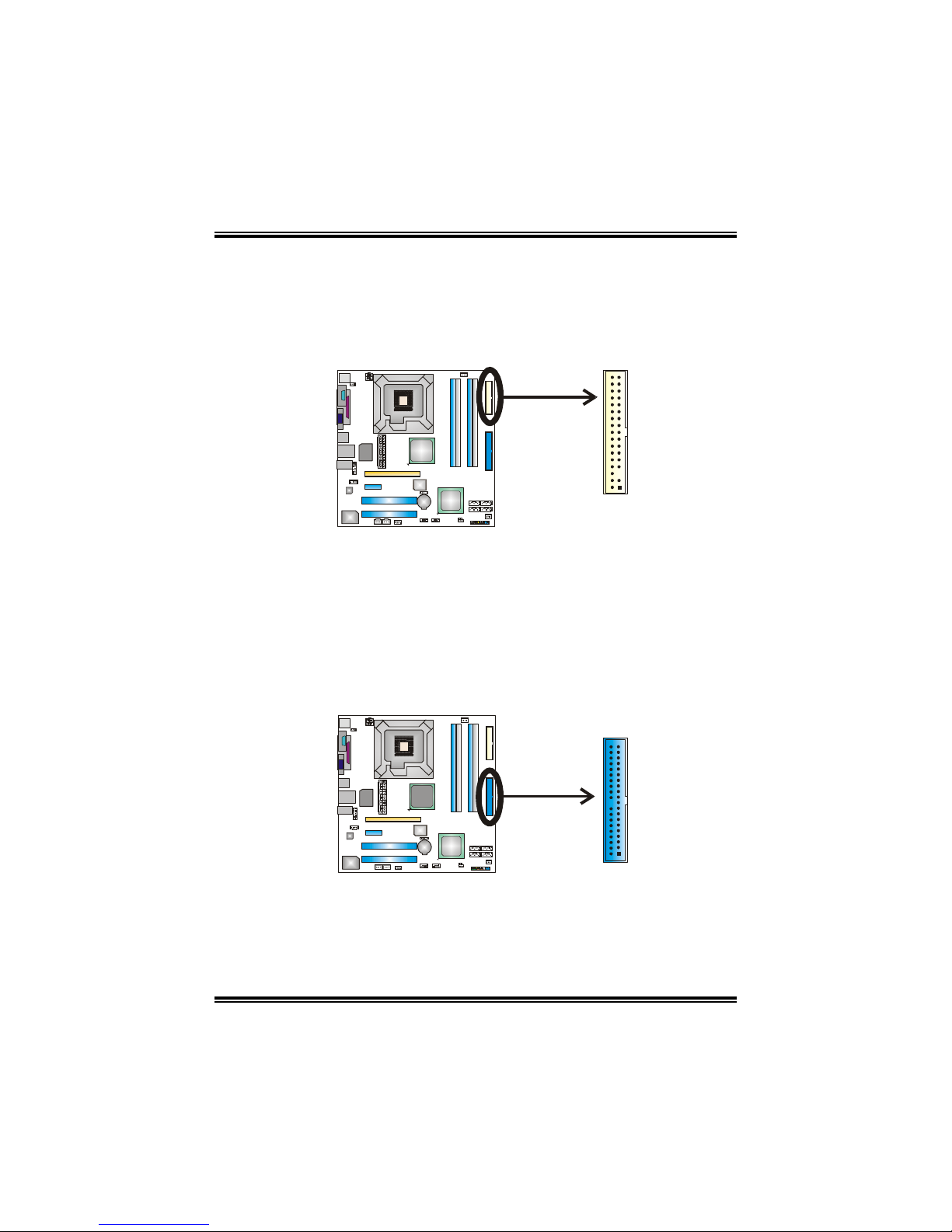

FDD1: Floppy Disk Connector
The motherboard provides a standard floppy disk connector that
supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types.
This connector supports the provided floppy drive ribbon cables.
12
34 33
COM
1
IDE1: Hard Disk Connector
The motherboard has a 32-bit Enhanced PCI IDE Controller that
provides PIO Mode 0~4, Bus Master, and Ultra DMA 33/66/100
functionality.
The IDE connectors can connect a master and a slave drive, so you
can connect up to two hard disk drives. The first hard drive should
always be connected to IDE1.
COM1
12
40 39

I945G-M7
11
PCI1~PCI2: Peripheral Component Interconnect Slots
This motherboard is equipped with 2 standard PCI slots. PCI stands
for Peripheral Component Interconnect, and it is a bus standard for
expansion cards. This PCI slot is designated as 32 bits.
PCI2
PCI1
COM1
PCI-EX16: PCI-Express x16 Slot
-PCI-Express 1.0a compliant.
-Maximum theoretical realized bandwidth of 4GB/s
simultaneously per direction, for an aggregate of 8GB/s
totally.
PCI-EX1_1: PCI-Express x1 slot
-PCI-Express 1.0a compliant.
-Data transfer bandwidth up to 250MB/s per direction;
500MB/s in total.
-PCI-Express supports a raw bit-rate of 2.5Gb/s on the data
pins.
-2X bandwidth over the traditional PCI architecture.
PCI-EX16
PCI-EX1_1
COM1

I945G-M7
12
CHAPTER 3: HEADERS & JUMPERS SETUP
3.1 HOW TO SETUP JUMPERS

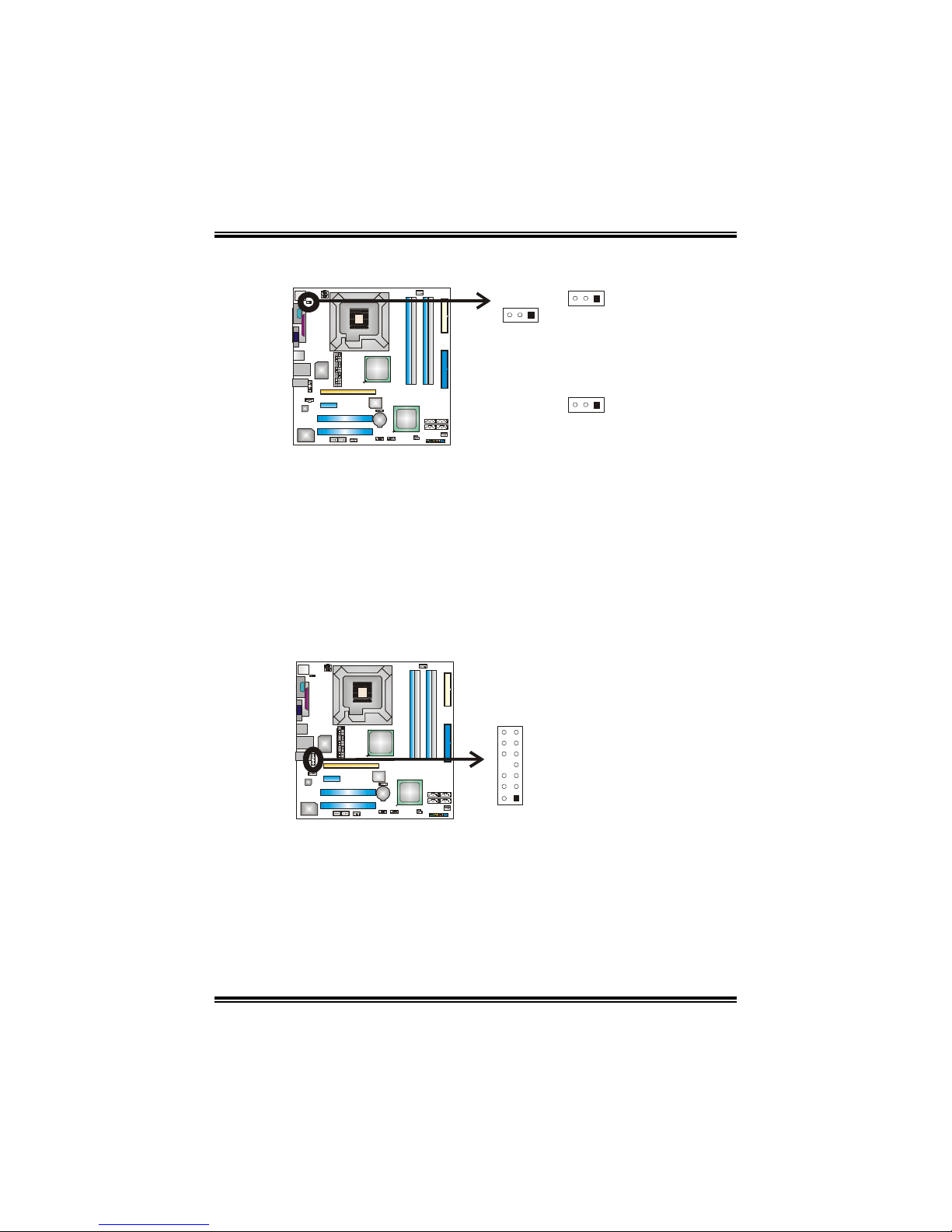

The illustration shows how to set up jumpers. When the jumper cap is
placed on pins, the jumper is “close”, if not, that means the jumper is
“open”.
Pin opened Pin closed Pin1-2 closed
3.2 DETAIL SETTINGS
JATXPWR1: ATX Power Connector
This connector allows user to connect 24-pin power connector on the ATX
power supply. Pin Assignment
1 +3.3V
2 +3.3V
3 Ground
4 +5V
5 Ground
6 +5V
7 Ground
8 PW_OK
9 Standby Voltage
+5V
10 +12V
11 +12V
12 2 x 12 Detect
13 +3.3V
14 -12V
15 Ground
16 PS_ON
17 Ground
18 Ground
19 Ground
20 -5V
21 +5V
22 +5V
23 +5V
13 1
24 12
COM1
24 Ground

I945G-M7
13
JATXPWR2: ATX Power Connector
By connecting this connector, it will provide +12V to CPU power circuit.
Pin
Assignment
1 +12V
2 +12V
3 Ground
COM
1
1
3
2
4
4 Ground
SATA1~SATA4: Serial ATA Connectors
The motherboard has a PCI to SATA Controller with 4 channels SATA interface,
it satisfies the SATA 2.0 spec and with transfer rate of 3Gb/s.
Pin Assignment
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
SATA4
SATA1SATA2
SATA3
174
CO
M1
7 Ground

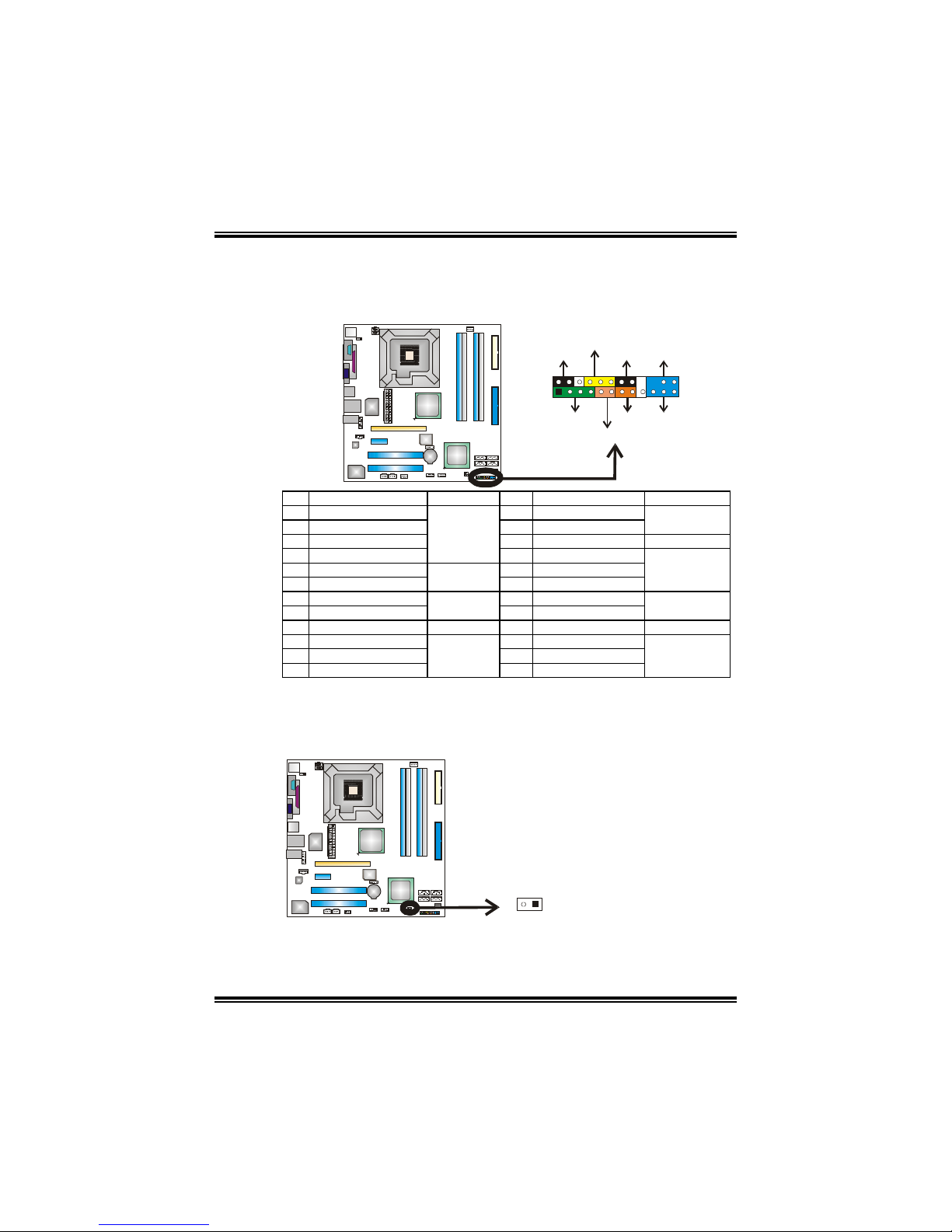

JUSB3/JUSB4: Front USB Headers
This motherboard provides 2 USB 2.0 headers, which allows user to connect
additional USB cable on the PC front panel, and also can be connected with
internal USB devices, like USB card reader.
Pin Assignment
1 +5V (fused)
2 +5V (fused)
3 USB-
4 USB-
5 USB+
6 USB+
7 Ground
8 Ground
9 Key
COM1
10
9
2
1
JUSB4JUSB3
10 NC

I945G-M7
14
JKBV1: Power Source Header for PS/2 Keyboard and Mouse
13
Pin 1-2 Close
+5V for PS/2 keyboard and
mouse.
COM1
13
13
Pin 2-3 close
PS/2 keyboard and mouse are
powered by +5V standby
voltage.
Note:
In order to support this function “Power-on system via keyboard and mouse”, “JKBV1”
jumper cap should be placed on Pin 2-3.
JAUDIO2: Front Panel Audio Header
This header allows user to connect the front audio out put cable with the PC
front panel. It will disable the output on back panel audio connectors.
Pin Assignment
1 Mic in/center
2 Ground
3 Mic power/Bass
4 Audio power
5 Right line out/Speaker
out Right
6 Right line out/Speaker
out Right
7 Reserved
8 Key
9 Left line out/Speaker out
Left
10 Left line out/Speaker out
Left
11 Right line in/Rear
speaker Right
12 Right line in/Rear
speaker Right
13 Left line in/Rear speaker
Left
1
13
2
14
COM1
14 Left line in/Rear speaker
Left

I945G-M7
15
JPANEL1: Front Panel Header
This 24-pin connector includes Power-on, Reset, HDD LED, Power LED, Sleep
button, speaker and IrDA Connection. It allows user to connect the PC case’s
front panel switch functions.
123
24
SLP PWR_LED
On/Off IR
IR
RST
HLED
SPK
++
+
2
-
-
COM1
Pin Assignment Function Pin Assignment Function
1 +5V 2 Sleep control
3 N/A 4 Ground
Sleep button
5 N/A 6 N/A N/A
7 Speaker
Speaker
Connector 8 Power LED (+)
9 HDD LED (+) 10 Power LED (+)
11 HDD LED (-) Hard drive
LED 12 Power LED (-) Power LED
13 Ground 14 Power button
15 Reset control Reset button 16 Ground Power-on button
17 N/A 18 Key
19 N/A 20 Key
21 +5V 22 Ground
23 IRTX
IrDA
Connector 24 IRRX IrDA Connector
JCI1: Chassis Open Header
This connector allows system to monitor PC case open status. If the signal has
been triggered, it will record to the CMOS and show the message on next
boot-up.
Pin
Assignment
1 Case open signal
COM1
21
2 Ground

I945G-M7
16
JCDIN1: CD-ROM Audio-in Connector
This connector allows user to connect the audio source from the variety devices,
like CD-ROM, DVD-ROM, PCI sound card, PCI TV turner card etc..
Pin Assignment
1 Left channel input l
2 Ground
3 Ground
14
COM1
4
Right channel input
JCMOS1: Clear CMOS Header
By placing the jumper on pin2-3, it allows user to restore the BIOS safe setting
and the CMOS data, please carefully follow the procedures to avoid damaging
the motherboard.
31
Pin 1-2 Close:
Normal Operation (default).
13
COM1
31
Pin 2-3 Close:
Clear CMOS data.
※Clear CMOS Procedures:
1. Remove AC power line.
2. Set the jumper to “Pin 2-3 close”.
3. Wait for five seconds.
4. Set the jumper to “Pin 1-2 close”.
5. Power on the AC.
6. Reset your desired password or clear the CMOS data.

I945G-M7
17
JSPDIF_OUT1: Digital Audio-out Connector
This connector allows user to connect the PCI bracket SPDIF output header.
Pin
Assignment
1 +5V
2 SPDIF_OUT
COM1
13
3 Ground
JSPDIF_IN1 (optional): Digital Audio-in Connector
This connector allows user to connect the PCI bracket SPDIF input header.
Pin Assignment
1 +5V
2 SPDIF_IN
COM1
13
3 Ground
JDJ1: AUDIO DJ Connector (optional)
Pin Assignment
1 SMBDATA
2 SMBCLK
3 INT_B
4 Key
1
COM1
35
5 AXT_PWROK

I945G-M7
18
CHAPTER 4: USEFUL HELP

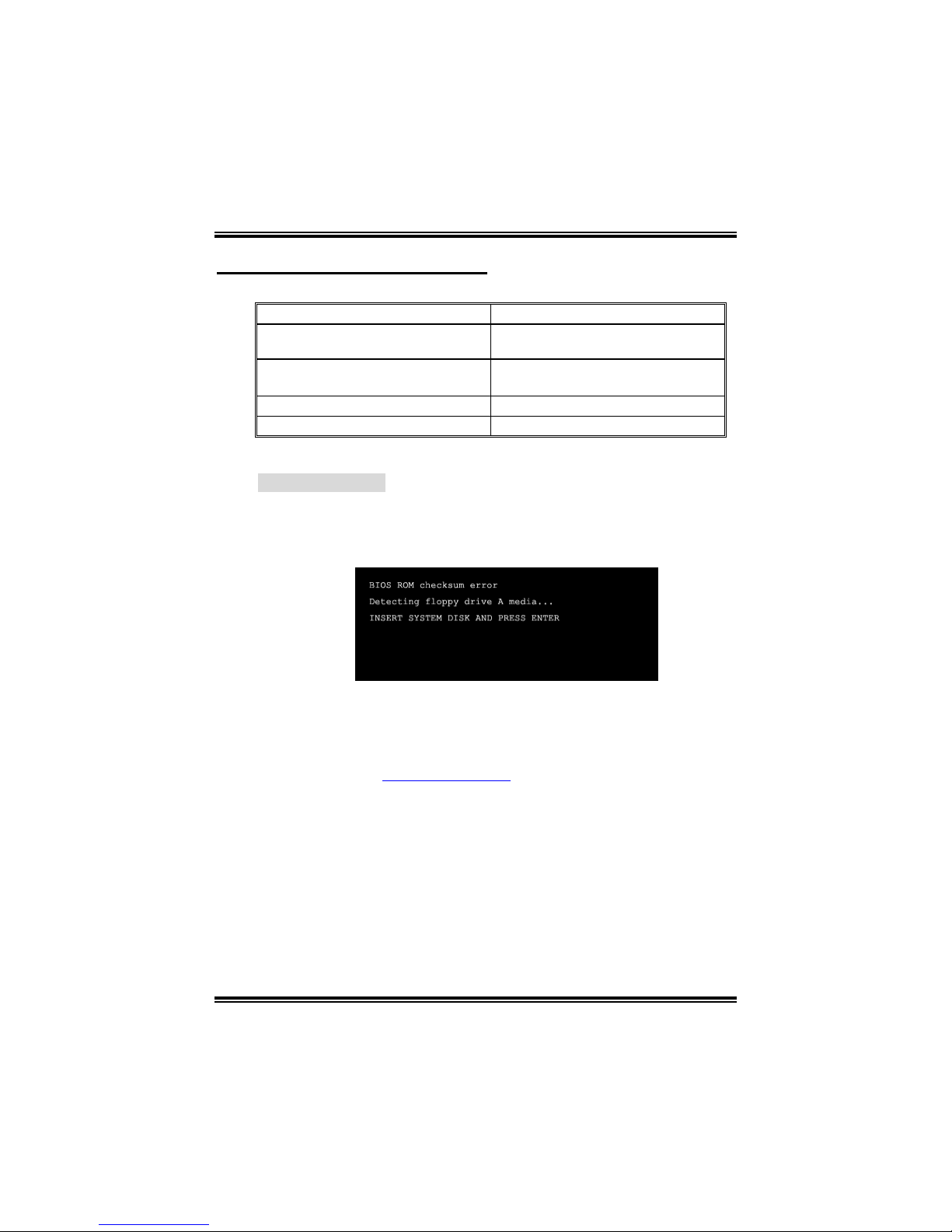

4.1 AWARD BIOS BEEP CODE
Beep Sound Meaning
One long beep followed by two short
beeps Video card not found or video card memory bad
High-low siren sound CPU overheated
System will shut down automatically
One Short beep when system boot-up No error found during POST
Long beeps every other second No DRAM detected or install
4.2 EXTRA INFORMATION
A. BIOS Update
After you fail to update BIOS or BIOS is invaded by virus, the
Boot-Block function will help to restore BIOS. If the following message
is shown after boot-up the system, it means the BIOS contents are
corrupted.
In this Case, please follow the procedure below to restore the BIOS:
1. Make a bootable floppy disk.
2. Download the Flash Utility “AWDFLASH.exe” from the Biostar
website: www.biostar.com.tw
3. Confirm motherboard model and download the respectively
BIOS from Biostar website.
4. Copy “AWDFLASH.exe” and respectively BIOS into floppy disk.
5. Insert the bootable disk into floppy drive and press Enter.
6. System will boo-up to DOS prompt.
7. Type “Awdflash xxxx.bf/sn/py/r” in DOS prompt.
8. System will update BIOS automatically and restart.
9. The BIOS has been recovered and will work properly.
