P4TGE Features
 Use Intel 845GE/ ICH4 Chipset, Winbond W83627, 1394A Chip, SATA/
RAID Chip (Optional).
 Contains on board I/O facilities, which include one serial port, one VGA port,
a parallel port, a PS/2 mouse port, a PS/2 keyboard port, audio ports, USB
ports and a game port .
 Supports the Intel Pentium 4®(Socket 478) processor up to 3.06GHz.
 Supports Intel Pentium 4 processor with Hyper-Threading.
 Supports Ultra 100/66/33, BMIDE and PIO modes.
 Supports 2 DDR266/333 MHz devices, running at 400/533 MHz Front Side
Bus frequency.
 Supports five 32-bit PCI Bus slots, one AGP Slot, and one CNR Slot (Type
A only) .
(If the function CODEC is onboard, then the CNR slot only supports
slave card. But if the H/W Audio is onboard, then the CNR slot
supports only primary card.)
 Supports USB1.1 and USB2.0.
 Complies with PC ATX form factor specifications.
 Supports popular operating systems such as Windows 98, Windows NT,
Windows 2000, Windows ME, Windows XP, LINUX and SCO UNIX.
 DIMM Power Selection by BIOS setup to adjust DDR DIMM voltage. (If you
meet the DDR DIMM compatible program, try to adjust the DDR Voltage to
fix the compatible program.)
 Intel®AC’97 2.2 compatible.
 High S/N ratio meets PC 99 requirements.
 6CH Audio Codec, applicable for leading motherboard chipsets.

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
2
 Supports SPDIF-Out function.
 Line-in phone-jack share with rear out .
 Mic-in phone-jack share with Bass and Center.
 CMI 8738 Hardware Audio Features (Optional):
 6CH DAC for AC3® 5.1CH purpose.
 HRTF-based 3D positional audio, supporting DirectSound™ 3D and
A3D™ interface.
 Supports 4.1/5.1 speakers, C3DX positional audio in 4/ 6 CH
speaker mode.
 Serial ATA-Raid Features (Optional):
 Single chip, high performance SATA-RAID implementation.
 Built in 2 channels SATA PHY, which satisfy SATA 1.0 specification
and can transfer data with 1.5GHz speed.
 Additional one parallel ATA interface which satisfy ATA 133
specification.
 Bus mastering design takes full advantage of multi-tasking,
multi-threading operating systems and greatly improves
performance.
 Provides advance chained packet commands for independent ATA
operations.
 Compatible with the latest PCI IDE, ATA 7 and enhanced IDE
specifications.
 Supports ATA proprosal PIO Mode 0, 1, 2, 3, 4, Ultra DMA Mode 0,
1, 2, 3, 4, 5, 6. The IDE drive transfer rate is capable of up to 150
MB/sec.
 Automatically detects whether or not the cable is suitable for mode
3, 4, 5, 6 of Ultra DMA.
 Compliance with the PC2000, WHQL hardware requirements.

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
3
Package contents
 HDD Cable X 1
 FDD Cable X 1
 Fully Setup Driver CD X 1
 USB Cable X 2 (Optional)
 IEEE1394 Cable X1 (Optional)
 Serial ATA Cable X1 (Optional)
 SPDIF OUT Cable X1 (Optional).

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
4

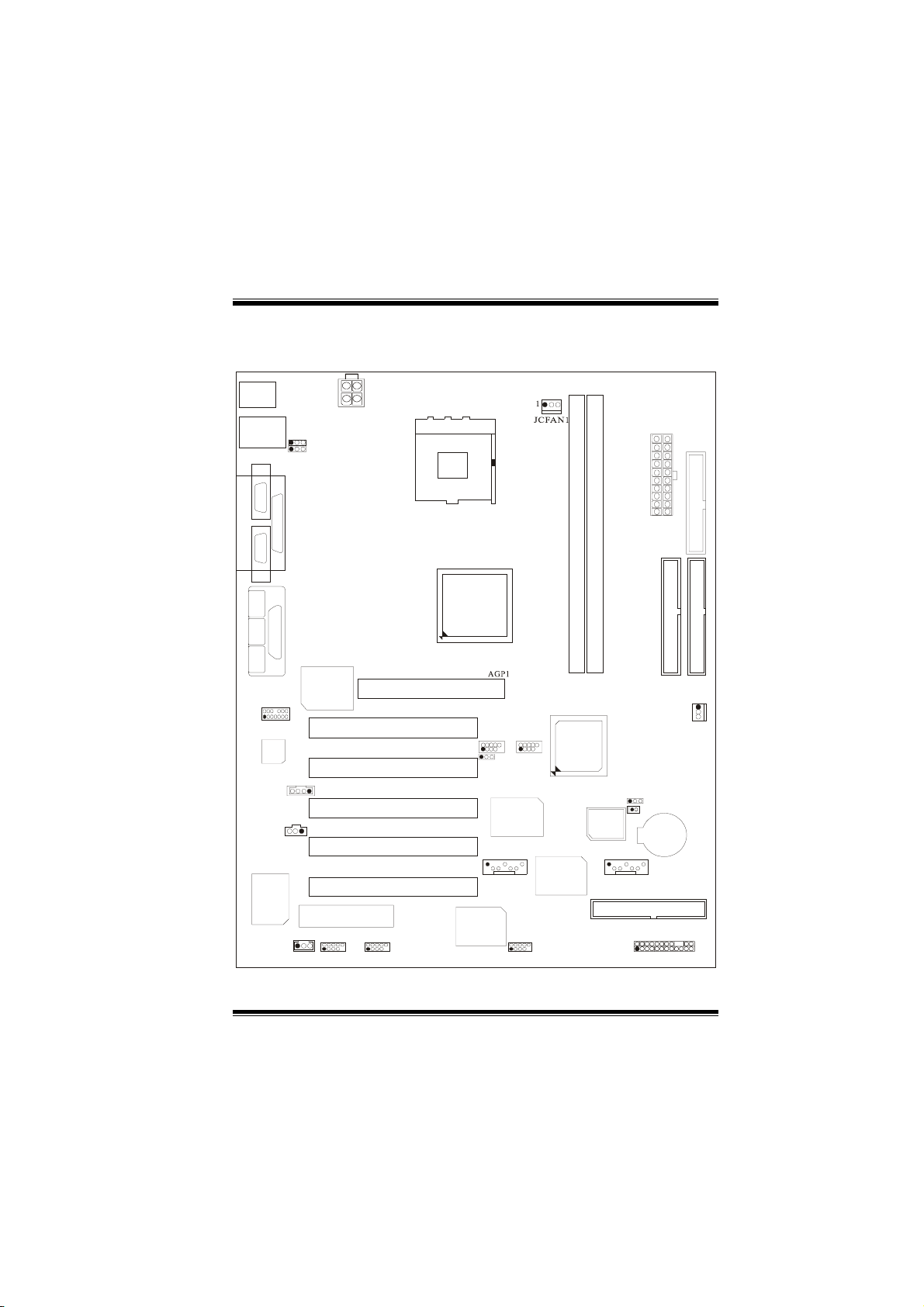

Layout of P4TGE
JKBMS1
KB
&
Mouse
JUSBLAN1
USB & LAN
JCOM1
JPRNT1
JCOM2
Parallel Port
Speaker Out
Line-In
MIC-In
Game Port
JGAME1
JVGA1
COM1VGA1
JKBV1
JUSBV1
1
1
INTEL
845GE
CPU
Socket 478
CPU1
JATXPWR2
DDR1
DDR2
JATXPWR1
FDD1
JGAME1
IDE1IDE2
AGP SLOT
PCI1
PCI2
PCI SLOT
PCI SLOT
PCI SLOT
PCI4
PCI SLOT
PCI SLOT
PCI5
PCI3
LAN Chip
JAUDIO1
1
213
14
Codec
JPANEL1
1
2
23
24
JCDIN1
Hardware
Audio
CNR SLOT
CNR1
1
2
9
10
1
2
9
10
1
2
9
10
1
J1394A1
J1394B1 J1394C1
JWOL1
1
JUSB4
2
9
10
1
JUSB3
2
91
10
1394
CHIP
RAID1
BAT1
ICH4
JSFAN11
JCMOS1
1
Serial
ATA
Controller
JSATA2
JSATA1
BIOS
JCL1
1
17
23
4
56
17
23
4
56
Winbond
I/O
JSPDIF_OUT 1
JUSBV3_4
1
Primary IDE Conn.
Secondary IDE Conn.
Floppy Disk Conn.

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
5
CPU Installation
1. Pull the lever sideways away from the socket then raise the lever up
to 90-degree angle.
2. Locate Pin A in the socket and lock for the white dot or cut edge in
the CPU. Match Pin A with the white dot/cut edge then insert the
CPU.
3. Press the lever down. Then Put the fan on the CPU and buckle it
and put the fan’s power port into the JCFAN1, then to complete the
installation.
CPU/ System Fan Headers: JCFAN1/ JSFAN1
CPU
JCFAN1
1
Ground
12V
Sense
JSFAN1
Ground
12V
Sense
1

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
6
DDR DIMM Modules: DDR1-2
Supports DDR200/266/333 unregistered 184-pin non-ECC DDR
SDRAM DIMMs. Does not support double-size x16 DDR DIMMs.
DRAM Type: 64MB/ 128MB/ 256MB/ 512MB/ 1GB DIMM Module (184
pin)
DIMM Socket
Location DDR Module Total Memory Size (MB)
DDR 1 64MB/128MB/256MB/512MB/1GB
*1
DDR 2 64MB/128MB/256MB/512MB/1GB
*1
Max is
2GB
* The list shown above for DRAM configuration is only for reference.
 If use FSB 400MHz CPU, the memory run only at DDR200/266.
 If use FSB 533MHz CPU, the memory run only at DDR266/333.

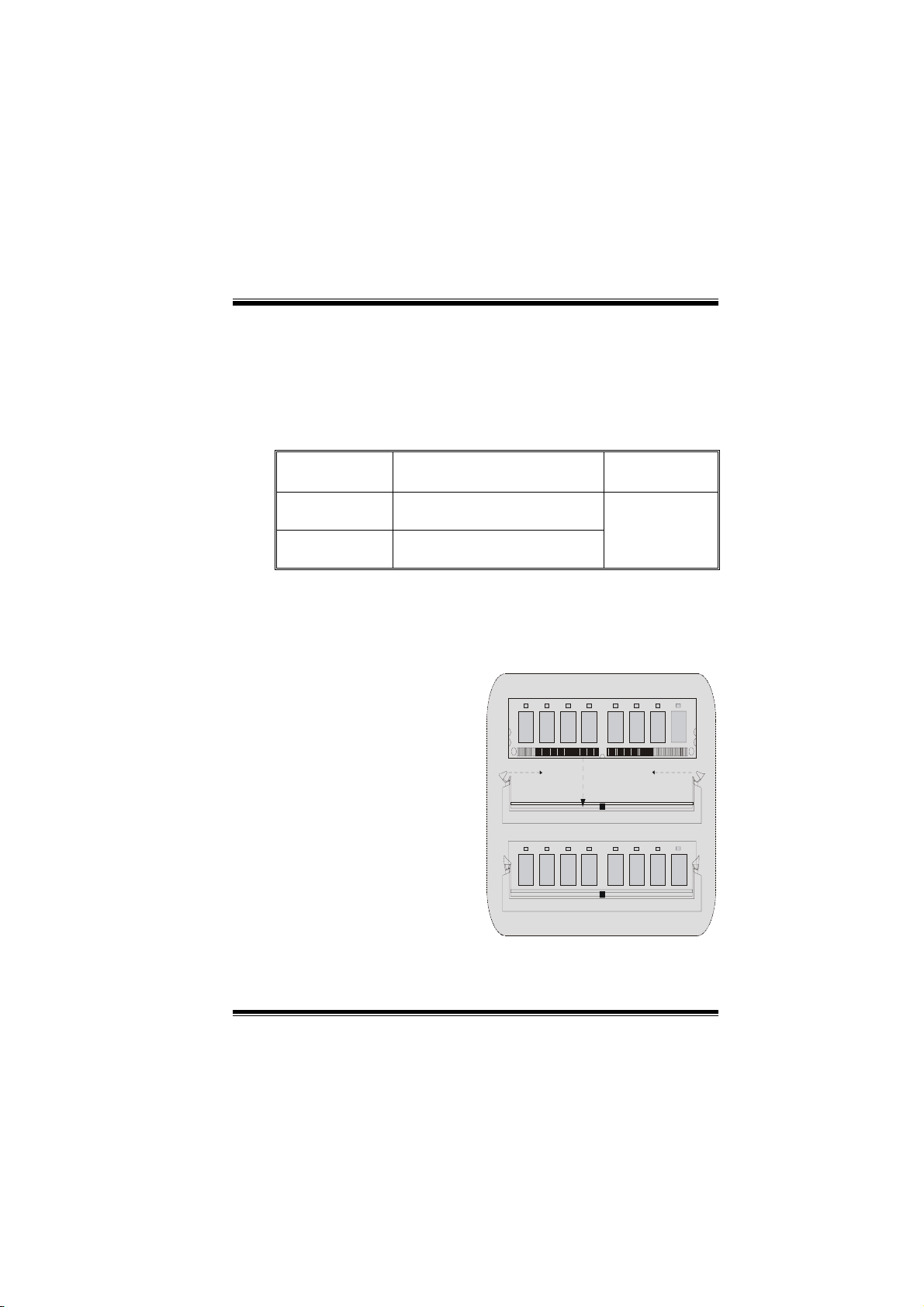

How to install a DIMM Module
1. The DIMM socket has a
“Plastic Safety Tab”, and the
DIMM memory module has an
“Asymmetrical notch”, so the
DIMM memory module can only
fit into the slot in one direction.
2. Push the tabs out. Insert the
DIMM memory modules into the
socket at a 90-degree angle, then
push down vertically so that it will
fit into the place.
3. The Mounting Holes and plastic
tabs should fit over the edge and
hold the DIMM memory modules
in place.

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
7

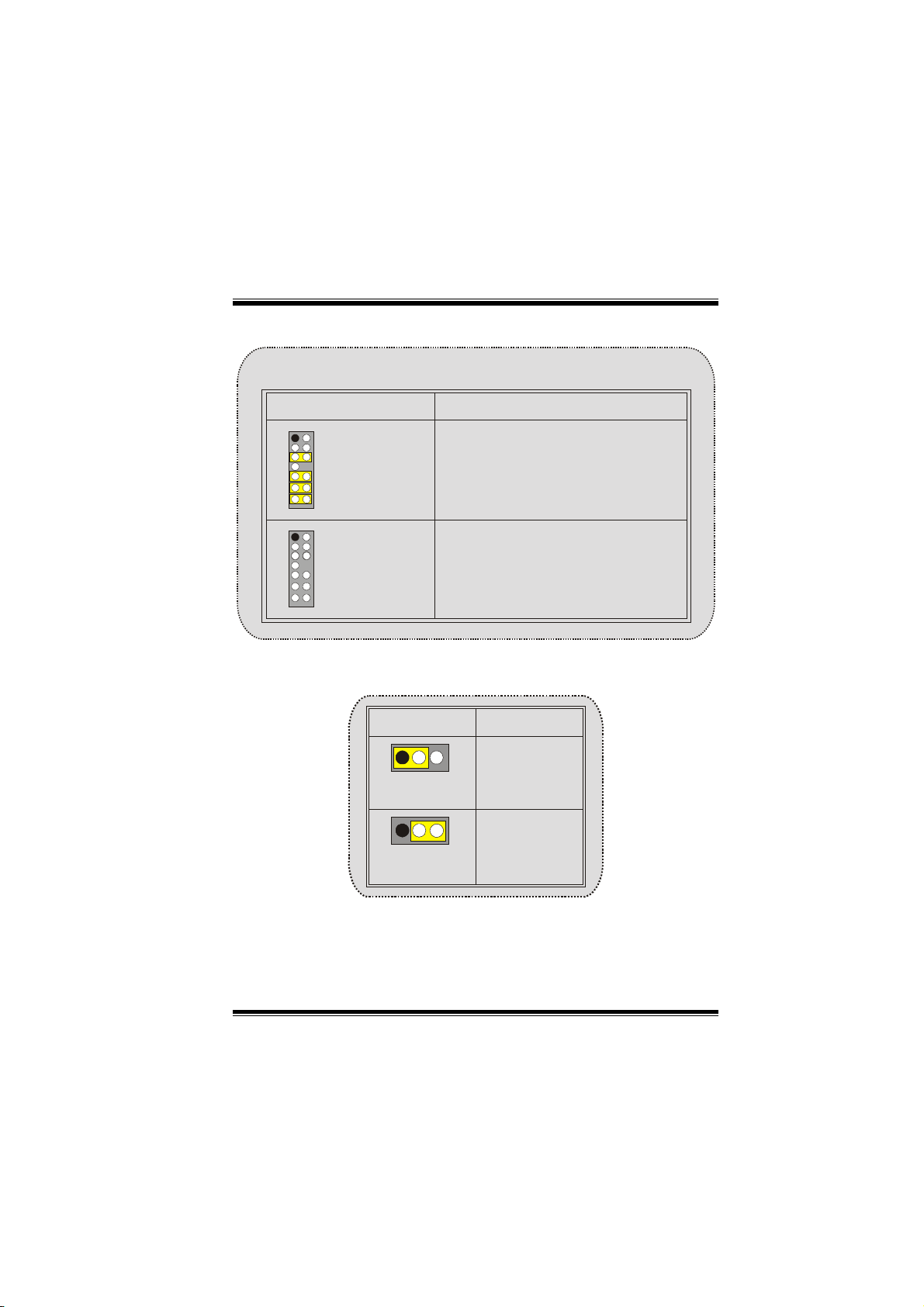

Jumpers, Headers, Connectors & Slots
Hard Disk Connectors: IDE1/ IDE2
The motherboard has a 32-bit Enhanced PCI IDE Controller that
provides PIO Mode 0~4, Bus Master, and Ultra DMA / 33/ 66/ 100
functionality. It has two HDD connectors IDE1 (primary) and IDE2
(secondary).
The IDE connectors can connect a master and a slave drive, so you can
connect up to four hard disk drives. The first hard drive should always be
connected to IDE1.
Serial ATA Connector: (JSATA1/ JSATA2) (Optional)
The motherboard has a PCI to SATA Controller with 2 channels SATA
interface, it satisfies the SATA 1.0 spec and can transfer data with
1.5GHz speed. For more details, please refer to the next chapter
(FastTrak 376).
Raid Connector: RAID1 (Optional)
This connector supports RAID0 or RAID1 configuration through the
onboard Serial ATA (FastTrak 376) controller chip. You can use the
IDE feature to set up a disk array configuration and to support additional
IDE devices. However, it can only support master mode IDE HDD.
Floppy Disk Connector: FDD1
The motherboard provides a standard floppy disk connector that
supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This
connector supports the provided floppy drive ribbon cables.
Communication Network Riser Slot: CNR1
The CNR specification is an open Industry Standard Architecture, and it
defines a hardware scalable riser card interface, which supports audio,
network and modem only (slave card only) .
(If the function CODEC is onboard, then the CNR slot only support
slave card. But if the H/W Audio is onboard, then the CNR slot
support only primary card.)

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
8
Accelerated Graphics Port Slot: AGP1
Your monitor will attach directly to that video card. This motherboard
supports video cards for PCI slots, but it is also equipped with an
Accelerated Graphics Port (AGP). An AGP card will take advantage of
AGP technology for improved video efficiency and performance,
especially with 3D graphics.
Peripheral Component Interconnect Slots: PCI1-5
This motherboard is equipped with 5 standard PCI slots. PCI stands for
Peripheral Component Interconnect, and it is a bus standard for
expansion cards, which has, supplanted the older ISA bus standard in
most ports. This PCI slot is designated as 32 bits.

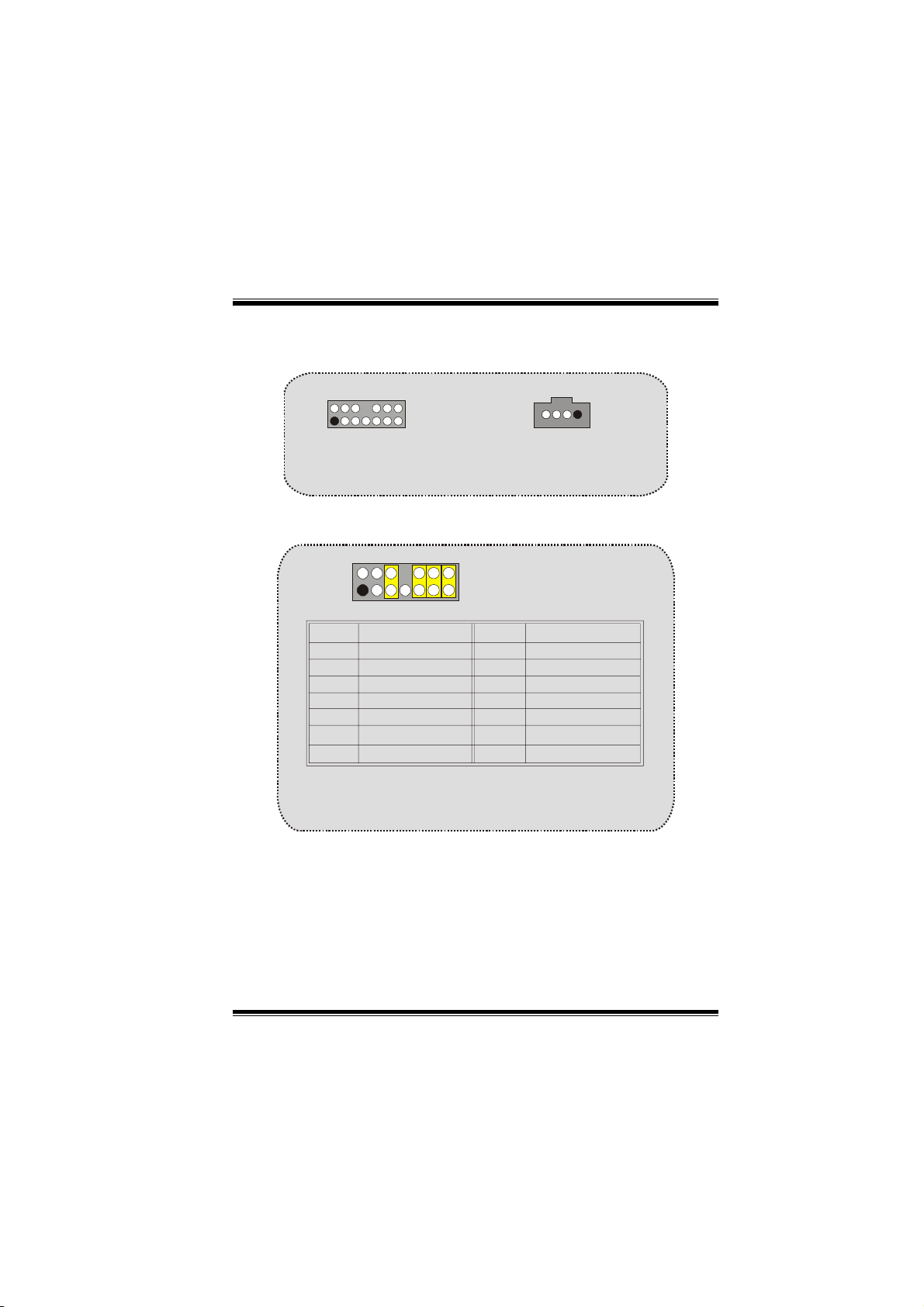

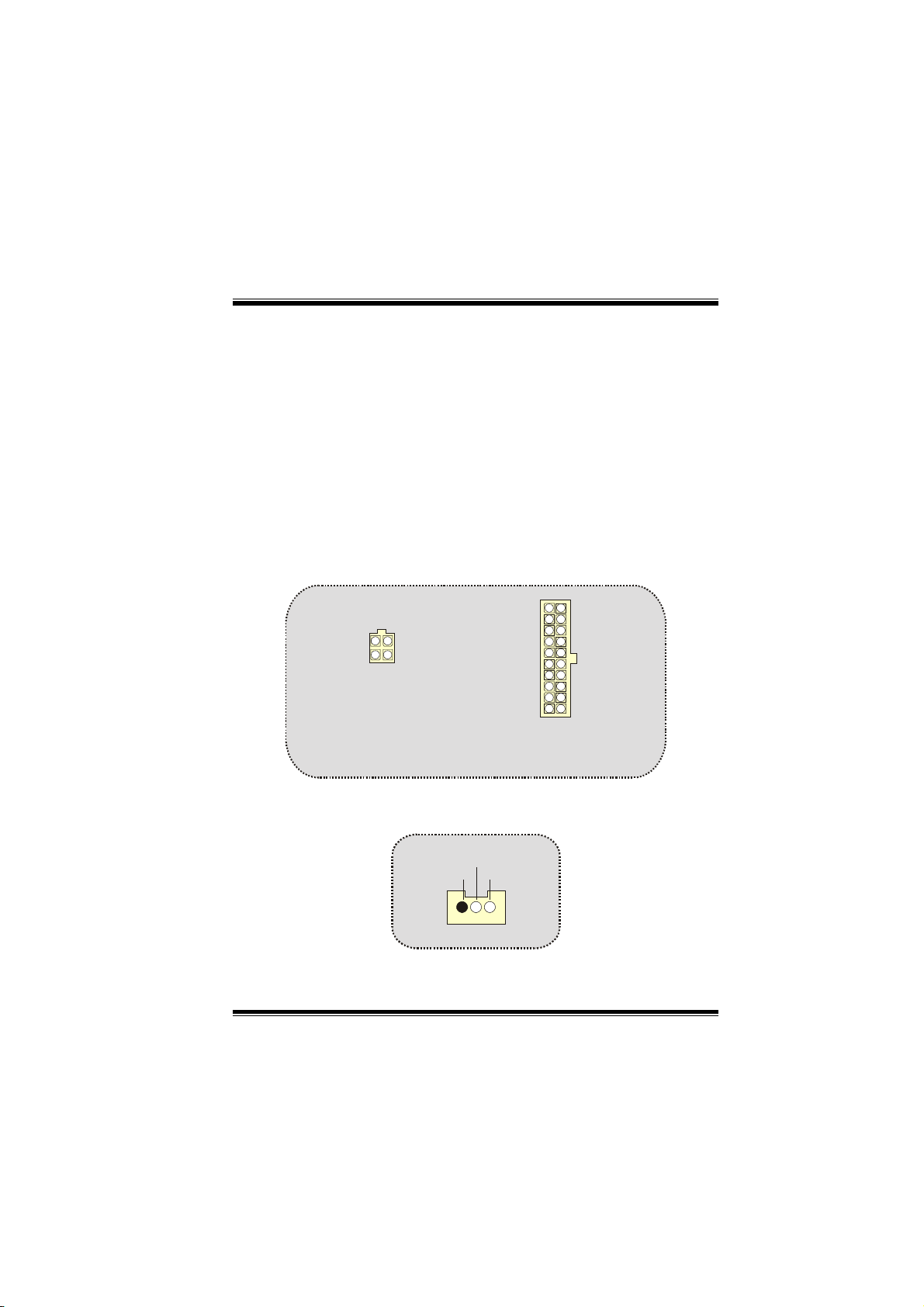

Power Connectors: JATXPWR1/ JATXPWR2
Wake On LAN Header: JWOL1
WOL1
1
5V_SB Wake up
Ground
JATXPWR1
(ATX Main Power Conn.)
JATXPWR1
(ATX Main Power Conn.)
JATXPWR2
(ATX 12V Power Conn.)

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
9

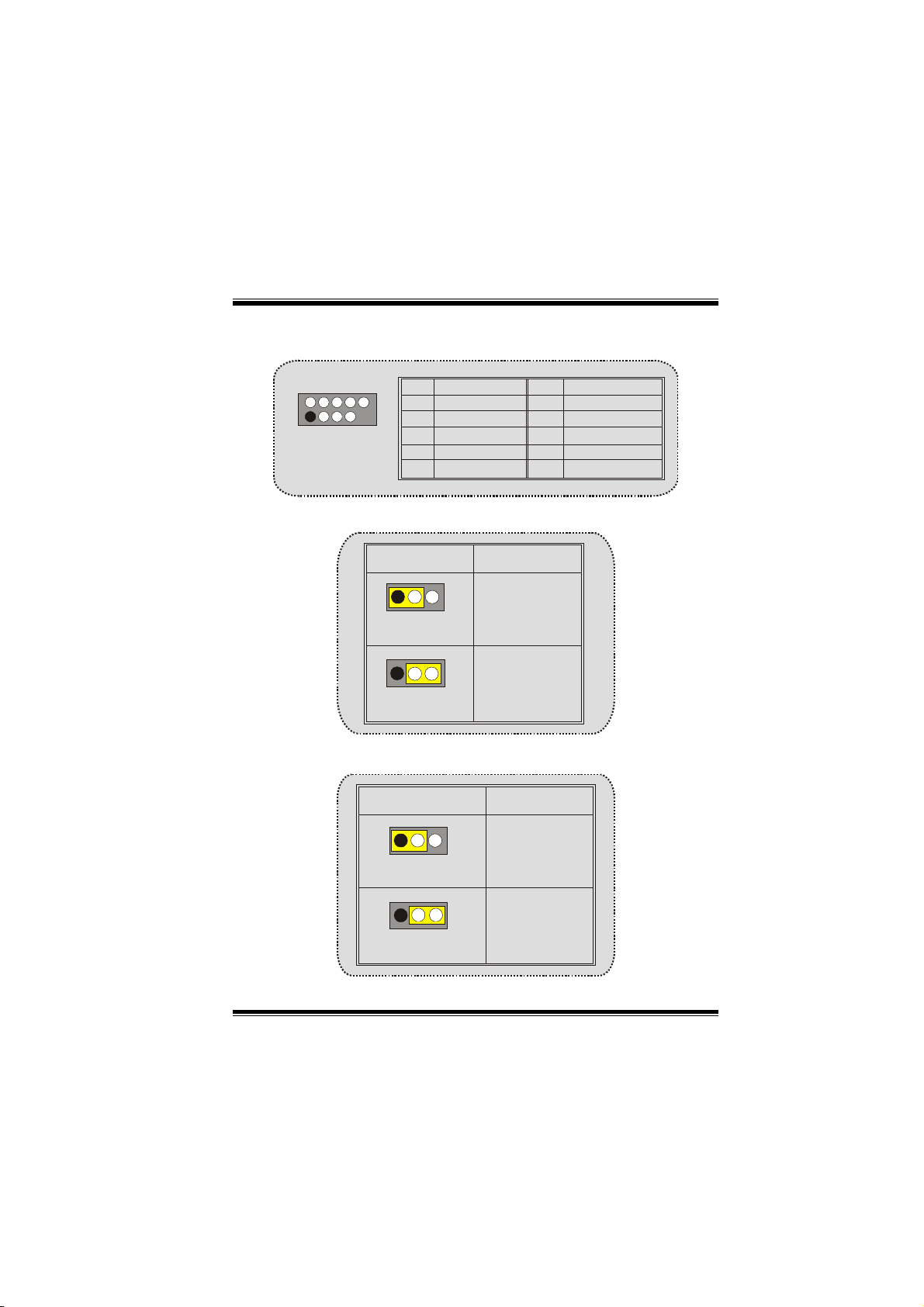

Front USB Header: JUSB3/ JUSB4
5V/ 5VSB Selection for USB: JUSBV1/ JUSBV3_4
5V/ 5VSB Selection for KB: JKBV1
JUSB3/ 4
2
1
Pin Assignment Pin Assignment
12
43
56
87
910
+5V +5V
Data (-)Data (-)
Data (+) Data (+)
Ground Ground
Key NA
JUSBV1/ 3_4
5V_SB
Pin 1-2 on 5V
Assignment
Pin 2-3 on
1
1
JKBV1
5V_SB
Pin 1-2 on
5V
Assignment
1
Pin 2-3 on
1

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
10
Case Open: JCL1
Front 1394 Header: J1394A1/J1394B1/J1394C1
Serial ATA Connector: JSATA1/ JSATA2 (Optional)
Digital Audio Connector: JSPDIF_OUT
JCL1
Intruder
1
Ground
J1394A1/B1/C1
2
1
A+
PinAssignment PinAssignment
1
34
5
7
9
2
6
8
10
A-
GroundGround B-B+
+12V +12V
KEY NA
JSATA1/2
17
23
4
56
Pin Assignment Pin Assignment
1
34
5
7
2
6
Ground TX+
GroundTX-
RX- RX+
Ground
JSPDIF_OUT
1
SPDIF_Out
5VGND

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
11
Audio Subsystem: JAUDIO1/ JCDIN1
2
JAUDIO1
1
213
14
Pin
1
3
5
7
9
11
13
Pin
2
4
6
8
10
12
14
Mic In
Mic Power
RT Line Out
Reserved
LFT Line Out
RT Line In
LFT Line In
Assignment Ground
Audio Power
RT Line Out
Key
RT Line In
LFT Line In
Assignment
LFT Line Out
Pin 5, 9, 11, 13 are routed to Front Panel Audio Out.
Pin 6, 10, 12, 14 are routed from Front Panel Audio Out.
1
2
JAUDIO1
(Front Audio Header)
1
JCDIN1
(CD-ROM Audio-In Header)
13
14

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
12
Clear CMOS Jumper: JCMOS1
12
Front Panel Audio Connector/Jumper Block
910 Audio line out signals are routed
to the back panel audio line out connector.
Pin 5 and 6
Pin 9 and 10
Pin11 and 12
Pin13 and 14
Audio line out and mic in signals are
available for front panel audio connectors.
11 12
13 14
3
5
7
4
6
12
910
11 12
13 14
3
5
7
4
6No jumpers
installed
Jumper Setting Configuration
JCMOS1
Clear CMOS
Data
Pin 1-2 on
Normal
Operation
(default)
Assignment
1
Pin 2-3 on
1

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
13

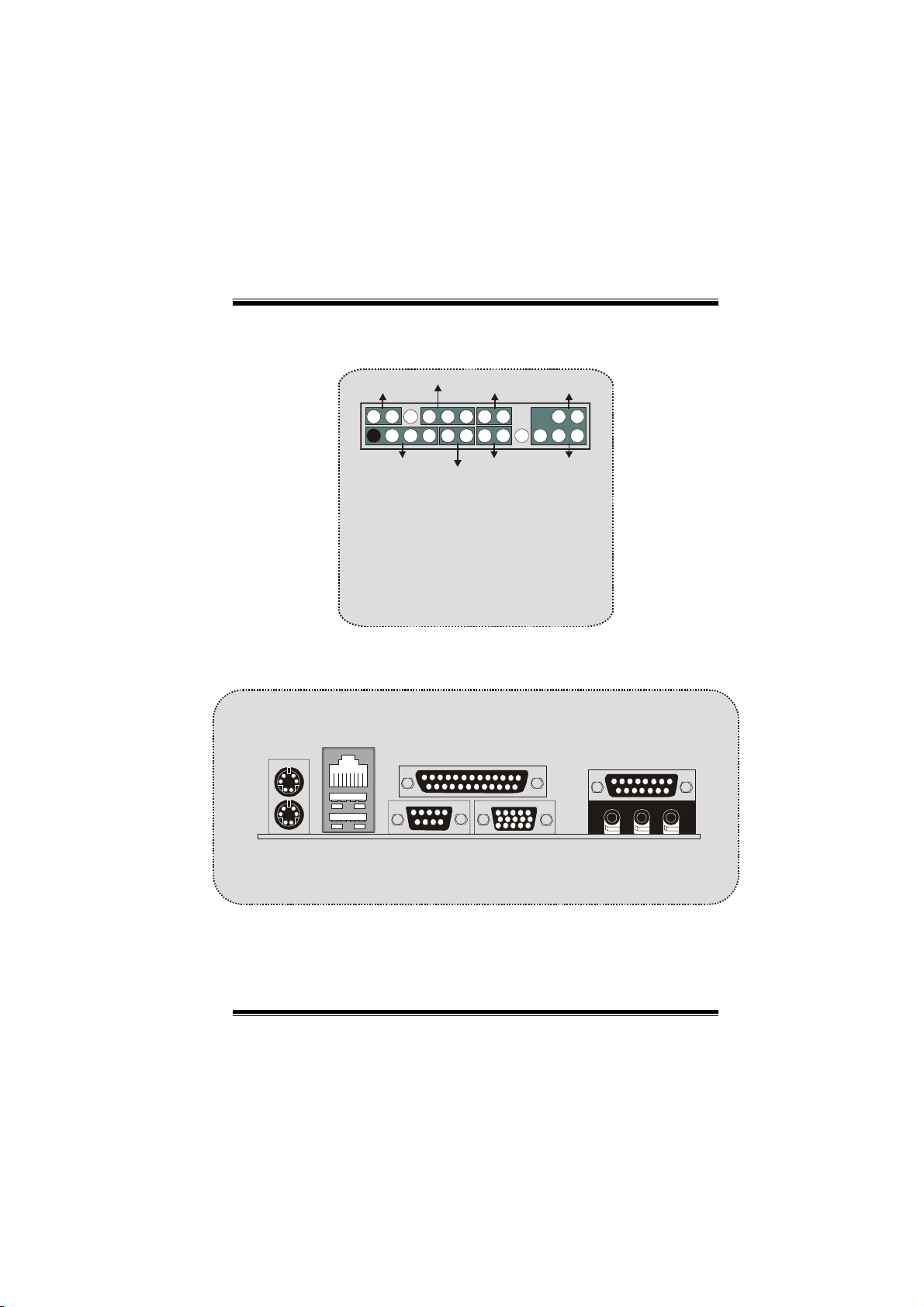

Front Panel Connector: JPANEL1
Back Panel Connectors
SPK
PWR_LED
HLED
SLP
RST
224
IR
123
IRON/OFF
SPK ==> Speaker Conn.
HLED ==> Hard Driver LED
RST ==> Reset Button
IR ==> Infrared Conn.
SLP ==> Sleep Button
PWR_LED ==> Power LED
ON/ OFF ==> Power-on Button
(+) (-)
(+) (-)(+)
PS/2
Keyboard
PS/2
Mouse
COM1
Parallel Game Port
JPRNT1 JGAME1
JCOM1
JKBMS1
USB
LAN(Optional)
JUSBLAN1
Speaker
Out Line In Mic
In
JVGA1
VGA1

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
14

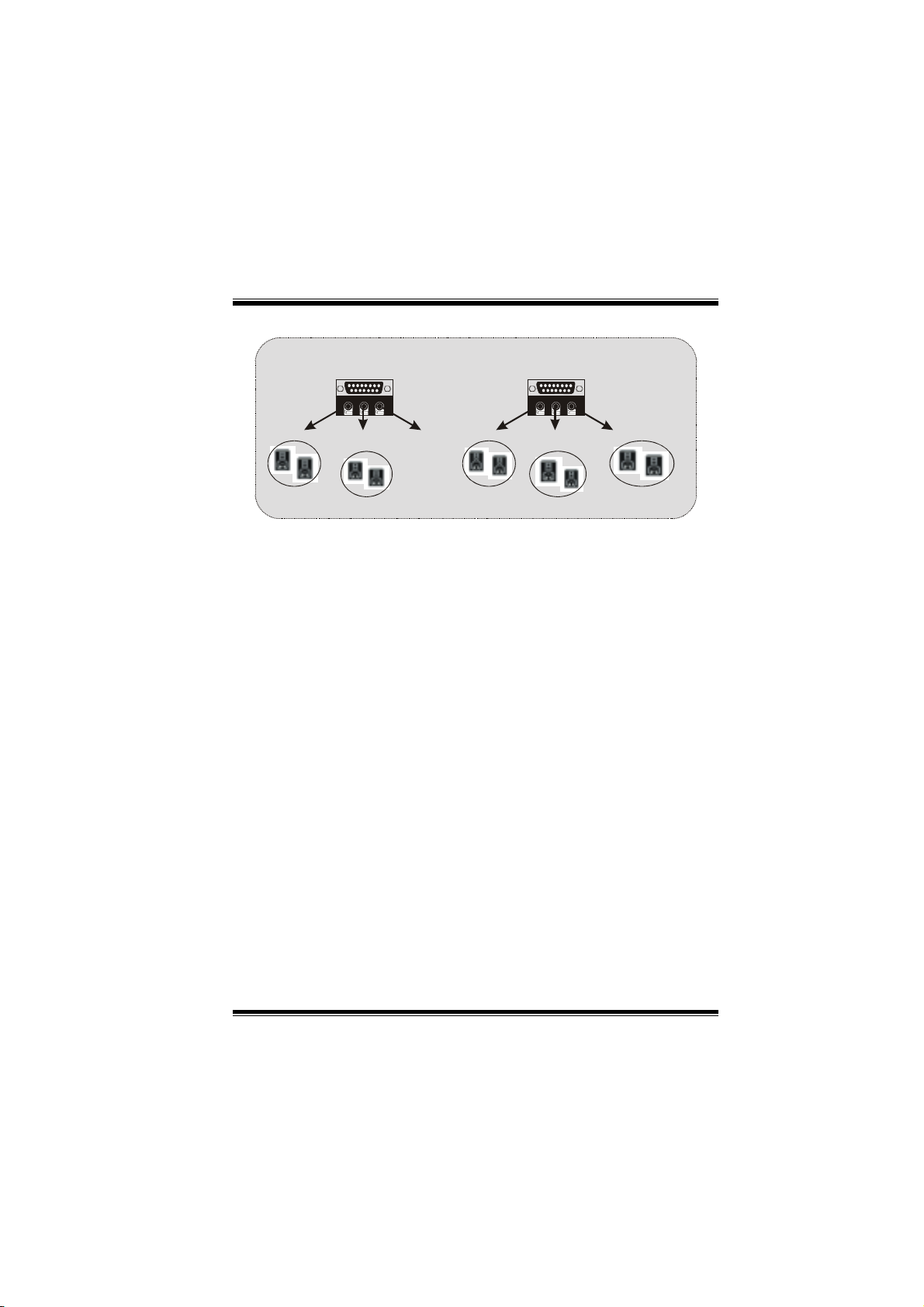

4 Channel Speakers 6Channel Speakers
Speaker Out Line In/
Rear Speaker Mic In Speaker Out
Line In/
Rear Speaker Mic In/ Center & Bass

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
15
Español
Características del P4TGE
 Usa Chipset Intel 845GE/ ICH4, Winbond W83627, Chip 1394A, Chip
SATA/ RAID (Opcional).
 Contiene facilidades I/O integrados en la placa madre en el que incluye un
puerto en serie, un puerto VGA, un puerto paralelo, un puerto para ratón
PS/2, un puerto para teclado PS/2, puertos de audio, puertos USB y un
puerto de juego .
 Soporta procesadores Intel Pentium 4®(Socket 478) de hasta 3.06GHz.
 Soporta procesador Intel Pentium 4 con Hyper-Threading.
 Soporta Ultra 100/66/33, BMIDE y modos PIO.
 Soporta hasta 2 dispositivos DDR 266/333 MHz, corriendo a 400/ 533 MHz
frecuencia Front Side Bus.
 Soporta cinco ranuras PCI 32-bit, una ranura AGP, y una ranura CNR
(solamente de Tipo A).
(Si la función CODEC está integrado en la placa madre, entonces la
ranura CNR solamente puede soportar tarjeta esclava. Pero si el
Audio H/W está integrado en la placa madre, entonces la ranura CNR
solamente puede soportar tarjeta primaria.)
 Soporta USB1.1 y USB2.0.
 Compatible con las especificaciones del factor de forma de tamaño de PC
ATX.
 Soporta sistemas operativos populares tales como Windows 98, Windows
NT, Windows 2000, Windows ME, Windows XP, LINUX y SCO UNIX.
 Corriente de Selección DIMM para configuración BIOS utilizado para
ajustar voltaje DDR DIMM. (Si se encuentra con un programa compatible al
DDR DIMM, trate de ajustar el voltaje DDR para fijar con el programa
compatible.)
 Compatible con Intel®AC’97 2.2.

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
16
 Alto S/N ratio para requerimientos PC 99.
 6CH Audio Codec, aplicable para chipsets de principales placas madres.
 Soporta función SPDIF_Out.
 Entrada de Línea phone-jack compartido con el rear out.
 Micrófono phone-jack compartido con Bass y Center.
 CMI 8738 Características del Hardware Audio (Opcional):
 6CH DAC para AC3® 5.1CH purpose.
 HRTF-based 3D audio posicional, soportando DirectSound™ 3D y
A3D™ de interface.
 Soporta altavoces de 4.1/5.1, C3DX audio posicional en 4/ 6 CH
modo de altavoz.
 Características del Serial ATA-Raid (Opcional):
 Chip simple, alto rendimiento del implementación del SATA-RAID.
 Construido con 2 canales SATA PHY, en el que satisface la
especificación SATA 1.0 y puede transferir datos de una velocidad
de 1.5GHz.
 Adición de una interface paralelo ATA en el que satisface la
especificación ATA 133.
 Diseño Bus mastering que lleva una ventaja completa del
multi-tasking, multi-threading sistemas operativos y un gran
mejoramiento del rendimiento.
 Proporciona una avanzada cadena de comandos para operativos
ATA independientes.
 Compatible con la última PCI IDE, ATA 7 y realza especificaciones
IDE.
 Soporta ATA proporsal Modo PIO 0, 1, 2, 3, 4, Ultra DMA Modo 0,1,
2, 3, 4, 5, 6. El driver IDE transfiere rate que es capable de hasta
150 MB/sec.
 Automáticamente detecta si es conveniente o no el cable para

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
17
modo 3, 4, 5, 6 de Ultra DMA.
 Compatible con PC2000, requerimientos WHQL hardware.
Contenido del Paquete
 Cable HDD X 1
 Cable FDD X 1
 Configuración Completa del Driver CD X 1
 Cable USB X 2 (Opcional)
 Cable IEEE1394 X1 (Opcional)
 Cable Serial ATA X1 (Opcional)
 Cable SPDIF OUT X1 (Opcional)

M
M
Mo
o
ot
t
th
h
he
e
er
r
rb
b
bo
o
oa
a
ar
r
rd
d
d
D D
De
e
es
s
sc
c
cr
r
ri
iip p
pt
t
ti
iio o
on
n
n
18
Disposición del P4TGE
JKBMS1
Teclado
&
Raton
JUSBLAN1
USB & LAN
JCOM1
JPRNT1
JCOM2
Puerto Paralelo
Salida del Altavoz
Entrada de Linea
Entrada del MIC
Puerto de Juego
JGAME1
JVGA1
COM1VGA1
JKBV1
JUSBV1
1
1
INTEL
845GE
CPU
Socket 478
CPU1
JATXPWR2
DDR1
DDR2
JATXPWR1
FDD1
JGAME1
IDE1IDE2
PCI1
PCI2
PCI4
PCI5
PCI3
LAN Chip
JAUDIO1
1
213
14
Codec
JPANEL1
1
2
23
24
JCDIN1
Hardware
Audio CNR1
1
2
9
10
1
2
9
10
1
2
9
10
1
J1394A1
J1394B1 J1394C1
JWOL1
1
JUSB4
2
9
10
1
JUSB3
2
91
10
1394
CHIP
RAID1
BAT1
ICH4
JSFAN11
JCMOS1
1
Controlador
Serial
ATA
JSATA2
JSATA1
BIOS
JCL1
1
17
23
4
56
17
23
4
56
Winbond
I/O
JSPDIF_OUT 1
JUSBV3_4
1
