Biostar K8T800-A7A User manual

K8T800-A7A
i
FCC Information and Copyright
This equipment has been tested and found to comply with the limits of a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. There is no guarantee
that interference will not occur in a particular installation.
The vendor makes no representations or warranties with respect to the
contents here and specially disclaims any implied warranties of merchantability
or fitness for any purpose. Further the vendor reserves the right to revise this
publication and to make changes to the contents here without obligation to
notify any party beforehand.
Duplication of this publication, in part or in whole, is not allowed without first
obtaining the vendor’s approval in writing.
The content of this user’s manual is subject to be changed without notice and
we will not be responsible for any mistakes found in this user’s manual. All the
brand and product names are trademarks of their respective companies.

Table of Contents
ii
Chapter 1: Introduction .............................................................. 1
1.1 Motherboard Features ..................................................................... 1
1.2 Layout and Components................................................................. 4
Chapter 2: Hardware Installation ............................................ 5
2.1 Installing Central Processing Unit (CPU) ..................................... 5
2.2 FAN Headers .................................................................................... 6
2.3 Installing System Memory .............................................................. 7
2.4 Connectors and Slots ....................................................................... 8
Chapter 3: Headers & Jumpers Setup .................................. 10
3.1 How to Setup Jumpers .................................................................. 10
3.2 Detail Settings ................................................................................. 10
Chapter 4: Useful Help........................................................... 16
4.1 Award BIOS Beep Code ................................................................ 16
4.2 Extra Information ........................................................................... 16
4.3 Troubleshooting ............................................................................. 18
Chapter 5: WarpSpeeder™....................................................... 19
5.1 Introduction .................................................................................... 19
5.2 System Requirement ...................................................................... 19
5.3 Installation....................................................................................... 20
5.4 [WarpSpeeder™] includes 1 tray icon and 5 panels.................. 21

K8T800-A7A
1
CHAPTER 1: INTRODUCTION
1.1 MOTHERBOARD FEATURES
CPU
Supports Socket 754.
Supports AMD Athlon 64 processor up to 3700+.
Supports AMD Sempron processor.
Supports HyperTransport Technology up to 1600MT/s.
Chipset
North Bridge: VIA K8T800.
South Bridge: VIA VT8237R Plus.
Dimensions
ATX Form Factor: 19.00cm (W) x 29.31cm (L)
Slot
Five 32bit PCI bus master slots.
One AGP 4x/8x compatible slot.
On-board IDE
Two on-board connectors support 4 IDE disk drives.
Supports PIO mode 0~4.
Supports Ultra DMA 33/ 66/100/133 Bus Master Mode.
System Memory
Supports up to 2 DDR devices.
Supports DDR-266/333/400.
Maximum memory size is up to 2GB. (Following table is for
reference only.)
Registered memory are not supported.
Supports Non-ECC memory only.
DIMM Socket
Location DDR Module Total Memory Size
DIMM1 128MB/256MB/512MB/1GB *1
DIMM2 128MB/256MB/512MB/1GB *1 Max is 2 GB.

K8T800-A7A
2
Super I/O
Chip: ITE 8705AF.
Low Pin Count Interface.
Provides the most commonly used legacy Super I/O
functionality.
Environment Control initiatives,
H/W Monitor
Fan Speed Controller
ITE's "Smart Guardian" function
Operating System Supporting
Supports Windows 2000 and Windows XP.
Note: Do not support Windows 98SE and Windows ME.
Onboard AC’97 Sound CODEC
Chip: REALTEK ALC655.
Support 6 channels.
Supports S/PDIF out function.
Compliant with AC’97 Version 2.3 specification.
Onboard Serial ATA
Controller integrated in VT8237R Plus.
Supports RAID 0 and RAID 1 functions.
Supports 2 serial ATA (SATA) ports.
-Data transfer rates up to 150 MB/s.
-Compliant with SATA Version 1.0 specification.
10/100 LAN PHY
PHY: RTL8201BL / CL.
Supports 10 Mb/s and 100 Mb/s auto-negotiation.
Half/Full duplex capability.
Supports ACPI, PCI power management.

K8T800-A7A
3
Internal On-board I/O Connectors and Headers
1 front panel header supports front panel facilities.
1 CD-in connector supports 1 CD-ROM audio-in device.
1 front audio header supports front panel audio function.
1 S/PDIF-Out connector supports digital audio-out function.
1 chassis open header supports PC case-opened warning
function.
1 FDD connector supports 2 Floppy drives with 360K, 720K,
1.2M, 1.44M and 2.88Mbytes.
2 IDE connectors support 4 IDE devices.
2 Serial ATA connectors support 2 SATA devices.
3 USB headers support 6 USB 2.0 ports at front panel. (JUSB3
is optional)
Back Panel I/O Connectors
2 USB 2.0 ports.
1 Serial port.
1 Game port.
1 Printer port.
1 RJ-45 LAN jack.
1 PS/2 Mouse port.
1 PS/2 Keyboard port.
1 Audio port including 1 Speaker-out connector, 1 Line-in
connector, and 1 MIC-in connector.
Line In
Speaker Out Mic In
LAN
USB x2
PS/2
Keyboard
PS/2
Mouse Printer port
COM1
GAME Port

K8T800-A7A
4
1.2 LAYOUT AND COMPONENTS
DIMM1 DIMM2
FDD1
K8T800
VT8237R
PLUS
JATXPWR1
JCDIN1
JUSB2 JUSB3(optional)
JUSBV2
JSATA2
JSATA1
JCMOS1
JCI1
JCFAN1
JSFAN1
Codec
JPANEL1
LAN
PHY
Super I/O
BIOS
BAT1
Socket 754
CPU1
JUSBLAN1
PCI1
PCI3
PCI2
AGP1
JKBMS1
JAUDIO2
JSPDIF_OUT1
JATXPWR2
JPRNT1
JCO
M1
JUSBV1
JGamePort
JAUD_GAME
JUSB1
IDE2 IDE1
PCI4
PCI5
IrDA
(optional)
Note: represents the 1st pin.

K8T800-A7A
5
CHAPTER 2: HARDWARE INSTALLATION

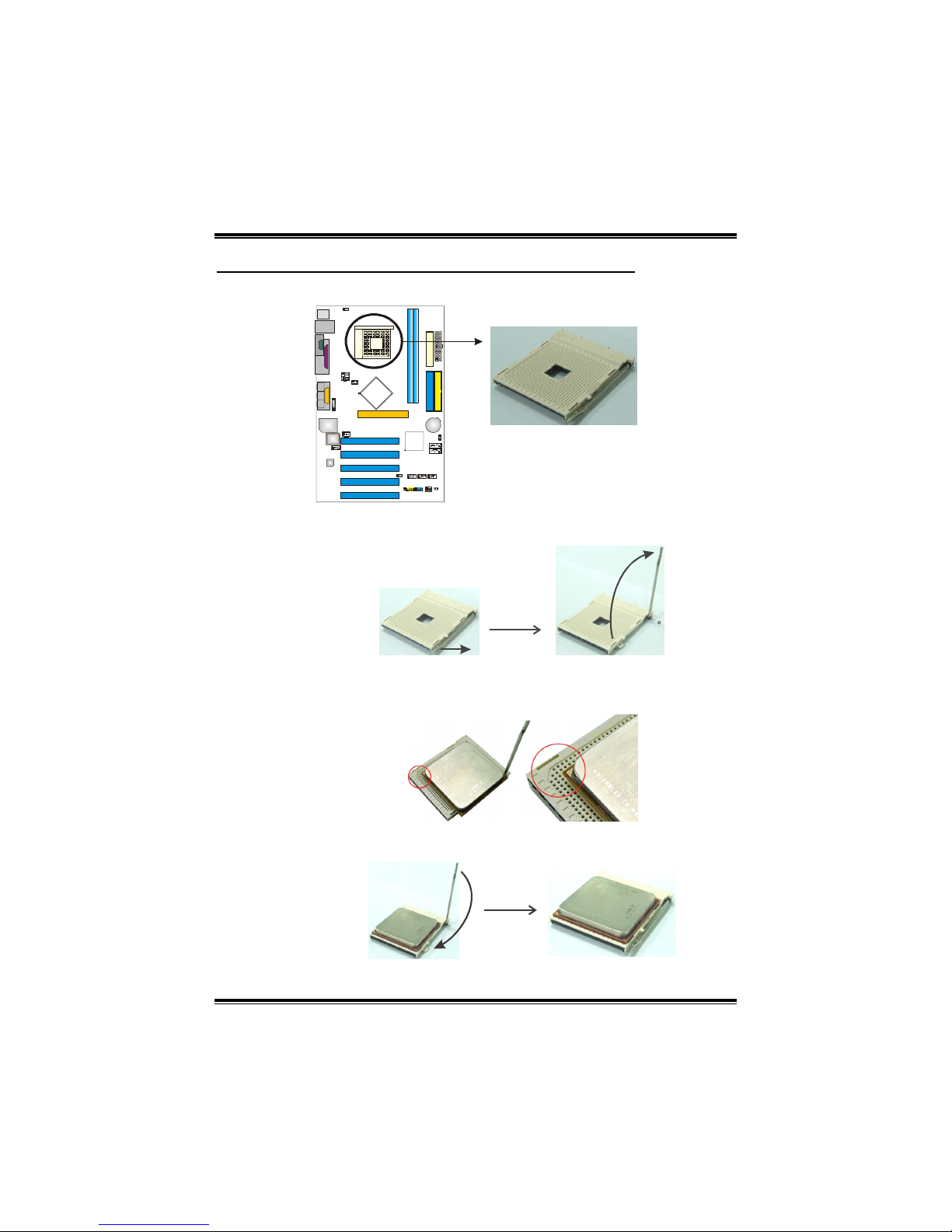

2.1 INSTALLING CENTRAL PROCESSING UNIT (CPU)
Step 1: Pull the lever toward direction A from the socket and then raise the
lever up to a 90-degree angle.
90
A
Step 2: Look for the cut edge on socket, and the gold triangle on CPU
should point forwards this cut edge. The CPU will fit only in the
correct orientation.
Step 3: Hold the CPU down firmly, and then close the lever to complete
the installation.
Step 4: Put the CPU Fan on the CPU and buckle it. Connect the CPU
FAN power cable to the JCFAN1. This completes the installation.

K8T800-A7A
6
2.2 FAN HEADERS
These fan headers support cooling-fans built in the computer. The fan
cable and connector may be different according to the fan manufacturer.
Connect the fan cable to the connector while matching the black wire to
pin#1.
JCFAN1: CPU Fan Header
JSFAN1: System Fan Header
Pin
Assignment
1 Ground
2 +12V
JSFAN1
3
1
JCFAN1
3
1
3 FAN RPM rate
sense
Note:
The JCFAN1 and JSFAN1 support 3-pin head connector. When connecting with wires
onto connectors, please note that the red wire is the positive and should be connected to
pin#2, and the black wire is Ground and should be connected to GND.

K8T800-A7A
7

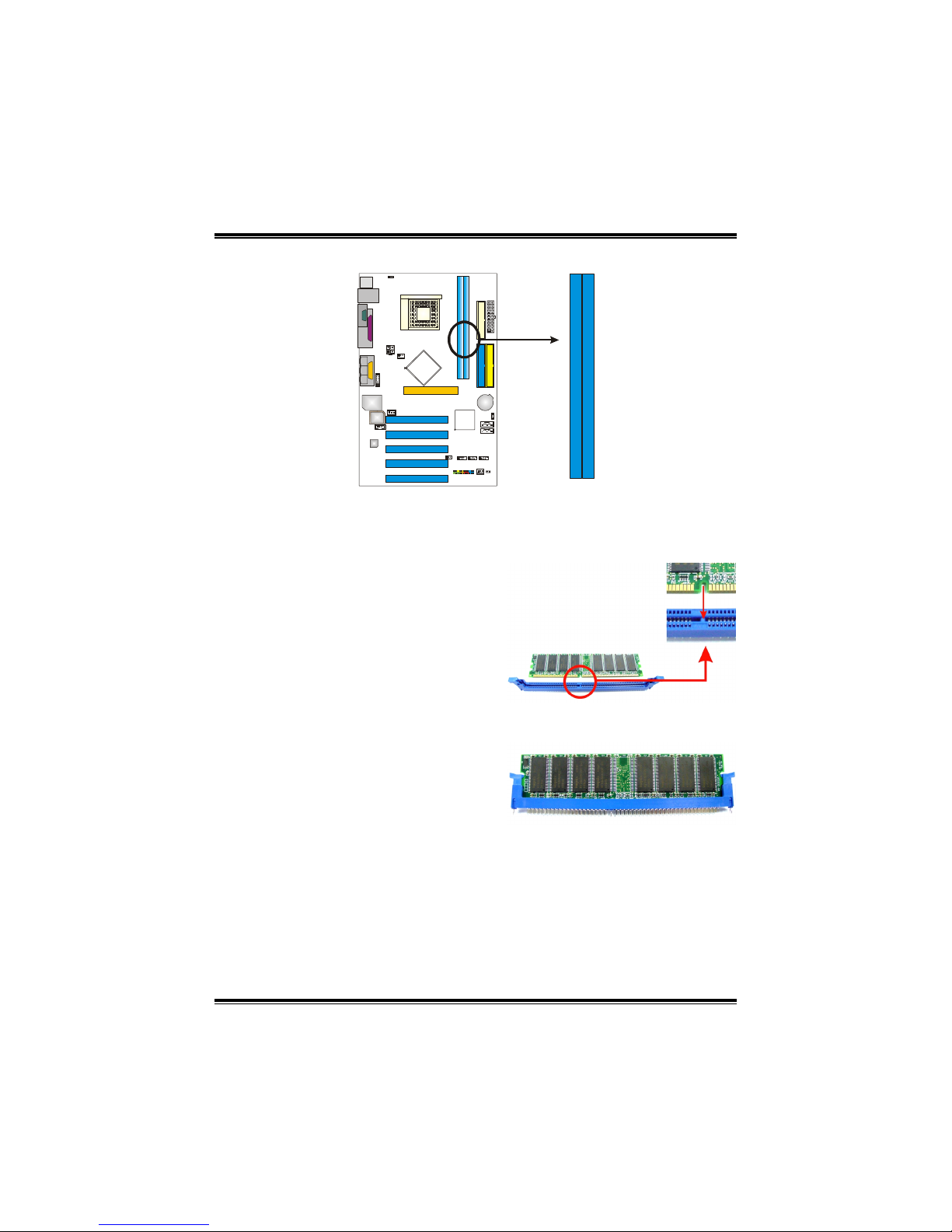

2.3 INSTALLING SYSTEM MEMORY
DIMM1 DIMM2
1. Unlock a DIMM slot by pressing the retaining clips outward. Align a
DIMM on the slot such that the notch on the DIMM matches the
break on the Slot.
2. Insert the DIMM vertically and firmly into the slot until the retaining
chip snap back in place and the DIMM is properly seated.

K8T800-A7A
8
2.4 CONNECTORS AND SLOTS
FDD1: Floppy Disk Connector
The motherboard provides a standard floppy disk connector that
supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types.
This connector supports the provided floppy drive ribbon cables.
34 33
12
IDE1/IDE2: Hard Disk Connectors
The motherboard has a 32-bit Enhanced PCI IDE Controller that
provides PIO Mode 0~4, Bus Master, and Ultra DMA 33/66/100/133
functionality. It has two HDD connectors IDE1 (primary) and IDE2
(secondary).
The IDE connectors can connect a master and a slave drive, so
you can connect up to four hard disk drives. The first hard drive
should always be connected to IDE1.
IDE2IDE1
21
3940

K8T800-A7A
9
PCI1~PCI5: Peripheral Component Interconnect Slots
This motherboard is equipped with 5 standard PCI slots. PCI stands
for Peripheral Component Interconnect, and it is a bus standard for
expansion cards. This PCI slot is designated as 32 bits.
PCI3
PCI2
PCI1
PCI4
PCI5
AGP1: Accelerated Graphics Port Slot
Your monitor will attach directly to that video card. This
motherboard supports video cards for PCI slots, but it is also
equipped with an Accelerated Graphics Port (AGP). An AGP card
will take advantage of AGP technology for improved video
efficiency and performance, especially with 3D graphics.
AGP1

K8T800-A7A
10
CHAPTER 3: HEADERS & JUMPERS SETUP

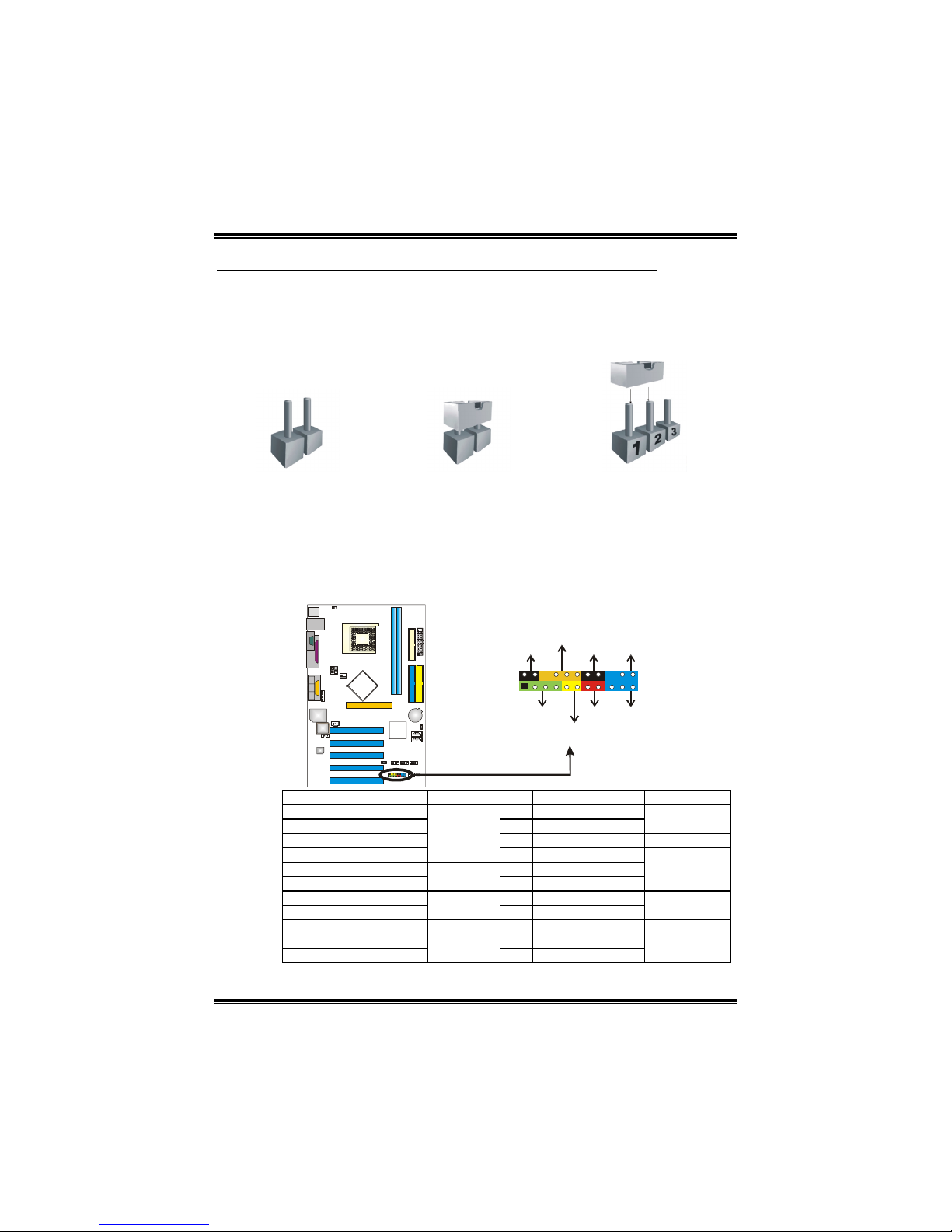

3.1 HOW TO SETUP JUMPERS
The illustration shows how to set up jumpers. When the jumper cap is
placed on pins, the jumper is “close”, if not, that means the jumper is
“open”.
Pin opened Pin closed Pin1-2 closed
3.2 DETAIL SETTINGS
JPANEL1: Front Panel Header
This 22-pin connector includes Power-on, Reset, HDD LED, Power LED, Sleep
button, speaker and IrDA Connection (optional). It allows user to connect the PC
case’s front panel switch functions.
121
22
SLP
PWR_LED
On/Off IR
IR
RST
HLED
SPK
++
+
2
-
-
(Optional)
(Optional)
Pin Assignment Function Pin Assignment Function
1 +5V 2 Sleep control
3 N/A 4 Ground
Sleep button
5 N/A 6 N/A N/A
7 Speaker
Speaker
Connector
8 Power LED (+)
9 HDD LED (+) 10 Power LED (+)
11 HDD LED (-)
Hard drive
LED 12 Power LED (-)
Power LED
13 Ground 14 Power button
15 Reset control Reset button 16 Ground Power-on button
17 N/A 18 Key
19 +5V 20 Ground
21 IRTX
IrDA
Connector
(optional) 22 IRRX
IrDA
Connector
(optional)

K8T800-A7A
11
JUSB1/JUSB2/JUSB3: Headers for USB 2.0 Ports at Front Panel
(JUSB3 is optional)
This header allows user to connect additional USB cable on the PC front panel,
and also can be connected with internal USB devices, like USB card reader.
Pin Assignment
1 +5V (fused)
2 +5V (fused)
3 USB-
4 USB-
5 USB+
6 USB+
7 Ground
8 Ground
9 Key
1
2
9
10
JUSB3
(optional)
JUSB1 JUSB2
10 NC
JUSBV1/JUSBV2: Power Source Headers for USB Ports
Pin 1-2 Close:
JUSBV1: +5V for USB ports at JUSBLAN1.
JUSBV2: +5V for USB ports at front panel (JUSB1/JUSB2/JUSB3).
Pin 2-3 Close:
JUSBV1: USB ports at JUSBLAN1 are powered by +5V standby voltage.
JUSBV2: USB ports at front panel (JUSB1/JUSB2/JUSB3) are powered by
+5V standby voltage.
3
1
1
3
Pin 1-2 close
JUSBV2
13
JUSBV1
13
3
1
1
3
Pin 2-3 close
Note:
In order to support this function “Power-On system via USB device,” “JUSBV1/ JUSBV2”
jumper cap should be placed on Pin 2-3 individually.

K8T800-A7A
12
JATXPWR1: ATX Power Source Connector
This connector allows user to connect 20-pin power connector on the ATX
power supply.
Pin Assignment
1 +3.3V
2 +3.3V
3 Ground
4 +5V
5 Ground
6 +5V
7 Ground
8 PW_OK
9 Standby Voltage
+5V
10 +12V
11 +3.3V
12 -12V
13 Ground
14 PS_ON
15 Ground
16 Ground
17 Ground
18 -5V
19 +5V
1
10 20
11
20 +5V
JATXPWR2: ATX Power Source Connector
By connecting this connector, it will provide +12V to CPU power circuit.
Pin Assignment
1 +12V
2 +12V
3 Ground
2
4
1
3
4 Ground

K8T800-A7A
13
JFAUDIO1: Front Panel Audio Header
This header allows user to connect the front audio output cable with the PC front
panel. It will disable the output on back panel audio connectors.
Pin Assignment
1 Mic in/center
2 Ground
3 Mic power/Bass
4 Audio power
5 Right line out/
Speaker out Right
6 Right line out/
Speaker out Right
7 Reserved
8 Key
9 Left line out/
Speaker out Left
10 Left line out/
Speaker out Left
11 Right line in/
Rear speaker Right
12 Right line in/
Rear speaker Right
13 Left line in/
Rear speaker Left
14
2
13
1
14 Left line in/
Rear speaker Left
JCDIN1: CD-ROM Audio-in Connector
This connector allows user to connect the audio source from the variaty devices,
like CD-ROM, DVD-ROM, PCI sound card, PCI TV turner card etc..
Pin
Assignment
1 Left Channel Input
2 Ground
3 Ground
14
4 Right Channel Input

K8T800-A7A
14
JCMOS1: Clear CMOS Header
By placing the jumper on pin2-3, it allows user to restore the BIOS safe setting
and the CMOS data, please carefully follow the procedures to avoid damaging
the motherboard.
1
3
Pin 1-2 Close:
Normal Operation (default).
1
3
1
3
Pin 2-3 Close:
Clear CMOS data.
Clear CMOS Procedures:
1. Remove AC power line.
2. Set the jumper to “Pin 2-3 close”.
3. Wait for five seconds.
4. Set the jumper to “Pin 1-2 close”.
5. Power on the AC.
6. Reset your desired password or clear the CMOS data.
JCI1: Chassis Open Header
This connector allows system to monitor PC case open status. If the signal has
been triggered, it will record to the CMOS and show the message on next
boot-up.
Pin
Assignment
1 Case open signal
12
2 Ground

K8T800-A7A
15
JSATA1~JSATA2: Serial ATA Connectors
The motherboard has a PCI to SATA Controller with 2 channels SATA interface,
it satisfies the SATA 1.0 spec and with transfer rate of 1.5GB/s.
Pin
Assignment
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
JSATA1
71 4
7 Ground
JSPDIF_OUT1: Digital Audio-out Connector
This connector allows user to connect the PCI bracket SPDIF output header.
Pin
Assignment
1 +5V
2 SPDIF_OUT
13
3 Ground

K8T800-A7A
16
CHAPTER 4: USEFUL HELP
4.1 AWARD BIOS BEEP CODE
Beep Sound Meaning
One long beep followed by two short
beeps
Video card not found or video card
memory bad
High-low siren sound CPU overheated
System will shut down automatically
One Short beep when system boot-up No error found during POST
Long beeps every other second No DRAM detected or install
4.2 EXTRA INFORMATION
A. BIOS Update
After you fail to update BIOS or BIOS is invaded by virus, the
Boot-Block function will help to restore BIOS. If the following message
is shown after boot-up the system, it means the BIOS contents are
corrupted.
In this Case, please follow the procedure below to restore the BIOS:
1. Make a bootable floppy disk.
2. Download the Flash Utility “AWDFLASH.exe” from the Biostar
website: www.biostar.com.tw
3. Confirm motherboard model and download the respectively BIOS
from Biostar website.
4. Copy “AWDFLASH.exe” and respectively BIOS into floppy disk.
5. Insert the bootable disk into floppy drive and press Enter.
6. System will boot-up to DOS prompt.
7. Type “Awdflash xxxx.bf/sn/py/r” in DOS prompt.
(xxxx means BIOS name.)
8. System will update BIOS automatically and restart.
9. The BIOS has been recovered and will work properly.

K8T800-A7A
17
B. CPU Overheated
If the system shutdown automatically after power on system for
seconds, that means the CPU protection function has been activated.
When the CPU is over heated, the motherboard will shutdown
automatically to avoid a damage of the CPU, and the system may not
power on again.
In this case, please double check:
1. The CPU cooler surface is placed evenly with the CPU surface.
2. CPU fan is rotated normally.
3. CPU fan speed is fulfilling with the CPU speed.
After confirmed, please follow steps below to relief the CPU protection
function.
1. Remove the power cord from power supply for seconds.
2. Wait for seconds.
3. Plug in the power cord and boot up the system.
Or you can:
1. Clear the CMOS data.
(See “Close CMOS Header: JCMOS1” section)
2. Wait for seconds.
3. Power on the system again.

K8T800-A7A
18
4.3 TROUBLESHOOTING
Problem Solution
1. No power to the system at all
Power light don’t illuminate, fan
inside power supply does not turn
on.
2. Indicator light on keyboard does
not turn on.
1. Make sure power cable is
securely plugged in.
2. Replace cable.
3. Contact technical support.
System inoperative. Keyboard lights
are on, power indicator lights are lit,
and hard drive is spinning.
Using even pressure on both ends of
the DIMM, press down firmly until the
module snaps into place.
System does not boot from hard disk
drive, can be booted from optical drive.
1. Check cable running from disk to
disk controller board. Make sure
both ends are securely plugged
in; check the drive type in the
standard CMOS setup.
2. Backing up the hard drive is
extremely important. All hard
disks are capable of breaking
down at any time.
System only boots from optical drive.
Hard disk can be read and applications
can be used but booting from hard disk
is impossible.
1. Back up data and applications
files.
2. Reformat the hard drive.
Re-install applications and data
using backup disks.
Screen message says “Invalid
Configuration” or “CMOS Failure.”
Review system’s equipment. Make sure
correct information is in setup.
Cannot boot system after installing
second hard drive.
1. Set master/slave jumpers
correctly.
2. Run SETUP program and select
correct drive types. Call the drive
manufacturers for compatibility
with other drives.
