Biostar M6VCT User manual

M6VCT
Federal Communications Commission
(F.C.C) Statement
• This device complies with Part 15 of the FCC Rules. Operation of
this device is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired
operation.
• Accessories: This device has been tested and found to comply with
the limits of a Class B digital device, the accessories associated with this
equipment are as follows:
1. Shielded serial cable. (Can be obtained from multiple retail outlets)
2. Shielded printer cable. (Can be obtained from multiple retail outlets)
3. Shielded video cable. (Can be obtained from multiple retail outlets)
4. Shielded power cord. (Provided by manufacturer)
These accessories are required to ensure compliance with FCC Rules. It is
the responsibility of the user to provide and use these accessories
properly.
• This equipment has been tested and found to comply with the limits
of a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. There is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the
equipment off and on, you are encouraged to try to correct the
interference by one or more of the following measures:
1. Reorient / relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.

4. Consult the dealer or an experienced radio/TV technician for help.
• Caution: Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the
equipment.
Disclaimer
• The vendor makes no representations or warranties with respect to
the contents here of and specially disclaims any implied warranties of
merchantability or fitness for any purpose. Further the vendor reserves the
right to revise this publication and to make changes the contents here- of
without obligation to notify any party beforehand.
Duplication of this publication, in part or in whole, is not allowed without
first obtaining the vendor’s approval in writing.
Trademarks and Remarks
MS-DOS, Windows NT, Windows 9X, Windows ME and Windows 2000
are products of Microsoft Corp, with its ownership of trademark, and are
distributed by the vendor under a license agreement.
All trademarks used in this manual are the property of their respective
owners.
Copyright© 2001
All Rights Reserved
Canadian D.O.C. Statement
• This digital apparatus does not exceed the Class B limits for radio
noise emissions from digital apparatus as set out in the radio interference
regulations of the Canadian Department of Communications.
Cet appareil numbérique n’emet pas de bruits radioélectriques dépassant
les limites appliqués aux appareils numbériques de Class B préscrits dans
le reglement du brouillage radioélectrique edict par le ministere Des
Communications du Canada.

Contents
i
Introduction ................................................................................1-1
1 Motherboard Description .......................................................1-2
1.1 Features...................................................................................................1-2
1.1.1 Hardware.........................................................................................1-2
1.1.2 BIOS................................................................................................1-6
1.1.3 Software ..........................................................................................1-6
1.1.4 Accessories......................................................................................1-6
1.2 Motherboard Installation.........................................................................1-7

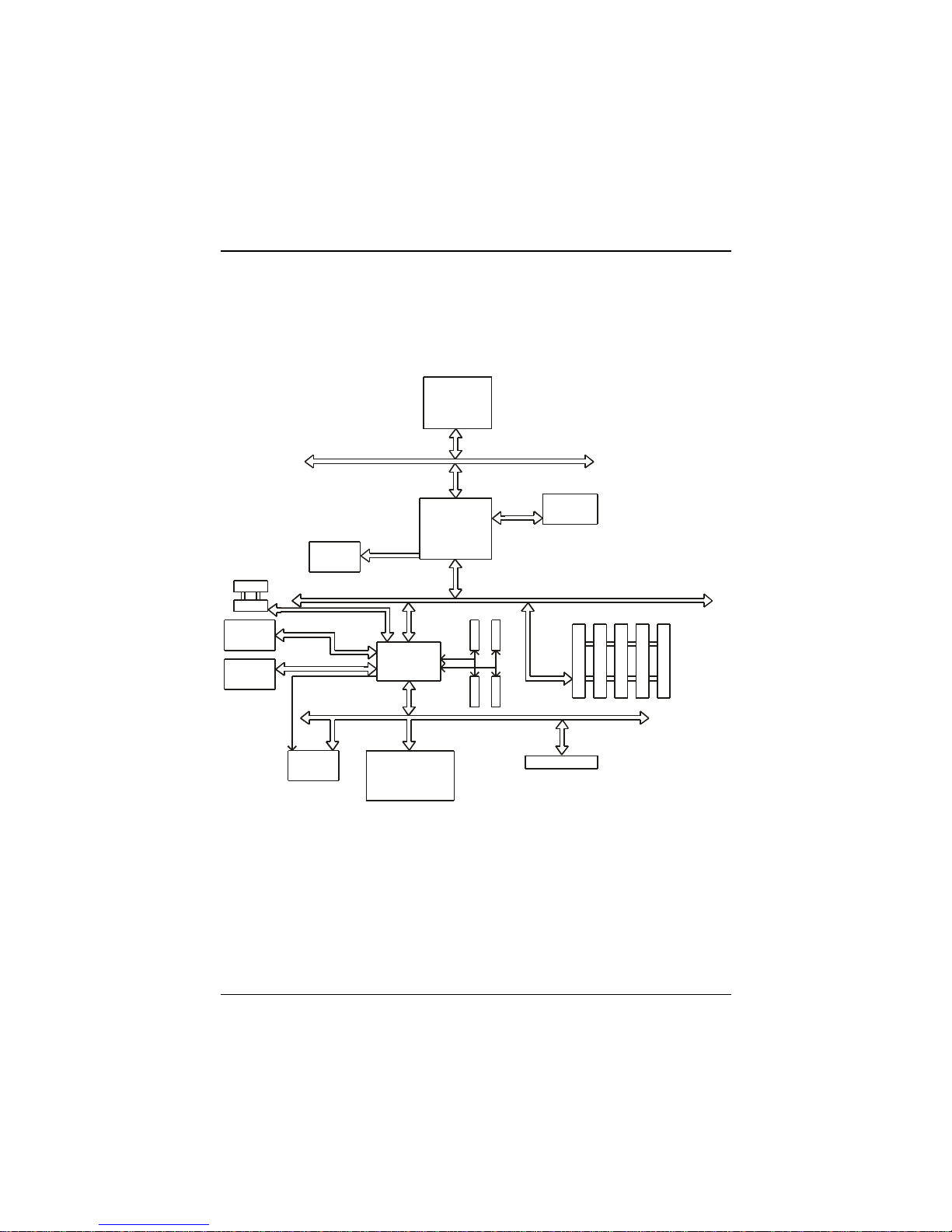

1.2.1 System Block Diagram....................................................................1-7

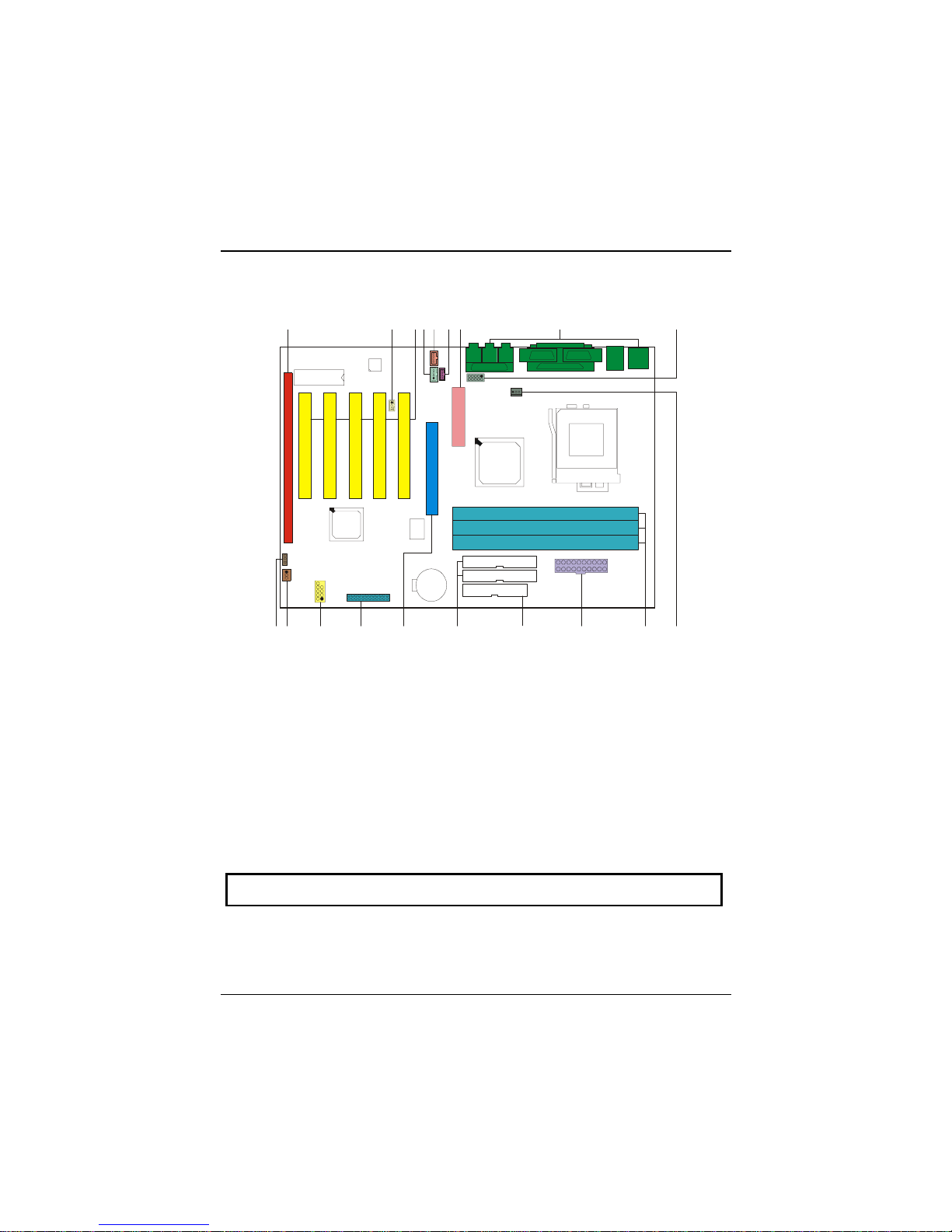

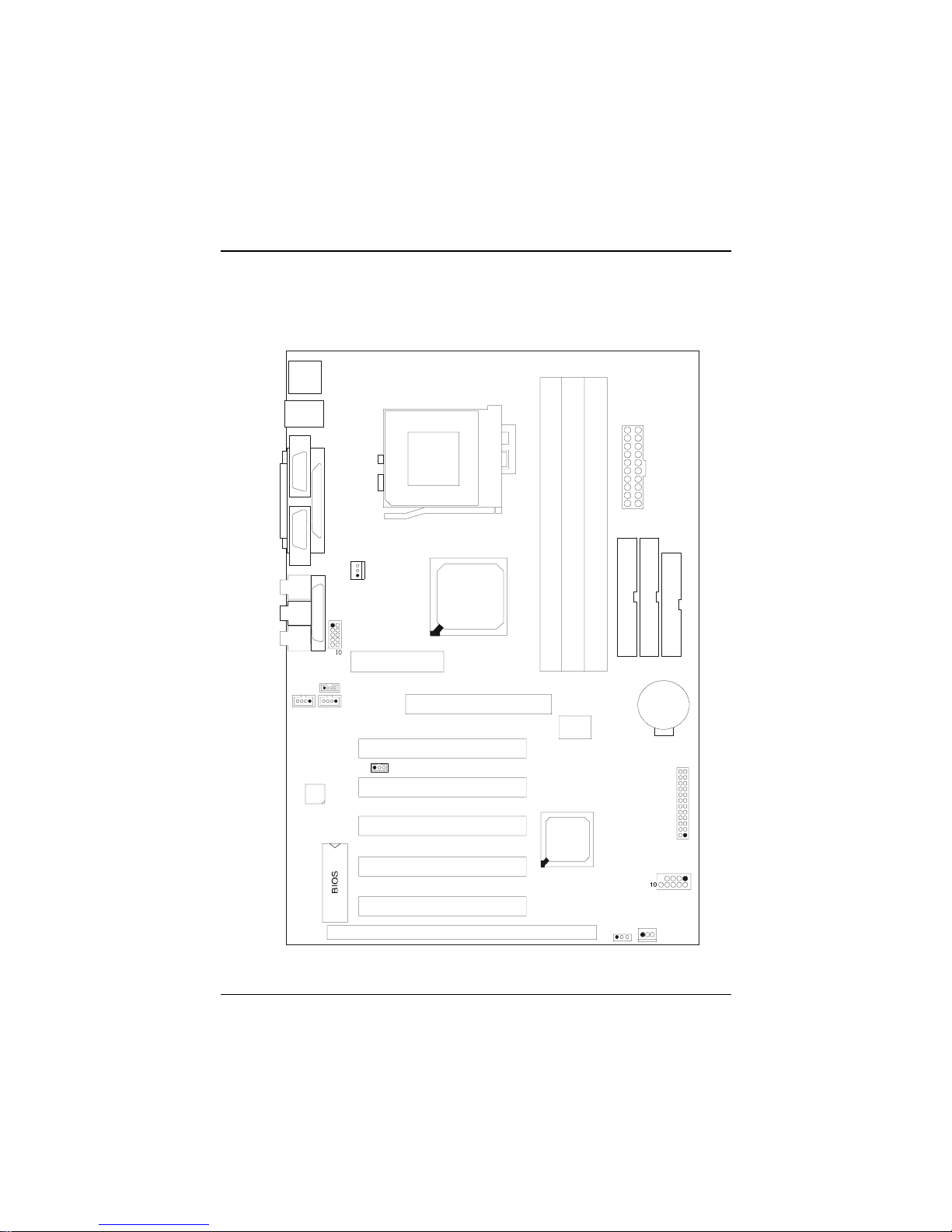

1.2.2 Layout of Motherboard ...................................................................1-8
1.2.3 Quick Reference..............................................................................1-9
1.3 CPU Installation.......................................................................................10

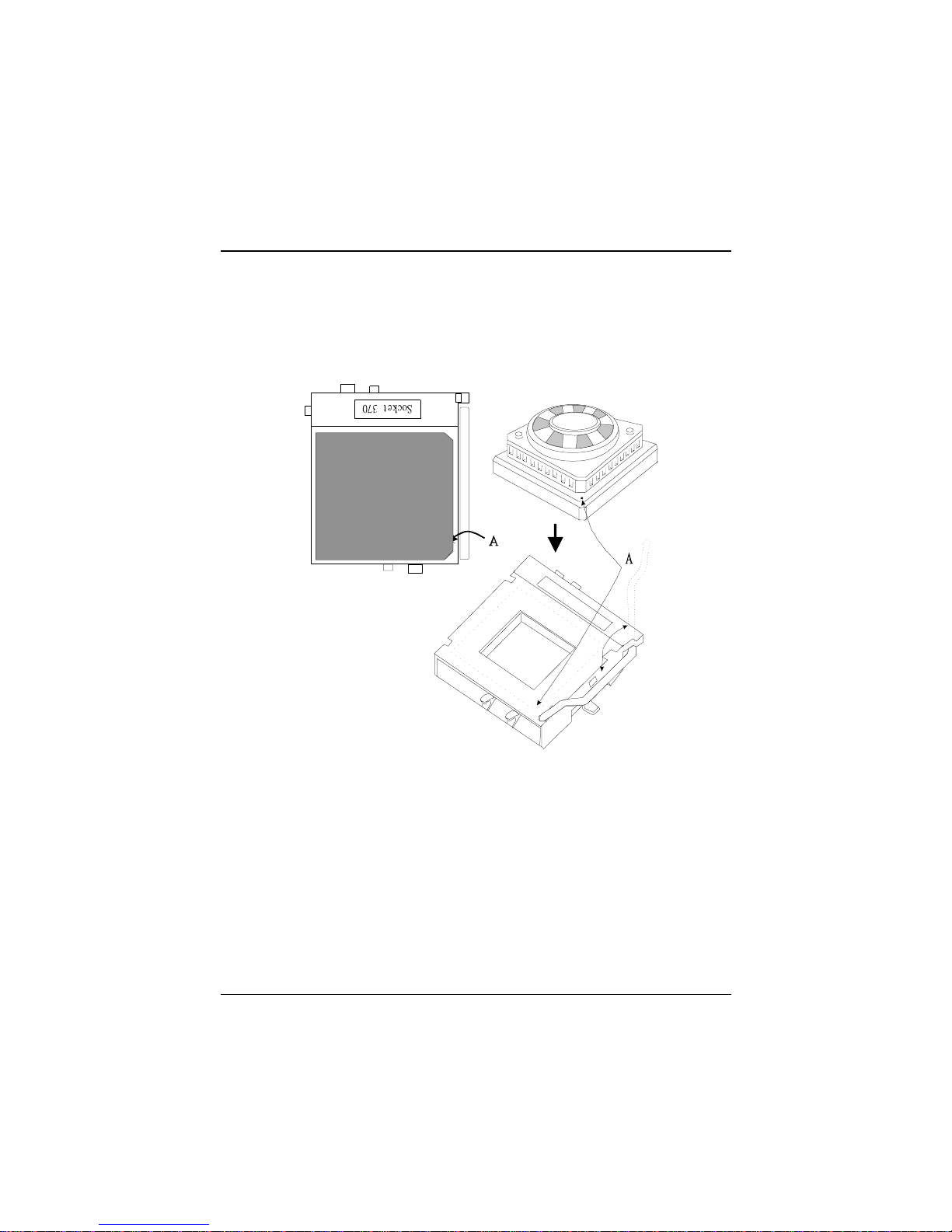

1.3.1 CPU Installation Procedure: Socket 370.......................................1-10

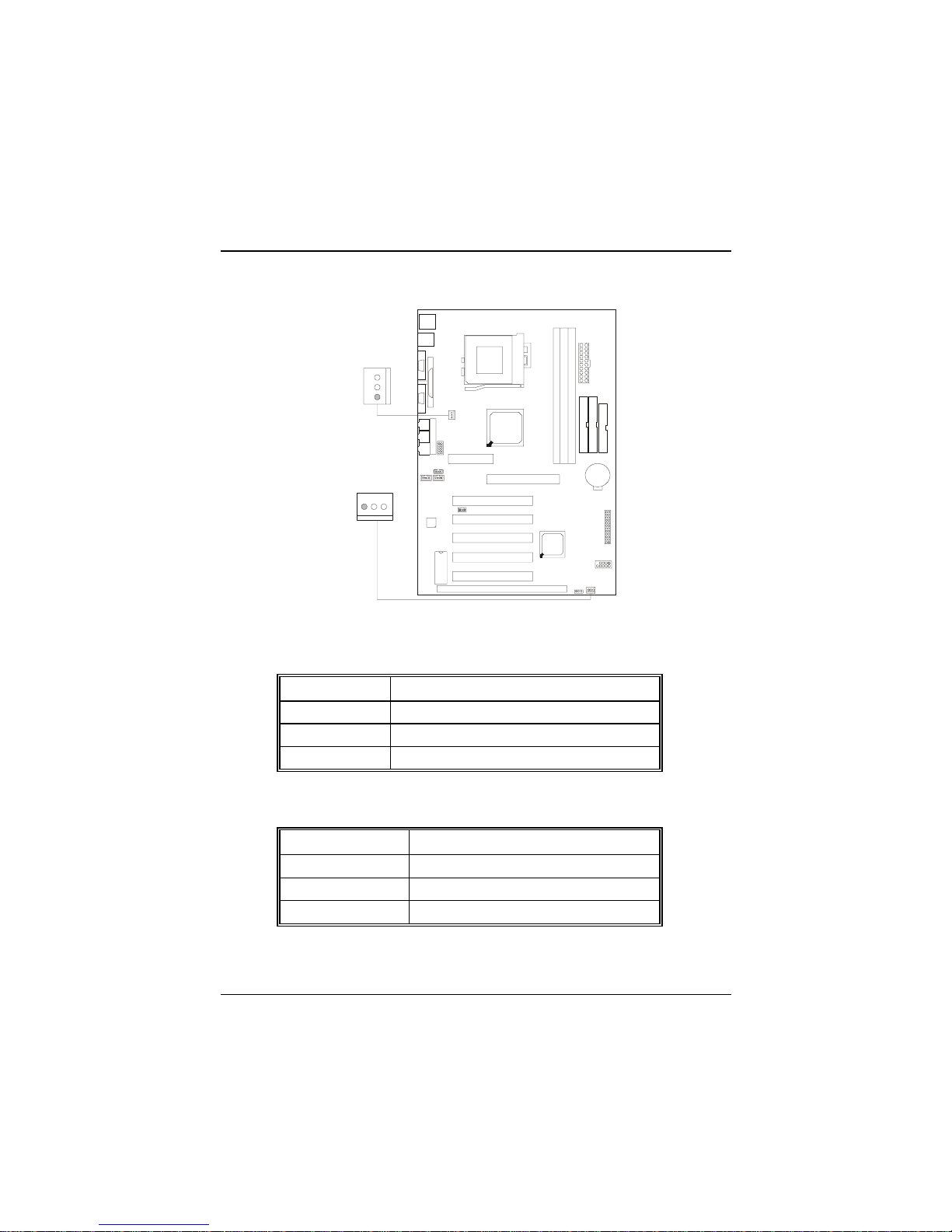

1.3.2 CPU & System FAN .....................................................................1-11
1.3.2.1 CPU FAN Header: JCFAN1 .............................................................1-11
1.3.2.2 System Fan Header: JSFAN1............................................................1-11
1.4 RAM Module Installation .....................................................................1-12
1.4.1 DIMM ...........................................................................................1-12
1.4.2 How to install a DIMM Module....................................................1-14

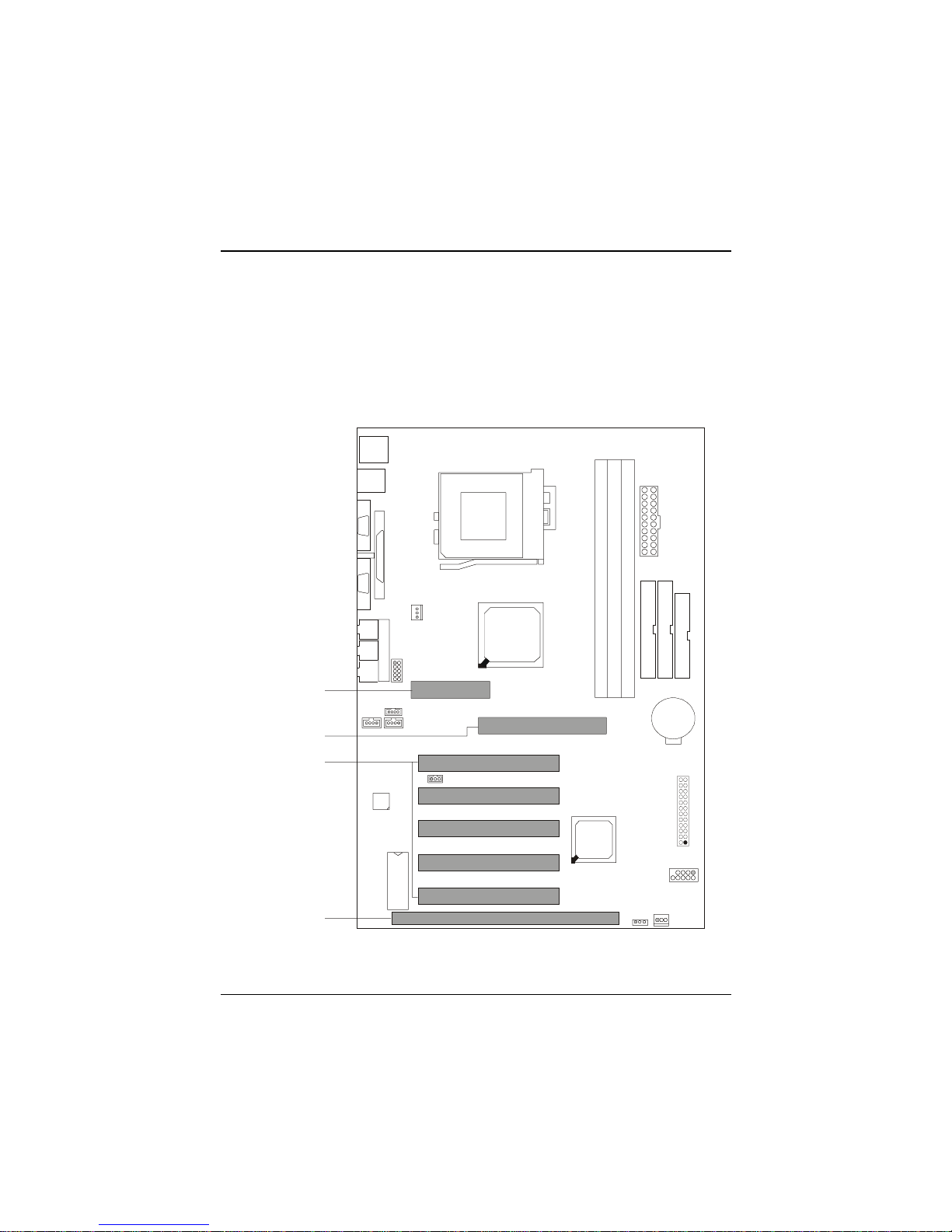

1.5 Slots ......................................................................................................1-15
1.5.1 AGP (Accelerated Graphics Port) Slot..........................................1-16
1.5.2 AMR (Audio Modem Riser) Slot..................................................1-16

Contents
ii
1.5.3 ISA (Industry Standard Architecture) Slot ....................................1-16
1.5.4 PCI (Peripheral Component Interconnect) Slots...........................1-16
1.6 Connectors, Headers & Jumpers...........................................................1-17
1.6.1 Front Panel Connector: JPANEL1 ................................................1-17
1.6.1 Front Panel Connector: JPANEL1 ................................................1-18
1.6.2 ATX 20-pin Power Connector: JATXPWR1................................1-20
1.6.3 Hard Disk Connectors: IDE1/IDE2...............................................1-20
1.6.4 Floppy Disk Connector: FDD1 .....................................................1-21
1.6.5 Wake On LAN Header: JWOL1 ...................................................1-21
1.6.6 Clear CMOS Jumper: JCMOS1 ....................................................1-22
1.6.7 Front USB Header: JUSB2 ...........................................................1-22
1.7 Peripheral Port Connectors...................................................................1-23
1.7.1 PS/2 Mouse / Keyboard Connector: JKBMS1..............................1-23
1.7.2 USB Connector: JUSB1................................................................1-24
1.7.3 Serial and Parallel Interface Ports.................................................1-25
1.7.3.1 The Serial Interface: COM1/COM2..................................................1-25
1.7.3.2 Connectivity......................................................................................1-26
1.7.3.3 Parallel Interface Port: JPRNT1........................................................1-27
1.7.4 Game (Joystick) Port Connector: JGAME1 ..................................1-28
1.7.5 Audio (MIDI) Port Connectors .....................................................1-28
1.7.6 Audio Subsystem...........................................................................1-29
1.7.6.1 CD-ROM Audio-In Header: JCDIN1 ...............................................1-30
1.7.6.2 CD-ROM Audio-In Header: JCDIN2 ...............................................1-30
1.7.6.3 Front Audio Header: JAUDIO1........................................................1-30

Contents
iii
1.7.6.4 Telephony Audio Header: JTAD1 (Optional)...................................1-31
2. BIOS Setup..............................................................................2-1
2.1 Main Menu..............................................................................................2-3
2.2 Standard CMOS Features........................................................................2-6
2.3 Advanced BIOS Features........................................................................2-9
2.4 Advanced Chipset Features...................................................................2-13
2.5 Integrated Peripherals ...........................................................................2-16
2.6 Power Management Setup.....................................................................2-21
2.7 PnP/PCI Configurations........................................................................2-27
2.8 PC Health Status ...................................................................................2-31
2.9 Frequency Control.................................................................................2-33
2.10 Load Optimized Defaults....................................................................2-34
2.11 Set Supervisor/User Password ............................................................2-35
2.12 Save & Exit Setup...............................................................................2-37
2.13 Exit Without Saving............................................................................2-38
3. Trouble Shooting....................................................................3-1

Chapter 1 Motherboard Description
1-1
Introduction
System Overview
Thanks for buying this product! This manual was written to help you start
using this product as quickly and smoothly as possible. Inside you will
find adequate explanations to solve most problems. In order for this
reference material to be of greatest use, refer to the “expanded table of
contents” to find relevant topics.
This board incorporates the all new VIA694X/T, VIA VT82C686B serial
chipset, ISA, AGP and PCI IDE into one board that provides a total PC
solution. The motherboard, a CeleronTM / Pentium!!! / TualatinTM,
processor based PC / ATX system, supports 128kbyte or 256kbyte or
512kbyte cache on CPU, PCI Local Bus to support upgrades to your
system performance. On-Board Sound Subsystem to support high 3D
sound quality the AMR Slot to support the solution of high performance,
low cost modem. It is ideal for multi-tasking and fully supports MS-DOS,
Windows 3x, Windows NT, Windows 2000, Windows ME, Novell,
Windows 9x, UNIX, SCO UNIX and LINUX etc. This manual explains
how to install the motherboard for operation.

Chapter 1 Motherboard Description
1-2
1 Motherboard Description
1.1 Features
1.1.1 Hardware
CPU −The CeleronTM processor (PPGA) and the Pentium!!! / TualatinTM
Micro-Processor provides the new generation power for high-end
workstations and servers.
−Provides Socket 370 .
Speed −Running at 66/100 or 133MHz Front Side Bus frequency.
−Supports up to 1.2 GHz CPU core speeds.
−Supports 33MHz PCI Bus speed.
DRAM Memory
−Supports three 8/16/32/64/128/256/512MB DIMM modules.
−Supports synchronous DRAM (3.3V).
−Supports a maximum memory size of 1.5GB with SDRAM.
−133MHz Bus frequency.
Green Function
−Supports power management operation via BIOS.
−Power down timer from 1 min to 1 hour.
−Wake On LAN connector.

Chapter 1 Motherboard Description
1-3
BUS Slots
−Provide one (2X/4X)AGP slot and one/two 16-bit ISA Bus slots.
−Four / Five 32-bit PCI bus master slots.
−PCI V2.2 compliant.
PCI Enhanced IDE Built-in onboard
−Supports 4 IDE hard disk drives.
−Supports Mode 4, bus master mode, high performance hard disk
drives.
−Supports Ultra DMA33/66/100, bus master mode.
−Supports IDE interface with CD-ROM.
−Supports high capacity hard disk drives.
−Supports LBA mode.
−Supports booting from LS-120 “SuperDisk” or iomega ™ZIP disk.
Super I/O Built-in onboard
−Support one multi-mode Parallel Port.
(1) Standard & Bidirection Parallel Port (SPP).
(2) Enhanced Parallel Port (EPP).
(3) Extended Capabilities Port (ECP).
−Supports two serial ports, 16550 UART with 16 byte FIFO.
−UART data rates up to 1.5 Mbaud.
−Supports one Infrared transmission (IR) port.
−Supports PS/2 Mouse.
−Supports 360KB, 720KB, 1.2MB, 1.44MB and 2.88MB floppy disk
drives.
Direct Sound Ready AC97 Digital Audio Controller
−Single chip audio CODEC with high S/N ratio (>90dB).
−18-bit ADC and DAC resolution.
−Compliant with AC’97 2.2 specification.
−Mee performance requirements for audio on PC2001 systems.
−18-bit stereo full-duplex CODEC with independed and variable
sampling rate.

Chapter 1 Motherboard Description
1-4
−4 analog line-level stereo input with 5-bit volume control :
LINE_IN,CD.
−Mono output with 5-bit volume control.
−Stereo output with 5-bit volume control.
−Power management.
−3D Stereo Enhancement.
−Line output with 50Mw/20ohm driving capability (ALC2001A).
−External Amplifier power down capability.
Power Management
−Supports both ACPI (Advanced and Configuration and Power
Interface) and legacy (APM) power management.
−ACPI v1.0 Compliant.
−APM v1.2 Compliant.
−CPU clock throttling and clock stop control for complete ACPI C0 to
C3 state support.
−PCI bus clock run, Power Management Enable (PME) control, and
PCI/CPU clock generator stop control.
−Supports multiple system suspend types: power-on suspends with
flexible CPU/PCI bus reset options, and suspend to disk (soft-off), all
with hardware automatic wake-up.
−Multiple suspend power plane controls and suspend status indicators.
−One idle timer, one peripheral timer and one general purpose timer,
plus 24/32-bit ACPI compliant timer.
−Normal, doze, sleep, suspend,and conserve modes.
−Global and local device power control.
−System event monitoring with two event classes.
−Primary and secondary interrupt differentiation for individual
channels.
−Dedicated input pins for power and sleep buttons, external modem ring
indicator, and notebook lid open/close for system wake-up.
−Multiple internal and external SMI sources for flexible power
management models.
−One programmable chip select and one microcontroller chip select.
−Enhanced integrated real time clock (RTC) with date alarm, month
alarm, and century field.

Chapter 1 Motherboard Description
1-5
−Thermal alarm on either external or any combination of two internal
temperature sensing circuits.
−I/O pad leakage control.
Universal Serial Bus
−USB v.1.1 and Intel Universal HCI v.1.1 compatible.
−Eighteen level (doublewords) data FIFO with full scatter and gather
capability.
−Root hub and four function ports.
−Intrgrated physical layer transceivers with optional over-current
detection status on USB inputs.
−Keyboard and mouse support.
Platform
−ATX Form Factor.
Dimension
−19.1 cm X 30.6 cm (W x L).
Full Featured Accerated Graphics Port (AGP) Controller
−Synchronous and pseudo-synchronous with the CPU bus with optimal
skew control.
−AGP v2.0 compliant.
−Supports SideBand Addressing (SBA) mode (non-multiplexed address
/ data).
−Supports 266 MHZ 4x mode for AD and SBA signaling.
−Pipelined split-transaction long-burst transfers up to 1GB /sec.
−Eight level read request queue.
−Four level posted-write request queue.
−Thirty-two level (quadworks) read data FIFO (256 bytes).
−Sixteen level (quadworks) write data FIFO (128 bytes).
−Intelligent request reordering for maximum AGP bus utilization.
−Suppots Flush/Fence commands.
−Graphics Address Relocation Table (GART).
(1)One level TLB structure.
(2)Sixteen entry fully associative page table.

Chapter 1 Motherboard Description
1-6
(3)LRU replacement scheme.
(4)Independent GART lookup control for host /AGP /PCI master
accesses.
−Windows 95 OSR-2 VXD and integrated Windows 98 / NT2000
/WINNT miniport driver support.
1.1.2 BIOS
BIOS −AWARD legal & user-friendly BIOS.
−Supports PnP functions.
1.1.3 Software
Operating Systems
−Offers the highest performance for Windows NT, Windows
2000, Windows 31 / 95 / 98 / ME, Novell, UNIX, SCO UNIT,
LINUX and others.
1.1.4 Accessories
−HDD Cable.
−FDD Cable.
−USB2 Cable (Optional).
−CD for IDE / VGA Chip Driver, BIOS flash writer utility, Audio
Driver.

Chapter 1 Motherboard Description
1-7
1.2 Motherboard Installation
1.2.1 System Block Diagram
VIA
MEMORY
HOSTBUS
PCI BUS
FLASH
BIOS
ISABUS
HOST BUS
VT82C686B
3 DIMM
US B US B
VT82C694X/T
AC' 97
CODEC
AMR
Serial P ort X2/
Parallel Port X1/
Game Port X1
AGP2X/4X
M6VCT
ATX
SUPPORTS 3 DIMMS
SUPPORTS 1 4XAGP,5 PCI,1 AMR , 1 ISA
SUPPORTS FRONT USB* 2
SUPPORTS STR FUNCTION
SOCKET
370
PCI
ISA
USB USB
PCI PCI PCI PCI
IDE
IDE

Chapter 1 Motherboard Description
1-8
1.2.2 Layout of Motherboard
Model No.M6VCT
CPU
Socket 370
ISA1
PCI3
PCI4
PCI5
PCI1
PCI2
PCI BUS SLOT
PCI BUS SLOT
PCI BUS SLOT
PCI BUS SLOT
PCI BUS SLOT
ISA BUS SLOT
AGP SLOT
AMR SLOT
AMR1
AGP1
JATXPWR1
JCFAN1
VIA
VT82C694X/T
V
T82C686B
U2
FDD1
IDE2IDE1
FLOPPY DISK CONN.
SECONDARY IDE CONN.
PRIMARY IDE CONN.
ROM1
U1
BAT1
JAUDIO1
1 2
9
JWOL1
JTAD1 JCDIN1
JCDIN2
11
1
1
Ac97
1
JSFAN1
JCMOS1
JPANEL1
JUSB2
1
1
2
9
2
2324
1
1
Clock
Gen
JKBMS1
KB
&
Mouse
JUSB1
USB
JGAME1
JCOM1
COM1
Parallel Port
COM2
JPRNT1
Speaker Out
Line In
MIC In
Game Port
JCOM2
DIMM3 DIMM2
DIMM1

Chapter 1 Motherboard Description
1-9
1.2.3 Quick Reference
A. Front Audio Header (JAUDIO1) J. CPU Fan Header (JCFAN1)
B. Back panel I/O Connectors K. DIMMs (DIMM1-3)
C. AMR BUS Slot (AMR1) L. ATX Power Connector (JATXPWR1)
D. CD Audio-In Header (JCDIN2) M. Floppy Disk Connector (FDD1)
E.
T
elephony Audio Header ( ＊
＊＊
＊ JTAD1) N. IDE Ports (IDE1/2)
F. CD Audio-In Header (JCDIN1) O. AGP BUS Slot (AGP1)
G. PCI BUS Slots (PCI1-5) P. Front Panel Connector (JPANEL1)
H. Wake-On-LAN Header (JWOL1) Q. Front USB Header (JUSB2)
I. ISA BUS Slot (ISA1) R. System Fan Header (JSFAN1)
S. Clear CMOS Function (JCMOS1)
Note: The “＊” mark represent the function is optional.
ABCDEFGHI
JKLMNOPQR
S

Chapter 1 Motherboard Description
1-10
1.3 CPU Installation
1.3.1 CPU Installation Procedure: Socket 370
1. Pull the lever sideways away from the socket then raise the lever up
to a 90-degree angle.
2. Locate Pin A in the socket and look for the white dot or cut edge in
the CPU. Match Pin A with the white dot/cut edge then insert the
CPU.
3. Press the lever down to complete the installation.
Socket370

Chapter 1 Motherboard Description
1-11
1.3.2 CPU & System FAN
1.3.2.1 CPU FAN Header: JCFAN1
Pin No. Assignment
1 Ground
2 +12V
3 Sense
1.3.2.2 System Fan Header: JSFAN1
Pin No. Assignment
1 Ground
2 +12V
3 Sense
JCFAN1
1
JSFAN1
1

Chapter 1 Motherboard Description
1-12
1.4 RAM Module Installation
1.4.1 DIMM
DRAM Access Time : 3.3V Unbuffered SDRAM PC66, PC100 & PC133 Type required.
DRAM Type : 8MB/16MB/32MB/64MB/128MB/256MB DIMM Module (168pin)
Total Bank 0 Bank 1 Bank 2
Memory Size (MB) DIMM1 DIMM2 DIMM3
8 M 8M x 1 pc ---- ----
16 M 16M x 1 pc ---- ----
32 M 32M x 1 pc ---- ----
64 M 64M x 1 pc ---- ----
128 M 128M x 1 pc ---- ----
256 M 256M x 1 pc ---- ----
512 M 512M x 1 pc
16 M 8M x 1 pc 8M x 1 pc ----
32 M 16M x 1 pc 16M x 1 pc ----
64 M 32M x 1 pc 32M x 1 pc ----
128 M 64M x 1 pc 64M x 1 pc ----
256 M 128M x 1 pc 128M x 1 pc ----
512 M 256M x 1 pc 256M x 1 pc ----
1024 M 512M x 1 pc 512M x 1 pc ----
24 M 8M x 1 pc 8M x 1 pc 8M x 1 pc
40 M 16M x 1 pc 16M x 1 pc 8M x 1 pc
72 M 32M x 1 pc 32M x 1 pc 8M x 1 pc
136 M 64M x 1 pc 64M x 1 pc 8M x 1 pc
264 M 128M x 1 pc 128M x 1 pc 8M x 1 pc
520 M 256M x 1 pc 256M x 1 pc 8M x 1 pc
1032 M 512M x 1 pc 512M x 1 pc 8M x 1 pc
32 M 8M x 1 pc 8M x 1 pc 16M x 1 pc
48 M 16M x 1 pc 16M x 1 pc 16M x 1 pc
80 M 32M x 1 pc 32M x 1 pc 16M x 1 pc
144 M 64M x 1 pc 64M x 1 pc 16M x 1 pc
272 M 128M x 1 pc 128M x 1 pc 16M x 1 pc
528 M 256M x 1 pc 256M x 1 pc 16M x 1 pc
1040 M 512M x 1 pc 512M x 1 pc 16M x 1 pc
48 M 8M x 1 pc 8M x 1 pc 32M x 1 pc
64 M 16M x 1 pc 16M x 1 pc 32M x 1 pc
96 M 32M x 1 pc 32M x 1 pc 32M x 1 pc
160 M 64M x 1 pc 64M x 1 pc 32M x 1 pc
288 M 128M x 1 pc 128M x 1 pc 32M x 1 pc
544 M 256M x 1 pc 256M x 1 pc 32M x 1 pc
1056 M 512M x 1 pc 512M x 1 pc 32M x 1 pc

Chapter 1 Motherboard Description
1-13
Total Bank 0 Bank 1 Bank 2
Memory Size (MB) DIMM1 DIMM2 DIMM3
80 M 8M x 1 pc 8M x 1 pc 64M x 1 pc
96 M 16M x 1 pc 16M x 1 pc 64M x 1 pc
128 M 32M x 1 pc 32M x 1 pc 64M x 1 pc
192 M 64M x 1 pc 64M x 1 pc 64M x 1 pc
320 M 128M x 1 pc 128M x 1 pc 64M x 1 pc
576 M 256M x 1 pc 256M x 1 pc 64M x 1 pc
1080 M 512M x 1 pc 512M x 1 pc 64M x 1 pc
144 M 8M x 1 pc 8M x 1 pc 128M x 1 pc
160 M 16M x 1 pc 16M x 1 pc 128M x 1 pc
192 M 32M x 1 pc 32M x 1 pc 128M x 1 pc
256 M 64M x 1 pc 64M x 1 pc 128M x 1 pc
384 M 128M x 1 pc 128M x 1 pc 128M x 1 pc
640 M 256M x 1 pc 256M x 1 pc 128M x 1 pc
1152 M 512M x 1 pc 512M x 1 pc 128M x 1 pc
272 M 8M x 1 pc 8M x 1 pc 256M x 1 pc
288 M 16M x 1 pc 16M x 1 pc 256M x 1 pc
320 M 32M x 1 pc 32M x 1 pc 256M x 1 pc
384 M 64M x 1 pc 64M x 1 pc 256M x 1 pc
512 M 128M x 1 pc 128M x 1 pc 256M x 1 pc
768 M 256M x 1 pc 256M x 1 pc 256M x 1 pc
1280 M 512M x 1 pc 512M x 1 pc 256M x 1 pc
528 M 8M x 1 pc 8M x 1 pc 512M x 1 pc
544 M 16M x 1 pc 16M x 1 pc 512M x 1 pc
576 M 32M x 1 pc 32M x 1 pc 512M x 1 pc
640 M 64M x 1 pc 64M x 1 pc 512M x 1 pc
768 M 128M x 1 pc 128M x 1 pc 512M x 1 pc
1024 M 256M x 1 pc 256M x 1 pc 512M x 1 pc
1536 M 512M x 1 pc 512M x 1 pc 512M x 1 pc
*The list shown above for DRAM configuration is only for reference.
Note: Don’t stuff or remove the DIMM memory, if the Power LED is
lighting or twinkling.

Chapter 1 Motherboard Description
1-14

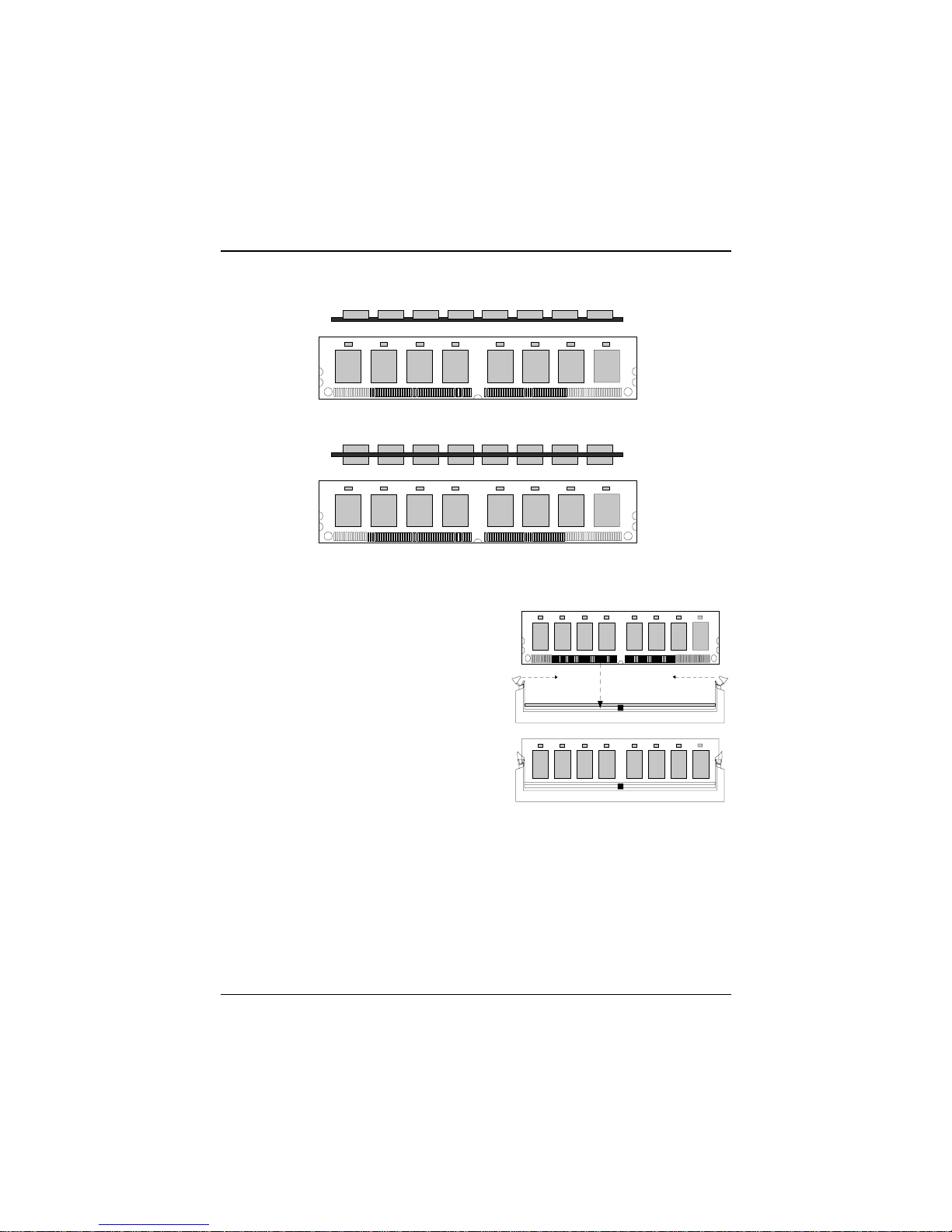

1.4.2 How to install a DIMM Module
1. The DIMM socket has a “ Plastic
Safety Tab” and the DIMM memory
module has an asymmetrical notch”, so
the DIMM memory module can only
fit into the slot in one direction.
2. Push the tabs out. Insert the DIMM
memory modules into the socket at a
90-degree angle then push down
vertically so that it will fit into place.
3. The Mounting Holes and plastic
tabs should fit over the edge and hold
the DIMM memory modules in place.
Single Sided DIMM
Double Sided DIMM

Chapter 1 Motherboard Description
1-15
1.5 Slots
The slots in this motherboard are designed to hold expansion cards and
connect them to the system bus. Expansion slots are a means of adding or
enhancing the motherboard’s features and capabilities. With these efficient
facilities, you can increase the motherboard’s capabilities by adding hardware
that performs tasks that are not part of the basic system.
AMR Slot
AGP Slot
PCI Slots
ISA Slot
AMR Slot
AGP Slot
PCI Slots
ISA Slot
