MSI MS-6323 User manual

CHAPTER 1 INTRODUCTION
1-1
Chapter 1
INTRODUCTION
The MS-6323 Micro ATX VA3 mainboard is a high-performance computer
mainboard based on VIA®VT82C694X chipset. The MS-6323 is designed
for the Intel®CeleronTMor Coppermine(FC-PGA) processor for inexpensive
business/personal desktop markets.
TheApolloPro133A(VT82C694X)isaSocket-370systemlogicnorthbridge
with the addition of 133 MHz capability for both the CPU and SDRAM
interfaces. Apollo Pro133A may be used to implement both desktop and
notebook personal computer systems from 66MHz to 133MHz based on
Socket-370 (Intel Celeron processors). The primary features of the Apollo
Pro133A-NorthBridgeare:Socket-370CPU(FrontSideBus)Interface(66/
100/133MHz),SDRAMMemoryInterface(66 / 100 /133MHz),AGP Bus
Interface(66MHz), PCIBusInterface(33MHz),Mobile Power Management.
TheVT82C686APSIPC (PCI Super-I/O Integrated Peripheral Controller) is a
high integration, high performance, power-efficient, and high compatibility
device that supports Intel and non-Intel based processor to PCI bus bridge
functionality to make a complete Microsoft PC99-compliant PCI/ISA system.

CHAPTER 1 INTRODUCTION
1-2
1.1 Mainboard Features
CPU
lSocket 370 for Intel®CeleronTM/CoppermineTM processor.
lSupports233MHz,266MHz, 300MHz,333MHz,350MHz,400MHz,
450MHz,500MHZ, 533MHz.,550MHz,667MHz orfasterprocessor.
Chipset
lVIA®VT82C694Xchipset.(510BGA)
-FSB @133MHz
- AGP 4x and PCI plus Advanced ECC Memory Controller
- Support PC100/133 SDRAM, VCM, & ESDRAM technology
lVIA®VT82C686Achipset.(352BGA)
- Advanced System Power Management Features
-IntegratedSuperI/O(FDC,LPT,COM 1/2, IR and four USB)
- DirectSound AC97 Audio and HSP Modem
- Dual bus Master IDE Ultra DMA33/66
ClockGenerator
l66.6MHz and 133Mhz clocks are supported.
MainMemory
lSupport four memory banks using two 168-pin unbuffered DIMM.
lSupporta maximummemory sizeof 2GB(32Mx 8).
lSupportECC(1-bitErrorCodeCorrect)function.
lSupport 3.3v SDRAM DIMM.
Slots
lOne AGP(Accelerated Graphics Port) slot.
- AGP specification compliant
- AGP66/133MHz 3.3v device support
lOne AMR(Audio Modem Riser) slot.
lTwo 32-bit Master PCI Bus slots.
lSupports 3.3v/5v PCI bus Interface.

CHAPTER 1 INTRODUCTION
1-3
On-BoardIDE
lAn IDE controller on the VIA®VT82C686AChipset provides IDE HDD/
CD-ROM with PIO, Bus Master and Ultra DMA 33/66 operation modes.
lCan connect up to four IDE devices.
On-BoardPeripherals
lOn-BoardPeripherals include:
-1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and
2.88Mbytes.
-2 serial ports (COMA + COMB)
- 1 parallel port supports SPP/EPP/ECP mode
- 2 USB ports (reserved 2 USB Front Pin Header)
- 1 IrDA/HP connector for SIR.
Audio
lChip Integrated
lCreativeCT5880. (Optional)
- 64 Voice WaveTable Synthesizer
- Sound Library of over 4000 different sounds
- Support Microsoft Direct Sound, Direct Sound 3D, Direct Music,
and A3DAPI.
BIOS
lThe mainboard BIOS provides “Plug & Play” BIOS which detects the
peripheral devices and expansion cards of the board automatically.
lThe mainboard provides a Desktop Management Interface(DMI) function
which records your mainboard specifications.
Dimension
lMicro-ATXForm Factor:24.4cm(L) x20cm (W)
Mounting
l6 mounting holes.

CHAPTER 1 INTRODUCTION
1-4

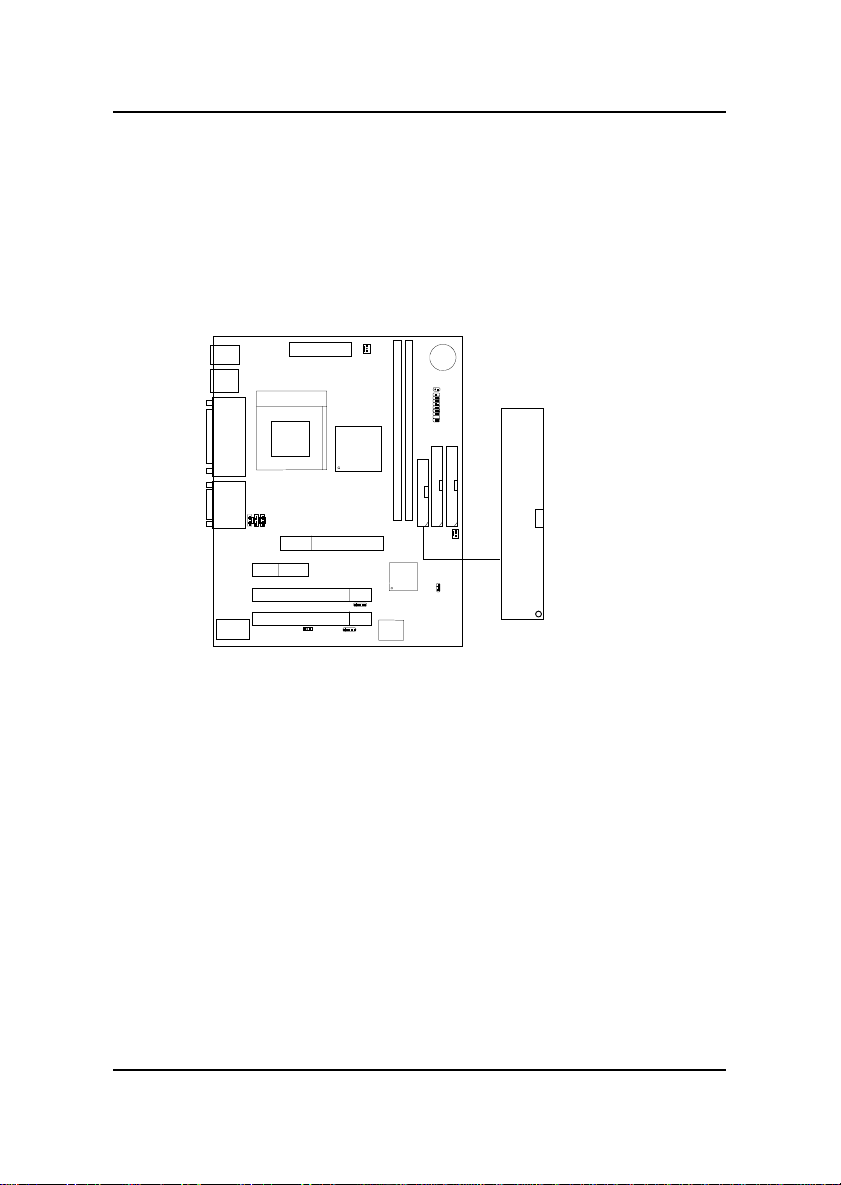

1.2 Mainboard Layout
PCI SLOT 2
PCI SLOT 1
ATX
Power Supply
VIA
VT82C694X
chipset
Socket 370
DIMM 2
Top: mouse
Bottom:
keyboard
Top:Port 1
USB
IDE2
Bottom:
Port2
IDE1
FDD1
VT82C686A
JMDM1
JBAT1
JWOL1
JCD1
JAUX1
CPUFAN
SYSFAN
Top:LPT
Bottom:
COMA
COMB
Top: Midi/
GamePort
Bottom:
Line-Out
Line-In
Mic
JPHONE
J1
BIOS
AGP Slot
BATT
+
DIMM 1
JFP1
AMR
Creative
CT5880
(Optional)
JGS1
MS-6323Micro ATX VA6Mainboard

CHAPTER 2 HARDWARE INSTALLATION
2-1
CPU
CPU
Chapter 2
HARDWARE INSTALLATION
2.1 Central Processing Unit: CPU
The mainboard operates with Intel®CeleronTM/Coppermine processor. The
mainboard uses a CPU socket called Socket 370 for easy CPU installation.
The CPU should always have a Heat Sink and a cooling fan attached to
prevent overheating.
3. Press the lever down to
complete the installation.
2. Locate Pin 1 in the socket
and look for the white dot or
cut edge in the CPU. Match
Pin 1 with the white dot/cut
edge. Then, insert the CPU.
It should insert easily.
OpenLever
Pin1
Sliding
Plate
White dot/
Cut edge
Close
Lever
1. Pull the lever sideways away
from the socket. Then, raise
the lever up to a 90-degree
angle.
Pin1
2.1-1 CPU Installation Procedures

CHAPTER 2 HARDWARE INSTALLATION
2-2
The Jumper Switch SW1 can be used to set the CPU Host
Bus Frequency Clock.
If CPUClock = 66MHz
Core/Bus ratio = 3.5
then CPU core speed = Host Clockx Core/Busratio
= 66MHzx3.5
= 233MHz
2.1-2 CPU Core Speed Derivation Procedure

CHAPTER 2 HARDWARE INSTALLATION
2-3
2.1-3 Fan Power Connectors: CPUFAN/SYSFAN
These connectors support system cooling fan with + 12V. It supports three
pin head connector. When connecting the wire to the connector, always
take note that the red wire is the positive and should be connected to the
+12V, the black wire is Ground and should be connected to GND. If your
mainboard has System Hardware Monitor chipset on-board, you must use a
specially designed fan with speed sensor to take advantage of this function.
For fans with fan speed sensor, every rotation of the fan will send out 2
pulses. System Hardware Monitor will count and report the fan rotation
speed.
Note: 1. Always consult vendor for proper CPU cooling fan.
2. CPU FAN supports the FAN control. You can install PC Alert
utility. This will automatically control the CPU FAN Speed according
to the actual CPU temperature.
CPUFAN
CPUFAN: Processor Fan
SYSFAN: System Fan
+12V
GND
SENSOR
SYSFAN
+12V
GND
SENSOR

CHAPTER 2 HARDWARE INSTALLATION
2-4
2.2 Clear CMOS Jumper: JBAT1
A battery must be used to retain the mainboard configuration in CMOS
RAM. Short 1-2 pins of JBAT1 to store the CMOS data.
Keep Data Clear Data
11
3
3
Note: You can clear CMOS by shorting 2-3 pin, while the system is off.
Then, return to 1-2 pin position. Avoid clearing the CMOS while
the system is on, it will damage the mainboard. Always unplug
the power cord from the wall socket.
22
1
3
JBAT1

CHAPTER 2 HARDWARE INSTALLATION
2-5
2.3 Memory Installation
2.3-1 Memory Bank Configuration
Themainboardsupports a maximum memory size of512GB(256-bit technol-
ogy) for SDRAM: It provides two 168-pin unbuffered DIMMs (Double In-
Line Memory Module) sockets. It supports 8 MB to 512 Mbytes DIMM
memorymodule.
DIMM1(Bank0+ Bank1)
DIMM2(Bank2+Bank3)

CHAPTER 2 HARDWARE INSTALLATION
2-6
A. HowtoinstallaDIMMModule
1. The DIMM slot has 2 Notch Keys “VOLT and DRAM”, so the
DIMM memory module can only fit in one direction.
2. Insert the DIMM memory module vertically into the DIMM slot.
Then push it in.
3. The plastic clip at the side of the DIMM slot will automatically
close.
Single Sided DIMM
Double Sided DIMM
VOLTDRAM
2.3-2 Memory Installation Procedures
