BIOS Setup
Introduction
The purpose of this manual is to describe the settings in the AMI BIOS Setup
program on this motherboard. The Setup program allows users to modify the basic
system configuration and save these settings to CMOS RAM. The power of CMOS
RAM is supplied by abattery sothat it retains theSetup informationwhen the power
is turned off.
Basic Input-Output System (BIOS) determines what a computer can do without
accessing programs from a disk. This system controls most of the input and output
devices such as keyboard, mouse, serial ports and disk drives. BIOS activates at the
first stage ofthe booting process, loading and executing the operating system. Some
additional features, such as virus and password protection or chipset fine-tuning
options are also included in BIOS.
The rest of this manual will to guide you through the options and settings in BIOS
Setup.
Plugand Play Support
ThisAMI BIOS supports thePlug and Play Version 1.0A specification.
EPA Green PC Support
ThisAMI BIOS supports Version 1.03 ofthe EPA Green PC specification.
APM Support
This AMI BIOS supports Version 1.1&1.2 of the Advanced Power Management
(APM) specification. Power management features are implemented via the System
Management Interrupt (SMI). Sleep and Suspend power management modes are
supported. Power to the hard disk drives and video monitors can also be managed by
this AMI BIOS.
ACPI Support
AMI ACPI BIOS support Version 1.0/2.0 of Advanced Configuration and Power
interface specification (ACPI). It provides ASL code for power management and
device configuration capabilities as defined in theACPI specification, developed by
Microsoft, Intel andToshiba.

TA880GB HD & TA890GXB HD BIOS Manual
2
PCI Bus Support
This AMI BIOS also supports Version 2.3 of the Intel PCI (Peripheral Component
Interconnect) local bus specification.
DRAM Support
DDR3 SDRAM (Double Data Rate III Synchronous DRAM) is supported.
Supported CPUs
ThisAMI BIOS supports the AMD CPU.
Using Setup
When starting up the computer, press
<Del> during the Power-On Self-Test
(POST) to enter theBIOS setup utility.
In the BIOS setup utility, you will see
General Help description at the top right
corner, and this is providing a brief
description of the selected item.
Navigation Keys for that particular menu
are at the bottom right corner, and you can
use these keys to select item and change
the settings.
Notice
zThe default BIOS settings applyfor most conditions to ensure optimum performance
of the motherboard. If the system becomes unstable after changing any settings,
please load the default settings to ensure system’s compatibility and stability. Use
Load Setup Default under the Exit Menu.
zFor better system performance, the BIOS firmware is being continuously updated.
The BIOS information described in this manual isfor yourreferenceonly. The actual
BIOS information and settings on board may be slightly different from this manual.
zThe content ofthis manual is subject to be changed without notice. We will not be
responsible for any mistakes found in this user’s manual and any system damage that
may be caused by wrong-settings.
General Help
Navigation Keys

TA880GB HD & TA890GXB HD BIOS Manual
3
1 Main Menu

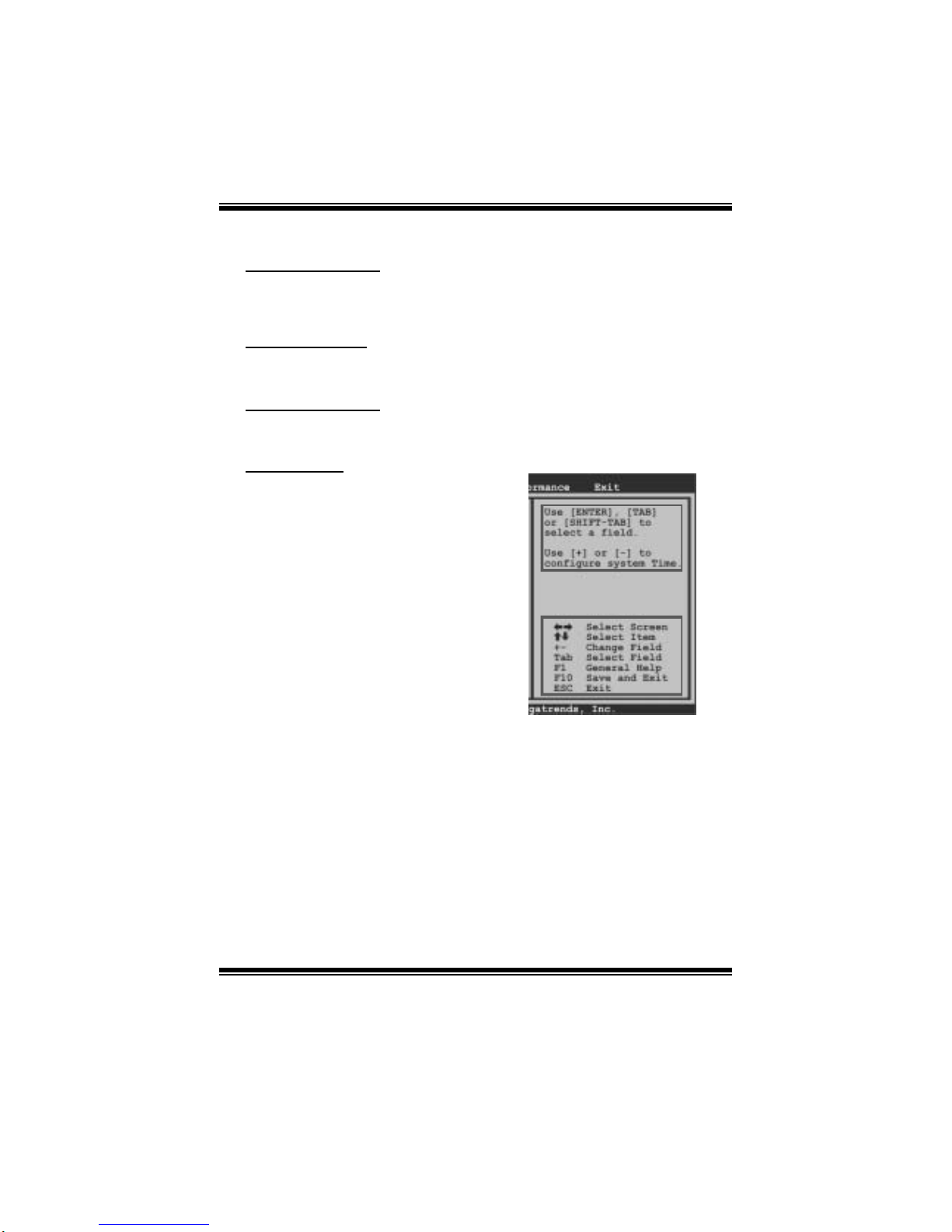

Once you enter AMI BIOS Setup Utility, the Main Menu will appear on the screen
providing an overviewofthe basic system information.
BIOS SETUP UTILITY
Main Advanced PCIPnP Boot Chipset T-Series
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Field
Select Field
General Help
Save and Exit
Exit
+-
Tab
F1
F10
ESC
Use [ENTER], [TAB]
or [SHIFT-TAB] to
select a field.
Use [+] or [-] to
configure system Time.
System Overview
AMI BIOS
Version :01.01.01
Build Date:01/01/10
System Memory
Size :
System Time [ :00:00]00
System Date [Fri 01/01/2010]
> IDE Configuration
Exit
AMI BIOS
Shows systeminformation, including BIOS version and built date.
System Memory
Shows systemmemory size.
System Time
Set the systeminternal clock.
System Date
Set the system date. Note that the ‘Day’ automatically changes when you set the
date.

TA880GB HD & TA890GXB HD BIOS Manual
4
IDE Configuration
The BIOS will automatically detect the presence of SATA devices. There is a
sub-menu for each SATA device. Select a device and press <Enter> to enter the
sub-menu ofdetailed options.
BIOS SETUP UTILITY
Main
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Go to Sub Screen
General Help
Save and Exit
Exit
Enter
F1
F10
ESC
While entering setup,
BIOS auto detects the
presence of IDE
devices. This displays
the status of auto
detection of IDE
devices.
IDE Confuguration
Hard Disk Write Protect [Disabled]
IDE Detect Time Out (Sec) [35]
> SATA 2 Device
> SATA 3 Device
> SATA 4 Device
> SATA 5 Device
> SATA 6 Device
> SATA 1 Device
SATA1/2/3/4/5/6 Device
BIOS SETUP UTILITY
Main
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
+-
F1
F10
ESC
Select the type
of device connected
to the system.
SATA 1
LBA/Large Mode [Auto]
Block (Multi-Sector Transfer)[Auto]
PIO Mode [Auto]
DMA Mode [Auto]
S.M.A.R.T [Auto]
32Bit Data Transfer [Enabled]
Device :
Type [Auto]
The BIOS detects the information and values of respective devices, and these
information and values are shown below to the name ofthesub-menu.

TA880GB HD & TA890GXB HD BIOS Manual
5
Type
Select the typeofthe IDE/SATA drive.
Options: Auto (Default) / CDROM / ARMD / Not Installed
LBA/Large Mode
Enable or disable the LBA mode.
Options: Auto (Default) / Disabled
Block (Multi-Sector Transfer)
Enable or disable multi-sector transfer.
Options: Auto (Default) / Disabled
PIOMode
Select the PIO mode.
Options: Auto (Default) / 0 / 1/ 2 / 3 /4
DMA Mode
Select the DMA mode.
Options: Auto (Default) / SWDMA0 ~ 2 / MWDMA0 ~ 2 / UDMA0 ~ 5
S.M.A.R.T
Set the Smart Monitoring, Analysis, and ReportingTechnology.
Options: Auto (Default) / Disabled / Enabled
32Bit Data Transfer
Enable or disable 32-bit data transfer.
Options: Enabled (Default) / Disabled
Hard Disk Write Protect
Disable or enable device write protection. This will be effective only if the device
is accessed through BIOS.
Options: Disabled (Default) / Enabled
IDE Detect Time Out (Sec)
Select the time out value for detecting IDE/SATA devices.
Options: 35 (Default)/ 30 / 25/ 20 / 15 / 10 / 5 / 0

TA880GB HD & TA890GXB HD BIOS Manual
6
2Advanced Menu
The Advanced Menu allows you to configure the settings ofCPU, Super I/O, Power
Management, and other system devices.
Notice
zBeware of that setting inappropriate values in items of this menu may cause
system tomalfunction.
BIOS SETUP UTILITY
Main Advanced PCIPnP Boot Chipset T-Series
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Go to Sub Screen
General Help
Save and Exit
Exit
Enter
F1
F10
ESC
Configure CPU.Advanced Settings
WARNING: Setting wrong values in below sections
may cause system to malfunction.
> SuperIO Configuration
> Smart Fan Configuration
> Hardware Health Configuration
> ACPI Configuration
> USB Configuration
> CPU Configuration
Exit
CPU Configuration
Thisitem shows theCPU information that theBIOS automatically detects.
BIOS SETUP UTILITY
Advanced
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
+-
F1
F10
ESC
Enable/Disable
Secure Virtual Machine
Mode (SVM)
CPU Configuration
Module Version:
AGESA Version:
Physical Count:
Logical Count:
AMD CPU
Revision:
Cache L1:
Cache L2:
Cache L3:
Speed : NB Clk:
ncHT Speed : WidthI/O :
Able to Change Freq :
uCode Patch Level :
Secure Virtual Machine Mode [Enabled]
PowerNow [Enabled]
ACPI SRAT Table [Enabled]
Probe Filter [Auto]

TA880GB HD & TA890GXB HD BIOS Manual
7
Secure Virtual Machine Mode
Virtualization Technology can virtually separate your system resource into several
parts, thus enhance the performance when running virtual machines or multi
interface systems.
Options: Enabled (Default) / Disabled
PowerNow
Thisitem allows you to enable or disable thePowerNow power saving technology.
Options: Enabled (Default) / Disabled
ACPI SRAT Table
The operating system scans the ACPI SRAT at boot time and uses the information to
better allocate memory and schedule software threads for maximum performance.
This item controls whether the SRAT is made available to the operating system at
boot up, or not.
Options: Enabled (Default) / Disabled
Probe Filter
Thisitem allows you to set initializationmode for Probe Filter.
Options: Auto (Default) / Disabled / MP Mode
C1E Support
This item allows you to configure the Enhanced Halt State (C1E) function, which
may reduce the power consumption of your system when the systemis idle.
Options: Enabled (Default) / Disabled

TA880GB HD & TA890GXB HD BIOS Manual
8
SuperIO Conf iguration
BIOS SETUP UTILITY
Advanced
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
+-
F1
F10
ESC
Allows BIOS to Select
Serial Port1 Base
Addresses.
Configure ITE8721 Super IO Chipset
Serial Port1 Address [3F8/IRQ4]
Parallel Port Address [378]
Parallel Port Mode [Normal]
Parallel Port IRQ [IRQ7]
OnBoard CIR Port [Disabled]
CIR Port IRQ [IRQ10]
Keyboard PowerOn [Disabled]
Mouse PowerOn [Disabled]
Restore on AC Power Loss [Power Off]
Serial Port1Address
Select an address and corresponding interrupt for the first and second serial ports.
Options: 3F8/IRQ4 (Default) / 2F8/IRQ3 / 3E8/IRQ4 / 2E8/IRQ3/ Disabled
ParallelPort Address
This item allows you to determine access onboard parallel port controller with which
I/O Address.
Options: 378 (Default) / 278 / 3BC / Disabled
ParallelPortMode
Thisitem allows you to determine how the parallel port should function.
Options: Normal (Default) Using Parallel port as Standard Printer Port.
EPP Using Parallel Port as Enhanced Parallel Port.
ECP Using Parallel port as Extended Capabilities Port.
ECP+EPP Using Parallel port as ECP& EPP mode.
ECP Mode DMA Channel
Thisitem allows you to select parallel port ECP DMA.
Options: DMA3 (Default) / DMA0 / DMA1

TA880GB HD & TA890GXB HD BIOS Manual
9
Parallel Port IRQ
Thisitem allows you to select the IRQ for the onboard parallel port.
Options: IRQ7 (Default) / IRQ5 / Disabled
OnBoard CIR Port
Thisitem allows you to enable or disable Consumer IR Port.
Options: Disabled (Default) / Enabled
CIR Port IRQ
Thisitem allows you to select ConsumerIR Port IRQ.
Options: IRQ10 (Default) /IRQ3 / IRQ4 / IRQ11
Keyboard PowerOn
Thisitem allows you to control thekeyboard power on function.
Options: Disabled (Default) / Specific Key / Stroke Key / Any Key
Specific KeyEnter
Thisitem will show only when Keyboard PowerOn is set “Specific Key.”
Stroke KeysSelected
Thisitem will show only when Keyboard PowerOn is set “Stroke Key.”
Options: Ctrl+F1 (Default) / Wake Key / Power Key / Ctrl+F2 / Ctrl+F3 /
Ctrl +F4 / Ctrl+F5 / Ctrl+F6
MousePowerOn
Thisitem allows you to control themouse power on function.
Options: Disabled (Default) / Enabled
Restore on AC Power Loss
Thissetting specifies how your system should behave aftera power fail or interrupts
occurs. By choosing Disabled will leave the computer in the power off state.
Choosing Enabled will restore the system to the status before power failure or
interrupt occurs.
Options: Power Off(Default)/ Power ON / LastState

TA880GB HD & TA890GXB HD BIOS Manual
10
Smart Fan Configuration
BIOS SETUP U TILITY
Advanced
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
+-
F1
F10
ESC
When you choice [Auto]
,[3Pin] or [4Pin],
please run the
calibration to define
the Fan parameters for
Smart Fan control
Smart Fan Configuration
CPU Smart Fan [Disabled]
Smart Fan Calibration
Control Mode
Fan Ctrl OFF( C)
o
Fan Ctrl On(C )
Fan Ctrl Start value
Fan Ctrl Sensitive
o
CPUSmartFan
Thisitem allows you to control theCPUSmart Fan function.
Options: Disabled (Default) / Auto / 4Pin / 3Pin
Smart Fan Calibration
Choose this item and then the BIOS will auto test and detect the CPU/System fan
functions and show CPU/Systemfan speed.
Control Mode
Thisitem provides several operation modes ofthefan.
Options: Quiet / Performance/ Manual
Fan Ctrl OFF(℃ )
IftheCPU/System Temperatureis lowerthan theset value, FAN will turn off.
Options: 0~127 (℃)(With the interval of1℃)
Fan Ctrl On(℃ )
CPU/System fan starts to work under smart fan function when arrivethis set value.
Options: 0~127 (℃)(With the interval of1℃)

TA880GB HD & TA890GXB HD BIOS Manual
11
Fan Ctrl Start Value
When CPU/System temperature arrives to the set value, the CPU/System fan will
work under Smart Fan Functionmode.
Options: 0~127 (With theinterval of1)
Fan Ctrl Sensitive
Increasing the value will raise the speed of CPU/System fan.
Options: 1~127 (With theinterval of1)
Hardware HealthConfiguration
Thisitem shows the system temperature, fan speed, and voltage information.
Advanced
Hardware Health Configuration
H/W Health Function [Enabled]
Shutdown Temperature [Disabled]
CPU Temperature
CHIP Temperature
SYS Temperature
Sytem2 Fan
+12.0V
+5.00V
CPU Fan
Sytem1 Fan
CPU Voltage
Chip Voltage
HT Voltage
DDR Voltage
BIOS SETUP UTILITY
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
+-
F1
F10
ESC
Enables Hardware
Health Monitoring
Device.
H/W Health Function
Ifwith amonitoring system, the system will showPChealth status during POST stage.
Options: Enabled (Default) / Disabled
Shutdown Temperature
This item allows you to set up the CPU shutdown Temperature. This item is only
effective under Windows 98 ACPI mode.
Options: Disabled (Default) / 60 /140 / 65 /149 / 70 /158 / 75 /167℃℉℃℉℃℉℃℉
/ 80 /176 / 85 /185 / 90 /194℃℉℃℉℃℉

TA880GB HD & TA890GXB HD BIOS Manual
12
ACPI Configuration
BIOS SETUP UTILITY
Advanced
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
+-
F1
F10
ESC
When EuP Enabled.
System meets EuP
requirment.
All wake up events
do not work except
Power Button after
power down system(S5)
ACPI Settings
EuP Control [Disabled]
Suspend mode [S1 (POS)]
ACPI Version Features [ACPI v3.0]
ACPI APIC support [Enabled]
AMI OEMB table [Enabled]
Headless mode [Disabled]
RTC Resume [Disabled]
RTC Alarm Date(Days)
Time
USB Wakeup From S3/S4 [Disabled]
Wakeup On Ring [Disabled]
RTC Alarm
Power On by LAN [Disabled]
EuP Control
Thisitem is used to enable or disable EuP Control ((Energy Using Products).
Options: Disabled (Default) / Enabled
Suspend mode
The item allows you to select the suspendtype under the ACPI operating system.
Options: S1 (POS) (Default) Power on Suspend
S3(STR) Suspend toRAM
S1& S3 POS+STR
ACPI Version Features
The item allows you to select the version of ACPI.
Options: ACPI v3.0 (Default)/ ACPI v1.0 / ACPI v2.0
ACPI APIC support
This item is used to enable or disable the motherboard's APIC (Advanced
Programmable Interrupt Controller). The APIC provides multiprocessor support,
more IRQs and faster interrupt handling.
Options: Enabled (Default) / Disabled

TA880GB HD & TA890GXB HD BIOS Manual
13
AMI OEMB table
Set thisvalueto allowthe ACPIBIOS toadd a pointer to an OEMBtable intheRoot
System Description Table (RSDT) table.
Options: Enabled (Default) / Disabled
Headless mode
This is a server-specific feature. A headless server is one that operates without a
keyboard, monitor or mouse. To run in headless mode, both BIOS and operating
system (e.g. WindowsServer 2003) must supportheadless operation.
Options: Disabled (Default) / Enabled
RTC Resume
When “Enabled”, you can set the date and time at whichthe RTC (real-time clock)
alarm awakens the system from Suspend mode.
Options: Disabled (Default) / Enabled
RTC Alarm Date (Days)
You can choose which date the system will boot up.
RTC Alarm Time
You can choose the system boot up time, input hour, minute and second to specify.
USBWakeup from S3/S4
Thisitem allows you to enable or disabled the USB resumefrom S3/S4 function.
Options: Disabled (Default) / Enabled
Power On by LAN
Thisitem allows you control the wake on LAN (WOL) function.
Options: Disabled (Default) / Enabled
Wakeup OnRing
Thisitem allows you control thewakeup on ring function.
Options: Disabled (Default) / Enabled

TA880GB HD & TA890GXB HD BIOS Manual
14
USB Configuration
Thisitem shows the USB controller and using USB deviceinformation.
BIOS SETUP UTILITY
Advanced
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
+-
F1
F10
ESC
Enables support for
legacy USB. AUTO
option disables
legacy support if
no USB devices are
connected.
USB Configuration
USB Devices Enabled:
Module Version - 2.24.5-13.4
Legacy USB Support [Enabled]
USB 2.0 Controller Mode [HiSpeed]
BIOS EHCI Hand-Off [Enabled]
Legacy USB1.1 HC Support [Enabled]
> USB Mass Storage Device Configuration
Legacy USB Support
This item determines if the BIOS should provide legacy support for USB devices
like the keyboard, mouse, and USB drive. This is a useful feature when using such
USB devices with operating systems that do not natively support USB (e.g.
Microsoft DOS or Windows NT).
Options: Enabled (Default) / Disabled
USB2.0 ControllerMode
Thisitem allows you to select the operation modeofthe USB 2.0 controller.
Options: HiSpeed (Default) USB 2.0-480Mbps
FullSpeed USB 1.1-12Mbps
BIOS EHCI Hand-Off
This item allows you to enable support for operating systems without an EHCI
hand-off feature.
Options: Enabled (Default) / Disabled
Legacy USB1.1 HC Support
Thisitem allows you to enable to support USB1.1 HC.
Options: Enabled (Default) / Disabled

TA880GB HD & TA890GXB HD BIOS Manual
15
USBMass Storage Device Configuration
BIOS SETUP UTILITY
Advanced
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
+-
F1
F10
ESC
Number of seconds
POST waits for the
USB mass storage
device after start
unit command.
USB Mass Storage Device Configuration
USB Mass Storage Reset Delay [20 Sec]
Emulation Type [Auto]
Device #
USB Mass Storage Reset Delay
Thisitem allows you to set the reset delay for USB mass storage device.
Options: 20 Sec (Default) / 10 Sec / 30Sec / 40Sec
Emulation Type
Thisitem allows you to select the emulation typeofthe USB mass storage device.
Options: Auto (Default) / Floppy / Forced FDD/ Hard Disk / CDROM

TA880GB HD & TA890GXB HD BIOS Manual
16
3 PCIPnP Menu
This section describes configuring the PCI bus system. PCI, or Personal Computer
Interconnect, is a system which allows I/O devices to operate at speeds nearing the
speed ofthe CPU itselfuses when communicating with itsown special components.
Notice
zBeware of that setting inappropriate values in items of this menu may cause
system tomalfunction.
BIOS SETUP UTILITY
Main Advanced PCIPnP Boot Chipset T-Series
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
+-
F1
F10
ESC
Clear NVRAM during
System Boot.
Advanced PCI/PnP Settings
WARNING: Setting wrong values in below sections
may cause system to malfunction.
Plug & Play O/S [No]
PCI Latency Timer [64]
Allocate IRQ to PCI VGA [Yes]
Palette Snooping [Disabled]
PCI IDE BusMaster [Enabled]
> PCI Resource
Clear NVRAM [No]
Exit
Clear NVRAM
Thisitem allows you to clear thedata in the NVRAM (CMOS) by selecting “Yes”.
Options: No (Default) / Yes
Plug & Play OS
When set to YES, BIOS will only initialize the PnP cards used for the boot sequence
(VGA, IDE, SCSI). The rest of the cards will be initialized by the PnP operating
system like Window™ 95. When set to NO, BIOS will initialize all the PnP cards.
For non-PnP operating systems (DOS, Netware™), this option must set to NO.
Options: No (Default) / Yes

TA880GB HD & TA890GXB HD BIOS Manual
17
PCI Latency Timer
Thisitem controls how long a PCI device can hold the PCI bus before another takes
over. The longer the latency, the longer the PCI device can retain control ofthe bus
before handing it overto another PCI device.
Options: 64 (Default)/ 0-255
Allocate IRQ to PCI VGA
Thisitem allows BIOSto choose a IRQ to assignfor the PCI VGA card.
Options: Yes (Default) / No
Palette Snooping
Someold graphic controllers need to “snoop” on the VGApalette and then map it to
their display as a way to provideboot information and VGAcompatibility. This item
allows such snooping to take place.
Options: Disabled (Default) / Enabled
PCI IDE BusMaster
Thisitem is atoggle for the built-in driver that allows theonboard IDE controller to
perform DMA (Direct Memory Access) transfers.
Options: Enabled (Default) / Disabled
PCIResource
BIOS SETUP UTILITY
PCIPnP
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
+-
F1
F10
ESC
Available: Specified
IRQ is available to be
used by PCI/PnP
devices.
Reserved: Specified
IRQ is reserved for
use by Legacy ISA
devices.
PCI Resource
IRQ3 [Available]
IRQ4 [Available]
IRQ5 [Available]
IRQ7 [Available]
IRQ9 [Available]
IRQ10 [Available]
IRQ11 [Available]
IRQ14 [Available]
IRQ15 [Available]
DMA Channel 0 [Available]
DMA Channel 1 [Available]
DMA Channel 3 [Available]
DMA Channel 5 [Available]
DMA Channel 6 [Available]
DMA Channel 7 [Available]
Reserved Memory Size [Disabled]

TA880GB HD & TA890GXB HD BIOS Manual
18
IRQ3/4/5/7/9/10/11/14/15
These items will allow you to assign each system interrupt a type, depending on the
type of device using the interrupt. Theoption “Available” means the IRQ is going
to assign automatically.
Options: Available (Default) / Reserved
DMAChannel0/1/3/5/6/7
These items will allow you to assign each DMA channel a type, depending on the
type of device using the channel. The option “Available” means the channel is
going to assign automatically.
Options: Available (Default) / Reserved
ReservedMemory Size
Thisitem allows BIOSto reserve certain memorysize for specific PCI device.
Options: Disabled (Default) / Enabled

TA880GB HD & TA890GXB HD BIOS Manual
19
4 Boot Menu
Thismenu allows youto setup the system boot options.
BIOS SETUP UTILITY
Main Advanced PCIPnP Boot Chipset T-Series
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Go to Sub Screen
General Help
Save and Exit
Exit
Enter
F1
F10
ESC
Specifies the
Boot Device
Priority sequence.
Boot Settings Configuration
> Hard Disk Drives
> CD/DVD Drives
Quick Boot [Enabled]
Full Screen LOGO Show [Enabled]
AddOn ROM Display Mode [Force BIOS]
Bootup Num-Lock [ON]
Interrupt 19 Capture [Disabled]
Ignore Memory Error Messages [Disabled]
BOOT SUCCESS BEEP [Enabled]
> Boot Device Priority
Exit
Boot Device Priority
Items in this sub-menu specify the boot device priority sequence from the available
devices. The number of device items that appears on the screen depends on the
number of devices installed in the system.
Options: Removable/ Hard Disk / CDROM / Legacy LAN / Disabled
Hard Disk Drives
The BIOS will attempt to arrange the hard disk boot sequence automatically. You
can also change the booting sequence. The number of device items that appears on
the screen depends on the number of devices installed in the system.
Options: Pri. Master / Pri. Slave / Sec. Master / Sec. Slave / USB HDD0 /
USB HDD1 / USB HDD2 / Bootable Add-in Cards
CD/DVD Drives
The BIOS will attempt to arrange the CD/DVD drive boot sequence automatically.
You can also change the booting sequence. The number of device items that
appears on the screen depends on the number of devices installed in thesystem.
Options: Pri. Master / Pri. Slave / Sec. Master / Sec. Slave / USB CDROM0 /
USB CDROM 1
