DFI PL610-C622 User manual

1
PL610-C622
ATX Industrial Motherboard
User’s Manual
A48100952

2
Copyright
This publication contains information that is protected by copyright. No part of it may be re-
produced in any form or by any means or used to make any transformation/adaptation without
the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes no
representations or warranties with respect to the contents or use of this manual and specifi-
cally disclaims any express or implied warranties of merchantability or fitness for any particular
purpose. The user will assume the entire risk of the use or the results of the use of this docu-
ment. Further, the manufacturer reserves the right to revise this publication and make changes
to its contents at any time, without obligation to notify any person or entity of such revisions
or changes.
Changes after the publication’s first release will be based on the product’s revision. The website
will always provide the most updated information.
© 2019. All Rights Reserved.
Trademarks
Product names or trademarks appearing in this manual are for identification purpose only and
are the properties of the respective owners.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reason-
able protection against harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party responsible for compli-
ance could void the user’s authority to operate the equipment.
2. Shielded interface cables must be used in order to comply with the emission limits.

3
Table of Contents
Copyright...................................................................................................2
Trademarks................................................................................................2
FCC and DOC Statement on Class B ...........................................................2
Warranty ...................................................................................................4
Static Electricity Precautions .......................................................................4
Safety Measures.........................................................................................4
About the Package.....................................................................................5
Optional Items...........................................................................................5
Before Using the System Board ..................................................................5
Chapter 1 - Introduction.............................................................................6
Specifications .......................................................................................6
Features ..............................................................................................7
Chapter 2 - Hardware Installation...............................................................8

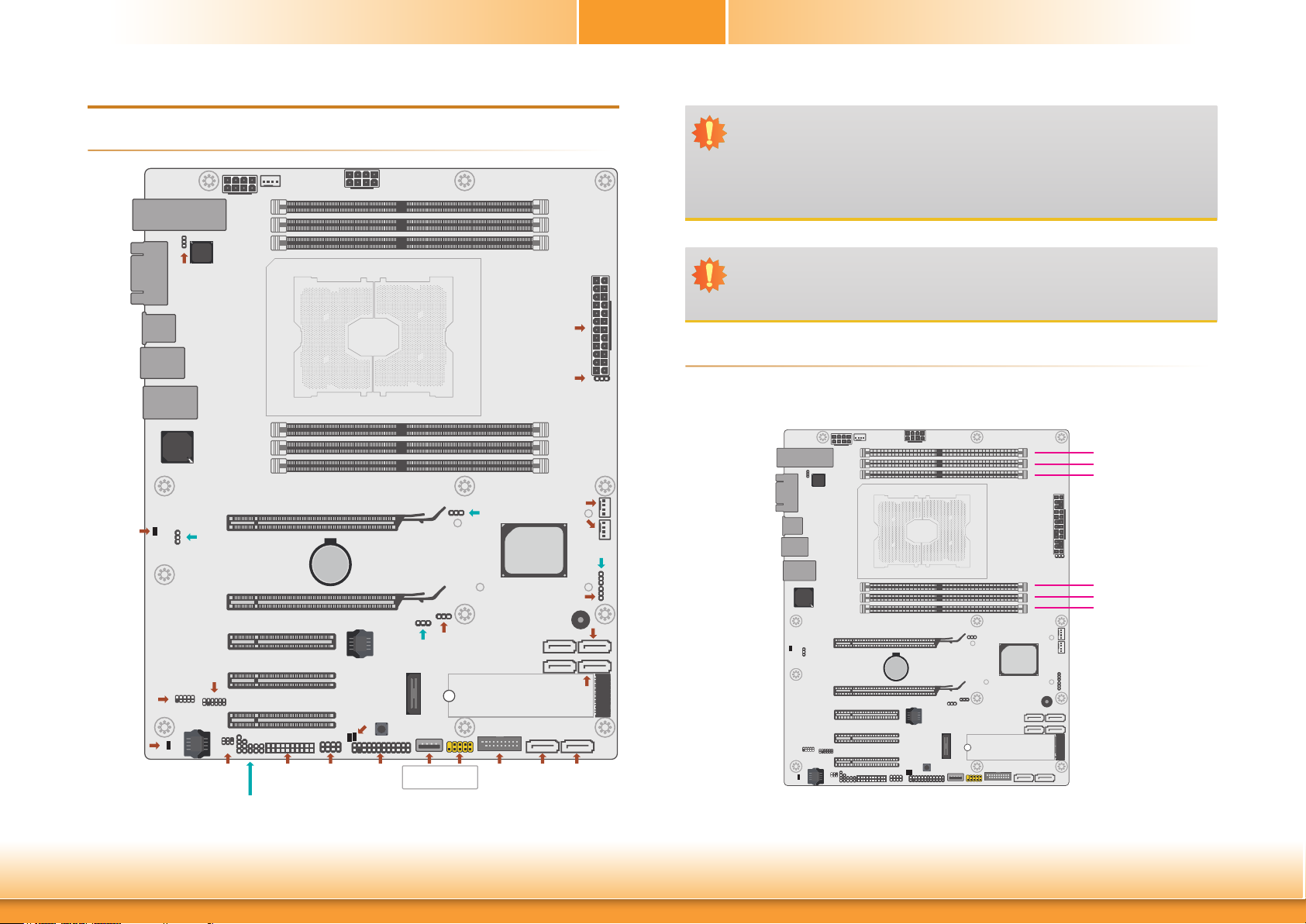

Board Layout .......................................................................................8

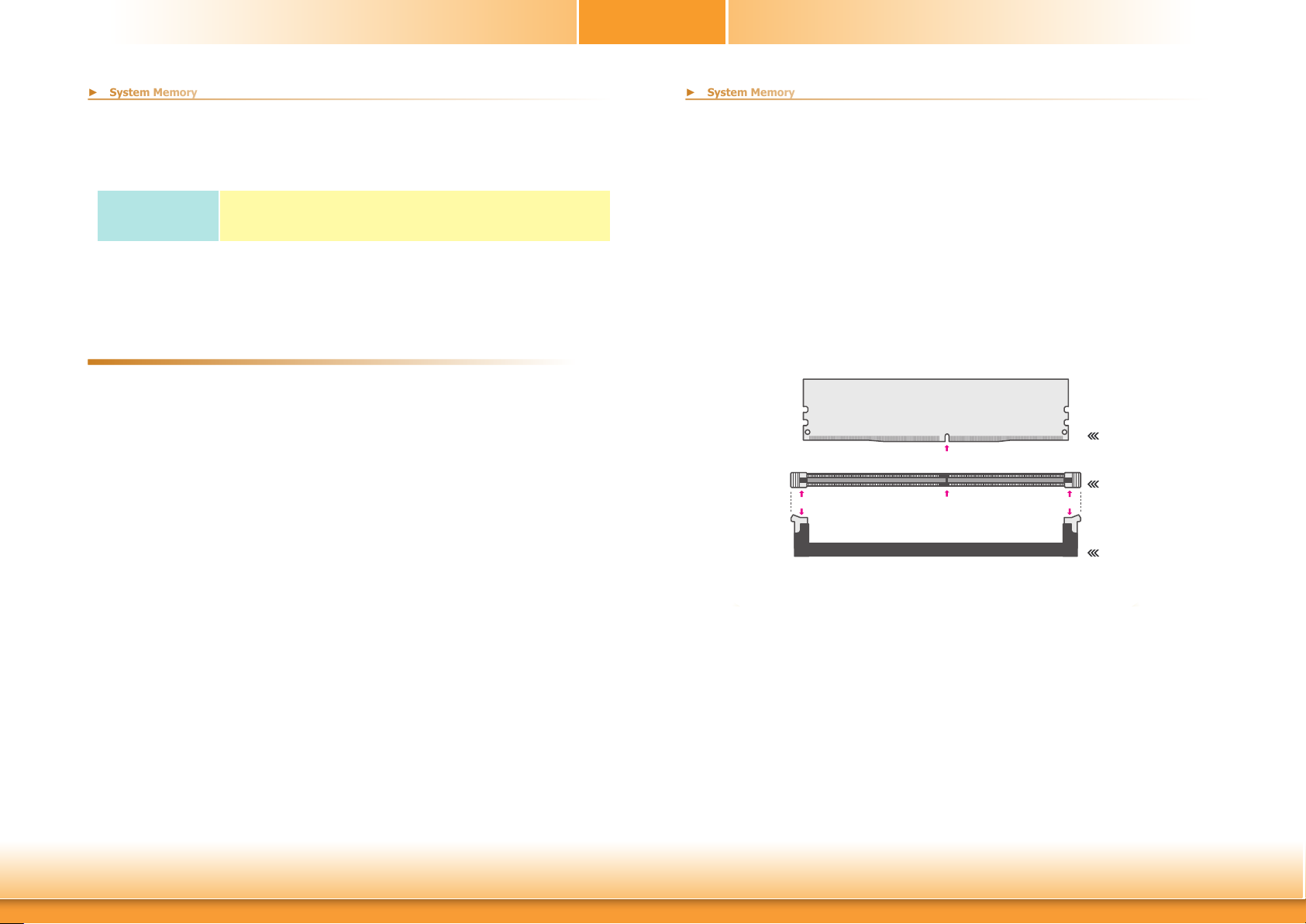

System Memory ...................................................................................8

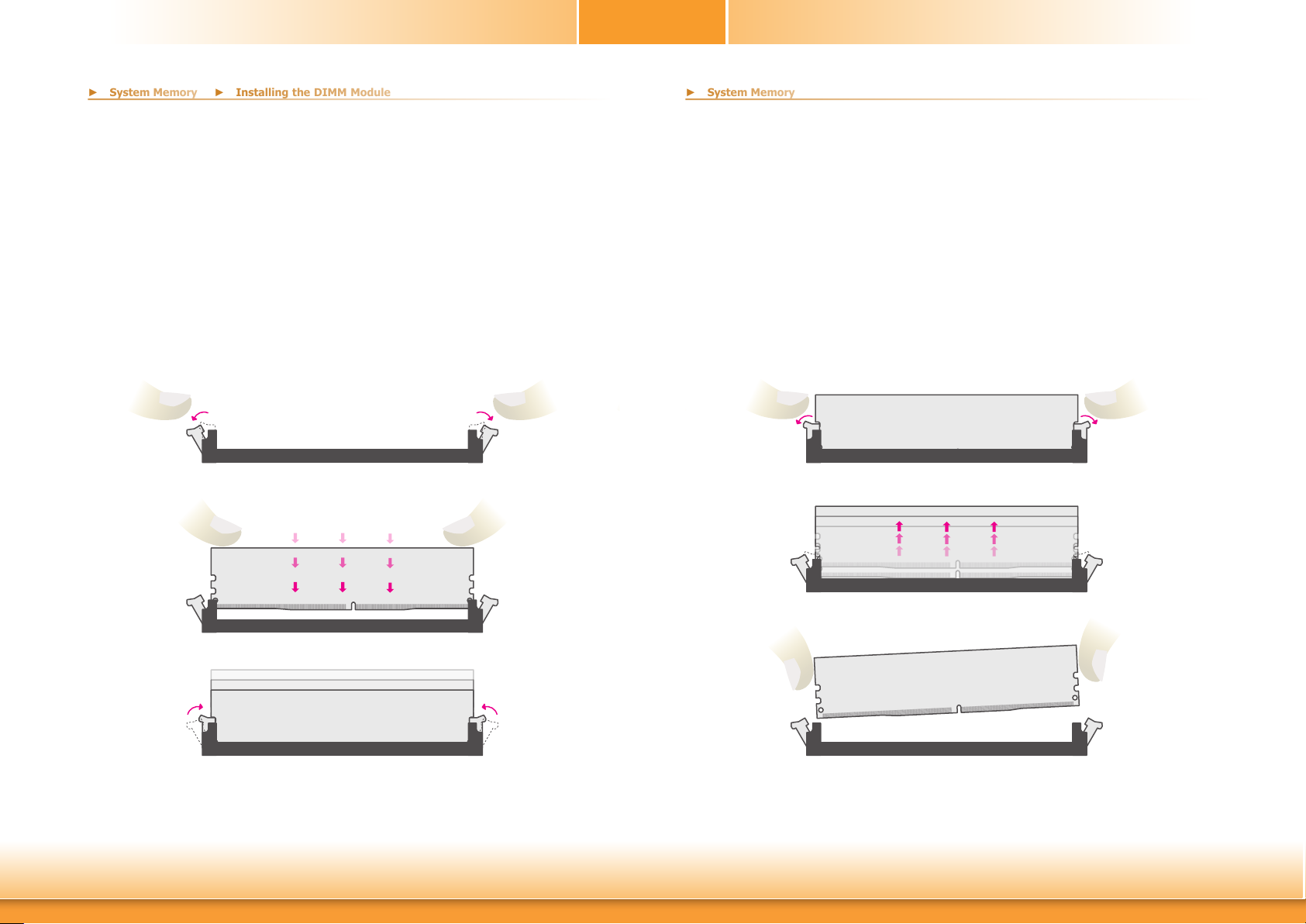

Installing the DIMM Module ............................................................9
Removing the DIMM Module .........................................................10
CPU...................................................................................................11
Installing the CPU, Fan and Heat Sink ...........................................11

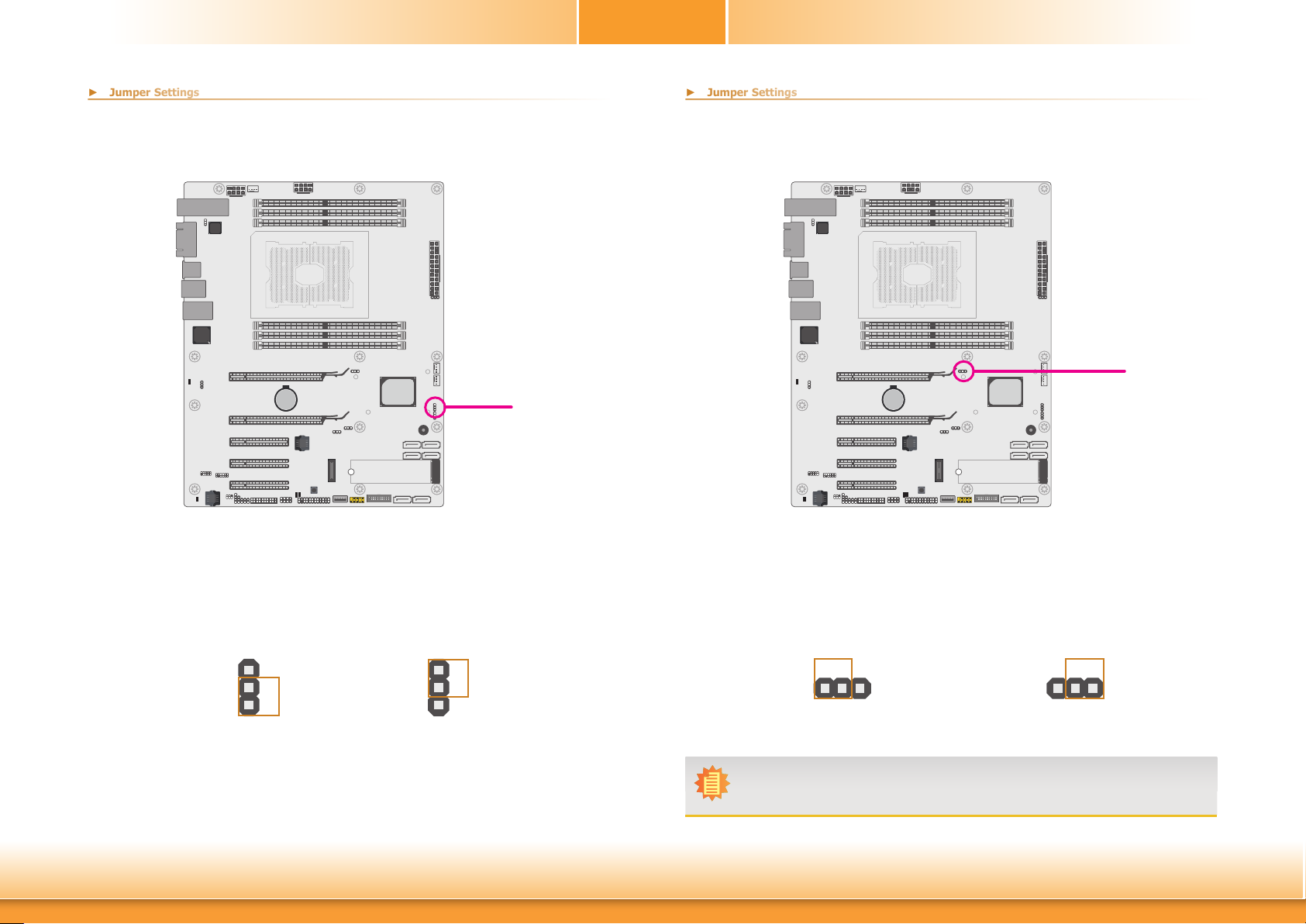

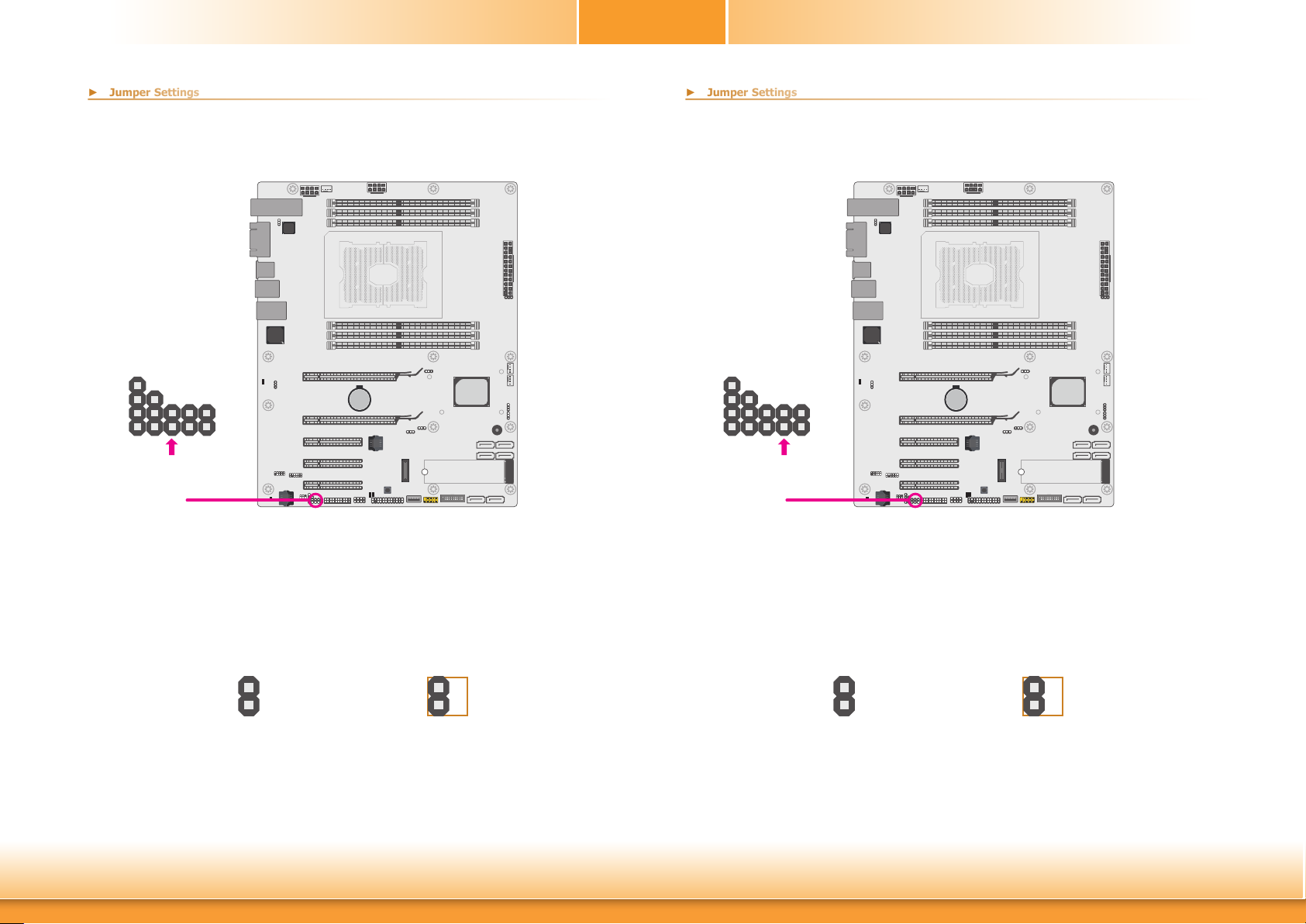

Jumper Settings .................................................................................13
BMC/PCH SMB Host Select............................................................13
Clear CMOS .................................................................................13
ME Firmware Update ....................................................................14
PCIe 3 Switch ..............................................................................14
Enable eSPI .................................................................................15
UART Debug Select ......................................................................15
RSVD CPLD Update ......................................................................16
BMC Password Clear.....................................................................16
Rear Panel I/O Ports ..........................................................................17
Graphics Interface ........................................................................17
LAN Ports.....................................................................................18
USB Ports ....................................................................................18
I/O Connectors ..................................................................................19

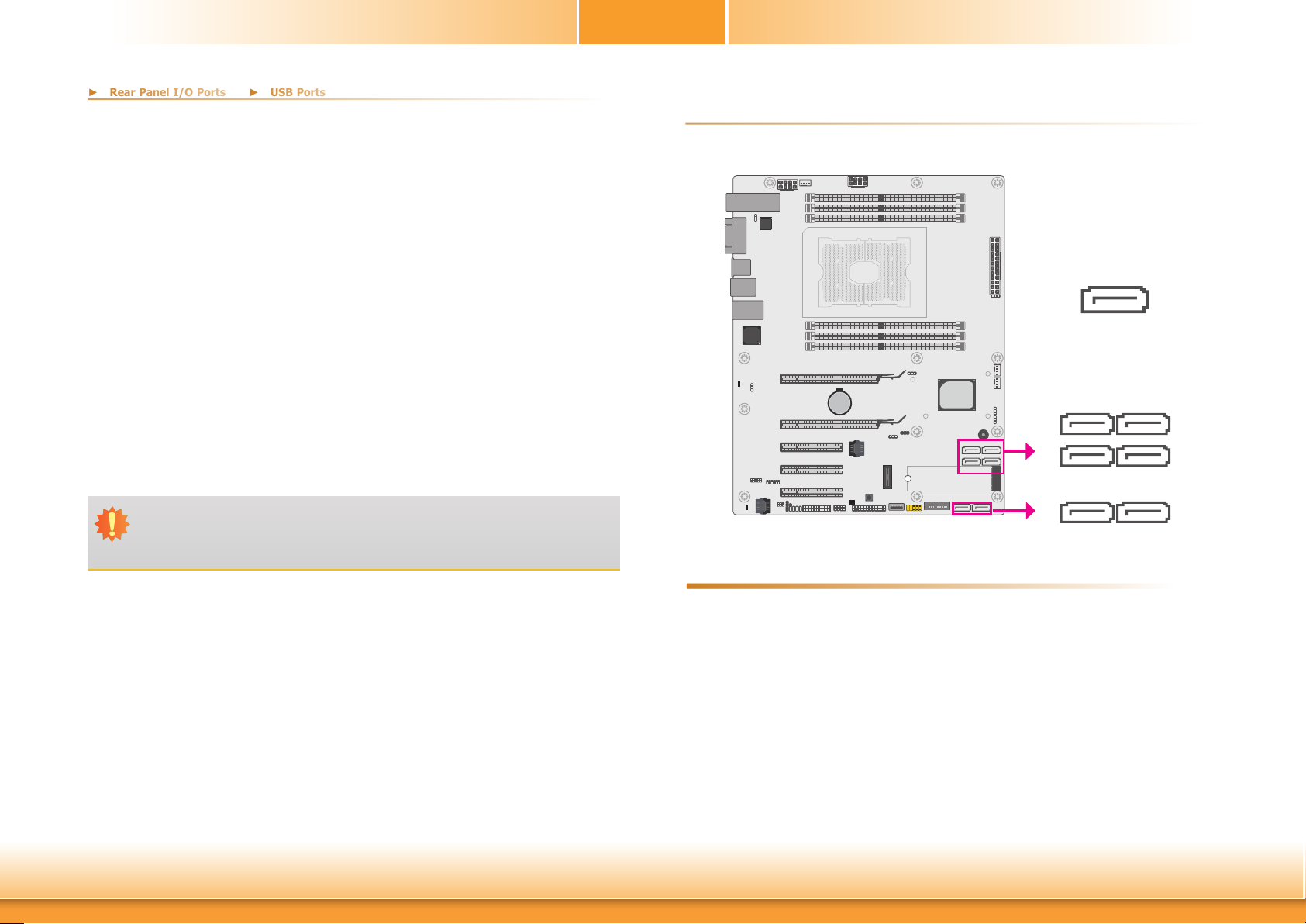

SATA (Serial ATA) Connectors .......................................................19
COM (Serial) Ports........................................................................20
Cooling Fan Connectors ................................................................21
Power Connectors ........................................................................21
Front Panel Connector ..................................................................22
LEDs............................................................................................23
Expansion Slots............................................................................23
PLD Update Connector .................................................................25
Battery ........................................................................................25
SMBus Connector .........................................................................26
BMC JTAG Female Header ............................................................26
LPC Debug Connector...................................................................27
Switch .........................................................................................27
PHY I2C SDA/SCL 1P8V Debug Connector .....................................28
Clock Gen Clock Ref Connector .....................................................28
Chapter 3 - BIOS Setup ...........................................................................29
Overview ..........................................................................................29
Main..................................................................................................30
Advanced .........................................................................................30
ACPI Configuration .......................................................................31
CPU Configuration ........................................................................32
Video Configuration ......................................................................32
SATA Configuration.......................................................................33
USB Configuration ........................................................................34
PCI Express Configuration.............................................................34
Debug Configuration.....................................................................35
UEFI Manager ..............................................................................36
SIO AST2500 ...............................................................................37
H2O IPMI Configuration................................................................37
Console Redirection ......................................................................41
Security .............................................................................................42
Boot ..................................................................................................43
Exit ...................................................................................................44
Updating the BIOS .............................................................................44
Notice: BIOS SPI ROM........................................................................44
Chapter 4 - Supported Software ...............................................................45
Chapter 5 - RAID.....................................................................................51

4
Warranty
1. Warranty does not cover damages or failures that arised from misuse of the product,
inability to use the product, unauthorized replacement or alteration of components and
product specifications.
2. The warranty is void if the product has been subjected to physical abuse, improper
installation, modification, accidents or unauthorized repair of the product.
3. Unless otherwise instructed in this user’s manual, the user may not, under any circum-
stances, attempt to perform service, adjustments or repairs on the product, whether
in or out of warranty. It must be returned to the purchase point, factory or authorized
service agency for all such work.
4. We will not be liable for any indirect, special, incidental or consequential damages to
the product that has been modified or altered.
Static Electricity Precautions
It is quite easy to inadvertently damage your PC, system board, components or devices even
before installing them in your system unit. Static electrical discharge can damage computer
components without causing any signs of physical damage. You must take extra care in han-
dling them to ensure against electrostatic build-up.
1. To prevent electrostatic build-up, leave the system board in its anti-static bag until you
are ready to install it.
2. Wear an antistatic wrist strap.
3. Do all preparation work on a static-free surface.
4. Hold the device only by its edges. Be careful not to touch any of the components, con-
tacts or connections.
5. Avoid touching the pins or contacts on all modules and connectors. Hold modules or
connectors by their ends.
Safety Measures
To avoid damage to the system:
• Use the correct AC input voltage range.
To reduce the risk of electric shock:
• Unplug the power cord before removing the system chassis cover for installation or
servicing. After installation or servicing, cover the system chassis before plugging the
power cord.
Important:
Electrostatic discharge (ESD) can damage your processor, disk drive and other
components. Perform the upgrade instruction procedures described at an ESD
workstation only. If such a station is not available, you can provide some ESD pro-
tection by wearing an antistatic wrist strap and attaching it to a metal part of the
system chassis. If a wrist strap is unavailable, establish and maintain contact with
the system chassis throughout any procedures requiring ESD protection.

5
About the Package
The package contains the following items. If any of these items are missing or damaged,
please contact your dealer or sales representative for assistance.
• One PL610-C622 motherboard
• One COM port cable (Length: 400mm, 2 x COM ports)
• One Serial ATA data cable (Length: 500mm)
• One I/O shield
The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance to the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.
Optional Items
• USB port cable (Length: 398mm)
• Heatsink (Narrow ILM LGA 3647)
The board and accessories in the package may not come similar to the information listed
above. This may differ in accordance to the sales region or models in which it was sold. For
more information about the standard package in your region, please contact your dealer or
sales representative.
Before Using the System Board
Before using the system board, prepare basic system components.If you are installing the sys-
tem board in a new system, you will need at least the following internal components.
• A CPU
• Memory module
• Storage devices such as hard disk drive, etc.
You will also need external system peripherals you intend to use which will normally include at
least a keyboard, a mouse and a video display monitor.

6
Chapter 1 - Introduction
►Specifications
Chapter 1
Chapter 1 Introduction www.d.com
SYSTEM Processor Intel®Xeon®Scalable Processor Family, LGA 3647 Socket, TDP up to 145W
- Intel®Xeon®Gold 6138T/6138/6130T/6130/6126T/6126/5120T/5119T/5118
- Intel®Xeon®Silver 4116T/4116/4114T/4110/4109T
- Intel®Xeon®Bronze 3106
Chipset Intel®C622 Chipset
Memory Six 288-pin RDIMM up to 192GB
Single Channel DDR4 1600/1866/2133/2400/2666MHz
BIOS Insyde SPI 128Mbit
GRAPHICS Display 1 x VGA
Single
Display
VGA
EXPANSION Interface 2 x PCIe x16 (Gen 3)
2 x PCIe x8 (Gen 3)
1 x PCIe x4 (Gen 3)
1 x M.2 2280 M key (PCIe Gen3 x 4 NVMe/SATA)
AUDIO Audio
Codec
N/A
ETHERNET Controller GbE: i350-AM2
10GbE: CS4227
IPMI: RTL8211F
REAR I/O Ethernet 2 x GbE (RJ-45)
1 x dedicated IPMI LAN
1 x Fiber 10 GbE
USB 2 x USB 2.0
PS/2 1 x PS/2 (mini-DIN-6)
Display 1 x VGA
INTERNAL I/O Serial 1 x RS-232 (2.54mm pitch)
USB 2 x USB 2.0 (2.54mm pitch)
1 x Vertical USB 2.0
2 x USB 3.0
SATA 6 x SATA 3.0 (up to 6Gb/s)
SMBus 1 x SMBus
WATCHDOG
TIMER
Output &
Interval
System Reset, Programmable via Software from 1 to 255 Seconds
SECURITY TPM Infineon TPM 2.0 (optional)
POWER Type ATX
Connector 8-pin ATX 12V power
24-pin ATX power
RTC Battery CR2032 Coin Cell
OS SUPPORT Windows 10 IoT Enterprise LTSB RS1 (64-bit)
Windows Server 2012R2
Windows Server 2016
Ubuntu 16.04
ENVIRONMENT Temperature Operating: 0 to 60°C
Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Bat-
tery
Humidity Operating: 5 to 90% RH
Storage: 5 to 90% RH
MECHANICAL Dimensions ATX Form Factor
305mm (12") x 244mm (9.6")
COOLER Heatsink Narrow ILM LGA 3647 (optional)

7
Chapter 1
►Features
Watchdog Timer
The Watchdog Timer function allows your application to regularly “clear” the system at the set
time interval. If the system hangs or fails to function, it will reset at the set time interval so
that your system will continue to operate.
DDR4
DDR4 deliver increased system bandwidth and improved performance at a lower power than
DDR3/DDR3L/DDR2. It is not compatible with DDR3/DDR3L/DDR2.
PCI Express
PCI Express is a high bandwidth I/O infrastructure that possesses the ability to scale speeds
by forming multiple lanes. The x4 PCI Express lane supports transfer rate of 4 Gigabyte per
second (2 directions). The PCI Express architecture also supports high performance graphics
infrastructure by enhancing the capability of a PCIe x16 Gen 3 at 16GB/s bandwidth (8GB/s in
each direction).
Serial ATA
Serial ATA is a storage interface that is compliant with SATA 1.0a specification. With speed of
up to 6Gb/s (SATA 3.0), it improves hard drive performance faster than the standard parallel
ATA whose data transfer rate is 100MB/s. The bandwidth of the SATA 3.0 will be limited by
carrier board design.
Wake-On-PS/2
This function allows you to use the PS/2 keyboard or PS/2 mouse to power-on the system.
Wake-On-USB
This function allows you to use a USB keyboard or USB mouse to wake up a system from the
S3 (STR - Suspend To RAM) state.
RTC Timer
The RTC installed on the system board allows your system to automatically power-on on the
set date and time.
ACPI STR
The system board is designed to meet the ACPI (Advanced Configuration and Power Interface)
specification. ACPI has energy saving features that enables PCs to implement Power Manage-
ment and Plug-and-Play with operating systems that support OS Direct Power Management.
ACPI when enabled in the Power Management Setup will allow you to use the Suspend to RAM
function.
With the Suspend to RAM function enabled, you can power-off the system at once by pressing
the power button or selecting “Standby” when you shut down Windows® without having to
go through the sometimes tiresome process of closing files, applications and operating system.
This is because the system is capable of storing all programs and data files during the entire
operating session into RAM (Random Access Memory) when it powers-off. The operating ses-
sion will resume exactly where you left off the next time you power-on the system.
Wake-On-LAN
This feature allows the network to remotely wake up a Soft Power Down (Soft-Off) PC. It is
supported via the onboard LAN port or via a PCI LAN card that uses the PCI PME (Power Man-
agement Event) signal. However, if your system is in the Suspend mode, you can power-on
the system only through an IRQ or DMA interrupt.
Chapter 1 Introduction www.d.com
Power Failure Recovery
When power returns after an AC power failure, you may choose to either power-on the system
manually or let the system power-on automatically.
USB
The system board supports the USB 3.0. It is capable of running at a maximum transmission
speed of up to 5 Gbit/s (625 MB/s) and is faster than USB 2.0 (480 Mbit/s, or 60 MB/s) and
USB 1.1 (12Mb/s). USB 3.0 reduces the time required for data transmission, reduces power
consumption, and is backward compatible with USB 2.0. It is a marked improvement in device
transfer speeds between your computer and a wide range of simultaneously accessible exter-
nal Plug and Play peripherals.
Important:
The 5V_standby power source of your power supply must support ≥720mA.
Important:
The 5V_standby power source of your power supply must support ≥720mA.
Important:
If you are using the Wake-On-USB Keyboard/Mouse function for 2 USB ports, the
5V_standby power source of your power supply must support ≥1.5A. For 3 or
more USB ports, the 5V_standby power source of your power supply must support
≥2A.

www.d.com
8
Chapter 2 Hardware Installation
Chapter 2
Chapter 2 - Hardware Installation
►Board Layout
113
12 24
ATX Power
+12V Power +12V Power
4
8
1
5
4
8
1
5
CPU FAN
1
JP15
1
1
1
Clock Gen
Clock Ref
1
CPU & DIMM
Power IC
Update
JP14
BMC SPI
SPI
Flash
BIOS
PCIe 5 (open edge, x4 bandwidth)
PCIe 4 (x8 open edge)
PCIe 3 (x8, or x4 + 10G LAN)
PCIe 2 (x16)
PCIe 1 (x16)
Battery
LED5
2
1 19
20
BMC
JTAG
1 111
5
1
6
2
SMBus
1
(from left to right) BMC UART5, RSVD CPLD UPDATE (JP11),
Enable eSI (J14), UART Debug Select (JP2), BMC Password Clear
USB 3
1
4
1
210
USB 4/5
110
11
USB 5/6
USB 3.0
Buzzer
1
1
COM Port C from
PCH’s IE HSUART
JP8
LED1
JP16
LED9
LED10
1
2
24
23
1
2
7
8
M.2 M Key
VGA
MGMT
Port
USB 1/2
(USB 2.0)
LAN 1/2
10G LAN
1
1
Inphi CS4227
Intel I350AM2
DDR4_3
DDR4_2
DDR4_1
DDR4_4
DDR4_5
DDR4_6
Intel
C622
Intel
C622
1
2
9
10
COM 1
LPC
Debug
2
111
12
1
1
SATA 0
SATA 2
SATA 1
SATA 3
1 1
11
11
Socket LGA3647
SATA 5 SATA 4
System Fan 1
System Fan 2
USB 2.0
Front
Panel
PLD
Update
PHY I2C
SDA/SCL
1P8V Debug
XDP
BMC Reset
Button
►System Memory
Important:
Electrostatic discharge (ESD) can damage your board, processor, disk drives, add-in
boards, and other components. Perform installation procedures at an ESD workstation
only. If such a station is not available, you can provide some ESD protection by wear-
ing an antistatic wrist strap and attaching it to a metal part of the system chassis. If
a wrist strap is unavailable, establish and maintain contact with the system chassis
throughout any procedures requiring ESD protection.
Important:
When the Standby Power LED lit red, it indicates that there is power on the system
board. Power-off the PC then unplug the power cord prior to installing any devices.
Failure to do so will cause severe damage to the motherboard and components.
DDR4_2
DDR4_1
DDR4_3
DDR4_5
DDR4_6
DDR4_4

www.d.com
9
Chapter 2 Hardware Installation
Chapter 2
Installing the DIMM Module
Features
• Six 288-pin DDR4 DIMM
• Up to 1TB 3DS LRDIMM or 192GB RDIMM
• 2600/2400/2133/1866/1600MHz
The system board supports the following memory interface.
Single Channel (SC)
Data will be accessed in chunks of 64 bits from the memory channels.
Single Channel
DIMMs are on the same channel. DIMMs in a channel can be identi-
cal or completely different. However, we highly recommend using
identical DIMMs. Not all slots need to be populated.
Before installing the memory module, please make sure that the following safety cautions are
well-attended.
1. Make sure the PC and all other peripheral devices connected to it has been powered
down.
2. Disconnect all power cords and cables.
3. Locate the DIMM socket on the system board
4. Make sure the notch on memory card is aligned to the key on the socket.
Socket Side View
Socket Top View
DDR4 DIMM
Notch
Key
Eject TabEject Tab
Step 3
Step 2
Step 1 Step 1
Step 2
Step 3
Socket Side View
Socket Top View
DDR4 SO-DIMM
Key
Eject TabEject Tab
Step 3
Step 2
Step 1
Step 1
Step 2
Step 3
Notch
Retention Notch
►System Memory
►System Memory

www.d.com
10
Chapter 2 Hardware Installation
Chapter 2
Please follow the steps below to install the memory card into the socket.
Step 1:
Press the eject tabs at both ends of the socket outward and downward to release them from the
locked position.
Step 2:
Insert the memory card into the slot while making sure the notch and the key are aligned. Press
the card firmly with fingers while applying and maintaining even pressure on both ends.
Step 3:
The tabs snap automatically to the edges of the card and lock the card in place.
Please follow the steps below to remove the memory card from the socket.
Step 1:
Press the eject tabs at both ends of the socket outward and downward to release them from the
locked position.
Step 2:
The memory card ejects from the slot automatically.
Step 3:
Hold the card by its edges and remove it from the slot.
Socket Side View
Socket Top View
DDR4 DIMM
Notch
Key
Eject TabEject Tab
Step 3
Step 2
Step 1
Step 1
Step 2
Step 3
Socket Side View
Socket Top View
DDR4 SO-DIMM
Key
Eject TabEject Tab
Step 3
Step 2
Step 1
Step 1
Step 2
Step 3
Notch
Retention Notch
Socket Side View
Socket Top View
DDR4 DIMM
Notch
Key
Eject TabEject Tab
Step 3
Step 2
Step 1
Step 1
Step 2
Step 3
Socket Side View
Socket Top View
DDR4 SO-DIMM
Key
Eject TabEject Tab
Step 3
Step 2
Step 1
Step 1
Step 2
Step 3
Notch
Retention Notch
Removing the DIMM Module
►System Memory
►Installing the DIMM Module
►System Memory
