Biostar TA960 User manual

TA960 BIOS Manual
i
BIOS Setup .................................................................................... 1
1 Main Menu................................................................................... 3
2 Advanced Menu.......................................................................... 6
3 PCI/PnP Menu........................................................................... 15
4 Boot Menu................................................................................. 18
5 Chipset Menu............................................................................ 20
6 Performance Menu................................................................... 27
7 Exit Menu .................................................................................. 33

TA960 BIOS Manual
1
BIOS Setup
Introduction
The purpose of this manual is to describe the settings in the AMI BIOS Setup
program on this motherboard. The Setup program allows users to modify the
basic system configuration and save these settings to CMOS RAM. The
power of CMOS RAM is supplied by a battery so that it retains the Setup
information when the power is turned off.
Basic Input-Output System (BIOS) determines what a computer can do
without accessing programs from a disk. This system controls most of the
input and output devices such as keyboard, mouse, serial ports and disk
drives. BIOS activates at the first stage of the booting process, loading and
executing the operating system. Some additional features, such as virus and
password protection or chipset fine-tuning options are also included in BIOS.
The rest of this manual will to guide you through the options and settings in
BIOS Setup.
Plug and Play Support
This AMI BIOS supports the Plug and Play Version 1.0A specification.
EPA Green PC Support
This AMI BIOS supports Version 1.03 of the EPA Green PC specification.
APM Support
This AMI BIOS supports Version 1.1&1.2 of the Advanced Power
Management (APM) specification. Power management features are
implemented via the System Management Interrupt (SMI). Sleep and
Suspend power management modes are supported. Power to the hard disk
drives and video monitors can also be managed by this AMI BIOS.
ACPI Support
AMI ACPI BIOS support Version 1.0/2.0 of Advanced Configuration and
Power interface specification (ACPI). It provides ASL code for power
management and device configuration capabilities as defined in the ACPI
specification, developed by Microsoft, Intel and Toshiba.

TA960 BIOS Manual
2
PCI Bus Support
This AMI BIOS also supports Version 2.3 of the Intel PCI (Peripheral
Component Interconnect) local bus specification.
DRAM Support
DDR3 SDRAM (Double Data Rate III Synchronous DRAM) is supported.
Supported CPUs
This AMI BIOS supports the AMD CPU.

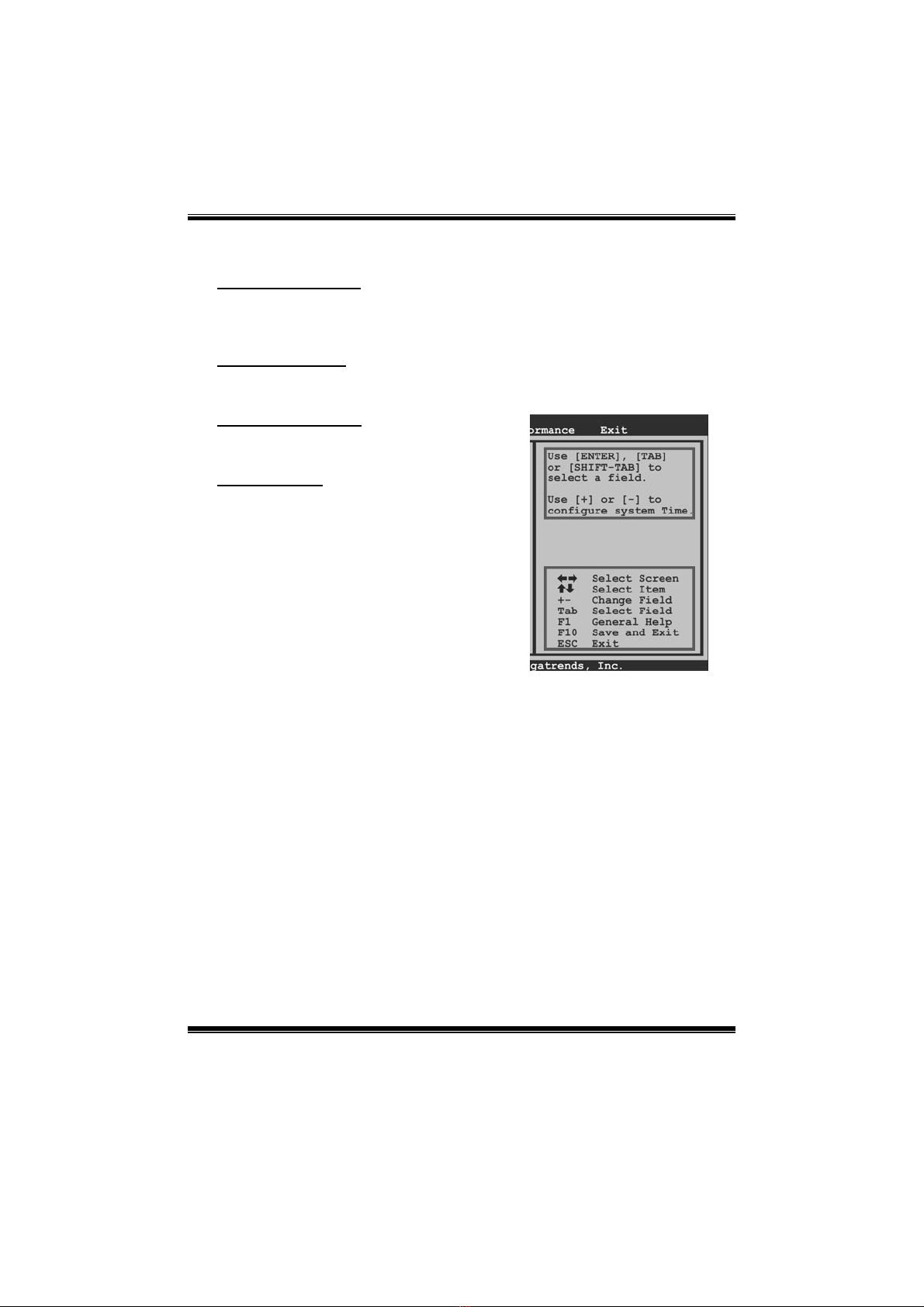

Using Setup
When starting up the computer, press
<Del> during the Power-On Self-Test
(POST) to enter the BIOS setup utility.
In the BIOS setup utility, you will see
General Help description at the top
right corner, and this is providing a
brief description of the selected item.
Navigation Keys for that particular
menu are at the bottom right corner,
and you can use these keys to select
item and change the settings.
Notice
zThe default BIOS settings apply for most conditions to ensure optimum
performance of the motherboard. If the system becomes unstable after
changing any settings, please load the default settings to ensure system’s
compatibility and stability. Use Load Setup Default under the Exit Menu.
zFor better system performance, the BIOS firmware is being continuously
updated. The BIOS information described in this manual is for your
reference only. The actual BIOS information and settings on board may be
slightly different from this manual.
zThe content of this manual is subject to be changed without notice. We will
not be responsible for any mistakes found in this user’s manual and any
system damage that may be caused by wrong-settings.
General Help
Navigation Keys

TA960 BIOS Manual
3
1 Main Menu
Once you enter AMI BIOS Setup Utility, the Main Menu will appear on the
screen providing an overview of the basic system information.
BIOS SETUP UTILIT
Y
Main Advanced PCIPnP Boot Chipset Performance
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Field
Select Field
General Help
Save and Exit
Exit
+-
Tab
F1
F10
ESC
Use [ENTER], [TAB]
or [SHIFT-TAB] to
select a field.
Use [+] or [-] to
configure system Time.
System Overview
AMI BIOS
Version :01.01.01
Build Date:01/01/12
System Memory
Size :
System Time [ :00:00]00
System Date [Sun 01/01/2012]
> SATA Configuration
Exit
AMI BIOS
Shows system information including BIOS version and built date.
System Memory
Shows system memory size, VGA shard memory will be excluded..
System Time
Set the system internal clock.
System Date
Set the system date. Note that the ‘Day’ automatically changes when you set
the date.

TA960 BIOS Manual
4
SATA Configuration
The BIOS will automatically detect the presence of IDE/SATA devices. There
is a sub-menu for each IDE/SATA device. Select a device and press <Enter>
to enter the sub-menu of detailed options.
BIOS SETUP UTILITY
Main
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Go to Sub Screen
General Help
Save and Exit
Exit
Enter
F1
F10
ESC
While entering setup,
BIOS auto detects the
presence of IDE
devices. This displays
the status of auto
detection of IDE
devices.
IDE Confuguration
Hard Disk Write Protect [Disabled]
> Primary IDE Slave
> SATA 1 Device
> SATA 2 Device
> SATA 3 Device
> SATA 4 Device
> Primary IDE Master
> SATA 5 Device
> SATA 6 Device
Primary IDE Master/Slave/ SATA1-6
BIOS SETUP UTILITY
Main
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
+-
F1
F10
ESC
Disabled: Disables LBA
Mode.
Auto: Enables LBA
Mode if the device
supports it and the
device is not already
formatted with LBA
Mode disabled.
Primary IDE Master/Slave
LBA/Large Mode [Auto]
Block (Multi-Sector Transfer)[Auto]
PIO Mode [Auto]
DMA Mode [Auto]
S.M.A.R.T [Auto]
32Bit Data Transfer [Enabled]
Device :
Type [Auto]
The BIOS detects the information and values of respective devices, and
these information and values are shown below to the name of the sub-menu.

TA960 BIOS Manual
5
Type
Select the type of device connected to the system. (The setting is for IDE.)
Options: Auto (Default) / Not Installed / CD/DVD/ ARMD
LBA/Large Mode
Enable or disable the LBA mode.
Options: Auto (Default) / Disabled
Block (Multi-Sector Transfer)
Enable or disable multi-sector transfer.
Options: Auto (Default) / Disabled
PIO Mode
Select the PIO mode.
Options: Auto (Default) / 0 / 1 / 2 / 3 / 4
DMA Mode
Select the DMA mode.
Options: Auto (Default) / SWDMA0 ~ 2 / MWDMA0 ~ 2 / UDMA0 ~ 5
S.M.A.R.T
Set the Smart Monitoring, Analysis, and Reporting Technology.
Options: Auto (Default) / Disabled / Enabled
32Bit Data Transfer
Enable or disable 32-bit data transfer.
Options: Enabled (Default) / Disabled
Hard Disk Write Protect
Disable or enable device write protection. This will be effective only if the
device is accessed through BIOS.
Options: Disabled (Default) / Enabled

TA960 BIOS Manual
6
2 Advanced Menu
The Advanced Menu allows you to configure the settings of CPU, Super I/O,
Power Management, and other system devices.
Notice
zBeware of that setting inappropriate values in items of this menu may cause
system to malfunction.
BIOS SETUP UTILITY
Main Advanced PCIPnP Boot Chipset Performance
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Go to Sub Screen
General Help
Save and Exit
Exit
Enter
F1
F10
ESC
Configure CPU.Advanced Settings
WARNING: Setting wrong values in below sections
may cause system to malfunction.
> SuperIO Configuration
> Smart Fan Configuration
> Hardware Health Configuration
> Power Configuration
> USB Configuration
> CPU Configuration
Exit
CPU Configuration
This item shows the CPU information that the BIOS automatically detects.
BIOS SETUP UTILIT
Y
Advanced
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
+-
F1
F10
ESC
Enable/Disable
Secure Virtual Machine
Mode (SVM)
CPU Configuration
Module Version:
AGESA Version:
Physical Count:
Logical Count:
AMD CPU
Revision:
Cache L1:
Cache L2:
Cache L3:
Speed : NB Clk:
ncHT Speed : WidthI/O :
Able to Change Freq :
uCode Patch Level :
Secure Virtual Machine Mode [Enabled]
PowerNow [Enabled]
CState Mode [Disabled}
CPB Mode [Auto]

TA960 BIOS Manual
7
Secure Virtual Machine Mode
Virtualization Technology can virtually separate your system resource into
several parts, thus enhance the performance when running virtual machines
or multi interface systems.
Options: Enabled (Default) / Disabled
PowerNow
This item allows you to enable or disable the PowerNow power saving
technology.
Options: Enabled (Default) / Disabled
CState Mode
The item specifies the method of C-State enablement.
Options: Disabled (Default) / C6
CPB Mode
If this item is enabled, Revision E CPU automatically transition to pop-down
p-state
Options: Auto (Default) / Disabled
ACPI SRAT Table
The operating system scans the ACPI SRAT at boot time and uses the
information to better allocate memory and schedule software threads for
maximum performance. This item controls whether the SRAT is made
available to the operating system at boot up, or not.
Options: Enabled (Default) / Disabled
C1E Support
Configures C1E type. Auto will use Message-Triggered if supported by
hardware.
Options: Disabled (Default) / Auto / Message-Triggered / Hardware
HTC temperature limit
This item allows you to set HTC temperature limit. Range: 70℃- 95℃
Options: 70℃(Default)

TA960 BIOS Manual
8
SuperIO Configuration
BIOS SETUP UTILITY
Advanced
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
+-
F1
F10
ESC
Allows BIOS to Select
Parallel Port1 Base
Addresses.
Configure ITE8728 Super IO Chipset
Serial Port1 Address [3F8/IRQ4]
Parallel Port Address [378]
Parallel Port Mode [Normal]
Parallel Port IRQ [IRQ7]
Keyboard Poweron [Disabled]
Mouse PowerOn [Disabled]
Restore on AC Power Loss [Power Off]
Serial Port1 Address
This item allows you to determine access onboard serial port1 controller with
which I/O Address.
Options: 3F8, IRQ4 (Default) / 2F8, IRQ3 / 3E8, IRQ4 / 2E8, IRQ3 /
Disabled
Parallel Port Address
This item allows you to determine access onboard parallel port controller with
which I/O Address.
Options: 378 (Default) / 278 / 3BC / Disabled
Parallel Port Mode
This item allows you to determine how the parallel port should function.
Options: Normal (Default) Using Parallel port as Standard Printer Port.
EPP Using Parallel Port as Enhanced Parallel Port.
ECP Using Parallel port as Extended Capabilities Port.
ECP+EPP Using Parallel port as ECP & EPP mode.
Parallel Port IRQ
This item allows you to select the IRQ for the onboard parallel port.
Options: IRQ7 (Default) / IRQ5

TA960 BIOS Manual
9
Keyboard PowerOn
This item allows you to control the keyboard power on function.
Options: Disabled (Default) / Any Key / Stroke Key / Specific Key
Stroke Keys Selected
This item will show only when Keyboard PowerOn is set “Stroke Key.”
Options: Wake Key (Default) / Power Key / Ctrl+F1 / Ctrl+F2 / Ctrl+F3
/ Ctrl +F4 / Ctrl+F5 / Ctrl+F6
Specific Key Enter
This item will show only when Keyboard PowerOn is set “Specific Key.”
Press Enter to set Specific key.
Mouse PowerOn
This item allows you to control the mouse power on function.
Options: Disabled (Default) / Enabled
Restore on AC Power Loss
This setting specifies how your system should behave after a power fail or
interrupts occurs. By choosing Disabled will leave the computer in the power
off state. Choosing Enabled will restore the system to the status before
power failure or interrupt occurs.
Options: Power Off (Default) / Power On / Last State

TA960 BIOS Manual
10
Smart Fan Configuration
BIOS SETUP UTILITY
Advanced
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
+-
F1
F10
ESC
When you choice [Auto]
,[3Pin] or [4Pin],
please run the
calibration to define
the Fan parameters for
Smart Fan control
Smart Fan Configuration
CPU Smart Fan [Disabled]
Smart Fan Calibration
CPU Smart Fan
This item allows you to control the CPU Smart Fan function.
Options: Disabled (Default) / Auto / 4Pin / 3Pin
Smart Fan Calibration
Choose this item and then the BIOS will auto test and detect the
CPU/System fan functions and show CPU/System fan speed.
Control Mode
This item provides several operation modes of the fan.
Options: Quiet / Performance / Manual
Fan Ctrl OFF(℃)
If the CPU/System Temperature is lower than the set value, FAN will turn off.
Options: 0~127 (℃) (With the interval of 1℃)
Fan Ctrl On(℃)
CPU/System fan starts to work under smart fan function when arrive this set
value.
Options: 0~127 (℃) (With the interval of 1℃)

TA960 BIOS Manual
11
Fan Ctrl Start Value
When CPU/System temperature arrives to the set value, the CPU/System
fan will work under Smart Fan Function mode.
Options: 0~127 (With the interval of 1)
Fan Ctrl Sensitive
Increasing the value will raise the speed of CPU/System fan.
Options: 1~127 (With the interval of 1)
Hardware Health Configuration
This item shows the system temperature, fan speed, and voltage information.
Advanced
Hardware Health Configuration
PWM Processor Hot [Auto]
H/W Health Function [Enabled]
Shutdown Temperature [Disabled]
CPU Temperature
SYS Temperature
CPU Voltage
DDR Voltage
+12.0V
+5.00V
CPU Fan
Sytem1 Fan
Chip Voltage
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
+-
F1
F10
ESC
Enabled
Disabled
Options
PWM Processor Hot
This item allows you to set up the PWM processor hot function.
Options: Auto (Default) / Disabled
H/W Health Function
If with a monitoring system, the system will show PC health status during
POST stage.
Options: Enabled (Default) / Disabled
Shutdown Temperature
This item allows you to set up the CPU shutdown Temperature. This item is
only effective under Windows 98 ACPI mode.
Options: Disabled (Default) / 60℃/140℉/ 65℃/149℉/ 70℃/158℉/
75℃/167℉/ 80℃/176℉/ 85℃/185℉/ 90℃/194℉

TA960 BIOS Manual
12
Power Configuration
BIOS SETUP UTILITY
Advanced
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
+-
F1
F10
ESC
When EuP Enabled,
System meets EuP
requirement.
All wake up events
do not work except
Power Button after
power down system(S5).
ACPI Settings
EuP Control [Disabled]
Suspend mode [S1(POS)]
ACPI Version Features [ACPI v1.0]
ACPI APIC support [Enabled]
AMI OEMB table [Enabled]
Headless mode [Disabled]
RTC Resume [Disabled]
USB Wakeup From S3/S4 [Disabled]
Power On by PCIE/Onboard LAN [Disabled]
Wake Up by PCI [Disabled]
Wakeup on Ring [Disabled]
EuP Control
This item is used to enable or disable EuP Control (Energy Using Products).
Options: Disabled (Default) / Enabled
Suspend mode
Select the ACPI state used for System Suspend.
Options: S1(POS) (Default) / S3(STR) / Auto
ACPI Version Features
The item allows you to select the version of ACPI.
Options: ACPI v1.0 (Default) / ACPI v2.0 / ACPI v3.0
ACPI APIC support
This item is used to enable or disable the motherboard's APIC (Advanced
Programmable Interrupt Controller). The APIC provides multiprocessor
support, more IRQs and faster interrupt handling.
Options: Enabled (Default) / Disabled
AMI OEMB table
Set this value to allow the ACPI BIOS to add a pointer to an OEMB table in
the Root System Description Table (RSDT) table.
Options: Enabled (Default) / Disabled

TA960 BIOS Manual
13
Headless mode
This is a server-specific feature. A headless server is one that operates
without a keyboard, monitor or mouse. To run in headless mode, both BIOS
and operating system (e.g. Windows Server 2003) must support headless
operation.
Options: Disabled (Default) / Enabled
RTC Resume
When “Enabled”, you can set the date and time at which the RTC (real-time
clock) alarm awakens the system from Suspend mode.
Options: Disabled (Default) / Enabled
USB Wakeup From S3/S4
This item allows you enable / disable USB Device Wakeup from S3/S4
Options: Disabled (Default) / Enabled
Power On by PCIE/Onboard LAN
This item allows you control the wake on LAN (WOL) function.
Options: Disabled (Default) / Enabled
Wake Up by PCI
This item allows you enable / disable PCI to generate a wake event.
Options: Disabled (Default) / Enabled
Wakeup on Ring
This item allows you enable / disable wakeup on ring function
Options: Disabled (Default) / Enabled

TA960 BIOS Manual
14
USB Configuration
This item shows the USB controller and using USB device information.
BIOS SETUP UTILIT
Y
Advanced
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
+-
F1
F10
ESC
Enables support for
legacy USB. AUTO
option disables
legacy support if
no USB devices are
connected.
USB Configuration
USB Devices Enabled:
Module Version - 2.24.3-13.4
Legacy USB Support [Enabled]
USB 2.0 Controller Mode [HiSpeed]
BIOS EHCI Hand-Off [Enabled]
Legacy USB Support
This item determines if the BIOS should provide legacy support for USB
devices like the keyboard, mouse, and USB drive. This is a useful feature
when using such USB devices with operating systems that do not natively
support USB (e.g. Microsoft DOS or Windows NT).
Options: Enabled (Default) / Disabled / Auto
USB 2.0 Controller Mode
This item allows you to select the operation mode of the USB 2.0 controller.
Options: HiSpeed (Default) USB 2.0-480Mbps
FullSpeed USB 1.1-12Mbps
BIOS EHCI Hand-Off
This item allows you to enable support for operating systems without an
EHCI hand-off feature.
Options: Enabled (Default) / Disabled

TA960 BIOS Manual
15
3 PCI/PnP Menu
This section describes configuring the PCI bus system. PCI, or Personal
Computer Interconnect, is a system which allows I/O devices to operate at
speeds nearing the speed of the CPU itself uses when communicating with
its own special components.
Notice
zBeware of that setting inappropriate values in items of this menu may cause
system to malfunction.
BIOS SETUP UTILIT
Y
Main Advanced PCIPnP Boot Chipset Performance
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
+-
F1
F10
ESC
Clear NVRAM during
System Boot.
Advanced PCI/PnP Settings
WARNING: Setting wrong values in below sections
may cause system to malfunction.
Plug & Play O/S [No]
PCI Latency Timer [64]
Allocate IRQ to PCI VGA [Yes]
Palette Snooping [Disabled]
PCI IDE BusMaster [Enabled]
> PCI Resource
> PCI Express Configuration
Clear NVRAM [No]
Exit
Clear NVRAM
This item allows you to clear the data in the NVRAM (CMOS) by selecting
“Yes”.
Options: No (Default) / Yes
Plug & Play OS
When set to YES, BIOS will only initialize the PnP cards used for the boot
sequence (VGA, IDE, SCSI). The rest of the cards will be initialized by the
PnP operating system like Window™ 95. When set to NO, BIOS will initialize
all the PnP cards. For non-PnP operating systems (DOS, Netware™), this
option must set to NO.
Options: No (Default) / Yes

TA960 BIOS Manual
16
PCI Latency Timer
This item controls how long a PCI device can hold the PCI bus before
another takes over. The longer the latency, the longer the PCI device can
retain control of the bus before handing it over to another PCI device.
Options: 64 (Default) / 32 / 96 / 128 / 160 / 192 / 224 / 248
Allocate IRQ to PCI VGA
This item allows BIOS to choose a IRQ to assign for the PCI VGA card.
Options: Yes (Default) / No
Palette Snooping
Some old graphic controllers need to “snoop” on the VGA palette and then
map it to their display as a way to provide boot information and VGA
compatibility. This item allows such snooping to take place.
Options: Disabled (Default) / Enabled
PCI IDE BusMaster
This item is a toggle for the built-in driver that allows the onboard IDE
controller to perform DMA (Direct Memory Access) transfers.
Options: Enabled (Default) / Disabled
PCI Resource
BIOS SETUP UTILIT
Y
PCIPnP
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
+-
F1
F10
ESC
Available: Specified
IRQ is available to be
used by PCI/PnP
devices.
Reserved: Specified
IRQ is reserved for
use by Legacy ISA
devices.
PCI Resource
IRQ3 [Available]
IRQ4 [Available]
IRQ5 [Available]
IRQ7 [Available]
IRQ9 [Available]
IRQ10 [Available]
IRQ11 [Available]
IRQ14 [Available]
IRQ15 [Available]
DMA Channel 0 [Available]
DMA Channel 1 [Available]
DMA Channel 3 [Available]
DMA Channel 5 [Available]
DMA Channel 6 [Available]
DMA Channel 7 [Available]
Reserved Memory Size [Disabled]

TA960 BIOS Manual
17
IRQ3/4/5/7/9/10/11/14/15
These items will allow you to assign each system interrupt a type, depending
on the type of device using the interrupt. The option “Available” means the
IRQ is going to assign automatically.
Options: Available (Default) / Reserved
DMA Channel 0/1/3/5/6/7
These items will allow you to assign each DMA channel a type, depending on
the type of device using the channel. The option “Available” means the
channel is going to assign automatically.
Options: Available (Default) / Reserved
Reserved Memory Size
This item allows BIOS to reserve certain memory size for specific PCI device.
Options: Disabled (Default) / 16K / 32K / 64K
PCI Express Configuration
BIOS SETUP UTILIT
Y
PCIPnP
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Change Option
General Help
Save and Exit
Exit
+-
F1
F10
ESC
Enable/Disable
PCI Express L0s and
L1 link power
states.
PCI Express Configuration
Active State Power-Management[Disabled]
Active State Power-Management
This item sets the ASPM configuration for the PCI Express devices before
the operating system boots. This function is for OS which does not support
ASPM.
Options: Disabled (Default) / Enabled

TA960 BIOS Manual
18
4 Boot Menu
This menu allows you to setup the system boot options.
BIOS SETUP UTILIT
Y
Main Advanced PCIPnP Boot Chipset Performance
vxx.xx (C)Copyright 1985-200x, American Megatrends, Inc.
Select Screen
Select Item
Go to Sub Screen
General Help
Save and Exit
Exit
Enter
F1
F10
ESC
Specifies the
Boot Device
Priority sequence.
Boot Settings Configuration
> Hard Disk Drives
> Removable Drives
> CD/DVD Drives
Quick Boot [Enabled]
Full Screen LOGO Show [Enabled]
AddOn ROM Display Mode [Force BIOS]
Bootup Num-Lock [ON]
Interrupt 19 Capture [Disabled]
Ignore Memory Error Messages [Disabled]
BOOT SUCCESS BEEP [Enabled]
> Boot Device Priority
Exit
Boot Device Priority
Items in this sub-menu specify the boot device priority sequence from the
available devices. The number of device items that appears on the screen
depends on the number of devices installed in the system.
Options: Removable / Hard Disk / CDROM / Legacy LAN / Disabled
Hard Disk Drives
The BIOS will attempt to arrange the hard disk boot sequence automatically.
You can also change the booting sequence. The number of device items that
appears on the screen depends on the number of devices installed in the
system.
Options: Pri. Master / Pri. Slave / Sec. Master / Sec. Slave / USB HDD0 /
USB HDD1 / USB HDD2 / Bootable Add-in Cards
Removable Drives
The BIOS will attempt to arrange the removable drive boot sequence
automatically. You can also change the booting sequence. The number of
device items that appears on the screen depends on the number of devices
installed in the system.
Options: Floppy Disks / Zip100 / USB-FDD0 / USB-FDD1 / USB-ZIP0 /
USB-ZIP1 / LS120

TA960 BIOS Manual
19
CD/DVD Drives
The BIOS will attempt to arrange the CD/DVD drive boot sequence
automatically. You can also change the booting sequence. The number of
device items that appears on the screen depends on the number of devices
installed in the system.
Options: Pri. Master / Pri. Slave / Sec. Master / Sec. Slave / USB CDROM0
/ USB CDROM 1
Quick Boot
Enabling this option will cause an abridged version of the Power On Self-Test
(POST) to execute after you power up the computer.
Options: Enabled (Default) / Disabled
Full Screen LOGO Show
This item allows you to enable/disable Full Screen LOGO Show function.
Options: Enabled (Default) / Disabled
AddOn ROM Display Mode
This item sets the display mode for option ROM.
Options: Force BIOS (Default) / Keep Current
Bootup Num-Lock
Selects the NumLock State after the system switched on.
Options: ON (Default) / OFF
Interrupt 19 Capture
When set to Enabled, this item allows the option ROMs to trap interrupt 19.
Options: Disabled (Default) / Enabled
Ignore Memory Error Messages
When set to Enabled, the POST will ignore memory error messages.
Options: Disabled (Default) / Enabled
BOOT SUCCESS BEEP
When this item is set to Enabled, BIOS will let user know boot success with
beep.
Options: Enabled (Default) / Disabled
