Birko 1003203 User manual
8005016 - Birko Vertical Toaster - May 2012 v1.00 Page 1 of 12

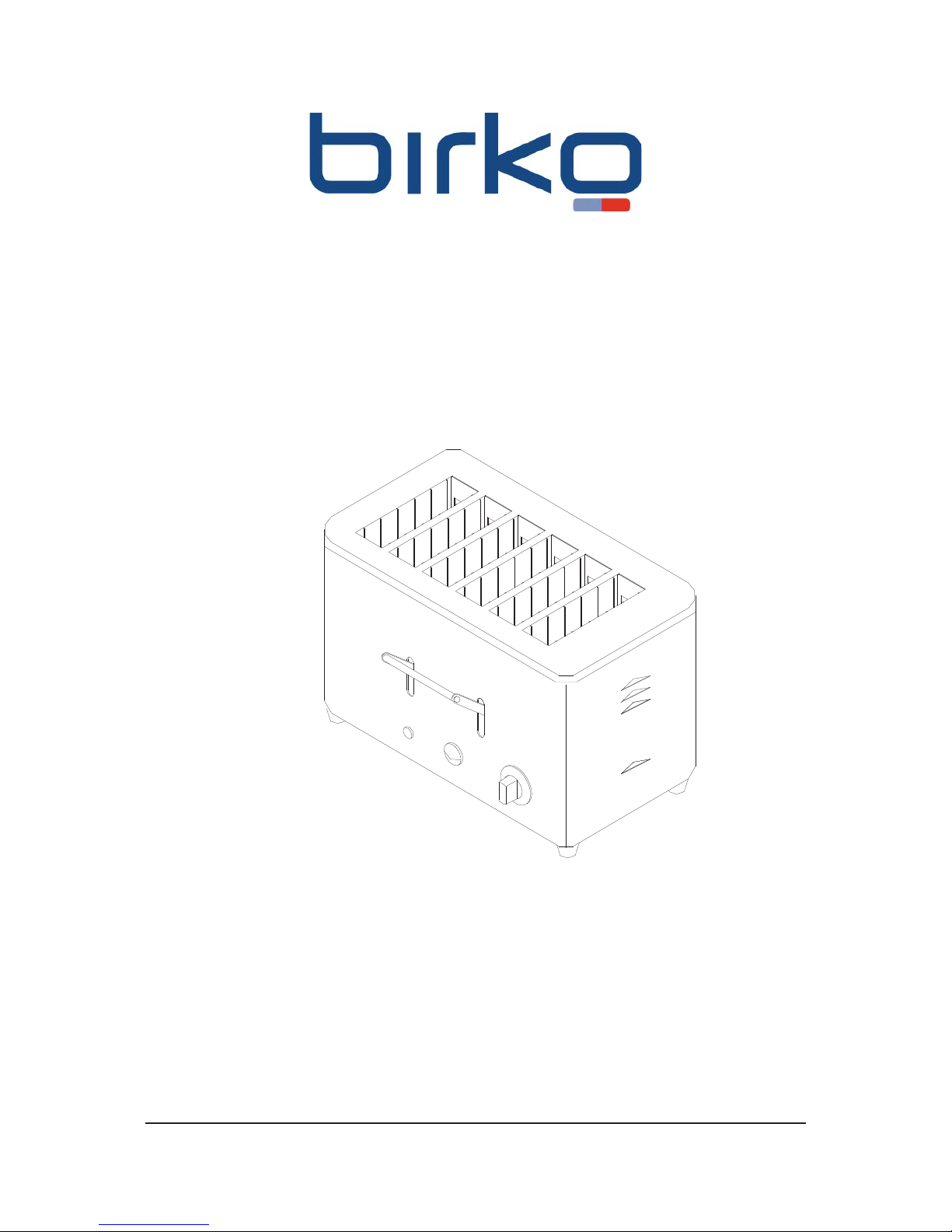

ELECTRIC COUNTER TOP VERTICAL TOASTER
OPERATION MANUAL
Page 2 of 12 800516 - Birko Vertical Toaster - May 2012 v1.00
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Cleaning, Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Spare Part List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Explosion View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Specfication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Circuit Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Contact Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Contents
Page 3 of 12 800516 - Birko Vertical Toaster - May 2012 v1.00
Introduction
Congratulations on the purchase of your Birko machine. Please take time to carefully read through
this manual to ensure the machine is operated and maintained properly, to ensure the best possible
performance from the product for many years.
Birko will not accept liability for the following if:
• The instructions in this manual have not been followed correctly.
• Non-authorized personnel have tampered with the machine.
• Non-original spare parts are used.
• The machine has not been handled and cleaned correctly.
• There is any use damage to the unit.
Packaging
Birko prides itself on quality and service, ensuring that at the time of packing, all products are
supplied fully functional and free of damage.
Provided in this package are the following:
• Vertical toaster
• Crumb Tray
• Manual
Should you find any damage as a result of freight, please contact your Birko dealer immediately.
Page 4 of 12 800516 - Birko Vertical Toaster - May 2012 v1.00
Installation
Remove the Birko Vertical toaster from the packaging; be certain that all protective plastics and
residues are thoroughly cleaned from its surface.
Locate the Birko Vertical toaster on a firm level surface.
International standards and regulations should be consulted in order to abide by standards set in
relation to positioning, spacing and ventilation of the product.
Once the Vertical toaster has been placed in position ensure the crumb tray has been put into place.
Supply the appropriate power and connect to mains. The toaster is now ready to turn on and
operate. (For power supply please see technical specification sheet, page 7).
Operation
For faster results, it is suggested the Vertical toaster should be turned on prior to usage to allow to
warm up, 5 minutes is sufficient. The Vertical Toaster is designed to toast up to a maximum of 6
slices of bread. The bread must be free of any condiments or coatings such as butter, margarine or
jam etc.
The Vertical Toaster is controlled by time. Adjusting the timer to the required setting provides full
power to the elements. When the time is selected the elements will automatically be activated at full
power, when time has lapsed the elements will automatically be switched off.
Please note the rocker switch allows you to operate all elements or alternatively only 3 slots of the
toaster. Place the sliced bread into the toaster slots and select either the 3/P or 6/P position for
toasting either 3 or 6 pieces of toast.
Lower the toast by operating the handle at the front of the appliance.
At the end of the cooking time raise the toast by operating the handle and carefully remove each
slice. Be careful as the bread and the appliance will both be hot. Note this is a manual Vertical
toaster, so the toast will remain in the chamber until you have manually lifted the leaver to remove
the toast.
Children or infirm persons must not be allowed to operate these appliances unless adequately
supervised.
Page 5 of 12 800516 - Birko Vertical Toaster - May 2012 v1.00
Cleaning, Care and Maintenance
Switch off the power and disconnect from the mains.
The vertical toaster should be cleaned after each day’s operation, however may require to be
cleaned more often depending on the amount of use.
Allow the vertical toaster to cool before cleaning. Remove the crumb tray and empty. The crumb tray
can be washed in warm soapy water. Ensure the crumb tray is thoroughly dry before returning to the
unit.
The remainder of the vertical toaster can be cleaned with a damp cloth using hot, soapy water.
Do not immerse completely in water or use water jets to clean.
Warm soapy water is recommended for cleaning, cleaning agents after prolonged use can damage
stainless steel.
Safety
Switch off power to and disconnect from the mains whilst cleaning.
Do not locate in an area that may be cleaned by a water jet.
Do not use metal utensils to remove bread or crumbs from the toaster.
If the power cord is damaged, it must be replaced by a Birko Service agent or
Recommended Qualified Technician in order to avoid a hazard.
The Birko Vertical toaster does not contain any user-serviceable parts. Birko Foodservice dealers
or Recommended Qualified Technicians should carry out repairs if necessary. Do not remove any
components or service panels on this product.
Birko takes every care to ensure that all products are safe. Steel cutting procedures used to
manufacture these items results in sharp edges. These sharp edges are removed to the best of our
ability, however we insist the operator takes care when in contact with this piece of equipment.
Allow the Vertical toaster to cool down after use before dismantling for cleaning; the unit will still be
too hot to handle immediately after use.
This appliance is not intended for use by young children or infirm persons unless they have been
adequately supervised by a responsible person to ensure that they can use the appliance safely.
Young children should be supervised to ensure that they do not play with the appliance.
Page 6 of 12 800516 - Birko Vertical Toaster - May 2012 v1.00
Trouble Shooting
If your Birko Vertical Toaster does not operate, please check the following before placing a service call.
Problem Cause Remedy
The unit does not work; the
indicator light is not on.
1. Mains power supply 1. Check mains power supply
2. Unit is not switched on 2. Check that the unit is cor-
rectly plugged in and turned
on; ensure you have read the
manual for both methods of
operation:
Timer Control: provides full
power to the elements for the
period of time selected
3. Dial Control or Timer are
faulty
3. Call service agent or quali-
fied technician
4. Plug and lead are damaged 4. Call service agent or quali-
fied technician
5. Internal wiring fault 5. Call service agent or quali-
fied technician
The unit is heating but the
indicator lights are not on
1. The indicator light is faulty 1. Call service agent or quali-
fied technician
Note all Birko products are tested prior to packaging.
Before calling a service agent or qualified technician:
• Check there is correct power supply.
• The machine is plugged in correctly and power is switched on.
Page 7 of 12 800516 - Birko Vertical Toaster - May 2012 v1.00
Spare Parts List
NO DESCRIPTION CODE QTY
1 Feet 1310617 4
3 Dial 1315186 1
4 Time switch 1315187 1
6 Indicator light 1315005 1
Page 8 of 12 800516 - Birko Vertical Toaster - May 2012 v1.00

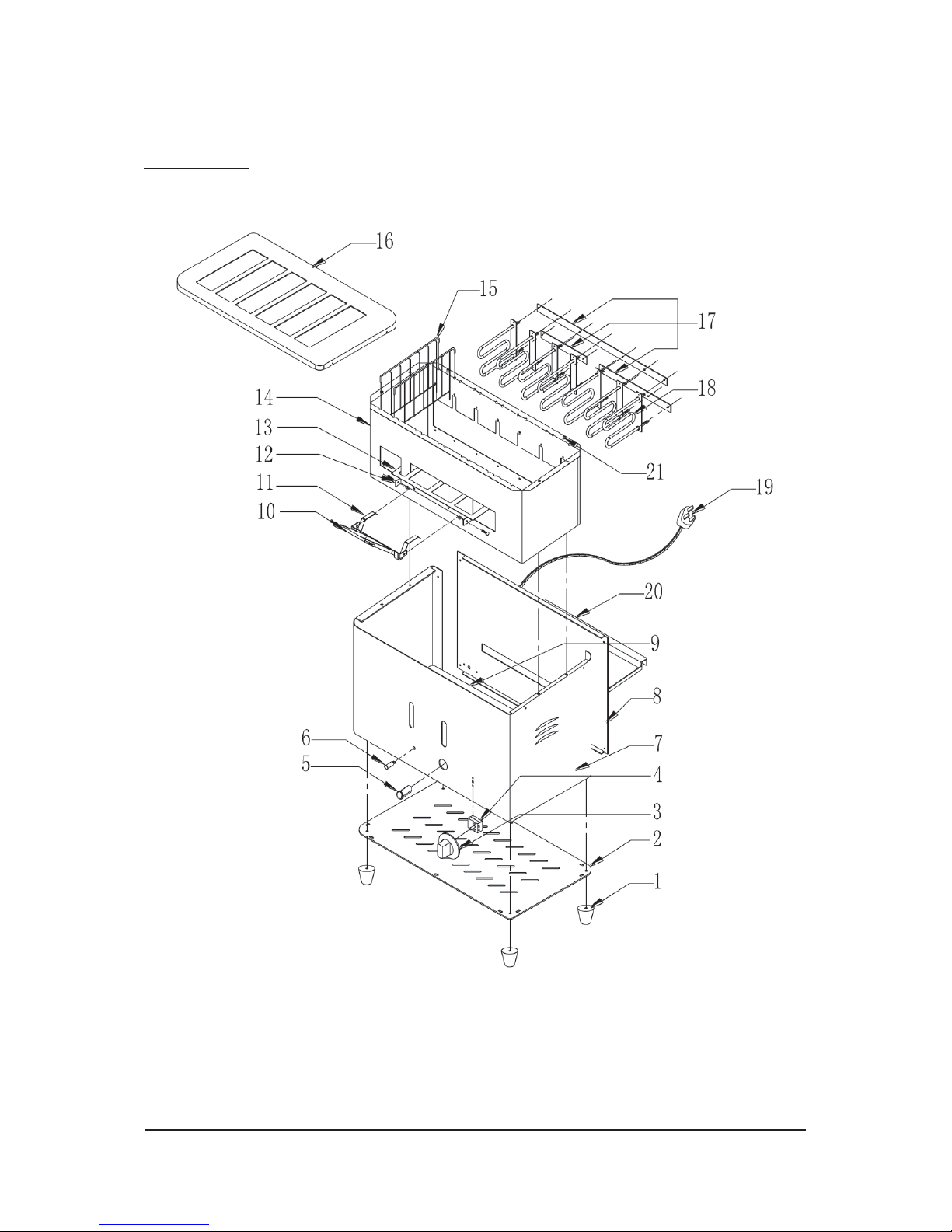

Explosion View
Model: 1003203
Page 9 of 12 800516 - Birko Vertical Toaster - May 2012 v1.00
Compliance
Birko products have undergone strict product testing in order to comply with regulatory standards and specifica-
tions set by international independent, commonwealth and federal authorities.
As testimony to such compliance Birko products carry the following marks/symbols:
Specifications
MODEL VOLTAGE POWER DIMENSIONS (MM)
WIDTH DEPTH HEIGHT
1003203 230/240V 2100W/240V 410 230 270
Page 10 of 12 800516 - Birko Vertical Toaster - May 2012 v1.00
Circuit Diagram
Model: 1003203
The above circuit diagram has been provided to assist qualified technicians. Only Birko agents or Recommended Qualified
Technicians should carry out repairs if needed. Do not remove any components or service panels on this product.
Page 11 of 12 800516 - Birko Vertical Toaster - May 2012 v1.00
Notes
Page 12 of 12 800516 - Birko Vertical Toaster - May 2012 v1.00
Contact Details
Birko Heaters Australia Pty Ltd.,
ABN 39 103 881 625
67 Allingham St
Condell Park
N.S.W. 2200
AUSTRALIA
Local Ph: 1300 724 955
Local Fax: 1300 735 259
www.birkoheaters.com
The term ‘Birko’ is a registered trade mark of Birko Heaters Australia Pty Ltd.
Please keep this manual in a safe place for future use!
