Birlea RICHMOND User manual

Vendor: S000180
Page 1 of 8
ASSEMBLY INSTRUCTIONS
RICHMOND 4 DRAWER CHEST
IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE OR
USE YOUR RICHMOND 4 DRAWER CHEST
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
HEALTH & SAFETY:
DO NOT use this chest if any parts are missing, damaged or worn
DO NOT use this chest unless all fixings are secured
Always use on a level, even surface
CARE & MAINTENANCE:
Assemble on a soft, clean surface to prevent damages
Periodically check all screws fixings to ensure they are secure
DO NOT push the chest as this will damage the feet
Always lift the chest with two people to reposition
Keep any sharp objects away from the chest
www.birlea.com
Vendor: S000180
Page 2 of 8
Parts List Hard are List
Part Description Qty Part Description Qty
1 Left Panel 1 A 4.5 x 32 mm CSK Screw 19
2 Right Panel 1 B 3.5 x 15 mm CSK Screw 9
3 Top Panel 1 C 3.5 x 12 mm CSK Screw 16
4 Lower Front Frame 1 D 6 x 9 mm Euro Screw 16
5 Lower Back Frame 1 E 6 x 20 mm Wooden Dowel 26
6 Middle Back Frame 1 F 8 x 25 mm Wooden Dowel 26
7 Front Frame 3 G 24 x 8.5 mm Bolt 25
8 Lower Front Plinth 1 H
15 x 12 mm Cam Lock
13
9 Upper Front Plinth 1 J 12 mm Cam Lock 12
10 Lower Back Plinth 1 K1 Drawer Slide CR 4
11 Drawer Front 4 K2 Drawer Slide CL 4
12 Left Drawer Side 4 L1 Drawer Slide DR
4
13 Right Drawer Side 4 L2 Drawer Slide DL 4
14 Drawer Back 4 M Backply Stopper 8
15 Drawer Support 4 N Glue 3
16 Drawer Base 4 P Webbing Tape 1
17 Back Panel 2 Q
Metal Cup Handle with Screw
8
** You ill need a small mallet and a scre driver for assembly
Vendor: S000180
Page 3 of 8
Step 1: Insert hardware parts E and F as shown using hardware part N and a small mallet (not provided)
DO NOT use any po er tools as this may damage the frame and ill invalidate any claim
Step 2: Insert hardware part G as shown using a screwdriver (not provided)
DO NOT use any po er tools as this may damage the frame and ill invalidate any claim
Vendor: S000180
Page 4 of 8
Step 3: Assemble the drawers as shown using hardware parts A, C, J, L1, L2, N and Q with a screwdriver (not
provided)
DO NOT use any po er tools as this may damage the frame and ill invalidate any claim
Vendor: S000180
Page 5 of 8
Step 4: Attach hardware parts K1 and K2 to the left panel (1) and right panel (2) using hardware part D and a
screwdriver (not provided)
DO NOT use any po er tools as this may damage the frame and ill invalidate any claim
Step 5: Attach the lower back plinth (10) to the lower back frame (5) then attach the lower front plinth (8) to the
lower front frame (4) using hardware parts H and N with a screwdriver (not provided)
DO NOT use any po er tools as this may damage the frame and ill invalidate any claim
Step 6: Attach the lower front frame (4), lower back frame (5), middle back frame (6), front frames (7) and
upper front plinth (9) to the left panel (1) using hardware parts H and N with a screwdriver
DO NOT use any po er tools as this may damage the frame and ill invalidate any claim
Vendor: S000180
Page 6 of 8
Step 7: Attach the right side panel (2) using hardware parts H and N with a screwdriver (not provided)
DO NOT use any po er tools as this may damage the frame and ill invalidate any claim
Step 8: Insert the back panels (17)
DO NOT use any po er tools as this may damage the frame and ill invalidate any claim
Step 9: Attach the top panel (3) using hardware parts A, J and N with a screwdriver (not provided)
DO NOT use any po er tools as this may damage the frame and ill invalidate any claim
Vendor: S000180
Page 7 of 8
Step 10: Insert the assembled drawers to the frame
DO NOT use any po er tools as this may damage the frame and ill invalidate any claim
Step 11: Secure the back panels (17) using hardware parts B and M with a screwdriver (not provided)
If mounting the chest to a wall, attach hardware part P with a screwdriver (not provided)
DO NOT use any po er tools as this may damage the frame and ill invalidate any claim
Vendor: S000180
Page 8 of 8
Step 12: Fix the assembled chest to a wall if required
DO NOT use any po er tools as this may damage the frame and ill invalidate any claim
For complete product information, images and dimension
diagrams please visit www.birlea.com

Other Birlea LCD Drawer manuals

Birlea PEMBROKE S000238 User manual

Birlea

Birlea PEMBROKE S000238 User manual

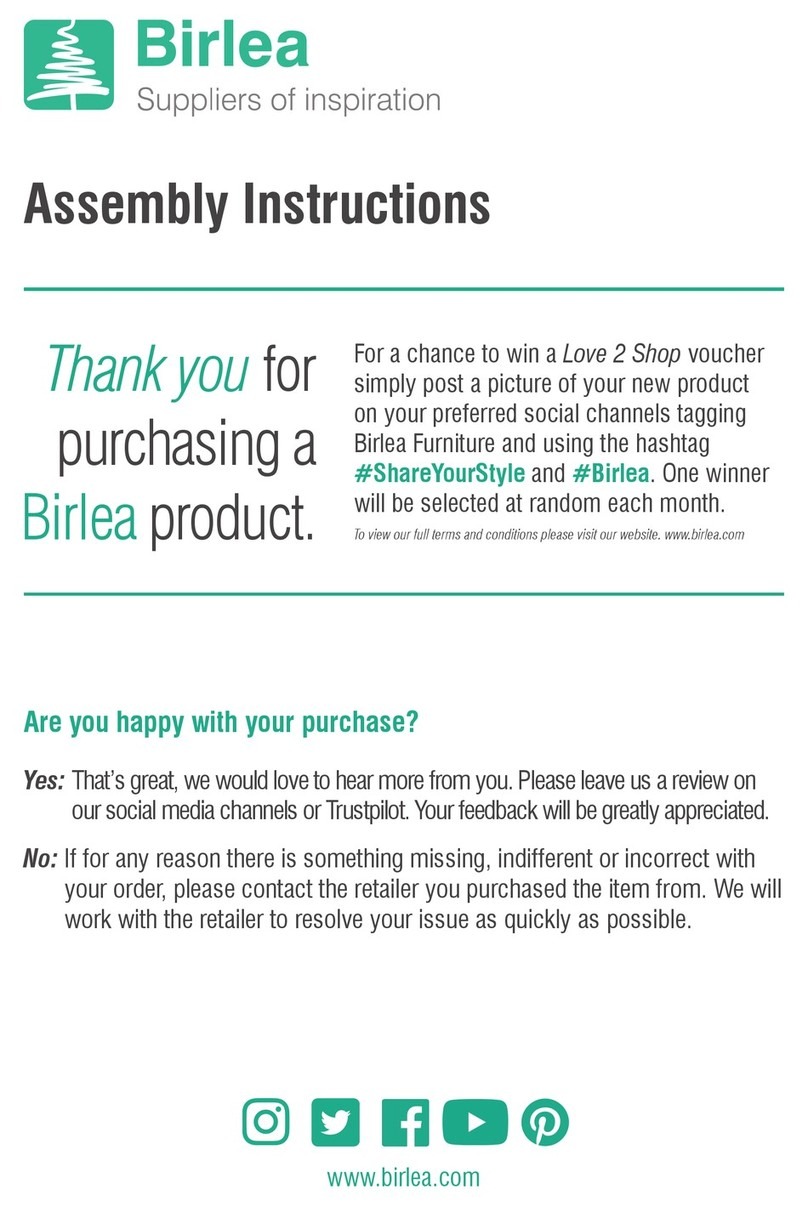

Birlea Paris PAR6CHGRYV2 User manual

Birlea

Birlea Paris PAR6CHGRYV2 User manual

Popular LCD Drawer manuals by other brands

Anker UCDM operating manual

Anker

Anker UCDM operating manual

Synergy Global Technology LCD1U15-17 user manual

Synergy Global Technology

Synergy Global Technology LCD1U15-17 user manual

Raloy RF117HDM user manual

Raloy

Raloy RF117HDM user manual

NTI RACKMUX-VS17-T Installation and operation manual

NTI

NTI RACKMUX-VS17-T Installation and operation manual

Acnodes PKD 8170 Specifications

Acnodes

Acnodes PKD 8170 Specifications

Acnodes RP 1152 Specifications

Acnodes

Acnodes RP 1152 Specifications

Acnodes MKD6219 user manual

Acnodes

Acnodes MKD6219 user manual

Austin Hughes CyberView HF117 user manual

Austin Hughes

Austin Hughes CyberView HF117 user manual

StarTech.com RKCOND17HD Series quick start guide

StarTech.com

StarTech.com RKCOND17HD Series quick start guide

Acnodes MKD6220D user manual

Acnodes

Acnodes MKD6220D user manual

Belkin F1DC100S - 15" LCD Rack Console installation guide

Belkin

Belkin F1DC100S - 15" LCD Rack Console installation guide

Raloy RW119 Series user manual

Raloy

Raloy RW119 Series user manual

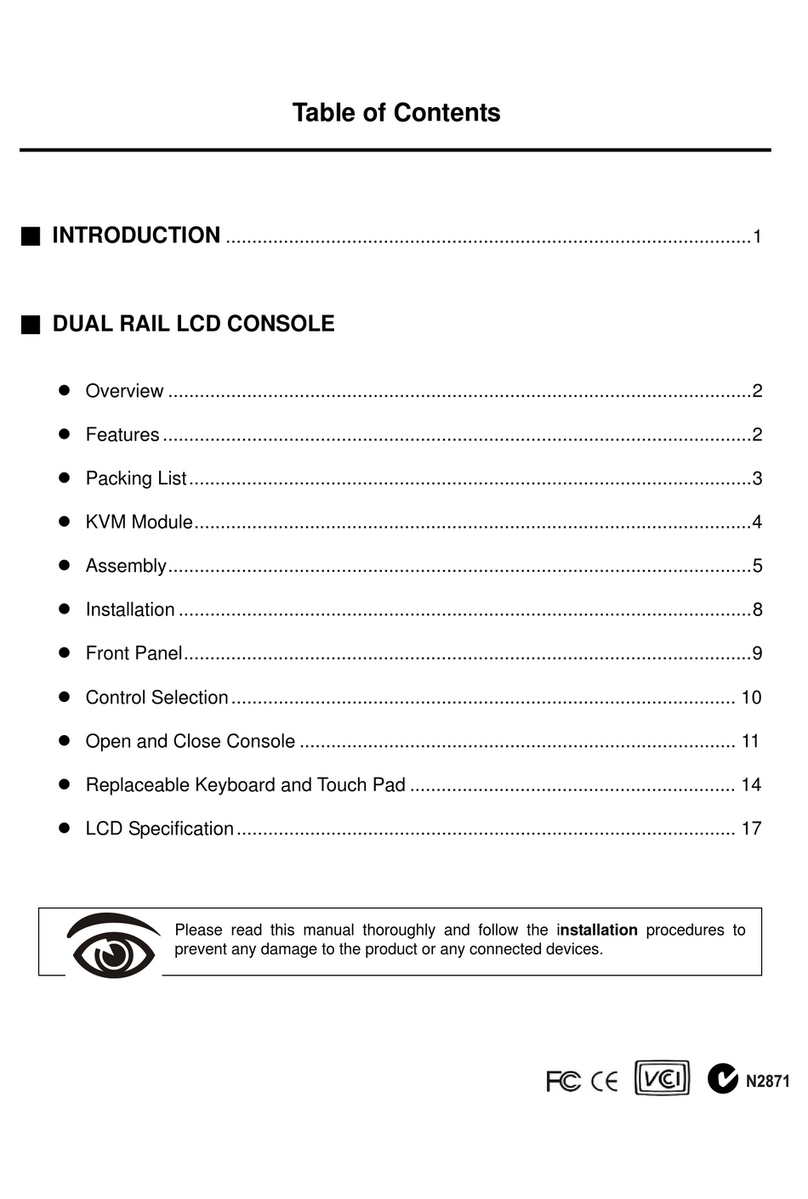

serverLink LKS-CD17DR manual

serverLink

serverLink LKS-CD17DR manual

Rose electronics RackView RV1-CKVM15A features and benefits

Rose electronics

Rose electronics RackView RV1-CKVM15A features and benefits

Miele ESW 7010 Operating and installation instructions

Miele

Miele ESW 7010 Operating and installation instructions

KinAn HT5708 user manual

KinAn

KinAn HT5708 user manual

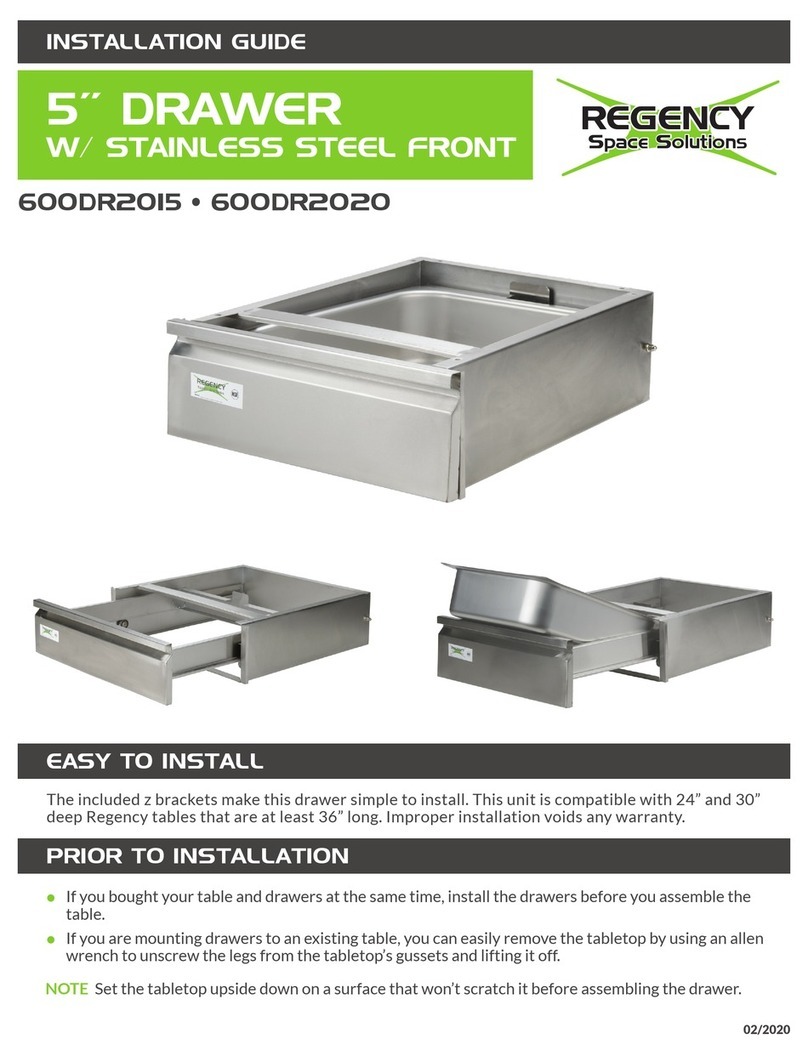

Regency 600DR2015 installation guide
