BIRO VTS-41 User manual

VACUUM TUMBLER
OPERATION MANUAL & PARTS LIST
MODEL VTS-41
REMOTE PUMP
VTS 41/42
274-4-18-12-B
MODEL VTS-42
INTERNAL PUMP
IMPORTANT SAFETY NOTICE
This Manual contains important
safety instructions which must
be strictly followed when using
this equipment.

TABLE OF CONTENTS
Page
NOTICE TO OWNERS AND OPERATORS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SAFETY TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TO PROCESS PRODUCT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
OPERATION OF VTS-42 ONLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
OPERATOR’S NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INSTRUCTIONS FOR PULLING A VACUUM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VTS-41 PARTS DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VTS-42 WIRING DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
OPERATOR’S SIGNATURE PAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
3
2
5
6
7
8, 9
18
26
25
3
OPERATION OF VTS-41 ONLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
VTS-42 PARTS DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VACUUM PUMP OPERATION AND SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-17
VTS-41 WIRING DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19, 20

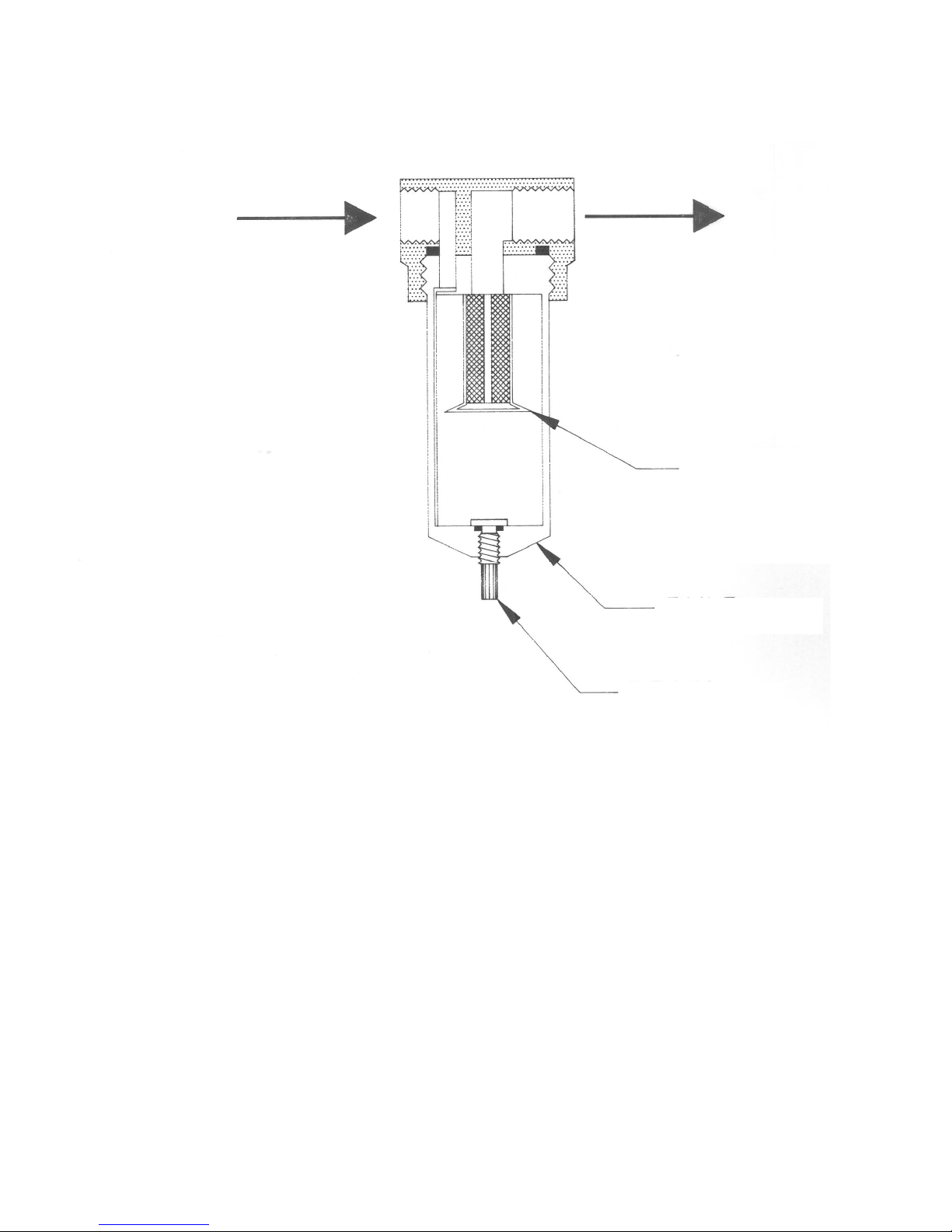

INLET FILTER OPERATION AND SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12, 14
10-14
21OPERATOR’S NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22GENERAL MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
24OPERATOR’S NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1
NOTICE TO OWNERS AND OPERATORS
 BIRO’sproductsaredesignedtoprocessfoodproductssafelyandefciently.Unlesstheoperatoris
properly trained and supervised, however, there is the possibility of a serious injury. It is the responsibility
of the owner to assure that this machine is used properly and safely, strictly following the instructions
contained in this Manual and any requirements of local law.
No one should use or service this machine without proper training and supervision. All operators should
be thoroughly familiar with the procedures contained in this Manual. Even so BIRO cannot anticipate
every circumstance or environment in which it’s products will be used. You, the owner and operator, must
remain alert to the hazards posed by the function of this equipment. No one under eighteen (18) years of
age should operate this equipment. If you are uncertain about a particular task, ask your supervisor.
This Manual contains a number of safe practices in the SAFETY TIP section. Additional warnings
are placed throughout the Manual. Warnings related to your personal safety are indicated by:
OR
Warnings related to possible damage to the equipment are indicated by:
BIRO also has provided warning labels on the equipment. If any warning label or Manual becomes
misplaced, damaged, or illegible, please contact your nearest Distributor or BIRO directly
for a replacement.
Remember, however, this Manual or the warning labels do not replace the need to be alert and to use
your common sense when using this equipment.
A copy of this manual is included with each Model VTS-41 and VTS-42 Vacuum Tumbler .
- NOTE -
This Manual applies to Model VTS-41 with Serial Number 41100 and higher; Model VTS-42 with
Serial Number 42100 and higher.
The descriptions and illustrations contained in this manual are not binding.
The manufacturer reserves the right to introduce any modication without
updating the manual .

SAFETY TIPS
ROTATING DRUM
TO AVOID SERIOUS PERSONAL INJURY
NEVER Touch This Machine Without Training and Authorization By Your Supervisor.
ALWAYS Keep Hands Clear of the Rotating Drum and Other Moving Parts.
NEVER Attempt to Remove the Drum Lid Unless Vacuum Has Been Released and the Drum is
Positioned Vertically with the Lid at the Top.
ONLY Use a Qualied Electrician to Install According to Local Building Codes: Machine MUST
Be Properly Grounded.
ONLY Install on Level, Non-Skid Surface in a Clean, Well-Lighted Work Area Away From Children
and Visitors.
NEVER Use The Motor Cover Plate for Preparing the Product.
NEVER Operate Vacuum Pump Unless Properly Connected to Tumbler Drum.
ALWAYS Turn Off, Unplug From Power Source and Perform Lockout/Tagout Procedure to This
Machine BEFORE Attempting to Unjam or Unclog, Cleaning or Servicing.
NEVER Leave Machine Unattended While Operating.
PROMPTLY REPLACE Any Worn or Illegible Warning Labels.
ALWAYS Read Operation and Service Manual BEFORE Operating, Cleaning or Servicing.
USE ONLY BIRO Parts and Accessories Properly Installed.
2
ONLY Operate Vacuum Pump in Recommended Vacuum Range (15-20 Inches of Mercury)
NEVER TO EXCEED 20 INCHES Hg.
DO NOT Store or Operate Machine in Meat Cooler.
DO NOT Allow Food Particles, Liquids or Any Other Foreign Material to Enter the Vacuum
Pump or Vacuum Hose.

OPERATION
3
NEVER Operate Without all Warning Labels Attached.
ALWAYS Keep Hands Clear of the Rotating Drum and Other Moving Parts.
ROTATING DRUM
TO AVOID SERIOUS PERSONAL INJURY
ONLY Properly Trained Personnel Should Use This Equipment.
DO NOT Tamper With, Bypass, Alter, or Modify This Equipment in Any Way From Its Original Condition.
ALWAYS Turn Off, Unplug From Power Source and Perform Lockout/Tagout Procedure to This
Machine BEFORE Cleaning, Servicing, or When Not In Use.
NEVER Leave Unattended While Operating.
DO NOT Store or Operate Machine in Meat Cooler.
NEVER Use The Motor Cover Plate for Preparing the Product.
A. FOOD HANDLING TO PREVENT CONTAMINATION
1. ALWAYS washhandsthoroughlywithwarmsoapandwaterbeforeandafterhandlingrawsh,poultryormeats.
2. ALWAYS clean and sanitize all utensils and surfaces that have been in contact with raw products.
3. ALWAYS store cold foods at or below 45° F (7.2° C).
B. TO PROCESS PRODUCT
1.InsertbafesintoStainlessSteeldrum.Besurethatbafesarefullyengagedonmountingbuttons.
2. Weigh product to be vacuum tumbled.
3. Refer to your ingredient chart for proper amount of marinade seasoning and water.
4. Place product, marinade and water into tumbler drum.
5. Install gasket on drum lid and place lid on drum.
6. Connect vacuum hose to valve on drum lid. Be sure valve handle is in the open position, parallel
with the valve body.

OPERATION OF VTS-41 ONLY
7. Plug vacuum pump into a grounded 60 Hz: 115 volt, 10 amp power source. Turn vacuum pump to “ON” while
pressing down on center of lid. (Vacuum gauge will start indicating a vacuum is being pulled in the drum.) If
needle in vacuum gauge does not indicate vacuum is being pulled, turn “OFF” vacuum pump and disconnect
vacuum hose from drum lid. Remove drum lid and check that the lid gasket is properly installed and seated.
8. When vacuum gauge does indicate that a vacuum is being pulled, allow to continue running until gauge reads
between 15 and 20 inches Hg. NEVER EXCEED 20 Hg.
9. Close valve handle on drum lid, Perpendicular to valve body. Turn vacuum pump to “OFF” position and unplug
from power source. Remove vacuum hose from valve. Drum contents are now sealed in a vacuum.
10. Lay drum horizontally on roller with lid end facing away from machine timer controls.
11. Plug tumbler motor into a grounded 60 Hz, 115 volt, 10 amp power source.
12. Turn timer control dial to desired time, and turn toggle switch to “ON TIMER” position.
13. When drum stops, turn toggle switch to “OFF” position, unplug tumbler motor from power source.
14. Remove drum and place on table with lid up. Turn valve handle to open position Parallel with valve body to
release vacuum. Remove drum lid.
15. Remove product from drum.
4

OPERATION OF VTS-42 ONLY
7. Plug vacuum pump into a grounded 60 Hz: 115 volt, 10 amp OR 50 Hz: 220 volt, 5 amp power source.
Turn vacuum pump to “VACUUM PUMP” while pressing down on center of lid. (Vacuum gauge will start
indicating a vacuum is being pulled in the drum.) If needle in vacuum gauge does not indicate vacuum is being
pulled, turn “OFF” vacuum pump and disconnect vacuum hose from drum lid. Remove drum lid and check that
the lid gasket is properly installed and seated.
8. When vacuum gauge does indicate that a vacuum is being pulled, allow to continue running until gauge reads
between 15 and 20 inches Hg. NEVER EXCEED 20 Hg.
9. Close valve handle on drum lid, Perpendicular to valve body. Turn vacuum pump to “OFF” position and unplug
from power source. Remove vacuum hose from valve. Drum contents are now sealed in a vacuum.
10. Lay drum horizontally on roller with lid end facing away from machine timer controls.
11. Turn timer control dial to desired time, and turn toggle switch to “ON TIMER” position.
12. When drum stops, turn toggle switch to “OFF” position, unplug tumbler motor from power source.
13. Remove drum and place on table with lid up. Turn valve handle to open position Parallel with valve body to
release vacuum. Remove drum lid.
14. Remove product from drum.
5

6
INSTRUCTIONS FOR PULLING A VACUUM
The following guidelines should be followed when using BIRO vacuum tumblers. Due to the nature
of the manufacturing processes by which these drums and lids are made, there are slight differences in the
diameter of the drum opening, and the diameter of the lid. These differences are normal, and have no
impact on the performance of your tumbler.
• Make sure that the lid gasket is sealed properly.
• Center the lid in the opening of the drum.
• Start the vacuum pump.
• Apply pressure in the center of the lid.

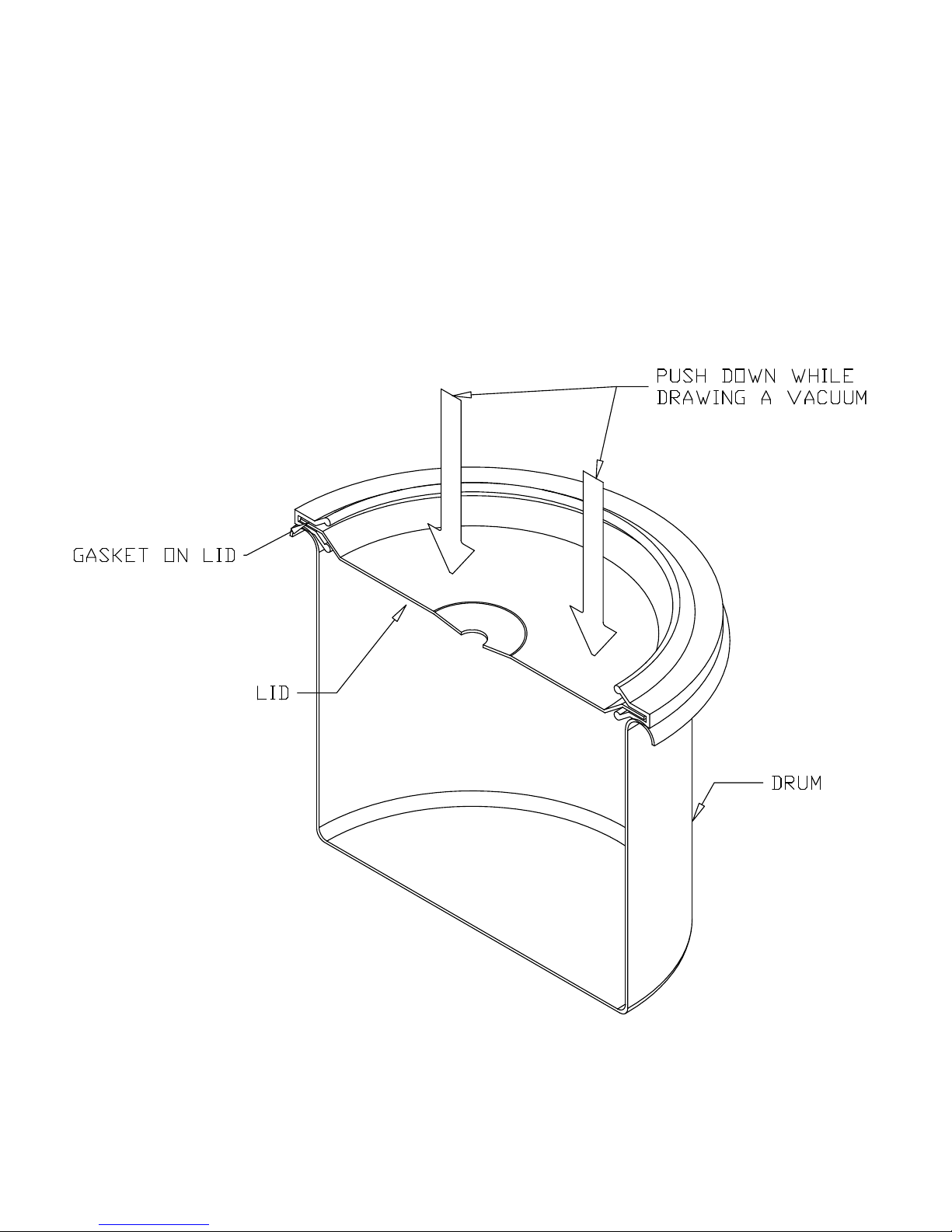

SEAL, LID AND DRUM ASSEMBLY
1. BE SURE SEAL IS PUSHED ON COMPLETELY
2. PUSH LID ON TO DRUM WHILE DRAWING
A VACUUM

7
OPERATOR’S NOTES

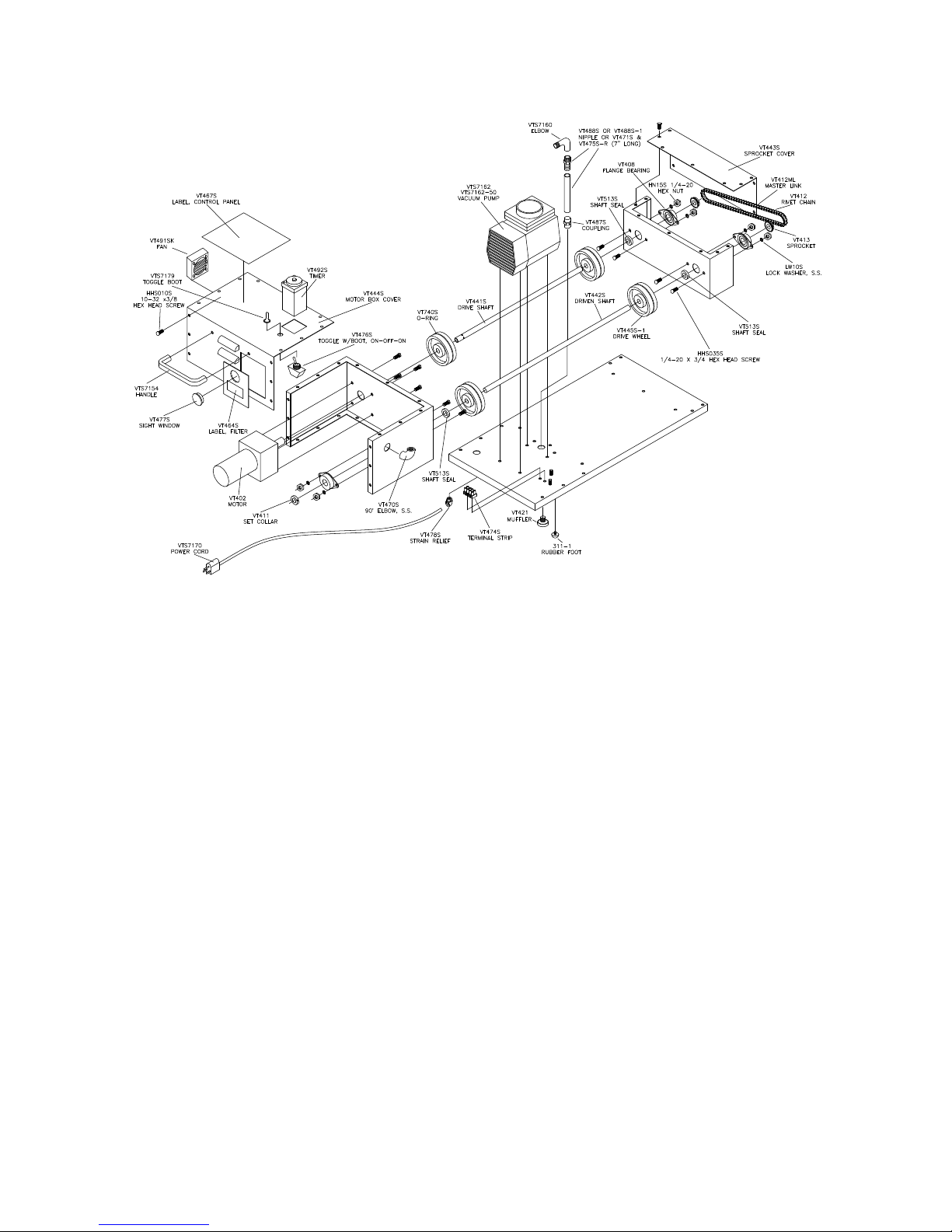

IMPORTANT: Always Advise Model & Serial Number When Ordering Parts
VTS-41
8
155-1
311-1
HHS010S
HHS035S
HN15S
HN20S
LW10S
LW15S
Guide for 16” high drum
Rubber foot
Hexheadscrew,10-32x⅜,SS
Hexheadscrew,¼-20x⅝,SS
Hex nut, ¼-20, SS
Hex nut, 5/16-18, SS
Lock washer, ¼, SS
Lock washer, 5/16, SS
Item No. Description
VT402
VT408
VT411
VT412
VT412-1
VT412ML
VT413
VT414-1
VT441S
VT442S
Motor, 1/25 HP, 115-60-1, 17.7 RPM. 90:1
Flange bearing
Set collar
Rivet chain before serial. no. 41321
Rivet chain after serial. no. 41322
Master link- spring clip
Sprocket
Guide for 15” high drum
Driving shaft
Driven shaft
VT443S
VT445S-1
VT448S
VT450S
VT461S
VT462S
VT474S
Sprocket & chain cover
Drive wheel, with O-ring
Label, VTS-41 control panel
Timer socket
Motor box less cover
Motor box cover
Terminal strip, 4 circuit
Item No. Description
VT478S
VT492S
VT513S
VT740S
VTS7154
VTS7170
VTS7179
VT418
VT479S
Strain relief, 90 deg.
Timer w/out pushbutton start, 0-50 min.
Shaft seal
O-ring
Oval handle
Power cord w/ 120V plug, 8’, 16/3
Toggle switch boot
Vacuum pump w/ toggle, 110-60-1
Vacuum pump w/ toggle, 220-50-1
NOT SHOWN
T3186-4A Toggle switch w/ boot, ON-OFF

IMPORTANT: Always Advise Model & Serial Number When Ordering Parts
VTS-41

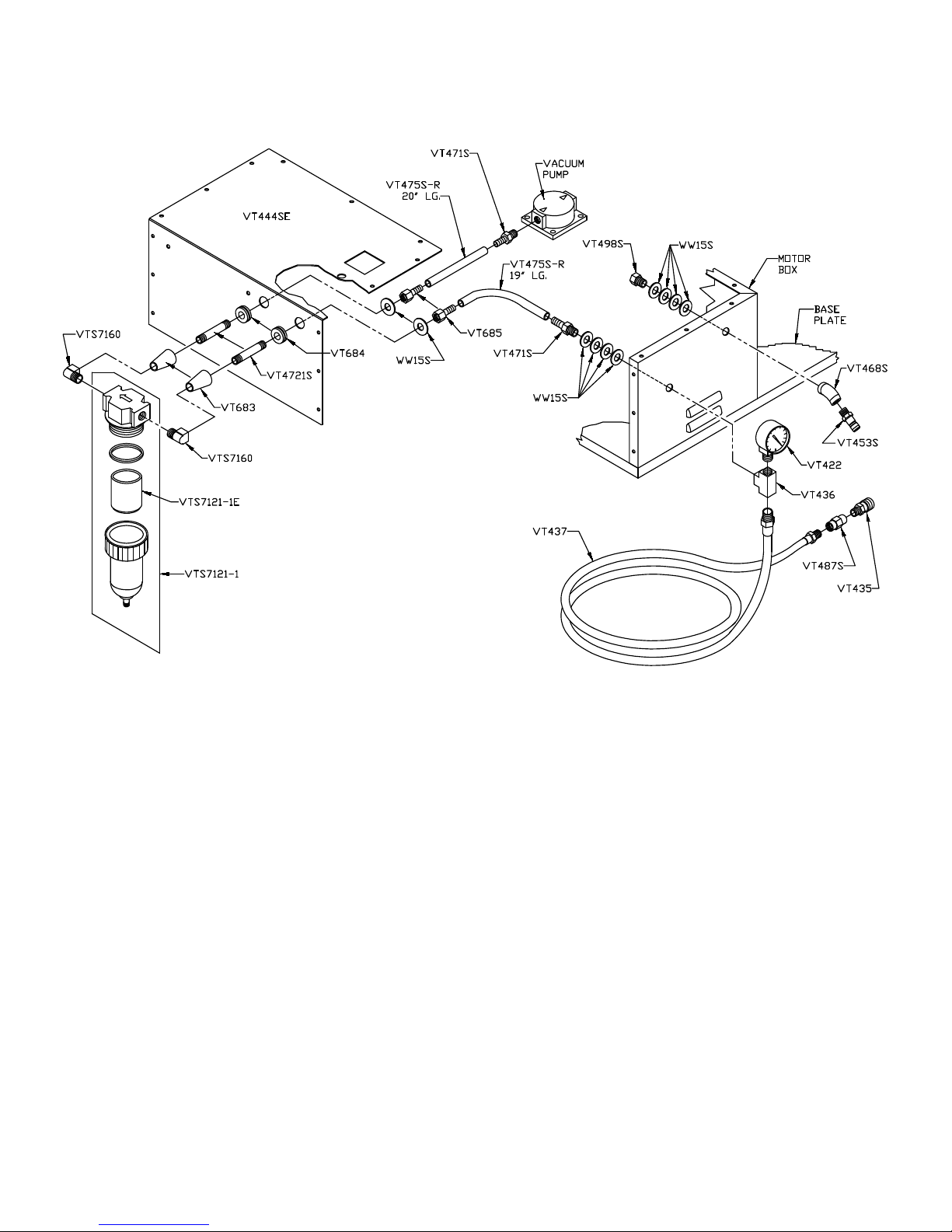

9
VT418
VT422
VT435
VT436
VT437
VT447S
VT479S
VTS7121
Vacuum pump w/ toggle, 110-60-1
Vacuum gauge
Coupler, ¼ MPT
Tee, ¼ x ¼ x ¼ FPT, brass
Hose, 5’ with ¼ MPT crimped ends
Hex nipple, ¼ NPT
Vacuum pump w/ toggle, 220-50-1
Inletlter
Item No. Description
VT415S-2
VT425S
VT425S-1
VT428S-2
VT429S-2
VT430S
VT434S-1
Drum & lid assembly, SS with
guide 155-1
Bafeonlyfor15”highdrum
Bafeonlyfor16”highdrum
Drumwithbafesandguide
155-1
Drumonly,withoutbafesbut
with guide 155-1
Lid assembly with ball valve
Lid gasket
Item No. Description
VT453S
VT454S
Nipple only
Ball valve only
VT415S-2
DRUM
& LID
ASSEMBLY

10
IMPORTANT: Always Advise Model & Serial Number When Ordering Parts
VTS-42
155-1
311-1
HHS010S
HHS035S
HN15S
HN20S
LW10S
LW15S
Guide for 16” high drum
Rubber foot
Hexheadscrew,10-32x⅜,SS
Hexheadscrew,¼-20x⅝,SS
Hex nut, ¼ - 20, SS
Hex nut, 5/16-18, SS
Lock washer, ¼, SS
Lock washer, 5/16, SS
Item No. Description
VT402
VT408
VT411
VT412
VT412-1
VT412ML
VT413
VT414-1
VT441S
VT442S
Motor, 1/25 HP, 115-60-1, 17.7 RPM. 90:1
Flange bearing
Set collar
Rivet chain before serial. no. 41321
Rivet chain after serial. no. 41322
Master link- spring clip
Sprocket
Guide for 15” high drum
Driving shaft
Driven shaft
VT443S
VT445S-1
VT453S
VT450S
VT464S
VTS7162
VTS7162-50
Sprocket & chain cover
Drive wheel, with O-ring
Nipple quick release, ¼ MPT, SS
Timer socket
Label,lter
Vacuum pump, 115-60-1
Vacuum pump, 220-50-1
VTS7162-60
VTS7170
VTS7179
VT740S
VTS7154
VTS7209
Vacuum pump, 220-60-1
Power cord w/ 120V plug, 8’, 16/3
Toggle switch boot
O-ring
Oval handle
Spring clip holder
VT444S Motor & pump cover
VT467S
VT468S
VT470S
VT471S
VT474S
VT475S-R
VT476S
VT477S
Label, VTS-42 control panel
Elbow 45° x ¼ x ¼ FPT, SS
Elbow 90° x ¼ FPT, SS
Hose barb ¼ x ¼, brass MPT 44
Terminal strip, 4 circuit
Hose ¼ I.D. x ½ O.D. Nylobrade
Toggle switch w/ boot, ON-OFF-ON
Sight window
Item No. Description
VT478S
VT481S
VT482S
VT487S
VT488S
VT488S-1
VT491SK
VT492S
VT498S
VT513S
Strain relief, 90°
Lock knob
Access door
Coupling, ¼ FPT, brass
Nipple, 6” x ¼ MPT, brass
Nipple, 6½” x ¼ MPT, brass
Replacement fan kit
Timer without pushbutton start, 0-50 min.
Bushing,¼MPTx⅛FPT,brass
Shaft seal
VTS7160 90° street, ¼ MPT x ¼ FPT, brass
WW15S Washer 9/16 I.D.x 1¼” O.D.
HHS049S Hex head screw, 5/16-18 x ½, SS
VT421 Mufer

11
VTS-42
INTERNAL FILTER ASSEMBLY
VT415S-2
VT425S
VT425S-1
VT428S-2
VT429S-2
VT430S
VT434S-1
Drum & lid assembly, SS with
guide 155-1
Bafeonlyfor15”highdrum
Bafeonlyfor16”highdrum
Drumwithbafesandguide
155-1
Drumonly,withoutbafesbut
with guide 155-1
Lid assembly with ball valve
Lid gasket
Item No. Description
VT453S
VT454S
Nipple only
Ball valve only
IMPORTANT: Always Advise Model & Serial Number When Ordering Parts
WW15S
VT422
VT435
VT437
VT440S
Wrought Washer, 9/16 I.D.x 1¼” O.D.
Vacuum gauge
Quick disconnect coupler, ¼ MPT
Hose, 5’ with ¼ MPT crimped ends
Motor & pump box less cover
Item No. Description
VT436 Tee, ¼ x ¼ x ¼ MPT, brass
VT469S
VT470S
VT471S
VT472S
VTS7121
VTS7191
Elbow, 90° x ¼ FPT, Brass
Elbow 90° x ¼ FPT, SS
Hose barb, ¼ x ¼ MPT, brass
Nipple, 2½ x ¼ NPT
Inletlter
Pipe nipple, 3” x ¼ MPT, brass
Item No. Description
VT475S Vacuum hose, 11”
VT415S-2
DRUM
& LID
ASSEMBLY

12
ITEM No. VTS7121
INLET FILTER DRAINING INSTRUCTIONS
AIR FLOW
BOWL
ITEM No.
VTS7121-E
FILTER
ELEMENT KIT
TO DRAIN
UNSCREW
DRAIN
VALVE
OPERATION & SERVICE
1.Checklterdaily.
3.Manualdrainltersmustbedrainedregularlybefore
the seperated moisture and oil reaches the bottom of
the lower element. Drain by unscrewing the black
drain plug in bottom of sight bowl.
2. Both free moisture and solids are removed
automaticallybythelter.Therearenomovingparts.
4.Thelterelementshouldberemovedandcleanedor
replaced monthly.
5.Toremovethelterelement:SHUT OFF VACUUM
PUMP and depressurize the unit.
a. Unscrew threaded bowl.
b. Unscrew element assembly.
c.Cleanbowlandlterelement.Reassembleorreplace
lterelement.Cleanbowlwithmildsoapandwater
only. Do not use detergents, cleansing agents, such
as acetone, alcohol, benzene or gasoline, which are
damaging to plastic.
d. Lubricate or replace bowl gasket to assist initial
sealing. Use only mineral based oils or grease. Do
not use synthetic oils or silicones.
e.Screwbowlintobodyoflter.Closeblackdrain
plug.

13
VT453S
VT422
VT435
VT437
VT444SE
Nipple quick release, ¼ MPT, SS
Vacuum gauge
Quick disconnect coupler, ¼ MPT
Hose, 5’ with ¼ MPT crimped ends
Motor&pumpcover,externallter
Item No. Description
VT436 Tee, ¼ x ¼ x ¼ FPT, brass VT683
VT472S
VTS7121-1
Spacerexternallter
Nipple, 2½ x ¼ NPT
Externallter
Item No. Description
VT468S Elbow 45° x ¼ x ¼ FPT, SS
VT471S Hose barb ¼ x ¼, brass MPT 44
VT475S-R Hose ¼ I.D. x ½ O.D. Nylobrade
VT487S
VT498S
Coupling, ¼ FPT, brass
Bushing,¼MPTx⅛FPT,brass
VTS7160 90° street, ¼ MPT x ¼ FPT - brass
WW15S Wrought Washer, 9/16 I.D.x 1¼” O.D.
VT684 Rubbergrommetexternallter
VT685 Hose barb, ¼ FPT x ¼ hose, brass
VTS7121-1E Element kit
VTS7121-1K Externallterretrotkit
VTS-42
EXTERNAL FILTER ASSEMBLY
NOTE: ALL PARTS AFTER SERIAL No. 421062

14
1. Unscrew the bowl lock
and remove the bowl.
DAILY: Drainallmoisturefromthelter
enclosure.Turn the drain knob
counter clockwise to drain.
MONTHLY: ThePartNo.VTS7121-1Elterelementmustbereplacedonceamonth
for proper vacuum and pump operation.
One (1) Part No. VTS7121-1E replacement lter has been included with
your machine.
2.Unscrewthelterholder.Lowerthelter
carefully from the mounting stud. Note the
order of the parts.
3.Reassemblethelterinthereverseorder.
Taking special care that the sight bowl is fully seated and locked.
VTS-42
VTS7121-1 FILTER
MAINTENANCE

15
VTS-41
VT418 OR VT479S
EXTERNAL PUMP
with TOGGLE SWITCH
VTS-42
VTS7162 OR VTS7162-50
INTERNAL PUMP
w/out TOGGLE SWITCH
NO. VT611S
SERVICE REPAIR KIT
WARNING: To prevent explosive hazard, Do NOT pump combustible liquids or vapors with these units. Per-
sonal Injury and/or Property Damage would result.
Tocleanorreplacetheinternalltersand/orrubbergasket,removethevescrewsinthetopoftheunit.Thelters
andgasketarelocatedbeneaththistopplate.Removetheltersandwashtheminsolventand/orblowoffwithairor
replace.Thegasketmaybecleanedwithwater.Replacetheltersinproperpositionandreplacethegasket.Notethat
thegasketandtopplatewilltinonepositiononly.
To replace the diaphram, remove the socket cap screws from the head of the pump. The diaphram is held in place by
twophillipsheadscrews.Removescrews,retainerplateandthediaphram.Thediaphramwilltinanypositionon
the connecting rod. Replace the plate and the two phillips head screws. Torque to 30 inch-pounds.
CAUTION: Do not raise any burrs or nicks on the heads of these screws. These burrs could cause damage to
the inlet valve.
For replacing the inlet and the outlet valve, remove the slotted machine screw that holds each valve in place. The
stainless steel inlet and outlet valves are interchangeable* Clean them with water. When replacing the outlet valve,
place the new valve in location and note there is a retaining bar near the machine screw hole. The retaining bar holds
the valve in position. When replacing the inlet valve, note that the valve holder is marked with an X in one corner.
This X should be in the lower right hand corner toward the inlet of the air chamber. Replace the head and tighten the
socket head screws, to 90-100 inch-pounds of torque.
WARNING: The motor may be thermally protected and can automatically restart when the overload resets.
Always disconnect power source before servicing. Personal Injury and/or Property Damage could result.
Do not attempt to replace the connecting rod or motor bearings. If after cleaning the unit and/or installing a new
Service Kit, the unit still does not operate properly, contact your representative, the factory, or return the pump to one
of our authorized Service Centers.
IF YOUR PUMP IS EQUIPPED WITH PLASTIC PLUGS IN THE EXHAUST AND/OR INTAKE PORTS,
REMOVE BEFORE STARTING THE UNIT.
OPERATING AND MAINTENANCE INSTRUCTIONS.
Do not at any time lubricate any of the parts with oil, grease, or petroleum products nor clean with acids, caustics or
chlorinated solvents. Be very careful to keep the diaphram from contacting any petroleum product or hydro carbons. It
can affect the service life of the pump.

16
OLD STYLE EXTERNAL AND INTERNAL VACUUM PUMPS
Exploded Product View, Parts, and Ordering Information
* Denotes parts included in the Service Kit.
* The Service Kit may contain parts for more that one model or style diaphram part.
When corresponding or ordering parts, please give model and serial number.
DOL-101-AA
VTS-AF808
DESCRIPTIONS
VTS-AF820
VTS-AF713
VTS-AT712A
VTS-AF804
VTS-BB317
VTS-AF856
VTS-AF817
RIVOT
HEAD GASKET
COVER
HEAD
VALVE SCREW
VALVE LIMITER
REF.
1
2*
3*
4*
5
6*
7*
9* VTS-AF819A
VTS-AF809
VTS-AF818B
VTS-AA929
VTS-AD996
VTS-AT837
VTS-AE946
FAN - Clockwise
RETAINER PLATE
FILTER/MUFFLER ELEMENT
FILTER ELEMENT
DIAPHRAGM VACUUM- RED
10
11
12
12A
13
14
15
Qty
1
1
2
1
1
2
1
2
1
1
1
3
1
1
1
LEAF VALVE
VALVE RETAINER
FELT SPACER
SPACER
8*
VTS-AF807GRILLE
4
SERVICE KIT (not shown)
VTS-AP523A
VT611S
CARRYING HANDLE (not shown) 1
1 VTS-AF875ON/OFF SWITCH (not shown)
1

17
NEW STYLE EXTERNAL AND INTERNAL VACUUM PUMPS
Exploded Product View, Parts, and Ordering Information
DOA-V722-AA
DOA-V502-BN
DOL-701-AA
VTS-AP500
DESCRIPTIONS
VTS-AP513
VTS-AT712A
VTS-AP110
VTS-AF817
VTS-AP504
VTS-AF819A
VTS-BB330A
RIVOT
HEAD O-RING
HEAD
LEAF VALVE
VALVE PLATE
VALVE RETAINER
REF.
1
2*
3*
4*
5*
6
7*
9 VTS-AF809
VTS-AF818B
VTS-AA929
VTS-AD996
VTS-AF533
VTS-AP534
DIAPHRAGM-VACUUM
FILTER/MUFFLER ELEMENT
VALVE LIMITER
FELT SPACER
10
11
12
13
14
15
16
Qty
1
1
2
1
2
1
1
1
1
1
3
1
1
1
VALVE SCREW
RETAINER PLATE
SPACER
FAN- DOA, DOL
8*
VTS-AF807GRILLE
4
SERVICE KIT (not shown)
VTS-AP523A
VT611S
CARRYING HANDLE (not shown) 1
1 VTS-AF875ON/OFF SWITCH (not shown)
1
5 AMP TIME DELAY FUSE
VTS-AP526
VT418-FS
CRANKCASE COVER
18
19
1
2 VTS-AP525CRANKCASE COVER SCREW
2
VTS-AP519VALVE PLATE ASSEMBLY
17
1
When corresponding or ordering parts, please give model and serial number.
* Denotes parts included in the Service Kit.
* The Service Kit may contain parts for more that one model or style diaphram part.
Parts not needed may be discarded.
19
Valve Plate Assembly (available separately)
(Valve Plate Assembly also includes items 7 & 8
as shown in the main exploded view)

18
VTS-41 WIRING DIAGRAM
IMPORTANT: Always Advise Model & Serial Number
VTS-41 WIRING DIAGRAM FOR VARIABLE SPEED
115 VOLTS - 60 HERTZ - 1 PHASE
