Bizhub FS-603 User manual

4583-7731-01
INSTALLATION MANUAL
FS-603
Applied Machine:
for Product Code 4037
Finisher
NOTE
•Before installing, be sure to unplug the power cord of the machine.
•Keep all packing materials out of the reach of children.

FS-603
– 1 –
■Before Installing the Finisher
In order to adjust the height of the machine to the height of the finisher, the Paper Feed
Cabinet PC-102, or PC-202, or PC-402, or Desk must be installed.
■Unpacking the Finisher
1. Check that the following accessories are available in the box.
<Machine + Paper Feed Cabinet PC-102/PC-
202>
4583U005AA
<Machine + Paper Feed Cabinet PC-402>
4583U006AA
<Machine + Desk>
4583U007AA
1 Rail guide ...............................................................................................1
2 Ground plate ..........................................................................................1
3 Rail .........................................................................................................1
4 Positioning pin........................................................................................1
5 Magnet plate ..........................................................................................1
6 Horizontal transport unit .........................................................................1
7 Exit tray ..................................................................................................1
8 Staple cartridge ......................................................................................1
9 Screw A..................................................................................................4
10 Screw B..................................................................................................1
11 Screw C..................................................................................................3
12 Screw D..................................................................................................2
13 Spacer ....................................................................................................1
14 Label ......................................................................................................1
15 Installation Manual (this manual) ...........................................................1
5
15
4698U045AB 4698U046AB
4698U047AA 4698U048AA
768
9735U001AA
9
3 421
4684U062AA4684U061AB
4698U049AA 4698U100AA
4698U051AA
10 11 12 14 13
4583U018AA

FS-603
– 2 –

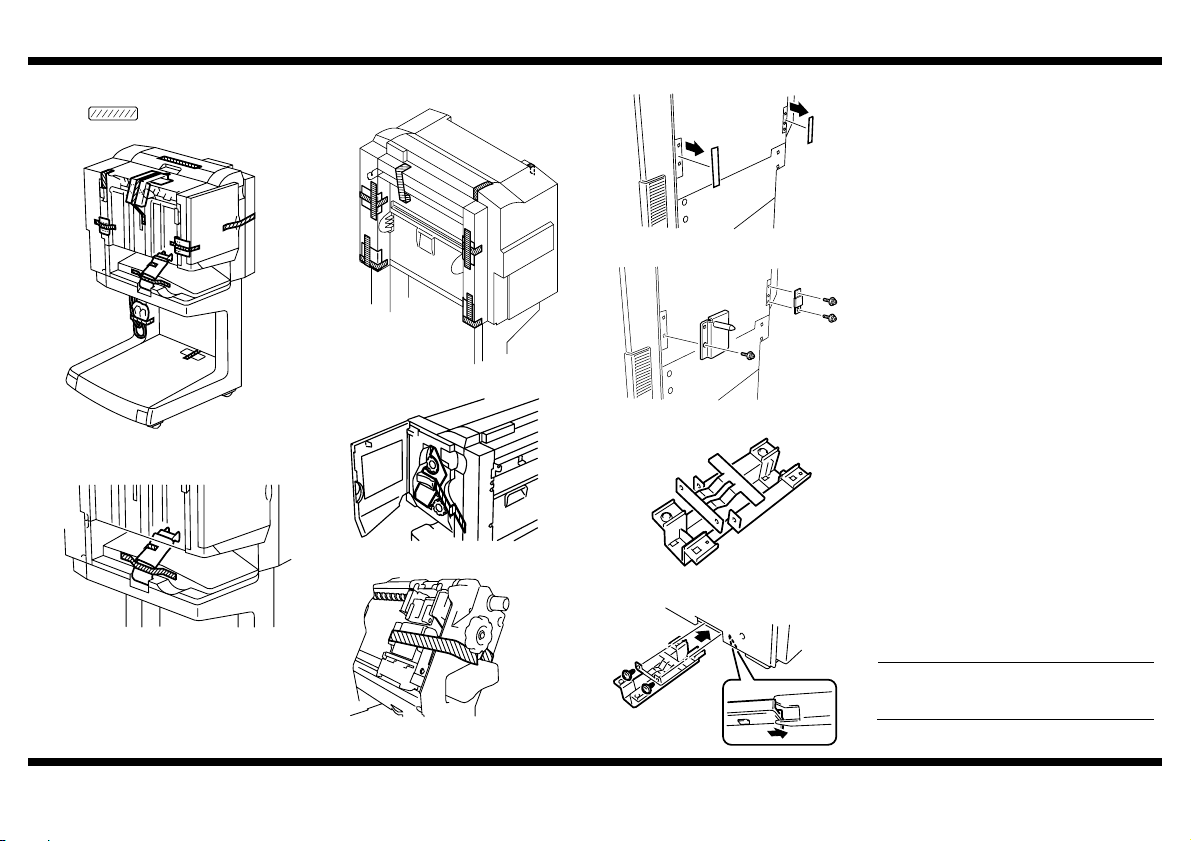

2. Remove protective tape and packing materials from different parts of the finisher. ■Installing the Accessories
4583U013AB
4583U014AA
4698U101AA
4583U015AA
4698U055AB
Tap e
1. Peel off the seal covering the area where the
stabilizing pin and magnet plate will be
attached.
4583U016AA
2. Attach the enclosed stabilizing pin and
magnet plate with the enclosed screws C to
the left side of the machine as shown.
4698U105AA
3. Place the Ground Plate furnished with the kit
in Rail Guide.
4684U063AB
4. Attach the Rail guide to the bottom left part of
the machine (two screws D furnished with
the finisher).
NOTE
Fit Rail Guide in the tab on the lower
portion of the Paper Feed Unit.
4684U064AA

FS-603
– 3 –
■Installing the Horizontal Transport Unit ■Installing the Rail
1. Remove the protective tape.
C4651U023AB
2. Mate the attaching portion of the horizontal
transport unit with the mounting bracket at
the finisher entrance section.
C4683U023AA
3. Press the horizontal transport unit up against
the rear side.
NOTE
Make sure that the gear on the finisher and
that on the horizontal transport unit are in
positive mesh with each other.
C4683U014AA
4. With the horizontal transport unit kept in a
level position, fit the lock lever into position.
5. Gently swing the horizontal transport unit
down to the finisher side.
C4683U013AA
1. Insert the rail into the Rail guide.
2. Protrude the leading edge of the rail out
about 60 mm to the right from the right end of
the machine.
NOTE
If the rail is pulled out more than necessary,
it is caught by the flat spring fitted to the
machine as it is brought back into the
original position.
4584U065AA
3. Insert the spacer furnished with the finisher
into the rail.
NOTE
Slide out the rail to the left and check that it
does not come off the Rail guide.
4583U017AB
4. Place the horizontal transport unit on the exit
section of the machine.
4583U008AA

FS-603
– 4 –
5. Secure the finisher rail in position using screw B (one screw).
■Installing the Exit Tray
■Adjusting Height and Correct Alignment
1. Gently move the finisher toward the machine and check for following.
•Is the positioning pin aligned with the hole in the finisher?
•Does the horizontal transport unit run excessively slantwise?
•Does the clearance at A equal that at B?
* If the finisher is not at the same height as the machine, adjust the machine as follows.
4698U057AA
1. Remove the protective tape.
4583U012AA
2. Hook the mounting hooks of the exit tray
onto the catches provided on the finisher exit
section.
4698U058AA
3. Using screws A (four screws), secure the exit
tray into position.
4698U059AA
4583U009AA 4583U010AA
A
A
B
2. Slide the finisher away from the machine and
remove the caster covers (at two places).
4698U062AA
3. Remove the adjusting screw covers (at four
places).
4698U063AA

FS-603
– 5 –
4. Loosen the two caster fixing screws (at four places). ■Installing the Staple Cartridge
■Connecting the Hookup Cord
4698U064AA 4698U099AA
5. Turn the adjusting screw to make the
adjustment.
To raise the finisher, turn the adjusting screw
counterclockwise.
To lower the finisher, turn the adjusting screw
clockwise.
6. Tighten the caster fixing screws.
7. Reinstall the caster covers and adjusting
screw covers.
4698U065AA
1. Open the front door and slide out the staple
unit.
2. Remove the staple cartridge from its
protective bag.
3. Insert the staple cartridge into position until a
click is heard.
4. Close the front door.
4698U102AA
1. Remove the connector covers from the
horizontal transport unit and the machine.
2. Connect the hookup cord to the horizontal
transport unit and the machine.
4583IXE002DB

FS-603
– 6 –
■Adjusting the Staple Position and Fold Position
<Adjusting Center-Staple Position>
1. Load the drawer with A3 or Ledger paper.
2. Select the functions as follows: Fold & Staple→Yes.
3. Load a 5-page A3 or Ledger document (blank sheets of paper may be used) in the
document feeding tray.
* Use a 5-page document to minimize variations.
4. Press the Start key.
8. Fold the copy set fed out of the machine in half.
* Call the copy page facing up A and the that facing down B.
9. Check for any deviation between the stapled position and the newly folded crease.
NOTE
Use the newly folded crease, not the machine-folded one, for the check.
Standard: 0 ± 2 mm
10. Use the or key to make the adjustment.
If the staple is on the side of A, decrease the value toward the - end.
If the staple is on the side of B, increase the value toward the + end.
11. Touch “END.”
12. Make the copy and check again.
5. Display the Service Mode screen.
(For details of how to display the Service
Mode screen, see the Service Manual.)
6. Touch “Finisher.”
4037IXE528DB
7. Touch “Center-Staple Position Adj.”
4583IXE505DB
4698U068AA 4698U069AA 4698U070AA
A
B
A
B
<Decrease the value
toward the - end.>
<Reference> <Increase the value
toward the + end.>
A
B

FS-603
– 7 –
<Adjusting Fold-Position>
1. Display the basic screen.
2. Select the functions as follows: Fold & Staple→Yes.
3. Load a 5-page A3 or ledger document (blank sheets of paper may be used) in the
document feeding tray.
* Use a 5-page document to minimize variations.
4. Press the Start key.
8. Check for any deviation between the stapled position and the folded crease.
* Call the copy page facing up A and the that facing down B.
Standard: 0 ± 2 mm
9. Use the or key to make the adjustment.
If the staple is on the side of A, increase the value toward the + end.
If the staple is on the side of B, decrease the value toward the - end.
10. Touch “END.”
11. Make the copy and check again.
5. Display the Service Mode screen.
(For details of how to display the Service
Mode screen, see the Service Manual.)
6. Touch “Finisher.”
4037IXE528DB
7. Touch “Half-Fold Position Adj.”
4583IXE506DB
4698U112AA 4698U069AA 4698U113AA
A
B
A
B
<Decrease the value
toward the - end.>
<Reference><Increase the value
toward the + end.>
A
B

FS-603
– 8 –
■Affixing the Labels
Affix the labels to the position shown below.
4698U109AA4698U110AA
4698U107AA
Label for Machine
for Machine
for ADF
Label for ADF
