BizLine BIZ 780 310 User manual
BIZ 780 310
SE E-nr 42 023 22
Snro 64 890 27
• EN NON-CONTACT AC VOLTAGE DETECTOR +FLASHLIGHT
Instruction Manual ........................................................................................ p.2
Please reas this manual before switching the unit on. Important safety information inside.
• FR THERMOMÈTRE À INFRAROUGE
Mode d'emploi ................................................................................................ p.7
Lisez ce manuel avant d’utiliser l’appareil. Informations importantes de sécurité à l’intérieur.
• NL INFRAROODTHERMOMETER
Gebruiksaanwijzing ................................................................................... p.12
Lees deze gebruiksaanwijzing voordat u het apparaat inschakelt.
Belangrijke veiligheidsinformatie binnenin.
• DE INFRAROTTHERMOMETER
Anwendung..................................................................................................... p.17
Bitte diese Anleitung vor dem Einschalten des Geräts aufmerksam durchlesen.
Darin stehen wichtige Sicherheitsinformationen.
• SE INFRARÖD TERMOMETER
Bruksanvisning ............................................................................................ p 22
Läs den här bruksanvisningen innan du slår på enheten.
Den innehåller viktig säkerhetsinformation.
• FI INFRAPUNALÄMPÖMITTARI
Käyttöopas ..................................................................................................... p.27
Lue tämä opas ennen laitteen kytkemistä päälle. Sisällä on tärkeitä turvatietoja.
• NO INFRARØDTERMOMETER
Instruksjonshåndbok................................................................................. p.32
Les denne brukerveiledningen før du slår på instrumentet. Den inneholder viktig
sikkerhetsinformasjon..
• IT TERMOMETRO A INFRAROSSI
Manuale d’uso .............................................................................................. p.37
Si prega di leggere il presente manuale prima di accendere lo strumento.
Contiene importanti informazioni di sicurezza.
• ES TERMÓMETRO DE INFRARROJOS
Manual de instrucciones ......................................................................... p.42
Por favor, lea este manual antes de encender la unidad.
Información importante de seguridad en el interior.
EN
2
1. Safety Information
Warnings :
• It is important that users of this tester read, understand, and follow all
warnings, cautions, safety information, and instructions in this manual
before operating or servicing this tester. Failure to follow instructions
could result in death or serious injury.
• Risk of electric shock and burn. Contact with live circuits could result
in death or serious injury.
• Use caution with voltages above 30V AC as a shock hazard may exist.
• A steady red glow and continuous beep indicates voltage present. If no
indication,voltage could still be present.
• In bright light conditions, the LED visual indicators will be less visible.
• Do not use if green LED is not illuminated.
• Do not use if tester appears damaged or if the tester is not operating
properly. If indoubt, replace the tester.
• Do not apply more than the rated voltage as marked on the tester
(1000 Volts AC).
• Always wear approved eye protection.
• Before each use, verify operation by testing a known working circuit
that is within the rating of this tester.
• Do not rely on this tester with shielded wire. Operation may be affected
by differences in socket design and insulation thickness and type.
• Comply with local and national safety requirements.
• If this tester is used in a manner not specied by the manufacturer,
protection provided by the tester may be affected.
Caution :
• Do not attempt to repair this tester. It contains no serviceable parts.
• Do not expose the product to extremes in temperature or high humidity.
Symbols :
Double Insulated.
Caution. Risk of electric shock.
Risk of danger. Important information. Read Manual.
EN
3
CAT IV - Equipment is designed to protect against tran-
sients from the primary supply level.
DETECTOR DESCRIPTION
Flashlight
Flashlight power ON/OFF
Battery cover&compartmen
NCV power ON/OFF
Detector tip (NCV sensor)
Operating Instructions :
Turn unit on:
Measurement with sound alarm:
Beep mode : Press the power button,a single-beep sound with red LED ash for
0.5s and then a steady green LED to illuminate in the tip of the tester.
Silent mode: Press the power button for 1 second, red LED ash for 0.5s without
beep and then a steady green LED to illuminate in the tip of the tester. Release
the power button; the tester is now activated and is operational with beeper alarm.
Test on known live circuit to verify tester functionality. Measurement without sound
alarm:
Press the power button for 3 seconds.A red LED ash for 0.5s and then a steady
green LED to illuminate in the tip of the tester. Release the power button; the tester
is now activated and is operational without beeper. Test on known live circuit to
verify tester functionality.
Turn unit off :
Press and hold the power button for 2 second. Listen for a long beep sound and
watch the “power on” green/red LEDs turn off. Release the power button; the tester
is now deactivated and is not operational.
3 145 2
EN
4
System self-test :
The “power on” green/red LED & Beeper visually conrms battery sufciency,
system integrity, and at operation/active mode. Always test on known live circuit to
verify tester functionality prior to use.
Checking for the presence of AC voltage :
Prior to use, test on known live circuit to verify tester functionality. Place tip of
the tester near an AC voltage. If the tester detects voltage, the “power on” LED in
the tip of the tester changes color from green to red and a discontinuous beeping
sound is generated.
Low battery indication :
Scenario 1 – Powering on the tester: The “power on” LED in the tip of the tester
changes from a steady green to a blinking green and a series of beeping sounds
is generated. The tester then turns off. The unit is now deactivated and is not
operational; the batteries require replacement. To replace the tester batteries refer
to the Maintenance section titled “Battery Replacement.”
Scenario 2 – Operating the tester: If the LED lights become dim and the tone
fades, the tester may require new batteries. To replace the tester batteries refer to
the Maintenance section titled “Battery Replacement.”
Auto Power Off :
After 5 minutes of non-use, the tester automatically powers off to conserve
battery life. Listen for a double-beep sound and watch the “power on” green LED
turn off. The tester is now deactivated and is not operational.
Flashlight Operating
Press and hold the Flashlight ON/OFF button to turn on Flashlight. Flashlight
turned off once the Flashlight button is released.

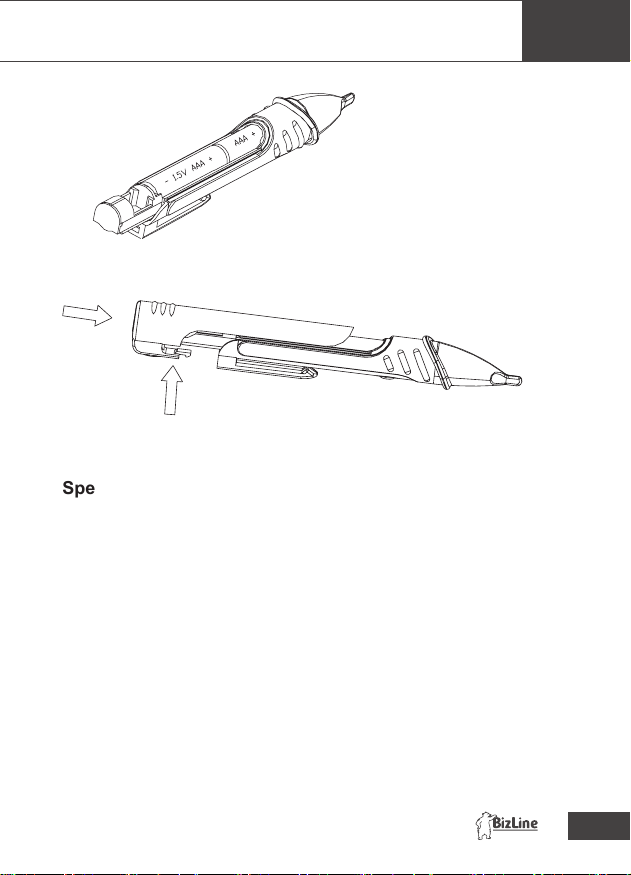

Battery Replacement :
1. Remove the end cap by gently lifting the pocket clip to release the catch.
EN
5
2. Insert two AAA batteries (observe polarity).
3. Replace the end cap
NOTE: If your meter does not work properly, check the battery to make sure that
it still good and that it is properly inserted.
Specications :
Voltage range:
50 V ac to 1000 V ac (50/60Hz)
Tester type:
Non-Contact Voltage Detector
Voltage detection indicators:
Visual : High intensity Red LED
Audible: Discontinuous Beeping Sound
Operating conditions:
Temperature: 32° to 104° F (0° to 40°
C)
Relative Humidity: <80%
Altitude: Up to 6,562 feet (2,000
meters) maximum
Environment: Indoor Use
Storage conditions:
Temperature: 32° to 104° F (0° to
40° C)
Relative Humidity: <80%
Altitude: Up to 6,562 feet (2,000
meters) maximum
Environment: Indoor
Power on indicator & illuminator :
Visual: High Intensity Green LED
Power off & auto power off:
Visual: Power-On LED turns off
Audible: Continuous Beeping Sound
Low battery indicators:
Visual: Green LED Blinks
Audible: Series of Beeping Sounds
Batteries: Two “ AAA”1.5V batteries
Pollution degree: 2
Safety Complies with EN 61010-1 2nd
Edition, EN 61326 EMC to CAT III
1000V CAT IV 600V.
BIZLINE SAS PARIS - FRANCE
www.bizline.com
