BJ BJ3419 User manual

捷时计电子
www.szbaojie.com
2011-12-08 Model：BJ3419 Page: 1 / 8 Edition : C
A . Features


4 digits LCD screen displays hour, minute ( month, date, week).


12H/24H format, auto calendar.


Alarm.


World time.


Information display: 26 letters and 9 digits (from 0 to 9) can be input. (14 characters have scrolling
display function ).


EL backlight.


Touch screen function.
B . Product function mode
（
（（
（C
CC
C Key
KeyKey
Key）
））
） FWD/DOWN-
（
（（
（D
DD
D Key
KeyKey
Key）
））
） UP+ LIGHT/SET/LOCK （
（（
（A
AA
A Key
KeyKey
Key）
））
）
REV（
（（
（B
BB
B Key
KeyKey
Key）
））
）
Unlocked
Time mode
Week
&
Second
Time Locked
mode
Hold down A
key for 1.5
seconds
No key operation
for 15 seconds No key operation for 15 seconds No key operation for 15 seconds
Hold down A
key for 1.5
seconds
Hold down A
key for 1.5
seconds

捷时计电子
www.szbaojie.com
2011-12-08 Model：BJ3419 Page: 2 / 8 Edition : C


In locked mode, touch A key for 0.3 seconds and drag it to B key, with EL illuminates for 3 seconds.


In unlocked mode, touch Akey and drag it to B key, with EL illuminates for 3 seconds.


In time display mode, Press and hold A key for 1.5 seconds come with the sound B. Then loosen your
finger and it will change to normal time display format.


In locked mode, hold down A key for 0.3 seconds to unlock. The watch will lock automatically if you do
not perform any key operation within 15 seconds.


In unlocked mode, drag B to C key to select display mode forward, drag C toB key to return selected
display mode.


In world time mode, drag to C-D (key)to select time zones display mode upward, drag D-C (key) to
select time zones display mode downward.
World time mode
Information display
mode
Hold down A key
for 0.3 second
B-C key B-C key
Date mode
Unlocked mode
in normal time
Locked mode
in normal time
Alarm mode
C-B key C-B key
B-C key
B-C key
C-B key
C-B key
B-C key B-C key
B-C key
C-B key C-B key
C-B key
Unlocked mode
i
n normal time
Alarm modeDate mode
Hold down A key
for 0.3 second
Locked mode
i
n normal time
C-B key
B-C key
Information mode World time mode
C-B key
B-C key

捷时计电子
www.szbaojie.com
2011-12-08 Model：BJ3419 Page: 3 / 8 Edition : C



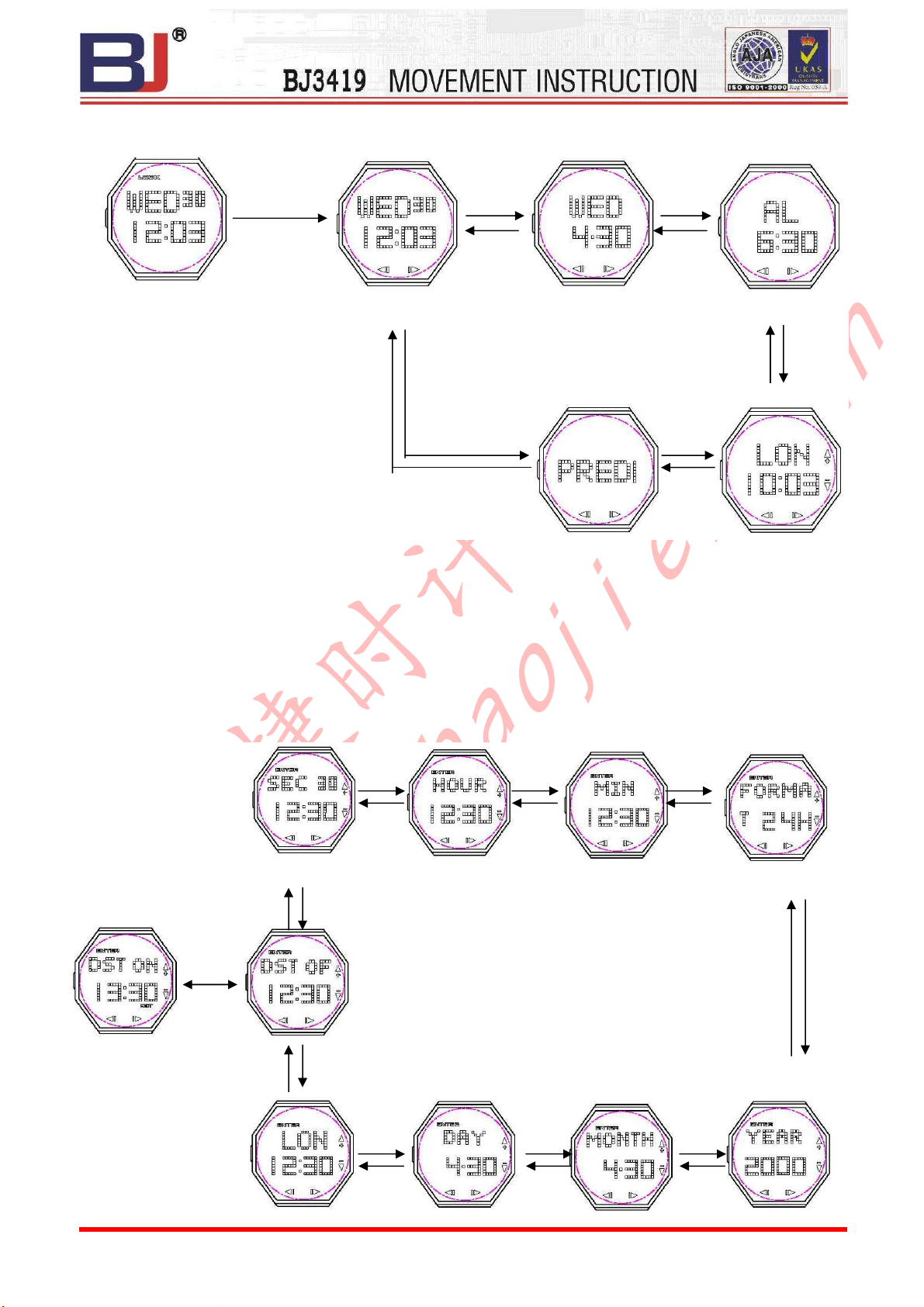

In date and alarm mode, the watch will lock automatically and return to normal time mode if you do not
perform any key operation within 15 seconds.


.In world time and information mode, the watch will lock automatically if you do not perform any key
operation within 15 seconds, and it will not return to normal time mode.
1.Time and date setting


When at the condition of locked mode in normal time, hold down A key for 3 seconds, “time zone” starts
to flash, which indicates enter into time setting. Drag B to C ( or darg C to B ) in sequence as below:
世界时间模式
解锁时间模式
信息模式
Information display mode World time mode
B-C 键 B-C 键
C-B 键 C-B 键
C-B 键
B-C 键
B-C 键
C-B 键
C-B 键
C-B 键
B-C key
B-C key
C-B key
C-B key
Info. mode World time mode
Alarm modeDate mode
Unlocked mode
in normal time
Locked mode
in normal time
Hold down A key
for 0.3 seconds
B-C key B-C key
B-C key
B-C keyB-C key
C-B key C-B key
C-B key
C-B key
C-B key
B-C key
C-B key
B-C key B-C key
C-B key C-B key
Second Hour Minute 12H/24H format
B-C keyC-B key
C-B keyB-C key
C-D key
D-C key
DST on / off
C-B keyB-C key
C-B key C-B key C-B key
B-C key B-C key B-C key
Time Zone Date Month Year

捷时计电子
www.szbaojie.com
2011-12-08 Model：BJ3419 Page: 4 / 8 Edition : C


Drag C to D to increase the time zone, hold down D for 3 seconds to increase fast.


Drag D to C to decrease the time zone, hold down C for 3 seconds to decrease fast.


Drag C to D or drag D to C to turn on / off the daylight saving time, and the indicator of DST will be
display on the screen when turn on the dayligth saving time.


Drag C to D or drag D to C to clear the seconds to zero.


Drag C to D increase the flashing value, hold down D for 3 seconds to increase fast.


Drag D to C decrease the flashing value, hold down D for 3 seconds to decrease fast.


Drag C to D or drag D to C to select 12H or 24 H format.


Touch A to confirm, and then exit from setting mode.


If there is no key operation in 15 seconds, the system will return to locked mode in normal time.
Please note: If the countries and regions which do not use the daylight saving time (DST), the watch will
stop using DST automatically, and can not enter to DST on / off mode. please refer to cities’s code of
world time table, in this table, if the city code with the indicator of “*”, which means this city with
daylight saving time. On the contrary, which means this city without daylight saving time. When in world
time mode, and it is the time zone of local time, DST in normal time will be turned on / off automatically
when it is turned on / off. In time and date setting, if you turn on / off daylight saving time (DST)after
selecting time zones, the time zones of world time mode will turn on / off daylight saving time (DST)
automatically at the same time.

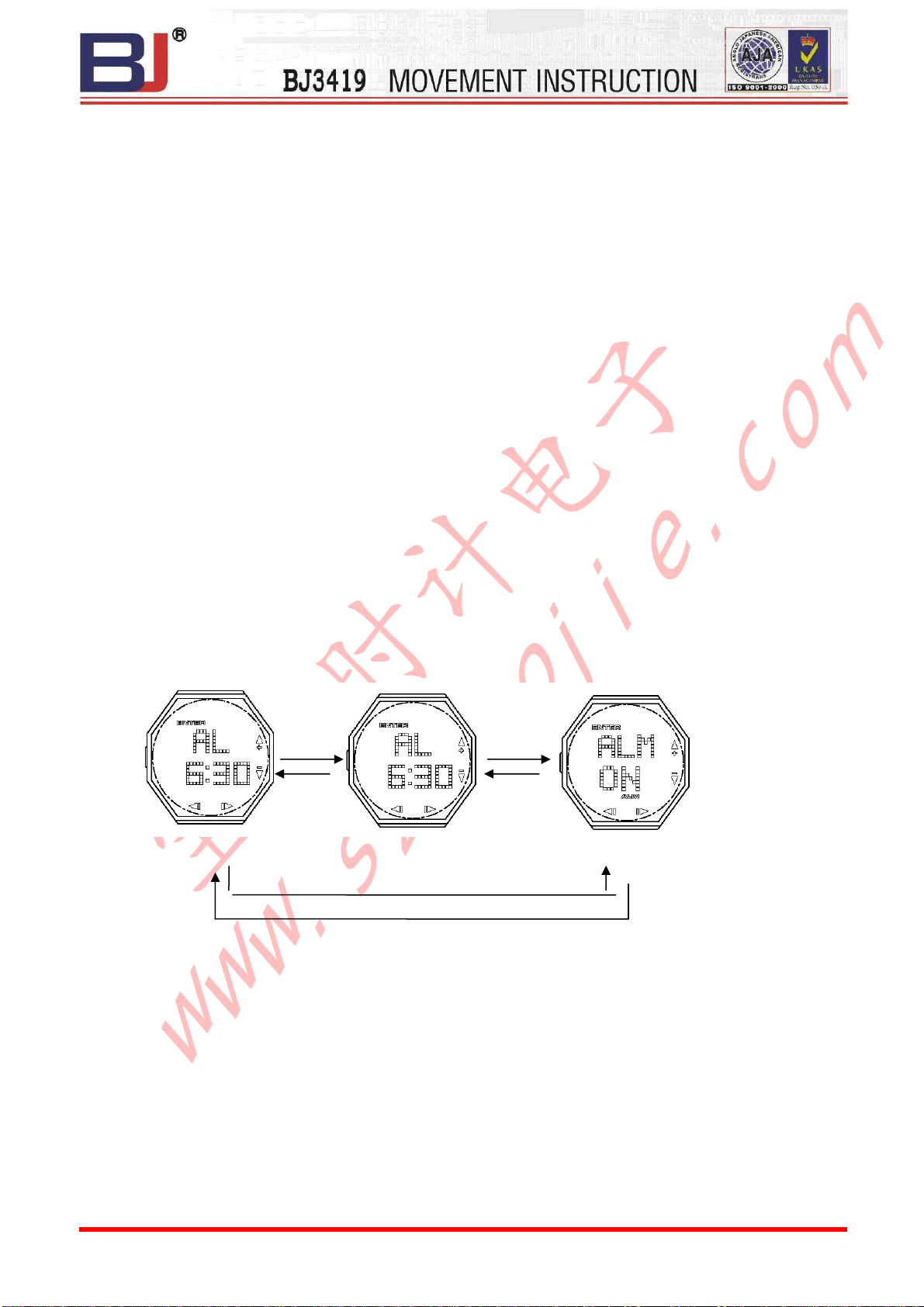

2.Alarm setting
In alarm display mode, hold down A key for 3 seconds, “hour” starts to flash, which indicates alarm
time setting screen, drag B to C key in sequence as below:


.Drag C to D key to increase the flashing value, hold down D key for 3 seconds to increase fast.


Drag D to C key to decrease the flashing value, hold down C key for 3 seconds to decrease fast.


To turn on / off alarm (ALM) by dragging C to D key or dragging D to C key.


Touch A key to confirm, and exit setting mode.


The watch will exit setting automatically if you do not perform any key operation within 15 seconds, and
return to normal time locked mode.


When alarm time is reached, the watch will alarming with BB-BB for 30 seconds, and you can touch A
key for 0.3 seconds to stop alarming.


In random mode, when it is unlocked, press B, C, or D key is invaild if is is alarming.
C-Bkey
B-C key
B-C keyB-C key
Hour flashing Minute flashing Alarm on / off
C-Bkey C-Bkey

捷时计电子
www.szbaojie.com
2011-12-08 Model：BJ3419 Page: 5 / 8 Edition : C
3.World time


In world time unlocked mode, time of 31 world cities can be viewed.


Drag C to D key to view world time upward, hold down D key for 3 seconds to view upward time fast .


Drag D to C key to view world time downward, hold down C key for 3 seconds to view downward time
fast .


The watch will lock up automatically if you do not perform any key operation within 15 seconds, and
return to world time locked mode.


”DST” will display on LCD screen if the Daylight Saving Time is turned on.
Cities’code of world time table:
City code City GMT Differential Other major cities in same time zone
GMT 00.0
LON* London 00.0 Dublin,Lisbon London,Casablanca,Dakar,Abidjan
PAR* Paris +01.0
Milan
Rome,Madrid,Amsterdam,Algiers.Hamburg,
Frankfurt,Vienna,Stockhoim,Berlin.
BER* Berlin +01.0
ATH* Athens +02.0 Helsinki,Beirut,Damascus,Frankfurt,Vienna,Madrid,Stockholm
CAI Cairo +02.0 Athens Helsinki,Istanbul,Beirut Damascus Cape town
JRS* Jerusalem +02.0 Athens Helsinki,Istanbul,Beirut Damascus Cape town
JED Jeddah +03.0 Kuwait Riyad,Aden Addis Ababa Nairobi Moscow Shiraz
THR* Tehran +04.0 Tehran
DXB Dubai +04.0 Abu Dhabi Muscat
KBL Kabul +04.5
KHI Karachi +05.0 Male
DEL Delhi +05.5 Mumbai Kolkata
DAC Dhaka +06.0 Colombo
RGN Yangon +06.5 Yangon
BKK Bangkok +07.0 Jakarta,Phnom Penh,Hanoi Vientiane
HKG HongKong +08.0 Singapore Kuala Lumpur Beijing Taipei Manlla Perth Ulaanbaatar
SEL +09.0
TYO Tokyo +09.0 Seoul Pyongyang
ADL Adelaide +09.5 Darwin
SYD Sydney +10.0 Melboume Guam Rabaul
NOU Noumea +11.0 Pt Vila
WLG* Wellington +12.0 Christchrch Nadi Nauru Is
PPG Pago -11:0
HNL Honolulu -10.0 Papeete
ANC* Anchorage -9.0 Nome
LAX* Los Angeles -8.0 San Francisco,Las Vegas,Vancouver,Seattle/Tacoma,Dawson City
DEN* Denver -7.0 El Paso,Edmonton
CHI* Chicago -6.0 Houston,Dallas/Ft,worth,New Orleans,Mexico City,Winnipeg
NYC* New York -5.0 Montreal,Detroit,Miami,Boston,Panam a City,Havana,Lima,Bogota
CCS Caracas -4.0 La Paz,Santiago,Pt Of Spain
RIO* Rio De Janeiro
-3.0 Sao Paulo, Buenos Aires,Brasilia,Montevideo
REC Recife -2.0
AZO* Azores -1.0

捷时计电子
www.szbaojie.com
2011-12-08 Model：BJ3419 Page: 6 / 8 Edition : C
4.Daylight Saving Time setting Mode


When at the condition of unlocked mode in world time, hold down A key for 3 seconds to turn on / off
DST as following:


Drag C to D key to select time zone upward, hold down D key for 3 seconds to select it fast and upward .


Drag D to C key to select time zone downward, hold down D key for 3 seconds to select it fast and
downward.


Hold down A key for 3 seconds to turn on / off DST, “DST”will display on LCD screen when it turned
on..


The watch will lock up automatically if do not perform any key operation within 15 seconds, and return
to world time locked mode.


When it is the time zone of local time, DST in normal time will be turned on / off automatically when it
is turned on / off.
Note: If the countries and regions which do not use the daylight saving time (DST), the watch will forbid to
use DST automatically, and can not enter to DST on / off mode. please refer to cities’s code of world time
table, in this table, if the city code with the indicator of “*”, which means this city with daylight saving time.
On the contrary, which means this city without daylight saving time.
5.Information display setting


After unlocking, in information mode, hold down A key for 3 seconds, the first “character”starts to flash,
which indicates the state of information editing, drag B to C key to select next flashing character, 14
characters can be input (including space), each character can be selected as below:
C-D key
D-C key
Hold down
A key for 3
seconds
B-C key B-C key
To select time zone To turn on DST
First letter to flash Next letter to flash
Next letter to flash

捷时计电子
www.szbaojie.com
2011-12-08 Model：BJ3419 Page: 7 / 8 Edition : C


Drag B to C to select next character rightward.


Drag C to D key to select character forward, hold down D key for 3 seconds to select forward character
fast


Drag D to C key to select character backward, hold down D key for 3 seconds to select backward
character fast.


Press A key to confirm the length of information, the rest of characters will be deleted automatically.


The watch will lock up automatically if you do not perform any key operation within 15 seconds, and
return to information locked mode.

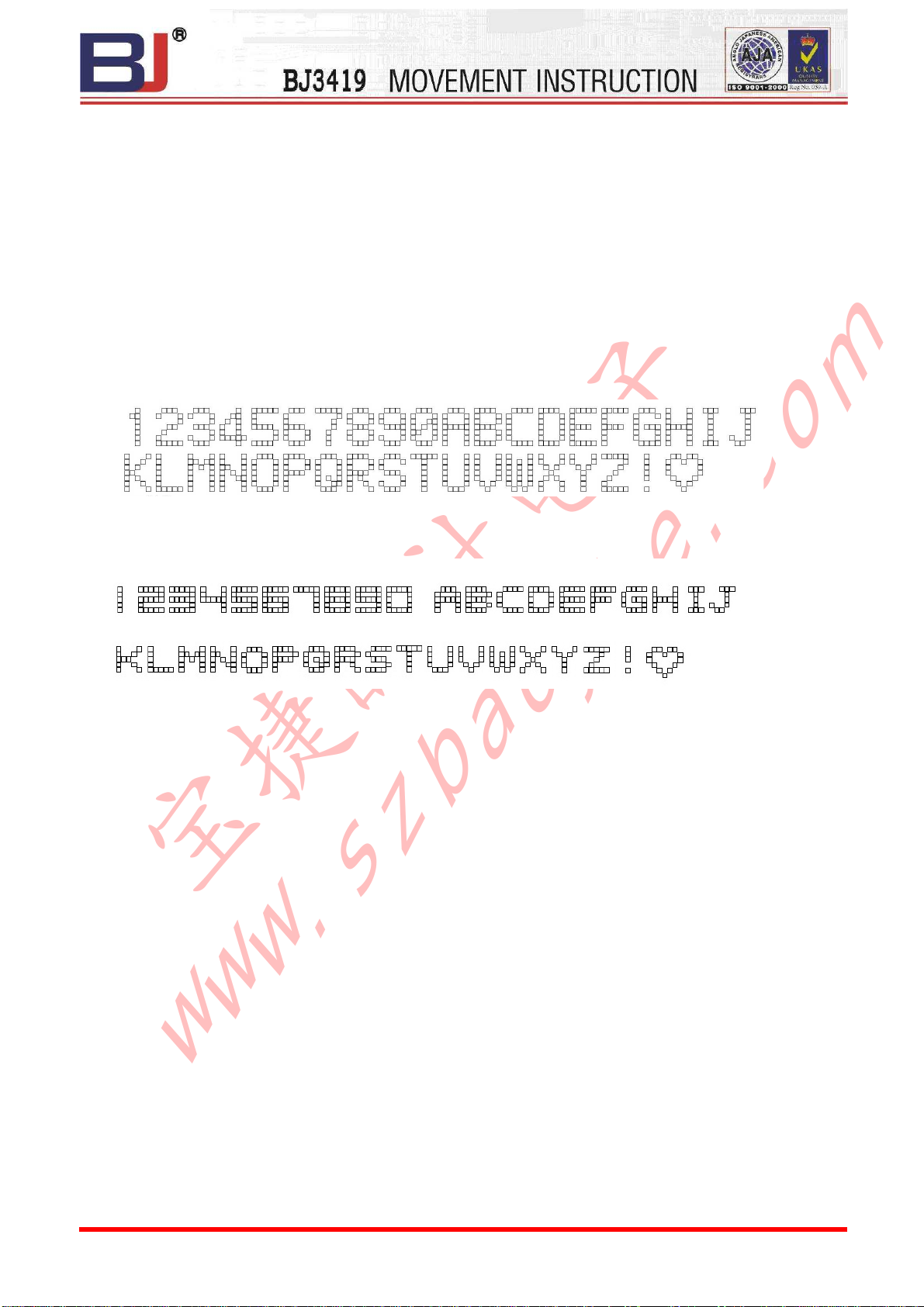

Characters are scrolled to display leftward:
Characters are scrolled to display upward:
6.Operating instruction of touch screen
a) Interaction of touch screen is through body motion to induce signal, and then transmit to
the watch module control. When the surface of screen is touched by the objects which are
similar to our body, such as: water, metal, strong electromagnetic transmits etc that will
activate the keys-lock or change the watch functional mode. If some key-pressed area of
the screen is touched by above mentioned object for long time, the touch screen will not be
able to work, and it will recover to work by moving the object in two minutes.
b) If the watch is in high humidity condition(over 90%) for a long time, which will coagulate
and become water on the surface of the touch screen, and cause the touch screen will not
be able to work, it will recover to work by cleaning the water in two minutes.
c) After replacing battery or watchcase, this watch will check hardware and adjust the
sensitivity of keys automatically, touch screen will enter to normal state in two minutes.
7. Operation insturction of resetting function
Use a metal stick to touch the “AC” hole to make the two points realize short circuit, then
observe the LCD screen, when all content are displayed, and at the same time, backlight
illuminates automatically, which indicates the movement has completed reset effectively.

捷时计电子
www.szbaojie.com
2011-12-08 Model：BJ3419 Page: 8 / 8 Edition : C
C. Specification
Module Size
Module Thickness（include buzzer）
Operational Temperature Range
Operational Voltage
Accuracy
Battery Code
static average current
Alarm average current
EL lighten average current
Battery life
Under the following conditions:( 4 backlight operation ( 3 seconds) perday; 60 seconds of alarm operation per
day)
Note of matching the watchcase:
As for this watch, the sensitivity of keys will have large difference if you match different watchcase,
please consult with our development department when you open new watchcase mould, only in this
way, the watch can be matched the best watchcase.
Prepared
Checked Approved
Name 李觉 赵星亮
宋检望
Date 11/12/08 11/12/08 11/12/08
： 37.8∗37.2mm
：8.60mm
：-10℃~60℃
：3.0V
：±30sec/month
：CR2032(capacitance: 220m Ah)
：≤6.74u A (static maximum current ：16.0uA)
：≤1.51m A （Alarm maximum current ：6.0mA）
：≤8.11m A （ELlighten maximum current ：10mA）
：≥24 months (Japan Lithium)
