Black & Decker Dustbuster CS3250 User manual

CS3250
English 13
繁體中文 18
www.blackanddecker.com
22

2
組裝
조립
Assembly
1 2 3
45
Accessory storage
配件收納架
액세서리 보관

3
Charging
充電中
충전 중
1 2 3
LED 指示燈
LED 패턴
LED patterns

4
The appliance can be left connected to the charger and may become warm during use.
工具可以一直與充電器保持連接，並可能在使用期間發熱。
제품을 충전기에 계속 꽂아둘 수 있지만 사용 중에는 뜨거워질 수 있습니다.
The light will go out when charging is complete.
充電結束時指示燈將會熄滅。
충전이 완료되면 표시등이 꺼집니다.
LED patterns
LED 指示燈
LED 패턴
Vacuum On / Off
吸塵器啟動開關
진공청소기 On / Off
Use
使用說明
사용법
Powered brush On / Off
전동 브러시 On / Off
地板毛刷頭開關 (啟動/鎖定)

5
Remove hand vaccum 휴대용 진공청소기 분리
取下手持式真空吸塵器
1 2 3
For battery charge, level, LED's illuminate the same as when charging
배터리 충전 레벨을 위해, LED가 충전할 때와 같이 점등됨
電池電量顯示, LED指示燈與充電電量顯示相同
Battery empty
배터리 없음
Battery low
배터리 부족
電池電量用盡
電池電量低
LED patterns LED 패턴
LED 指示燈

6
On / Off
On / Off
Flexible nozzle
유연한 노즐
Fitting accessories
액세서리 장착하기
接頭配件
Accessories
액세서리
配件
開關
可伸縮吸嘴

7
Emptying
비우기
清空濾芯
2
1
2
34
1 2
輕拍以
清空
두드려서
비움
為保持最佳的吸力，請定期將濾芯清潔乾淨。
흡입력을 최적 상태로 유지하려면 사용 중에 필터를 정기적으로
청소해야 합니다.

8
Tap to empty
輕拍以清空
두드려서 비움
5 6
1 2
3 4
1

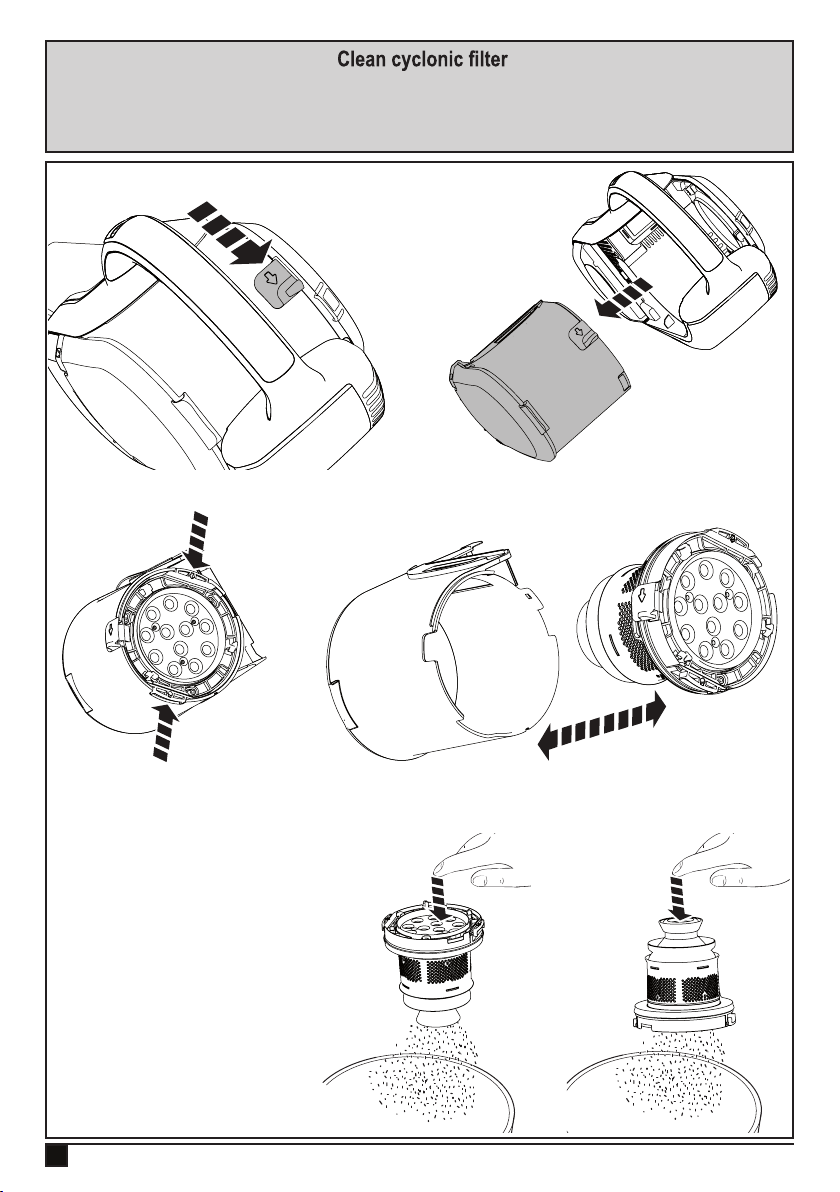

清潔氣旋過濾器
사이클론 필터 청소하기

9
沖洗
씻기
Wash
12
Dry thoroughly
徹底乾燥
완전히 말리기
123
在清潔濾芯後重新裝配或繼續沖洗。
필터를 청소한 후 재조립하거나 계속 씻습니다.
清潔地板頭
플로어 헤드 청소하기

10
1 2
34
5
Wipe with cloth or soft dry brush
Dry thoroughly
清潔排氣過濾器
배기 필터 청소하기
使用布條或軟乾刷擦拭
헝겊 또는 부드러운 마른
브러시로 닦기
徹底乾燥
완전히 말리기

11
Features
功能部件
기능

12
LED patterns / LED 指示燈 / LED 패턴 Solution / 解決方案 / 해결책
Battery hot / 電池溫度高 / 배터리 과열
Allow to cool before continuing / 冷卻後再繼續。 / 계속하기 전에 열을 식히십시오. .
LED pattern : charging / LED 指示燈：充電中 /
LED 패턴 : 충전 중
Solution / 解決方案 / 해결책
Battery fault / 電池故障 / 배터리 결함
- Ensure correct charger is being used. Retry charging procedure. If fault continues, return unit to
an authorised Black & Decker service centre.
- 確保使用正確的充電器。重試充電程序。若故障繼續存在，請將裝置送回到
授權的 Black & Decker 服務中心。
- 정확한 충전기가 사용되고 있는지 확인하십시오. 충전 절차를 다시
시도하십시오. 결함이 지속되는 경우, 공인 Black & Decker 센터로
반환해 주십시오.
Charger fault / 充電器故障 / 충전기 결함
Troubleshooting
疑難排解
문제 해결

This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been
given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
13
ENGLISH (Original instructions)
Intended use
Your Black & Decker Dustbuster® handheld vacuum cleaner
has been designed for vacuum cleaning purposes. This
appliance is intended for household use only.
Read all of this manual carefully before operating
the appliance.
Safety instructions
@Warning! Read all safety
warnings and all in-
structions.
Failure to follow
the warnings and instructions listed
below may result in electric shock,
@Warning!
When using battery-
powered appliances, basic safety
precautions, including the follow-
ing, should always be followed to
-
teries, personal injury and material
damage.
u Read all of this manual carefully before
using the appliance.
u The intended use is described in this
manual. The use of any accessory
or attachment or the performance
of any operation with this appliance
other than those recommended in this
instruction manual may present a risk
of personal injury.
u Retain this manual for future refer-
ence.
Using your appliance
u Do not use the appliance to pick up liq-
uids or any materials that could catch
u Do not use the appliance near water.
u Do not immerse the appliance in water.
u Never pull the charger lead to discon-
nect the charger from the socket. Keep
the charger lead away from heat, oil
and sharp edges.
u
Children shall not play with
the appliance. Cleaning and user
maintenance shall not be made by
children without supervision.
Inspection and repairs
u Before use, check the appliance for
damaged or defective parts. Check for
breakage of parts, damage to switches
and any other conditions that may af-
fect its operation.
u Do not use the appliance if any part is
damaged or defective.
u Have any damaged or defective parts
repaired or replaced by an authorized
repair agent.
u Regularly check the charger lead for
damage. Replace the charger if the
lead is damaged or defective.
u Never attempt to remove or replace
this manual.

14
ENGLISH
(Original instructions)
Additional safety instruc-
tions
After use
u Unplug the charger before cleaning the
charger or charging base.
u When not in use, the appliance should
be stored in a dry place.
u Children should not have access to
stored appliances.
Residual risks.
Additional residual risks may arise when
using the tool which may not be included
in the enclosed safety warnings. These
risks can arise from misuse, prolonged
use etc.
Even with the application of the relevant
safety regulations and the implementa-
tion of safety devices, certain residual
risks can not be avoided. These include:
u Injuries caused by touching any rotat-
ing/moving parts.
u Injuries caused when changing any
parts, blades or accessories.
u Injuries caused by prolonged use
of a tool. When using any tool for
prolonged periods ensure you take
regular breaks.
u Impairment of hearing.
u Health hazards caused by breathing
dust developed when using your tool
(example:- working with wood, espe-
cially oak, beech and MDF.)
Batteries and chargers
Batteries
u Never attempt to open for any reason.
u Do not expose the battery to water.
u Do not expose the battery to heat.
u Do not store in locations where the
temperature may exceed 40°C.
u Charge only at ambient temperatures
between 10°C and 40°C.
u Charge only using the charger provid-
ed with the appliance. Using the wrong
charger could result in an electric
shock or overheating of the battery.
u When disposing of batteries, follow
the instructions given in the section
"Protecting the environment".
u Do not damage/deform the battery
pack either by puncture or impact, as
u Do not charge damaged batteries.
u Under extreme conditions, battery
leakage may occur. When you notice
liquid on the batteries carefully wipe
the liquid off using a cloth. Avoid skin
contact.
u In case of skin or eye contact, follow
the instructions below.
Warning!
personal injury or damage to property. In
case of skin contact, immediately rinse
with water. If redness, pain or irritation
occurs seek medical attention. In case of
eye contact, rinse immediately with clean
water and seek medical attention.

15
ENGLISH (Original instructions)
Chargers
Your charger has been designed for a
mains voltage corresponds to the voltage
on the rating plate.
Warning! Never attempt to replace
the charger unit with a regular mains
plug.
u Use your Black & Decker charger only
to charge the battery in the appliance
with which it was supplied. Other bat-
teries could burst, causing personal
injury and damage.
u Never attempt to charge nonrecharge-
able batteries.
u If the supply cord is damaged, it must
be replaced by the manufacturer or
an authorised Black & Decker Service
Centre in order to avoid a hazard.
u Do not expose the charger to water.
u Do not open the charger.
u Do not probe the charger.
u The appliance/battery must be placed
in a well ventilated area when charg-
ing.
Electrical safety
Symbols on the charger
Read all of this manual carefully before using the
appliance.
#This tool is double insulated; therefore no earth wire is required. Always check that the power supply
corresponds to the voltage on the rating plate.
wShort circuit proof safety isolating transformer. The mains supply is electrically separated from the
transformer output.
xThe charger automatically shuts off if the ambient temperature becomes too high. As a consequence
the charger will be inoperable. The charging base
must be disconnected from the mains supply and
taken to an authorised service centre for repair.
$The charging base is intended for indoor use only.
Features
This tool includes some or all of the following features.
1. On/off power switch
2. Handle
3.
4. Nozzle
5. Accessory release clip
6. LED charging indicator
7. Dust bowl door
8. Dust bowl
9. 2-in-1 combi nozzle accessory
10. Crevice tool
11. Pet tool
12. Long brush tool
13. Flexi extension nozzle
14. On/off power switch
15. Rotary brush on/off switch
16. Stick vacuum chassis
17. Floor head
18. Charging base
19. Accessory Holder
Note: The pet tool (11) is for cleaning up pet hair and
must not be used directly on the animal.
Battery
ZThere are no user servicable part inside. For
safe recycling of the battery and internal com-
ponents please return the unit to an authorised
Black&Decker service centre.

Maintenance
Your Black & Decker cordless appliance has been designed
to operate over a long period of time with a minimum of main-
tenance. Continuous satisfactory operation depends upon
proper tool care and regular cleaning.
Warning! Before performing any maintenance on cordless
appliances:
uRun the battery down completely if it is integral and then
switch off.
uUnplug the charger before cleaning it. Your charger does
not require any maintenance apart from regular cleaning.
uRegularly clean the ventilation slots in your appliance/
charger using a soft brush or dry cloth.
uRegularly clean the motor housing using a damp cloth. Do
not use any abrasive or solvent-based cleaner.
Protecting the environment
ZSeparate collection. This product must not be disposed of with normal household waste.
needs replacement, or if it is of no further use to you, do not
dispose of it with household waste. Make this product avail-
able for separate collection.
zSeparate collection of used products and packaging allows materials to be recycled and used again.
Re-use of recycled materials helps prevent environ-
mental pollution and reduces the demand for raw
materials.
Local regulations may provide for separate collection of elec-
trical products from the household, at municipal waste sites or
by the retailer when you purchase a new product.
16
ENGLISH (Original instructions)
Service Information
Black & Decker offers a full network of company-owned and
authorized service locations throughtout Asia. All Black &
Decker Service Centers are staffed with trained personnel to
provide customers with efficient and reliable product service.
Whether you need technical advice, repair, or genuine factory
replacement parts, contact the Black & Decker location nearest
to you.
NOTE
u Black & Decker's policy is one of continuous improvement to
our products and, as such, we reserve the right to change
product specifications without prior notice.
u Standard equipment and accessories may vary by country.
u Product specifications may differ by country.
u Complete product range may not be available in all countries.
Contact your local Black & Decker dealers for range
availability.

17
CS3250
Voltage Vdc
32.4
Battery Typ.
Li-Ion
Weight
Suction power
Runtime
kg
3.58
Input voltage Vac
110-240*
Output voltage Vdc
40
Current mA
500
Approximate charge time h
4
Weight
kg 0.68
Technical data
*As stated on charger name plate
Stick Vac: Approx. 25 / Hand Vac: Approx 25
Stick Vac: 12 / Hand Vac: 40
min
A/W

18
繁體中文
設計用途
您的 Black & Decker Dustbuster
®
手持真空吸塵器
設計用於真空吸塵用途。本工具僅供家庭使用。
操作本工具前，請仔細閱讀本手冊全部內容。
安全說明
@警告！請閱讀所有安全警告及使用指示。不
遵循下列這些警告和指示可能會導致觸電、
火災及 /或嚴重傷害。
@警告！使用電池驅動的工具時，應始終遵循
基本的安全預防措施，包括以下安全預防措
施，以降低發生火災、電池漏電以及人身傷
害和材料損壞的風險。
♦使用工具前，請仔細閱讀本手冊全部內容。
♦工具的設計用途在本手冊中進行了描述。使用非
本使用手冊所建議的任何其他配件或附件，或使
用本工具執行本使用手冊中所建議之外的任何其
他操作，可能會導致人身傷害及或財 損害的危
險。
♦請妥善保存本手冊以備將來查閱。妥善保存本手
冊以備將來查閱。
使用工具
♦請勿使用本工具吸取任何液體或任何易燃材料。
♦請勿在靠近水的地方使用本工具。
♦請勿將本工具浸入水中。
♦請勿拉扯充電器引線以將充電器從插座上拔下。
讓充電器遠離熱、油和銳邊。
♦體力、感覺或智力不足，或者缺乏經驗及知識的
人員（包括小孩）不適合使用本工具，除非負責
他們安全的人員已經為他們提供關於使用此工具
的監督或指示。
不能讓小孩耍玩本工具。請勿在沒有監督的情況下
讓小孩對本工具進行清潔和維護。
檢查和維修
♦使用前請檢查工具是否有損壞或有故障的零件。
檢查零件破損情況以及可能影響操作的開關損壞
和任何其他狀況。
♦若發現任何零件已損壞或有故障，請勿使用本工
具。
♦將所有受損或有故障的零件送往授權的維修中心
進行維修或更換。
♦定期檢查充電器引線是否出現損壞。如有任何損
壞或出現故障，請立即更換。
♦除了本手冊中指定的零件之外，切勿嘗試卸下任
何其他零件或對其進行替換。
額外安全指示
使用後
♦清潔充電器或充電底座之前先拔下充電器插頭。
♦不使用時，應將工具儲存在乾燥的地方。
♦切勿讓兒童接觸存放的工具。
剩餘風險。
使用工具時可能會出現未包括在隨附的安全警告中
的其他剩餘風險。濫用、長時間使用等也會導致這
些風險。
即使應用有關的安全規定並採用安全裝置，仍然還
有一些無法避免的剩餘風險。此類風險包括：
♦接觸旋轉 /活動部件引起的傷害。
♦更換任何部件、刀片或配件時引起的傷害。
♦長時間使用工具引起的傷害。長時間使用任何工
具時，請確保定期休息。
♦聽力受損。
♦吸入使用工具時產生的塵埃引起的健康危害。（譬
如：在木材上使用時，尤其是櫟木、山毛櫸和中
密度纖維板 (MDF)）

19
繁體中文
電池和充電器
電池
♦不論是因為任何理由，都不要嘗試打開電池。
♦請勿將電池暴露在水中。
♦請勿將電池暴露在熱力中。
♦不要將電池儲存在溫度可能超過 40ºC 的地方。
♦只在環境溫度介於 10ºC 和40ºC 之間的情況下
充電。
♦只能使用本工具隨附的充電器為電池充電。使用
不適當的充電器可能會導致觸電或電池過熱。
♦處置電池時，請遵循「保護環境」部分所提供的
指示執行。
♦請勿刺穿或衝擊電池組導致其損壞或變形，這將
有可能導致傷害及火災。
♦請勿為損壞的電池組充電。
♦在極端情形下，可能會出現電池漏電。當電池上
出現液體時，請用布小心將其擦掉。避免與液體
接觸。
♦若與皮膚接觸，請遵循以下指示。
警告！電池液體可能會導致個人傷害或財產損失。
如果電池液體接觸到皮膚，請立即以清水沖洗。如
皮膚出現紅腫、疼痛或刺激反應，請尋求醫療協助。
如電池液體接觸到眼睛，請立即以清水沖洗並尋求
醫療協助。
注意 !鋰電池請勿過度放電 , 過度放電會造成電池損
壞, 影響電池壽命
充電器
您的充電器設計用於特定電壓。請務必檢查主電壓
是否與銘牌一致。
警告！切勿嘗試使用一般的電源插頭取代充電器裝
置。
♦只能使用工具隨附的 Black & Decker 充電器為工
具內的電池充電。其他非原廠電池可能會爆裂，
導致人身傷害和損害。
♦切勿嘗試為不可再充電的電池充電。
♦若電源線損壞，必須送往製造廠商或授權的
Black & Decker 服務中心更換以避免發生危險。
♦請勿將充電器暴露在水中。
♦請勿打開充電器。
♦請勿刺破充電器。
♦充電時，必須將工具 /電池組置放在一個通風良
好的地方。
電氣安全
充電器上的符號
使用工具前，請仔細閱讀本手冊全部內容。
#本工具採用雙重絕緣，因此無需接地線。請
務必檢查電源電壓是否與銘牌一致。
防短路安全隔離變壓器變壓器輸出採用獨立
於主電源之外的電源。
充電器會在環境溫度變得太高時自動關閉。
因此充電器可能無法工作。此時必須斷開充
電底座與主電源的連接，並送回授權維修中
心進行修理。
$充電底座僅供室內使用。
功能部件
本工具包括以下部分或全部功能部件。
1. 電源開關
2. 手柄
3. 伸縮軟管
4. 吸嘴
5. 配件釋放夾
6.LED 充電指示燈
7. 透明集塵筒
8. 集塵筒
9. 二合一組合吸嘴配件
10. 細縫吸嘴
11. 寵物毛髮吸嘴
12. 長刷頭工具
13. 可調式延長吸嘴
14. 電源開關

20
繁體中文
15. 地板刷頭開關
16. 地板用真空吸塵器底盤
17. 地板頭
18. 充電底座
19. 配件收納架
註：寵物毛髮吸嘴 (11) 用於清潔寵物毛髮，不得直
接在動物身上使用。
電池
裝置內不含使用者可檢修的部件。為了安全回收電
池和內部部件，請將裝置送回授權 Black&Decker
的維修中心。
維護
您的 Black & Decker 充電式工具採用卓越的設計，
能夠長時間使用，並且只需最少的維護。若要持續
獲得滿意的操作效果，需進行正確的工具維護和定
期的清潔。
警告！在充電式工具上執行任何維護工作之前：
♦若電池屬於內建電池，請使電池完全放電，然後
再關閉電源。
♦清潔之前請拔下充電器的插頭。您的充電器除了
定期清潔之外，並不需要執行任何維護操作。
♦定期使用軟刷或乾布清潔工具 /充電器內的通風
槽。
♦請定期使用濕布清潔電動機外殼。請勿使用任何
研磨性或基於溶劑的清潔劑。
保護環境
Z
分類回收。本產品必須與一般家庭廢物分開
處置。
若您發現您的 Black & Decker 產品需要進行替換，
或您已經不再需要使用這些產品，請不要將它們與
家庭廢物一起處置。務必將本產品送往分類收集處。
z
分類收集用過的產品和包裝允許材料循環再
生利用。重新使用回收的材料有助於防止環
境污染，並降低對原材料的需求。
當地法規可能要求由市政廢物回收點，或由向您出
售新產品的經銷商來提供將電子產品與家庭廢物分
類收集的服務。
維修資訊
Black & Decker 提供覆蓋整個亞洲的公司隸屬和授
權服務地點。所有的 Black & Decker 維修中心都具
有訓練有素的人員，為客戶提供高效、可靠的產品
服務。
無論您需要技術建議、維修或原廠替換零件，請聯
絡最靠近您的 Black & Decker 地點。
附註
♦Black & Decker 秉持不斷改善產品的原則，因
此，我們保留隨時變更產品規格而不預先通知的
權利。
♦標準設備及配件可能視國家 /地區而有所不同。
♦產品規格可能視國家 /地區而有所不同。
♦並非在所有的國家 /地區都將提供完整的產品系
列。如需各產品系列的供應情況，請聯絡您當地
的Black & Decker 代理商。
