Black Box HS300A User manual

2.4 GHz Wireless Remote
Unit with Hookswitch
HS300A
HS301A

1
FCC INFORMATION
FEDERAL COMMUNICATIONS COMMISSION
AND
INDUSTRY CANADA
RADIO FREQUENCY INTERFERENCE STATEMENTS
This equipment generates, uses, and can radiate radio frequency energy and if not installed and used
properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio
communication. It has been tested and found to comply with the limits for a Class A computing device in
accordance with the specifications in Subpart J of Part 15 of FCC rules, which are designed to provide
reasonable protection against such interference when the equipment is operated in a commercial
environment. Operation of this equipment in a residential area is likely to cause interference, in which case
the user at his own expense will be required to take whatever measures may be necessary to correct the
interference.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise emission from digital apparatus set out in the
Radio Interference Regulation of Industry Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils
numériques de classe A prescrites dans le Règlement sur le brouillage radioélectrique publié par Industrie Canada.

2
2.4 GHZ WIRELESS REMOTE UNIT WITH HOOKSWITCH
FCC REQUIREMENTS FOR TELEPHONE-LINE EQUIPMENT
1. The Federal Communications Commission (FCC) has established rules which permit this device to be
directly connected to the telephone network with standardized jacks. This equipment should not be
used on party lines or coin lines.
2. If this device is malfunctioning, it may also be causing harm to the telephone network; this device
should be disconnected until the source of the problem can be determined and until the repair has
been made. If this is not done, the telephone company may temporarily disconnect service.
3. If you have problems with your telephone equipment after installing this device, disconnect this device
from the line to see if it is causing the problem. If it is, contact your supplier or an authorized agent.
4. The telephone company may make changes in its technical operations and procedures. If any such
changes affect the compatibility or use of this device, the telephone company is required to give
adequate notice of the changes.
5. If the telephone company requests information on what equipment is connected to their lines, inform
them of:
a. The telephone number that this unit is connected to.
b. The ringer equivalence number.
c. The USOC jack required: RJ-11C.
d. The FCC registration number.

3
CDC STATEMENT
Items (b) and (d) can be found on the unit’s FCC label. The ringer equivalence number (REN) is used
to determine how many devices can be connected to your telephone line. In most areas, the sum of the
RENs of all devices on any one line should not exceed five (5.0). If too many devices are attached, they
may not ring properly.
6. In the event of an equipment malfunction, all repairs should be performed by your supplier or an
authorized agent. It is the responsibility of users requiring service to report the need for service to the
supplier or to an authorized agent.
CERTIFICATION NOTICE FOR EQUIPMENT USED IN CANADA
The Canadian Department of Communications label identifies certified equipment. This certification means
that the equipment meets certain telecommunications-network protective, operation, and safety
requirements. The Department does not guarantee the equipment will operate to the user’s satisfaction.
Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of
the local telecommunications company. The equipment must also be installed using an acceptable method of
connection. In some cases, the company’s inside wiring associated with a single-line individual service may be
extended by means of a certified connector assembly (extension cord). The customer should be aware that
compliance with the above conditions may not prevent degradation of service in some situations.
Repairs to certified equipment should be made by an authorized Canadian maintenance facility—in this case,
your supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions,
may give the telecommunications company cause to request the user to disconnect the equipment.
Users should ensure for their own protection that the electrical ground connections of the power utility,
telephone lines, and internal metallic water pipe system, if present, are connected together. This precaution
may be particularly important in rural areas.

4
2.4 GHZ WIRELESS REMOTE UNIT WITH HOOKSWITCH
CAUTION:
Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority,
or electrician, as appropriate.
The LOAD NUMBER (LN) assigned to each terminal device denotes the percentage of the total load to be
connected to a telephone loop which is used by the device, to prevent overloading. The termination on a
loop may consist of any combination of devices, subject only to the requirement that the total of the load
numbers of all the devices does not exceed 100.
NORMAS OFICIALES MEXICANAS (NOM) ELECTRICAL SAFETY STATEMENT
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico
sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de operación deben ser respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca de la tina de baño, lavabo,
sótano mojado o cerca de una alberca, etc..
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que sean recomendados por
el fabricante.

5
NOM STATEMENT
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea recomendado por el
fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá a lo descrito en las
instrucciones de operación. Todo otro servicio deberá ser referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no interfiera su uso. La colocación
del aparato eléctrico sobre una cama, sofá, alfombra o superficie similar puede bloquea la ventilación,
no se debe colocar en libreros o gabinetes que impidan el flujo de aire por los orificios de ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor como radiadores, registros
de calor, estufas u otros aparatos (incluyendo amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del tipo descrito en el
instructivo de operación, o como se indique en el aparato.
12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no sea
eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no sean pisados ni pellizcados
por objetos colocados sobre o contra ellos, poniendo particular atención a los contactos y receptáculos
donde salen del aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas de energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo no sea usado por un largo periodo
de tiempo.

6
2.4 GHZ WIRELESS REMOTE UNIT WITH HOOKSWITCH
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean derramados sobre la cubierta u
orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.

7
TRADEMARKS USED IN THIS MANUAL
TRADEMARKS USED IN THIS MANUAL
AT&T® and Merlin®are registered trademarks of American Telephone and Telegraph Company.
Siemens® is a registered trademark of Siemens Aktiengesellschaft.
Toshiba®is a registered trademark of Toshiba Corporation.
UL®is a registered trademark of Underwriters Laboratories Incorporated.
Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark
owners.

8
2.4 GHZ WIRELESS REMOTE UNIT WITH HOOKSWITCH
Contents
1. Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.1 Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.2 Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.1 Assembling the Base and Connecting to the Telephone. . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.2 Checking the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.3 Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.4 Before Setting Up to the Telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.5 Setting Telephone Compatibility and Transmit Adjustments . . . . . . . . . . . . . . . . . . . . . . . . 14
3.5.1 Step 1: Setting Telephone Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.5.2 Step 2: Adjusting the Transmit (Microphone) Sound Level. . . . . . . . . . . . . . . . . . . . . . 15
3.6 Telephone Compatibility Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4. Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.1 Using with a Headset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.2 Using with a Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.3 Using the Pocket and Belt Clips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.4 Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.5 Muting the Microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.6 Recharging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.1 Problems and Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.2 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.3 Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.4 Calling Black Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.5 Shipping and Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

9
CHAPTER 1: Specifications
1. Specifications
Baseband Modulation—
ADPCM
Battery Life—12 hours of
continuous use, on-line;
80 hours of continuous use,
off-line
Battery Recharge Time—
3 hours
Channels—120
Channel Selection—
Automatic
Compatibility—All business
phones that comply with RF
immunity spec: CISPR24:
1997, modified; Carbon,
Electric, AT&T®: Switch
selectable; Siemens®Dyad:
Accessory hookup cord
Compliance—UL®1459, CSA,
FCC Parts 15 and 68, IC
RSS-210
Coverage—125,000 square
feet
Frequency—2400 to
2483 MHz (base and
remote)
Range—200 ft. (61 m)
(indoors)
RF Modulation—FDMA
Systems Per Facility—50 per
coverage area (more
depending on building
design)
Transmission Security—
Digital encryption (Spread
Spectrum, Frequency
Hopping)
Power—Base: 7.5 VDC,
500 mA maximum; Remote:
3.6-V rechargeable NiMH,
550-mAH battery
Size—Base: 6"H x 4"W x
0.8"D (15.2 x 10.2 x 2 cm);
Remote: 4"H x 2.5"W x 1"D
(10.2 x 6.4 x 2.5 cm)
Weight—Base: 6.2 oz.
(175.8 g); Remote: 3.3 oz.
(93.6 g)

10
2.4 GHZ WIRELESS REMOTE UNIT WITH HOOKSWITCH
2. Introduction
2.1 Description
The 2.4 GHz Wireless Amplifier
and the Remote Unit use Spread
Spectrum technology to give you
wireless access to your phone.
With the wireless system, you’re
free to find a file, confer with a
colleauge, check with shipping, or
roam the building—without
putting your caller on hold.
NOTE
The 2.4 GHz Wireless Head-
set system includes the base
unit, remote unit, Hookswitch,
and Pro-Fit Headset. (Separ-
ate documentation is available
for the Hookswitch and Pro-Fit
Headset. Call Black Box at
724-746-5500 for details.)
The 2.4 GHz Wireless Remote
Unit includes the Remote Unit
and Hookswitch.
Both include the components
listed in Section 2.2.
2.2 Components
A. Base
30Headset/Handset
Selector
I. Transmit Adjustment
II. Telephone Compatibility
Adjustment
4On-line Indicator
5Battery Recharging
Indicator
B. Headset Stand
C. Remote
III. On-line Indicator
7Volume Control
Button
6Mute Button
IV. Hookswitch Activation
Button

11
CHAPTER 2: Introduction
1
2
3
4
5
6
7
8
A
B
C
D
E
F
G
D. Base Stand
A. B. C.
D.
I.
II.
III.
IV.
V.
E.
F.
G.
VI.
VII.

12
2.4 GHZ WIRELESS REMOTE UNIT WITH HOOKSWITCH2.4 GHZ WIRELESS REMOTE UNIT WITH HOOKSWITCH
3. Installation

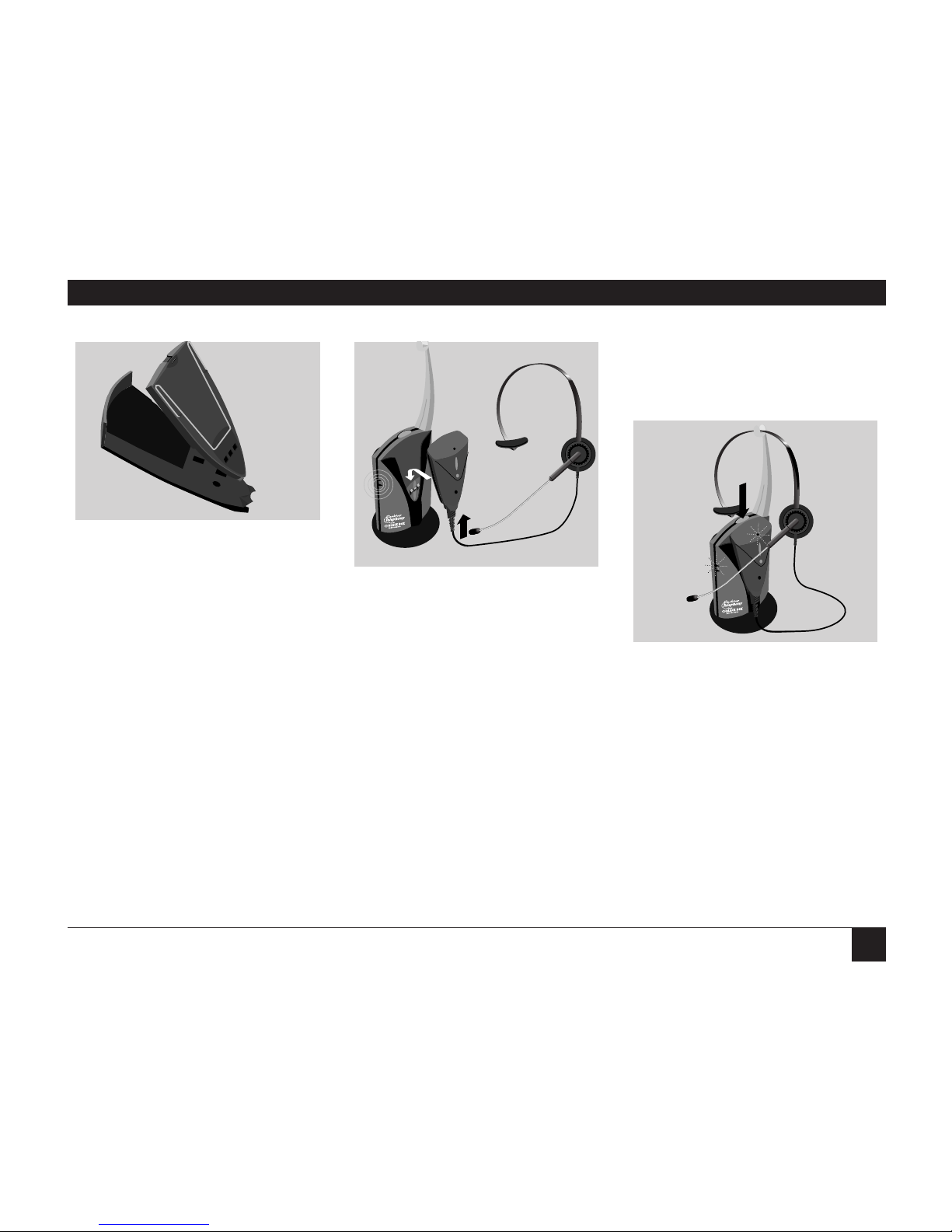

3.1 Assembling the Base and
Connecting to the Telephone
1. Disconnect the handset
cord from the telephone
and connect it to the port
marked with the 0icon at
the bottom of the base.
Connect one end of the
telephone interface cord to
the telephone handset port
and the other end to the
bottom of the base marked
with the 1icon. Connect
the AC power adapter to the
port marked with the 2
icon at the bottom of the
base, and then to the power
outlet (Figure 3-1). Turn on
the power.
Figure 3-1. Connecting the Cords.
2. Mount the base by aligning
the tabs extending from the
bottom of the base with the
corresponding slots on the
stand. Turn clockwise until
secure. The 3 cords should
extend from the back of the
base. Align the center tab of
the headset stand with the
port on either side of the
base. Slide the ends of the
headset stand over the top
of the base until it locks into
place (Figure 3-2).
Figure 3-2. Mounting the Base.
3. Align the tab at the bottom
of the battery with the notch
on the back of the remote.
Push the battery flush
against the remote until it
clicks into place
(Figure 3-3).

13
CHAPTER 3: Installation
Figure 3-3. Aligning the Tab.
4. Connect the headset to the
bottom of the remote. Insert
the remote into the base
(see Figure 3-4). Either side
may be used. The battery
charge indicator marked
with the 5icon on the
base will light up. This will
be referred to as the front of
the base. Fully charge the
remote for 3 hours before
using.
Figure 3-4. Connecting the Headset.
3.2 Checking the System
Put the system in headset mode by
pressing once on the headset/
handset selector on top of the
base. The on-line indicator
marked on the base with the 4
icon will light. After 5 to 45
seconds, the on-line indicator on
the top of the remote will start to
flash (the base searches for an
open transmission channel only
on the first time). The system is
now working. If the on-line
indicator does not flash, recheck
assembly (Figure 3-5).
Figure 3-5. Checking the Assembly.
3.3 Charging the Battery
The nickel-metal-hydride battery
(NiMH) for the remote is not
charged when delivered. To
charge, place the remote with the
battery in the base for at least 3
hours before making the
adjustments below.

14
2.4 GHZ WIRELESS REMOTE UNIT WITH HOOKSWITCH2.4 GHZ WIRELESS REMOTE UNIT WITH HOOKSWITCH
3.4 Before Setting Up to the Telephone
1. Make sure the
headset/handset selector
marked with the 30 icon
on top of the base is in the
headset position. The
selector is in the headset
position when the on-line
indicator (marked with the
4icon) on the front of the
base lights up and the on-
line indicator on the top of
the remote is flashing. If the
lights are off, the selector is
in the handset position.
Press the handset/headset
selector once to activate the
headset (Figure 3-6).
Figure 3-6. Activating the Headset.
2. Make sure the mute
function on the remote is
off. If the mute button is on,
you will hear a double beep
in your headset every 5
seconds. Turn it off by
pressing the mute button on
the remote marked with the
6icon once.
3. If your telephone has
volume control, set the
volume to mid-range.
Control the headset volume
through the remote.
3.5 Setting Telephone Compatibility
and Transmit Adjustments
3.5.1 S TEP 1: S ETTING T ELEPHONE
C OMPATIBILITY
1. Put your headset on, lift the
handset from the telephone,
and listen for a dial tone in
your headset.
2. If there is no dial tone,
adjust the telephone
compatibility switch marked
A-G on the rear of the base.
Move from A to G until the
dial tone is clear. If the dial
tone is just as clear in
position A as in G, leave the
switch in position A. Most
phones will use position A
or position G (Figure 3-7).

15
CHAPTER 3: Installation
Figure 3-7. Adjusting the Telephone
Compatibility Switch.
3.5.2 S TEP 2: A DJUSTING THE
T RANSMIT (M ICROPHONE )S OUND
L EVEL
Change from the headset to the
handset position by pressing the
headset/handset selector (marked
on top of the base with the 30
icon) once. Call someone using
your handset, then switch over to
your headset. Ask for help
evaluating the sound level of your
voice so that the level is the same
as when you used the handset.
Adjust the switch marked 1-8 on
the rear of the base as follows:
Adjust position from 1 to 8
(1 is softest, 8 is loudest) by
first talking in the handset
and then in the headset for
each position. When the
person hears no difference
when you talk into the
handset or headset, you
have the correct setting.
(Most settings will be
between 5-7.) If the best
setting is 7 or 8, move the A-
G switch to position G
(Figure 3-8).
Figure 3-8. Adjusting the Transmit Sound
Level.
3.6 Telephone Compatibility Guide
For optimal performance, adjust
the Telephone Compatibility
switch to correspond with the type
of telephone listed in Table 3-1.
The following chart is only a
partial list of compatible
telephone systems. If your phone
is not in the chart, call Black Box
Technical Support at 724-746-
5500.
1
2
3
4
5
6
7
8
A
B
C
D
E
F
G
1
2
3
4
5
6
7
8
A
B
C
D
E
F
G

16
2.4 GHZ WIRELESS REMOTE UNIT WITH HOOKSWITCH2.4 GHZ WIRELESS REMOTE UNIT WITH HOOKSWITCH
Table 3-1. Telephone Compatibility Guide
Manufacturer System Phone Set Setting
AT&T (Lucent) Definity 7100, 7300, 7400 Series A
Merlin®BTN, BIS, & 7000 Series A
ISDN 6500, 7500 Series A
1A2 2500 Series G
Merlin Legend MLX Series A
Consumer Products Traditional & Feature A
Comdial Executech, Impact All Sets A
Mitel SX Series All Supersets A
NEC Electra D-Term Series 2, 3, E A
Executone Encore All Sets G
ITT/Alcatel 501, 601 2500 & 2800 Series G
Toshiba Strata SE & DK EKT 2101-3102, 6010-6025 G
Siemens-Rolm ETS Series G

17
CHAPTER 4: Operation
4. Operation
4.1 Using with a Headset
1. Make sure the
headset/handset selector on
top of the base is in the
headset position. Put on the
headset, pick up the
handset, and answer the
phone or make a call.
2. To end the call, put the
handset down.
3. When you answer or make a
call using the headset, the
on-line indicator on the
base starts flashing. This
means the base is
communicating with the
remote (Figure 4-1).
Figure 4-1. On-Line Indicator Flashing.
4. To move away from your
desk during the call, remove
the remote from the base
and clip it to your belt or
put it in your pocket. You
can now move freely up to
200 feet away from the base.
If you move out of
transmission range, you will
hear a double beep in your
headset every 10 seconds.
4.2 Using with a Handset
1. Make sure the headset/
handset selector on top of
the base is in the handset
position.
2. Pick up the handset to
answer the phone or make a
call as usual.
3. To end the call, put down
the handset.
4.3 Using the Pocket and Belt Clips
1. The remote ships with the
pocket clip installed. To use,
slide the wire clip behind
the fabric of your pocket.
2. To use the belt clip, first
remove the wire pocket clip.
While holding the remote
face down, gently pull the
wire clip from both sides of
the unit (Figure 4-2).

18
2.4 GHZ WIRELESS REMOTE UNIT WITH HOOKSWITCH2.4 GHZ WIRELESS REMOTE UNIT WITH HOOKSWITCH
Figure 4-2. Removing the Pocket Clip.
3. Slide the belt clip onto the
back of the remote until it
clicks into place
(Figure 4-3).
Figure 4-3. Sliding the Belt Clip into Place.
4.4 Adjusting the Volume
To turn the sound level up or
down in your headset, press
successively on the volume control
button marked with the 7icon
on the front of the remote
(Figure 4-4). If you have reached
the maximum or minimum level,
you will hear a beep.
Figure 4-4. Adjusting the Volume.
4.5 Muting the Microphone
To talk without the other party
hearing you, press the mute
button (marked with the 6icon
on the front of the remote). (See
Figure 4-5.) When the
microphone is muted, you will
hear a double beep in your
headset every 5 seconds. When

19
CHAPTER 4: Operation
the mute function is on, you can
still hear the other party.
Figure 4-5. Muting the Microphone.
4.6 Recharging the Battery
To ensure optimum battery life,
place the remote in the base when
not in use. The recharging
indicator on the base, marked
with the 5icon, automatically
lights up while the battery is in the
base. It takes 3 hours to fully
recharge the battery. A fully
charged battery provides 12 hours
of continuous talktime. If the
battery power gets too low, you’ll
hear a beep in your headset every
20 seconds. When charging the
battery overnight, put the system
in handset mode (Figure 4-6).
An optional second battery can
charge in the base while the
remote is in use, thus allowing
24-hours-a-day, seven-days-a-week
talktime. To replace the battery,
press the button on the back of
the battery and pull.
Figure 4-6. Charging the Battery.
