SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
1. READ ALL INSTRUCTIONS BEFORE USE
2. Do not abuse, sit on, stand on or place any heavy objects on the
door or dish rack of the dishwasher when it is open. The appliance
could tip forward.
3. Do not operate your dishwasher unless all enclosure panels are
properly in place. Open the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.
4. When loading items to be washed:
1) Locate sharp items so that they are not likely to damage the door
seal;
2) Warning: Knives and other utensils with sharp points must be
loaded in the basket with their points down or placed in a horizontal
position.
5. Check that the detergent receptacle is empty after completion of the
wash cycle.
6. Use only detergent and rinse additives designed for an automatic
dishwasher.
7. Never use soap, laundry detergent, or hand washing detergent in
your dishwasher. Keep these products out of the reach of children.
8. Keep children away from detergent and rinse aid. Keep children
away from the open door of the dishwasher, there could still be some
detergent left inside.
9. This appliance is not intended for use by persons (including children
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety.
10. Children should be supervised to ensure that they do not play with
the appliance.
WARNING
WARNING - Hazards or unsafe
practices which COULD result in
severe personal injury or death
DANGER
DANGER - Immediate hazards
which WILL result in severe
personal injury or death
CAUTION
CAUTION - Hazards or unsafe
practices which COULD result in
minor personal injury
WARNING
When using electrical appliances, basic safety precautions
should be followed, including the following

Page 5
SAFETY INFORMATION
11. Dishwasher detergents are strongly alkaline, they can be extremely
dangerous if swallowed. Avoid contact with skin and eyes and keep
children away from the dishwasher when the door is open.
12. The door should not be left in the open position since this could
present a tripping hazards.
13. If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person in
order to avoid a hazard.
14. Remove the door to the washing compartment when removing an
old dishwasher from service or discarding it.
15. Please dispose of packing materials properly.
16. Use the dishwasher only for its intended function.
17. During installation, the power supply must not be excessively or
dangerously bent or flattened. Do not tamper with controls.
18. The appliance is to be connected to the water mains using new hose
sets and that old hose-sets should not be reused.
19. The maximum number of place settings to be washed is 6.
20.The maximum permissible inlet water pressure is 14.5 psi (1 MPa).
21. The minimum permissible inlet water pressure is 5.8 psi (0.04 MPa).
22. Do not use this dishwasher outdoors.
23. This appliance must be properly installed in accordance with the
installation instructions before its use.
24. This appliance must be connected to a proper electrical outlet with
the correct electrical supply.
25. Disconnect electrical power and water intake hose to dishwasher
before cleaning and/or servicing.
26. Under certain conditions, hydrogen gas may be produced in a
hot-water system that has not been used for two weeks or more.
HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not
been used for such a period, before using the dishwasher turn on
all hot-water faucets and let the water flow from each for several
minutes. This will release any accumulated hydrogen gas. As the gas
is flammable, do not smoke or use an open flame during this time.
SAVE THESE INSTRUCTIONS
HOUSEHOLD USE ONLY

Page 6
SAFETY INFORMATION
GROUNDING INSTRUCTIONS
ELECTRICAL REQUIREMENTS
This appliance must be grounded. In the event of a malfunction or breakdown,
grounding will reduce the risk of electric shock by providing a path of least resistance
for electric current. This appliance is equipped with a cord having an equipment-
grounding conductor and a grounding plug. The plug must be plugged into an
appropriate outlet that is installed and grounded in accordance with all local codes
and ordinances.
POWER SUPPLY CORD
1. If the power supply cord is too short, do not use an extension cord. Have a qualified
electrician or serviceman to install an outlet near the appliance.
2. If it is absolutely necessary to use longer cord sets or an extension cord, extreme
care must be exercised.
a) The marked electrical rating of the cord set or extension cord must equal to or
be greater than the electrical rating of the appliance. The longer cord should be
arranged so that it will not drape over the counter top or table top where it can be
pulled on by children or tripped over unintentionally.
NOTE: Neither BLACK+DECKER nor the dealer can accept any liability for damage
to the product or personal injury resulting from failure to observe the
electrical connection procedures.
WARNING
Improper connection of the equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or service representative if you are
in doubt whether the appliance is properly grounded. Do not modify the plug
provided with the appliance, if it will not fit the outlet, have a proper outlet
installed by a qualified electrician.

SET UP & USE
INSTALLATION INSTRUCTIONS
CAUTION: The installation of the pipes and electrical equipment should be done by
professionals.
The installation position of dishwasher should be near the existing inlet and drain
hoses and power cord.
One side of the cabinet sink should be chosen to facilitate the connection of drain
hoses of the dishwasher.
Position the appliance in the desired location. The back should rest against the
wall behind it, and the sides, along the adjacent cabinets or wall. The dishwasher is
equipped with water supply and drain hoses that can be positioned to the right or the
left to facilitate proper installation.
WARNING: DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS
APPLIANCE.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE
GROUND CONNECTION FROM THE POWER CORD.
WARNING
Electrical Shock Hazard - Disconnect electrical power before installing dishwasher.
Failure to do so can result in death or electrical shock.
Page 7

Page 8
SET UP & USE
Height 17-1/4” (43.8 cm)
Width 21-21/32” (55 cm)
Depth 19-11/16” (50 cm)
Voltage connected load See Rating Label
Water pressure 5.8 psi - 14.5 psi
(0.04 MPa - 1.0 MPa)
Hot water connection should be 120˚
Power supply See Rating Label
Capacity 6 place settings
21-21/32”
17-1/4”
19-11/16”
31-31/32”

Page 9
SET UP & USE
WATER CONNECTION
Your dishwasher comes equipped with a ‘quick connect’ assembly (includes inlet
and drain hose). The faucet adapter must be installed on the faucet before you can
connect the dishwasher. This adapter is included inside your dishwasher. The faucet
adapter is compatible with faucets inclusive of either male (outside) or female (inside)
threaded faucet connections.

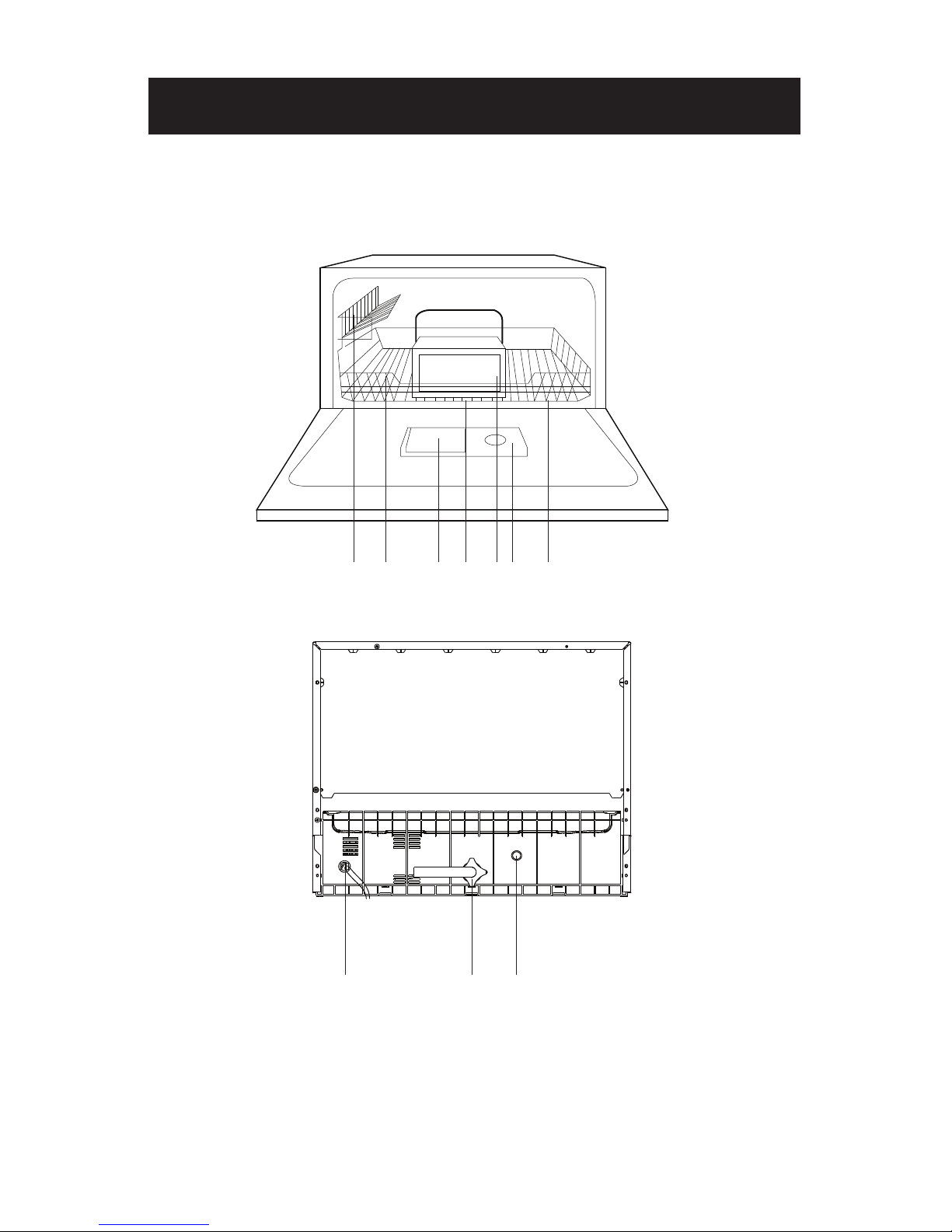

Rear of Dishwasher
1. Power cord
2. Inlet port
3. Drain port
321

Page 10
SET UP & USE
QUICK CONNECT ASSEMBLY
Drain Hose:
1. Drain port connection
2. Quick connect connection
Inlet Hose:
3. Inlet port connection
4. Quick connect connection
Faucet Adapter
5. Faucet adapter
6. Faucet washer
Quick Connect
7. Pressure relief valve
8. Faucet adapter connection
9. Locking collar
10. Inlet hose connection
11. Drain hose connection
1. Screw the faucet adapter onto (or into) the faucet tap. Check for leaks (use Teflon
tape to eliminate if necessary).
2. Connect the six-sided connection of the drain hose to the drain port connection
on the back of the dishwasher cabinet. Do not over-tighten (to avoid damage to
threads).
3. Connect the star-shaped connection of the inlet hose to the inlet port on the back
of the dishwasher cabinet. Do not over-tighten (to avoid damage to threads).
4. Connect the circular connection of the drain hose onto the longer (bottom) male
connection on the quick connect.
5. Connect the circular connection of the inlet hose onto the shorter (top) male
connection on the quick connect.
6. Attach the quick connect onto the faucet adapter, by pulling down the outer
locking collar on the quick connect, while pushing the quick connect upward onto
the faucet adapter.
7. When the quick connect snaps onto the faucet adapter, release the locking collar.
Verify the connection is secure.
8. Slowly open the hot water line and check for any sign of water leaks at all hose
connections. If leaks are located, immediately close the water supply and repair the
hose connections.
WARNING
In order to avoid that there is more water staying in the inlet hose,
please close the faucet after using.

Page 11
SET UP & USE
IMPORTANT!
1. Once you open the water supply line, (even if it is closed immediately thereafter),
the inlet hose will be pressurized.
2. To relieve water pressure from inside the inlet hose, (make sure the water line
(faucet) is closed): press and hold the red pressure relief button on the quick
connect until the flow of water stops.
WARNING
FAILURE TO RELIEVE WATER PRESSURE, BEFORE DISCONNECTING THE QUICK-
CONNECT FROM THE FAUCET, WILL RESULT IN BACK-PRESSURE OVER-SPRAY.
THE TEMPERATURE OF INCOMING WATER CAN BE VERY HOT, AND BACK-
PRESSURE OVER-SPRAY COULD CAUSE SEVERE BURNS AND/OR SCALDING.
DANGER
DO NOT LET CHILDREN DISCONNECT THE DISHWASHER; CLOSE SUPERVISION
OF CHILDREN IS ALWAYS IMPORTANT AROUND APPLIANCES.
NOTE: Hard water conditions will adversely aect the washing performance of
your dishwasher. Hard water conditions will also contribute to ‘lime’ (white
film substance) deposits and/or ‘scaling’ on the stainless steel surface of
the dishwasher tub and heater element, located in the sump underneath
the removable filter screen. To assist in minimizing these conditions, it is
recommended to periodically operate/rinse the inside of the dishwasher
(empty) using 1 cup of white vinegar at least once a week.
DISCONNECTING YOUR DISHWASHER
1. Shut o the water supply at the faucet.
2. Disconnect the power supply cord.
START OF DISHWASHER
The following things should be checked before starting the dishwasher:
1. The dishwasher is level and fixed properly.
2. The inlet valve is open.
3. There is a leakage at the connections of the conducts.
4. The wires are tightly connected.
5. The power is switched on.
6. The inlet and drain hoses are knotted.
7. All packing materials and printings should be taken out from the dishwasher.

Page 12
SET UP & USE

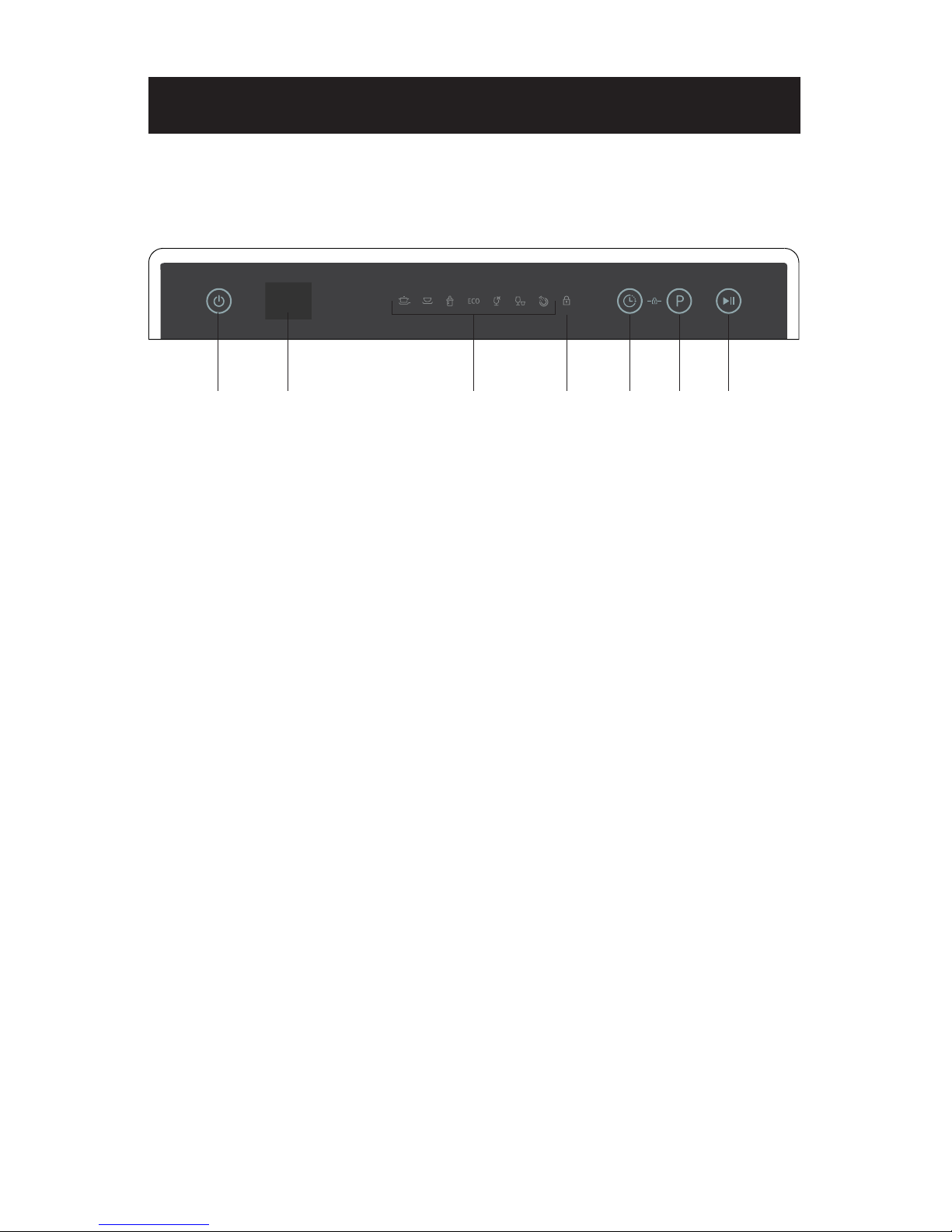

CONTROL PANEL
321
1. Power Button: To turn on/o the power supply.
2. Display: To show delay time, rinse-aid warming and Error codes.
3. Program indicator lights: Identifies the selected program.
4. Child lock indicator light: To press Delay Button and Washing Program Selector
Button at the same time.
5. Delay Button: Press the button to delay the washing time.
6. Washing Program Selector: Press the button to select a washing program.
7. Start/Pause Button: Press this button to start or pause the dishwasher.
4 5 6 7

Page 13
SET UP & USE
PARTS AND FEATURES
1. Cup shelf
2. Basket
3. Detergent dispenser
4. Filter assembly
5. Cutlery basket
6. Rinse aid dispenser
7. Spray arms
8. Power cord
9. Inlet pipe connector
10. Drain pipe connector
321 4 5 6 7
8 9 10

Page 14
SET UP & USE
RINSE AID DISPENSER
The rinse aid is released during the final rinse to prevent water from forming droplets
that can leave spots and streaks on your dishes. It also improves drying by allowing
water to sheathe o the dishes. Your dishwasher is designed to use liquid rinse aids.
The rinse aid dispenser is located inside the door next to the detergent dispenser. To
fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level
indicator turns completely black. The volume of the rinse aid container is about 110ml.
FUNCTION OF RINSE AID
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and
spot and streak free drying.
ATTENTION!
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with
any other substances. (e.g. Dishwasher cleaning agent, liquid detergent). This would
damage the appliance.
WHEN TO REFILL THE RINSE AID DISPENSER
If there is no rinse-aid warning light in the control panel, you can judge the amount
of rinse-aid by the color of the optical level indicator “C” located next to the cap.
When the rinse-aid container is full, the whole indicator will be dark .As the rinse-aid
diminishes, the size of the dark dot decreases. You should never let the rinse aid get
below 1 / 4 full.

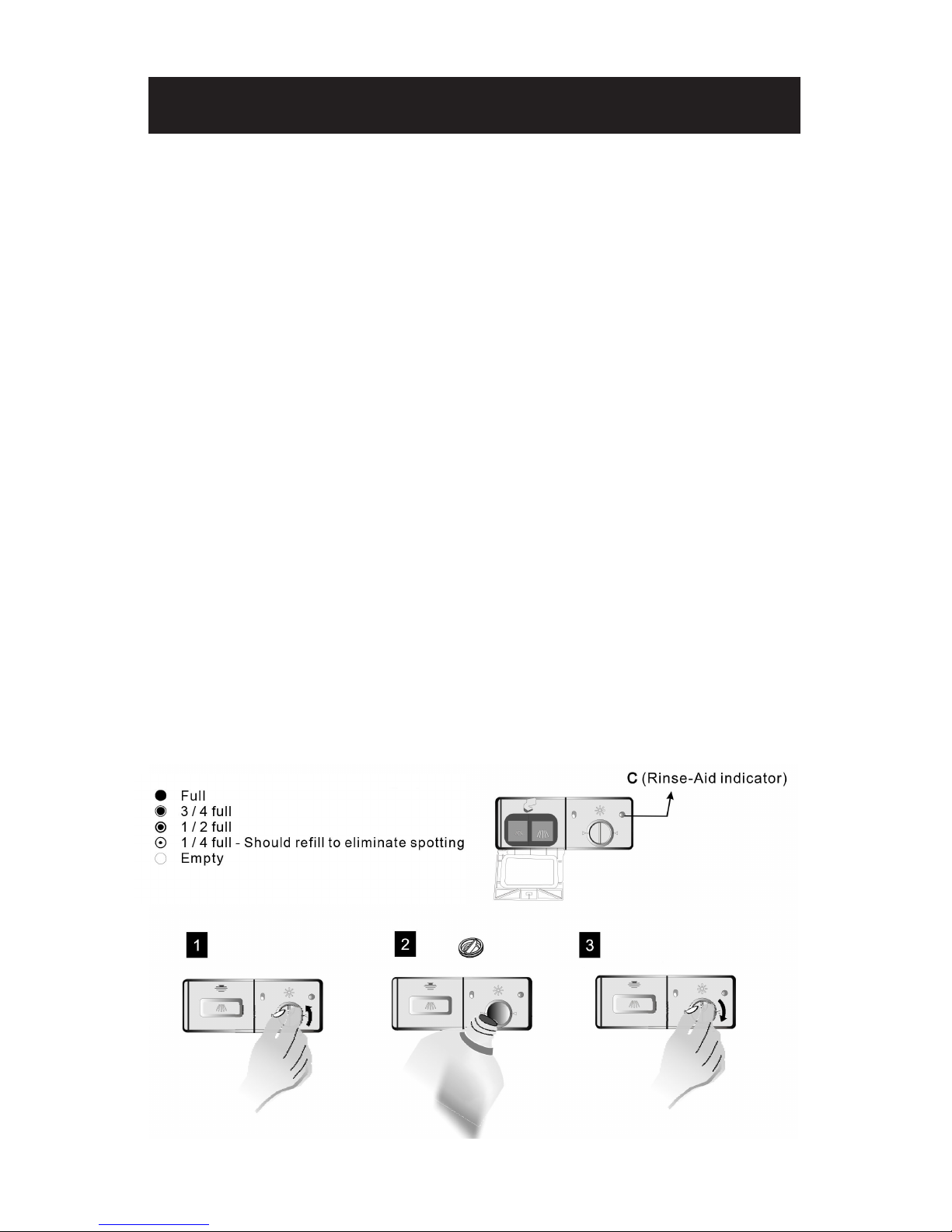

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator
changes, as illustrated below.
1. To open the dispenser, turn the cap to the “open” (left) arrow and lift it out.
2. Pour the rinse aid into the dispenser, being careful not to overfill.
3. Replace the cap by inserting it aligned with “open” arrow and turning it to the
closed (right) arrow.

Page 15
SET UP & USE
1. To open the dispenser, turn the cap to the “open” (left) arrow and lift it out.
2. Pour the rinse aid into the dispenser, being careful not to overfill.
3. Replace the cap by inserting it aligned with “open” arrow and turning it to the
closed (right) arrow.
NOTE: Clean up any rinse aid split during filling with an absorbent cloth to avoid
excessive foaming during the next wash. Don’t forget to replace the cap
before you close dishwasher door.

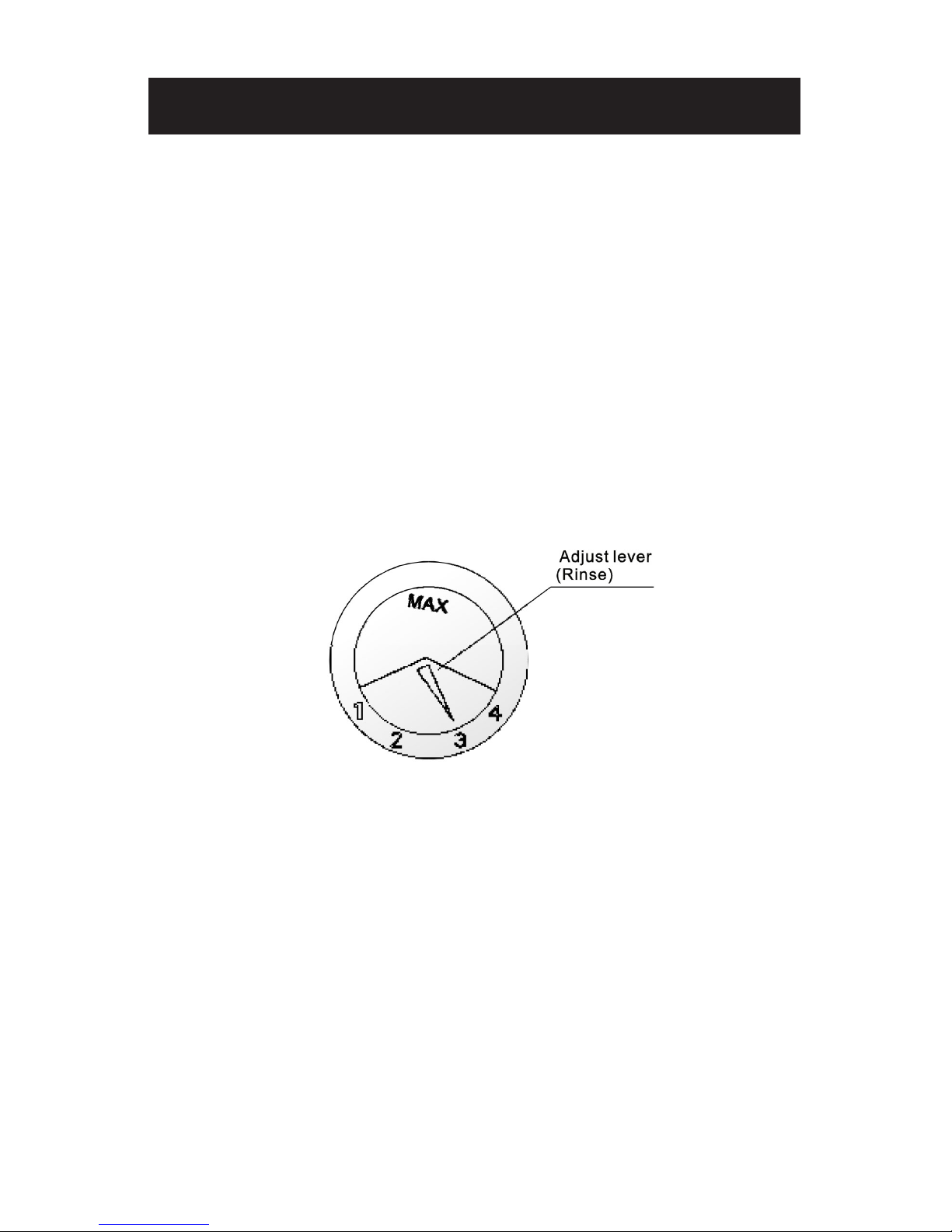

ADJUSTING RINSE AID DISPENSER
The rinse aid dispenser has four settings. The recommended setting is on “3”. If the
dishes still are not drying properly or are spotted, adjust the dial to the next higher
number on “4”.
NOTE: Increase the dose if there are drops of water or lime spots on the dishes after
washing. Reduce it if there are sticky whitish stains on your dishes or a bluish
film on glassware or knife blades.
DETERGENT DISPENSER
The dispenser must be refilled before the start of each wash cycle following the
instructions provided in the Wash Cycle Table . Your dishwasher uses less detergent
and rinse aid then conventional dishwasher. Generally, only one tablespoon of
detergent is needed for a normal wash load. Also, more heavily soiled items need
more detergent. Always add the detergent just before starting the dishwasher,
otherwise it could get damp and will not dissolve properly.

Page 16
SET UP & USE
AMOUNT OF DETERGENT TO USE
NOTE: If the lid is closed: press release button. The lid springs open.
Always add the detergent just before starting each wash cycle.
Only use branded detergent aid for dishwasher.

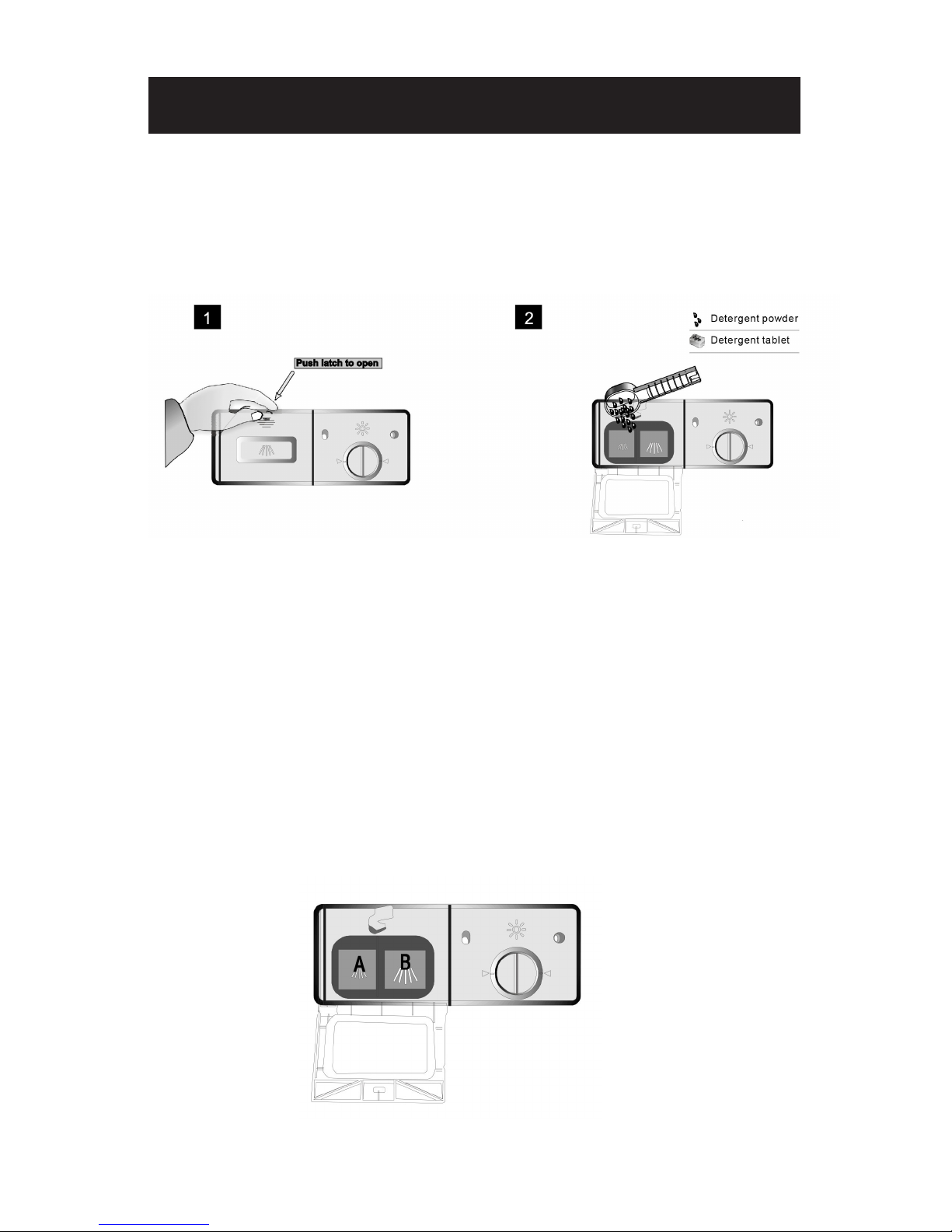

FILL IN DETERGENT
Fill the detergent dispenser with detergent. The marking indicates the dosing levels,
as illustrated on right:
A: The dispenser can load 1/2 teaspoon of detergent.
B: The dispenser can load 1 tablespoon of detergent.
Please observe the manufacturers dosing and storage recommendations as stated
on the detergent packaging.
Close the lid and press until it locks in place.
If the dishes are heavily soiled, place an additional detergent dose in the pre-wash
detergent chamber. This detergent will take eect during the pre-wash phase.

Page 17
SET UP & USE
LOADING THE DISHWASHER BASKETS
RECOMMENDATIONS
1. Consider buying utensils which are identified as dishwasher-proof.
2. Use a mild detergent that is described as ‘kind of dishes’. If necessary, seek further
information from detergent manufacturers.
3. For particular items, select a programme with as low a temperature.
4. To prevent damage, do not take glass and cutlery out of the dishwasher
immediately after the programme has ended.
FOR WASHING IN THE DISHWASHER THE FOLLOWING CUTLERY/DISHES
ATTENTION BEFORE OR AFTER LOADING THE DISHWASHER BASKETS
Scrape o any large amounts of leftover food. Soften remnants of burnt food in pans.
It is not necessary to rinse the dishes under running water.
Place objects in the dishwasher in following way:
1. Items such as cups, glasses, pots/pans, etc. are face down.
2. Curved items, or those with recesses, should be loaded at a slant so that water can
run o.
3. All utensils are stacked securely and can not tip over.
4. All utensils are placed in the way that the spray arms can rotated freely during
washing.
NOTE: Very small items should not be washed in the dishwasher as they could easily
fall out of the basket.
SUITABLE
• Cutlery with wooden, horn china or
mother-of-pearl handles
• Plastic items that are not heat resistant
• Older cutlery with glued parts that is
not temperature resistant
• Bonded cutlery items or dishes
• Pewter or cooper items
• Crystal glass
• Steel items subject to rusting
• Wooden platters
• Items made from synthetic fibres
LIMITED SUITABILITY
• Some types of glasses can become dull
after a large number of washes
• Silver and aluminium parts have a
tendency to discolor during washing
• Glazed patterns may fade if machine
washed frequently

Page 18
SET UP & USE
• Load hollow items such as cups, glasses, pans etc. With the opening downwards so
that water cannot collect in the container or a deep base.
• Dishes and items of cutlery must not lie inside one another, or cover each other.
• To avoid damage to glasses, they must not touch.
• Load large items which are most dicult to clean into the basket.
• Long bladed knives stored in an upright position are a potential hazard!
• Long and/or sharp items of cutlery such as carving knives must be positioned
horizontally in the basket.
• Please do not overload your dishwasher. This is important for good results and for
reasonable energy consume.
LOADING THE BASKET
Position the dishes and cookware so that they will not get moved by the spray of
water. Below is the suggested loading pattern.
PLATE RACKS OF BASKET
The basket is fitted with plate
racks which can be stowed horizontal
if required.

Page 19
SET UP & USE

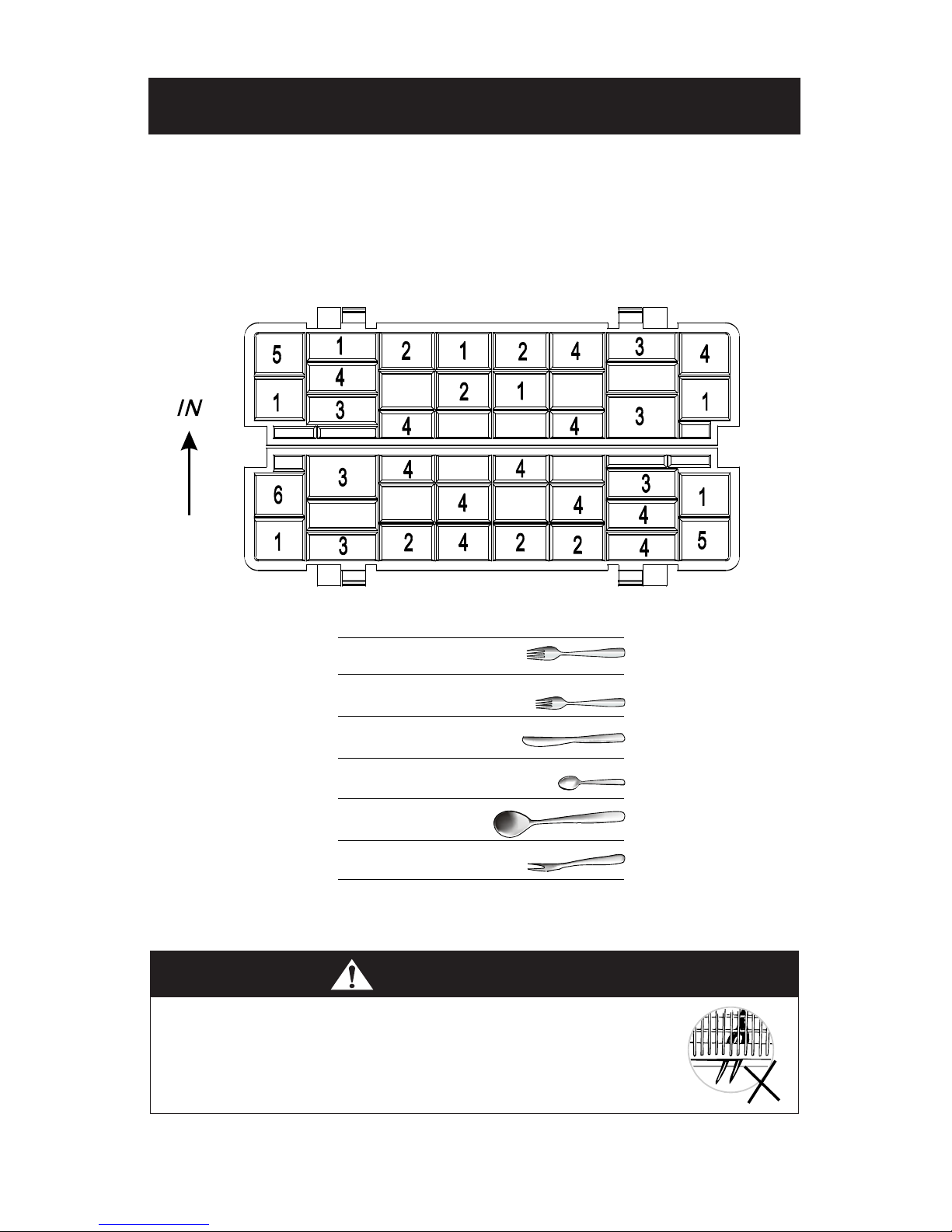

CUTLERY BASKET
Cutlery should be placed in the cutlery basket with handles at the bottom. If the rack
has side baskets, the spoon should be loaded individually into the appropriate slots,
especially long utensils should be placed in the horizontal position at the front of the
upper basket as shown.
Teaspoons
3
Dinner forks
1
Serving forks
6
Serving spoons
5
Knives
4
Salad forks2
Teaspoons
3
Dinner forks
1
Serving forks
6
Serving spoons
5
Knives
4
Salad forks2
WARNING
DO NOT LET ANY ITEM EXTEND THROUGH BOTTOM.
ALWAYS LOAD SHARP UTENSILS WITH THE SHARP POINT DOWN!

Page 20
SET UP & USE

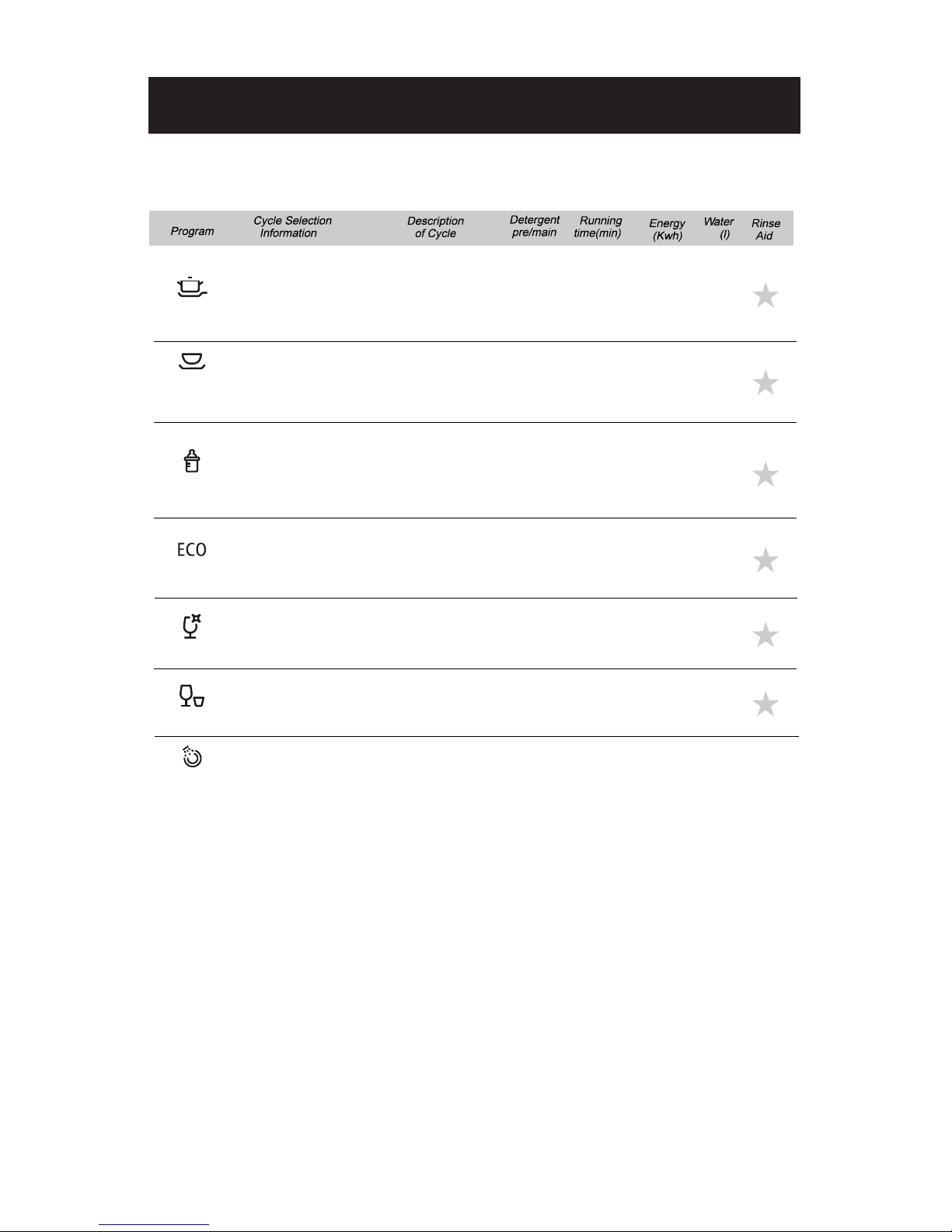

WASH CYCLE TABLE
TURNING ON THE APPLIANCE
Starting a wash cycle.
1. Draw out the basket (see the section entitled Loading the Dishwasher).
2. Pour in the detergent (see the section entitled Detergent and Rinse Aid).
3. Insert the plug into the socket. The power supply is 120V/60 Hz.
4. Make sure that the water supply is turned on to full pressure.
5. Close the door and press the button on/o to turn on the power supply.
6. Press the program button to select wash program you need:
Heavy->Normal->BabyCare->ECO->Glass->Speed->Rinse->Mini-party
7. Then press the Start/Pause button, the dishwasher begins to start.
NOTE: When you press the Start/Pause button to pause during washing, the display
time will stop blinking and the program will pause and remain this cycle till you
restart it again.
For normally soiled loads,
such as pots, plates,glasses
and lightly soiled pans.
standard daily cycle.
For lightly soiled loads,such
as glasses,crystal and
fine china
For the heaviest soiled loads,
such as pots,pans,casserole
dishes and dishes that have
been sitting with dried food
on them for a while.
A shorter wash for lightly
soiled loads that do not
need drying.
For lightly soiled loads,
such as glasses, crystal and
fine china.
110
90
100
45
75
0.36
0.51
0.49
0.31
0.27
10.8
12.5
12.5
10.5
10
Pre-wash
Pre-wash
Wash (52 )
Rinse
Rinse (65 )
Drying
"
"
Wash (55 )
Rinse
Rinse(70 )
Drying
Pre-wash
Pre-wash (50 )
Rinse
"
"
"
Pre-Wash
Pre-Wash(50 )
Wash(50 )
Rinse
Rinse(60 )
Drying
"
"
"
/24
4.30.03
Pre-wash
Main-wash
Wash (50 )
Rinse
Pre-wash
Pre-wash(50 )
Rinse(55 )
"
"
"
Pre-wash
( )
Wash (50 )
Pre-wash 50
Wash (55 )
Rinse
Rinse (68 )
Drying
"
"
"
"
ECO
BabyCare
0.635 oz
(18g)
Use for rinsing dishes
glasses and silverware
that will not be wash right
away.
#
Speed
(*AHAM DW-1-2005 )
Normal
Heavy
Rinse
For lightly soiled crockery
and glass. 70 0.28 8.5
Pre-Wash
Wash(50 )
Rinse
Rinse(60 )
"
"
Drying
Glass
0.635 oz
(18g)
0.635 oz
(18g)
0.635 oz
(18g)
0.53002 oz
(15g)
0.53002 oz
(15g)
