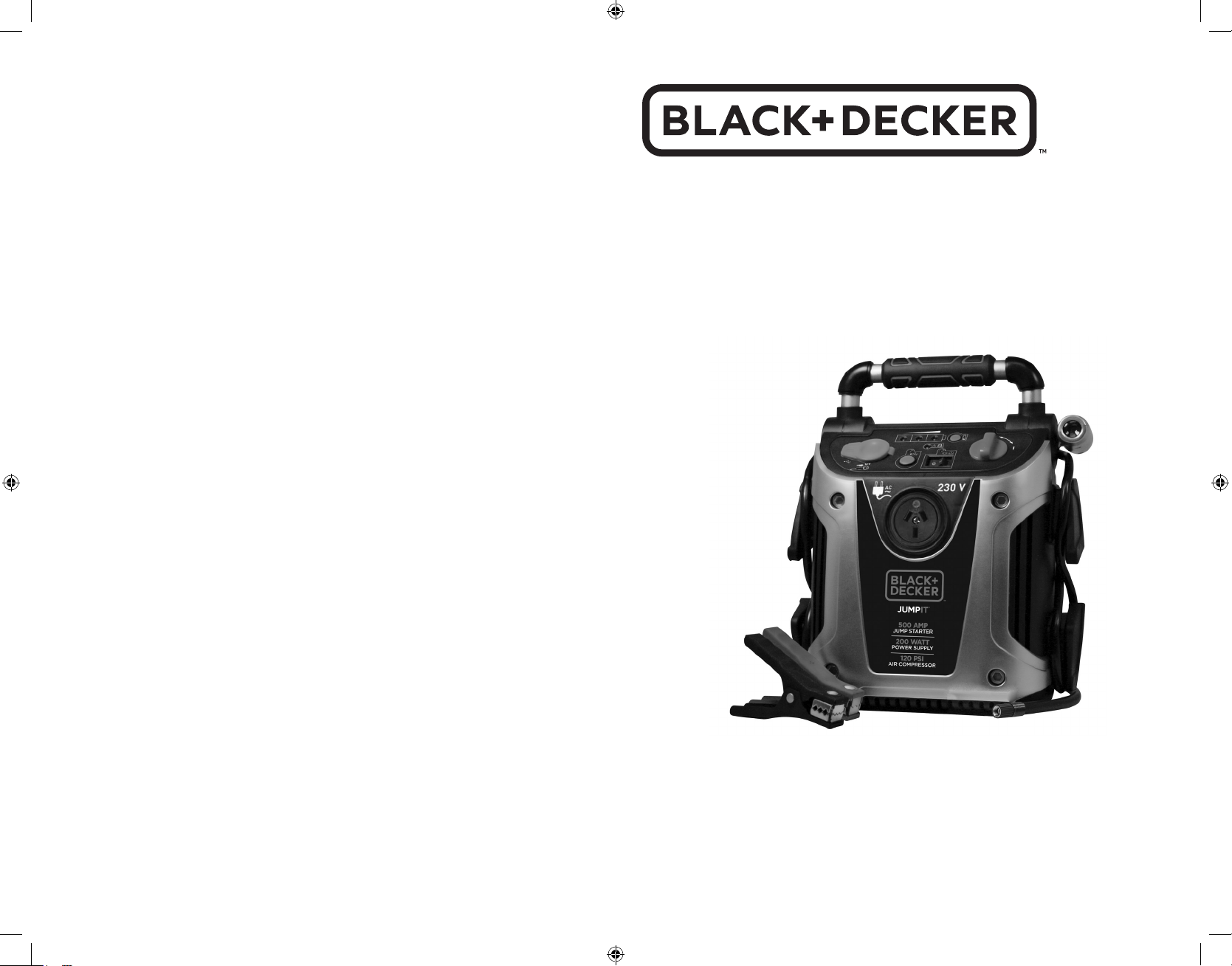

POWER STATION
INSTRUCTION MANUAL
VG11AU_Manual_091216.indd 12-1 9/12/2016 12:01:17 PM

32
INSTRUCTION MANUAL
INTENDED USE
Your Black & Decker power station is designed to
provide additional power to lead-acid batteries when
starting car engines, the cordless compressor is
designed inflate car tyres and sports equipment.
The inverter is designed to convert direct current (dc)
to alternating current (ac) to operate equipment that
is normally supplied from a mains power source. This
product is intended for household, consumer use only.
SAFETY INSTRUCTIONS
Warning! When using battery-powered appliances,
basic safety precautions, including the following,
should always be followed to reduce the risk of fire,
leaking batteries, personal injury and material damage.
•Read all of this manual carefully before using the
appliance.
•The intended use is described in this manual.
The use of any accessory or attachment or the
performance of any operation with this appliance
other than those recommended in this instruction
manual may present a risk of personal injury.
•Retain this manual for future reference.
Using your appliance
Always take care when using the appliance.
•This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
•The appliance is not to be used as a toy.
•Use in a dry location only. Do not allow the appliance
to become wet.
•Do not immerse the appliance in water.
•Do not open body casing. There are no user-
serviceable parts inside.
•Do not operate the appliance in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust.
•To reduce the risk of damage to plugs and cords
never pull the cable to remove the plug from a
socket.
•Always have protective eyewear when using this
product: contact with battery acid may cause
blindness and/or severe burns. Be aware of first aid
procedures in case of accidental contact with battery
acid.
•Have plenty of fresh water and soap nearby in case
battery acid contacts skin.
•If battery acid contacts skin or clothing, wash
immediately with soap and water for at least 15
minutes and get medical attention immediately.
•Never smoke or allow a spark or flame in vicinity of
vehicle battery, engine or this unit.
•Remove personal metal items such as rings,
bracelets, necklaces and watches when working with
a lead acid battery. A lead acid battery can produce
a short circuit current high enough to weld a ring, or
similar metal object, to skin, causing a severe burn.
•Place this unit as far away from the battery as cables
permit.
•Never allow battery acid to come in contact with this
unit.
•Do not operate this unit in a closed area or restrict
ventilation in any way.
After use
•When not in use, the appliance should be stored in a
dry, well ventilated place out of the reach of children.
•Children should not have access to stored
appliances.
•When the appliance is stored or transported in a
vehicle it should be placed in the boot or restrained
to prevent movement following sudden changes in
speed or direction.
•The appliance should be protected from direct
sunlight, heat and moisture.
Inspection and repairs
•Before use, check the appliance for damaged or
defective parts. Check for breakage of parts, damage
to switches and any other conditions that may affect
its operation.
•Do not use the appliance if any part is damaged or
defective.
•Have any damaged or defective parts repaired or
replaced by the manufacturer.
•Never attempt to remove or replace any parts other
than those specified in this manual.
The following symbols are marked on
the appliance:
Read all of this instruction manual
carefully.
Reverse polarity indicator.
The unit is intended for indoor use only.
Specific safety instructions for jump
starters
•Vehicles may have electrical and electronic systems
(e.g. engine management system, mobile phone)
that may be damaged if subjected to high starting
voltages and voltage peaks. Before connecting the
appliance to the vehicle read the vehicle’s owner’s
567
10
15 1816 17
13 14
11
9
2
3
4
1
8
12
21
20
19
VG11AU_Manual_091216.indd 2-3 9/12/2016 12:01:18 PM

4 5
manual to confirm that external-starting assistance
is allowed.
•Follow these instructions and those published by
the battery manufacturer, vehicle manufacturer
and manufacturer of any equipment you intend to
use with this unit. Review warning labels on these
products and on the vehicle.
•This appliance is not designed to be used as a
replacement for a vehicular battery. Do not attempt
to operate a vehicle that does not have a battery
installed.
•The appliance must only be connected to a 12V lead-
acid battery. Do not use the appliance for charging
dry-cell batteries that are commonly used with home
appliances. These batteries may burst and cause
injury to persons and damage property.
•Check the polarity of the vehicle battery terminals
before connecting the appliance. Always disconnect
the negative (black) jumper cable first: followed by
the positive (red) jumper cable.
•The jump-starter power switch should be in the off
position before connection to a power source or
load, when the unit is charging and when not in use.
•Never allow the red and black clamps to touch each
other or another common metal conductor. This
could cause damage to the appliance and/or create a
sparking/explosion hazard. Always store the battery
clamps in the built-in holders when not in use.
•When using this unit in proximity to the vehicle’s
battery and engine, stand the unit on a flat, stable
surface, and be sure to keep all clamps, cords,
clothing and body parts away from moving parts of
the vehicle.
•This appliance contains a sealed lead-acid battery. It
is recommended that the appliance is laid flat during
storage, use, and recharging.
•Excessive engine cranking can damage a vehicle’s
starter motor. If the engine fails to start after the
recommended number of attempts, discontinue
jump-start procedures and look for other problems
that may need to be corrected.
•Do not charge the appliance using the 12V DC
charging adapter when the vehicle is occupied.
•Never attempt to use the mains and 12V DC
charging adapter simultaneously.
•Do not use this jump-starter on a watercraft. It is not
qualified for marine applications.
Warning! Burst hazard: Do not use the unit for
charging dry-cell batteries that are commonly used
with home appliances. These batteries may burst
and cause injury to persons and damage property.
Use the unit for charging/boosting a lead-acid battery
only. It is not intended to supply power to a low-
voltage electrical system other than in a starter-motor
application.
Warning! Explosive gas may be vented from lead acid
batteries when charging. The battery must be placed
in a well-ventilated area and you must remove any
sources of ignition when conducting jump starting
procedures.
•To reduce the risk of electric shock, disconnect the
appliance from any power source before attempting
maintenance or cleaning. Turning off controls without
disconnecting the appliance will not reduce this risk.
•Make sure the appliance is disconnected from all
charging power sources before beginning the jump
start procedure.
Additional safety warnings for
compressors
•For home and car use only. Inflate car and bike tyres,
balls, rafts, swimming pool floats, air mattresses,
and more in and around the home.
•Do not operate the compressor continuously
for extended periods of time (approximately 10
minutes, depending on ambient temperatures), as
it may overheat. In this event, the compressor will
automatically shut down. Immediately turn off the
compressor power switch. Restart the compressor
after a cooling down period of approximately 30
minutes.
•The compressed air from your compressor is
not safe for breathing. Never inhale air from your
compressor or from a breathing device connected to
the compressor.
•Inflate items only to their manufacturer’s
recommendations. Exceeding the pressure rating
could cause them to explode resulting in personal
injury.
•Do not leave compressor running unattended. It
could burst tyres or other items.
•Since the vibration produced by the compressor may
cause it to “walk”, do not operate on a high shelf or
other surface. Operate at ground or bench level.
•Do not modify or attempt to repair. Never drill into,
weld, or make any modifications to the compressor
or its attachments.
•Do not operate compressor when the car engine is
running.
•Operate only with the accessories included or those
rated for 8.28 bar/120 p.s.i. or higher. The use of any
accessory not recommended for use with this tool
could be hazardous.
•Do not play with the tool. High pressure air is
dangerous. Don’t direct air-flow at yourself or others.
•The compressor can become hot during use. Allow
compressor to cool for 30 minutes before storing
away.
•Never carry the compressor by the hose.
•This tool is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety. Children should
be supervised to ensure that they do not play with
the appliance.
Specific safety instructions for power
inverters
Warning! This appliance converts power from 12V
DC battery to 230-240V AC mains supply voltage. Take
precautions, including the following, to avoid the risk
of electric shock.
•Always turn the inverter off when not in use.
•Only connect a plug fitted to the supply cord of an
appliance to the inverter.
•Never connect an appliance by modifying the plug or
by using an adapter.
•Never connect an appliance that is damaged or
incomplete.
•Never connect the inverter to the output of another
inverter.
•Remove the appliance plug from the inverter before
performing any maintenance or before cleaning the
appliance.
•Do not cover the inverter. Only use in well ventilated
areas.
•Do not open the inverter, there are no serviceable
parts inside. Do not probe the inverter.
•Check that connections to the DC supply are clean
and secure. Loose connectors may cause overheated
wires and melted insulation.
•Do not install in engine compartments.
•Do not use the inverter to supply any medical
devices.
Warning! Rechargeable devices: Some
rechargeable devices do not operate well from a
modified sine wave inverter. They only operate
correctly from a standard household outlet
which provides a pure sine wave. Therefore, the
manufacturer recommends that you operate these
types of devices from a standard household outlet
only, not from the inverter.
This problem does not occur with the majority of
battery-operated equipment. Most of these devices use
a separate charger or transformer that is plugged into
an AC mains socket. The inverter is easily capable of
running most chargers and transformers.
Caution! Incompatible products: Certain products
contain power supplies or circuits that are not
compatible with an inverter using a modified sine wave
output (such as this inverter) and may be damaged by
using this inverter.
Some products must be powered from a pure sine
wave power source, such as standard household
power, or a “pure sine wave” inverter in order to
function properly. If your product requires pure
sine wave AC input power to function properly, the
instruction manual for your product could state
this. If in doubt, you should contact your product
manufacturer PRIOR TO USE.
Your product could be damaged by this inverter if it
contains:
•Microwave ovens
•Transformerless battery chargers
•Capacitive coupled power supplies
If an incompatible product is used with this inverter:
•The product might not operate at all, with no
indication of failure. The product fuse might open as
a result of trying to use it with the inverter.
•The product might exhibit unusual operation (such
as, intermittent operation, buzzing, and the like.)
Some USB-powered household electronics may not
operate with this USB socket. Check the manual of the
corresponding electronic device to confirm that it can
be used with this type of USB socket.
Warning! This appliance will not operate high wattage
appliances or equipment that produce heat, such as
coffee makers, hair dryers, microwave ovens, and
toasters.
Note: Some laptop computers may not operate with
this inverter.
RATED VERSUS ACTUAL POWER REQUIREMENTS
OF EQUIPMENT
Most electrical tools, appliances and audio/video
equipment have labels that indicate the power
consumption in amps or watts. Be sure that the power
consumption of the item you wish to operate is rated
at 200 watts or less.
The power inverter is fitted with overload protection
and will shutdown if a load in excess of 200 W is
applied. Resistive loads (i.e incandescent lights) are
the easiest for the power inverter to run.
Additional safety instructions for
batteries and chargers
BATTERIES
•Never attempt to open for any reason.
•Do not expose the battery to water.
•Do not store in locations where the temperature may
exceed 40°C.
•Charge only at ambient temperatures between 4°C
and 40°C.
•Charge only using the chargers provided with the
appliance.
•When disposing of batteries, follow the instructions
given in the section “Protecting the environment”.
VG11AU_Manual_091216.indd 4-5 9/12/2016 12:01:18 PM

6 7
•Under extreme conditions, battery leakage may
occur. When you notice liquid on the batteries,
carefully wipe the liquid off using a cloth. Avoid skin
contact.
CHARGERS
The following symbols are found on your mains
charger:
Your charger is double
insulated; therefore no earth
wire is required.
Your charger is a switch mode
power supply unit.
Your charger incorporates
a short-circuit-proof safety
isolating transformer
(inherently or non-inherently)
Indication of correct connection
of your charger.
The charger is intended for
indoor use only.
Your charger meets the Energy
Efficiency Level V standard
for no-load condition electric
power consumption and
average active efficiency of
external power supplies.
Your charger is rated to IP20
degree of protection provided
by the enclosure.
Your charger has been designed for a specific voltage.
Always check that the mains voltage corresponds to
the voltage on the rating plate.
Warning! Never attempt to replace the charger unit
with a regular mains plug.
Use your Black & Decker charger only to charge the
battery in the tool with which it was supplied. Other
batteries could burst, causing personal injury and
damage.
•Never attempt to charge non-rechargeable batteries.
•Have defective cords replaced immediately.
•Do not expose the charger to water.
•Do not open the charger.
•Do not probe the charger.
•The battery must be placed in a well ventilated area
when charging.
Electrical safety
Always check that the power supply corresponds to
the voltage on the rating plate.
•The supply cord cannot be replaced. If the cord is
damaged the appliance should be scrapped.
PERSONAL SAFETY
Always have protective eyewear when using this
product: contact with battery acid may cause
blindness and/or severe burns. Be aware of first aid
procedures in case of accidental contact with battery
acid.
Avoid touching the eyes while working with a battery.
Acid, acid particles or corrosion may get into the eyes.
Have plenty of fresh water and soap nearby in case
battery acid contacts skin.
Remove personal metal items such as rings, bracelets,
necklaces and watches when working with a lead-acid
battery. A lead-acid battery can produce a short circuit
current high enough to cause a severe burn.
Be extra cautious to reduce the risk of dropping a
metal object onto the battery. This might cause sparks
or short-circuit the battery or other electrical part,
which can cause an explosion.
Warning! Battery fluid is a diluted sulphuric acid and
may cause personal injury or damage to property. In
case of skin or eye contact, follow the instructions
below.
•In case of skin contact, immediately rinse with water.
If redness, pain or irritation occurs seek medical
attention.
•In case of eye contact, rinse immediately with clean
water and seek immediate medical attention.
FEATURES
1. Mains socket
2. USB power button
3. USB power port (under protective cover)
4. 12V DC accessory socket (under protective cover)
5. USB power indicator
6. Battery status LED indicators
7. Reverse polarity indicator
8. Jump-starter on/off switch
9. Pivoting LED area light power switch
10. Pivoting LED area light
11. Battery power level button
12. Inverter power indicator & inverter power switch
13. Charging socket
14. Air pressure gauge
15. Positive (+) red clamp
16. Air hose and SureFit™ nozzle connector
17. Compressor power switch
18. Negative (–) black clamp
19. DC charging adapter (optional accessory)
20. Nozzle adapter
21. Mains charging adapter
USE
Charging the unit
This unit is shipped in a partially charged state.
•Charge the unit before first use using the mains
charging adapter for 40 hours.
Lead-acid batteries require routine maintenance
to ensure a full charge and a long battery life. All
batteries lose energy from self-discharge over time
and more rapidly at higher temperatures. When the
unit is not in use, Black & Decker recommend that the
battery is charged at least every 30 days.
•Check the battery charge level by pressing the
battery status pushbutton. The LED charge status
display will indicate the level of battery charge. When
only one red LED lights, charge the unit.
•Make sure all other unit functions are turned off
during recharging, as this can slow the recharging
process.
Note: Charging the battery after each use will prolong the battery
life; frequent heavy discharges between charges and/or
overcharging will reduce battery life.
Important! When the battery is overly discharged and
if the green LED is lit when the charger is plugged in,
this indicates the battery is at a high impedance stage.
In this event, recharge the unit and leave the unit
charging for a period of 24-48 hours before use.
CHARGING THE UNIT USING THE MAINS
CHARGING ADAPTER
•Insert the jack of the mains charging adapter into the
charging socket on the back of the unit.
•Insert the appropriate mains charging adapter plug
into a mains power socket.
•Charge until two red and one green (full) battery
status LEDs light or flash.
•Continue to charge for one to two more hours.
•Once fully charged disconnect the Mains charging
adapter from the mains power socket and then
remove the jack plug of Mains charging adapter from
the charging socket on the back of the unit. Store it
in a safe place.
CHARGING THE UNIT USING THE DC CHARGING
ADAPTER (OPTIONAL ACCESSORY)
Charging the unit from an external 12 volt DC power
source requires the use of the 12V DC charging
adapter. This adapter has a male DC connector at each
end.
•Insert the gold-tipped plug of the 12V DC charging
adapter into the accessory socket socket of your
vehicle or other 12V DC power source.
•Insert the silver-tipped plug into the 12V DC
accessory socket on the front panel of the unit.
•Charge the unit until the green (full) battery status
LED lights when the battery power level button is
pressed (AFTER unplugging the adapter from the
unit).
•When charging is complete, disconnect the 12V DC
charging adapter and store it in a safe place.
Note: Some vehicles require that the ignition be switched to the
accessory socket position in order to power the accessory
socket.
Caution! To reduce the risk of property damage:
•Recharge using this method only when necessary.
Frequent use the the 12 volt DC charging method
may shorten battery life.
•Do not charge for longer than 6 hours maximum
using this method and do not leave the unit
unattended when charging using this method.
•Never connect the 12V DC charging adapter to a
positive grounded vehicle.
•The 12V DC charging adapter must only be
connected to batteries with a nominal output voltage
of 12 volts. The unit will not operate from a 6
volt battery and will sustain permanent damage if
connected to a 24 volt battery.
Using the unit as a jump-starter
Warning! Make sure that the vehicle is in neutral with
the parking brake applied.
Warning! Make sure that the cables are not in the
path of moving belts or the fan.
1. Turn off the vehicle’s ignition and all accessories
before making any connections.
2. Make sure that the jump-starter power switch is
turned off.
3. Check polarity of battery posts. Positive (POS, P,
+) battery post usually has larger diameter than
negative (NEG, N, –) post.
4. Determine which post of the battery is grounded
(connected to the chassis). If negative post is
grounded (as in most vehicles), see 5. If positive
post is grounded, see 6.
5. For negative-grounded vehicle, connect positive
(red) clamp from battery charger to positive
(POS, P, +) ungrounded post of battery. Connect
negative (black) clamp to vehicle chassis or
engine block away from battery. Do not connect
clip to carburetor, fuel lines, or sheet-metal body
parts. Connect to heavy gauge metal part of the
frame or engine block.
6. For positive-grounded vehicle, connect negative
(black) clamp from battery charger to negative
(NEG, N, –) ungrounded post of battery. Connect
positive (red) clamp to vehicle chassis or engine
block away from battery. Do-not connect clip to
carburetor, fuel lines or sheet-metal body parts.
Connect to a heavy gauge metal part of the frame
or engine block.
VG11AU_Manual_091216.indd 6-7 9/12/2016 12:01:18 PM

8 9
1. Disconnect all appliances from the unit.
2. Press the inverter power switch to turn the
inverter off.
3. Allow the unit to cool down for several minutes.
4. Make sure the wattage of all equipment
simultaneously plugged into the USB and mains
sockets does not exceed 200 watts continuous
and that appliance cord(s) and plug(s) are not
damaged.
5. Make sure there is adequate ventilation around the
unit before proceeding.
Using the USB socket
1. Push the USB power button to turn the USB port
on. The USB power indicator will light.
2. Lift up the cover of the USB socket.
3. Plug the USB-powered device into the USB socket
and operate normally.
Periodically check the unit’s battery status by pressing
the battery power level button
Notes: This unit’s USB socket does not support data
communication. It only provides 5 volts/2A DC power to an
external USB-powered device.
Some household USB-powered electronics will not operate
with this unit.
Make sure the USB power button is in the off position when
the unit is being recharged or stored.
Using the 12 volt DC power socket
This portable power source is also for use with all 12
volt DC accessories equipped with a male accessory
socket plug and are rated up to 5 amps.
1. Lift up the cover of the unit ‘s 12V DC socket.
2. Insert the 12 volt DC plug from the appliance into
the 12V DC accessory socket on the unit. DO NOT
EXCEED A 5 AMP LOAD.
3. Switch on the appliance and operate as usual.
Periodically press the battery power level button to
check battery status.
TROUBLESHOOTING
Problem Solution
Unit will not
charge
•Make sure all of the unit’s
functions are turned off.
•Make sure the jack of the mains
charging adapter is properly
connected to both the unit and a
functioning mains power socket.
Unit fails to
jump-start
•Make sure unit’s power switch is in
the on position.
•Check that the unit has a full
charge. Recharge the unit if
necessary.
•Make sure a proper polarity cable
connection has been established.
Problem Solution
LED Area
Light does
not come on
• Make sure the LED area light
power switch is turned on.
• Check that unit has a full charge.
Recharge the unit if necessary.
Portable
compressor
will not
inflate
•Make sure the compressor power
switch is in the on position.
•Make sure the SureFit™ nozzle
connector is securely screwed on
to the valve stem when attempting
to inflate tires; or that the nozzle
adapter is securely screwed into
the SureFit™ nozzle connector
and is inserted properly into the
item to be inflated on all other
inflatables.
•The compressor may be
overheated. Press the compressor
power switch to turn the
compressor off. Restart after
a cooling down period of
approximately 30 minutes.
•Check that the unit has a full
charge. Recharge the unit if
necessary.
Mains
outlet will
not power
appliance
•Make sure the inverter power
switch is switched on.
•Make sure the appliance being
powered does not draw more than
200 watts.
•Make sure you have followed all
the steps in the mains portable
power supply instructions
carefully. Refer to the important
notes included in that section that
explain common problems and
solutions.
• Check that unit has a full charge.
Recharge the unit if necessary.
USB port will
not power
appliance
•Make sure the USB charging port
power button is in the on position.
•Make sure the the appliance does
not draw more than 2 amps.
•Some USB-powered household
electronics will not operate
with this USB charging/power
port. Check the manual of the
corresponding electronic device to
confirm that it can be used with
this type of USB charging/power
port.
•Check that unit has a full charge.
Recharge unit if necessary.
Important! If the connections to the battery’s
positive and negative terminals are incorrect, the
Reverse Polarity Indicator will light and the unit
will sound a continuous alarm until the clamps
are disconnected. Disconnect clamps and
reconnect to battery with correct polarity.
7. Turn the jump-starter power switch to the on
position.
8. Start the vehicle and crank the engine in 3 to 6
second bursts.
Important! If the engine doesn’t start within 6
seconds let the units internal battery cool for 3
minutes before making another attempt.
9. When the vehicle starts, turn the jump-starter on/
off switch to the off position.
10. Leave the vehicle’s engine running.
11. Disconnect the clamp connected to the engine
block or chassis first, followed by the clamp that
is connected to the positive (+) battery terminal.
Recharge this unit fully after each use.
Using the pivoting LED area light
The pivoting area light is controlled by the area light
power switch on top of the light. Make sure the area
light is turned off when the unit is being recharged or
stored.
Periodically press the battery power level button to
check battery status.
Using the portable compressor
The built-in 12 volt DC compressor is the ultimate
compressor for all vehicle tyres, trailer tyres and
recreational inflatables. The compressor can operate
long enough to fill up to 3 average sized tyres before
the battery must be recharged.
INFLATING TYRES OR PRODUCTS WITH VALVE
STEMS
1. Screw the SureFit™ nozzle onto the valve stem.
Do not overtighten.
2. Turn on the compressor power switch.
3. Check pressure with the pressure gauge.
4. When desired pressure is reached, turn off the
compressor power switch.
5. Unscrew and remove the SureFit™ nozzle from
the valve stem.
6. Allow the unit to cool, then recharge before
storing away.
7. Store the compressor hose and SureFit™ nozzle in
the storage compartment.
INFLATING OTHER INFLATABLES WITHOUT
VALVE STEMS
Inflation of other items requires use of the nozzle
adapter.
1. Screw the adapter into the SureFit™ nozzle. Do
not overtighten.
2. Insert the adapter into item to be inflated.
3. Turn on the compressor power switch — inflate
to desired pressure or fullness.
Important! Small items such as volleyballs,
footballs, etc. inflate very rapidly. Do not over-
inflate.
4. When desired pressure is reached, turn off the
compressor power switch.
5. Disconnect the adapter from the inflated item.
6. Unscrew and remove the adapter from the
SureFit™ nozzle.
7. Allow the unit to cool, then recharge before
storing away.
8. Store the compressor hose, SureFit™ nozzle and
adapter in the storage compartment.
Recharge this unit fully after each use.
Using the mains socket
•Press the inverter power switch to turn the inverter
on. The inverter power indicator will light red to
indicate the mains socket is ready to use.
•Simply plug the 230-240 volt AC appliance into the
unit’s mains socket and operate normally.
•Periodically check the unit’s battery status by
pressing the battery power level button. Two red
and one green battery status indicators will light to
indicate a full battery. If only one red battery status
indicator lights it indicates that the unit needs to be
recharged.
Note: The unit’s mains socket may not operate appliances and
equipment that generate heat, such as hair dryers, electric
blankets, microwave ovens and toasters.
Some laptop computers may not operate with the unit’s
mains socket.
PROTECTIVE FEATURES
The inverter monitors the following conditions:
Low internal battery voltage: The inverter will
automatically shut down when the battery voltage
drops too low, as this can harm the battery.
High internal battery voltage: The inverter will
automatically shut down when the battery voltage is
too high, as this can harm the unit.
Thermal shutdown protection: The inverter will
automatically shut down when the unit becomes
overheated.
Overload/short circuit protection: The inverter will
automatically shut down when an overload or short
circuit occurs.
Important Notes: The inverter power indicator
will flash red to indicate that one of the above fault
conditions is present before automatic shutdown
occurs. Should this occur, take the following steps:
VG11AU_Manual_091216.indd 8-9 9/12/2016 12:01:18 PM

10 11
Baccus Worldwide LLC is confident of the quality of
its products and offers an outstanding warranty. This
warranty statement is in addition to and in no way
prejudices your statutory rights under the Australian &
New Zealand Consumer Law.
If a Baccus Worldwide LLC product becomes
defective due to faulty materials, workmanship or
lack of conformity, within 24 months from the date
of purchase, Baccus Worldwide LLC guarantees to
replace defective parts, repair products subjected to
fair wear and tear or replace such products to make
sure of the minimum inconvenience to the customer
unless:
•The product has been used for trade, professional or
hire purposes;
•The product has been subjected to misuse or
neglect;
•The product has sustained damage through foreign
objects, substances or accidents;
•Repairs have been attempted by persons other than
Baccus Worldwide LLC service staff.
To claim on this warranty, you will need to submit
proof of purchase and return the allegedly defective
product to Baccus Worldwide LLC’s local market
distributor, at your expense.
Please visit our website www.baccusworldwide.com
to register your new Baccus Worldwide LLC product
and to be kept up to date on new products and special
offers. Further information on the Baccus Worldwide
LLC brand and our range of products is available at
www.baccusworldwide.com.
Distributed by: Directed Electronics
Address: 44 Translink Drive, Keilor Park Victoria Australia 3042
PH: + 61 03 8331 4800 Email: [email protected]
Baccus Worldwide LLC
Weena 290, 3012 NJ Rotterdam or
Postbus 819, 3000 AV Rotterdam
[phone]
Problem Solution
12V DC
accessory
outlet will
not power
appliance
•Make sure the the appliance does
not draw more than 5 amps.
•Check that unit has a full charge.
Recharge unit if necessary.
If the unit does not charge or operate after following
the above directions, contact the manufacturer.
MAINTENANCE
Your Black & Decker tool has been designed to
operate over a long period of time with a minimum
of maintenance. Continuous satisfactory operation
depends upon proper tool care and regular cleaning.
Warning! Before performing any maintenance or
cleaning of the tool, unplug the unit from the power
supply.
•From time to time wipe the appliance with a damp
cloth. Do not use any abrasive or solvent-based
cleaner. Do not immerse the appliance in water.
•Clean the outside case of the battery charger with a
soft cloth and, if necessary, mild soap solution.
•Do not allow liquid to enter the battery charger. Do
not operate when the battery charger is wet.
•Keep the battery charger cords loosely coiled during
storage to prevent damage to the cords.
Replacing the fuse in the 12V DC
charging adapter (optional accessory)
1. Remove the cap by turning it counterclockwise.
2. Remove the centre pin and the spring.
3. Remove the fuse.
4. Install a new fuse of the same type and size (8A).
5. Replace the centre pin and spring.
6. Secure the cap by turning it clockwise onto the
plug. Do not overtighten.
7. Test for proper operation of the 12V DC charging
adapter.
PROTECTING THE ENVIRONMENT
Correct disposal of this product
This marking indicates that this product
should not be disposed with other
household waste throughout the EU. To
prevent possible harm to the environment
or human health from uncontrolled
waste disposal, recycle it responsibly to promote the
sustainable reuse of material resources. To return
your used device, please use the return and collection
systems or contact the retailer where the product
was purchased. They can take this product for
environmentally safe recycling.
Separate collection of used products and packaging
allows materials to be recycled and used again.
Re-use of recycled materials helps prevent
environmental pollution and reduces the
demand for raw materials.
Local regulations may provide for separate collection
of electrical products from the household, at municipal
waste sites or by the retailer when you purchase a
new product.
Lead acid batteries can be recharged many times. At
the end of their useful life, discard batteries with due
care for our environment:
•Do not dispose of the battery in fire, as this may
result in an explosion.
•Lead acid (Pb) batteries are recyclable. They
must not be disposed of with household waste.
The battery must be removed and disposed of in
accordance with local regulations.
•Do not short-circuit the battery terminals.
•Be aware that the battery is heavy.
•If possible, operate the appliance to run the battery
down completely.
•Place the battery in a suitable packaging to ensure
that the terminals cannot be short-circuited.
TECHNICAL DATA
Boost ampere 12V DC, 500A
instantaneous
Battery type Maintenance-free, sealed
lead acid, 12V DC, 19Ah
Area Light 1 long-life white LED
USB socket 5V DC, 2A
Dc accessory socket 12V DC, 5A
Maximum AC output 230-240V ac, 50Hz,
200W continuous
Output waveform Modified sine wave
Compressor
Pressure (max.) bar/p.s.i 8.27/120
Mains charging adapter
Input: 100-240V AC, 50/60Hz
Output: 14,5V DC, 750mA
12V DC charging adapter
(optional accessory) 12V DC
WARRANTY
Our goods come with guarantees that cannot be
excluded under the Australian & New Zealand
Consumer Law. You are entitled to a replacement
or refund for a major failure and compensation
for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of
acceptable quality and the failure does not
amount to a major failure.
VG11AU_Manual_091216.indd 10-11 9/12/2016 12:01:19 PM
