INSTALLATION MANUAL
MODEL #BD201097
WHEEL KIT
REV 20210429 Mid-States Distributing, LLC., 2800 Meacham Blvd., Fort Worth, TX 76137 USA
or visit black-diamond.com

2
INTRODUCTION
SAFETY DEFINITIONS
The purpose of safety symbols is to attract your attention to
possible dangers. The safety symbols, and their explanations,
deserve your careful attention and understanding. The safety
warnings do not by themselves eliminate any danger. The
instructions or warnings they give are not substitutes for proper
accident prevention measures.
DANGER
DANGER indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE
NOTICE indicates information considered important, but not
hazard-related (e.g., messages relating to property damage).
Congratulations on your purchase of a Black Diamond product.
Black Diamond designs, builds, and supports all of our products
to strict specifications and guidelines. With proper product
knowledge, safe use, and regular maintenance, this product
should bring years of satisfying service.
Every effort has been made to ensure the accuracy and
completeness of the information in this manual at the time of
publication, and we reserve the right to change, alter and/or
improve the product and this document at any time without prior
notice.
Black Diamond highly values how our products are designed,
manufactured, operated, and serviced as well as providing safety
to the operator and those around the generator. Therefore, it is
IMPORTANT to review this product manual and other product
materials thoroughly and be fully aware and knowledgeable of
the assembly, operation, dangers and maintenance of the product
before use. Fully familiarize yourself, and make sure others who
plan on operating the product fully familiarize themselves too,
with the proper safety and operation procedures before each use.
Please always exercise common sense and always err on the
side of caution when operating the product to ensure no accident,
property damage, or injury occurs. We want you to continue to
use and be satisfied with your Black Diamond product for years to
come.
When contacting Black Diamond/Champion Power Equipment
about parts and/or service, you will need to supply the complete
model and serial numbers of your product. Transcribe the
information found on your product’s dataplate label to the table
below.
BLACK DIAMOND TECHNICAL SUPPORT TEAM
1-888-373-8272
MODEL NUMBER
BD201097
SERIAL NUMBER
DATE OF PURCHASE
PURCHASE LOCATION

3
CONTROLS AND FEATURES
CAUTION
The wheel kit is not intended for over-the-road use.

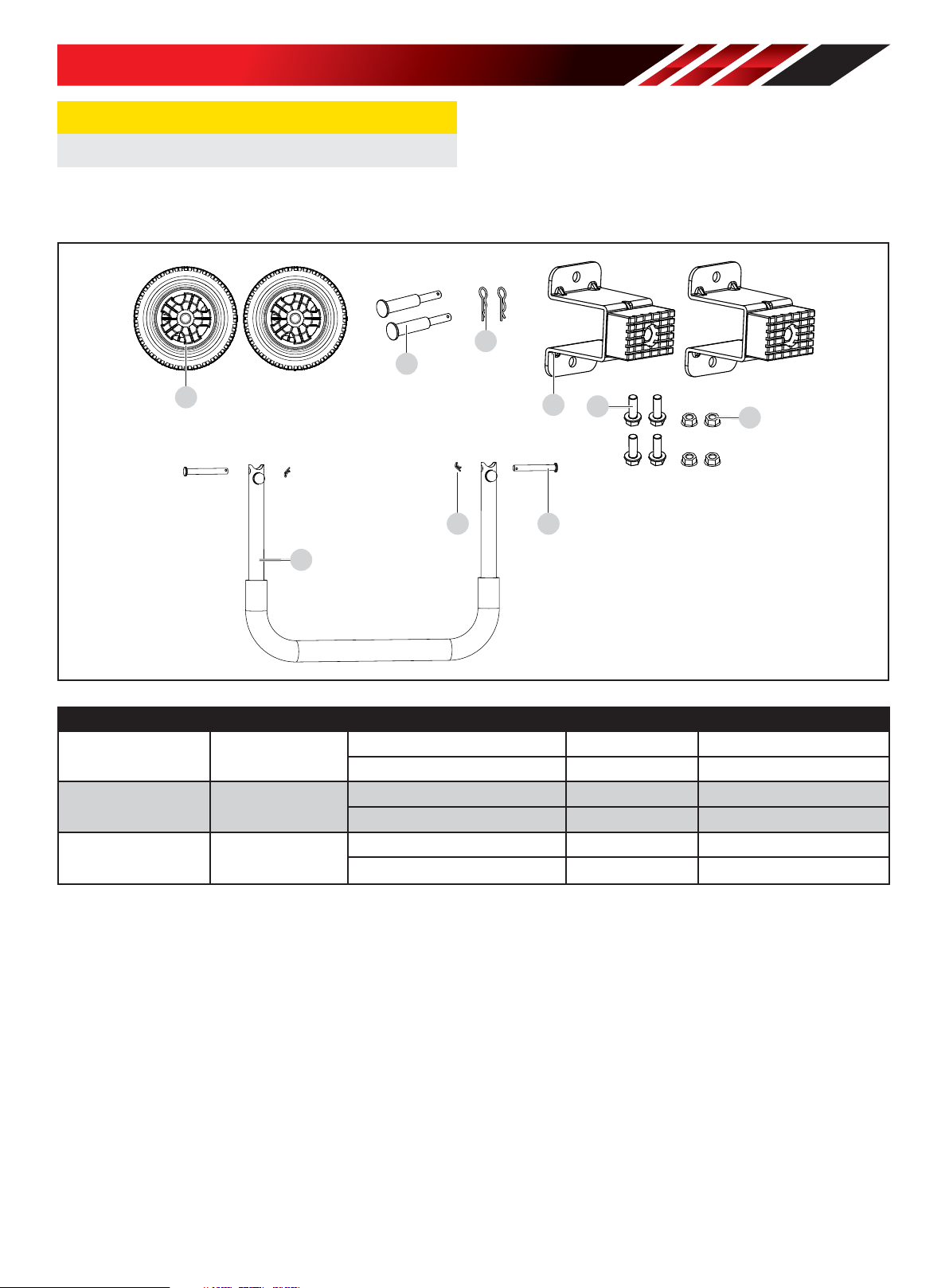

Parts Included
A
B
C
DEF
G
H I
Part Part Qty. Hardware Hardware Qty. Tool(s) Needed
A. Wheels 2B. Large Roll Pin 2
C. Large “R” Clip 2
D. Support Leg 2E. Flange Bolt M8 x 16 41x 12mm wrench
F. Flange Lock Nut M8 41x 12mm wrench
G. Handle 1H. Small “R” Clip 2
I. Small Roll Pin 2

4
ASSEMBLY
Your wheel kit requires assembly. For questions regarding the
assembly of your wheel kit, call our help line at 1-888-373-8272.
Please have your model number available.
NOTICE
Drain oil and fuel before assembly. Failure to drain before
assembly can result in oil and fuel leaking onto the generator
and ground. Oil and fuel will also drain into the carburetor and
engine requiring disassemble to clean out.
Install Wheels
1. Tip generator up onto non-marring surface with panel side
up.
2. Insert Large Roll Pin (B) through Wheel (A) from the outside.
3. Insert the Large Roll Pin through the wheel bracket on the
generator frame.
4. Insert Large R-clip (C) into hole on the end of Large Roll Pin.
5. Repeat for second wheel.
6. Tip generator back down.
A
CB
Install the Support Leg
1. Tip generator up onto non-marring surface with alternator/
muffler side up.
2. Attach Support Leg (D) to generator frame with Flange Bolt
(E) and Flange Lock Nut (F).
3. Tip generator back down so resting on wheels and support
legs.
D
F
E
Install the Handle
1. Place Handle (G) inside the handle mounting brackets on the
frame.
2. Insert Small Roll Pin (H) into hole on frame and through
Handle and handle mounting bracket.
3. Insert Small R-clip (I) into hole on the end of Small Roll Pin
(H).
4. Repeat on other side.
G
H
I

5
ASSEMBLY
Add Engine Oil
See Operator’s Manual for filling engine with oil.
Add Fuel
See Operator’s Manual for filling engine with fuel.
NOTICE
Not refilling engine oil after wheel kit assembled will damage
the engine and void the warranty.

6

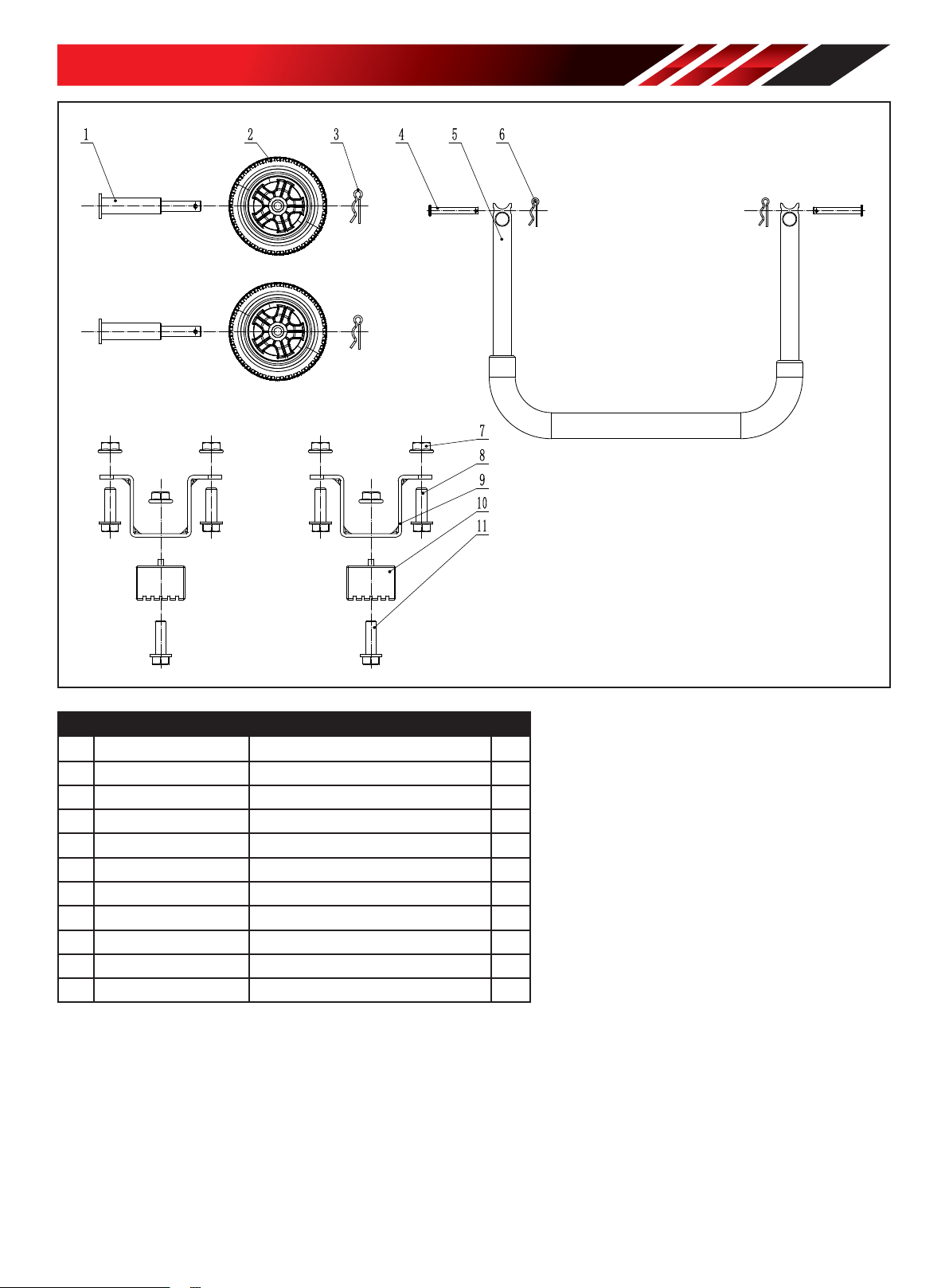

PARTS DIAGRAM
1 2 3 4 5 6
7
8
9
1 0
1 1
#Part Number Description Qty.
1122.201501.23.1 Pin Roll, Wheel, Ø16 x Ø10 x 97, Black 2
2122.201701.07.29 8 in. Wheel, PU, Cool Gray 11c 2
32.16.001.1 Pin Ø2 x 33, "R" Shape , Black 2
4152.200703.05 Long Pin, Handle 2
5122.200700.15.2 Handle, U Shape , Black 1
611.110008.00 Pin Ø1.6 x 24, "R" Shape 2
71.6177.1.08 Lock Nut M8, Flange 6
81.5789.0816 Flange Bolt M8 x 16 4
9122.200002.08.2 Support Leg, 45 mm , Black 2
10 122.201400.04 Rubber, Support 2
11 1.5789.0825 Flange Bolt M8 x 25 2

7
WARRANTY
CHAMPION POWER EQUIPMENT
1 YEAR LIMITED WARRANTY
Warranty Qualifications
To register your product for warranty and FREE lifetime call center
technical support please visit:
https://www.championpowerequipment.com/register
To complete registration you will need to include a copy of the
purchase receipt as proof of original purchase. Proof of purchase
is required for warranty service. Please register within ten (10)
days from date of purchase.
Repair/Replacement Warranty
CPE warrants to the original purchaser that the mechanical and
electrical components will be free of defects in material and
workmanship for a period of one year (parts and labor) from
the original date of purchase and 90 days (parts and labor) for
commercial and industrial use. Transportation charges on product
submitted for repair or replacement under this warranty are the
sole responsibility of the purchaser. This warranty only applies to
the original purchaser and is not transferable.
Do Not Return The Unit To The Place Of
Purchase
Contact CPE’s Technical Service and CPE will troubleshoot any
issue via phone or e-mail. If the problem is not corrected by
this method, CPE will, at its option, authorize evaluation, repair
or replacement of the defective part or component at a CPE
Service Center. CPE will provide you with a case number for
warranty service. Please keep it for future reference. Repairs or
replacements without prior authorization, or at an unauthorized
repair facility, will not be covered by this warranty.
Warranty Exclusions
This warranty does not cover the following repairs and equipment:
Normal Wear
Products with mechanical and electrical components need
periodic parts and service to perform well. This warranty does not
cover repair when normal use has exhausted the life of a part or
the equipment as a whole.
Installation, Use and Maintenance
This warranty will not apply to parts and/or labor if the product is
deemed to have been misused, neglected, involved in an accident,
abused, loaded beyond the product’s limits, modified, installed
improperly or connected incorrectly to any electrical component.
Normal maintenance is not covered by this warranty and is not
required to be performed at a facility or by a person authorized by
CPE.
Other Exclusions
This warranty excludes:
–Cosmetic defects such as paint, decals, etc.
–Wear items such as filter elements, o-rings, etc.
–Accessory parts such as starting batteries, and storage
covers.
–Failures due to acts of God and other force majeure events
beyond the manufacturer’s control.
–Problems caused by parts that are not original Champion
Power Equipment parts.
Limits of Implied Warranty and
Consequential Damage
Champion Power Equipment disclaims any obligation to cover
any loss of time, use of this product, freight, or any incidental
or consequential claim by anyone from using this product. THIS
WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE.
A unit provided as an exchange will be subject to the warranty
of the original unit. The length of the warranty governing the
exchanged unit will remain calculated by reference to the purchase
date of the original unit.
This warranty gives you certain legal rights which may change
from state to state or province to province. Your state or province
may also have other rights you may be entitled to that are not
listed within this warranty.
Contact Information
Address
Mid-States Distributing, LLC.
2800 Meacham Blvd.
Fort Worth, TX 76137 USA
www.black-diamond.com
Customer Service
Toll Free: 1-888-373-8272
[e-mail]
