Black Widow BW 3750 User manual

1
Standard Features:
Two 5-Button RemoteTransmitters
Status indicator (LED)
Valet / override switch
Multi-tone siren
Dual stage impact sensor
Remote panic
Remote chirp mute
Remote sensor bypass
Passive or active arming
Optional Features:
Flashing parking lights
Starter disable
Keyless entry
Remote trunk or hatch release
Illuminated entry
Hood and trunk protection
Remote auto start
Power window roll up
Glass break sensor
Microwave sensor
Note: Some features may require additional
parts and labor,and may not be appropriate for
certain vehicles.Consult your authorized dealer.
System Operation
ARMING OPERATION
To arm the system press transmitter button 1:
• The siren will chirp once.
• The parking lights will flash once.*
• The doors will lock.*
• The LED will turn solid for 10 seconds
then start flashing slowly. After 10
seconds the system is armed.
After Arming, if the system detects a bad
sensor or an open zone, the siren will chirp
and the parking lights will flash 4 times to
indicate a zone is open. The system will
ignore that input, but keep all other areas
protected.
WhileArmed,the system will trigger if:
• The doors are opened.
• The shock sensor detects an impact.
• An optional sensor is disturbed.
• The hood or trunk is opened.
When triggered by the door or hood/trunk
input the siren will sound, the horn will
honk, and the parking lights will flash for 45
seconds. If triggered by a sensor, the alarm
cycle will last 30 seconds.
If the same input triggers the system 3 times
during a single arming cycle, the system will
bypass that input, keeping the other zones
protected, until the next time the system is
armed.
If the shock sensor detects a light impact to
the vehicle or an optional sensor is
disturbed, the system will chirp and the
parking lights will flash 5 times to warn away
the potential intruder.
*Optional Feature
6R / 5-BUTTON SERIES
VEHICLE SECURITY SYSTEM
Button 1Button 2
Button 5
Button 3Button 4
BW3750 new size.qxd 4/14/2004 9:09 AM Page 1

2
PASSIVE ARMING
The passive arming feature allows the system
to automatically arm after closing all doors.
The Passive Arming feature requires the
ignition to have been on for at least 10
seconds prior to exiting the vehicle. This
enables the key to be turned on then off
quickly to avoid passive arming in the event
of refueling, washing the vehicle, etc. The
Passive Arming feature may be enabled during
installation.
To arm the system passively:
1. Turn the ignition key off (make sure
ignition was on for at least 10 seconds).
2. Exit the vehicle and close all doors.
• The LED flashes rapidly indicating that
the system is preparing to arm. (The
system can be armed at any time by
pressing transmitter button 1.)
• If the optional countdown feature is
programmed, the siren will chirp
every 2 seconds until armed.
• The siren will chirp 30 seconds after
the last door is closed to indicate the
system is armed.NOTE:Opening the
hood/trunk or a door resets the
passive arming timer.
• The doors will lock.†*
†If Passive Locking was enabled during installation.
DISARMING OPERATION
To disarm the system press transmitter
button 2.
• The siren will chirp twice.
• The parking lights will flash twice.*
• The doors will unlock.†*
• The dome light will turn on for 30
seconds.*
†If the Passenger Unlock Feature is installed,
pressing the unlock button will unlock only the
driver's door. Pressing the unlock button again
unlocks all doors.
TAMPER ALERT
If the alarm was triggered while away from
the vehicle, the siren will chirp 3 times and
the parking lights will flash 3 times on
disarming for tamper indication. After
disarming the alarm, enter vehicle and turn
ignition on.The LED will flash the zone that
was triggered 3 times (see LED TAMPER
ALERT INDICATIONS).
AUTO REARM
TheAuto Rearm feature allows the system
to automatically re-arm itself and lock the
doors* in the event the system is disarmed
and a door is not opened within 30
seconds. This programmable feature may
be enabled during installation.
SILENT ARMING/DISARMING
Press transmitter button 5 (the Shift
Button) then theArm or Disarm button for
one-time silent operation.The system can
also be programmed for full-time silent
operation during installation.
IGNITION LOCK*
The ignition locking feature automatically
locks the doors 5 seconds after the ignition
key is turned on, and automatically unlocks
when the ignition key is turned off. To avoid
locking keys in the vehicle, the ignition
locking feature will be cancelled if a door is
open when the ignition is turned on. This
feature may be disabled during installation.
*Optional feature
REMOTE PANIC
In the event of an emergency (PANIC)
situation, the system’s siren can be triggered
for 30 seconds to attract attention.To activate
the Panic Feature, press transmitter button 1
for 3 seconds:
BW3750 new size.qxd 4/14/2004 9:09 AM Page 2

3
• The siren will sound.
• The parking lights will flash*.
Press button 1 to exit panic mode and rearm
the system. Press button 2 to exit panic
mode and disarm the system. The Panic
Feature will not operate when the ignition is
on.
EMERGENCY OVERRIDE
If the transmitter becomes lost or fails to
operate, the system can be disarmed by
using the emergency override feature.
To override the system:
1. Enter the vehicle.
• Because the system is armed, the
siren will sound.
2. Turn on the ignition key.
3. Press theValet switch for 3 seconds.
• The siren will stop sounding.
• The starter defeat will be bypassed.
• The system will enter valet mode.
VALET MODE
When the system is placed into the Valet
Mode the security system will be disabled.
However, the optional keyless entry and
auxiliary features will still function if
installed. The valet feature may be accessed
using the valet switch or using the remote
transmitter.
To enter or exit valet mode using the switch:
1. Be sure the system is disarmed.
2. Turn the ignition key on.
3. Press and hold the valet switch for 3
seconds.
• The siren will chirp once to enter
valet or twice for exit.
• The LED will turn on solid indicating
the system is in valet mode, or turn
off indicating valet mode exit.
To enter or exit valet mode using the
remote:
1. Be sure the ignition key is off.
2. Press transmitter button 2 then button
1 and hold for 3 seconds..
• The siren will chirp once to enter
valet or twice for exit.
• The LED will turn on solid indicating
the system is inValet Mode, or turn
off indicatingValet Mode exit.
OPTIONALTRUNK RELEASE
Press button 3 for approximately 2 seconds
to open the trunk.
OPTIONALTRUNK DISARM
The trunk disarm feature allows the alarm to
disarm automatically whenever transmitter
button 3 is used to activate the optional
trunk release.This eliminates having to first
disarm the alarm before activating the trunk
release. This feature must be programmed
during installation.
REMOTE SENSOR BYPASS
To arm the system and bypass the shock
sensor, press button 1 to arm, then within 2
seconds press button 4. The siren will chirp
once and sensors will be ignored until the
system is disarmed and rearmed.
OPTIONALANTI-CARJACK FEATURE
The optional anti-carjacking feature provides
added security with three operating modes:
Active, Passive, and Full-time. The Anti-
Carjacking feature may be enabled during
installation.
Active. Press transmitter button 4 with the
ignition on to manually activate the anti-
carjacking feature. Press button 4 again to
deactivate the Activecarjack feature.
BW3750 new size.qxd 4/14/2004 9:09 AM Page 3

4
Passive. When selected, the anti-carjacking
feature will activate whenever a door is
opened while the ignition is on. Press the
valet switch 3 times to deactive the Passive
carjack feature.
Full-time. When selected, the anti-carjacking
feature will automatically activate each time
the ignition is turned on. Press the valet
switch 3 times to deactive the Full-time
carjack feature.
If the carjack feature is triggered:
• The parking lights will flash two times.
• 90 seconds later the parking lights will
flash, the horn will honk, and the siren
will sound for 5 minutes.
• The starter kill will turn on and remain
on until the carjack feature is
deactivated.
TRANSMITTER FUNCTIONS
Button 1 Arm; press 3 seconds for panic
Button 2 Disarm; press twice for optional
Passenger Unlock feature
Button 3 Auxiliary function 1
Button 4 Auxiliary function 2
Transmitter Functions with Shift Key
(Button 5) pressed 1 time:
Button 1 Silent Arm
Button 2 Silent Disarm
Button 3 Auxiliary function 3
Button 4 Car Locator feature (flashes
parking lights,chirps siren,and honks horn
5 times)
Transmitter Functions with Shift Key
(Button 5) pressed 2 times:
Button 1 Arm car 2; press 3 seconds for
panic
Button 2 Disarm car 2; press twice for
optional Passenger Unlock feature
Button 3 Auxiliary function 1 for car 2
Button 4 Auxiliary function 2 for car 2
Transmitter Functions with Shift Key
(Button 5) pressed 3 times:
Button 1 Silent Arm car 2
Button 2 Silent Disarm car 2
Button 3 Auxiliary function 3 for car 2
Button 4 Car Locator feature for car 2
STATUS INDICATOR (LED)
FUNCTION S
On Solid =Valet Mode
Slow Flash = SystemArmed
Rapid Flash when disarmed =
PassiveArming
Rapid Flash when armed =
Tamper Alert
On Solid when not in valet =
Open Zone
LEDTAMPER ALERT
INDICATIONS
(after turning on ignition)
1 Flash = optional sensor
2 Flashes = shock sensor
4 Flashes = door
5 Flashes = hood or trunk
Example:flash-flash-pause-
flash-flash-pause = shock
sensor
PARKING LIGHT
INDICATIONS
1 Flash = SystemArmed
2 Flashes = System Disarmed
3 Flashes =Tamper Alert
4 Flashes = Open Zone
Indication (after arming)
5 Flashes =Warn Away
On Solid = System Disarmed
(optional programming for 30
second output on disarm)
BW3750 new size.qxd 4/14/2004 9:09 AM Page 4

5
Before you begin the installation
• Read the INSTRUCTIONS!
• Always use a multi-meter when verifying
vehicle wiring.
• Before mounting the product, verify with
the customer the desired location for the
valet switch and LED.
• Protect the vehicle by using fender covers.
• Always look before drilling.Make sure you
will not cause damage to vehicle hoses,
electrical looms or physical damage to
vehicle.
• Set the Polarity Jumpers inside the main
unit. (see Jumper Settings)
Mounting System Module
Mount the system module under the dash
where it will be difficult for a potential thief
to locate the module,and away from moving
parts such as brake pedals, etc. Route the
antenna wire away from wire looms,
computer modules and metallic objects for
better range.
Mounting Siren
Mount the siren in a suitable place under the
hood, away from hot and moving engine
parts such as manifolds, fan belts, etc. Make
sure the siren cannot be accessed from
underneath the vehicle or through the grill.
Face the siren down so that water cannot
accumulate inside the siren bell. Protect
wires running through the firewall using
either tape or split loom tubing.If a new hole
is needed, protect the wire from chaffing by
installing a proper size grommet.
Mounting Shock Sensor
Secure the shock sensor to the steering
column, thick wire harness or a dash brace,
using a wire tie. Make sure that the
adjustment screw is accessible for later
testing and adjustment.

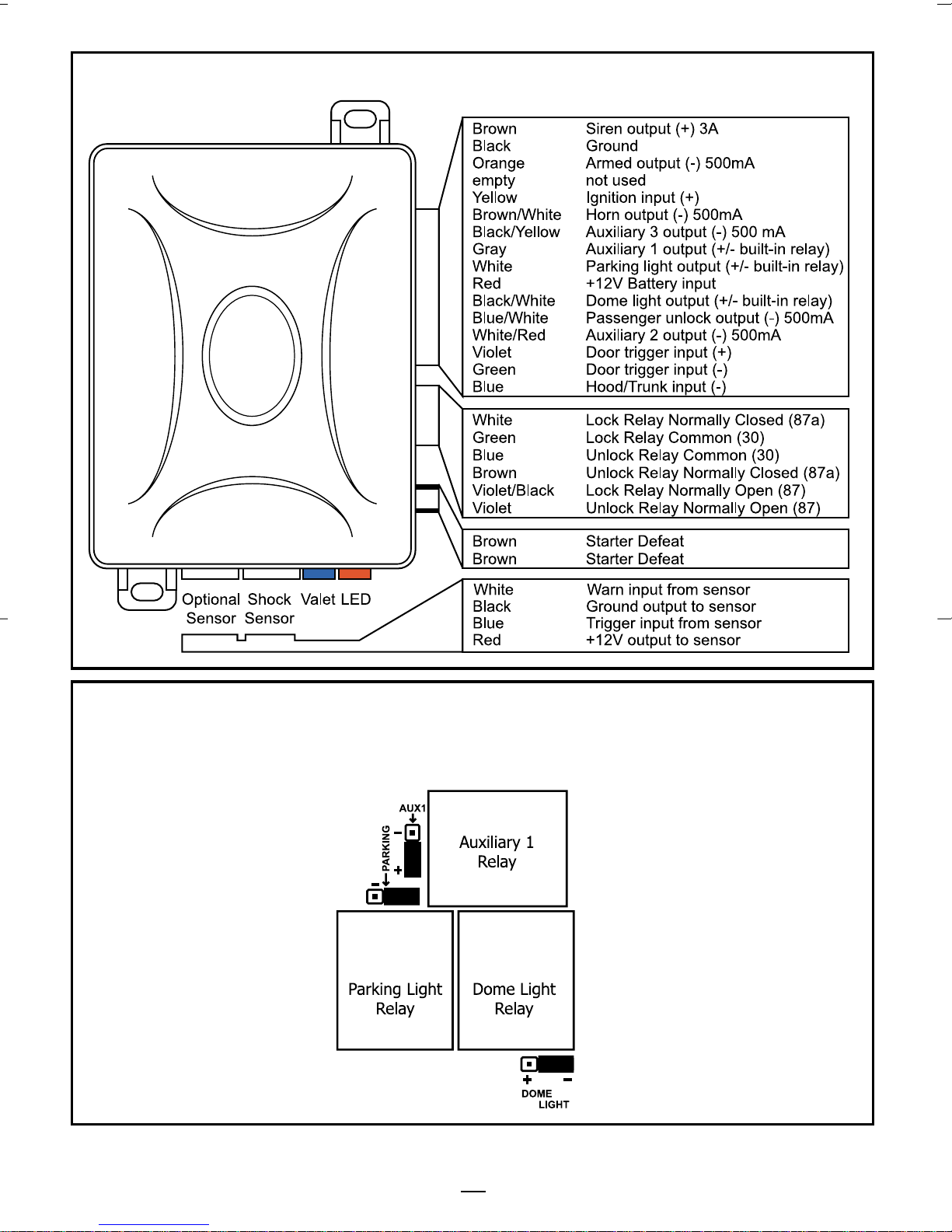

16-Pin Main Harness:
• BROWNWIRE - Siren wire output (+) 3A.
Connect to the siren’s red wire. Connect
the siren’s black wire to ground.
• BLACKWIRE - Ground input (-).Connect
to a solid chassis ground that is clean and
free of paint or dirt.
• ORANGE WIRE - Armed Output (-)
500mA. Connect to a relay for optional
circuit defeat (See installation diagrams).The
ORANGE wire provides a ground when the
unit is armed to activate a fuel pump disable
relay or other device (i.e. window control
module,etc.).
• EMPTY - not used.
• YELLOW WIRE - +12V Ignition input.
Connect to a main ignition wire at the
ignition switch harness. This wire shows
+12V when the ignition is on and while
cranking. The voltage must not drop when
the car is starting.
• BROWN/WHITEWIRE - Horn output (-)
500mA. Connect to an optional relay to
honk the vehicle’s horn when the alarm is
triggered.
• BLACK/YELLOW WIRE - Auxiliary 3
output (-) 500mA.Connect to a relay for an
optional feature such as headlight activation,
etc. This output may be programmed for
momentary, timed, or latched operation.
INSTALLATION INSTRUCTIONS
BW3750 new size.qxd 4/14/2004 9:09 AM Page 5

6
• GRAY WIRE - Auxiliary 1 output (+/–)
15A relay. Connect to an optional feature
such as trunk release,etc.
• WHITEWIRE - Parking Light output (+/-)
10A relay. Connect to the vehicle’s parking
light wire.If the vehicle’s parking light circuit
exceeds 10 amps a relay is required. For
vehicle’s with independent left and right
parking light circuits, the parking light wires
must be connected using diodes to keep the
circuits separate.
NOTE: Do not connect theWHITE wire to
the vehicle’s headlight circuit.
• REDWIRE - +12V Battery input.Connect
the red fused wire on the main harness to a
constant +12V source. This source wire
should be at least 20 amp supply.
• BLACK/WHITE WIRE - Dome Light
output (+/–) 15A relay. Connect to the wire
that activates the vehicle’s dome light,usually
the door pin switch wire. NOTE:The dome
light output is usually connected to the same
wire used for the door trigger input (See
GREEN andVIOLET door trigger wires).
• BLUE/WHITE WIRE - Passenger Unlock
output (-) 500mA. Connect to an optional
relay to unlock the passenger doors when
configured for Driver Priority Unlocking.
• WHITE/REDWIRE - Auxiliary 2 output (-
) 500mA. Connect to a relay or module for
an optional feature such as power window
roll-up,etc.This output may be programmed
for momentary,timed,or latched operation.
• VIOLET WIRE - Positive door trigger (+).
Connect to the door switch circuit wire that
shows +12V when the door is open. This
type of door circuit is usually found on Ford
vehicles.
• GREENWIRE - Negative door trigger (-).
Connect to the door switch circuit wire that
shows ground when the door is open.
• BLUE WIRE - Trunk/Hood trigger (-).
Connect the Blue wire to the trunk and/or
optional hood pin switches.The switch must
provide a ground output when opened.

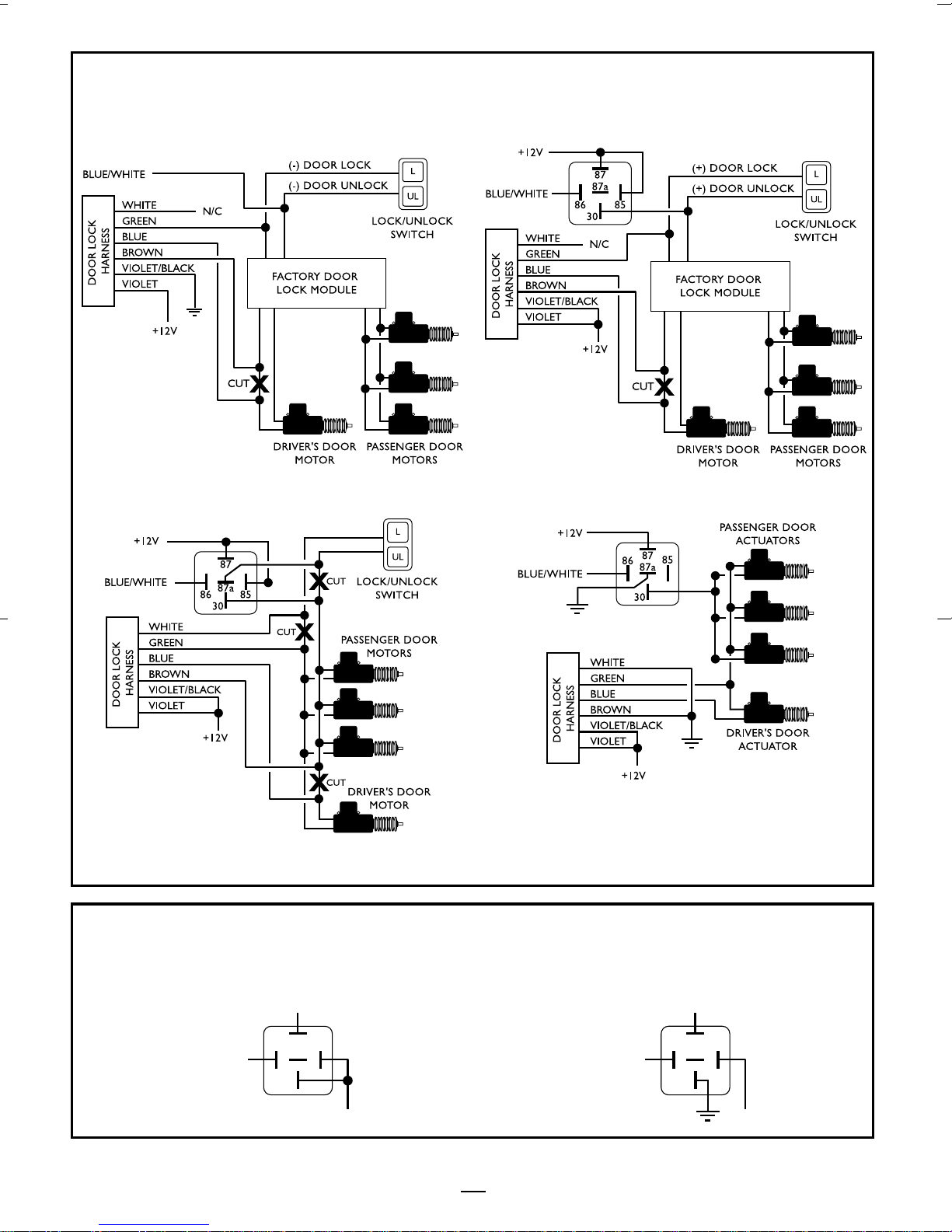

6-Pin Door Lock Connector
Plug-in connector for door lock harness.
• WHITEWIRE - Lock relay N/C (87a).
• GREENWIRE - Lock relay Common (30).
• BLUEWIRE - Unlock relay Common (30).
• BROWNWIRE - Unlock relay N/C (87a).
• VIOLET/BLACK WIRE - Lock relay N/O
(87).
• VIOLETWIRE - Unlock relay N/O (87).
Starter Defeat Connectors
Using a volt/ohm meter locate the starter
wire (normally a heavier gauge wire) at the
ignition switch. This wire will show +12V
only during cranking. When this wire is cut
the vehicle will be unable to start.
Cut the BROWN starter disable wire (with
the two female connectors),and connect one
side to the vehicle’s starter wire coming from
the key switch. Connect the other BROWN
wire to the wire going to the starter.
Plug the female connectors on the BROWN
wires to the .250 male spade lugs on the
module.With the BROWN wires connected
to the module,the vehicle should be able to
start.
Plug in Connectors
2-Pin Red Connector: Plug-in connector
port for LED. Mount LED in an area where
it may be easily seen from either side of the
vehicle.
2-Pin Blue Connector: Plug-in connector
port for valet switch. Mount switch in an area
that is easily accessible from the driver’s seat.
BW3750 new size.qxd 4/14/2004 9:09 AM Page 6

7
4-PinWhite ConnectorA: Plug-in connector
port for dual stage shock sensor.
4-PinWhite Connector B:Plug-in connector
port for optional dual stage radar sensor.
AddingTransmitters
To add a new transmitter to the system have
the desired transmitters ready and follow
the Code Learning sequence.
To enter Code Learning Mode:
1. Turn the ignition on,off,on,off and leave
on.
• The siren will chirp once.
2. Press and hold the Valet switch for 5
seconds.
• The siren will chirp 3 times.
3. Press the Lock Button on the
transmitter.
• The siren will chirp once.
4. Press Lock Button on the transmitter
again.
• The siren will chirp twice.
5. Repeat steps 3 and 4 for each additional
transmitter (up to 4 total).
6. Turn off the ignition.
• The siren will chirp 3 times.
Two Car Operation
With the supplied 5-button transmitter it is
possible to control a second vehicle using
the same primary transmitter. For Car 2
enter the Code Learning Mode as described
above then substitute the steps below for 3
and 4 above.
3. Press Button 5 twice followed by the
Lock Button.
• The siren will chirp once.
4. Press Button 5 twice followed by the
Lock Button again.
• The siren will chirp twice.
Entering Programming
To enter System Programming:
1. Turn on ignition.
2. Within 5 seconds, press valet switch 5
times.
• The siren will emit a long chirp, to
indicate entering program mode.
3. Press the valet switch the number times
equal to the desired feature.
• The siren will chirp each time the valet
switch is pressed. A long chirp is equal
to 5 presses.(Example:step 7 = 1 long
chirp and 2 short chirps.)
4. Within 5 seconds, press the transmitter
button corresponding to the desired
operating mode for that feature.
• The siren will chirp to indicate the
setting.
One chirp = Button 1
Two chirps = Button 2
Three chirps = Button 3
Four chirps = Button 4
5. Repeat steps 3 and 4 to change
additional features.
6. Turn off ignition to save changes.
Complete Default Reset
This procedure will set all Programmable
Features to factory default settings.
1. Enter System Programming.
2. PressTransmitter Button 3.
• The siren will chirp 6 times indicating
the reset signal was received.
• All Installer and User Programming
options are now set to factory default
settings.
3. Turn ignition off.
BW3750 new size.qxd 4/14/2004 9:09 AM Page 7

8
Programmable Features
1. Arming Mode. Select between manual
arming (Active), automatic arming (Passive),
and automatic arming with chirps that
countdown every 2 seconds until armed.
2. Parking Light Operation.Selects whether
the parking lights flash twice or remain on
for 30 seconds after disarming the system.
3. Auto Rearm. Automatically rearms the
system in case of accidental disarming.The
system must be armed for at least 10
seconds before disarming, and the
hood/trunk must not be opened or auto
rearm is bypassed.If button 3 is selected,the
doors will lock on auto rearm.
4. Arming Chirps. Select Normal or Silent
Arming.
5. Trunk Disarm Feature. When selected,
activating the Auxiliary function to open the
trunk will automatically disarm the system.
6. Ignition Locking.Automatically locks and
unlocks the doors with the ignition. The
system will not lock the doors if any door is
open when the ignition is turned on.
7. Ignition Unlocking.Automatically unlocks
all doors or only driver’s door with ignition.
8. Door Lock/Unlock Pulse. Selects
between a 1 second lock/1 second unlock
for standard vehicles, 3 second lock/3
second unlock for vacuum lock systems, 1
second lock/1 second unlock 2 times for
some Japanese vehicles, and 30 second
lock/1 second unlock to roll up windows
with lock on some German vehicles.
9. Passive Locking. Selects whether or not
the doors will lock with PassiveArming.
10. Open Door Report. Siren will chirp 4
times if a door remains open 10 seconds
after arming. If vehicle has delayed dome
light, program for 60 seconds (the sensor
and trunk still report after 10 seconds).
11. Siren / Horn Chirps.When set for Horn
Chirps the horn will honk when the alarm is
armed, disarmed, and triggered, allowing the
siren to NOT be installed.Button 3 adds horn
chirps with the warn away feature as well.
12. Auxiliary I. Selectable for Momentary,
Timed,or Latched operation.
Momentary operation - the output is active
as long as the transmitter button is held.
Timed operation - the output turns on for
30 seconds each time the transmitter button
is pressed. If the button is pressed again
during the 30 seconds,the output turns off.
Latched operation - the output turns on
when the transmitter button is pressed and
turns off when the transmitter button is
pressed again.
13. Auxiliary 2. Selectable for Momentary,
Timed,or Latched operation.
14. Auxiliary 3. Selectable for Momentary,
Timed, Latched operation or Ignition
Latched operation (turns on with ignition
and remains on until a door is opened).
15. Auxiliary 2 Auto Activate. When
selected, the Auxiliary 2 output can activate
upon system arming or upon system
disarming to turn on accessory items or turn
on sensors,etc.
16. Door Entry Delay with Passive Arming.
When selected,the door input trigger will be
delayed for 15 seconds, allowing access to
the emergency override switch. Only delays
when the system is armed passively.
17. Horn Honk Output. Selects between
pulsed or constant output for the
Brown/white wire.
18. Anti-Carjack Mode.Selects one of three
Anti-Carjacking modes: Active, Passive, or
Full-Time. Anti-Carjack Activation must be
enabled for any Anti-Carjack mode to
operate.
BW3750 new size.qxd 4/14/2004 9:09 AM Page 8

9
Active.Pressing transmitter button 4 with the
ignition on will manually activate the Anti-
Carjacking feature.
Passive. When selected, the Anti-Carjacking
feature will activate whenever a door is
opened while the ignition is on.
Full-time.When selected, the Anti-Carjacking
feature will automatically activate each time
the ignition is turned on.
Adjusting Sensors
The sensor test mode allows quick and easy
sensor tuning.
To adjust the sensor(s):
1. Turn on the ignition.
2. PressTransmitter Button 5 then button 4.
3. Test the sensors.
• The siren chirps indicate the zone.
Short chirp = warn (shock/optional)
Long chirp = ShockTrigger
2 long chirps = OptionalTrigger
4. Turn off the ignition.
Testing System
Arm and disarm system, checking that the
siren chirps and parking lights are functioning
normally. Make sure that the programmed
features are performing correctly,ie.:ignition
locks, passive arming, passive locks, etc. Test
the doors and hood/trunk inputs (make sure
all doors trigger the system, not just the
drivers door). Arm the system and try
starting the vehicle, it should not start.
Disarm the system using the emergency
override. Check the range of the remote
transmitters. Make sure the customer has
physical knowledge of the location of the
valet/override switch.
Programmable Features
Step Function Button 1 (default) Button 2 Button 3 Button 4
1. Arming Mode Active Passive Passive w/count
2. Parking Light Output Flash twice 30 seconds
3. Auto Rearm Off Auto rearm Auto rearm w/lock
4. Arming Chirps Normal Silent
5. Trunk Disarm Off On
6. Ignition Locking On Off
7. Ignition Unlocking All doors Driver only Off
8. Door Unlock Pulse 1sec L/1sec UL 3sec L/3sec UL 1 secL/1 ec UL x2 30sec L/1sec UL
9. Passive Locking Off On
10. Open Door Report 10 seconds 60 seconds
11. Siren / Horn Chirps Siren only Horn chirps Horn chirps w/warn
12. Auxiliary 1 Output Momentary Timed Latched
13. Auxiliary 2 Output Momentary Timed Latched
14. Auxiliary 3 Output Momentary Timed Latched Ignition latched
15. AutoActivateAux 2 Off OnArming On Disarming
16. Entry Delay w/Passive Off On
17. Horn Honk Output Flashing Continuous
18. Car Jack Mode Off Active Passive Full-time
BW3750 new size.qxd 4/14/2004 9:09 AM Page 9

10
NEGATIVE PULSE LOCK SYSTEM POSITIVE PULSE LOCK SYSTEM
ADDING ACTUATORS VACUUM LOCK SYSTEM
REVERSE POLARITY LOCK SYSTEM
DOOR LOCK WIRING DIAGRAMS
BW3750 new size.qxd 4/14/2004 9:09 AM Page 10

11
TWO-STEP NEGATIVE PULSE TWO-STEP POSITIVE PULSE
TWO-STEP REVERSE POLARITY TWO-STEP ADDING ACTUATORS
OPTIONAL TWO-STEP UNLOCK WIRING DIAGRAMS
OPTIONAL RELAY WIRING DIAGRAMS
86
30
87
87a 85
(-) OUTPUT
FROM ALARM
+12V
TO WIRE
IN VEHICLE
86
30
87
87a 85
+12V
(-) OUTPUT
FROM ALARM
TO WIRE
IN VEHICLE
POSITIVETRIGGER NEGATIVETRIGGER
BW3750 new size.qxd 4/14/2004 9:09 AM Page 11

12
WIRING DIAGRAM
© 2004 64-37.50,3/04 Rev. 2
The polarity for the built-in parking light,dome light,and auxiliary relay is set by the placement of the
jumper on the 3 pins next to each relay. The default settings are illustrated below.
JUMPER SETTINGS
BW3750 new size.qxd 4/14/2004 9:09 AM Page 12
