GSM+GPSCARALARM(ModelF-900C)MANUAL
1
WIRELESS GPS+GSMCARALARM
(MODEL: F-900C)
USER MANUAL

GSM+GPSCARALARM(ModelF-900C)MANUAL
2
Functionsand Features
．Anti-burglar,anti-robbery;
２．Anreal-timeinquiryabouttheposition ofyourcarismadethroughSMSofmobilephone.
３．Anindependentinquiryaboutthedetailedpositionofyourcarcanbemade.
４．Nomonitorterminaland platformarerequiredanditisfree ofservice charge.
５．AutomaticSMSandalarmtypecanbeprovidedwhenyourcaralarms.
６．Carcanbeinspectedandoil/powerunlockingcontrolledthroughSMS.
７．Adoptingwireless datacommunicationtechnology,withfasteralarmingresponse
andmorestableperformancet hanwireGSMcaralarm;
８．Remotecalling;
９．Disablevehiclethroughremotecircuit/fuelline lock;
10．Goodconcealment, beinginstalledanyhidden placeof vehicleandachievingthe
wireless connectionbetween mainunitandthe existingcaralarm, workingevenif
the existingcaralarm removed.
11．Gassupplycut/breakerconnectingthemainunitwirelesslysothatthevehiclecan
notbestartedoncethecircuit/fuelline islocked,eventhe mainunitof alarmis
dismantled
12．Withhidden emergency alarm switchandgassupply/powercutswitch;
13．Wire-cuttingPrevention:Itwill call, sendashortmessagetoandgiveavoice prompttothecarowner
aboutpowerfailure.Anti-deadandanti-leakage-of-alarm design;
14．Remotemonitoring
15．Passwordprotection;
16．Arm/disarm by telephone;
17．Carpositionlocationby GSMnetwork;
18．Smallcapacity,easy toinstall anduse,cost-effective.
ProductComponents
One mainunit,One gassupplycut/relay(one forbackup),hidden emergencybutton,
one setofalarmingsensor,onesiren,onesetof monitor,one setof powerlineformain
unit,one setof GSMantenna,one setofGPSreceivingheads
Operation
1. Main unit connection
InstallthemainunitaccordingtotheInstallationDiagram.
2. Install SIM Card
First,youhavetopurchaseoneGSMmobilephonecard(SIMcard), then screw out the
four bolts at the back of the main unit, open the face covering of main unit, put the SIM
card in the SIM card slot, turn on the power supply (at ON”position), and system will
start to work within 5 -25 minutes. Finally put back four bolts into the main unit.

GSM+GPSCARALARM(ModelF-900C)MANUAL
3
Note:thisunitshallnotsupport CDMAcard.
3. Set up/ modify password, forget password
1) Setupandmodify password
Passwordisusedtoidentify andprotecttheauthorizedusers.Usersaresuggestedto
changethepasswordafterfinishingsystem installationsoastopreventillegal
unauthorizedoperations.Usersshouldoperateunderthe followingsteps:
First,call thesystem telephonenumberbyusingany regulartelephone ormobile,
input6-digitpasswords(123456)providedby the factory,then,enterthe Systemset
up”menu,followthevoiceguidetoenter Modify password”menutodothesetup.
2)Forgettingpassword
Usershouldrememberthe password.Shouldhe/she forgetthe password,pleasefollow
the followingsteps:
3).Intentionally producealarming;
4).Uponreceivingthe alarming,carry outthe Modifyingpasswordfunctiontoreset
passwordaccordingtothe voiceguide.
5).Afterconnectingsystem telephone, unplugtheconnectorofthemainunit, andpress
#”toentermainoperationmenuautomatically,thenpasswordcouldberesetagain.
4, Set Up Normal Alarm Telephone Numbers:
1)The alarmingtelephonenumbersarethenumbersthatthesystem automaticallydials
inalarm situation.Alarmingnumbersareclassifiedintotwogroups:3ordinary alarming
numbersand3emergency helpalarmingnumbers.When the caralarms,mainunitwill
automaticallycalltheordinary alarmingnumber.
2)Useregularmobilephonetocallthesystem telephonenumber,andthenenterthe
alarmingtelephonenumbersetupmenu, setupyouralarmingnumber.
Callthe systemalarmnumberEnter mainmenuoperation”Enter system
setup”Setupordinary alarmingnumber,ifsettingup3groupsalarmingnumber,
operateitunderthe voiceguide.Ifneedingtosetuponegroupalarmingnumberonly,
simply input #”foranothertwogroups,andsystem willaudioindicate Modifying
Successful”.
5, Set up Emergency help alarming number
Incaseof emergencywhichrelatedtopersonnelsafety, carownercanlightlypress
emergencyswitch,anditwillautomatically call presetemergencyalarmingnumber,

GSM+GPSCARALARM(ModelF-900C)MANUAL
4
soitissuggestedtosetupthe emergencynumbertobeyourfamily’sorgood
friends’.
Callthesystem alarm numberEnter mainmenuoperation”Enter
system setup”Setupemergency alarmingnumber,ifsettingup3
groupsalarmingnumber, operateitunderthe voiceguide. Ifneedingtosetupone
groupalarmingnumberonly,simply input #”foranothertwogroups,andsystem
willaudioindicate ModifyingSuccessful”.
6, RevisionofSMsTelephoneNumber
TheusercaninquireaboutthecarsituationthroughitsSMSoritwillsend ashortmessagetotheuserwhenthecar
alarms.Theusercaninputthree groupsofSMtelephonenumbers.Eachgroupofnumbermusthavethecountrycode
before.Forexample:China'scode:0086. You shouldinput0086＊139XXXXXXXX whenyouentertheSMtelephone
number.
Foroperation, sameasabove.
7. Trigging Alarm
1)TestMode
Press the keyof carfinderontheremote,the carsiren wouldbeepforthreeminutes,
andthesystem willautomatically call theordinary alarmingnumber.
2) AlarmCallfromtheMainframe
If thecardoorisopenedorit givesanalarmcall duetovibration,it will automaticallydialthecommon telephone
numberandprompt"CarAlarm". ItcanalsoreplytotheuserthroughSMStoreporttheinformationoncarvibrationand
cardoor'sbeing opened,thecurrentseatofcar,codeofbasestation,driving speedanddirection(showthelongitude,
latitude, codeofbasestation,driving speedanddirection).
3)System alarm forpowercut& wire-cut
OnArm statue,oncethepowerline iscutorthevehiclesystem ispoweroff,themain
unitwill call thealarm telephonewiththevoicewarning alarmingtelephone alarm”the
currentseatofcar, codeofbasestation, drivingspeedanddirection(showthelongitude,latitude, codeof
basestation, driving speedanddirection).
4) Emergencyhelpalarm
Press theredkeyon theemergencyswitchfor2minutes,and thesystemwill call theemergencyhelpalarm
withvoice warning emergencytelephonealarm”.Foroperation, sameasabove.
8. Telephone operation menu

GSM+GPSCARALARM(ModelF-900C)MANUAL
5
NOTES:Userisnotsupposedtoinputanypasswordwhenthecallisfromthecaritself.
Afterfinishedlisteningthealarmingreport,press #”toentermainmenuoperation,and
operateunderthevoiceguide.
9. Main Menu Operation

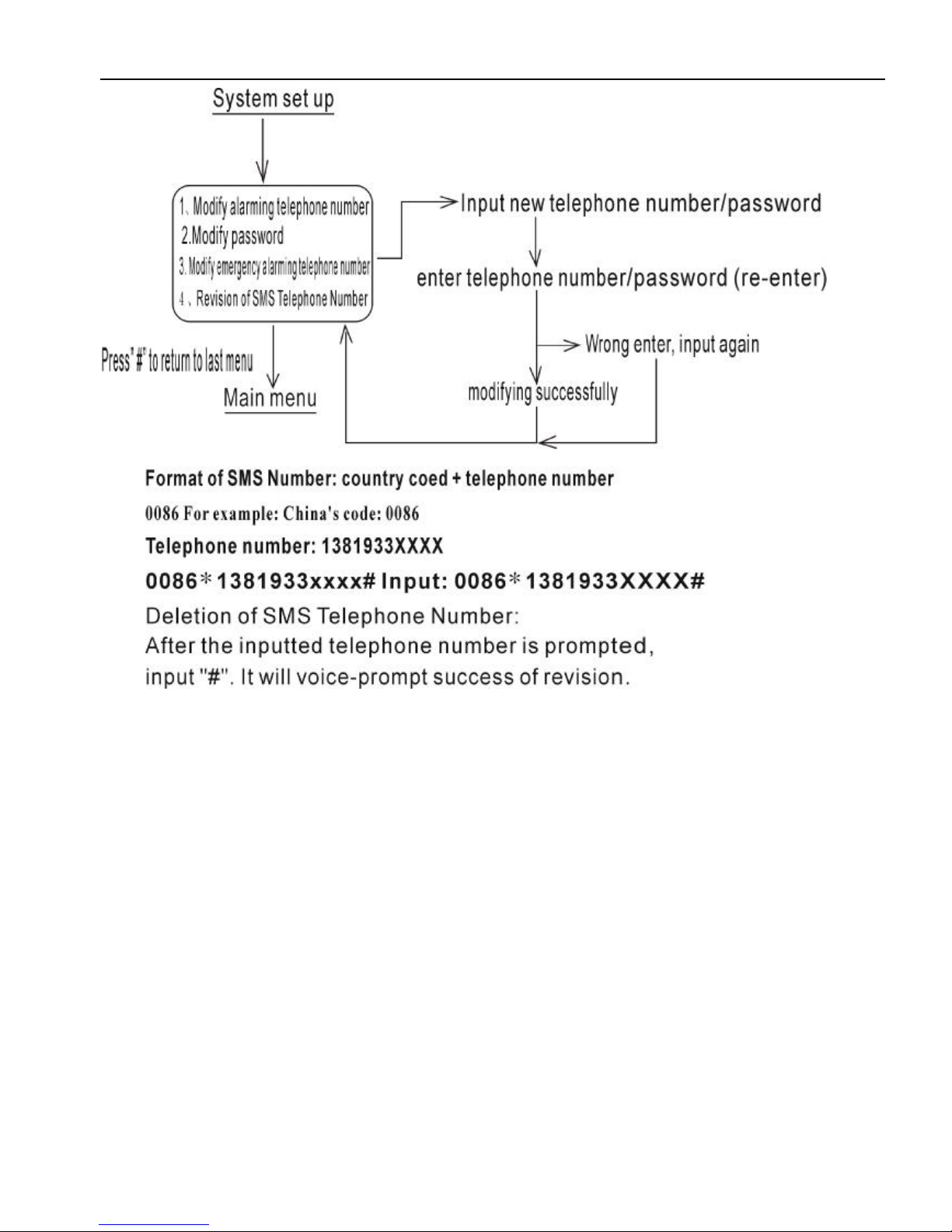

10.System set up

GSM+GPSCARALARM(ModelF-900C)MANUAL
6
Installation
1.Thissystemiseasytoinstall,andthemainunitisonlyneededtoconnectthepower
supply.Payattentiontothepositive-negativebipolarofpowerline inwhichredis
positiveandblackisnegative(minusearth).Makesurethe mainunitisputonthe
hidden placeof vehicle,andfixthesiren andmonitorfirmly.
2. Trytoputthe gassupplycut/powercutrelayonthedrivingcab incasethe highheat
of engine affectitsperformance.
3.Wireless sensorandsiren line ofexistingcaralarm shallbebutt jointedthroughredline
toredline,blackline toblackline,andtrytobeway from highheatof engine.
4.Emergency panicswitchshall clingtohidden placeandeasy toreach.

GSM+GPSCARALARM(ModelF-900C)MANUAL
7
Maintenance
1.Pleaseoften checkifthe SIMcardhasthe enoughmoney,otherwisethe mainunit
cannotalarm ifinshort of money init.
2. The batteryof emergencypanicswitchshouldbeinspectedperiodicallyand
replacedwhen necessarytomakesureenoughelectricity, otherwisethe emergency
panicswitchcannotalarm.
3. Fixthe antennaof mainunitfirmlyandputitontheareawithgoodcapabilityof
receivingsignal,otherwise,nosignalorpoorcontactofantennawillmakethe
system unabletoalarm.
4. Keepthepasswordsecret.Ifotherpeopleknowsit,pleasemodifyitimmediatelyin
caseothersenterthesystem illegally.
5. Itisdangerous touseremotepower/gassupply cutfunction.The userissuggestedto
enterthecallstateandthreaten drivertostop,givesometimefordrivertostopthe
vehicle,andknowaboutthe carstatus throughmonitorfunctionandmakesure
thereisnodanger,then use Disablevehicle”function.
6. Inarmmode,the carkeycannotopen the door,the ignitionkeycannotstart the
engine,thesystemwillsoundalarm. Ifarmby mobileorphone,usermustdisarm itby
mobileorphone.Wesuggestthatuserarmthesystembyremoterinnormal
condition.Iflostremoter,youcanarmthe systembyphonetoavoidotherperson
usethe lostremoter.
7. Ifthemainunitcannotworknormally,usercanscrewoutthescrewonbottomed
hull ofmainunit,turnthepowerswitchto OFF”position,andcheckSIMcardifin
goodcontact,thenturnthe powerswitchto ON”positiontostart the powersupply.
NoticeforUsage
1. Fix theGPSjointandmakesureitsbottomandsurface forfearofinfluence onsatellitesignal.
2.Neveruseeasilyguessedpassword,suchas123456,88888,etc.
3.When parkingyourcarinastrangeplace,pleasecheckthealarmsystemoryour
mobilephone toensurethattheparkinglotiscoveredbyGSMsignal.Changethe
parkinglototherwise.
4.GSMcommunicationsometimesmaybeinasingle-wayornocommunicationstate.
When receivingthesignalfromthecar,usercanfigureoutthatthereisalarm
conditionevenifhe/shecan’thearthe sound.
5.Usershouldmakesurethathe/shedoesnotfailtopaythetelephonefee,lestthe
GSMcommunicationservicecouldbestopped,thus causingthe alarmingsystemto
looseitsfunctions.

GSM+GPSCARALARM(ModelF-900C)MANUAL
8
6.Don’ttell thesystem telephonenumberorpasswordtoanyoneelse.
7. Pleasemakesurethe12Vpoweriswell-connectedfirst, andthenswitchonthemainframe, otherwiseit
willcall outsidebecauseitadmitsthepowerisoff.
8.InserttheSIMcardinthemobilefirstandthenfixitinthealarmafterwhethertheSMSisnormalis
tested.
9.Wherenoentryintothesystemhappens, pleasesolveitafterturningoffelectricityandrestartingit.
Malfunctionsand diagnoses
Malfunctions Diagnoses
The system
telephoneisbusy
whilebeing
called
1、The system couldbecallingpresetalarm telephonenumbers;
Switchoff theswitchbesidesthe mainunit,andswitchiton10
secondslater,andtry itagain;
The system
telephonecan’t
beconnected,
oritispoweroff
1、Checkthatthestartingprocess of the systemiscorrectornot.
Coulditpossiblethatsomeconnectionshavenotdone?Switch
off theswitchbesidesthe mainunit,andswitchiton10 seconds
later,andtry itagain;
CheckthatwhetherisSIMcardisinfullcontactornot.
Systemdoesnot
callpreset
telephonein
alarm condition
1、Checkthe alarm telephone numberiscorrectornot;
Checkthatifthe systemisinarmingcondition.
Systemcalls
presettelephone
whenthereisno
alarm
1、Checkthesensitivityof the vibrationsensorof the existingcar
alarm;
2、Switchof thecardoorisdamaged;
3、Miscontactorlowpowerof the carbattery;
The mainunitshouldbekeptawayfrom the antenna.

GSM+GPSCARALARM(ModelF-900C)MANUAL
9
InstructionOperation
NO: Instruction Description InformationResponse
1 arm armed CarisArmed
X:xxxx.xxxxN (Latitude)
Y:xxxxx.xxxxE Longitude）
S/Nxxx.XnDirection）
KMxxx.xSpeed）
2 disarm
disarmed
CarisDisarmed
X:xxxx.xxxxN (Latitude)
Y:xxxxx.xxxxE Longitude）
S/Nxxx.XnDirection）
KMxxx.xSpeed）
3stop Disablevehicle
CarisStopped
X:xxxx.xxxxN (Latitude)
Y:xxxxx.xxxxE Longitude）
S/Nxxx.XnDirection）
KMxxx.xSpeed）
4Check orfind
Inquiry/Positioning
CarisArmed
X:xxxx.xxxxN (Latitude)
Y:xxxxx.xxxxE Longitude）
S/Nxxx.XnDirection）
KMxxx.xSpeed）
Note:Whenitdoesn'treceivetheGPS signal,itwillprompt"notGPSsignal"and
automaticallychangetoFGSM basestation.Code:x, xxx,xxx
NO: Instruction Description
CarDoorisopened
X:xxxx.xxxxN (Latitude)
Y:xxxxx.xxxxE Longitude）
S/Nxxx.XnDirection）

GSM+GPSCARALARM(ModelF-900C)MANUAL
10
1
door open warming KMxxx.xSpeed）
2
Vibrtionwarning
carisvibrated
X:xxxx.xxxxN (Latitude)
Y:xxxxx.xxxxE Longitude）
S/Nxxx.XnDirection）
KMxxx.xSpeed）
3
ererg ency alarming
Emergency Help
X:xxxx.xxxxN (Latitude)
Y:xxxxx.xxxxE Longitude）
S/Nxxx.XnDirection）
KMxxx.xSpeed）
4
power off arming
Power Supply Failed
X:xxxx.xxxxN (Latitude)
Y:xxxxx.xxxxE Longitude）
S/Nxxx.XnDirection）
KMxxx.xSpeed）
Methods forIndependent PositionInquiryinEnglishNetwork
1. Inquirythroughgooglemaps
Afteryouopenthewebpage,directlyinput:http//maps.google.com/attheaddress columntoenterthe
maphomepage.
Inputtingthelatitudeandlongitude,youcangetthecurrentpositionofyourcar.

GSM+GPSCARALARM(ModelF-900C)MANUAL
11
2. Inquirythroughgoogleearth
http://earth.google.com/
Pleasedownloadagooglesoftwareatthewebsite: http://earth.google.com/.
Openthegoogleearthsoftwareandinputthelatitudeandlongitudeasshowninthefollowchart:

GSM+GPSCARALARM(ModelF-900C)MANUAL
12

GSM+GPSCARALARM(ModelF-900C)MANUAL
13

GSM+GPSCARALARM(ModelF-900C)MANUAL
14
