Black BLK-HDDIS HDcctv User manual

1BLK-HDDIS_PQ 6/15/12
• Be careful when handling the unit. To prevent damage, do not drop the splitter or submit it to a strong
shock or vibration.
• Install the splitter away from electric and magnetic elds.
• Protect the splitter from humidity and dust.
• Protect the splitter from high temperature. Be careful when installing the splitter close to a ceiling, in
a kitchen or a boiler room. The internal temperature may increase to a high level.
Usage
1. Attach the video input and video output coaxial cables to the appropriate connectors (see the
illustration above). Anchor the input and output cables to the surface as needed.
2. Connect 12 Vdc 1 A regulated power adapter to the 12 Vdc input connector, then plug the power
adapter into a standard 120 Vac electrical outlet. Verify that the power input LED (POWER) is lit red.
3. Apply a video signal to the Video input coax cable. Verify that the Video in LED (PRESENCE) is lit.
Specications
HD-SDI I/O interface
Video standards SD 525i, 625i
HD 720p, 24, 25, 30, 50, 60 fps
HD 1080i, 50, 60 fps
HD 1080p, 24, ,25, 30, 50, 60 fps
Connectors 1 x 4 BNC 75 Ω
Cable Impedance 75 Ω ± 3 Ω
Connector /
coax return loss
Return Loss > 21 dB @ 1 MHz ~ 750 MHz
Data rate 270 Mbps~ 3.0 Gbps
BLK-HDDIS HDcctv Video Splitter
Quick Installation Guide
Features
• One SDI signal input to four video outputs
• Supports 3G-SDI, HD-SDI and SD-SDI
• Easy installation

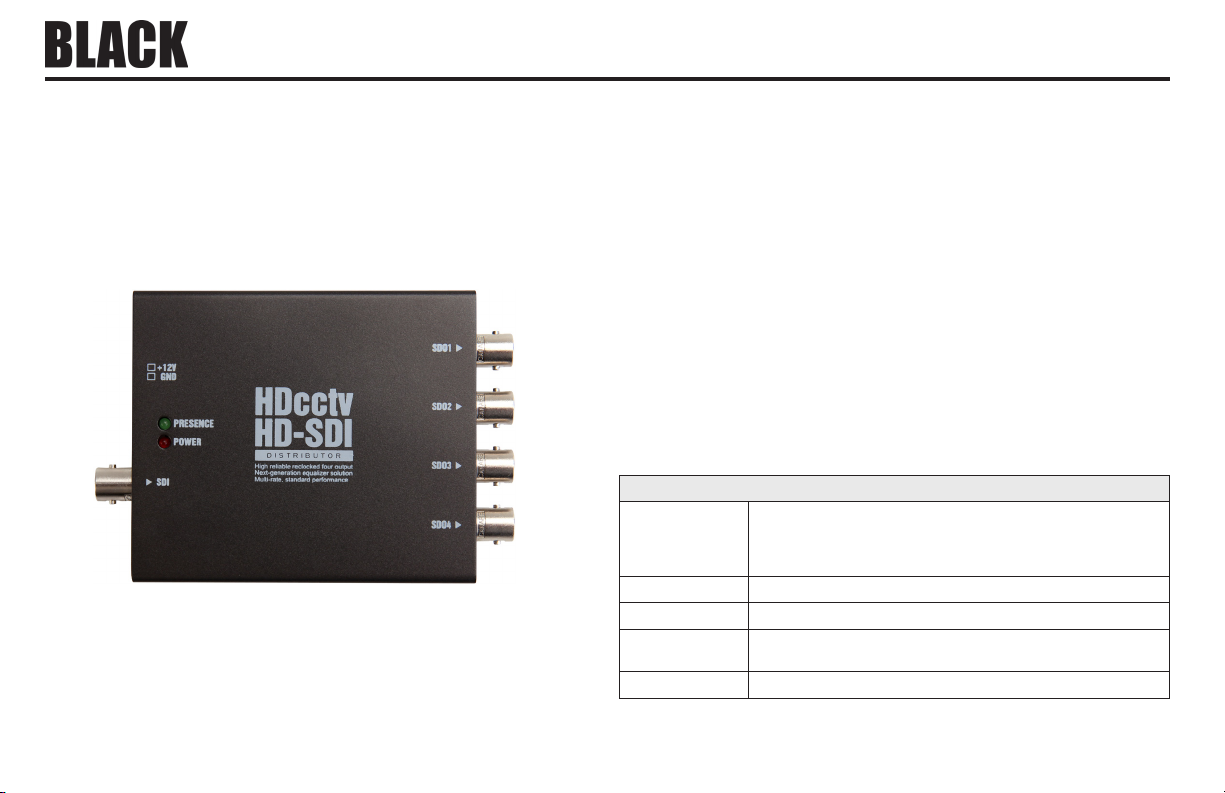

12 Vdc 1A
input
Video
input
PRESENCE
POWER
LEDs
Video
outputs
SD01 - SD04
Precautions
• Do not open or modify the splitter. Changing the unit may damage it or cause it to be dangerous.
• Do not put objects inside the unit. Make sure that no metal objects or ammable substances get
inside the splitter. It could cause a re, a short-circuit and other damage.

2© 2012 Observint Technologies, Inc. All rights reserved.
HD-SDI I/O interface
Video standards SD 525i, 625i
HD 720p, 24, 25, 30, 50, 60 fps
HD 1080i, 50, 60 fps
HD 1080p, 24, ,25, 30, 50, 60 fps
Display
LEDs POWER (power present) and PRESENCE (signal present)
Power supply
Power consumption 12 Vdc @ 2.244 W
Operating conditions
Operating
temperature
-4 °C ~ 122 °F (-20 °C ~ 50 °C)
Relative humidity < 85 %
Dimensions
Body(w x h x d)3.15 in x .91 in x 3.64 in (80 mm X 23.1 mm X 92.4 mm) connector not included
Box (w x h x d) 4.92 in x 2.09 in x 6.22 in (125 mm x 53 mm x 158 mm) individual
Weight 14.1 oz (400 g) approximate
