BlackBull PW2750 User manual

PW2750
HOT WATER HI PRESSURE WASHER
INSTRUCTION MANUAL
READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT.
This manual provides important information on proper operation & maintenance. Every effort has been
made to ensure the accuracy of this manual. These instructions are not meant to cover every possible
condition and situation that may occur. We reserve the right to change this product at any time without
prior notice.
IF THERE IS ANY QUESTION ABOUT A CONDITION BEING SAFE OR UNSAFE,
DO NOT OPERATE THIS PRODUCT!
DO NOT RETURN THIS PRODUCT TO THE RETAILER - CONTACT CUSTOMER SERVICE.
If you experience a problem, have questions or need parts for this product, visit our website
http://www.buffalotools.com or call Customer Service at 1-888-287-6981, Monday-Friday,
8 AM - 4 PM Central Time. A copy of the sales receipt is required.
FOR CONSUMER USE ONLY – NOT FOR PROFESSIONAL USE.
KEEP THIS MANUAL, SALES RECEIPT & APPLICABLE WARRANTY FOR FUTURE
REFERENCE.
4/10/2012

PW2750 Hot Water Pressure Washer Manual
2
FEATURES:
• Recoil Start
• Regulator Hose Included
• Power: 6.5 HP
• EPA Approved
• 3400 RPM
• 85,000 BTU max
• 15-75 PSI Inlet Pressure
• Working Pressure 2750 PSI @ 3 GPM
• Max Add Temp 140 Degrees F/ 60 Degrees C
• Max Temp 158 Degrees F/70 Degrees C
• 35 Ft Length Hose
•0.13 GPM Detergent
• Fuel type- Liquid Propane Gas Water Heater
•Propane Tank Not Included
•Fuel Type- Gasoline Engine
•Engine requires High Detergent Motor Oil, SAE 5W-30 oil - 30 ounces (0.9 Liters)
•Pump requires Air Compressor Oil, SAE Grade 30 oil -10 ounces (0.3 Liters)
•3.8 Quart Gasoline Engine
•High-pressure tube 10m/ Water inlet hose 3m
THIS ENGINE MEETS U.S. EPA EMISSION STANDARDS UNDER 40 CFR 1054.625 .
The emission-related warranty is valid for two (2) years. Keep the purchase receipt and mail in the product registration card for proof of purchase.
NB Corp limits emission-related warranty repairs to authorized service centers for owners located within 100 miles of an authorized service center.
For owners located more than 100 miles from an authorized service center, NB Corp will, in its sole discretion, either pay for shipping costs to and
from an authorized service center, provide for a service technician to come to the owner to make the warranty repair, or pay for the repair to be made
at a local non-authorized service center. The provisions of this paragraph apply only for the contiguous states, excluding the states with high-altitude
areas identified in 40 CFR part 1068, Appendix III.
STOP! IMPORTANT SAFETY INSTRUCTIONS
Read the manual before using this tool. If you have any questions regarding the hazard and safety notices listed in this manual and/or on
this tool, call 1-888-287-6981, Monday - Friday, 8 AM - 4 PM Central Time.
Carbon Monoxide Gas: When in operation, the exhaust from this tool contains poisonous carbon monoxide gas. Carbon monoxide
gas is both odorless and colorless AND may be present even if you do not see or smell gas. Breathing this poison gas can lead to
headaches, dizziness, drowsiness, loss of consciousness and eventually death.
• Use this tool ONLY outdoors in non-confined areas.
• Keep at least several feet of clearance on all sides to allow proper ventilation for this tool.
Gasoline & Propane (LPG): This tool may emit highly flammable and explosive vapors, which can cause severe burns or even
death. A nearby open flame can lead to an explosion even if not directly in contact the fuel.
• Do not operate this tool near open flame.
• Always operate this tool on a firm, level surface.
This fuel is highly flammable and explosive. Handling fuel can result in serious injury or burns.
• Before starting, inspect your LPG tank and NG pipeline and valve for damage or leaks, attach only approved tanks that have been properly
filled by an approved station, DO NOT light or smoke cigarette.
Replace the hose at the first sign of a leak or if age-cracking becomes apparent.
• Always handle propane fuel and tool outdoors.
• Before transporting, turn the fuel valve to the "off" position and disconnect the spark plug.
Hold the wand in both hands when in use. The high pressure water is very dangerous.

PW2750 Hot Water Pressure Washer Manual
3
RECOGNIZE SAFETY SYMBOLS, WORDS AND LABELS
What You Need to Know About Safety Instructions
Warning and Important Safety Instructions appearing in this manual are not meant to cover allpossible conditions and
situations that may occur. Common sense, caution and care must be exercised when operating or cleaning tools and
equipment.
Always contact your dealer, distributor, service agent or manufacturer about problems or conditions you do not understand.
This isthe safety alert symbol. It isusedto alert you topotential
personal injury hazards. Obey all safety messages that follow this
symbol to avoid possible injury or death.
DANGER indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
WARNING indicates a potentially hazardous situation which,
if not avoided, could result in death or serious injury.
CAUTION indicates apotentially hazardous situation which,
if not avoided, mayresult in minor or moderate injury.
CAUTION used without the safety alert symbol indicates a
potentially hazardous situation which, if not avoided, may
result in property damage.
Chemicals: According to the State of California, the exhaust from this tool contains chemicals known to cause cancer,
birth defects, or other reproductive harm.
High Temperatures: This tool produces heat when in operation. Temperatures near the exhaust can exceed 150 Degrees
Fahrenheit (65 Degrees Celsius).
• Do not touch hot surfaces. Observe all warning placards on this tool denoting hot surfaces.
• Allow this tool to cool for several minutes after use before touching the engine, muffler or other areas that are hot during operation
and before storing indoors.
• Hot exhaust may ignite some materials. Keep flammable materials away from this tool.
• Keep at least several feet of clearance on all sides of this tool during operation. Do not enclose this tool in any structure.
Usage: Misuse of this tool can damage it or shorten its life.
• Use this tool only for its intended purpose.
• Operate this tool only on a dry, level surface.
• Allow this tool to run for several minutes before connectingany electrical devices.
• Promptly turn off any malfunctioning devices and disconnect them.
• Do not operate an excessive number of electrical devices in excess of the wattage capacity of this tool.
• Do not turn on electrical devices until after they are connected to this tool.
• Turn off all connected electrical devices before stopping this tool.

PW2750 Hot Water Pressure Washer Manual
4
PACKAGE CONTENTS
Verify that all items are included. If there are missing items, call 1-888-287-6981, Monday - Friday, 8 AM - 4 PM Central Time for customer service.
5 Assorted Quick Connects
35 Ft. Hose
Spray Wand

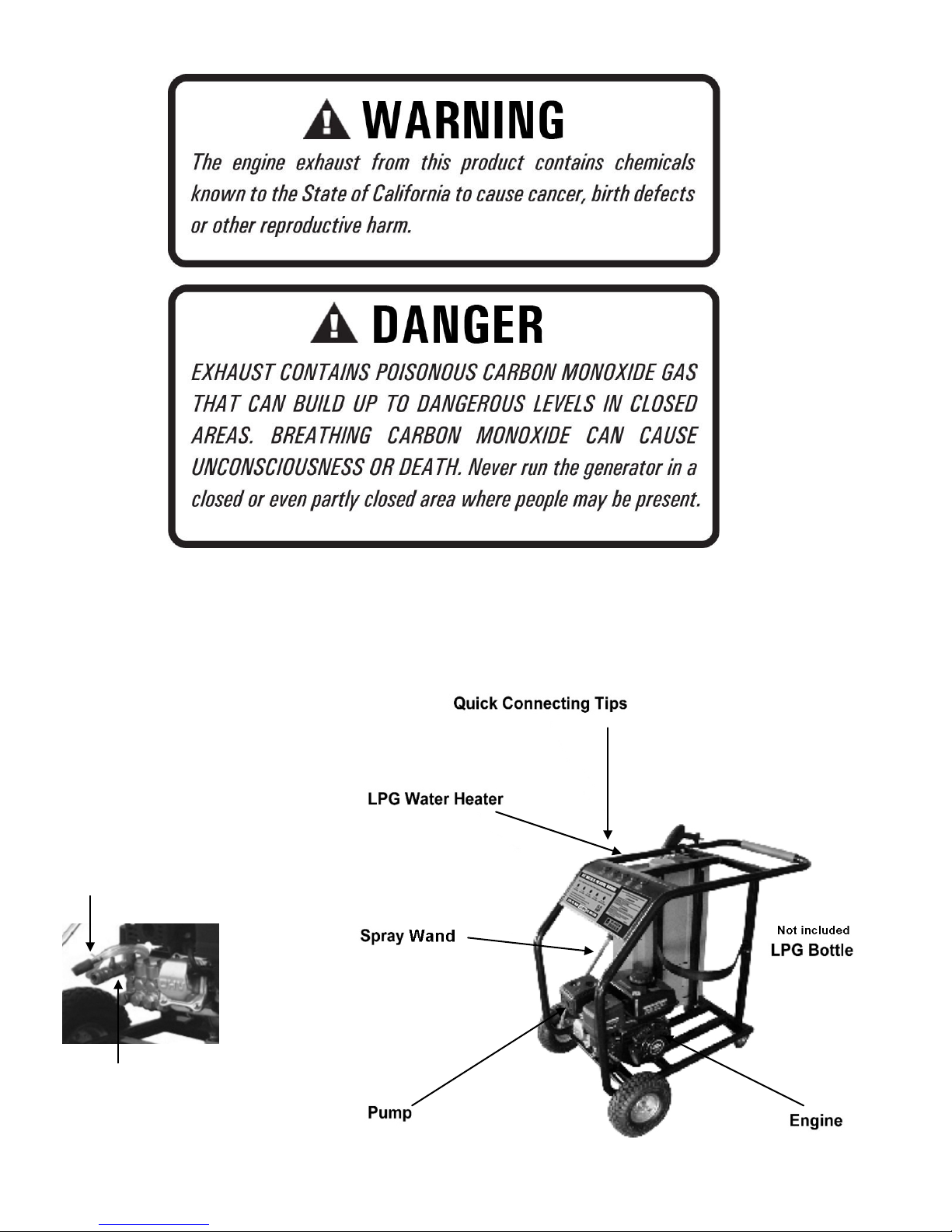

COMPONENTS
Observe the locations and functions
of the various components and controls.
(LPG tank not included)
Output
Soap/Chemical Hose

PW2750 Hot Water Pressure Washer Manual
5
PREPARING THE HOT WATER PRESSURE WASHER FOR USE
STOP!
The following section describes the required steps for preparing this TOOL for the first use. Failure to correctly perform these steps can
damage this tool and/or shorten its life. If still unsure about how to perform any of these steps after reading this section, call
1-888-287-6981 Monday - Friday, 8 AM - 4 PM Central Time for customer service.
If this is being used for the first time, the following few steps are required to prepare it for operation:
Add Oil to Engine
This Engine requires High Detergent Motor Oil, SAE 5W-30 engine oil to function. Engine oil is a major factor affecting engine performance
and service life. When new from the package, this tool contains no oil in either the engine crankcase or pump. Add the correct quantity of oil before
operating this tool for the first time. When replenishing oil for subsequent use, always determine that this tool has the correct quantity of oil.
Oil Capacity
30 ounces (0.9 Liters)
Oil Type Recommended
High Detergent Motor Oil, SAE 5W-30
To add oil:
1. Confirm that this hot water pressure washer is on a level surface.
2. Unscrew the oil filler/dipstick cap from the engine.
3. Using a funnel, add high detergent motor oil to fill the engine crankcase to the correct quantity as stated above. SAE10W-30 oil is recommended
for general, all-temperature use. When the engine crankcase is full, the oil level should reach the lower lip of the oil fill opening.
4. Replace the oil filler/dipstick cap.
Add Oil to Pump
Do not attempt to work on or service the pump, work is only to be completed by authorized service agents. Any work completed outside
the service agency will void warranty. Only qualified repair personnel must perform service.
This Pump requires Air Compressor Oil, SAE Grade 30 oil to function. Oil is a major factor affecting performance and service life. When
new from the package, this tool contains no oil in either the engine crankcase or pump. Add the correct quantity of oil before operating this tool for
the first time. When replenishing oil for subsequent use of this tool, always determine that thistool has the correct quantity of oil.
Oil Capacity
10 ounces (0.3 Liters)
Oil Type Recommended
Air Compressor Oil, SAE Grade 30
To add oil: Remove the oil cap above the Pump. Use the observation hole to review the oil level. Do not over fill.

PW2750 Hot Water Pressure Washer Manual
6
Install All Components and Connect Propane Gas Supply Source
Sulfur, water, dust, etc. are harmful for engine. If the propane gas supply source (LPG) contains these harmful elements, user must use filter
to remove sulfur, water etc. Otherwise, the engine service lifetime will be shortened.

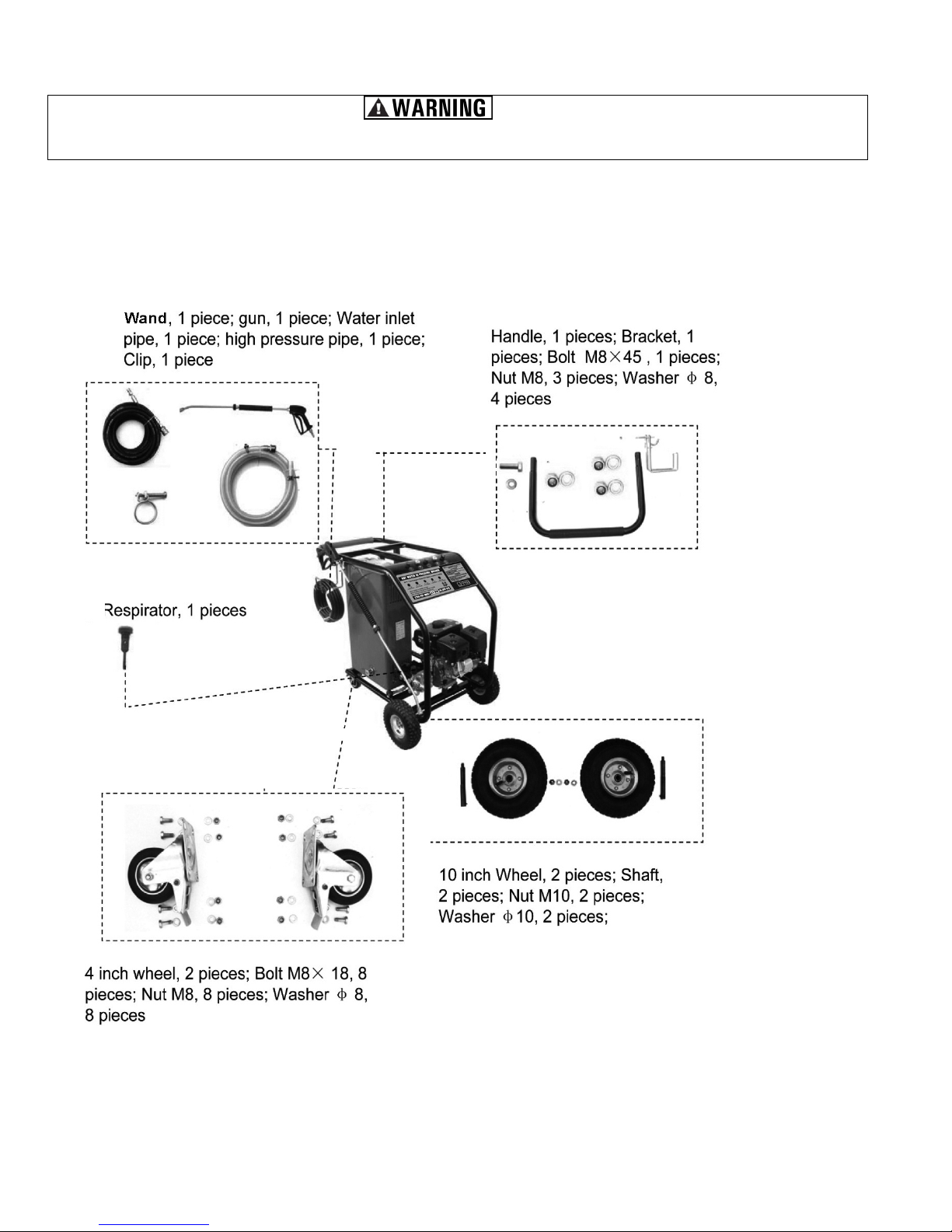

Locate all components and install them.
Step 1: Keep LP Propane gas supply source closed.
Step 2: Fix two clips on the both ends of approved gas pipeline.
Step 3: Attached the gas pipeline to GAS INLET and gas supply source.

PW2750 Hot Water Pressure Washer Manual
7
INSTALL THE WATER SOURCE
Connect the water inlet to running water. Install water strainer.
ADD GASOLINE TO ENGINE
Gasoline and gasoline fumes are highly flammable and explosive. Handling fuel can result inserious injury or burns.
• Do not fill the fuel tank near a heat, sparks or an open flame. Keep gasoline away from appliance pilot lights, barbecues, electric appliances,
power tools, etc.
• Do not overfill the fuel tank. Always check for fuelspills and immediately wipe them up. Spilled fuel is a fire hazard and causes environmental
damage.
To add gasoline:
To ensure that this Hot Water Pressure Washer runs smoothly, use only FRESH, UNLEADED GASOLINE WITH AN OCTANE RATING OF 87 OR
HIGHER. Unleaded gasoline produces fewer engine and spark plug deposits and extends the life of the exhaust system.
1. Confirm that this generator is on a level surface.
2. Unscrew fuel tank cap and set aside. (NOTE: The fuel tank cap may be tight and difficult to unscrew.)
3. Slowly add fresh, unleaded gasoline (with an octane rating 87 or higher) to the fuel tank. Be careful not to fill the fuel tank above the upper limit
line. NOTE: Because gasoline can expand, do not fill the fuel tank to the very top.
4. Securely tighten the fuel tank cap and immediately wipe up any spilled gasoline with a dry cloth.
STARTING THE ENGINE
Do not point the spray nozzle at any person or animal. Keep children clear of all work areas. Turn off the water source when
installing spray nozzles or wand.
STOP!
Before starting the engine, confirm that all the steps in the section titled, “Preparing the Hot Water Pressure Washer for Use,” of this
manual have been correctly completed. If unsure about how to perform any of these steps, call 1-888-287-6981, Monday - Friday,
8 AM - 4 PM Central Time for customer service.
1. Turn the gasoline fuel valve to the “on” position.
2. Move the choke lever to the “closed” position.
3. Set the engine switch to the “on” position.
4. Slowly pull on the recoil starter handle until a slight resistance is felt. Then pull briskly to start the engine. Gently return the cord into the generator
to avoid damage to the starter or housing. Never allow the cord to snap back.
5. If the engine fails to start, repeat step 4. NOTE: After repeated attempts to start the engine, consult the troubleshooting guide before attempting
again. If problems persist, call 1-866-460-9436, Monday - Friday, 8 AM - 4 PM Central Time.
6. Once the engine has started and runs for about a minute, move the choke lever approximately half way towards the “open”position. Wait an
additional 30 seconds and then move the choke lever completely over to the “open” position.
Do not attempt to work on or service the pump, work is only to be completed by authorized service agents. Any work completed outside
the service agency will void warranty. Only qualified repair personnel must perform service.

PW2750 Hot Water Pressure Washer Manual
8
After starting the engine, you can turn on the LP fuel. Turn the waterheater on. When the water is heated, trigger the gun and hot water
will come out. Trigger back and the water will stop. Use different spray nozzles to adjust the water flow rate. Adjust/reduce the engine
speed to increase/lower the water pressure.
As you trigger the gun, the heater will continue to heat the water to maintain constant temperature. Check the flame from the observation window. If
no flame, or if water is too cold, adjust the temperature by turning the Min/Max knob.
Detergent only works in low pressure and cannot be injected under high pressure. After you install the black spray nozzle, install the injector to the
pump. Then put the injector strainer into the detergent container. Detergent vs. Water ratio: 1: 10
After use, put the injector into clean water to clean off detergent.
The Safety Protector on the wand will help ensure that a firm grip on the handle
will allow high pressure water through the hose.
Do not shut off the water source when in operation, or it will cause damage to the pump.
STOP!
If you have questions about maintenance procedures described in this manual, call 1-888-287-6981 , Monday - Friday, 8 AM - 4 PM Central Time.
Never perform maintenance procedures while this tool is running. Allow this tool to cool before commencing any maintenance
procedures. Keep heat, sparks and flame away.
Improper maintenance and/or failure to correct any problems prior to operating this tool can cause a malfunction which could cause death
or serious injury. Always follow the inspection and maintenance recommendations and schedules in this manual.
Do not attempt to work on or service the pump, work is only to be completed by authorized service agents. Any work completed outside
the service agency will void warranty. Only qualified repair personnel must perform service.

PW2750 Hot Water Pressure Washer Manual
9
Recommended Maintenance Schedule
Each Use
Every Month or
Each 20 Hrs
Every 3 Months or
Each 50 Hrs
Every 6 Months or
Each 100 Hrs
Every Year or
Each 300 Hrs
Engine Oil
Check Level
X
Replace
X
Air Filter
Check
X
Clean
X
Spark Plug
Check/Clean
X
Clean
X
Cleaning the Tool
Always try to use this tool in a cool dry place. If this tool becomes dirty, the exterior can be cleaned with a damp cloth, soft brush, vacuum and/or
pressurized air.
Never clean this tool with a bucket of water and/or a hose as water can get inside and cause a short circuit or corrosion.
Never use gasoline to clean parts of this tool.
Air Filter Maintenance
Routine maintenance of the air filter helps maintain proper airflow to the carburetor.
Occasionally verify that the air filter is free of excessive dirt. The air filter will require more frequent cleaning when operating this tool in extremely
dusty areas.
1. Unhinge the clasps at the top and bottom of the air filter cover.
2. Remove the sponge-like elements from the casing.
3. Wipe the dirt from inside the empty air filter casing.
4. Wash the sponge-like elements in household detergent and warm water. Do not use gasoline or a flammable solvent.
5. Allow the sponge-like elements to dry thoroughly.
6. Soak the dry sponge-like elements in engine oil. Squeeze out any excess oil. The engine will smoke during initialstartup if too much oil is leftin
the air filter.
7. Replace the sponge-like elements in the air filter casing (the fine element first) and replace the cover.
INSTALLING NOZZLES

PW2750 Hot Water Pressure Washer Manual
10
HOW TO CLEAN NOZZLES
If the spray nozzle is blocked, pressure willbecome extremely high, and if spray nozzle is partly blocked, pressure will become unstable.
1. Stop pressure washer and shut off the water source.
2. Trigger the gun and release the pressure
3. Take off the spray wand.
4. Remove the spray nozzle and use a needle to clean.
HOW TO CLEAN A STRAINER
To clean a strainer, unscrew the water inlet and take out the strainer. Wash both sides ofthe strainer. Reinstall.
Check and wash the strainer regularly. Do NOT use the pressure washer without the strainer.
Spark Plug Maintenance
This LP tool is more efficient than traditional gasoline tools. As such, the spark plug on this LP tool will last longer.
Please contact Customer Service if you have questions regarding the spark plug.
STORAGE/TRANSPORT PROCEDURES
Never place any type of storage cover on this tool while it is still hot.
When transporting or storing this tool for extended time:
• Allow tool to fully cool before moving it. Ahot engine and exhaust system can burn you and ignite some materials.
• Turn the fuel valve to the “off” position.
• Disconnect the spark plug.
• Do not obstruct any ventilation openings.
• Do not drop or strike this tool while moving it.
• Store this tool in a cool dry area, free of excessive dust.
5. Wash the wand for 30 seconds.
6. Reinstall the nozzle.
7. Reinstall the wand and trigger gun.
8. Restart the pressure washer.

PW2750 Hot Water Pressure Washer Manual
11
TROUBLESHOOTING
HIGH PRESSURE HOSE & NOZZLES

PW2750 Hot Water Pressure Washer Manual
12
PARTS DIAGRAM

PW2750 Hot Water Pressure Washer Manual
13

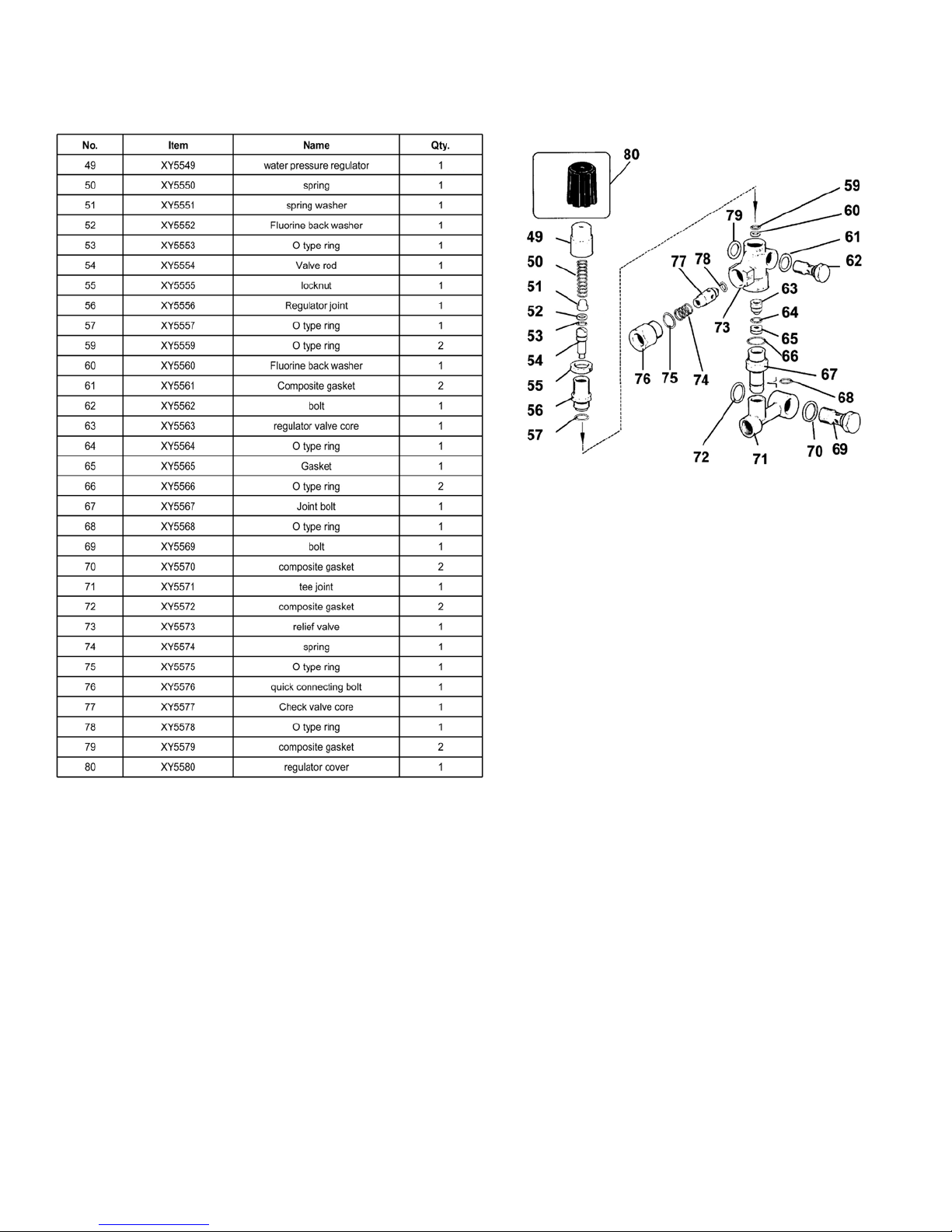

PUMP DIAGRAM
201204
