Blackmore Mobile Electronics BDP-330 User manual

OWNER'SMANUAL
Compact DVD Player
BLACKMORE MOBILE ELECTRONICS
3400 E. SLAUSON AVE.
MAYWOOD CA. 90270
1-866-572-6766
WWW.BLACKMOREMOBILE.COM
BLACKMORE MOBILE ELECTRONICS
3400 E. SLAUSON AVE.
MAYWOOD CA. 90270
1-866-572-6766
WWW.BLACKMOREMOBILE.COM
MODEL: BDP-330

FEATURES
Compatible with PAL DVD (Video CD)
and NTSC DVD (Video CD)
This player can play discs recorded in
either PAL or NTSC format.
A single LSI chip now integrates all
major DVD playback circuit functions
including MPEG2 decoder, video D/A
converter,and audio decoders.
L/R stereo analog audio outputs for
connection to existing head unit aux
inputs. Video output is composite
video.
Supplied remote handles
multi-function software (multi-language
audio-track/subtitle, multi-angle, multi-
story, etc.), plus all basic functions.
USE THIS PRODUCT SAFELY
When Driving
Keep the volume level low enough to be
aware of road and traffic conditions.
Do not expose the product to water or
excessive moisture. This could cause
electrical shorts, fire or other damage.
Parking in direct sunlight can produce
very high temperatures inside your
vehicle. Give the interior a chance to
cool down before starting playback.
Use the Proper Power Supply
This product is designed to operate with
a 12 volt DC, negative ground battery
system (the regular system in a North
American car).
Protect the Disc Mechanism
Avoid inserting any foreign objects into
the slot of this player.
Failure to observe this may cause
malfunction due to the precise
mechanism of this unit.
22

Safety Information..............................................................................
Disc Notes..........................................................................................
Installation.........................................................................................
Connection...........................................................................
Remote Control..................................................................................
Preparing the Remote Control...............................................................
Loading a DVD/VCD/CD Disc................................................................
Ejecting a Disc.....................................................................................
Basic Operation.................................................................................
On-Screen Display Function.................................................................
Multi-audio Language Function.............................................................
Menu Function....................................................................................
Title Menu Function (For DVD only)......................................................
Multi-subtitle Language Function (For DVD only)...................................
Multi-angle Function (For DVD only).....................................................
MP3 Disc Play....................................................................................
Setup................................................................................................
Initial Setup.......................................................................................
General Setup....................................................................................
Speaker Setup...................................................................................
Audio Setup.......................................................................................
Preferences Setup.............................................................................
Defaults Table ...................................................................................
Specifications....................................................................................
..............................................................................
..........................................................................................
.........................................................................................
...........................................................................
..................................................................................
.................................................................................
................................................................................................
....................................................................................
CONTENTSCONTENTS
33
44
55
66
77
88
9
9
9
1010
11
11
12
12
12
12
12
1313
13
13
15
15
16
19
19
Warranty...........................................20

SAFETY INFORMATIONSAFETY INFORMATION
CAUTION:
MOBILE DVD PLAYER IS A CLASS I
LASER PRODUCT. HOWEVER THIS
MOBILE DVD PLAYER USES A
VISIBLE/INVISIBLE LASER BEAM
WHICH COULD CAUSE HAZARDOUS
RADIATION EXPOSURE IF DIRECTED.
BE SURE TO OPERATE THE MOBILE
DVD PLAYER CORRECTLY AS INS-
TRUCTED. USE OF CONTROLS OR
ADJUSTMENTS OR PERFORMANCE
OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION
EXPOSURE.DO NOT OPEN COVERS
AND - DO NOT REPAIR YOURSELF.
REFER SERVICING TO QU ALIFIED
PERSONNEL.
WARNING:
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR
MOISTURE.
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, AND ANNOYING
INTERFERENCE, USE ONLY THE
RECOMMENDED ACCESSORIES.
THIS DEVICE IS INTENDED FOR
CONTINUOUS OPERATION.
This product incorporates copyright
protection technology that is protected
by method claims of certain U.S. patents
and other intellectual property rights
owned by Macrovision Corporation and
other rights owners. Use of this
copyright protection technology must be
authorized by Macrovision Corporation,
and is intended for home and other
limited viewing uses only unless
otherwise authorized by Macrovision
Corporation. Reverse engineering or
disassembly is prohibited.
Region Management Information:
This Mobile DVD Player is designed and
manufactured to respond to the Region
Management Information that is recorded
on a DVD disc. If the Region number
described on the DVD disc does not
correspond to the Region number of this
Mobile DVD Player, this Mobile DVD
Player cannot play this disc.
44

Disc formats supported by this player
DVD
12 cm disc
(Single-sided disc only)
Video CD
12 cm disc
CD
12 cm disc
MP3
12 cm disc
Discs which cannot be played with this
player
DVD-ROM
DVD-R/DVD-RAM
CDV
CD-G
Handling and Cleaning
Dirt,dust, scratches andwarped disc's
will cause misoperation.
Do not place stickers on or
labels on discs.
Do not bend discs.
A disc should always be kept in its
casewhen not in use toprevent
damage.
Do not place discs in the following
places:
1.Direct sunlight
2.Dirty, dusty and damp areas
3.Near car heaters
4.On the seats or dashboard
Disc Cleaning
Use a dry soft cloth to wipe the surface.
If the disc is quite dirty, use a soft cloth
slightly moistured with isopropyl (rubbing)
alcohol. Never use solvents such as
benzine, thinner or conventional record
cleaners as they may mar the surface of
the disc.
Note:
A disc may become somewhat scratched
(although not enough to make it
unusable) depending on yourhandling of it
and conditions in the usage environment.
Disc formats supported by this player
Discs which cannot be played with this
player
Handling and Cleaning
Disc Cleaning
Note:
DISC NOTESDISC NOTES
Note these scratches are not an
indication of any problem with the player.

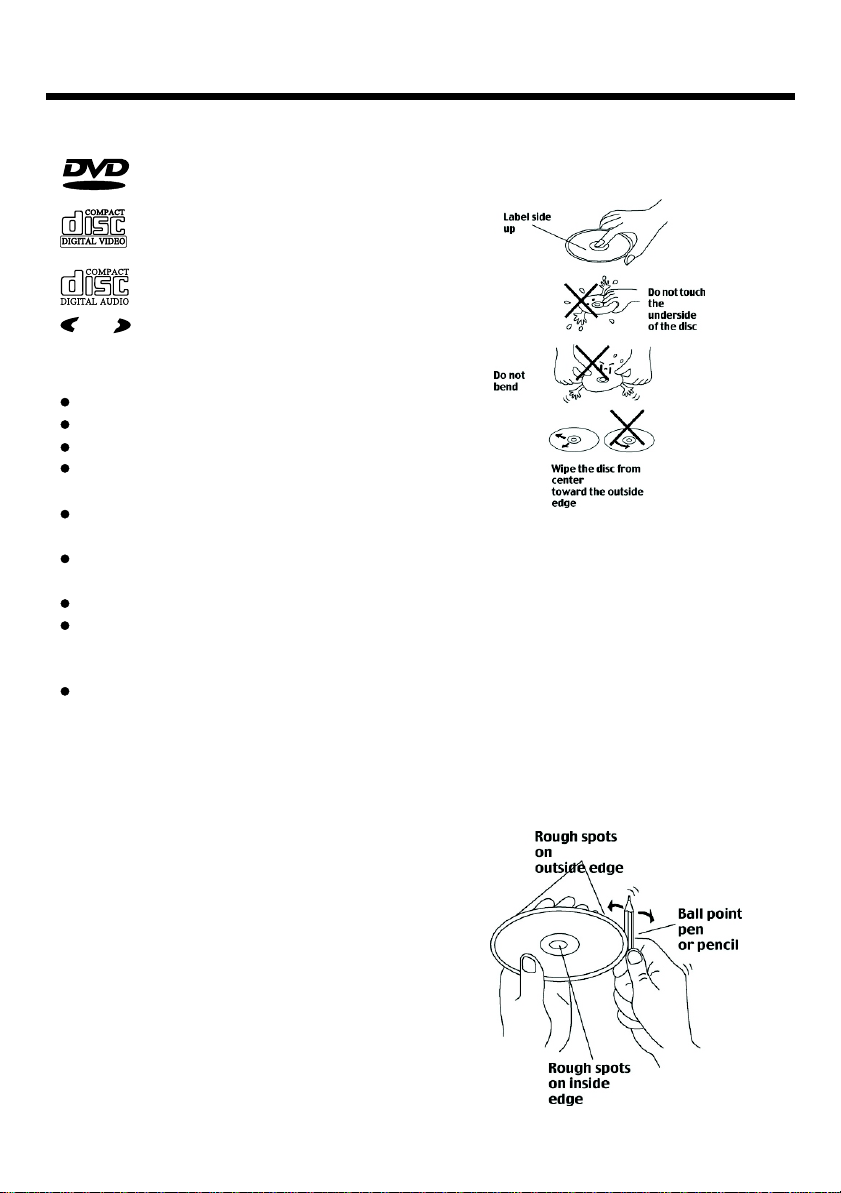

Reparing New Discs with Rough Spots
A new disc may have rough edges on its
inside and outside edges. If a disc with
rough edges is used, the proper setting
will not be performed and the player will
not play the disc. Therefore, remove the
rough edges in advance by using a ball
point pen or pencil as shown on the right.
To remove the rough edges, press the
side of the pen or pencil against the
inside and outside edges of the disc.
Preparing New Discs with Rough Spots
PMPM
CD-RWCD-RW
33
V I D E O
55

Note:
1. First remove the two screws that lock the unit core, then attach the brackets on
both sides of unit with screws (M4x6), last install the unit with screws (M5x25).
2. When mounting the unit, you can slide the screw (M5x25) to left side or right side
to position the player.
Note:
INSTALLATIONINSTALLATION
66
ＳＳＣＣＲＲＥＥＷＷ
ＭＭ４４ｘｘ５５ＳＳＣＣＲＲＥＥＷＷＳＳＬＬＯＯＣＣＫＫＥＥＤＤＴＴＨＨＥＥＵＵＮＮＩＩＴＴＣＣＯＯＲＲＥＥ
ＳＳＣＣＲＲＥＥＷＷＭＭ５５ｘｘ２２５５
ＳＳＣＣＲＲＥＥＷＷＭＭ４４ｘｘ５５
Cautions
1.Makesuretogroundtheunittoanegative12VDCpowersupply
2.Whenreplacingafuse,onlyuseanewonewiththeprescribedrating.Usingafusewithwrong
ratingmaycausetheunittomalfunction.
3.Topreventshortcircuitswhenreplacingafuse,firstdisconnectthewiringharness.
4.Donotuseanyscrewsexceptfortheonesprovided.Usingimproperscrewsmaydamagetheunit.
5.Ifyouexperience problemsduringinstallation,consultyoursupplier.
!
ALL INSTALLATIONS ARE DIFFERENT. IF YOU ARE NOT FAMILURE WITH THIS TYPE
OF EQUIPMENT OR INSTALLATION PLEASE CONSULT YOUR BLACKMORE MOBILE DEALER
FOR INSTALLATION OR ADVISE.

CONNECTION
77
DC 12V IN DC 12V OUTDC 12V IN DC 12V OUT
++
____
++REMOTEREMOTE DIGITAL
AUDIO
DIGITAL
AUDIO
A/V OUTA/V OUT
L/RL/R VIDEOVIDEO
DVD PLAYERDVD PLAYER
RED (+)
BLACK (-)
YELLOWYELLOW
VIDEO OUTVIDEO OUT
AUDIO R OUTAUDIO R OUT
AUDIO L OUTAUDIO L OUT
REDRED
WHITEWHITE
(OPTIONAL)(OPTIONAL)
REMOTE CONTROL RECEIVERREMOTE CONTROL RECEIVER
YELLOWYELLOW
BLACK
BLACK
DIGITAL AUDIODIGITAL AUDIO

REMOTE CONTROLREMOTE CONTROL

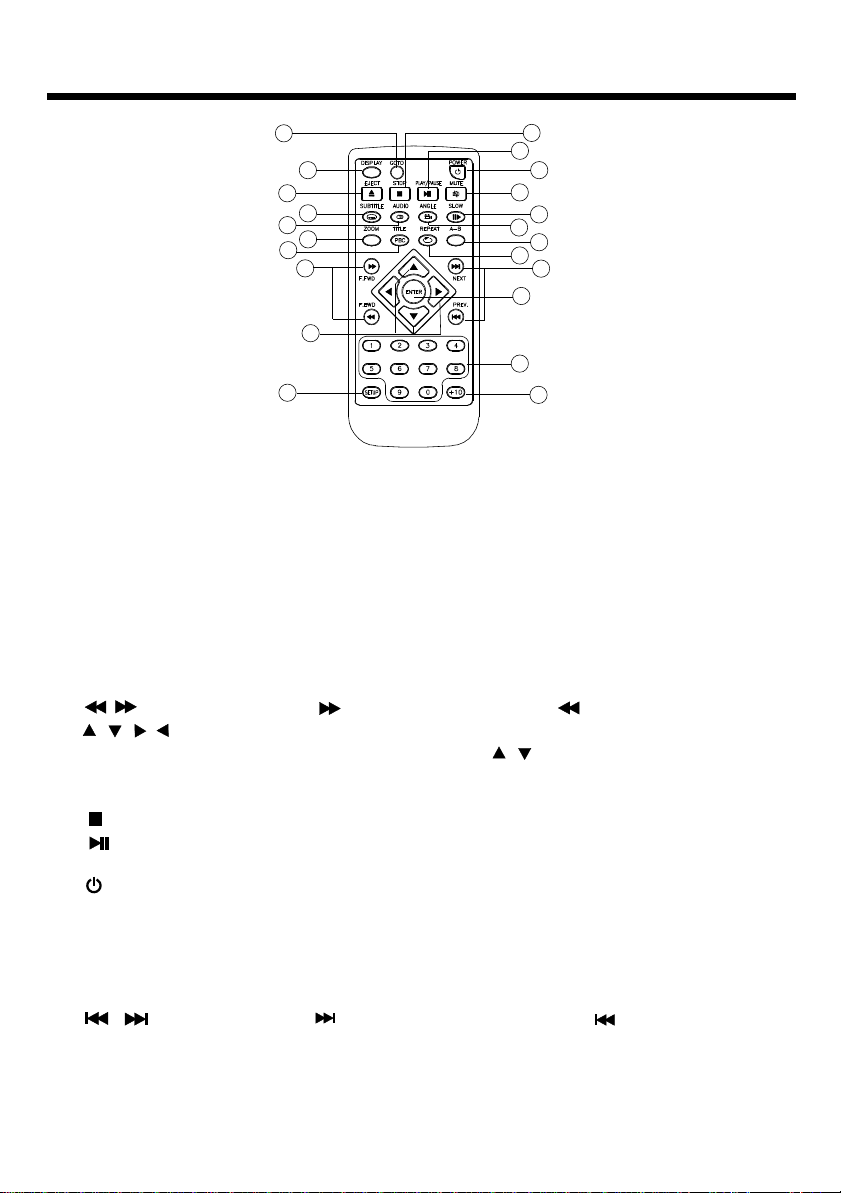

1. GOTO Disc search button, cooperatively used with numeric buttons
2．DISPLAY Display statistical disc information during playback
3. EJECT Press it to eject the disc.
4. SUBTITLE Changing of the SUBTITLE language on multi-subtitle
language DVD disc
5. AUDIO Changing of the AUDIO soundtrack on multi-audio soundtrack
DVD disc. Changing of the sound mode of the VCD/CD disc
6. ZOOM Press it to zoom the picture in scale x1.5,x2.0,x3.0
7. TITLE Display the TITLE menu that is stored in DVD disc changing
between PBC ON and PBC OFF on the VCD disc
8. / Press to start forward rapidly & to reverse rapidly
9. / / / Cursor buttons in MENU mode. Note: For models without
built-in FM Modulator, the / buttons can be used for
volume up/down control.
10.SETUP Display the SETUP menu
11 Press it to stop playback
12. Press once to pause a play, press again to resume continuous
playback
13. POWER Press POWER to turn the unit ON or OFF
14. MUTE Press it to eliminate the sound immediate
15.SLOW Changing for slow forward/reverse playback motion
16.ANGLE Changing of the view angle on multi-angle DVD disc
17. A-B Press ittorepeat between two selected sports on DVD orVCD disc.
18.REPEAT Switch the Repeat mode of DVD/VCD/CD disc
19 / Press to skip to the next track & press to skip back one track
20.ENTER Confirm the Track/Chapter selected with the number key or
selected with the cursor buttons on TV screen
21. 0 - 9 Numeric buttons
22. +10 Press it to select 10th digits
88
11
12
13
14
15
16
17
18
19
21
22
1
2
3
4
5
6
7
8
9
10
20

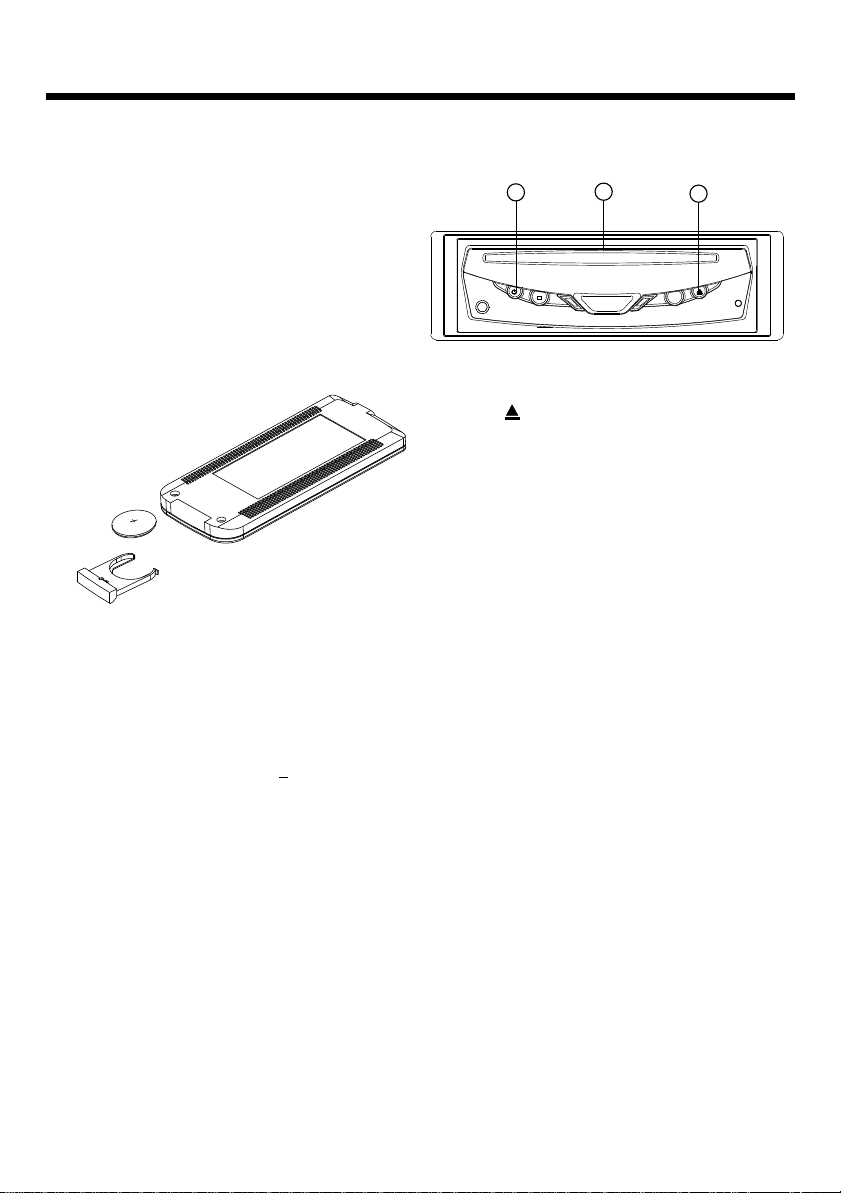

Preparing the Remote Control
Inserting the batteries
1. Remove the battery holder in the
direction indicated by the arrow.
2. Insert the battery properly with the {+}
sign up as illustrated.
3. Insert the battery holder. Push in
the holder to the original position.
Using the Remote Control
Face the remote control towards the
player front face IR mark (remote control
signal reciver).
Operation angle: About +30 degree in
each the direction of the front of the IR
mark.
To prevent damage to the unit, be sure
to follow the connection diagram
(page 7).
Loading a DVD/VCD/CD Disc
1.Turn the ignition on to the accessory
position.
2. Press the POWER button (1).
3. Insert the disc with printed side facing
up into the disc slot (2).
4. The player starts playback
automatically.
Preparing the Remote Control
Using the Remote Control
To prevent damage to the unit, be sure
to follow the connection diagram
Loading a DVD/VCD/CD Disc
REMOTE CONTROLREMOTE CONTROL
Ejecting a Disc
Press (EJECT) button (3) to eject the
disc.
Ejecting a Disc
99
12３
USE ONLY CR2025 BATTERY FOR REPLACEMENT

Stopping Play
-Briefly press the (Stop) button to stop
the unit playback, then press the
(Play) button to return to normal
playback.
-Press (Stop) button twice, it will stop
the playback and go back to initial
Track/Chapter.
Rapid Forward/Rapid Reverse
Press FF & REW during play.
Each time the button is pressed,the
speedofrapidforward/reverse changes
according to the disc as listed.
DVD:
VCD/CD:
MP3:
Skipping Tracks
Press / on the remote handset
or front panel during playback.
Press to skip to next track, and
to go back one track.
Note: For some VCD 2.0 dics
(PBC-playback control), and
buttons may be unavailable.
Slow Motion Play
Press slow button during playback.Each
time the button is pressed, the slow
modes are changes according to the
disc as follow.
DVD:
VCD:
Note: For VCD, in any slow mode, press
ENTER button to return to normal
playback.
Stopping Play
Skipping Track
Slow Motion Play
Note:
Rapid Forward/Rapid Reverse
Pause (still picture)
Pressing during playback will stop
play temporary.To return to normal
playback, press once again.
Repeat
Press the REPEAT button to select repeat
mode as follow.
DVD:
Press the REPEAT button to select repeat
mode as follow.
VCD/CD:
Press the REPEAT button to select repeat
mode as follow.
1.Continuously repeat at the current chapter/
track, when selected REP-ONE mode.
2.Select REP-ALL mode to continuously
repeat all chapter/track on the current
disc.
3.When the player finishes playing back the
current disc last chapter/track, it will
stop and display the elapsed time.
When selected REPEAT OFF mode
(REP-ONE & REP-ALL disappear at
the screen display).
4.REPEAT feature does not support VCD2.0
(with PBC ON).
Reset
Reset button is placed on the front panel
and must be activated with a ball point
pen or thin metal object. Reset button is
to be activated for the following reasons:
Initial installation of the unit when all
wiring is completed.
All the function buttons do not operate.
Error symbol on the display.
Remote Sensor (IR)
Point the remote handset to the remote
sensor.This receivesthesignalfrom
the remote control.
Turning the player on/off
Pressthe(POWER) button on the
panel or press (POWER) button on the
remote control to turn the player on or off.
Pause (still picture)
Reset
Remote Sensor (IR)
Turning the player on/off
BASIC OPERATIONBASIC OPERATION
Normal Playback 2x 4x 6x 8x
Normal Playback 1x 2x 3x 4x
Normal Playback 2x
Normal Playback SF 2x SF 4x SF 8x
SR 8X SR 4X SR 2X
Normal Playback SF 1x
SF 3X
CHAPTER REPEAT ON TITLE REPEAT ON
REPEAT OFF
REPEAT OFF REP-ONE REP-ALL
SF 2X
1010

On-Screen Display Function
Press the DISPLAY button during
playback to display the contents of the
current disc on the screen.
Example:
DVD:
(1) Press DISPLAY for the first time:
Title Number, Total Title Number, Chapter
Number, Total Chapter Number of this
Title of the disc currently being played
will be shown on the screen, along with
the elapsed time.
(2) Press DISPLAY for the second time:
(3) Press DISPLAY for the third time:
(4) Press DISPLAY for the fourth time:
(5) Press DISPLAY for the fifth time:
The message on the screen will be cleared.
Video CD/SVCD/CD:
(1) Press DISPLAY for the first time:
On-Screen Display Function
DVD:
Video CD/SVCD/CD:
BASIC OPERATIONBASIC OPERATION
TITLE 01/03 CHAPTER 002/025
00:02:25
TITLE REMAIN
01:46:58
CHAPTER ELAPSED
00:00:24
CHAPTER REMAIN
00:01:39
SINGLE ELAPSED 00:00:25
TRACK 01
(2) Press DISPLAY for the second time:
(3) Press DISPLAY for the third time:
(4) Press DISPLAY for the fourth time:
(5) Press DISPLAY for the fifth time:
The message on the screen will be cleared.
MP3:
Each time DISPLAY is pressed, the message
displayed on screen changes as follows:
Multi-audio Language Function
DVD:
Press AUDIO during playback.
Each time the button is pressed, number
of the audio soundtrack language
changes on sequential order.
Notes:
-The language number is different
according to the disc.
-Some disc only contain one language
soundtrack.
-When no different language
soundtrack are recorded will be
display at screen left top corner.
VCD:
Press AUDIO during playback.
It is possible to switch the sound
between monaural and stereo sound.
MP3:
Multi-audio Language Function
SINGLE REMAIN 00:03:15
TRACK 01
TOTAL ELAPSED 00:00:25
TRACK 01
TOTAL REMAIN 00:40:35
TRACK 01
CHAPTER ELAPSED CHAPTER REMAIN
LEFT VOCAL RIGHT VOCAL MONO LEFT
STEREO MONO RIGHT
1111

CD:
Press AUDIO during playback.
This will switch the sound
between monaural and stereo sound.
TITLE Menu Function
DVD:
If the DVD has multiple titles recorded on
the disc. It can select preferred title from
the title menu to start playback.
1.Press TITLE during playback.
The title menu is display.
2.Press the cursor button shown in TV
screen, select preferred title with the
cursor button and confirmed by pushing
the ENTER key.
VCD:
Press the TITLE button while the disc is
playing, you can switch between"PBC
on"and "PBC off"mode.
Multi-subtitle Language Function
(For DVD only)
Press SUBTITLE during playback.
Each time the button is pressed, number
of the subtitle language changes in
sequential order.
Notes:
-The number of languagesis different
per each disc.
-Some discs only contain one
subtitle language.
-When no different subtitle languages
are recorded, will be displayed at
the screen left top corner.
TITLE Menu Function
Multi-subtitle Language Function
BASIC OPERATIONBASIC OPERATION
MONO LEFT MONO RIGHT STEREO
Multi-angle Function
(For DVD only)
Press ANGLE during playback.
Each time the button is pressed,the number
of the angle changes in sequential order.
Notes:
-The angle number is differentaccording
to the disc.
Multi-angle Function
-This function only worksfor discshaving
scenes recorded at different angles.
-When no different anglesare recorded,
will be displayed at screen left top
corner.
1212
MP3 Disc Play
MP3 disc is playing in the DISC
REPEAT mode by default.
For example:
Use / / / buttons to select the
item or folder, then press ENTER button.
When select PLAY MODE, press the
REPEAT button repeatedly to select
three kinds of play mode.
REP-ONE:
Play the same song over and over again.
FOLDER REPEAT:
Play all songs in the current directory in
sequence, over and over again.
DISC REPEAT:
Play all songs in the discover and over
again.
In the playback,use or to skip an
item ahead or back.
: Rapid reverse, : Rapid advance
Note:The FOLDER cannot be selected
during playing. It can be selected after
(Stop) button pressed.
MP3 Disc Play
PLAY MODE
ROOT 0
MP3 MUSIC 1
SKY
MP3 HEAR YOUR
DISC REPEAT
ROOT
Mp3 PLAYER

SETUPSETUP
INITIAL SETUP
SETUP MENU ---MENU PAGE
1.Press SETUP in the stop mode.
(Press the stop button twice to ensure
the player is in the STOP mode.)
2.The initial SETUP menu is displayed.
3.Select the preferred item by using the
/ buttons.
4.Press ENTER button to select.
a. GENERAL SETUP
This setup page includes all the
itemsfor TV display &audio output
features.For detaislpleaserefer to
the GENERAL SETUP MENU.
b. SPEAKER SETUP
This is to activate the audio output
from DOLBY AC3 5.1 DOWNMIX
to 2 channel mode. Please refer to
SPEAKER SETUP MENU.
c. AUDIO SETUP
This setup page includes all the
items for AUDIO. Please refer to
AUDIO SETUP MENU.
d. PREFERENCE SETUP
This setup page includes all the
configuration of support features.
For detailsplease refer to the
PREFERENCES SETUP MENU.
INITIAL SETUP
a. GENERAL SETUP
b. SPEAKER SETUP
c. AUDIO SETUP
d. PREFERENCE SETUP
GENERAL SETUP
SPEAKER SEUP
AUDIO SETUP
EXIT SETUP
PREFERENCES
GENERAL SETUP
--- GENERAL PAGE ---
TV display setup
This is to select the appropriate TV
aspect (4:3 or 16:9) according to the
connected Monitor.
Normal/PS (For 4:3 TV)
Played back in the PAN & SCAN style.
(If connected to wide-screen TV, the left
and right edges are cut off.)
Normal/LB (For 4:3 TV)
Played back in letterbox style.
(If connected to wide-screen TV, black
bands appear at top and bottom of the
screen.)
Wide (For 16:9 TV)
Select when a wide-screen TV set is
connected.
GENERAL SETUP
TV display setup
Normal/PS
Normal/LB
Wide
MAIN PAGE
WIDE
PIC MODE
ANGLE MARK
OSD LANG
CAPTIONS
SCR SAVER
NORMAL/PS
NORMAL/LB
Video
Material
TV Screen
4:3
Wide(16:9)
Normal Pan Scan Letter-box
1313
TV DISPLAY
FM FREQUENCY

---GENERAL PAGE ---
PIC mode setup
Select AUTO, the player PIC mode will
depend on DVD disc.
Select HI-RES format for best image
resolution.
Select N-FLICKER format on format on
image or picture under noise affect.
--- GENERAL PAGE ---
ANGLE MARK display setup
If it is set to ON, when the multi-angle
DVD disc is playing, (the angle mark)
will appears on the screen; if is set to
OFF, the mark will not appear.
PIC mode setup
ANGLE MARK display setup
---GENERAL PAGE ---
OSD LANG type setup
Select the preferred OSD language by
using the / buttons.
--- GENERAL PAGE ---
CAPTIONS setup
Activate the CAPTIONS feature by
selecting ON. And release this feature
by selecting OFF.
OSD LANG type setup
CAPTIONS setup
SETUPSETUP
TV DISPLAY
PIC MODE
ANGLE MARK
OSD LANG
CAPTIONS
SCR SAVER
MAIN PAGE
AUTO
HI-RES
N-FLICKER
TV DISPLAY
PIC MODE
ANGLE MARK
OSD LANG
CAPTIONS
SCR SAVER
MAIN PAGE
ENGLISH
TV DISPLAY
PIC MODE
ANGLE MARK
OSD LANG
CAPTIONS
SCR SAVER
MAIN PAGE
TV DISPLAY
PIC MODE
ANGLE MARK
OSD LANG
CAPTIONS
SCR SAVER
MAIN PAGE
ON
OFF
ON
OFF
1414
FM FREQUENCY FM FREQUENCY
FM FREQUENCY FM FREQUENCY

--- GENERAL PAGE ---
SCR SAVER setup
Select the SCR SAVER output ON/OFF
---GENERAL PAGE
SCR SAVER setup
SETUPSETUP
TV DISPLAY
PIC MODE
ANGLE MARK
OSD LANG
CAPTIONS
SCR SAVER
MAIN PAGE
ON
OFF
1515
SPEAKER SETUP
--- SPEAKER SETUP PAGE ---
This is to activate the audio output from
DOLBY AC3 5.1 DOWNMIX to 2 channel
mode. Select the preferred SPEAKER
connection by using the cursor buttons.
Select the LT/RT to activate the Dolby
surround compatible output.
Select the STEREO to activate simple
stereo mode.
SPEAKER SETUP
DOWNMIX
MAIN PAGE
LT/RT
STEREO
AUDIO SETUP
---AUDIO SEUTP---
AUDIO OUT
This is to activate the audio output from
ANALOG mode to SPDIF/RAW mode to
SPDIF/PCM mode.
AUDIO SETUP
AUDIO OUT
MAIN PAGE
AUDIO OUT
OP MODE
DYNAMIC
LPCM OUTPUT
ANALOG
SPDIF/RAW
SPDIF/PCM
TV DISPLAY
PIC MODE
ANGLE MARK
OSD LANG
CAPTIONS
SCR SAVER
MAIN PAGE
88.7MH z
88.9MH z
FM Modulator Frequency setup
Select the preferred FM frequency
by using the / buttons
NOTE: The built-in FM Modulator
is an optional feature.
FM Modulator Frequency setup
FM FREQUENCY
FM FREQUENCY

---AUDIO SETUP---
OP MODE
There are two operating modes for the
Dolby Digital decoder: LINE OUT and
RF REMOD.
---AUDIO SETUP
LPCM OUTPUT
Select the LPCM OUTPUT between
LPCM 48K and LPCM 96K.
OP MODE
LPCM OUTPUT
---AUDIO SETUP
Dynamic Range Control
Select DRC and adjust the dynamic range
of a Dobly Digital encoded program.
There are 8 steps between full
compression and off compression.
Dynamic Range Control
SETUPSETUP
PREFERENCES SETUP
---PREFERENCES PAGE
TV type setup
This player can play discs recorded in
either PAL or NTSC format.
Select NTSC format, when you connected
to NTSC TV.
Select PAL format, when you connected
to PAL TV.
Select AUTO format, the player TV
output format will according to the DVD
disc format.
PREFERENCES SETUP
TV type setup
TV TYPE
AUDIO
SUBTITLE
DISC MENU
PARENTAL
PASSWORD
MAIN PAGE
MULTI
NTSC
PAL
DEFAULTS
MAIN PAGE
AUDIO OUT
OP MODE
DYNAMIC
LPCM OUTPUT
1616
FULL
6/8
OFF
2/8
4/8
MAIN PAGE
AUDIO OUT
OP MODE
DYNAMIC
LPCM OUTPUT
LPCM 48K
LPCM 96K
MAIN PAGE
AUDIO OUT
OP MODE
DYNAMIC
LPCM OUTPUT
LINE OUT
RF REMOD
Mp3 PLAYER
FM MODULATOR

SETUPSETUP
---PREFERENCES PAGE ---
SUBTITLE language setup
Select the preferred SUBTITLE language
by using the cursor buttons.
SUBTITLE language setup
---PREFERENCES PAGE
DISC MENU language setup
Select the preferred DISC MENU
language by using the cursor buttons.
DISC MENU language setup
---PREFERENCES PAGE
PARENTAL
Select suitable parental guidance by the
cursor buttons and conformed by
pressing ENTER button.
PARENTAL
TV TYPE
AUDIO
SUBTITLE
DISC MENU
PARENTAL
PASSWORD
MAIN PAGE
ENGLISH
FRENCH
SPANISH
DEFAULTS
Mp3 PLAYER
CHINESE
JAPANESE
TV TYPE
AUDIO
SUBTITLE
DISC MENU
PARENTAL
PASSWORD
MAIN PAGE
DEFAULTS
Mp3 PLAYER
1G
2
3PG
4PG13
5
6PG-R
NO PARENTAL
7NC-17
8 ADULT
1717
TV TYPE
AUDIO
SUBTITLE
DISC MENU
PARENTAL
PASSWORD
MAIN PAGE
DEFAULTS
Mp3 PLAYER
ENGLISH
FRENCH
SPANISH
CHINESE
JAPANESE
FM MODULATOR FM MODULATOR
FM MODULATOR
ENGLISH
FRENCH
SPANISH
CHINESE
JAPANESE
TV TYPE
AUDIO
SUBTITLE
DISC MENU
PARENTAL
PASSWORD
MAIN PAGE
DEFAULTS
Mp3 PLAYER
FM MODULATOR
---PREFERENCES PAGE
AUDIO language setup
Select the preferred AUDIO soundtrack
by using the cursor buttons.
AUDIO language setup
OFF

---PREFERENCES PAGE---
DEFAULTS
Select reset to become factory initial
setting.
DEFAULTS
SETUPSETUP
RESET
1818
--- PREFERENCES PAGE---
Mp3 PLAYER
In this item, you can select NO MENU
mode or WITH MENU mode.
Mp3 PLAYER
WITH MENU
NO MENU
TV TYPE
AUDIO
SUBTITLE
DISC MENU
PARENTAL
PASSWORD
MAIN PAGE
DEFAULTS
Mp3 PLAYER
TV TYPE
AUDIO
SUBTITLE
DISC MENU
PARENTAL
PASSWORD
MAIN PAGE
DEFAULTS
Mp3 PLAYER
FM MODULATOR
FM MODULATOR
TV DISPLAY
AUDIO
SUBTITLE
DISC MENU
PARENTAL
PASSWORD
MAIN PAGE
DEFAULTS
Mp3 PLAYER
ON
OFF
---PREFERENCES PAGE
FM Modulator ON/OFF setup
Activate the FM Modulator feature by
selecting ON. And release this feature
by selecting OFF.
NOTE: The built-in FM Modulator
is an optional feature.
FM Modulator ON/OFF setup
FM MODULATOR
---PREFERENCES PAGE
PASSWORD
Select the change and press ENTER
button. Type the old password (The initial
factory code is 3308) and key in a 4
character password that you want to
use, and retype again to confirm.
PASSWORD
CHANGE
TV TYPE
AUDIO
SUBTITLE
DISC MENU
PARENTAL
PASSWORD
MAIN PAGE
DEFAULTS
Mp3 PLAYER
FM MODULATOR

General Setup TV Display Normal/PS
PIC Mode AUTO
Angle Mark ON
OSD Language English
Captions OFF
SCR Saver OFF
Downmix Stereo
Audio Out Analog
OP Mode Line Out
Dynamic FULL
LPCM Out LPCM 96K
TV Type AUTO
Audio English
Subtitle English
DISC Menu English
Parental 6PG-R
Password 3308
Mp3 Player With Menu
Speaker Setup
Audio Setup
Preferences
DEFAULTS RESET
FM MODULATOR ON
DEFAULT SETTINGS
1919
SETUPSETUP
Supply Voltage : 12V DC (11V-15V), test voltage 14.4V,negative ground
Current Consumption : Less than 2A
Signal System : Compositive video 1.0Vp-p 75
Discs Played : (1)DVD-VIDEO Disc
5"(12 cm) single-sided, single-layer
5"(12 cm) single-sided, double-layer
(2)Compact Disc (CD-DA, VIDEO CD)
5"(12cm) disc
Audio Output Level : 600 (2 ch 2.0 Vrms)
Audio Signal Output
Characteristics : (1)Frequency Response 20 Hz - 20 KHz
: (2)S/N Ratio 90 dB (JIS)
: (3)Wow and Flutter Below measurable limits
Note:
Specifications and design are subject to modification, without notice, due to
improvements in technology.
This product incorporates copyright protection technology that is protected by method
claims of certain U.S. patents and other intellectual property rights owned by
Macrovision Corporation and other rights owners. Use of this copyright protection
technology must be authorized by Macrovision Corporation, and is intended for home
and other limited viewing uses only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is prohibited.
SPECIFICATIONSSPECIFICATIONS

This product incorporates copyright protection technology that is protected by method
claims of certain U.S. patents and other intellectual property rights owned by
Macrovision Corporation and other rights owners. Use of this copyright protection
technology must be authorized by Macrovision Corporation, and is intended for home
and other limited viewing uses only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is prohibited.
2020
WARRANTY INFORMATION
LIMITED THREE-YEAR WARRANTY
This warranty from Blackmore Mobile shall be in effect for a period of three
years from the date of the first consumer purchase. This warranty shall be
enforceable by the original owner and any subsequent owners during the
warranty period so long as proof of date of purchase from an authorized dealer
is presented whenever warranty service is required.
Except as otherwise specified below, this warranty covers all defects in material
and workmanship in this product. The following are not covered: damage
resulting from accident, misuse, abuse, neglect, product modification, improper
installation, incorrect line voltage, unauthorized repair or failure to follow
instructions supplied with the product, damage occurring during shipment
(claims must be filed with the carrier), elimination of car static or other
electrical interferences, any product purchased outside of North America, or on
which the serial number has been defaced, modified or removed.
In order to receive service of this product please return it to the Blackmore
Mobile dealer from whom it was purchased and such dealer will service or
arrange for service of the product. If shipment of the product is required, it
should be packed securely. The original dated bill of sale or a legible copy of it
must always be included with the product as proof of warranty coverage.
We will pay for all labor and material expenses required to repair the product,
but consumer must pay any labor expense for the removal and installation of
the product. If the product is shipped, consumer must prepay the initial
shipping charges to us, but Blackmore Mobile will pay the return shipping
charges.
All implied or statutory warranties and conditions, including warranties or
conditions of merchantability, fitness for particular purposes and non-
infringement, are limited in duration to the length of this warranty. Blackmore
Mobile’s liability is limited to the repair or replacement, at our option, of any
defective product and shall not include incidental or consequential economic
damages of any kind. Some states or provinces do not allow limitations on how
long an implied warranty lasts and/or do not allow the exclusion or limitation of
incidental or consequential damages, so the aforementioned limitations and
exclusions may not apply. This warranty gives you specific rights and you may
also have other rights, which vary depending on the state or province that you
reside in.
