jWIN JD-VD141 Instruction Manual

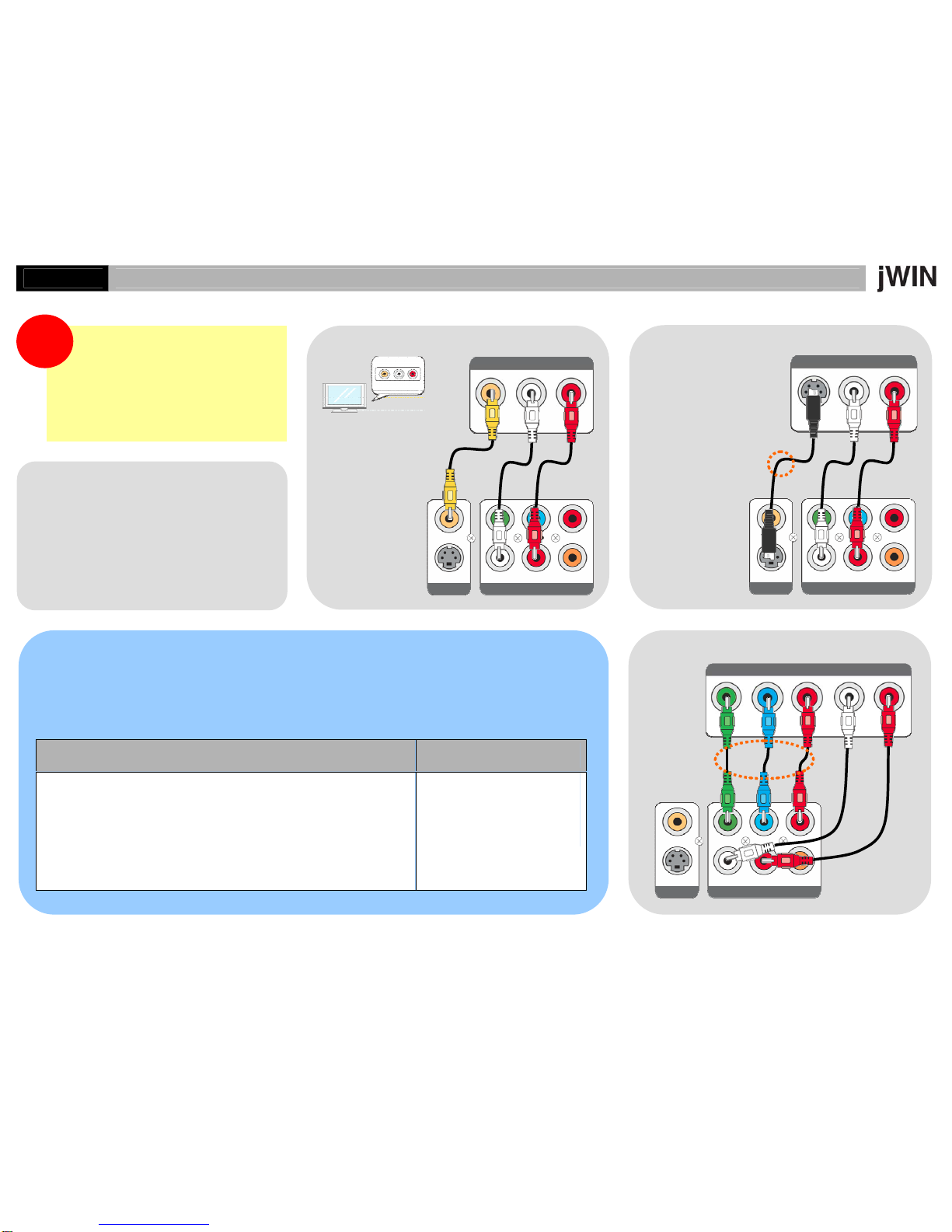

JD-VD141 QUICK CONNECTION GUIDE FOR AV CONNECTION
Have a question? Please visit http://www.jWIN.com for more information or call us at 1-866-807-jWIN for technical support.
Did you know that, to avoid possible
electric shock or injury, all electronic
devices should be unplugged and
turned off until all connections have
been made? If you haven’t done this,
please do so for your safety before
starting the installation.
STEP 1: Choose your AV connection type. The
video quality depends on the AV connection. If
your TV supports
•Composite Video, go to 1
•S-Video, go to 2
•Component Video (Y, Pb/Cb, Pr/Cr), go to 3
If you are not sure, please refer to the TV owner’s
manual or choose Option 1
12
3
WAIT COMPOSITE VIDEO & AUDIO
CONNECTION
(
GOOD
Q
UALITY
)
S-VIDEO & AUDIO
CONNECTION
(
BETTER
Q
UALITY
)
COMPONENT VIDEO & AUDIO
CONNECTION
(
BEST
Q
UALITY
)
STEP 2: Set up DVD video settings according to your selected connection.
•Turn on both your TV and DVD player.
•Set the AV mode of your TV to the selected video mode above. If you are not sure how to change the AV mode
of your TV, please refer to your TV owner’s manual or call your TV manufacturer for Customer Support. If the AV
mode of your TV is properly set and DVD player is turned on, you will see the jWIN logo on your TV screen. If
not, please check all the cable connections and the AV mode of your TV.
COMPONENT VIDEO & AUDIO
CONNECTION S-VIDEO / COMPOSITE VIDEO & AUDIO CONNECTION
To change the video output setting, please refer to the setup section in the
DVD instruction manual.
Note: This DVD player offers two video output options with Component
Video connection, interlaced-scan video output and progressive-scan video
output. If your TV doesn’t support the progressive-scan video output, please
set the video output to the interlaced-scan video output (INTERLACE-YUV).
For S-VIDEO and COMPOSITE
VIDEO connection, the setup
procedure is not required.
Enjoy your favorite DVD movies!
a. Locate the AV input
on your TV.
b. Connect the cable(s)
as shown on 1, 2, or
3.
AV INPUT (TV)
VIDEO L R
AUDIO
VIDEO
S-
V
IDEO
Y
Pb Pr
L R COAXIAL
TV
VIDEO OUT COMPONENT VIDEO / AUDIO OUT
VIDEO
S-
V
IDEO
Y
Pb Pr
L R COAXIAL
S-
V
IDEO L R
AUDIO
AV INPUT (TV)
S-Video Cable
not included
VIDEO OUT COMPONENT VIDEO / AUDIO OUT
VIDEO
S-
V
IDEO
Y
Pb Pr
L R COAXIAL
Y
Pb/Cb Pr/Cr L R
AUDIO
AV INPUT (TV)
Component Cable
not included
VIDEO OUT COMPONENT VIDEO / AUDIO OUT
