Blade BM-7000s User manual

1
1. Introduction ........................................................................................................... 2
1.1 Overview
1.2 Main Features
2. Safety/Precautions ............................................................................................... 3
2.1 Safety
2.2 Precautions
3. Check Point before Use ....................................................................................... 5
3.1 Accessories
4. Controls/Functions .............................................................................................. 6
4.1 Front Panel
4.2 Rear Panel
4.3 Remote controller
5. How to Connect .................................................................................................. 10
6. Operation ............................................................................................................ 11
6.1 Getting Started
6.2 System Setting
6.3 Channel Manager
6.4 Installation
6.5 Utils
6.6 Game
6.7 Common Interface
6.8 Conditional Access System
6.9 PVR
7. Trouble Shooting ............................................................................................... 57
8. Specifications ..................................................................................................... 58
Contents
DiSEqC is a trademark of EUTELSAT
6.9a Online Services

32

Be sure to read this user's manual before
starting the operation of the unit.

Do not touch the power cord with wet
hands as it may cause electric shock.

Never open the cover. It is very
dangerous to touch the inside of the
unit due to possible electric shock.

Place the unit in a well ventilated and
no-heat environment.

When you do not use this unit for a
long time, make sure that power cord
is pulled out from the outlet. Also do
not use a damaged power cord as it
may cause fire or electric shock.

A professional installation is required.
If reception is interrupted, contact
your local service centre.
Safety/Precautions
2.1 Safety
This satellite receiver is designed for using digital free-to-air channel reception. Enjoy the rich
choice of more than 10,000 different channels, broadcasting a large range of culture,
sports, cinema, news, events, etc. This receiver is a technical masterpiece, assembled with
the highest qualified electronic parts.
Introduction
1.1 Overview
ᶀVideo Resolution : 1080p / 1080i / 720p / 576p / 576i
ᶀDVR Ready via USB External Mass Data Storage Device
ᶀTime Shift, Record & Playback
ᶀUSB 2.0 Host for MP3 Playback, JPEG Viewing & Firmware Update
ᶀEmbedded CONAX CAS7
ᶀCommon Interface
ᶀDVB-S, MPEG-2/MPEG-4 Compliant
ᶀAdvanced Blind Scan
ᶀ1 HDMI output
ᶀMultisatellite search.
ᶀOn-screen display with true color full resolution.
ᶀDiSEqC control version 1.0, 1.1, 1.2 and USALS compatible.
ᶀEnhanced 16 favorite channel groups.
ᶀPowerful channel control by favorites, lock, skip, move and delete function.
ᶀChannel sort by alphabet, transponder and CAS.
ᶀMultilingual GUI (OSG & Menu): English, Spanish, Portuguese, French, German, Italian,
Turkish, Arabic, Persian, Russian, Deutsch, Netherlandic, Greek.
ᶀInstallation wizard
ᶀExtended EPG and program reservation on EPG.
ᶀTeletext & Subtitle by OSD and VBI
ᶀLast channel memory function.
ᶀTotal 10,000 channels programmable.
ᶀPreprogrammed channels (Optional)
ᶀDolby digital audio output (S/PDIF)
ᶀComponent output (YPbPr)
ᶀVarious games
ᶀSoftware & channel database upgrade via RS-232C: PC to STB/ STB to PC.
ᶀParental Lock/ Installation Lock / Receiver Lock / Channel Lock / Lock Channel Confirm.
ᶀAuto Voltage (AC 100 - 250V) SMPS.
ᶀZoom in function on pause/ live channel
ᶀMultipicture display.
ᶀHigh speed software upgrade via USB 2.0
ᶀMP3 play and JPEG viewer
ᶀLan 10/100Mbps Ethernet
ᶀManufactured under license from Dolby Laboratories.
“Dolby” and the double-D Symbol are trademarks of Dolby Laboratories.
1.2 Main Features

54
The accessories below are included with this receiver:
Points to Check before Use
3.1 Accessories
Your dish should be properly installed and azimuth and elevation must be precisely set up.
ᶀThis unit supports DiSEqC 1.2 and can work with a compatible antenna positioner.
Ask your dealer for information.
3.2 The Satellite dish
When installing the unit
2.2 Precautions

Install the unit horizontally. An uneven
installation may cause the unit to be
damaged.

Do not put heavy items such as a TV
set on the unit. That may damage
the unit.
Do not leave the unit where the
water drops or splashes.
Do not put water holding items such
as vases on the unit.


Moving the unit to a hot area from a
cold one will cause condensation.
Do not operate the unit for one or two
hours or until it has dried completely.
ᶀThe mains plug is used as the disconnect device.
The disconnect device shall remain readily operable.
Do not install the unit:
⍥Where it is subject to vibrations
⍥Where it is exposed to direct sunlight
⍥Where there is humidity
⍥Where the temperature is too high or too low.
⍥Where there is no ventilation
User's manual : 1
User's manual
Remote control : 1
Batteries (AAA type) : 2 HDMI cable : 1
ᶀ If any of the above-listed
accessories is missing, contact
your sales representative.

76

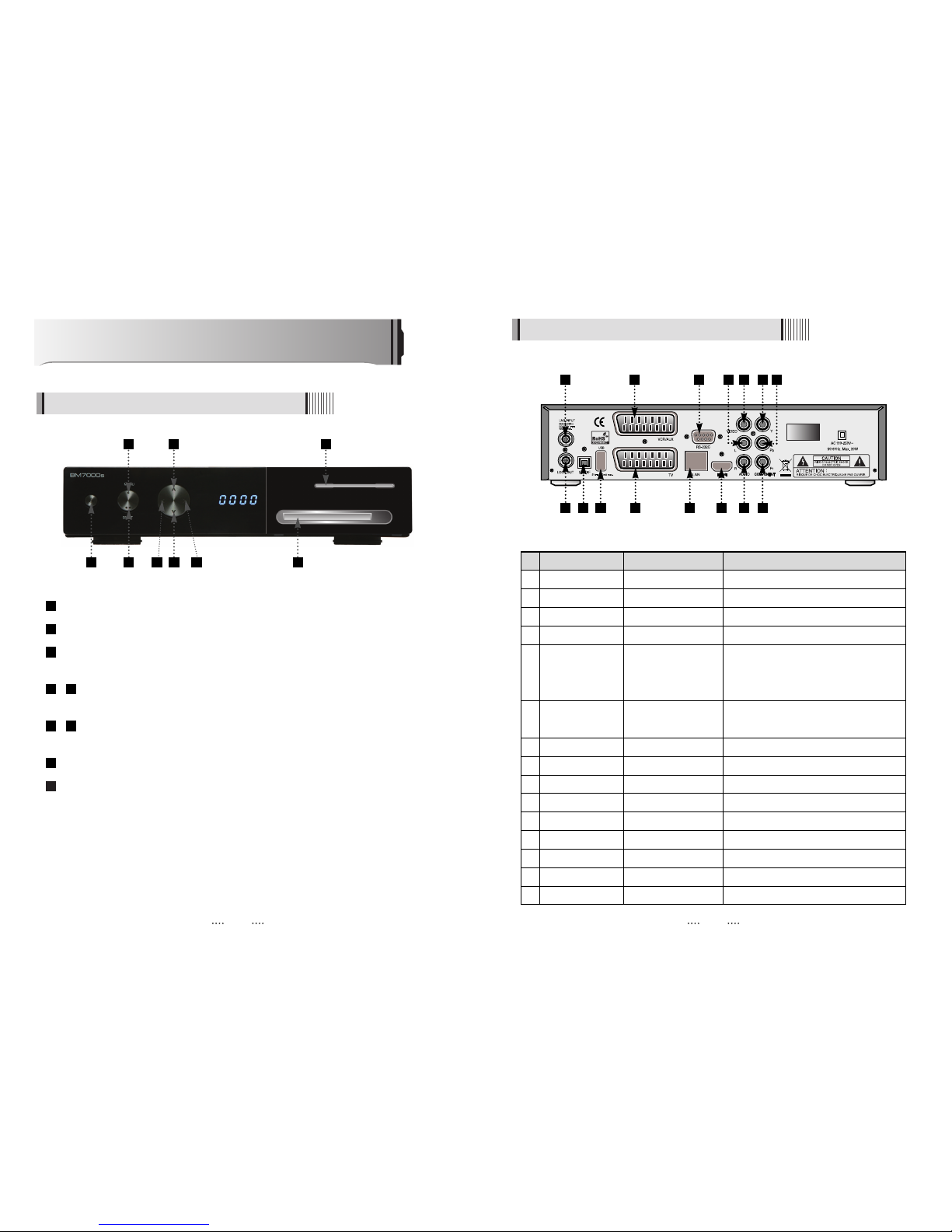

4.2 Rear Panel
Controls/Functions
4.1 Front Panel
Power : Switches the receiver between “Standby” and “Power ON” modes.
Menu : To enter or exit the main menu.
Select : To show the Channel List in non-menu mode and select on item or confirm in
menu mode.
- VOL
ȜȞ : To change the volume level in non-menu mode and modify a setting
in menu mode.
- CH ƌƊ : To switch channels or change the cursor position on the application
screen.
Smart Card Reader (1 Slot) : Insert smart card for encrypted channel access.
Common Interface (1 Slot) : For CI module(PCMCIA module) with smart card towatch
pay TV channels.
9
8
76
54
3
2
1
2 6 8
1 3 97
No. Name Connector Function
1LNB INPUT IEC 169-24 FEMALE IF input from LNB to digital tuner
2LNB OUTPUT IEC 169-24 FEMALE IF loop-through output from digital tuner
3S/PDIF Fiber Optic Digital audio output (Optical)
4USB USB A-type USB 2.0
5VCR/AUX SCART SCART CVBS Video Output
CVBS, RGB Video Input
Audio Output
6TV SCART SCART Video output(CVBS, RGB)
Audio output(R, L)
7RS-232C DB-9 Low speed serial port
8LAN RJ-45 10/100Mbps Ethernet
9HDMI HDMI Digital Video/Audio Output
10 VIDEO RCA cinch Composite video output
11 AUDIO L RCA cinch Left audio output
12 AUDIO R RCA cinch Right audio output
13 Y RCA cinch Component video output(Y)
14 Pb RCA cinch Component video output(Pb)
15 Pr RCA cinch Component video output(Pr)
1 5 10 13711 14
2 3 64 8 9 12 15
54

98

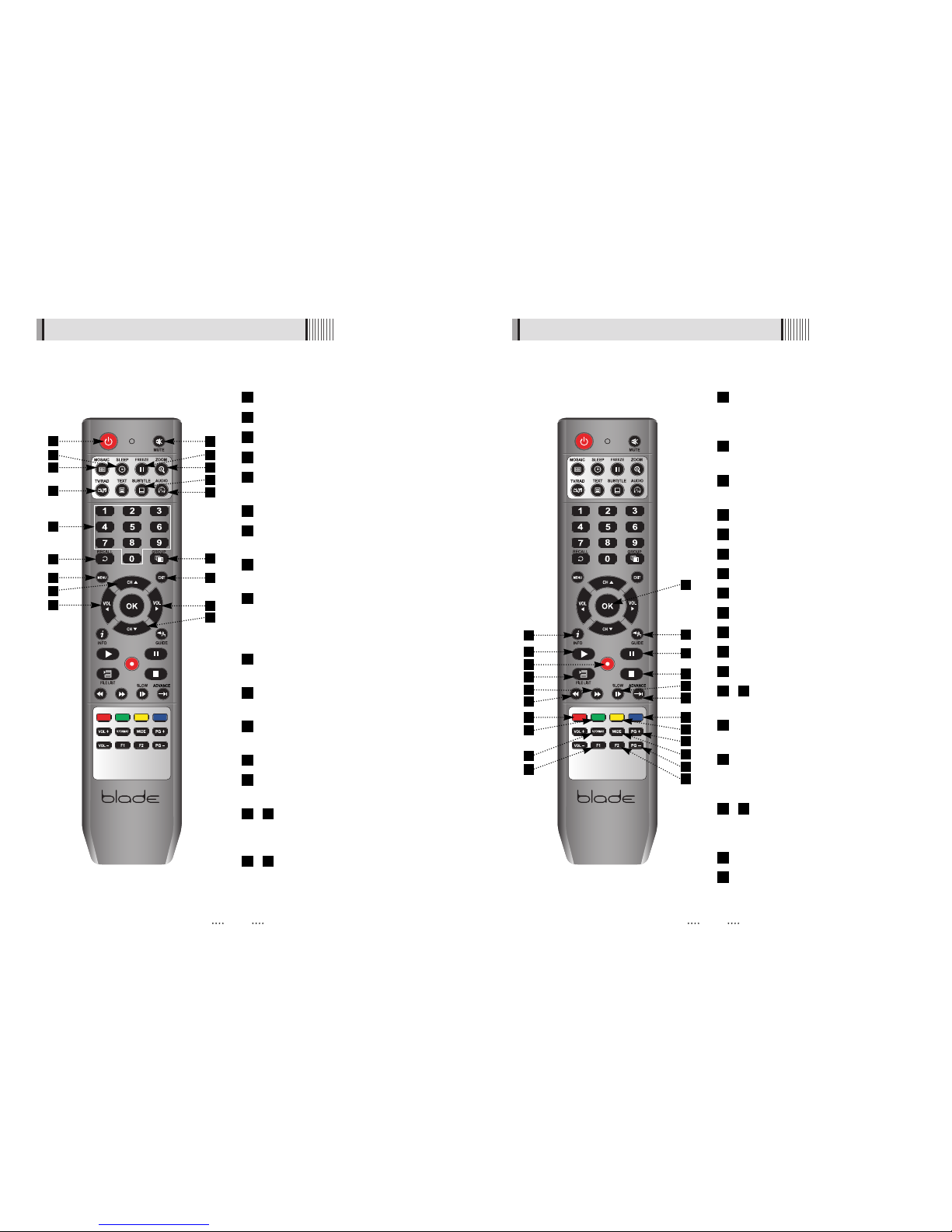

4.3 Remote controller4.3 Remote controller
POWER :To turn the receiver On/Off.
MUTE : To turn the sound On/Off.

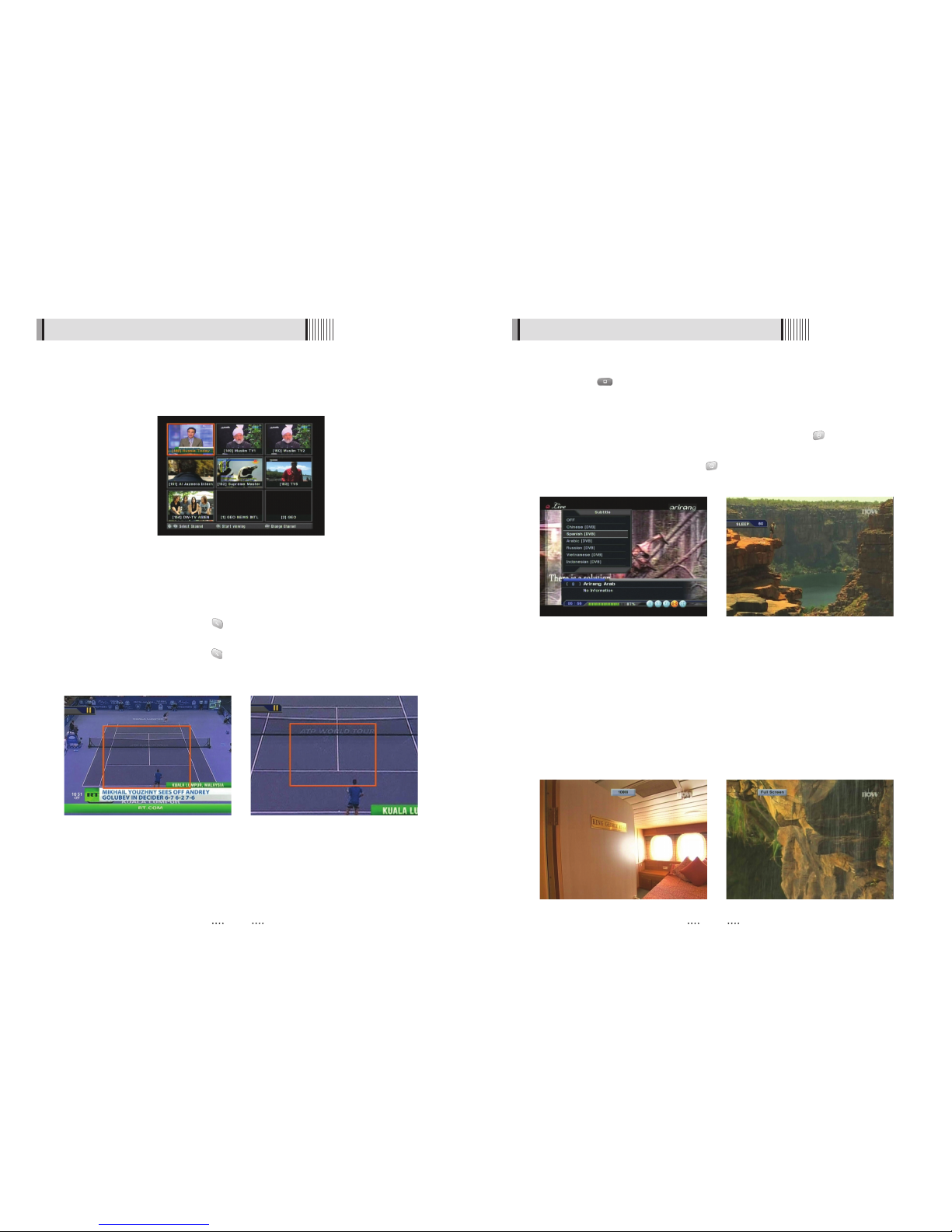

MOSAIC : To display multiple pictures.
SLEEP : To set the STB off after minutes.
FREEZE : To pause the video. Press again
to resume the video.
ZOOM : To zoom In/Out.
TV/RADIO : To switch between TV and
Radio.
SUBTITLE : To show the subtitle contents if
subtitle is transmitted.
AUDIO : To show the Multi-language audio
track, the stereo-mono mode and subtitle
information. Used for special functions in
menu mode.
Numeric Keys (0-9) : To enter numerical
settings (such as channel numbers) directly.
RECALL :To move to the previous channel.
Used for special functions in menu mode.
GROUP :To change the channel
groups(Satellites or favorite groups)
MENU : To enter or exit the main menu.
EXIT :To exit from the present menu and
move to the previous menu.
- Up & Down : To switch channels in non-
menu mode and move the cursor
up/down in menu mode.
- Left & Right : To change the volume
level in non-menu mode and modify a
setting in menu mode.
1817
1615
14
13
12
11
10
9
8
7
6
5
4
3
2
1OK : To show the Channel List in non-menu
mode and select an item or confirm in
menu mode.
INFO : To show information about the current
program. Press twice to show detail.
GUIDE : To show the TV/Radio program
guide.
PLAY :Play Content.
PAUSE : Pause playback.
FILELIST :To display the filelist.
STOP :Stop Playback.
REC : Start recording.
RWD : Playback in rewind mode.
FWD : Playback in forward mode.
SLOW : Playback in slow mode.
ADVANCE : Go to live channel.
- Color Key : Select the option such as
View List, Select Disk, Rename.
V.FORMAT : To switch the resolution of
video output.
Wide : To select a TV aspect ratio with Pan
Scan or Letter-Box(4:3) (Full screen or
Pillar box(16:9).
- Page Up/Down : To move to the next or
previous page when many pages are
available.
F1 : Media File Playback
F2 : Reserved button for new function
40
39
3837
36
35
3431
30
29
28
27
26
25
24
23
22
21
20
19
1
7
11
13
17
12
2
6
9
20
14
18
21
22
26
23
24
31
25
30
34
5
16
8
29
19
33
37
36
38
40
3
15
4
28
27
32
35
39
10

1110
Operation
6.1 Getting Started
After your receiver is powered on, proceed with installation as follows :
(1) Installation Wizard
1) Menu Language Setting
⊹Turn on your TV and receiver.
⊺The pop-up menu for language selection will appear <Figure 6-1-1>.
Select one language and press the to proceed.
<Figure 6-1-1>
How to Connect
5.1 When Connecting IRD to TV with AV connectors
Connect the TV antenna to TV ANT IN
Connect the Video and Audio of TV to the Video and Audio. Connect Red and White
connector to Audio R and Audio L, and Yellow into Video port respectively
Connect the Component Video of your TV to Component Video for best quality: connect
the Y, Pb and Pr of your TV to Y, Pb and Pr respectively
Connect your satellite dish
4
3
2
1

1312

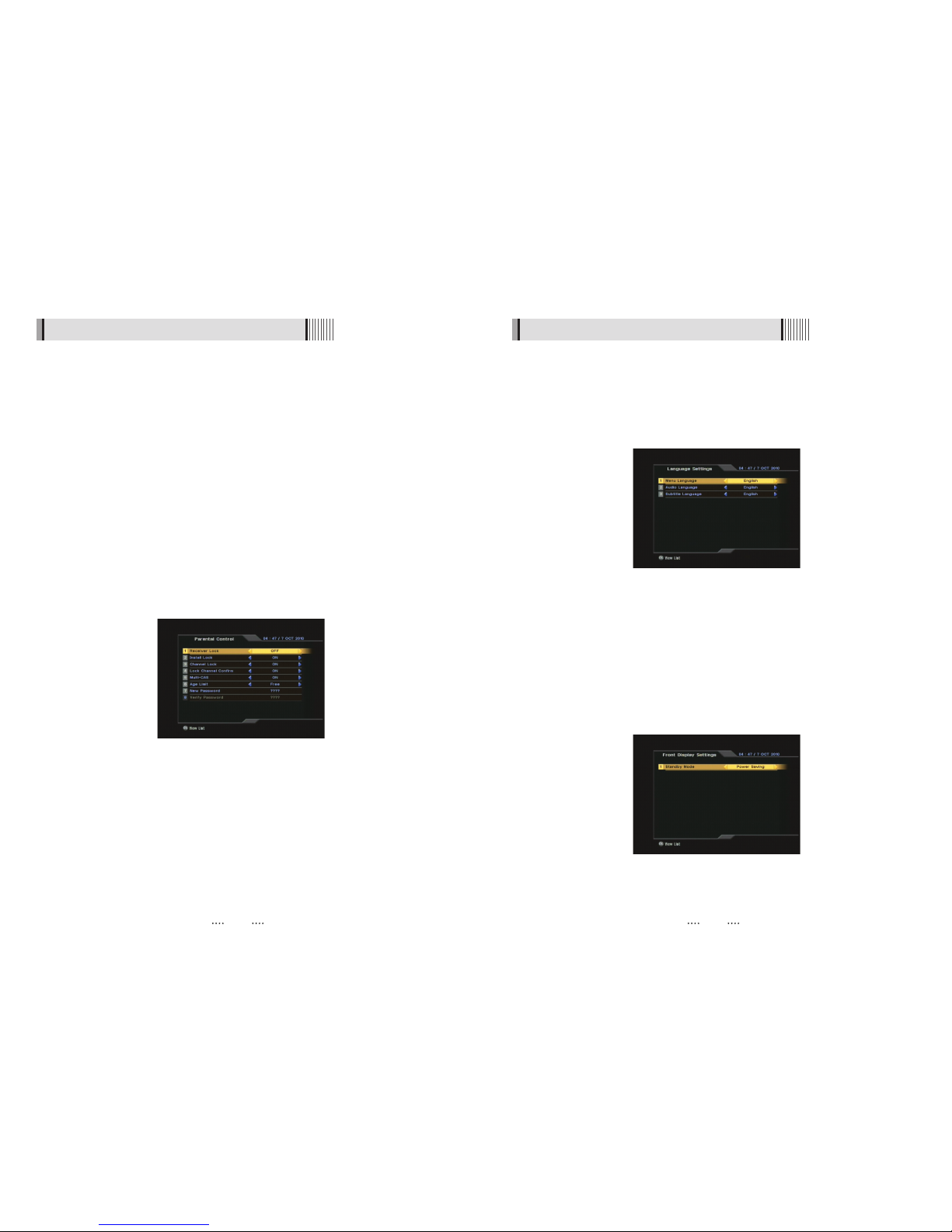

6.1 Getting Started
3) Time Setting
This sub menu allows you to set your local time, wake up time, wake up channel and
sleep time. <Figure 6-1-3>
- GMT Usage : If you set ON, local time is determined by adjusting the differences from
GMT (Greenwich Meantime) according to your location.
- Current Date : If GMT Usage ON, this date is determined by GMT. If GMT Usage OFF, you
can modify this by pressing the button. If you set OFF, receiver doesn’t
refer to GMT. Local time is determined by adjusting current date and
current time.
- Current Time : If GMT Usage ON, this time is determined by GMT. If GMT Usage OFF, you
can modify this by pressing the NUMERIC button.
- Local Offset : If GMT Usage ON, Local time is GMT time + Local Offset.
- Summer Time : you can set the summer time mode (Off/Last Sun in Oct~Mar/First Sun in
Oct~Mar/Mar~Oct)
- Wake Up Mode : You can set the cycle of the wake up mode (Off/Once/Daily/Mon~Fri)
- Wake Up Time : You can set wake up time by pressing the NUMERIC button on the
remote.
- Wake Up Channel : You can set wake up channel by pressing the button on the
remote.
- Sleep Mode : You can set the cycle of the sleep mode (Off/Once/Daily/Mon~Fri)
- Sleep Time : You can set sleep time by pressing the NUMERIC button on the remote
- Automatic Standby : Selects auto standby time (OFF/After 1~8Hour) After making your
selection press to confirm
- Timer Lead Time : Press to set the Timer Lead In And Lead Out Time.
<Figure 6-1-3>
<Figure 6-1-2>
6.1 Getting Started
3) A/V Output Setting
This sub menu allows you to set audio/video output setting. <Figure 6-1-2>
- SCART : Select the SCART output. (CVBS/RGB)
- Screen Format : Select the screen format. (16:9/4:3)
- Display Format : Select the TV aspect ratio(Full Screen/Pillar Box, Letter Box/Pan Scan)
- Video Format : Select the Scanning type(Interaced, Progressive)
- SPDIF : Select the Audio output type (Dolby SPDIF/PCM/DOLBY HDMI)

1514
6.1 Getting Started

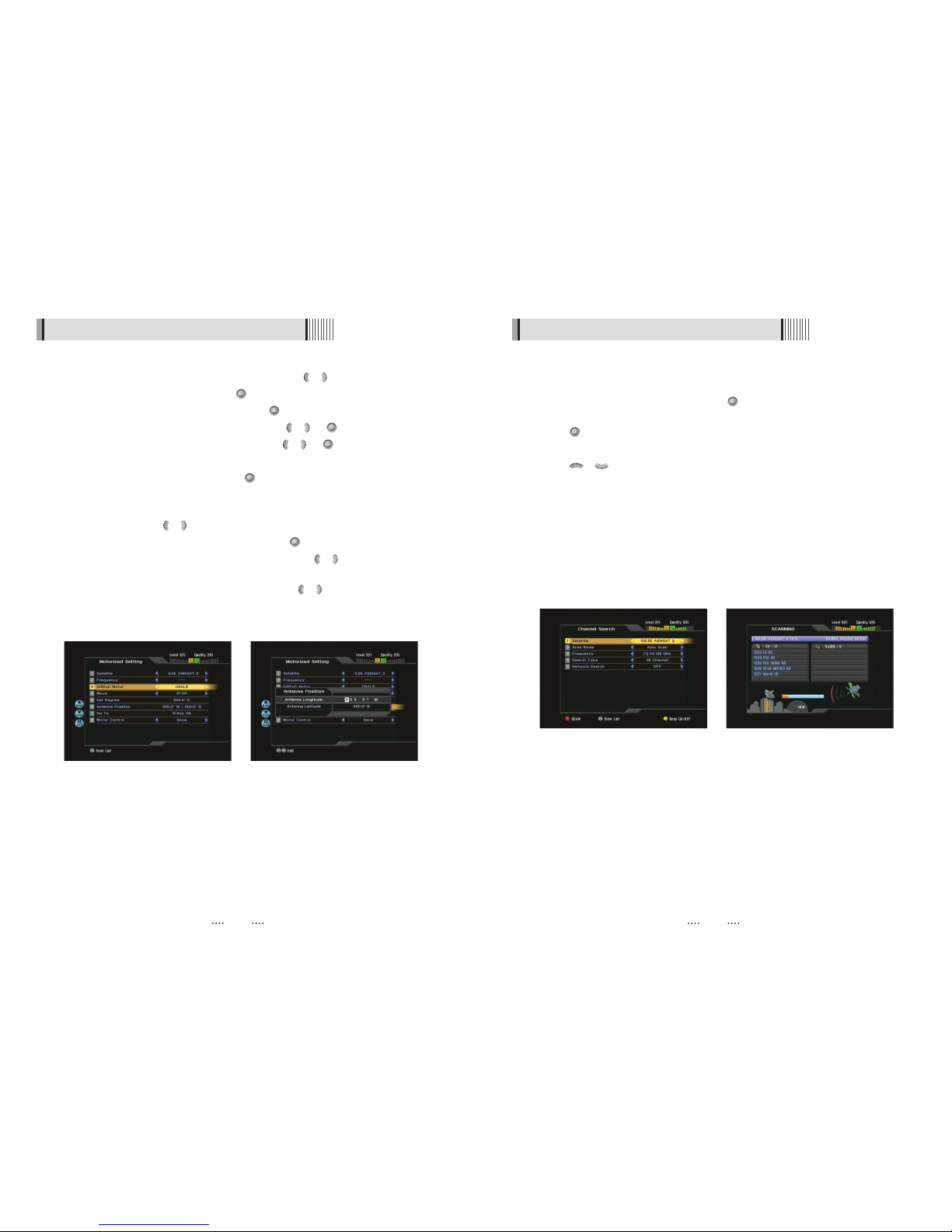

(When the DiSEqC Motor parameter is set as 1.2)
- Motor Step : Select Motor Step
- Move : Move the dish position to west/east by pressing / buttons.
- Go To : Go to the position of the saved satellite.
- Motor Control : Control motor by press button ot the remote.
⍜Recalculate : Recalculate the position of all other saved satellites relative to the
known position.
⍜Reset System : Reset the position of all saved satellites.
⍜Goto Reference : Move the dish to the 0 position.
⍜Set West Limit : Edit & Save west limit by pressing / or buttons.
⍜Set East Limit : Edit & Save east limit by pressing / or buttons.
⍜Enable Limit : Enable the saved east and west limit.
⍜Disable Limit : Disable east and west limit.
⍜Save : Save the current setting of DISEqC 1.2 system.
<Figure 6-1-6>
6.1 Getting Started
4) Dish Setup
⊹Press the MENU button to display the main menu.
⊺Use / and / to move in the menu.
⊻Press on ‘Dish Setting’. The following window will appear. <Figure 6-1-4>
ҫ Note : Enter a 4-Digit password if need arise. The default password is ‘0000’.
⊼Select the item that you want to edit, and set its parameters as desired. <Dish Setting>
- Satellite : Select any satellite by pressing / buttons.
- Frequency : If the default TP frequency is not appropriate, you can select another TP
frequency at which to check for signal
- LNB Power : Select among ON/OFF/13V/18V.
- LNB Type : Select among Universal/OCS/Single.
- LNB Freq : Set the frequency of the LNB oscillator.
- 22KHz : When not AUTO, set the signal path from LNB or switch by selecting a control
signal among 0/22KHz.
- DiSEqC 1.0 / 1.1 : Select DiSEqC protocol among OFF/1.0/1.1 as appropriate for your
configuration. <Figure 6-1-5>
- DiSEqC Motor : Select DiSEqC protocol among OFF/1.2/USALS as appropriate for your
Motor. <Figure 6-1-6>
⊽Auto Scan : Press Green button the remote to begin Auto Scan.
<Figure 6-1-4> <Figure 6-1-5>

1716
6.1 Getting Started

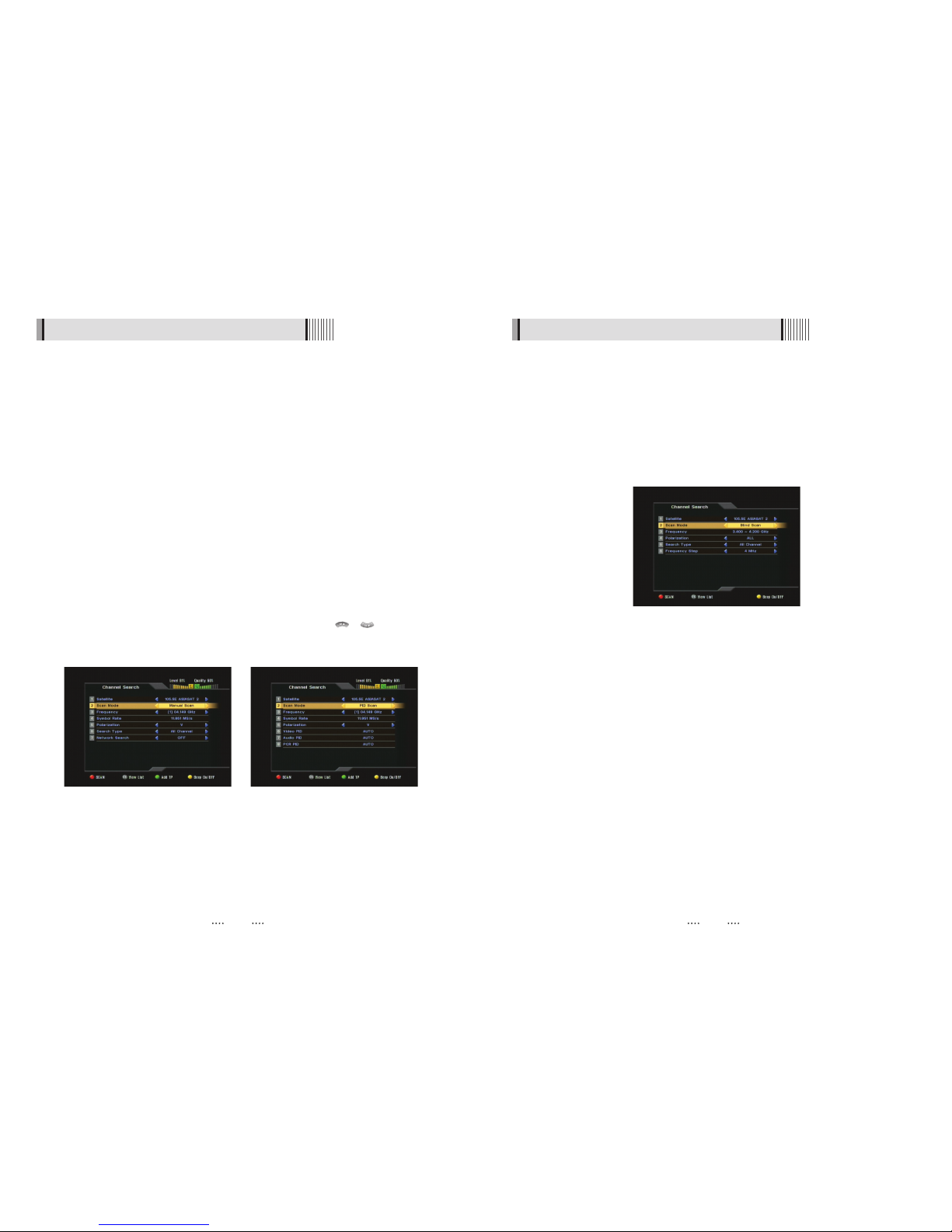

5) Satellite Channel Search
ᶀAuto Scan <Figure 6-1-9>
⊹To select more than one satellite, press the button when the selection bar is
positioned on the satellite.
⊺Press on the names of the satellites that you want to scan under ‘Satellite List’.
Press the EXIT button to close the ‘Satellite List’.
⊻Press / and set the ‘Search Type’ and ‘Network Search’ parameters.
- Search Type : Decide for which channels to search (All channels/ Free channels
only/ TV channels only).
- Network Search : Set ON to find more transponders (frequencies) through a Network
Information Table (NIT) scan. That is, when the broadcaster is
sending a NIT through a given transponder, the receiver will also
scan for transponders listed in the NIT and not otherwise recognized.
(this can happen when a transponder is new)
⊼Press RED buttom under ‘SCAN’ to scan the selected satellites. <Figure 6-1-10>
<Figure 6-1-9> <Figure 6-1-10>
<Figure 6-1-7> <Figure 6-1-8>
6.1 Getting Started
(When the DiSEqC Motor parameter is set as USALS)
- Move : Move the dish position to west/east by pressing / buttons.
- Motor Control : Control motor by press button ot the remote.
⍜Goto Reference : Goto reference by pressing button.
⍜Set West Limit : Edit & Save west limit by pressing / or buttons.
⍜Set East Limit : Edit & Save east limit by pressing / or buttons.
⍜Enable Limit : Enable the saved east and west limit.
⍜Disable Limit : Disable Limit by pressing button.
⍜Save : Save the current Setting of USALS system.
- Sat Degree : Displays the current defree of the selected satellite. Edit degree by
pressing / buttons and numeric buttons.
- Position Setting : Select position setting by pressing button.
⍜Antenna Longitude : Edit antenna longitude by pressing / buttons and numeric
buttons.
⍜Antenna Latitude : Edit antenna latitude by pressing / buttons and numeric
buttons
- Go To : Save the current setting of USALS Systme.

1918
<Figure 6-1-13>
6.1 Getting Started
ᶀBlind Scan<Figure 6-1-13>
⊹To change a transponder’s Frequency use the NUMERIC buttons.
⊺Select a range of Symbol Rate(FULL/7.5M Over/7.5M Under/3.7M Under/DETAIL).
⊻Select a Poliariaztion(V/H/ALL).
⊼Select a Search Type(All/FTA/TV).
⊽Select a Frequency Step(1/2/4/8/16/32 MHz)
⊾Press RED to begin the scan.
6.1 Getting Started
ᶀManual Scan <Figure 6-1-11>
⊹Select a transponder.
⊺To change a transponder’s information (Frequency, Symbol Rate), use the NUMERIC
buttons.
⊻To add a new transponder, press the GREEN button.
⊼To delete a transponder, press the YELLOW button with the cursor next to the
Frequency parameter.
⊽To search a transponder, set its different parameters and RED button.
ᶀPackage Identifier (PID) Scan <Figure 6-1-12>
⊹Select a transponder.
⊺To change a transponder’s information (Frequency, Symbol Rate), use the NUMERIC
buttons.
⊻To add a new transponder, press the GREEN button.
⊼To delete a transponder, press the YELLOW button with the cursor next to the
Frequency parameter.
⊽To search a transponder, set its different parameters and press / You can
search a specific channel of the transponder by setting its PID data (Video, Audio and
PCR).
ҫ Note : If you cannot access programs after correctly completing a scan procedure,
please contact your seller or your installer.
<Figure 6-1-11> <Figure 6-1-12>

2120
6.1 Getting Started
(3) Electronic Program Guide
1) EPG
This submenu allows you to access the electronic program guide when available.
⊹Press the EPG button to display the guide menu. <Figure 6-1-15>
⊺Press / to see the previous/next guide.
⊻Press / , / to select another channel. <Figure 6-1-15>
⊼Press to watch the selected channel and access its EPG data. If you press in
the right side of the screen (Event display list).
- If the current time EPG is selected, you will return to the previous menu and get signal
from the selected channel.
- If a future time (next) EPG is selected, the selected program will be reserved and the
event color w ill change.
⊽You can select TV or Radio channels by pressing the TV/RADIO button
≊You can choose a channel list group by pressing the GROUP button.
≋You can access the timer menu by pressing the RED button. <Figure 6-1-15>
<Figure 6-1-15>
6.1 Getting Started
(2) To View Program
1) Channel Selection
You can use / to navigate between channels until you find the channel you
want.
- If you know the channel number, you can enter it with the NUMERIC buttons and wait 2
seconds until the channel is changed.
⊹Detailed information about the selected channel will be displayed. (Channel Name
and EPG)
⊺You can use the following buttons to navigate between channels:
- / : Moves one channel up/ down.
- / : Moves one page up / page down.
- RED : Press RED button on the remote to use channel sorting.
⍜ALL : Shows all channels in the current group.
⍜A~Z : Shows all channels sorted alphabetically.
⍜TP : Shows all channels sorted by Transponder.
⍜CAS : Shows all channels sorted by CAS system.
⊻Press when the selection bar is positioned on the desired channel.
<Figure 6-1-14>

2322
6.1 Getting Started
(4) Other Functions of Remote Control
ᶀVolume Control
⊹While watching a program, press / control the volume.
⊺You can press the MUTE button to remove the sound of the program: the mute icon
will be displayed. Press the MUTE button again to turn the sound back on.
ᶀChannel Information
⊹You can press the INFO button to display the information banner for a few seconds.
⊺If you then press the INFO button again, a detailed banner will be displayed.
ᶀTV/ RADIO switching
You can press this key to change from a TV channel to a Radio channel or vice versa.
ᶀRECALL
Press this key to return to the previous channel.
ᶀAudio
Press to adjust the subtitle and/or audio status of the current channel:
- Audio Mode : Select between, Stereo/Mono-Left/Mono-Right
- Audio Track : Select between tracks available in this program
- Audio Level : Select between, Low/Medium/High
ᶀFREEZE
You can press this key to freeze the video. Press it again to resume the video.
ᶀGROUP (also << and >> buttons when in Channel List mode)
When watching TV or listening to Radio, you can press this button to view the list of
satellites and/or favorite channel groups. You can also use the << and >> buttons.
Only registered satellites and favorite groups are displayed.
6.1 Getting Started

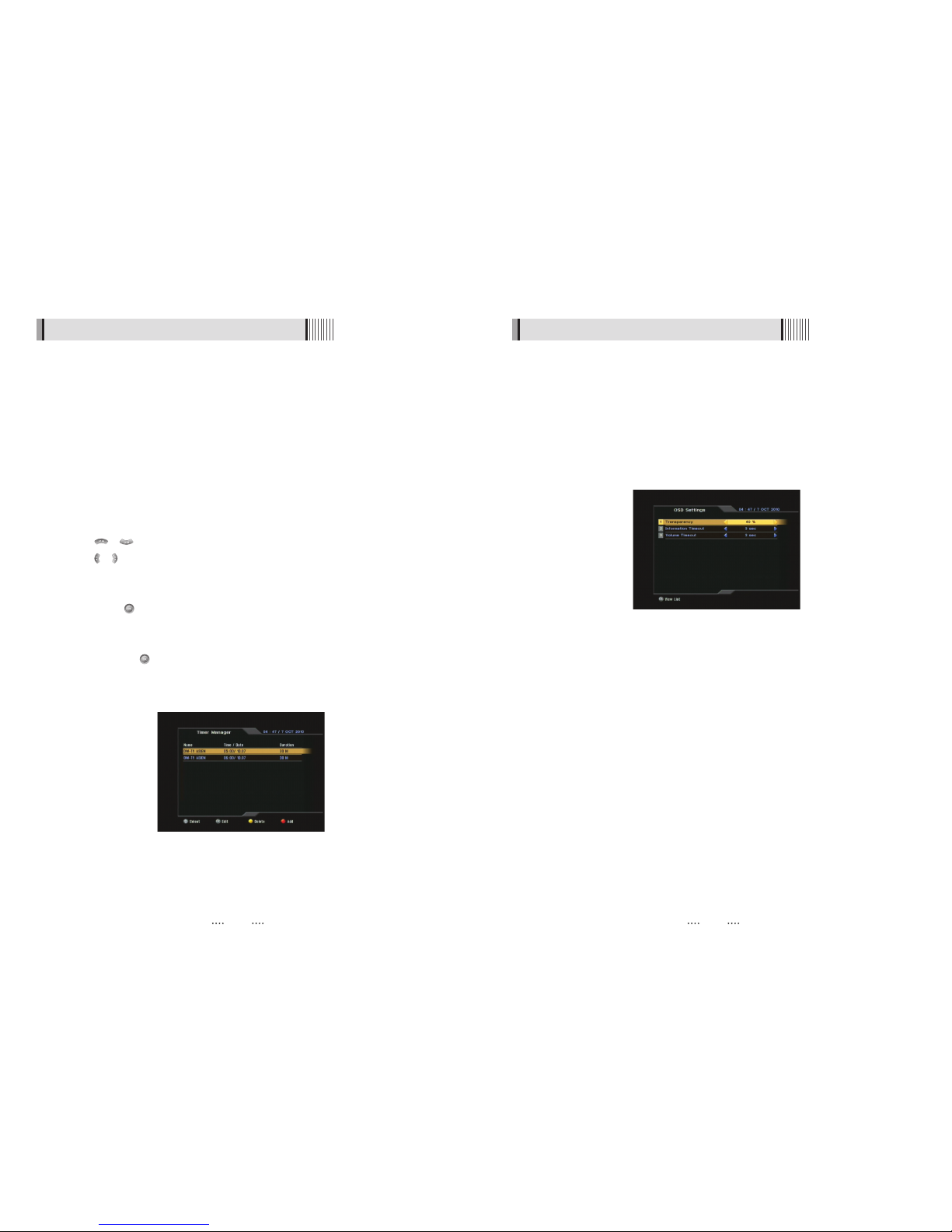

2) Timer
This sub menu allows you to set the on/off time of your receiver.
⊹This submenu allows you to set on/off times of your receiver. To display the timer menu,
press the RED button while in the guide menu. <Figure 6-1-16>
⊺Press / to select a timer’s parameter.
⊻Press / to change the parameter.
- Timer No : Select the timer that you want to modify. (1- 8)
- State : Select the timer frequency. (off/once/daily/weekly)
- Date : Press to display a Calendar pop-up; Select a date
- Start Time : Input the time for your receiver power-on; use the NUMERIC buttons
- End Time : Input the time for your receiver power-off; use the NUMERIC buttons
- Channel : Press to display a Channel list pop-up; Select a channel
- File Name : You can change recording file name.
- Record : Set record On/Off.
<Figure 6-1-16>
- If you want to record a program in the right side of the screen, you can select a
program by using . The selected program will be reserved and the evnet color text
will change to red. <Figure 6-1-17>.
- You can also see change the timer menu.<Figure 6-1-18>
ҫ It is worked when a USB device is connected.
<Figure 6-1-17> <Figure 6-1-18>

2524
6.1 Getting Started
ᶀSubtitle <Figure 6-1-22>
You can press to select the subtitle language of current channel.
ᶀSLEEP <Figure 6-1-23>
You can set the your receiver to turn off after a few minutes. Press to set the sleep
timer.
- To cancel the sleep timer, please press until you set time as “0 min”.
(Disable, 10, 20, 30, 60, 100, 120 Minutes)
<Figure 6-1-22> <Figure 6-1-23>
ᶀV.FORMAT <Figure 6-1-24>
You can press to change the video resoultion Select between, 1080p ƍ1080i ƍ720p ƍ
576p ƍ576i
ᶀWIDE <Figure 6-1-25>
You can press to change the TV aspect ratio.
- 4:3 : Pan-Scan or Letter-Box
-16:9 : Full-Screen or Pillar-Box
<Figure 6-1-24> <Figure 6-1-25>
6.1 Getting Started
ᶀZOOM
You can press to zoom in the video. <Figure 6-1-20>
⊹Press the PAUSE button and press . You can zoom in sections of Freezed Video
<Figure 6-1-21>
⊺While watching a program, press . You can zoom in sections of playing video.
⊻To cancel the freeze status, please release the zoom status.
ᶀMulti Picture Display <Figure 6-1-19>
You can press the MOSAIC button to display multiple pictures; you can choose the
number of pictures such as 1X2, 2X2, 2X3 or 3X3.
<Figure 6-1-19>
<Figure 6-1-20> <Figure 6-1-21>

2726
6.2 System Setting
3) OSD Setting
This submenu allows you to set the menu language, OSD transparency and Information
and Volume timeouts. <Figure 6-2-2>
- Transparency : Set the OSD transparency of the menu. (0% ~ 95%)
- Information Timeout : Select the display duration of the information banner. (1, 2, 3, 5 or
10 seconds)
- Volume Timeout : Select the display duration of the volume box. (1, 2, 3, 5 or 10
seconds)
<Figure 6-2-2>
6.2 System Setting
1) Time Settings
This submenu allows you to set your local time, wake up time, wake up channel and
sleep time.
- See (6.1 Getting Started 4) Time Settings) for detailed description.
2) Timer Manager
This sub menu allows you to set the on/off time of your receiver.
⊹This submenu allows you to set on/off times of your receiver. To display the timer menu,
press the RED button while in the guide menu. <Figure 6-2-1>
⊺Press / to select a timer’s parameter.
⊻Press / to change the parameter.
- Timer No : Select the timer that you want to modify. (1- 8)
- State : Select the timer frequency. (off/once/daily/weekly)
- Date : Press to display a Calendar pop-up; Select a date
- Start Time : Input the time for your receiver power-on; use the NUMERIC buttons
- End Time : Input the time for your receiver power-off; use the NUMERIC buttons
- Channel : Press to display a Channel list pop-up; Select a channel
- File Name : You can change recording file name.
- Record : Set record On/Off.
<Figure 6-2-1>

2928
5) Language Setting
This submenu allows you to specify the audio/video output <Figure 6-2-4>
- Menu Language : Set the default Menu language.
- Audio Language : Set the default audio language when selecting a channel.
- Subtitle Language : Set the default subtitle language.
6) A/V Output Setting
This sub menu allows you to set audio/video output setting.
See (6.1 Getting Started 3) A/V Output Setting) for detailed description.
7) Front Display Setting
This submenu allows you to set the Standby Mode. <Figure 6-2-5>
- Standby Mode : Select the standby Mode. (Normal / Power Saving)
6.2 System Setting
<Figure 6-2-4>
<Figure 6-2-5>
6.2 System Setting
4) Parental Control
This submenu allows you to set password options and to lock or unlock access to menus
ҫ Note : PIN code and password are the same). <Figure 6-2-3>
- Receiver Lock : Set ON to require entering a PIN code at powering on.
- Install Lock : Set ON to require entering a PIN code to access the installation menu.
- Channel Lock : Set ON to require entering a PIN code to access the channels menu.
- Lock Channel Confirm : Set ON to require entering a PIN code to access a locked
channel.
- Age Limit : Set to prevent children or unauthorized people from watching programs.
Select among (Free/ 8 above/12 above/15 above/18 above). When
program information (age limit) is available from broadcaster and this age
limit exceeds the selection, a PIN code is required to access the
channel/program.
- New Password : Enter the new password that you want to set.
- Verify Password : Enter the new password again for confirmation.
ҫ Note : The default password is ‘0000’.
<Figure 6-2-3>

3130
6.3 Channel Manager
1) Set Favorites
This submenu allows you to set up favorite groups of channels. You can select TV or
Radio channels in an alternative way by pressing the TV/RADIO button. The receiver
supports 16 favorite groups.
⊹Press on ‘Set Favorites’. The list of groups will be displayed. <Figure 6-3-1>
⊺Press / and to choose a group. The following menu will be displayed.
<Figure 6-3-2>
If you want to change the name of a favorite group, press the RED button.
⊻Press to add (or remove if previously added) the selected channel to/from the
favorite channel group.
⊼Press the EXIT button to return to the previous menu.
<Figure 6-3-1> <Figure 6-3-2>
8) IP Setting
If the Network supports DHCP , IP settings can be allocated automatically. If the Network
does not support DHCP, the Addresses must enter manually (Static IP).<Figure 6.2.6>
- DHCP Usage : On/Off to receive IP settings automatically
- IP Address : Here enter the IP address
- Subnet Mask : Here enter Subnet Mask Number from your Network
- Gateway : Here enter IP address of Gateway (e.g. router)
- DNS : Here Enter IP address of main DNS Server
- Mac Address : Mac Address display
6.2 System Setting
<Figure 6-2-6>

3332
6.3 Channel Manager
3) Move Channels
This submenu allows you to move channels.
You can select TV or Radio channels in an alternative way by pressing the TV/RADIO
button.
You can choose a channel list group by pressing the GROUP button.
⊹Press on ‘Move Channels’. The following menu will be displayed.<Figure 6-3-4>
⊺Press on the channel that you want to move; a ‘move’ icon will be displayed.
⊻Use the / , / NUMERIC buttons to move the selected channel.
⊼Press again to place the channel.
⊽Press the EXIT button to return to the previous menu.
<Figure 6-3-4>
6.3 Channel Manager
2) Lock Channels
This submenu allows you to lock channels to control access to them. Once a channel is
locked, you will be asked to enter a password whenever you try to watch it. You can
select TV or Radio channels in an alternative way by pressing the TV/RADIO button. You
can choose a channel list group by pressing the GROUP button.
If you set ‘Lock Channel Confirm’ (refer to <6.2>security setting) to OFF, you will not be
asked to enter a password even if the channel is locked.
⊹Press on ‘Lock Channels’. The following menu will be displayed. <Figure 6-3-3>
⊺Press on the channel that you want to lock/unlock; the lock icon will be
displayed/removed.
⊻Press the EXIT button to return to the previous menu.
<Figure 6-3-3>

3534
6.3 Channel Manager
5) Skip Channels
This submenu allows you to skip channels. Once a channel is set to be skipped, it will be
whenever you navigate channels using / in non-menu mode. You can select TV
or Radio channels in an alternative way by pressing the TV/RADIO button. You can
choose a channel list group by pressing the GROUP button.
ҫ Note : You can still access a ‘skipped’ channel if you enter its number using the
NUMERIC buttons in non-menu mode.
⊹Press on ‘Skip Channels’. The following menu will be displayed.<Figure 6-3-6>
⊺Press on the channel that you want to skip/un-skip; the skip icon will be displayed /
removed.
⊻Press the EXIT button to return to the previous menu.
<Figure 6-3-6>
6.3 Channel Manager
4) Delete Channels
This submenu allows you to delete channels. You can select TV or Radio channels in an
alternative way by pressing the TV/RADIO button. You can choose a channel list group
by pressing the GROUP button.
ҫ Note : Be careful! If you delete a channel, you will not be able to access it again until
you rescan.
⊹Press on ‘Delete Channels’. The following menu will be displayed. <Figure 6-3-5>
⊺Press on the channel that you want to set/unset for deletion; the delete icon will
be displayed/removed.
⊻Press the INFO button to delete all channels in the current list; you will be asked to
enter your password.
⊼Press the EXIT button to return to the previous menu and confirm deletion.
<Figure 6-3-5>

3736
6.4 Installation
4) System Information
You can check the current information about your receiver such as receiver model
name, S/W (software) version, H/W (hardware) version, manufacturing date, etc. <Figure
6-4-2>
ҫ Note : This information is useful to download new software and/or repair the receiver.
<Figure 6-4-2>
6.4 Installation
1) Dish Setting
Select the item that you want to edit, and set its parameters as desired. <Dish Setting>
See (6.1 Getting Started 5) Dish setup) for detailed description.
2) Channel Search
Through this function, the receiver searches for all the available channels and saves
them in Memory. Chose Auto Scan to search using transponders (frequencies) in
memory, or chose Blind Scan to look for new satellite/transponders.
See (6.1 Getting Started 6) Channel Search) for detailed description.
3) Database Reset
This submenu allows you to restore the factory set values (useful when encountering
problems after changing settings). <Figure 6-4-1>
- Delete Radio Channels : Erase all radio channels in the database.
- Delete Scramble Channels : Erase all scramble channels in the database.
- Delete All Channels : Erase all channels.
- Factory Set : Erase all channels and restore the factory default settings.
<Figure 6-4-1>

3938
6.5 Utils
3) MP3 Menu
This submenu allows you to play various MP3 files, view JPG files or download a new
software by connecting your USB flash drive.
⊹Select the MP3 file you want to play back by using / , in the file list. <Figure
6-5-3>
⊺Press the EXIT button to hide the file list. You can then select an option using / ,
. <Figure 6-5-4>
⊻You can then change the volume by pressing / .
⊼Press on to display the MP3 file list.
⊽Press on to display information about the selected MP3 file.
- FILELIST : Shows/Hides the MP3 file list
- INFO : Shows information about the MP3 file you selected.
- YELLOW : Choose the Hard disk volume or usb device with USB hub.
<Figure 6-5-3> <Figure 6-5-4>
6.5 Utils
1) Calendar
This submenu allows you to use a calendar on the screen <Figure 6-5-1>
2) Calculator
This submenu allows you to use a calculator on the screen. <Figure 6-5-2>
- You can switch between Hex (Hexadecimal) and Dec (Decimal) basis for arithmetic
with the RED button of the remote control unit.
- Use the Numerical and the / / buttons on the remote control unit.
<Figure 6-5-1>
<Figure 6-5-2>
