Blagdon 1057004 User manual

3 x 1 watt / 5 x 1 watt
www.blagdonwatergardening.co.uk
www.pondaquariumproblemsolver.co.uk/blagdon
pond and garden
LED light set
17.729 Blagdon_LED Light set Instructions_AW.indd 2 07/09/2017 12:41

3 x 1 watt / 5 x 1 watt
pond and garden
LED light set
Congratulations on buying a Blagdon Pond
and Garden LED light set.
This product has been designed to create beautiful
lighting effects, and is quick and easy to install.
IMPORTANT
Please attach proof of purchase to this manual
and file in a safe place.
17.729 Blagdon_LED Light set Instructions_AW.indd 3 07/09/2017 12:41

1
3 x 1 watt / 5 x 1 watt
Getting to know your Pond and Garden LED Light set............................................................. 2
Spare parts ........................................................................................................................................ 2-3
Technical Specification ....................................................................................................................... 3
Installation ............................................................................................................................................. 4
Electrical installation ............................................................................................................................ 4
Location .................................................................................................................................................. 5
Adjusting the spotlights .................................................................................................................. 6-7
Maintenance ........................................................................................................................................ 8
Faults – Problems Procedure ........................................................................................................... 9
Consumer Advice Contact Details ................................................................................................... 9
Guarantee ............................................................................................................................................. 9
CONTENTS
17.729 Blagdon_LED Light set Instructions_AW.indd 4 07/09/2017 12:41

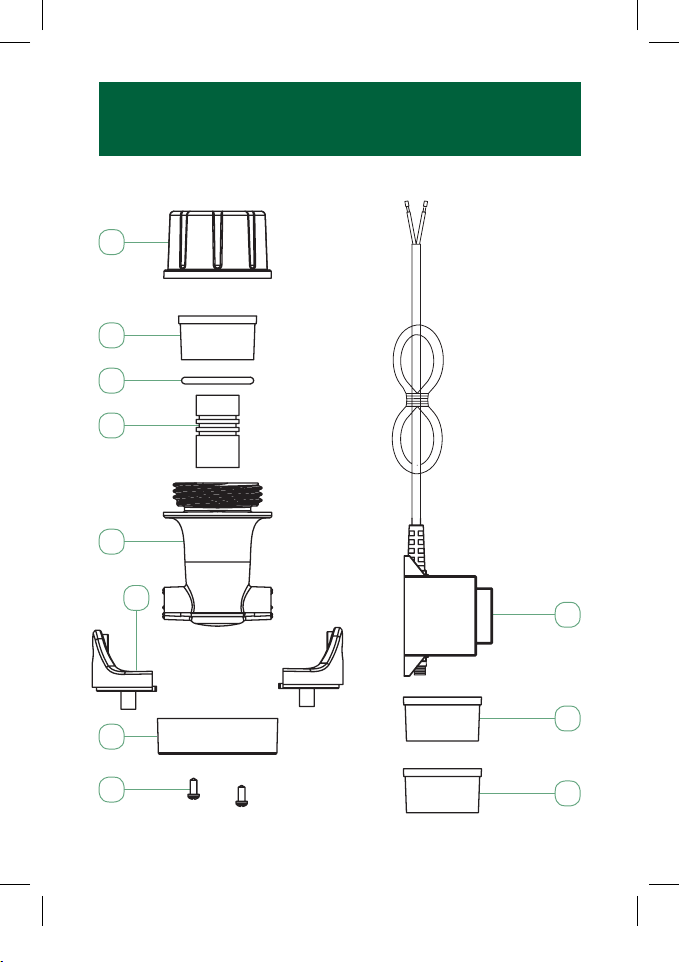

GETTING TO KNOW YOUR POND
AND GARDEN LED LIGHT SET
2
1
2
3
4
5
7
8
6
9
10
11
17.729 Blagdon_LED Light set Instructions_AW.indd 5 07/09/2017 12:41

GETTING TO KNOW YOUR POND
AND GARDEN LED LIGHT SET
3
Part Number Part Description Spare Code
1 Lamp cover N/A
2 Colourless lens 1055906
(3 way - x 3)
(5 way - x 5)
3 1 Watt LED lens O-ring 1055840
4 1 Watt LED 1055840
5 LED housing N/A
6 LED housing bracket N/A
7 Weighted base N/A
8 Base screws N/A
9 3 and 5 set transformer 1055905
10 Red colour lens x 1 1055906
11 Blue colour lens x 1 1055906
Technical Specification
LED LIGHTING SET 3 WAY SET 5 WAY SET
Mains cable 3 metres 3 metres
Cable between transformer and first LED 5 metres 5 metres
Cable between each LED 2 metres 2 metres
(total cable including mains cable) (12 metres) (16 metres)
Transformer input 230v/50Hz 230v/50Hz
Transformer output voltage 12v AC 12v AC
Lamp wattage 3 x 1w 5 x 1w
Total wattage 3w 5w
17.729 Blagdon_LED Light set Instructions_AW.indd 6 07/09/2017 12:41

Electrical installation
The power supply must meet the specification on the product.
The transformer is designed to be used with either a weatherproof
switchbox cable connector or connected to the fixed main system
by means of plug and socket.
The cores in the supply cable are coloured in accordance with the following code:
Brown – Live, Blue – Neutral.
The electrical cable is permanently connected and sealed in the transformer body.
If the supply cable is damaged the transformer must not be used.
Do not use the supply cable to lift the transformer as this may cause damage.
WARNING:
A Residual Current Device (RCD), also known as the Residual Current
Circuit Breaker (RCCB), with a tripping current not exceeding 30mA
must be installed in the supply circuit. A means of disconnection from
the supply having a contact separation of at least 3mm in all poles
must be incorporated in the fixed wiring.
INSTALLATION
For permanent installations to the mains supply, it is necessary to conform to the regulations
of the local electricity authority and this would include the use of metal or plastic conduit to
protect the cable.
Attention has been drawn to the fact that special rules may exist concerning the installation
of your transformer (i.e. local building regulations).
Always disconnect the mains electricity supply whilst the equipment is being installed
repaired, maintained or handled. Consult a qualified electrician if in any doubt about the
wiring of this product to the main supply
WARNING:
This transformer must not be used in ponds. For external use only.
4
17.729 Blagdon_LED Light set Instructions_AW.indd 7 07/09/2017 12:41

INSTALLATION
5
2m LV
cable
2m LV cable
Fountain
3m mains cable
5m LV cable
Waterfall
Illuminating a
feature, tree
or path
2m LV cable
2m LV cable
Outdoor
weatherproof
transformer
Mains power supply
RCD
(recommended)
Submerged in pond to
light up fountain/waterfall
Example shown – 5 x 1 watt LED set
17.729 Blagdon_LED Light set Instructions_AW.indd 8 07/09/2017 12:41

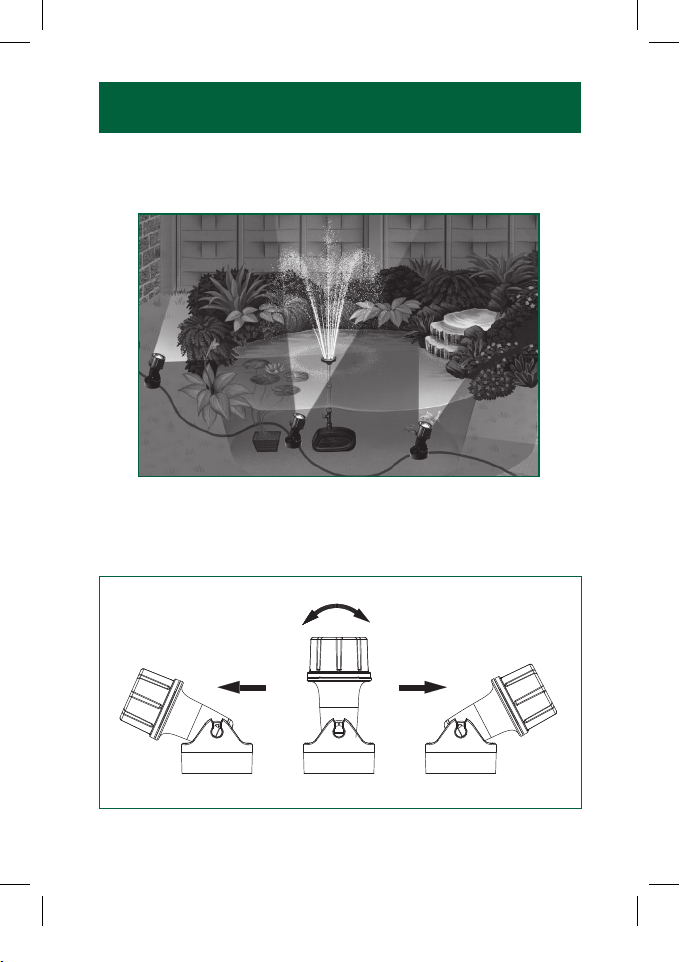

6
Pond Light Base
Weighted base enables easy positioning of each light either underwater or in a flowerbed
Spotlight Adjustment
On each LED housing there are small bumps which click into position on the housing
bracket to allow for easy adjustment of the angle of light.
INSTALLATION
Fountain
Flower bed Waterfall
17.729 Blagdon_LED Light set Instructions_AW.indd 9 07/09/2017 12:41

7

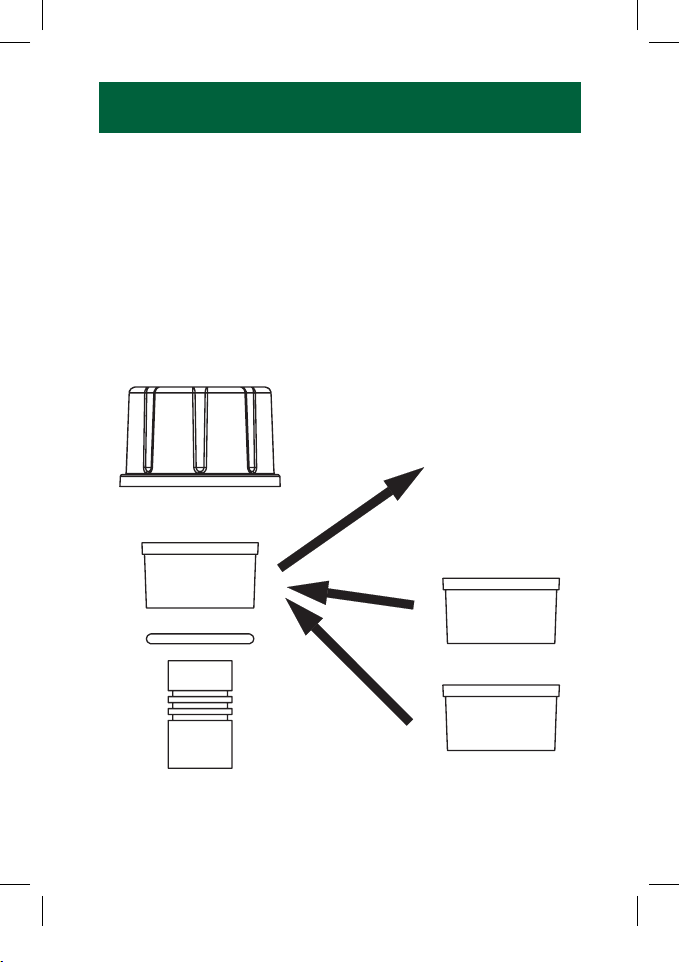

Changing the colour of the lens
1) Turn off the LED set and disconnect from mains power supply.
2) Remove from your pond and allow to dry.
3) Unscrew lamp cover and remove current lens
4) Replace with red/blue lens.
5) Reattach lamp cover – ensure lens O-ring is in the correct position.
6) Return to original location in your pond
INSTALLATION
Colourless lens
Red coloured lens
Blue coloured lens
17.729 Blagdon_LED Light set Instructions_AW.indd 10 07/09/2017 12:41

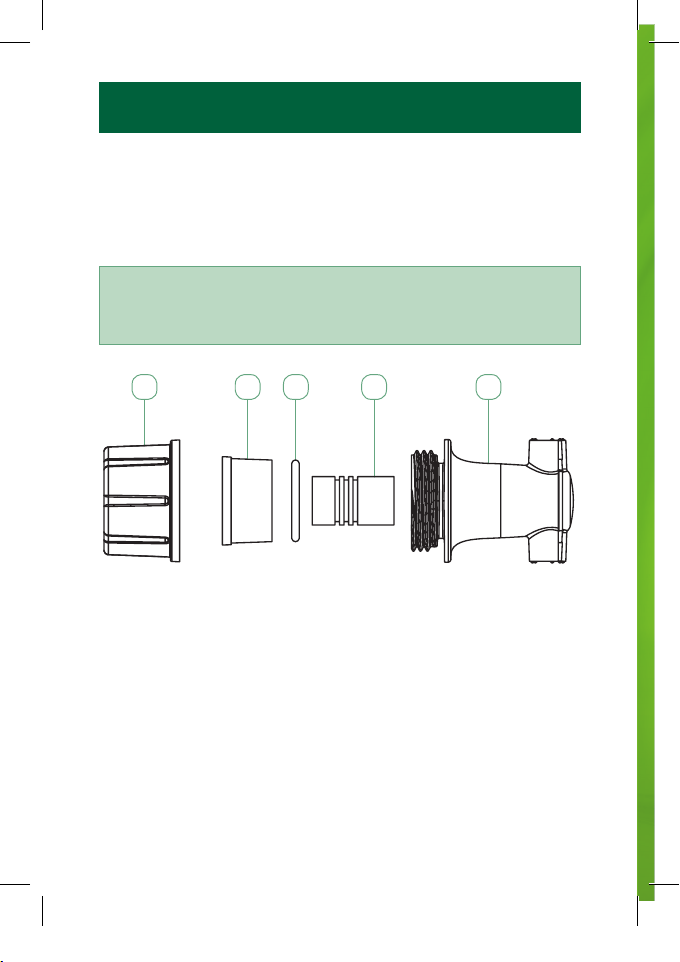

8
Before any maintenance, turn off the LED set and disconnect from the mains power socket.
Then remove the LED lamps from your pond, and allow to dry. Once dry, unscrew the lamp
cover (1) and lift off the lens (2). After the lens has been removed the LED lamp (4) can be
removed and replaced.
Reassemble in reverse order.
MAINTENANCE
1 2 3 4 5
TIP:
Ensure the lens O-Ring (3) is in the correct position before screwing the lamp cover
back on, this will prevent any water entering and damaging the lamp housing (5).
17.729 Blagdon_LED Light set Instructions_AW.indd 11 07/09/2017 12:41

9
IMPORTANT
GUARANTEE
FAULTS - PROBLEMS PROCEDURE
Before returning your Blagdon Pond and Garden LED light set to your dealer or contacting our
Consumer Advice Department, please carry out the following steps. This will solve most problems
quickly and easily:
1. Ensure electrical procedure has been followed fully. Check fuse and any cable connectors/
switch boxes
2. Return light to point of purchase for inspection and advice (you may need proof of purchase)
You can help protect the environment. Please remember to respect the local regulations: hand in
non-working electrical equipment to an appropriate waste disposal centre.
CONSUMER ADVICE CONTACT DETAILS
Interpet (Blagdon) Consumer Advice Department Vincent Lane, Dorking, Surrey RH4 3YX
E-mail: customercar[email protected]
This guarantee is offered as an extra benefit and does not affect your statutory rights as a consumer
in any way. This product is guaranteed against defects in material and workmanship for 3 years from
the date of purchase, under normal usage. The guarantee DOES NOT APPLY in case of improper
use, negligence, lack of maintenance or accidental damage either to the lights, transformer or the
replaceable parts. If the lights or transformer fail due to a manufacturing fault within this period, it will
either be repaired or replaced free of charge. Liability is limited to replacement of the faulty product
only, no other costs will be reimbursed. The guarantee is not transferable and does not affect your
statutory rights. This guarantee does not confer any rights other than those expressly set out above.
Excludes lamps and O-rings.
9
17.729 Blagdon_LED Light set Instructions_AW.indd 12 07/09/2017 12:41
