BLAUBERG Ventilatoren Freshbox 100 WiFi User manual

HEAT RECOVERY AIR HANDLING UNIT
USER’S MANUAL
EN
Freshbox 100 WiFi

Freshbox 100 WiFi
2
www.blaubergventilatoren.de
CONTENTS
Safety requirements..................................................................................................................................................................... 3
Purpose................................................................................................................................................................................................ 5
Delivery set........................................................................................................................................................................................ 5
Designation key.............................................................................................................................................................................. 5
Technical data.................................................................................................................................................................................. 6
Design and operating principle ........................................................................................................................................... 7
Installation and set-up................................................................................................................................................................ 8
Connection to power mains .................................................................................................................................................. 12
Control ................................................................................................................................................................................................. 13
Technical maintenance.............................................................................................................................................................. 23
Troubleshooting............................................................................................................................................................................. 24
Storage and transportation regulations.......................................................................................................................... 24
Manufacturer’s warranty........................................................................................................................................................... 25
Certificate of acceptance ........................................................................................................................................................ 26
Seller information.......................................................................................................................................................................... 26
Installation certificate.................................................................................................................................................................. 26
Warranty card ................................................................................................................................................................................. 26
This user’s manual is a main operating document intended for technical, maintenance, and operating staff.
The manual contains information about purpose, technical details, operating principle, design, and installation of the Freshbox 100 WiFi
unit and all its modifications.
Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should be able to
work in accordance with workplace safety rules as well as construction norms and standards applicable in the territory of the country.
The information in this user’s manual is correct at the time of the document’s preparation.
The Company reserves the right to modify the technical characteristics, design, or configuration of its products at any time in order to
incorporate the latest technological developments.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means in any information
search system or translated into any language in any form without the prior written permission of the Company.

www.blaubergventilatoren.de
Freshbox 100 WiFi
3
UNIT INSTALLATION AND OPERATION SAFETY PRECAUTIONS
• Disconnect the unit from
power mains prior to any
installation operations.
• Unpack the unit with care.
• The unit must be grounded!
• While installing the unit, follow
the safety regulations specific
to the use of electric tools.
• Do not change the power
cable length at your own
discretion.
• Do not bend the power cable.
• Avoid damaging the power
cable.
• Do not put any foreign objects
on the power cable.
• Do not lay the power cable of
the unit in close proximity to
heating equipment.
• Do not use damaged
equipment or cables when
connecting the unit to power
mains.
• Do not operate the unit
outside the temperature range
stated in the user’s manual.
• Do not operate the unit
in aggressive or explosive
environments.
• Do not touch the unit controls
with wet hands.
• Do not carry out the
installation and maintenance
operations with wet hands.
• Do not wash the unit with
water.
• Protect the electric parts of the
unit against ingress of water.
SAFETY REQUIREMENTS
• Please read the user’s manual carefully prior to installing and operating the unit.
• All user’s manual requirements as well as the provisions of all the applicable local and national
construction, electrical, and technical norms and standards must be observed when installing
and operating the unit.
• The warnings contained in the user’s manual must be considered most seriously since they
contain vital personal safety information.
• Failure to follow the rules and safety precautions noted in this user’s manual may result in an
injury or unit damage.
• After a careful reading of the manual, keep it for the entire service life of the unit.
• While transferring the unit control, the user’s manual must be turned over to the receiving
operator.

Freshbox 100 WiFi
4
www.blaubergventilatoren.de
THE PRODUCT MUST BE DISPOSED SEPARATELY AT THE END OF ITS SERVICE LIFE.
DO NOT DISPOSE THE UNIT AS UNSORTED DOMESTIC WASTE.
• Do not allow children to
operate the unit.
• The unit is allowed to be used
by children aged from 8 years
oldand above and persons
with reduced physical, sensory,
or mental capabilities or no
experience and knowledge
provided that they have been
given supervision or instruction
regarding safe use of the
unit and understand the risks
involved.
• Disconnect the unit from
power mains prior to any
technical maintenance.
• Do not store any explosive or
highly flammable substances
in close proximity to the unit.
• When the unit generates
unusual sounds, odour, or
emits smoke, disconnect it
from power supply and contact
the Seller.
• Do not open the unit during
operation.
• Do not direct the air flow
produced by the unit towards
open flame or ignition sources.
• Do not block the air duct when
the unit is switched on.
• In case of continuous
operation of the unit,
periodically check the security
of mounting.
• Do not sit on the unit and
avoid placing foreign objects
on it.
• Use the unit only for its
intended purpose.

www.blaubergventilatoren.de
Freshbox 100 WiFi
5
PURPOSE
The unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls, and other utility
and public spaces as well as to recover the heat energy contained in the air extracted from the premises to warm up the filtered stream
of intake air.
The unit is not intended for organizing ventilation in swimming pools, saunas, greenhouses, summer gardens, and other spaces with
high humidity.
Due to the ability to save heating energy by means of energy recovery, the unit is an important element of energy-efficient premises.
The unit is a component part and is not designed for stand-alone operation. It is rated for continuous operation.
Transported air must not contain any flammable or explosive mixtures, evaporation of chemicals, sticky substances, fibrous materials,
coarse dust, soot and oil particles or environments favourable for the formation of hazardous substances (toxic substances, dust,
pathogenic germs).
THE UNIT SHOULD NOT BE OPERATED BY CHILDREN OR PERSONS WITH REDUCED
PHYSICAL, MENTAL, OR SENSORY CAPACITIES, OR THOSE WITHOUT THE APPROPRIATE
TRAINING.
THE UNIT MUST BE INSTALLED AND CONNECTED ONLY BY PROPERLY QUALIFIED
PERSONNEL AFTER THE APPROPRIATE BRIEFING.
THE CHOICE OF UNIT INSTALLATION LOCATION MUST PREVENT UNAUTHORIZED
ACCESS BY UNATTENDED CHILDREN.
DELIVERY SET
DESIGNATION KEY
NAME NUMBER
Air handling unit 1 pc.
User’s manual 1 pc.
Mounting template 1 pc.
Installation kit 1 pc.
Magnetic sheet 1 pc.
Key 1 pc.
Spigot 1 pc.
Packing box 1 pc.
Freshbox E - 100 ERV WiFi
Equipped with a Wi-Fi module
Heat exchanger type
_: heat recovery
ERV: heat and humidity recovery
Rated air ow [m3/h]
Heater
_: without heater
E: preheating
E1: reheating
E2: preheating and reheating
Series

Freshbox 100 WiFi
6
www.blaubergventilatoren.de
Parameter Freshbox 100 WiFi Freshbox E-100 WiFi Freshbox E1-100 WiFi Freshbox E2-100 WiFi
Speed 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5
Maximum air capacity [m3/h] 30 44 60 75 100 30 44 60 75 100 30 44 60 75 100 30 44 60 75 100
Supply voltage [V/50 (60) Hz] 1~ 230
Maximum fan power [W] 20 23 29 37 53 20 23 29 37 53 20 23 29 37 53 20 23 29 37 53
Sound pressure level at 3 m distance [dBA] 13 20 27 33 39 13 20 27 33 39 13 20 27 33 39 13 20 27 33 39
Electric heater power [W] preheating - 700 - 700
reheating - - 350 350
Maximum unit current [A]
without an electric
heater 0.4 0.4 0.4 0.4
with an electric
heater - 3.6 1.94 5.2
Transported air temperature [°С] from -20 up to +40
Casing material painted steel
Insulation foam rubber, 10 mm
Heat recovery efficiency [%] 98 95 92 90 89 98 95 92 90 89 98 95 92 90 89 98 95 92 90 89
Heat exchanger type counter-flow
Heat exchanger material polystyrene
Supply filter G4, F8 (option: F8 Carbon,
H13)
G4, F8 (option: F8 Carbon,
H13) G4 G4
Extract filter G4
Connected air duct diameter [mm] Ø 100
Weight [kg] 31 31 31 31
TECHNICAL DATA

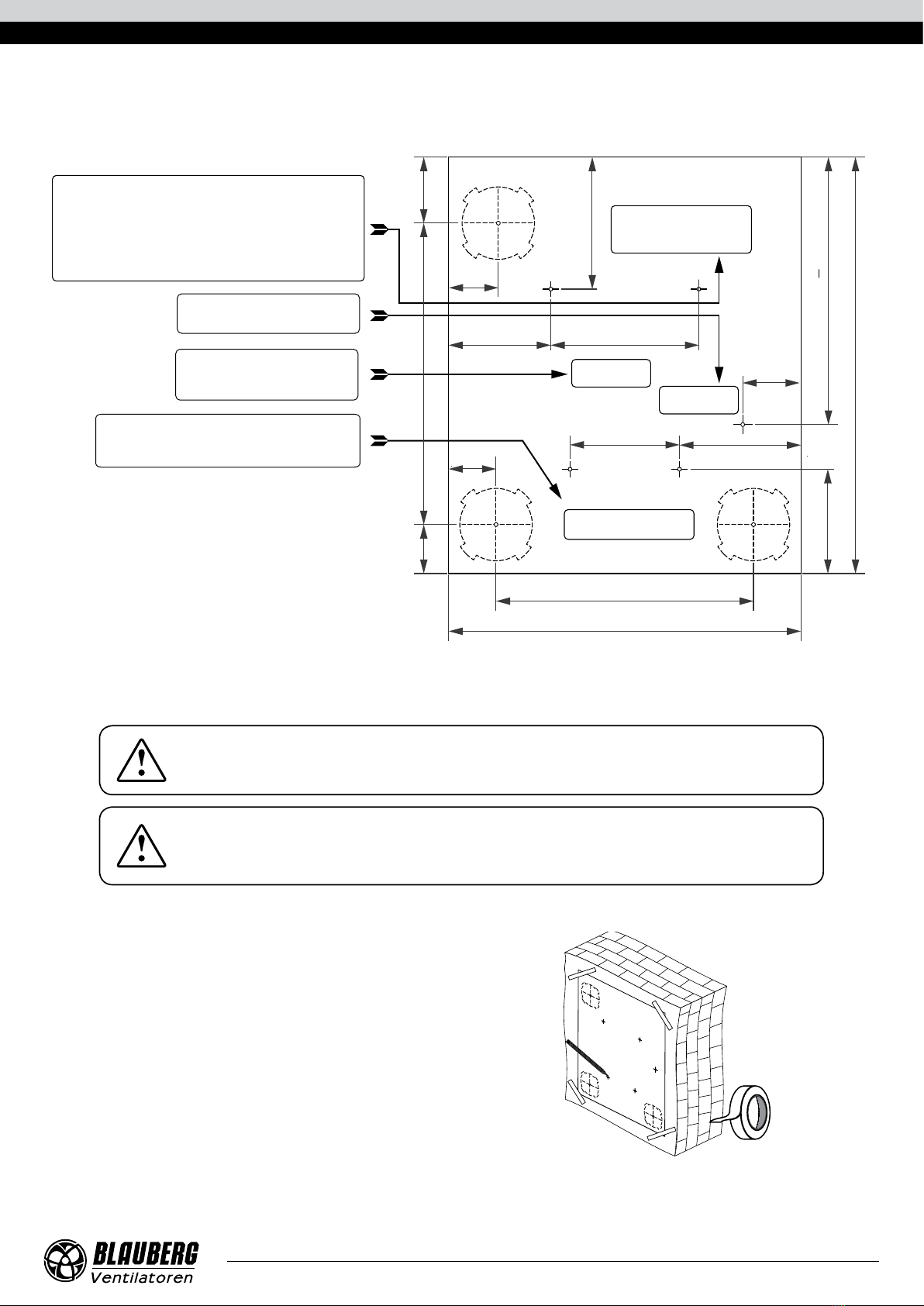

550
650
200
257
Ø100
3 holes
THE EXTRACT AIR TEMPERATURE SHOULD BE NO HIGHER THAN +40 °C AND RELATIVE
HUMIDITY SHOULD NOT EXCEED 70 % OVER THE ENTIRE TEMPERATURE RANGE.
TECHNICAL DATA
The unit is designed for application with the ambient temperature ranging from +1 °C to +40 °C and relative humidity up to 70 %.
In order to prevent condensation on the internal walls of the unit, it is necessary that the surface temperature of the casing is 2-3 °C above
the dew point temperature of the transported air.
The unit is rated as a Class I electrical appliance.
Hazardous parts access and water ingress protection rating:
• IP22 for the unit connected to the air ducts
• IP44 for the unit motors
The unit design is constantly being improved, thus some models may be slightly different from those described in this manual.

www.blaubergventilatoren.de
Freshbox 100 WiFi
7

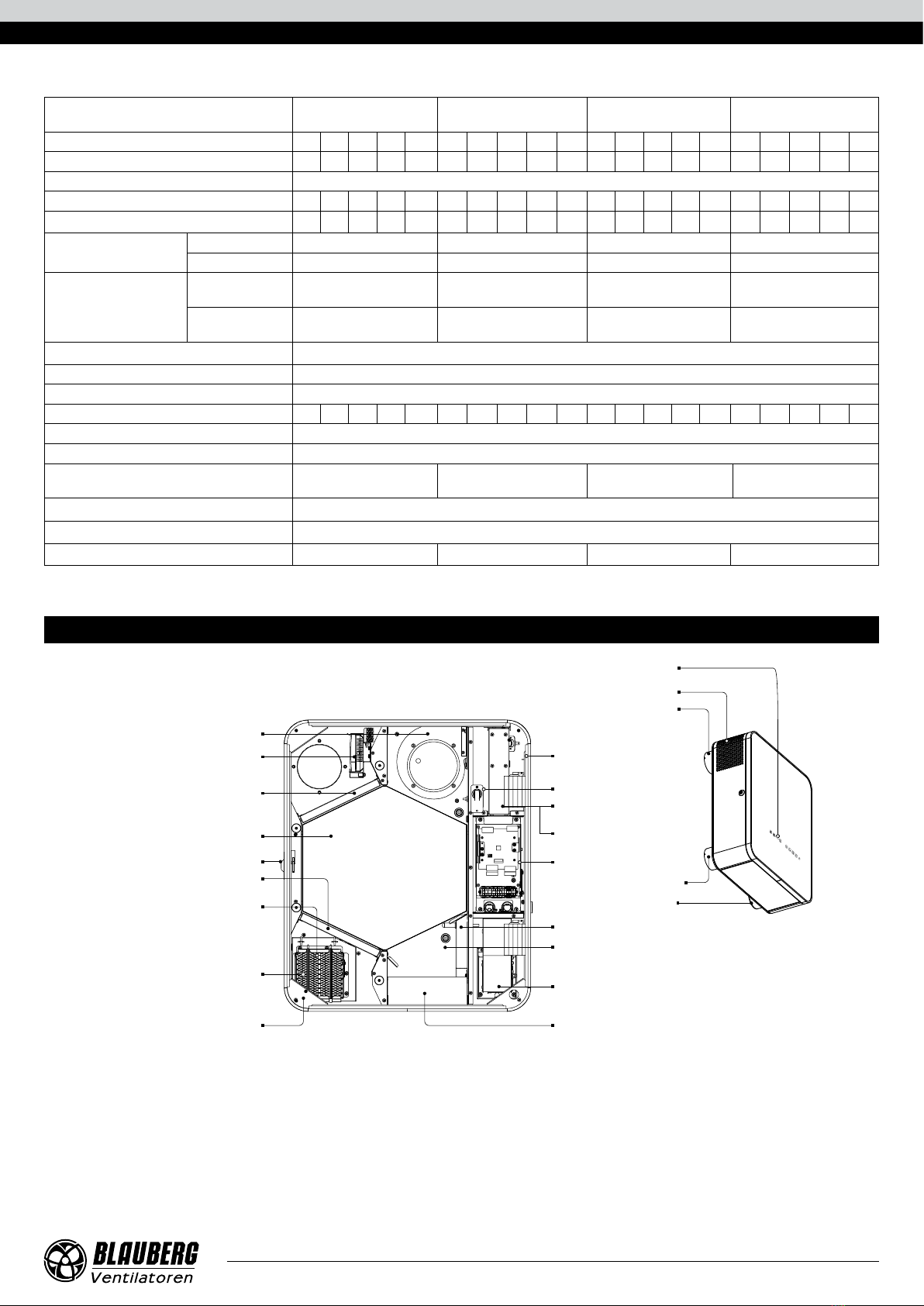

DESIGN AND OPERATING PRINCIPLE
Warm stale extract air from the room flows to the unit, where it is filtered by the extract filter, then air flows through the heat exchanger
and is exhausted outside by the extract fan.
Cold fresh air from outside flows into the unit, where it is cleaned by the supply filter. Then filtered air flows through the heat exchanger
and is moved to the room with the supply fan.
Thermal energy of warm extract air is transferred to clean intake fresh air from outside and warms it up. The air flows are fully separated.
Heat recovery minimizes heat losses, which reduces the cost of space heating in the cold season.
Depending on the model the unit is equipped with a supply air preheater or reheater with overheating protection.
Supply fan
G4 extract filter
G4 supply filter
Lock
Intake air preheater
(Freshbox E(E2)...)
Automatic supply
louvre shutters
Temperature sensor for heat exchanger freeze protection
Supply air temperature
sensor
(Freshbox E1(E2)...)
F8 supply filter
(Freshbox ..., Freshbox E...)
Reheater (Freshbox E1(E2)...)
Counter-flow heat exchanger
Control unit
Extract fan
Exhaust louvre shutters
with automatic drive
Control panel
Extract spigot for
a bathroom (optional)*
Extract grille
Supply spigot
Exhaust air duct
Drain pan
Outdoor temperature sensor
Limit switch
Humidity sensor or CO
2
sensor
(available separately)
Parameter Freshbox 100 ERV
WiFi
Freshbox E-100 ERV
WiFi
Freshbox E1-100 ERV
WiFi
Freshbox E2-100 ERV
WiFi
Speed 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5
Maximum air capacity [m3/h] 30 44 60 75 100 30 44 60 75 100 30 44 60 75 100 30 44 60 75 100
Supply voltage [V/50 (60) Hz] 1~ 230
Maximum fan power [W] 20 23 29 37 53 20 23 29 37 53 20 23 29 37 53 20 23 29 37 53
Sound pressure level at 3 m distance [dBA] 13 20 27 33 39 13 20 27 33 39 13 20 27 33 39 13 20 27 33 39
Electric heater power [W] preheating - 700 - 700
reheating - - 350 350
Maximum unit current [A]
without an electric
heater 0.4 0.4 0.4 0.4
with an electric
heater - 3.6 1.94 5.2
Transported air temperature [°С] from -20 up to +40
Casing material painted steel
Insulation foam rubber, 10 mm
Heat recovery efficiency [%] 96 94 89 85 83 96 94 89 85 83 96 94 89 85 83 96 94 89 85 83
Heat exchanger type counter-flow
Heat exchanger material enthalpy membrane
Supply filter G4, F8 (option: F8 Carbon,
H13)
G4, F8 (option: F8 Carbon,
H13) G4 G4
Extract filter G4
Connected air duct diameter [mm] Ø 100
Weight [kg] 31 31 31 31

Freshbox 100 WiFi
8
www.blaubergventilatoren.de
INSTALLATION AND SETUP
The Freshbox E-100 WiFi, Freshbox E2-100 WiFi units are equipped with a preheater.
The preheater is located upstream of the heat exchanger and is designed for its freeze protection.
The Freshbox E1-100 WiFi, Freshbox E2-100 WiFi units are equipped with a reheater.
The reheater is located downstream of the heat exchanger and is designed for extra heating of supply air to more comfortable temperature.
When the intake air temperature is below -3 °C, the preheater automatically warms up intake air so the average exhaust air temperature
downstream of the heat exchanger is not below +5 °C.
The reheater is switched on and off by means of a button on a sensor control panel, a remote control or via mobile application.
The heat exchanger freeze protection in Freshbox 100 WiFi and Freshbox E1-100 WiFi unit models without a preheater is achieved by
automatic supply fan speed reduction according to extract air sensor readings.
The extract fan runs at maximum speed.
Temperature differences between supply and extract air flows in units with polystyrene heat exchangers lead to condensate formation.
Condensate is collected in the drain pan and is removed outside by the drain pipes through the exhaust air duct.
Condensate is not formed in units equipped with an enthalpy heat exchanger as moisture is transferred from one air flow to another
through a membrane.
The louvre shutters open automatically when the motors are switched on and close when the motors are switched off.
*An additional extract spigot can be fitted to the unit to connect the exhaust air duct from additional premises, e.g. a bathroom.
The spigot is included in the delivery set.
READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT.
Minimum distances from the unit to the surfaces
min 300 mm min 300 mm
WHILE INSTALLING THE UNIT ENSURE CONVENIENT ACCESS FOR SUBSEQUENT
MAINTENANCE AND REPAIR.

www.blaubergventilatoren.de
Freshbox 100 WiFi
9
2 holes (Ø 120 mm) for an air duct Ø 100 mm
Fill the gaps between the wall and
the air ducts with a mounting foam
4 holes (Ø 8 and 90 mm deep)
in the wall made using
a mounting template
Power cable entry
Power cable entry
2 holes (Ø 120 mm) for an air duct Ø 100 mm
Fill the gaps between the wall and
the air ducts with a mounting foam
4 holes in the wall
Ø 8 and 90 mm deep
416.5
647
205
162
468.5 102.576
400
73.5
547
91
230
170 188.5
158.5
77
ADDITIONAL HOLE!
DRILL UPON CUSTOMER’S REQUEST ONLY!
Ø 120 mm hole for Ø 100 mm air duct
Fill the gaps between the wall and the air ducts
with a mounting foam
ADDITIONAL HOLE!
DRILL UPON CUSTOMER’S REQUEST ONLY!
Ø 120 mm hole for Ø 100 mm air duct
Fill the gaps between the wall and the air ducts
with a mounting foam
Hole spacing template
THE UNIT MUST BE MOUNTED ON A PLANE SURFACE.
MOUNTING OF THE UNIT TO AN UNEVEN SURFACE CAN LEAD TO THE UNIT CASING
DISTORTION AND OPERATION DISTURBANCE.
BEFORE MOUNTING MAKE SURE THE CASING DOES NOT CONTAIN ANY FOREIGN
OBJECTS E.G. FOIL, PAPER.
1. Mark and drill holes in the wall using a mounting
template.
Fix the mounting template at the required level on
the wall with a self-adhesive tape.
Using a mounting template make marks to drill holes
for air ducts, for unit mounting and for power cable
entry.
Before installation operations route necessary cables
and wires to the unit mounting place.
Unit mounting

Freshbox 100 WiFi
10
www.blaubergventilatoren.de
2.1. Remove the mounting template and drill two
through holes Ø 120 mm for round air ducts.
When mounting the unit with an additional extract
spigot prepare a hole in the wall for a connecting
bend and for laying of a rectangular air duct.
A connecting bend, rectangular and round air ducts
are available separately. Drill holes (Ø 8 mm,
90 mm deep) to mount the unit. Install the expansion
anchors, remove the perforated fillers for the air ducts
from the mounting template and install the mounting
template back using a self-adhesive tape.
2.2. Cut air ducts of required length. Note that the
telescopic air duct end must protrude for the distance
that enables installation of the outer ventilation hood.
For details, refer to the installation instruction for the
ventilation hood.
The outer ventilation hood is available separately.
3. Fix the mounting template on the wall to install the
air ducts.
Insert the air ducts in the corresponding holes of the
mounting template.
Install the air duct with the minimum slope of 3 mm
for condensate removal.
To install the unit with an additional spigot, insert the
connecting bend into the prepared hole in the wall,
aligning the mounting template hole with a round
end of the connecting bend.
Connect a rectangular duct to the connecting bend.
4. Fill the spaces between the air ducts and the wall
with a mounting foam through the specially designed
holes in the mounting template.
Wait till the mounting foam hardens then take off the
mounting template and remove the foam excess.
Cut off the protruding air duct parts to be flush with
the wall surface.
A
min 3 мм

www.blaubergventilatoren.de
Freshbox 100 WiFi
11
5. To install an additional extract spigot, remove the
plug on the rear part of the unit.
Undo the screws, remove the plug and fix a spigot on
its place using screws.
6. Caution! Install the condensate preheater
before xing the unit to the wall (see the
Installation manual of the heater).
Insert the connecting cables of the heater, external
humidity sensor or CO2sensor into the control unit
through the corresponding holes on the back wall of
the unit.
• Open the unit, undo the fixing screws and remove
the heat exchanger.
• Lift the unit and insert the spigots into the
corresponding air ducts installed in the wall.
Caution! Remove the magnetic plug from the
exhaust grille if an additional extract spigot is not
installed.
• Fix the unit on the wall using the supplied screws
and dowels.
• Install the heat exchanger back to the unit.
• Install the humidity or CO2sensor (available
separately) on the bracket.
• Make electrical connections, see “Connection to
power mains”.
• Reassemble the unit in the reverse order.
7. Install the outer ventilation hood:
• Cut a part of the drain pipe protruding outside to
a length not more than 10 mm.
• Remove the foam excess.
• Fill the gaps between the air ducts with sealant.
• Fix the outer hood on the outer wall of the
building (see the ventilation hood installation
manual).
10 mm
min 3 mm

Freshbox 100 WiFi
12
www.blaubergventilatoren.de
CONNECTION TO POWER MAINS
POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT.
THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN.
THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE
MANUFACTURER’S LABEL.
• The unit is rated for connection to 1~230 V/50 (60) Hz power mains.
• The unit must be connected to power mains using insulated electric conductors (cables, wires). The actual wire cross section
selection must be based on the maximum load current, maximum conductor temperature depending on the wire type, insulation,
length and installation method.
• The external power input must be equipped with an automatic circuit breaker built into the stationary wiring to open the electric
circuit in case of overload or short-circuit. The circuit breaker installation place must provide quick access for emergency shutdown
of the unit. The trip current of the automatic circuit breaker QF must exceed the maximum current consumption of the unit (refer
to the technical data table). The recommended trip current of the circuit breaker is the next current in the standard trip current row
following the maximum current of the connected unit. The automatic circuit breaker is not included in the delivery set.
Designation Name Type Cable
PK1* Contact from fire alarm panel N.C. 2x0,25 mm2
RH1* External sensor contact N.O. 2x0,25 mm2
A3* Heating element for condensate heating 3x0,75 mm2
B1* or CO2* Connecting contact humidity or CO sensor via cable
- Electric shock hazard!
* not included in the delivery set.
N1L1RHRHLANL
2 1 2 1
1
2 1 2 1
1 2 3 4 5 6 7 8 9 10 11 12 13 14
PK PK +24V YN YL
QFQF
PENL PK1* RH1*
PENL
230 V AC
Power
cable
plug
Normally closed contact
of fire alarm system
(remove the jumper)
Normally open contact
of the external sen
A3*
Heating element
for condensate
heating
Brown Blue Yellow-Green
+24 V
GND
Com
NO
1 2 3
CO21* B1*
Brown Green Black White Green White
Wiring diagram of the additional controls in the control unit
Wiring diagram of the COsensor inside the unit
Connecting humidity sensor or COsensor to the control unit
via a cable, which is attached to the bracket
Connection of additional external control contacts is
implemented in the control unit. For accessing the control
unit open the unit door, release the screws fixing the
shielding and remove it.

www.blaubergventilatoren.de
Freshbox 100 WiFi
13
CONTROL

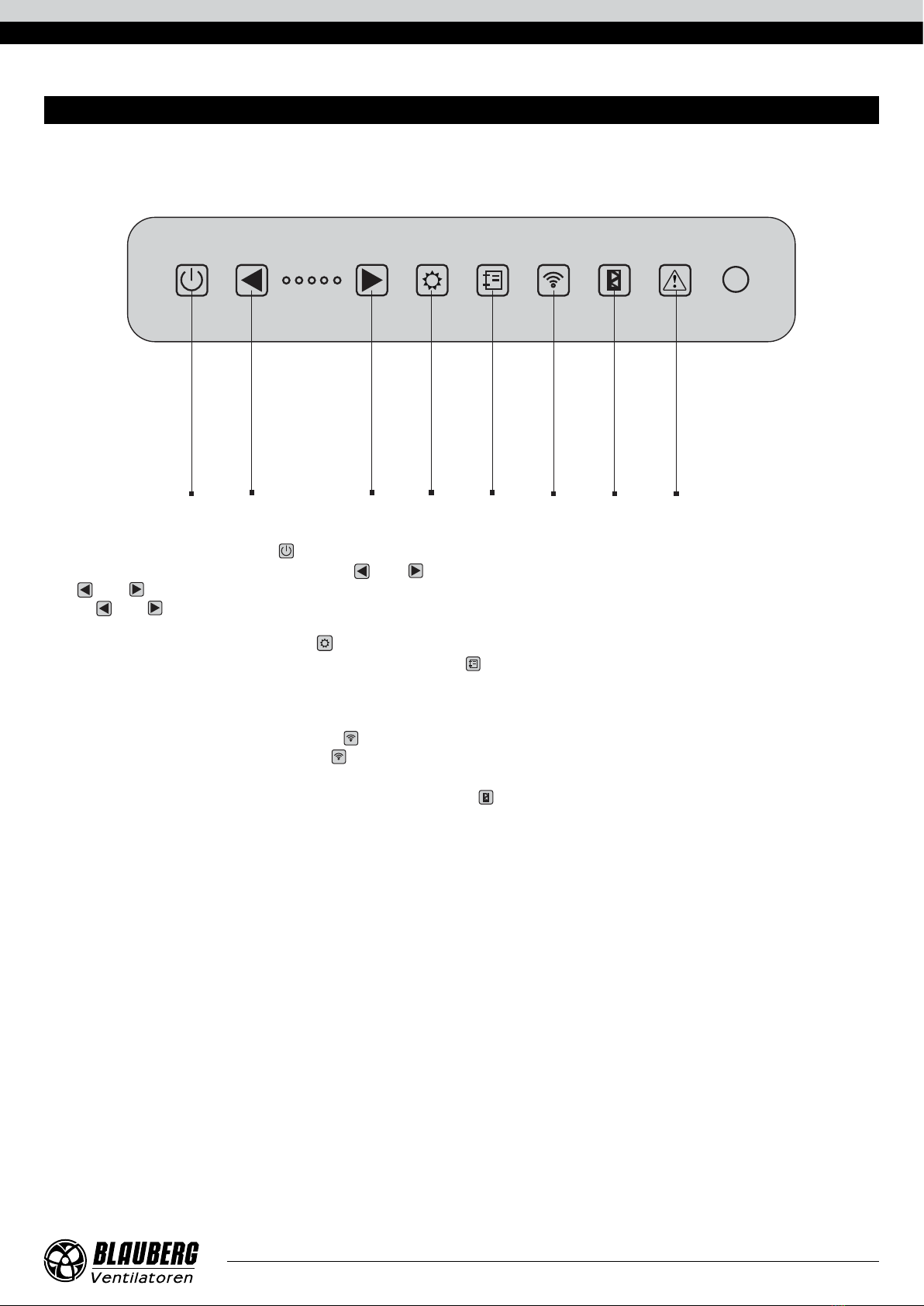

The unit is controlled by means of a control panel on the unit casing, a remote control or via mobile application.
Control panel
Filter contamination indicator
Alarm indication
Unit on/off
Fan speed up Fan speed down Scheduled operation on/off Wi-Fi module on/off Entering the Setup mode
Reheater on/off
(
Freshbox E1(E2)-100 ERV WiFi
)
1. The unit is switched on/o using .
2. Ventilation modes can be controlled by the and buttons.
The and buttons change the ventilation mode within five speeds.
Pressin and simultaneously for more than 3 seconds switches the timer on/off. The time of the timer and the speed to which the
installation proceeds while the timer is running is adjusted via the mobile application.
3. The reheater is switched on/o using .
4. The weekly schedule can be switched on/o by pressing the button.
For this mode, the time must be correctly set via the mobile application.
By default, the controller stores a weekly schedule with factory settings.
The button for switching on the weekly schedule blocks the buttons for changing speeds and switching the reheating on/off.
5. The Wi-Fi module is switched on/o using .
Switch the Wi-Fi module on/off by pressing . If the button is held down for more than 5 seconds, its backlight flashes and the
controller goes to the «Setup Mode» (for more information on this mode, see page 16).
6. At the end of the filters’ service life, the filter replacement indicator on the control panel will light up notifying that filters need to
be changed.
CAUTION! After switching o the unit with the heater running, the fans continue to operate in order to cool the heater. The
turn-o delay time of the fans is 0.5-2 minutes depending on the unit model.

Freshbox 100 WiFi
14
www.blaubergventilatoren.de
7. In emergency situations, the unit turns o and the indicator ashes an alarm code.
Alarm code Alarm description
— — — — — Outside temperature sensor missing
— — — — • Short circuit of the outside air temperature sensor
— — — • — Sensor missing downstream of the reheater
— — — • • Short circuit of the sensor downstream of the reheater
— — • — — Extract air temperature sensor missing (upstream of the heat exchanger)
— — • — • Short circuit of the exhaust air temperature sensor
— — • • — Exhaust air temperature sensor missing (downstream of the heat exchanger)
— — • • • Short circuit of the sensor downstream of the heat exchanger in the exhaust air duct
— • — — — Reserved
— • — — • Reserved
— • — • — Sensor missing downstream of the heat exchanger in the supply air duct
— • — • • Short circuit of the sensor downstream of the heat exchanger in the supply air duct
— • • — — Low battery. The weekly schedule function will not work correctly
— • • — • Reserved
— • • • — Fire alarm activation
— • • • • Error of connection between the control panel and the controller (not indicated in the mobile application)
• — — — — Wi-Fi module initialization error
• • • • • Unknown error (if this error occurs, contact the customer service)
• – short light signal
— – long light signal
You may find a detailed alarm description in a mobile application.
Remote control
Corresponds to switching
of the fifth speed
Corresponds to switching
of the third speed
Activation of the first speed
Unit on/off
Increase of the reheater
temperature setpoint
Decrease of the reheater
temperature setpoint
Reheater on/off
Week-scheduled
operation on/off
Timer on/off
Unit On/Off
Week-scheduled
operation on/off
Timer On/Off
Freshbox (E)-100 WiFi Freshbox E1(E2)-100 WiFi
Corresponds to switching
of the fifth speed
Corresponds to switching
of the third speed
Activation of the first speed

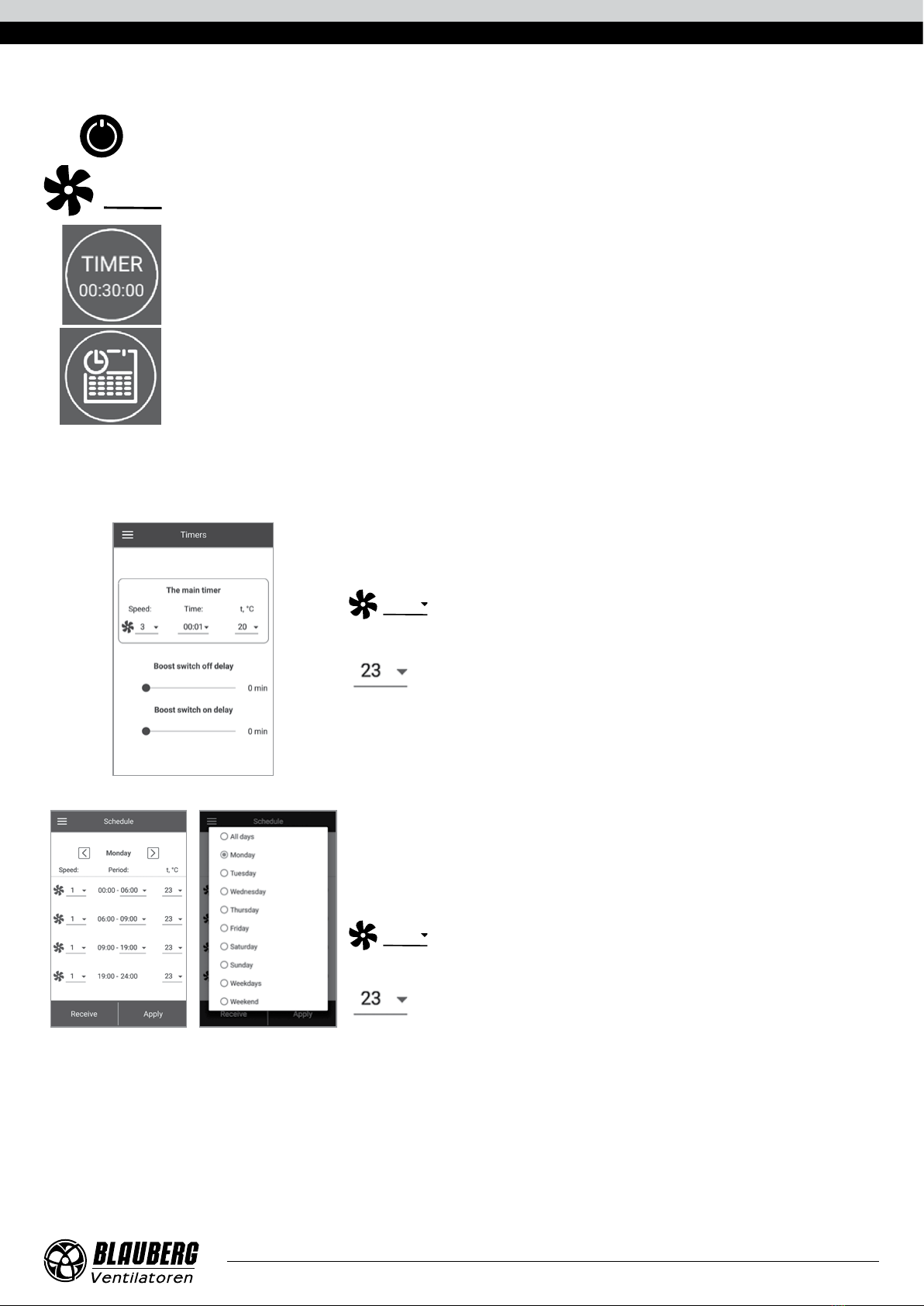

Unit control via the application on the mobile device
The application Blauberg Freshbox is available for download at App Store //itunes.apple.com/us/app/blauberg-freshbox/id1402506523
or Play Market https://play.google.com/store/apps/details?id=com.embarcadero.BlaubergFRESHBOX
or via QR codes.
App Store download link Play Market download link

www.blaubergventilatoren.de
Freshbox 100 WiFi
15
Following message is displayed if launching an application without connection to the unit:
After installing the application, connect the mobile device to the unit as to a Wi-Fi access point (FAN: + 16 characters of the ID number)
indicated on the control board and on the unit casing.
By default, the Wi-Fi access point password is 11111111 (eight ones).
Run the installed application on the mobile device connected to the unit.
• Select a desired connection type.
• Enter the app menu .
• Select CONNECTION - AT HOME.
• If the mobile device is connected to the Wi-Fi access point of the unit without a router, select the Default connection.
• If you are connecting via a router, search for devices in the network by pressing the button.
• Select the connection with the required ID number.
• Edit the connection details by pressing .
• If necessary, re-name the connection and enter a unit password (characters allowed: 0…9, a…z, A…Z).
• By default the unit password is 1111 (four ones).
• Confirm the updated details by pressing .
Standard IEFE 802,11, b/g/n
Frequency band [GHz] 2.4
Transmission power [mW] (dBm) 100(+20)
Network DHCP
WLAN safety WPA, WPA2
Wi-Fi technical data

Freshbox 100 WiFi
16
www.blaubergventilatoren.de
Unit password change
• Go to Menu ( ) - Connection - At home.
• Choose the connection and press .
• Enter and confirm the password. Characters allowed: 0…9, a…z, A…Z.
• Press the “Change Password” button.
Wi-Fi parameter setup
Go to the application menu on your mobile device Menu ( ) - Connection – Wi-Fi setup.
Then press Receive. The screen will display the current Wi-Fi parameter settings.
Select one of the Wi-Fi operation modes: Access Point or Client.
Access Point: access point mode without a home router.
Up to 8 devices can be connected to the unit in this mode.
Select the desired security level for the Access point mode:
Open: without a password.
WPA PSK: password-protected.
WPA2 PSK: password-protected.
WPA/WPA2 PSK: password-protected (recommended).
Enter your access point password.
Change the Wi-Fi channel if necessary.
Press the APPLY button.

www.blaubergventilatoren.de
Freshbox 100 WiFi
17
Client – the unit operates on the home router network.
Enter the home router details and the IP address type for the Client mode:
• Enter the name of the Wi-Fi home router access point.
• Enter the password for the Wi-Fi home router access point.
Select an IP address type:
DHCP: the IP address is set up automatically upon connection to the home router
(recommended).
Static: enables manual entry of the desired IP address, subnet mask and default
gateway. These settings are recommended for expert users only.
Select this IP address type at your own risk.
Then press the APPLY button.
Special Setup mode
In the event of losing the Wi-Fi password or the unit password, connecting external devices or in other cases use the special Setup mode
to restore access to the unit functions.
To enter the special Setup mode, press and hold the Wi-Fi button on the control panel for 5 seconds before the LED on the button starts
flashing.
The unit will continue in this mode for 3 minutes and then automatically revert to the previous settings.
To immediately exit the Setup mode, press and hold the button again for 5 seconds until the LED on the button stops flashing.
To connect to the unit in the Setup Mode, the following parameters are available:
Wi-Fi name: Setup mode.
Wi-Fi password: 11111111.
The unit password is ignored.
Cloud server connection
The units can be controlled using the mobile app via a cloud server connection. This function allows controlling the unit that is connected
to the home router, at any remote location via the Internet. By default the Control via cloud server function is disabled.
To enable the function:
• Select CONNECTION - AT HOME.
• Select the desired unit connection.
• Enter the connection settings menu.
• Enable control Through cloud server.
WARNING! With this function enabled any loss of Internet connection provided by the home server may result in temporary loss of
communication with the unit.
Create a new account or login to a previously created to manage the unit.

Freshbox 100 WiFi
18
www.blaubergventilatoren.de
Open the mobile app and go to MENU -> CONNECTION -> THROUGH CLOUD SERVER:
• Press the ADD NEW ACCOUNT button.
• Enter a login, a password and an e-mail address for password recovery. Confirm the updated details by pressing .
• Follow the link sent to the e-mail.
• Enter your login and password to enter your account.
• Add a new connection by clicking the button.
• Enter an arbitrary unit name, its ID number (indicated on the control board and the casing of the unit), and also the device
password (default: 1111).
• Confirm the updated details by pressing .
• To exit the account, press .
Menu structure
Home page
Indicators:
,
Current type of connection to the unit. Home connection or connection
via a cloud server through Internet respectively.
Reheater activity.
Filter replacement indicator.
Red colour – alarm indication, orange colour – warning indication.
Electric heater cooling indicator (preheating or reheating) before switching
off the unit.
Boost Boost mode operation indicator.
Sensor readings:
Current temperature of the selected sensor, which controls the air
temperature.
3

www.blaubergventilatoren.de
Freshbox 100 WiFi
19
Control buttons:
— Unit on/Standby.
1— Selection of pre-set speed.
— Timer activation. Timer settings are made in the Basic Settings - Timers menu.
— Week-scheduled operation mode activation. The settings of this mode are made in the Basic
settings - Schedule menu.
Recirculation — Activationof the recirculation mode. If there is no recirculation mode, the button is inactive.
Heater — Selecting the temperature setpoint for the reheater or turning it off.
Basic settings
Timers
Main timer: Timer mode settings.
When the timer is activated in the Home page menu, the unit temporarily goes to the
following settings:
1— Selection of pre-set speed 1-5, Standby.
00:30 — Timer setting
— Timer setting
Control temperature selection. Available +15 ° С.. + 30 ° С, off. If OFF is selected,
temperature control will not be performed while the timer is running.
Boost turn-o delay: determines the turn-off delay time for the Boost mode after
the signal at the digital input (Boost switch) disappears on the control board.
Boost turn-on delay: determines the turn-on delay time for the Boost mode after
the signal is applied to the digital input (Boost switch).
Schedule
The weekly schedule can be set by means of 4 time intervals available for each day
of the week.
Adjustment can be made for every day, weekdays, weekends or for the whole week.
When the Weekly Schedule mode is activated from the Main page, the unit will
operate as scheduled according to the following parameters:
1— Selection of pre-set speed 1-5, Standby.
— Time setting for a specific segment.
— Control temperature selection. Available +15 ° С.. + 30 ° С, off.
If OFF is selected, temperature control will not be performed while the timer is
running.

Freshbox 100 WiFi
20
www.blaubergventilatoren.de
Date and time
Current time and date are displayed and adjusted in this menu.
Time display format: hh:mm:ss.
Date format: dd.mm.yyyy.
— To enter the time and date manually.
— The same time as in the mobile device will be automatically
set.
Filter
Filter timer setup: When the set time (70-365 days) has elapsed, the filter change
indicator appears and filter replacement information is displayed in the Alarms
menu.
Total operation time: Displays the running time of the unit, which cannot be reset.
Other
The backlight brightness changes dynamically, after releasing the button, the
brightness decreases to a preset level.
Sound: turns on/off the sound projector located on the boar.
