BLAUBERG Ventilatoren BlauAir RP User manual

AIR HANDLING UNIT
BlauAir RP
USER’S MANUAL
EN

CONTENTS
This user’s manual is a main operating document intended for technical, maintenance, and operating staff.
The manual contains information about purpose, technical details, operating principle, design, and installation of the BlauAir RP unit and
all its modifications.
Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should be able to
work in accordance with workplace safety rules as well as construction norms and standards applicable in the territory of the country.
Safety requirements..................................................................................................................................................................... 2
Purpose................................................................................................................................................................................................ 4
Delivery set........................................................................................................................................................................................ 4
Designation key.............................................................................................................................................................................. 4
Technical data.................................................................................................................................................................................. 5
Unit design........................................................................................................................................................................................ 6
Installation and set-up................................................................................................................................................................ 7
Connection to power mains .................................................................................................................................................. 9
Technical maintenance.............................................................................................................................................................. 9
Storage and transportation regulations.......................................................................................................................... 11
Manufacturer’s warranty........................................................................................................................................................... 12
Certificate of acceptance.......................................................................................................................................................... 13
Seller information.......................................................................................................................................................................... 13
Installation certificate.................................................................................................................................................................. 13
Warranty card................................................................................................................................................................................... 13
BlauAir RP
2
www.blaubergventilatoren.de
SAFETY REQUIREMENTS
All operations described in this manual must be performed by qualified personnel only, properly
trained and qualified to install, make electrical connections and maintain ventilation units.
Do not attempt to install the product, connect it to the mains, or perform maintenance yourself.
This is unsafe and impossible without special knowledge.
Disconnect the power supply prior to any operations with the unit.
All user’s manual requirements as well as the provisions of all the applicable local and national
construction, electrical, and technical norms and standards must be observed when installing
and operating the unit.
Disconnect the unit from the power supply prior to any connection, servicing, maintenance, and
repair operations.
Only qualied electricians with a work permit for electrical units up to 1000 V are
allowed for installation. The present user’s manual should be carefully read before
beginning works.
Check the unit for any visible damage of the impeller, the casing, and the grille before starting
installation. The casing internals must be free of any foreign objects that can damage the
impeller blades.
While mounting the unit, avoid compression of the casing! Deformation of the casing may result
in motor jam and excessive noise.
Misuse of the unit and any unauthorised modifications are not allowed.

THE PRODUCT MUST BE DISPOSED SEPARATELY AT THE END OF ITS SERVICE LIFE.
DO NOT DISPOSE THE UNIT AS UNSORTED DOMESTIC WASTE.
www.blaubergventilatoren.de
BlauAir RP
3
Do not expose the unit to adverse atmospheric agents (rain, sun, etc.).
Transported air must not contain any dust or other solid impurities, sticky substances, or fibrous
materials.
Do not use the unit in a hazardous or explosive environment containing spirits, gasoline,
insecticides, etc.
Do not close or block the intake or extract vents in order to ensure the efficient air flow.
Do not sit on the unit and do not put objects on it.
The information in this user’s manual was correct at the time of the document’s preparation.
The Company reserves the right to modify the technical characteristics, design, or configuration
of its products at any time in order to incorporate the latest technological developments.
Never touch the unit with wet or damp hands.
Never touch the unit when barefoot.

PURPOSE
DELIVERY SET
DESIGNATION KEY
THE UNIT SHOULD NOT BE OPERATED BY CHILDREN OR PERSONS WITH REDUCED
PHYSICAL, MENTAL, OR SENSORY CAPACITIES, OR THOSE WITHOUT THE APPROPRIATE
TRAINING.
THE UNIT MUST BE INSTALLED AND CONNECTED ONLY BY PROPERLY QUALIFIED
PERSONNEL AFTER THE APPROPRIATE BRIEFING.
THE CHOICE OF UNIT INSTALLATION LOCATION MUST PREVENT UNAUTHORISED
ACCESS BY UNATTENDED CHILDREN.
Name Number
Unit 1 pc.
User's manual 1 pc.
Technical data sheet 1 pc.
Automation wiring 1 pc.
Control panel 1 pc.
User's manual for automation 1 pc.
Packing box 1 pc.
BlauAir BL02 R P 2500 HW CDX LS30
Automation type
S30: kVent with thTune control panel
S31: kVent
S32: kVent with pGDE control panel
S21: wireless control system
S25: sensor control panel
Service modication
L: left-sided modification
R: right-sided modification
Cooler type
_: no cooler
CDX: DX-cooler
CW: water cooler
Heater type
_: no heater
HE: electric heater
HW: water heater
Air capacity [m3/h]
Unit installation modication
P: suspended
H: double-deck
V: vertical
Heat exchanger type
R: rotary
CF: counter-flow
Casing dimensions
Unit series
The air handling unit with heat recovery is designed for integration into central mechanical ventilation systems.
The unit is rated for continuous operation.
Transported air must not contain any flammable or explosive mixtures, evaporation of chemicals, sticky substances, fibrous materials,
coarse dust, soot and oil particles or environments favourable for the formation of hazardous substances (toxic substances, dust,
pathogenic germs).
BlauAir RP
4
www.blaubergventilatoren.de

TECHNICAL DATA
UNIT OVERALL DIMENSIONS mm
A2
B6 B6
A3
A4
A
A
B
B1
B2
B3 B3
Ø D
Model A A1 A2 A3 A4 B B1 B2 B3 B5 B6 D
BL02 RP 1500
BL02 RP 2500 500 590 1342 1145 1485 300 634 1570 664 443 505 18
The full technical data list is stated in the supplied technical data sheet.
The unit is designed for indoor or sheltered use. The installation conditions must prevent ingress of atmospheric precipitations and direct
solar radiation at the ambient temperatures from -35 °C up to +50 °C.
The frost protection for the water drainage and connected pipelines must be provided during sub-zero ambient temperatures (if the
unit is equipped with air cooler).
The heat medium temperature in the water heat exchangers (if available) must be sufficient to prevent its freezing.
Hazardous parts access and water ingress protection rating:
• IP54 for the unit motors
• IP40 for the assembled unit connected to the air ducts
• IP00 for the unit not connected to the air ducts
The unit design is constantly being improved, thus some models may be slightly different from those described in this manual.
www.blaubergventilatoren.de
BlauAir RP
5

UNIT DESIGN
4
5
6
6
7
1
2
3
3
1: supply filter
2: supply fan
3: heat exchanger
4: extract filter
5: control unit
6: air flow control damper
7: extract fan
BlauAir RP
6
www.blaubergventilatoren.de

INSTALLATION AND SETUP
ALL OPERATIONS DESCRIBED IN THIS USER’S MANUAL MUST BE PERFORMED BY
QUALIFIED PERSONNEL ONLY, PROPERLY TRAINED AND QUALIFIED TO INSTALL AND
MAINTAIN VENTILATION EQUIPMENT.
DO NOT ATTEMPT TO INSTALL THE PRODUCT YOURSELF.
IT IS UNSAFE AND IMPOSSIBLE WITHOUT SPECIAL KNOWLEDGE.
The units are available in left- and right-sided modifications with the right or left service side.
The motors, filters and heat exchangers are accessible from the bottom. The access to the control unit is on the service side.
Left-sided modication (top view) Right-sided modication (top view)
Supply air
Exhaust air
Intake air Extract air
Supply air Exhaust air
Intake air
Extract air
Connection of the air ducts is shown with the stickers of the respective colours: yellow for the extract air duct, green for the intake air duct,
red for the supply air duct and brown for the exhaust air duct.
During installation works sufficient maintenance and service access must be provided.
The recommended minimum distances from the unit to the walls are shown below.
For the models with water heater For the models without water heater
450
500
650
500
650
www.blaubergventilatoren.de
BlauAir RP
7

The fasteners for the unit installation are not included in the delivery set and must be purchased separately.

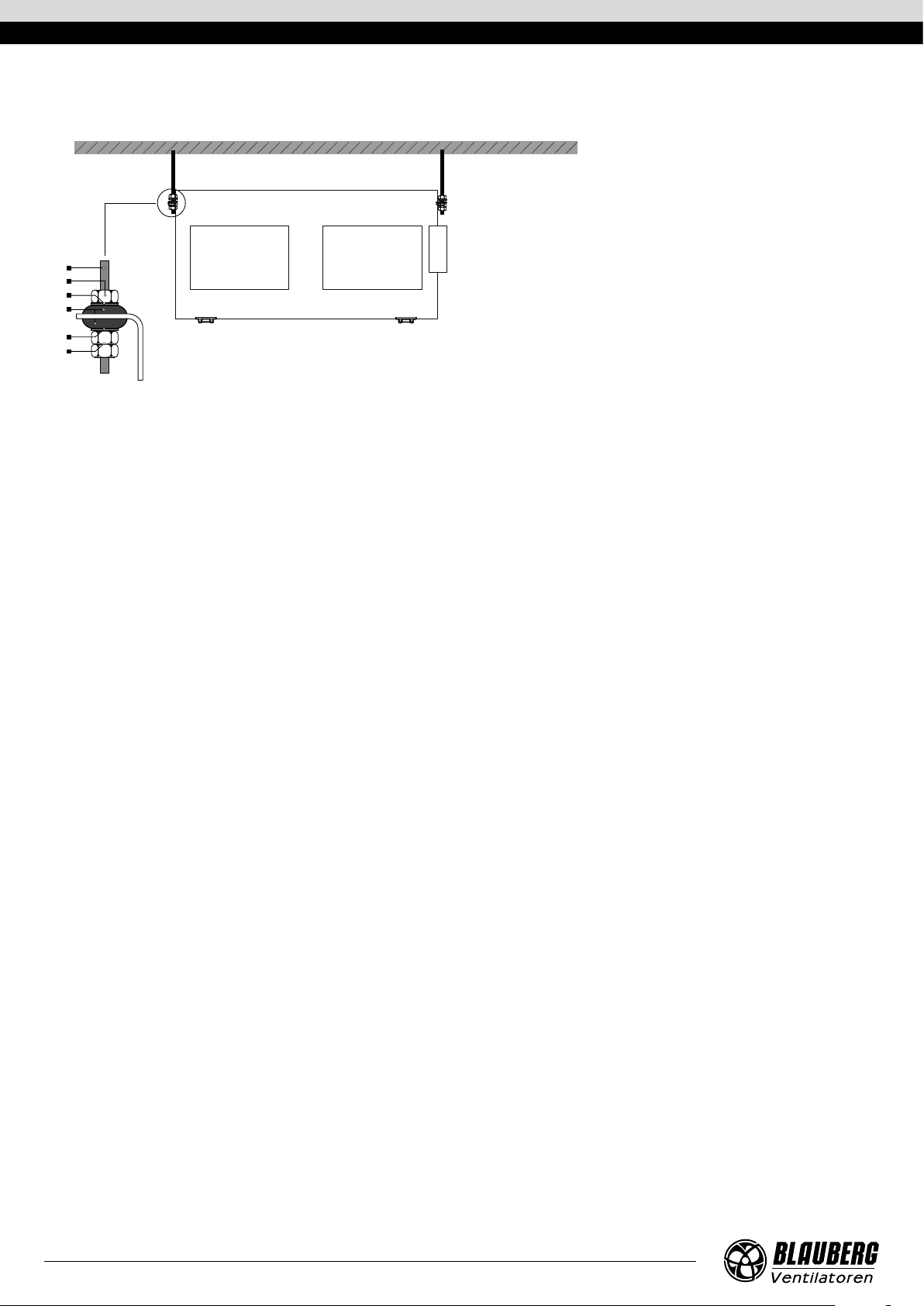

Recommended installation diagram
1
2
3
3
4
5
1 threaded stud
2 nut
3 washer
4 vibration absorbing rubber
5 nut and counter nut
BlauAir RP
8
www.blaubergventilatoren.de

CONNECTION TO POWER MAINS
Connection to power mains must be conducted in compliance with the automation user’s manual.
TECHNICAL MAINTENANCE
The unit operation requires regular inspection, dry cleaning of inner components, check-up and replacement of air filters in case of filter
contamination.
3-6 months after commissioning of the unit it must be inspected by a service expert for planned preventive maintenance of the unit.
Next maintenance operations must be conducted at least every 6-12 months.
Maintenance periodicity is determined by a service expert depending on operation conditions of the unit.
Dust deposits on the inner parts of the unit, especially in the electric heater, may lead to unpleasant odours.
It is not a malfunction.
Clean the unit to troubleshoot unpleasant odours.
Open the service doors to access the filters.
Remove the butterfly bolts that fix the retaining clamp. Remove the fasteners.
OPEN THE UNIT FOR INSPECTION AND SERVICE NOT LESS THAN 2 MINUTES AFTER
COMPLETE DEENERGIZING OF THE UNIT.
THE FANS ROTATION MAY BE STILL PRESENT.
IN CASE OF ANY ABNORMAL NOISE, SMELL AND COMPONENT DEFORMATION
IMMEDIATELY CUT OFF POWER SUPPLY TO THE UNIT AND CONTACT
A SERVICE PROVIDER OR THE UNIT SELLER.
www.blaubergventilatoren.de
BlauAir RP
9

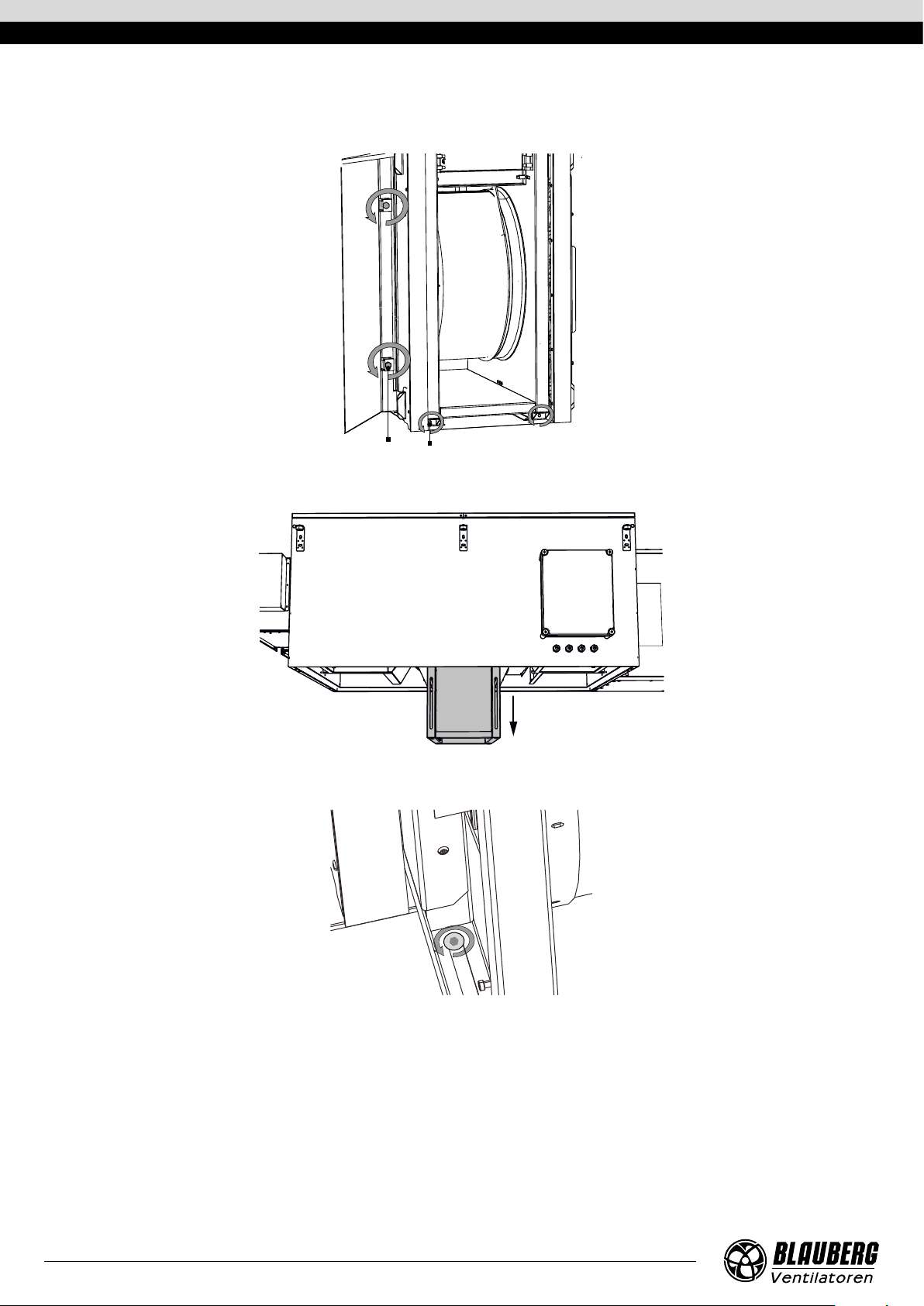

To access the heat exchanger remove the service panel and open the door.
Release the clamp screw (1) and remove the retaining screws (2).
12
Remove the heat exchangers from the unit. The exchanger block is partially removable for maintenance purposes.
To pull the heat exchanger completely from the unit, open the service door and remove the retaining screws.
BlauAir RP
10
www.blaubergventilatoren.de

STORAGE AND TRANSPORTATION REGULATIONS
• Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range +5 ˚...+40 ˚С
and relative humidity up to 70 %.
• Storage environment must not contain aggressive vapors and chemical mixtures provoking corrosion, insulation, and sealing
deformation.
• Use suitable hoist machinery for handling and storage operations to prevent possible damage to the unit.
• Follow the handling requirements applicable for the particular type of cargo.
• The unit can be carried in the original packaging by any mode of transport provided proper protection against precipitation and
mechanical damage. The unit must be transported only in the working position.
• Avoid sharp blows, scratches, or rough handling during loading and unloading.
• Prior to the initial power-up after transportation at low temperatures, allow the unit to warm up at operating temperature for at least
3-4 hours.
www.blaubergventilatoren.de
BlauAir RP
11

MANUFACTURER’S WARRANTY
The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby
declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European
Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking
Council Directive 93/68/EEC. This certificate is issued following test carried out on samples of the product referred to above.
The manufacturer hereby warrants normal operation of the unit for 24 months after the retail sale date provided the user's observance
of the transportation, storage, installation, and operation regulations. Should any malfunctions occur in the course of the unit operation
through the Manufacturer's fault during the guaranteed period of operation, the user is entitled to get all the faults eliminated by the
manufacturer by means of warranty repair at the factory free of charge. The warranty repair includes work specific to elimination of faults
in the unit operation to ensure its intended use by the user within the guaranteed period of operation. The faults are eliminated by means
of replacement or repair of the unit components or a specific part of such unit component.
The warranty repair does not include:
• routine technical maintenance
• unit installation/dismantling
• unit setup
To benefit from warranty repair, the user must provide the unit, the user's manual with the purchase date stamp, and the payment
paperwork certifying the purchase. The unit model must comply with the one stated in the user’s manual. Contact the Seller for warranty
service.
The manufacturer’s warranty does not apply to the following cases:
• User’s failure to submit the unit with the entire delivery package as stated in the user’s manual including submission with missing
component parts previously dismounted by the user.
• Mismatch of the unit model and the brand name with the information stated on the unit packaging and in the user's manual.
• User’s failure to ensure timely technical maintenance of the unit.
• External damage to the unit casing (excluding external modifications as required for installation) and internal components caused
by the user.
• Redesign or engineering changes to the unit.
• Replacement and use of any assemblies, parts and components not approved by the manufacturer.
• Unit misuse.
• Violation of the unit installation regulations by the user.
• Violation of the unit control regulations by the user.
• Unit connection to power mains with a voltage different from the one stated in the user's manual.
• Unit breakdown due to voltage surges in power mains.
• Discretionary repair of the unit by the user.
• Unit repair by any persons without the manufacturer’s authorization.
• Expiration of the unit warranty period.
• Violation of the unit transportation regulations by the user.
• Violation of the unit storage regulations by the user.
• Wrongful actions against the unit committed by third parties.
• Unit breakdown due to circumstances of insuperable force (fire, flood, earthquake, war, hostilities of any kind, blockades).
• Missing seals if provided by the user’s manual.
• Failure to submit the user’s manual with the unit purchase date stamp.
• Missing payment paperwork certifying the unit purchase.
FOLLOWING THE REGULATIONS STIPULATED HEREIN WILL ENSURE A LONG AND
TROUBLEFREE OPERATION OF THE UNIT.
USER’S WARRANTY CLAIMS SHALL BE SUBJECT TO REVIEW ONLY UPON
PRESENTATION OF THE UNIT, THE PAYMENT DOCUMENT AND THE USER’S MANUAL
WITH THE PURCHASE DATE STAMP.
www.blaubergventilatoren.de
BlauAir RP
12

CERTIFICATE OF ACCEPTANCE
Unit Type Air handling unit
Model
Serial Number
Manufacture Date
Quality Inspector’s
Stamp
SELLER INFORMATION
Seller
Seller’s Stamp
Address
Phone Number
E-mail
Purchase Date
This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are
acknowledged and accepted.
Customer’s Signature
INSTALLATION CERTIFICATE
The _____________________________________ unit is installed pursuant to the requirements stated
in the present user's manual.
Installation Stamp
Company name
Address
Phone Number
Installation
Technician’s Full Name
Installation Date: Signature:
The unit has been installed in accordance with the provisions of all the applicable local and national construction,
electrical and technical codes and standards. The unit operates normally as intended by the manufacturer.
Signature:
WARRANTY CARD
Unit Type Air handling unit
Seller’s Stamp
Model
Serial Number
Manufacture Date
Purchase Date
Warranty Period
Seller
www.blaubergventilatoren.de
BlauAir RP
13

www.blaubergventilatoren.de
BlauAir RP
14

www.blaubergventilatoren.de
BlauAir RP
15

www.blaubergventilatoren.de
B192-6EN-02
