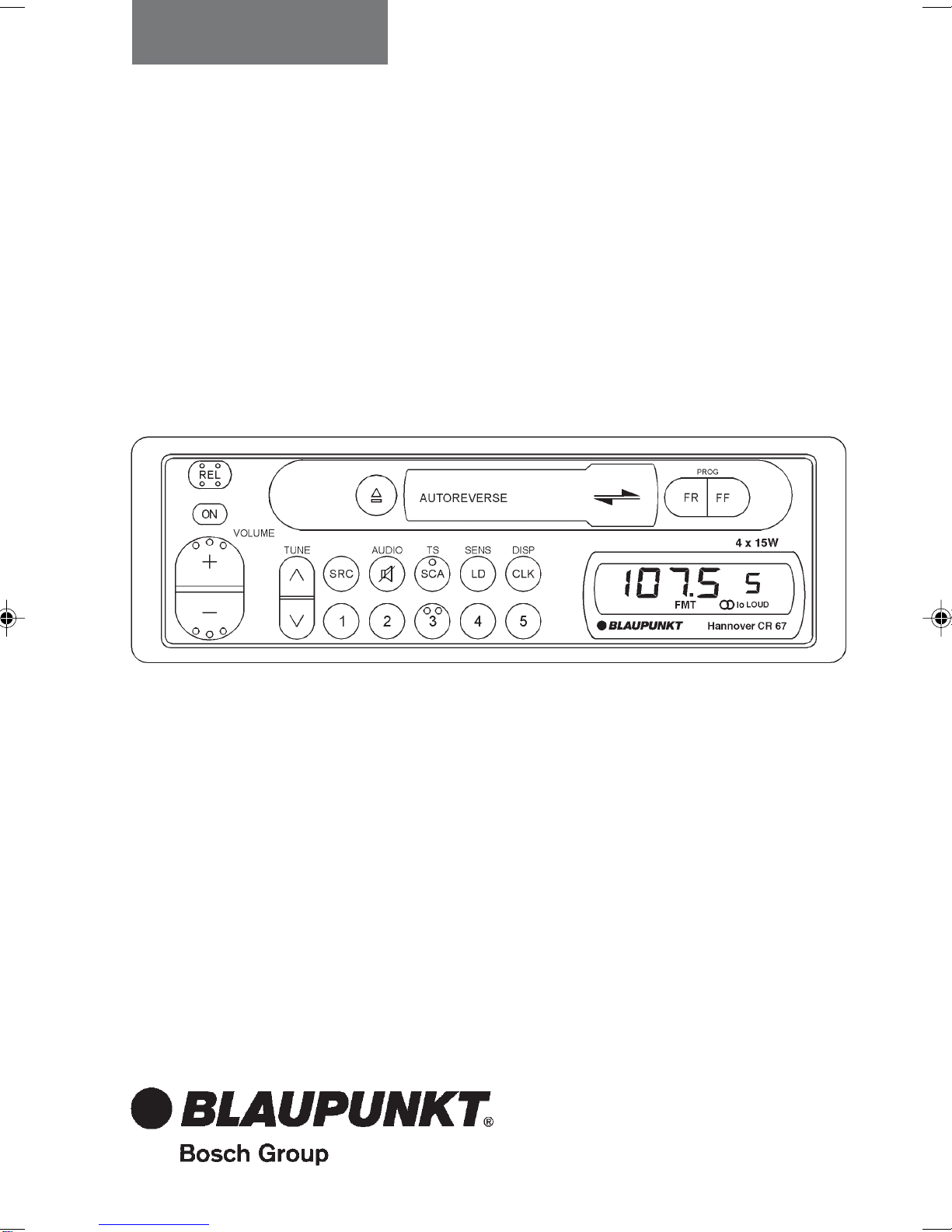

Blaupunkt HANNOVER CR 67 User manual

Hannover CR 67
Radio / Cassette
Operating Instructions
Congratulations on your purchase of this Blaupunkt Cassette Receiver.
BA Hannov. CR67 SEA gb® 29.04.2002, 13:29 Uhr1

2
Table of Contents
English
Features ........................................................... 3
Traffic Safety and Precautions ......................... 3
Detachable Face ...............................................4
Electrical Connections and Installation ............ 5
Installation .........................................................7
Maintenance ......................................................9
Specifications ..................................................10
Location of Controls ........................................11
Instructions - General Operation .................... 12
Audio Operation ..............................................13
Radio Operation ..............................................14
Cassette Tape Player Operation .................... 15
BA Hannov. CR67 SEA gb® 29.04.2002, 13:29 Uhr2

3
Features
Congratulations on your purchase of this Blaupunkt Cassette Receiver. Its Codem III FM/AM
Tuner and Autoreverse Cassette Tape Player mechanism provide the ultimate in sound
reproduction.
•Codem III Tuner Features:
–Multipath Management
–ASU Electrical Impulse Noise Reduction
– Superior AM Frequency Response
–15 FM/5 AM Presets, Including 5 FM &
5 AM Travel Store Presets
–Station Scan
–Local/Distant Seek & Manual Tuning
•Cassette Tape Player Features
–Auto-Reverse Cassette Mechanism
– True Fast-Forward/Rewind
–Hard Permalloy Tape Head
–Radio Monitor with Radio Preset Access
Your unit’s detachable front faceplate makes the
unit useless to would-be thieves.
Designed, Engineered and Manufactured
By Blaupunkt.
Traffic Safety and Precautions
•Do not adjust your unit in difficult driving conditions that demand your full attention.
•As the driver of a motor vehicle, it is your responsibility to pay attention to the traffic situation
at all times. Never use your unit in a way that could distract you.
•Always make sure that you are still able to hear any warning signals coming from outside of
the vehicle, such as police or fire engine sirens, so that you can react accordingly.
•If your vehicle was parked in direct sunlight resulting in a considerable rise in temperature
inside the vehicle, allow the unit to cool off before operating your unit.
•You are cautioned that any changes or modifications not expressly approved in this manual
could void your warranty.
ENGLISH
•Audio Features:
–15 Watts x 4 Channel Integrated Amplifier
–Adjustable Maximum Turn-On Volume
– Bass, Treble, Balance and Fader Control
–Loudness Button
–Mute Button
•Other Features:
–Partially Detachable Face
–Green Illumination
–Display Priority Control
–Temporary Display Change Control
–Clock/Ignition-Off Clock Recall
–179 x 50 x 150 mm
DIN/ISO Chassis
–Detachable Wire Harness (ISO)
–Snap-In DIN Sleeve & Mounting Hardware
BA Hannov. CR67 SEA gb® 29.04.2002, 13:29 Uhr3

4
Detachable Face
Detaching & Attaching the Face:
The face of this unit can be detached and taken with you to prevent it from being stolen.
Detaching the Face:
Press the REL (Release) Button and detach the face by gently pulling it off as illustrated.
Note: Do not pull it straight out from the chassis. Be sure not to drop the face when detaching it
from the chassis.
Attaching the Face:
Apply the right hand side of the face to the chassis by sliding (part B) of the face to (part A) at
the front of the chassis. Gently push the left side of the face against the front of the chassis until
it snaps into place.
Note: Make sure that the face is inserted right side up. Do not press against the display window.
Do not press hard against the face when attaching it to the chassis, it may be easily attached
with gentle pressure. Do not expose the face to direct sunlight, heat sources such as hot air
ducts or leave it in a humid place. Never leave it on the dash board of a vehicle parked in direct
sunlight, where there may be a considerable rise in temperature inside the vehicle.
Affixing Faceplate For Retail Display:
The faceplate can be affixed to the unit’s chassis, which is desirable for a retail display, for
example. This should only be done in situations where the unit can be accessed from
behind the mounting surface. Once the faceplate is affixed, the release keys cannot be
used to remove the chassis.
To affix the faceplate:
Insert the black bolt into the hole at the left front of the top of the radio. See* below.
A
B
*
BA Hannov. CR67 SEA gb® 29.04.2002, 13:29 Uhr4

5
Electrical Connections and Installation
Please carefully read all of the instructions before you begin. Carefully follow all instructions.
You’ll be glad you did!
GENERAL RECOMMENDATIONS
•If you’re not confident that you can install the unit correctly, have it installed by a qualified
Blaupunkt installation technician.
•Use this unit only with negative ground 12 Volt (11-16 Volt) direct current (DC).
•Be sure to detach the faceplate before you start to connect or install the unit.
•We recommend making and testing all electrical connections before installing the unit.
Connect the leads (wires) according to instructions and diagram below.
ELECTRICAL CONNECTION INSTRUCTIONS
1. Disconnect the vehicle battery’s negative terminal before making connections.
2. Connect the speakers and/or external amplifiers (if you have any) following the guidelines in
the SPEAKER CONNECTION section below.
3. Connect the blue (trigger output) lead to the antenna motor trigger input terminal (if you
have one). The total amperage required of the blue lead must not exceed 300 mA. DO NOT
connect the blue lead to the antenna’s power supply input.
4. Connect the black (power ground) lead to a grounded metal part on the vehicle. We
recommend grounding all audio system black ground leads (head unit, external amplifier,
etc.) to a common grounding point, preferably a non-painted surface under the instrument
panel.
5. Connect the yellow (constant power) input lead to a source of constant battery power,
preferably a terminal to an appropriate slot in the fuse box.
6. Connect the red (turn-on power) input lead only after the other leads are connected. Be sure
to connect the red lead to a positive (+) 12 Volt power terminal that is energized only when
the ignition key is set to the on position or accessory position.
7. Cover the ends of any unused leads with electrical tape. This will prevent them from
touching the vehicle or each other and causing a short-circuit and damage to the radio or
vehicle.
8. Reconnect the vehicle’s battery.
9. Verify that no fuses have blown.
10. Plug the harness into the unit.
11. Attach the faceplate and test the unit.
Once the connections have been successfully made, you can begin to mount the unit.
BA Hannov. CR67 SEA gb® 29.04.2002, 13:29 Uhr5

6
SPEAKER CONNECTIONS
•You can connect a speaker (regular, co-axial or tri-axial speakers or component speaker
system, all hereafter referred to simply as “speaker”) to each of the units’ four pairs of
speaker leads.
IGNITION
+12V
BATTERY
5A
red
blue
black
yellow
GROUND
ANTENNA
+(12V)
LF
RF
LR
RR
LR
RR
RF
LF
Power connections
Speaker connections
BA Hannov. CR67 SEA gb® 29.04.2002, 13:29 Uhr6

7
Installation
Recommendations
•Carefully choose the mounting location so that the unit won’t interfere with normal driving.
•Avoidmountinglocationswheretheunitwouldbesubjecttohightemperatures,suchasfromdirect
sunlight or hot air from the heater, or where it would subject to dust, dirt or excessive vibration.
•The illustration below shows a typical installation, however, you may need to adjust the
installation, depending on the unit. If you have questions or need additional installation
hardware, consult your Blaupunkt dealer.
•Make sure the unit is firmly anchored (preferably at both front and back) and does not vibrate.
Mounting Hardware
Mounting The Unit in Most Dashboards
1 Install the Sleeve in the dashboard.
2 Select and bend the appropriate tabs to hold the sleeve firmly in place.
Sleeve Release Keys
Bend these tabs
BA Hannov. CR67 SEA gb® 29.04.2002, 13:29 Uhr7

8
Slit
Bracket
Support
max. size
M5x8
max. size M5x8
Mounting the Unit in a Japanese Car
You may have difficulty mounting this unit in some Japanese cars that have ISO mounting
features.
In this case, consult your Blaupunkt dealer.
1Run a blade along the slits on the back of the front trim ring, unscrew the two side screws,
and separate it from the unit. Save the trim ring and related hardware in case you ever want
to install the unit in another vehicle.
2Use the vehicle’s own mounting hardware to attach the unit.
to dashboard/center console
2 TOYOTA
1
Bracket
Support
max. size
M5x8
max. size M5x8
2 NISSAN
to dashboard/center console
BA Hannov. CR67 SEA gb® 29.04.2002, 13:29 Uhr8

9
Maintenance
Removing the Unit
Use the Release Keys as shown below. Keep them in a safe place in case you need them in the
future.
Fuse Replacement
When replacing the fuse, be sure to use one with the correct amperage, which will be stated on
the fuse case. Never use a fuse that has a stated amperage exceeding the one supplied for this
unit, as this could cause malfunction and serious damage to the unit.
BA Hannov. CR67 SEA gb® 29.04.2002, 13:29 Uhr9

10
Specifications
Audio Power Specifications
Power Output and Total Harmonic Distortion: 10 watts per channel minimum continuous
average output into 4 ohms, 4 channels driven, from 30-15 000 Hz with no more than 1% total
harmonic distortion.
Other Specifications
Tuner
FM
Tuning Range: 87.5 - 108 MHz
FM Mono Sensitivity: 1.3 µV
Selectivity: 80 dB at 400 kHz
Signal-to-Noise Ratio: 65 dB (stereo), 70 dB (mono)
Harmonic distortion at 1 kHz: 0.7% (stereo), 0.5% (mono)
Separation: 30 dB
Frequency Response: 30-15.000 Hz ±3 dB
AM
Tuning Range: 531 - 1.602 kHz
Signal-to-Noise Ratio: 50 dB
Frequency Response: 30-5.000 Hz
Audio
Speaker Impedance: 4-8 ohms
Maximum Amp Power: 4 x 15 Watts (at 4 ohms)
RMS Power: 4 x 10 Watts (at 4 ohms)
Bass Control: ±10 dB by 100 Hz
Treble Control: ±10 dB by 10 kHz
Loud: + 8 dB by 60 Hz, + 2 dB by 8 kHz
Cassette
Signal-to-Noise Ratio: 55 dB
Tape Wow and Flutter: 0.3 %
Tape Frequency Response: 30-16.000 Hz
General
Dimensions (w/o projecting parts/controls): 179 x 50 x 150 mm
Mass: Approx. 1.4 kg
Power Requirement (neg. grnd.): 12 V DC car battery (11-16 V DC allowable)
Operating Temperature: -10°C to 50°C
Supplied Accessories: • Unit
• Faceplate
• Wire Harness
• DIN Sleeve
• Mounting Hardware
Design and specifications subject to change without notice.
BA Hannov. CR67 SEA gb® 29.04.2002, 13:29 Uhr10

11
Location of Controls
1. REL (Release) Button
2. ON (Power) Button
3. Source (and Radio Band) Select
4. Cassette Eject
5. Mute/Audio Button/Clock Adjust:00
6. SCA (Scan) TS (Travel Store)
7. LD (Loudness)/ SENS (Tuning Sensitivity)
8. Cassette Insertion Slot
9. CLK/Display Change
10/11. Tape Program Change (reverse)
10. Fast Rewind
11. Fast Forward
12. + Button
Volume +
Bass +
Treble +
Balance Left
Fade to Front
13. - Button
Volume -
Bass -
Treble -
Balance Right
Fade to Rear
14. Button
Seek and Manual Tunin
Clock Hours
15. Button
Seek and Manual Tuning
Clock Minutes
16. FM/AM Presets
17. Display
BA Hannov. CR67 SEA gb® 29.04.2002, 13:29 Uhr11

12
Instructions —General Operation
See Traffic Safety & Precautions on page 3.
“Press” means a momentary press of less than 1/2 second. All presses requiring more than 1/2
second are followed by beep.
“Time Out” When additional button presses are anticipated to complete a procedure, the unit will
automatically exit the procedure after 4 seconds of inactivity.
Ignition-Off Clock Recall / Turning Unit On
Vehicle ignition must be on. To turn unit on, press ON Button (2) or insert a tape.
Ignition-On / Turning Unit Off
Press the ON Button to turn the unit off.
Release for Detachable Faceplate
Push REL to detach face. Already-inserted cassette remains in unit. Current settings and source
mode are stored. If power was not switched off before face removed, unit will automatically
power-on when face is reattached.
Power (ON) On/Off
When ignition on, press ON or insert a disc to turn unit on. Last-used source becomes active,
unless unit is turned on by inserting tape, in which case tape player becomes active.
Power Off
Press ON to turn unit off. Unit stores current settings for source, station or track, etc. Antenna/
amplifier trigger wire shuts off voltage. (If faceplate still attached, display switches to clock.)
Setting the Clock
Turn the unit on. Press the CLK Button for four seconds until the clock starts blinking.
(The display will change after two seconds. Ignore this and continue to hold for two more
seconds.) Once the clock starts blinking, Press the /\ to set the hour, and press the V Button to
set the minutes. (To change the minute indicator to the nearest hour (:00), you can press the
MUTE Button. Press the CLK Button again to activate the clock.
Changing the Information Displayed
You can temporarily change the information shown in your unit’s display. You can also select
which information has “display priority” and is shown in the display except for moments when
adjustments are made.
•To change the display priority, press the CLK Button for two seconds. The display priority
changes. The display priority choices are clock or radio frequency / ”TAPE”.
•To change the display temporarily, press and release the CLK Button to access the desired
information.* After four seconds, the display changes back to the priority information.
Source (SRC)
Use SRC to select source - AMT, FM1, FM2, FMT or cassete (if already inserted).
BA Hannov. CR67 SEA gb® 29.04.2002, 13:29 Uhr12

13
Audio Operation
Volume Control Buttons (+/–)
Press + and - to increase/decrease volume from 0 to 63, in increments of 1.25 dB/step. Volume
control is accessible from all modes except Bass, Treble, Balance and Fade modes.
Adjustable Maximum Turn-On Volume
First adjust the volume to the (maximum) volume level desired when the unit is turned on. Press
and hold the PWR Button for more than two seconds. The unit turns off and the turn-on volume
level is memorized. When the unit is turned on, the volume will be at the memorized level, even
if the unit was turned off while the volume was at a higher level. However, if the volume is
turned off when the volume level is lower than the stored Turn-On volume level, the volume will
be at the lower level when the unit is turned back on.
Mute
Press Mute to temporarily reduce volume by 20 dB. “MUTE” appears. Mute is terminated by
pressing any button.
Bass, Treble, Balance and Fade
Press Mute/AUDIO for more than 1/2 second to access Bass. Subsequent presses access
Treble, Balance and Fade modes.
Bass -Adjust from +7 to -7 at 2 dB/step using + to increase bass, - to decrease.
Treble - Adjust from +7 to -7 at 2 dB/step using + to increase treble,- to decrease.
Balance - Adjust balance from 9 (all the way left) using + to -9 (all the way right) using -.
Adjust fader from 9 (sound only from the front) using + to -9 (sound only from the rear) using -.
Loudness (LD)
Press LD to increase sound of low and high frequencies. LOUD icon appears. To cancel, press
LD again.
BA Hannov. CR67 SEA gb® 29.04.2002, 13:29 Uhr13

14
Radio Operation
Last Station Memory
Each FM bank and AM band has its own last station memory which holds last-tuned frequency
for that band or bank irrespective of whether that frequency is stored into a preset.
Selecting Bands
Press SRC as needed to access FM1, FM2, FM3/FMT, AM/AMT banks.
Seek Tuning
Press /\ or V to seek next receivable frequency. Tuning stops at frequency that fulfills sensitivity
requirements predetermined by sensitivity set through SENS/LD button.
Tuning Sensitivity (SENS)
Press SENS/LD for more that 2 seconds to switch between local (lo) and distant search
sensitivity.
Radio Reception Hints
•When listening to weak or distant AM stations, adjusting the Treble to minimum (-7) will
reduce noise and improve sound.
•In general, set SENS to DX if in rural areas or where stations tend to be weak and distant,
and to LO when in metropolitan areas or where stations tend to be strong and local.
Stereo Symbol
Stereo symbol turns on if a stereo station with an incoming signal of at least 20 dBµV is
received. The unit gradually switches between mono to stereo automatically.
Manual Tuning
Press /\ or V for more than 1/2 second and frequency will go one channel/step in direction
pressed. Press and hold causes continuous manual tuning. Unit returns to seek tuning mode
after 4 seconds or after storing a station on a preset.
Preset Station Storage
After tuning desired frequency on desired band, press and hold a Preset Button for more than 2
seconds to store current frequency. Audio is muted during storage, preset number appears, and
beep acknowledges storage.
Preset Station Selection
Press desired Preset Button.
Travel Store
In any FM Bank, press SCA/TS for 2 seconds to activate FM Travel Store. (In AM Bank, press it
for 2 seconds to activate AM Travel Store.) TS appears. Beginning at the bottom of the band, TS
stores five relatively strong stations and returns to preset 1. Pressing any tuning-related button
cancels search operation.
Station Scan Tuning
Press SCA. Frequency blinks (along with preset number if appropriate) during scanning. Unit
stops at receivable stations for 4 seconds. Unit continuously scans until user stops scan by
pressing SCA, another tuning button or SRC.
BA Hannov. CR67 SEA gb® 29.04.2002, 13:29 Uhr14

15
Cassette Tape Player Operation
Tape Playback:
•Insert cassette into Cassette Door. (Note: Make sure that the side of the cassette exposed is
facing right and that all slack has been removed from the tape prior to insertion.)
•If ignition switch is already in “on” or accessory position, insertion of cassette will turn unit
on. If unit already turned on, cassette insertion will override other audio source, such as
radio. “LOAD” appears for 2 seconds. Cassette play will begin, and the display will indicate
which tape program is in use, “1” or “2”.
•The tape will continue to play until ejected, SRC button pressed, or unit turned off.
Ejecting The Tape
Press the eject button completely towards the face of the unit. The tape will eject. If uit is turned
on, EJ will appear in the display for 2 seconds and the last-heard radio station will play.
Tape Program Change
•Automatic Change (Autoreverse): When the end of the tape is reached, the unit will
automatically reverse direction and play the other side of the tape.
•Manual Change: To manually reverse tape direction, press both PROG (program) Buttons
(FR & FF) at the same time.
•The change in direction and in tape program will be confirmed in the display (“1” or “2”).
Fast Winding
•To Fast-Rewind the tape, press the FR Button. Tape rewinds and blinks in the display.
•To Fast-Forward the tape, press the FF Button. Tape fast-forwards and blinks in the
display.
•To stop fast-winding, press the other fast winding button, FR or FF.
Radio Monitor
During tape winding, the radio will play the most-recently heard radio frequency. All frequencies
stored on the current bank of preset stations are accessible during fast winding.
BA Hannov. CR67 SEA gb® 29.04.2002, 13:29 Uhr15

Jalan Pemimpin
38C - 38D Singapore 577180
Robert Bosch (Aust) Pty Ltd
P.O. Box 66 Rosebank MDC
Clayton Victoria 3169
Australia
Tahiti Sound
B.P. 3793 Papeetee Tahiti 98713
French Polynesia
Jebsen & Co. Ltd
(Consumer Products Division)
28F Caroline Centre
2-38 Yun Ping Road
Causeway Bay
Hong Kong
Jalan Let. Jen, Soeprapto 9A
Jakarta Pusat 10640
Indonesia
Motor Industries Co Ltd
Hosur Road
Adugodi
Blangalore 560 030
India
Robert Bosch K. K.
Automative Parts Division
9-1 Ushikubo 3-Chome
Kohoku-ku
Yokohama 223
Japan
Robert Bosch (SEA) Pte Ltd
8A Jalan 13/6
46200 Petaling Jaya
Selangor Darul Ehsan
Malaysia
Robert Bosch (Aust) Pty Ltd
New Zealand Branch
14-16 Constellation Drive
Mairangi Bay, Auckland
New Zealand
Robert Bosch Inc.
Zuellig Building
1200 Makati City
Sen Gil Puyat Ave
Metro, Manila
Philippines
Manhow Trading Co. Ltd
36 Wu Chuan Road
Wu-Ku Industrial Park
Taipei Hsien Taiwan, ROC
Robert Bosch Ltd
11th Floor Liberty Syuare
287 Silom Road
Bangrak
Bangkok 10500
Thailand
Copyright 1996 by the Robert Bosch Corporation
No portion of this work may be reproduced in any form without the written consent of the
Robert Bosch Corporation.
K7/VKD 8 622 400 940 (GB)
BA Hannov. CR67 SEA gb® 29.04.2002, 13:29 Uhr16
