Table of contents
Features......................................................................................................................................... 36
Traffic safety and precautions........................................................................................................ 36
Detachable face (release panel).................................................................................................... 37
Location of controls........................................................................................................................ 38
General operation .......................................................................................................................... 39
Audio operation.............................................................................................................................. 40
Radio operation ............................................................................................................................. 41
Cassette tape player operation...................................................................................................... 42
CD changer operation (when optional CD changer is connected)................................................. 43
Specifications................................................................................................................................. 44
Phoenix CM 127 (EU) gb® 02.05.2002, 11:41 Uhr35

Features
•Radio features
-15 FM/5 AM presets, including 5 FM and 5 AM Travelstore presets
-Station scan
-Local/distant seek and manual tuning
•Cassette tape player features
-Autoreverse cassette mechanism
-True fast-forward/rewind
-Radio Monitor
-Dolby B NR
•CD changer control features (optional)
-CDC-A 05, CDC-A 071 changer control
-Track up/down, disc up
-Track/disc scan, repeat, track mix
-Cue/review, pause/play
•Audio features:
-30 watts x 4 channel integrated amplifier
-2-channel preamp output
-Adjustable maximum turn-on volume
-Bass, treble, balance and fader control
-Loudness button
-Mute button
•Other features:
-Detachable face (release panel)
-Illumination, green
-Clock recall
-179 x 50 x 150 mm DIN/ISO chassis
-Detachable wire harness
-Snap-in DIN sleeve and mounting hardware
Your unit’s detachable front faceplate makes the unit useless to would-be thieves.
Designed, engineered and manufactured by Blaupunkt.
Traffic safety and precautions
•Do not adjust your unit in difficult driving conditions that demand your full attention.
•As the driver of a motor vehicle, it is your responsibility to pay attention to the traffic situation
at all times. Never use your unit in a way that could distract you.
•Always make sure that you are still able to hear any warning signals coming from outside of
the vehicle, such as police or fire engine sirens, so that you can react accordingly.
•If your vehicle was parked in direct sunlight resulting in a considerable rise in temperature
inside the vehicle, allow the unit to cool off before operating it.
Phoenix CM 127 (EU) gb® 02.05.2002, 11:41 Uhr36

DEUTSCH
ENGLISH
ESPAÑOL
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
Detachable face (release panel)
Detaching and attaching the face:
The face of this unit can be detached and taken with you to prevent it from being stolen.
Detaching the face:
Press the REL (release) button and detach the face by gently pulling it off as illustrated.
Note: Do not pull it straight out from the chassis. Be sure not to drop the face when detaching it
from the chassis. Do not expose the face to direct sunlight, heat sources such as hot air ducts or
leave it in a humid place.
Attaching the face:
Apply the right hand side of the face to the chassis by sliding (part B) of the face to (part A) at
the front of the chassis. Gently push the left side of the face against the front of the chassis until
it snaps into place.
Note: Do not press against the display window. Do not press hard against the face when
attaching it to the chassis, it may be easily attached with gentle pressure.
Affixing faceplate for retail display:
The faceplate can be affixed to the unit’s chassis, which is desirable for a retail display, for
example.
To affix the faceplate:
Insert the black bolt into the hole at the left front of the top of the radio. See * below.
*
A
B
Phoenix CM 127 (EU) gb® 02.05.2002, 11:41 Uhr37

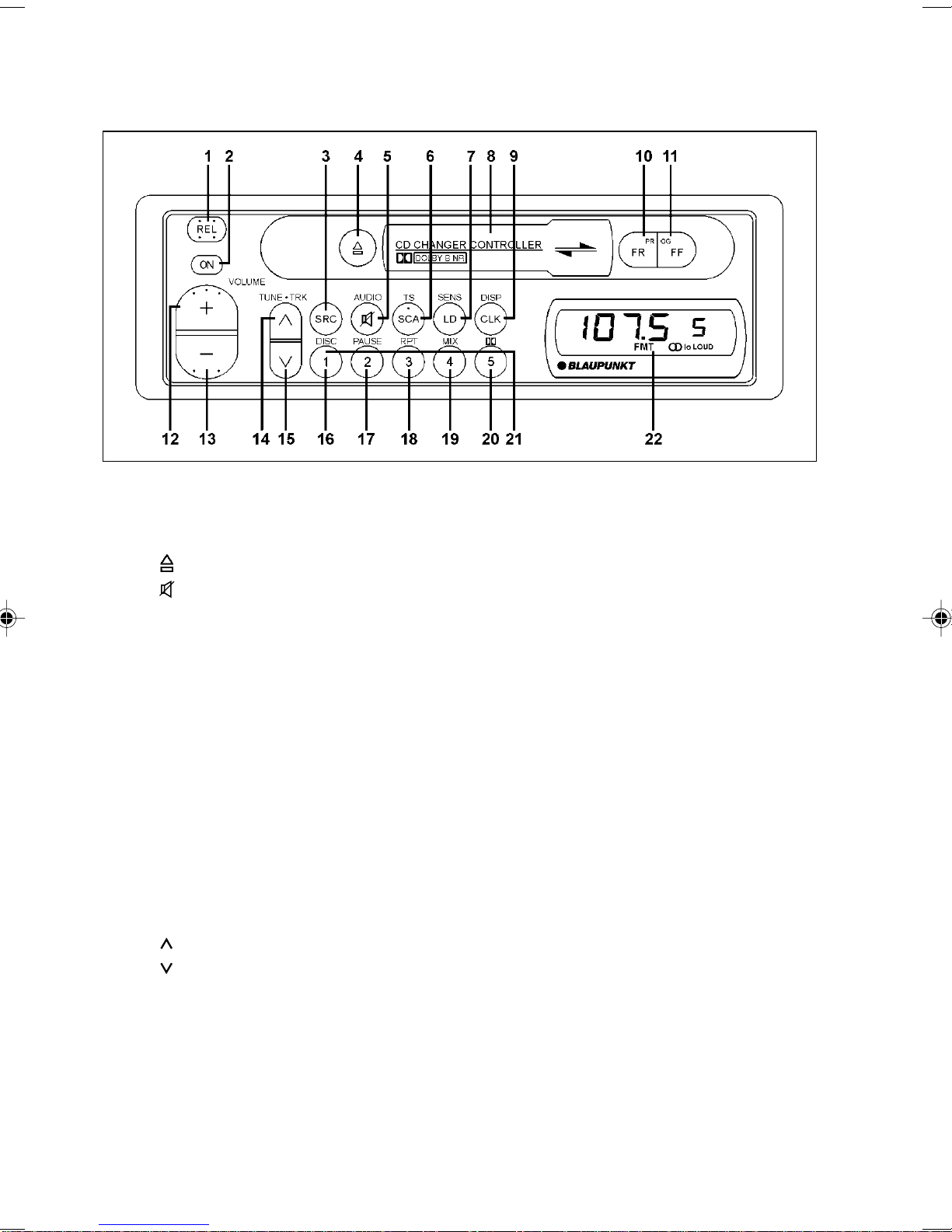

Location of controls
1REL (Release) – Detaching faceplate
2ON (Power) – Power on/off
3SRC –Source and radio band select
4–Cassette eject
5–Mute
AUDIO –Access to bass, treble, balance and fader adjust
6SCA –Scan / disc scan and track scan
TS –Travelstore
7LD –Loudness
SENS –Tuning sensitivity
8Cassette insertion slot
9CLK –Clock adjust access / clock recall
DISP –Display change
10/11 PROG –Tape program change (reverse)
10 FR –Fast rewind
11 FF –Fast forward
12 + –Volume + / bass + / treble + / balance left / fade to front
13 – –Volume - / bass - / treble - / balance right / fade to rear
14 –Seek and manual tuning / clock hours / track up / cue
15 –Seek and manual tuning / clock minutes / track down / track repeat /
review
16 DISC –Disc up
17 PAUSE –Disc pause
18 RPT (Repeat) – Disc and track repeat
19 MIX –Track repeat at random
20 –Dolby B NR (noise reduction)
21 1, 2, 3, 4, 5 –FM/AM presets
22 Display –Display
Phoenix CM 127 (EU) gb® 02.05.2002, 11:41 Uhr38

DEUTSCH
ENGLISH
ESPAÑOL
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
General operation
See “Traffic safety and precautions” on page 36.
“Press” means a momentary press of less than 1/2 second. All presses requiring more than
1/2 second are followed by a beep.
“Time Out” When additional button presses are anticipated to complete a procedure, the unit will
automatically exit the procedure after 4 seconds of inactivity.
Ignition on
The unit lights up and the clock is displayed, provided it has been set before. Otherwise, “12:00”
appears. How to set the clock is described under “Setting the clock”.
Power on
When the ignition is on, press ON or insert a tape to turn the unit on. The last-used source
becomes active, unless the unit is turned on by inserting a cassette, in which case the cassette
player becomes active.
Setting the clock
Turn the unit on. Press and hold the CLK button until the clock starts blinking. Once the clock
starts blinking, press the button to set the hour, and press the button to set the minutes.
Press the CLK button again to activate the clock.
Audio source
Use SRC to select the disired audio source. AM, FM1, FM2, FMT, cassette (if already inserted)
and CD changer (if connected) will be activated one after the other.
Changing the information displayed
You can temporarily change the information shown in your unit’s display. You can also select
which information has “display priority” and is shown in the display. When pressing a button, the
display will always switch to the selected mode.
•To change the display priority, press the DISP button for two seconds. The display priority
changes. The display priority choices are radio frequency, “TAPE 1” or “TAPE 2”, track or
CD number (when optional CD changer is connected) and the clock.
•To change the display temporarily, press and release the DISP button to access the desired
information. After four seconds, the display changes back to the priority information.
Power off
Press ON for more than 1/2 second to turn the unit off.
Release for detachable faceplate
Push REL to detach the face. A cassette already inserted remains in the unit. The current
settings and the source mode are stored. If power was not switched off before you removed the
face, the unit will automatically power-on when the face is reattached.
Phoenix CM 127 (EU) gb® 02.05.2002, 11:41 Uhr39

Audio operation
Volume control buttons
Press + and – to increase/decrease the volume from 0 to 63.
Adjustable maximum turn-on volume
Press and hold the ON button for more than two seconds. The unit turns off and the turn-on
volume level is memorized.
Mute
Press to temporarily reduce the volume. “MUTE” appears. Mute is terminated by pressing any
button.
Bass, treble, balance and fader
•Bass
Hold down the AUDIO button until “BASS” appears and then press immediately +or –to
increase or decrease the bass in intervals between 7 and -7.
•Treble
Hold down the AUDIO button until “BASS” appears. Then press AUDIO once again so that
“TREb” appears. Now press immediately + or – to increase or decrease the treble in
intervals between 7 and -7.
•Balance
Hold down the AUDIO button until “BASS” appears. Then press AUDIO twice so that “BAL”
appears. Now press immediately +or –to adjust the left/right volume between 9 (left) and -9
(right).
•Fader
Hold down the AUDIO button until “BASS” appears. Then press AUDIO three times so that
“FADE” appears. Now press immediately +or -to adjust the front/rear volume between 9
(front) and -9 (rear).
Loudness
Press LD to boost the low frequencies for a more natural sound. The “LOUD” icon appears. To
cancel, press LD again.
Phoenix CM 127 (EU) gb® 02.05.2002, 11:41 Uhr40

DEUTSCH
ENGLISH
ESPAÑOL
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
Radio operation
Selecting the waveband/memory bank
Press SRC repeatedly to access the modes FM1, FM2, FM3/FMT (FM banks 1-2-3,
T=Travelstore), AM/AMT (AM bank and AM Travelstore).
Tuning sensitivity
Press SENS for more that 2 seconds to switch between lo and dx search sensitivity (for local
and distant stations). In general, set SENS to lo when in metropolitan areas or where stations
tend to be strong and local (“lo” appears), and to dx if in rural areas or where stations tend to be
weak and distant.
Seek tuning
Press or to seek next receivable frequency. Tuning stops at the next frequency that fulfils
the sensitivity requirements predetermined.
Manual tuning
To activate manual tuning press and hold or until you hear a beep. Press or again and
the frequency will go one channel/step in the direction pressed. Press and hold causes
continuous manual tuning. The manual tuning mode has to be reactivated after 4 seconds or
after storing a station on a preset.
Preset station storage
After tuning to the desired radio station on the desired band, press and hold a preset button for
more than 2 seconds to store the current frequency. Audio is muted during the storage, the
preset number appears, and a beep acknowledges the storage. The number of the selected
preset appears in the display.
Travelstore
Press TS for 2 seconds to activate FM or AM Travelstore. “TS” appears. Beginning at the
bottom of the band, TS stores the five strongest stations sorted according to the signal strength
and returns to preset 1.
Preset station selection
Press desired preset button.
Station scan tuning
Press SCA. The frequency blinks during scanning. The unit stops at receivable stations for
4seconds. The unit continuously scans until the user stops scan by pressing SCA.
Radio reception hint
When listening to weak or distant AM stations, adjusting the treble to minimum (-7) will reduce
noise and improve sound.
Stereo symbol
The stereo symbol “ ” turns on if a stereo station with a sufficiently strong signal is received.
The unit gradually switches between mono and stereo automatically.
Phoenix CM 127 (EU) gb® 02.05.2002, 11:41 Uhr41

Cassette tape player operation
Tape playback:
Insert the tape into the slot. (Note: make sure the open side faces to the right.) When the ignition
is on, the unit turns on by inserting a tape. Tape playback will start when the cassette is
inserted. “LOAD” will briefly appear in the display. If “TAPE 1” appears, side 1 or A of the tape is
played. “TAPE 2” stands for side 2 or B.
Ejecting the tape
Press the button completely towards the face of the unit. The tape will eject. If the unit is
turned on, “EJ” will briefly appear in the display and the last-heard radio station will play.
Tape program change
•Automatic change (autoreverse): When the end of the tape is reached, the unit will
automatically reverse the direction and play the other side of the tape.
•Manual change: To manually reverse the tape direction, press both PROG (program)
buttons (FR and FF) at the same time.
Fast winding
•To fast-rewind the tape, press the FR button. Tape rewinds and “ ” blinks in the display.
•To fast-forward the tape, press the FF button. Tape fast-forwards and “ ” blinks in the
display.
•To stop fast-winding, press the other fast winding button, FR or FF.
Radio Monitor
During tape winding, the radio will play the most-recently heard radio frequency. All frequencies
stored on the current bank of preset stations are accessible during fast winding.
Dolby B NR*
With this unit you can play back tapes recorded with Dolby B NR or without noise reduction.
Cassette tapes recorded with Dolby B NR stand out by their reduced tape hiss and the improved
dynamics. If Dolby B NR is switched on, “ ” will light up in the display. To switch on/off: Press
the button.
*Noise Reduction system manufactured under license from Dolby Laboratories Licensing Corporation.
Dolby and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
Phoenix CM 127 (EU) gb® 02.05.2002, 11:41 Uhr42

DEUTSCH
ENGLISH
ESPAÑOL
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
CD changer operation
(when optional CD changer is connected)
Your radio is ready to control the Blaupunkt CD changer CDC-A 05 or CDC-A 071 with the Disc
Management System. The CD changer is not included in the delivery. See your Blaupunkt
dealer for more information.
Make sure that at least one CD is inserted in the magazine. Press SRC until, for example,
“T 1 d 1” appears to indicate that track 1 and disc 1 will be played.
Track up/down
Press to select tracks in upward direction. The display will show the new track number.
Pressing while the last track is played selects the next disc. Press twice or several times to
select a track in downward direction. Press more than 1 second to repeat the current track.
Disc up
Press DISC to select the next CD. The new disc number appears. Hold down DISC to speed up
the selection.
Cue and review
Press and hold down the or button for audible cue and review.
Track repeat
Press RPT once to repeat the current track. The display will show “rPT” and the current track
number. Pressing RPT twice cancels the track repeat function. “PLAY” will briefly appear.
Disc repeat
Press RPT twice to repeat the current disc. The display will show “rPTd” and the current disc
number. The disc will be repeated when all tracks on the CD have been played. Pressing RPT
once cancels the disc repeat function. “PLAY” will briefly appear.
Track mix
Press MIX once to play all tracks on the disc at random. The display will show “rdM” and the
current track number. When each track of the disc has been played at random, the unit will
automatically select the next disc. Press MIX twice to cancel the track mix function. “PLAY” will
briefly appear.
Disc mix
Press MIX twice to play tracks and discs at random. The display will show “rdMd” and the
current disc number. Pressing MIX once cancels the disc mix function. “PLAY” will briefly
appear.
Pause
Press PAUSE to interrupt playback. “PAUSE” will appear. Press PAUSE again to continue
playback.
Track scan
Press SCA to scan all tracks for 10 seconds each. The track number will flash in the display.
When all tracks of the disc have been scanned, the unit will start scanning the next disc. Press
SCA again to cancel the track scan function.
Disc scan
Press SCA for more than 2 seconds. The disc number will flash in the display. The unit starts
scanning the first track of each disc for 10 seconds. Press SCA again to cancel the disc scan
function.
Changer reset
In the unlikely case of CD changer malfunction, reset the CD changer by turning the unit off and
on.
Phoenix CM 127 (EU) gb® 02.05.2002, 11:41 Uhr43

Specifications
Audio power specifications
Power output and total harmonic distortion: 19 watts per channel minimum continuous average
output into 4 ohms, 4 channels driven, from 35-15000 Hz.
Other specifications
Tuner
FM
Tuning range: 87.5 - 108 MHz
FM mono sensitivity: 1.0 µV
Signal-to-noise ratio: 65 dB (stereo), 70 dB (mono)
Frequency response: 35-15000 Hz
AM
Tuning range: 531 - 1602 kHz
Signal-to-noise ratio: 50 dB
Frequency response: 35-5000 Hz
Cassette
Signal-to-noise ratio: 55 dB
Dolby B NR: 65 dB
Tape wow and flutter: 0.3 %
Tape frequency response: 35-15000 Hz
Audio
Speaker impedance: 4-8 ohms
Maximum amp power: 4 x 30 watts (at 4 ohms)
RMS power: 4 x 19 watts (at 4 ohms)
acc. to DIN 45 324 at 14.4 volts
General
Dimensions (w/o projecting parts/controls): 179 x 50 x 150 mm
Mass: Approx. 1.4 kg
Power requirement (neg. grnd.): 12 V DC car battery (11-16 V DC allowable)
Operating temperature: -20°C to 60°C
Supplied accessories: • Unit
• Faceplate (release panel)
• Wire harness
• DIN sleeve
• Mounting hardware
• Owner’s manual
• Car radio passport
• Labels
Design and specifications subject to change without notice.
Blaupunkt-Werke GmbH
Bosch Gruppe
07/97 Sl K7/VKD 8 622 401 230
Phoenix CM 127 (EU) gb® 02.05.2002, 11:41 Uhr44

Blaupunkt-Werke GmbH
Bosch Gruppe
06/97 Sl K7/VKD 8 622 401 306
Phoenix CM 127 (EU) d® 02.05.2002, 11:37 Uhr12
